0-57 — EMISSION PIPING (#81660) — 57 parça

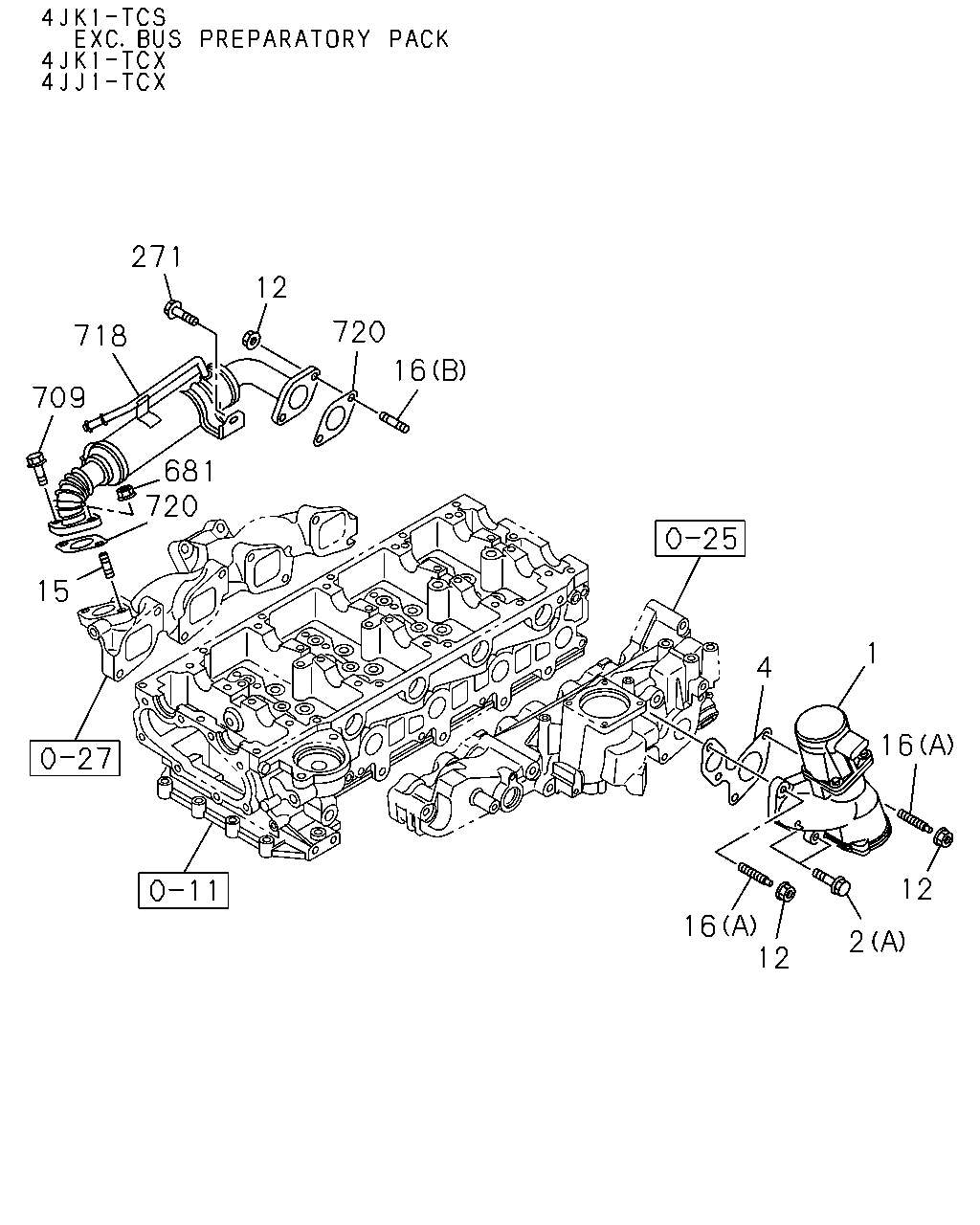

çizim 147369
271 720 12 718 709 16 681 720 15 16 12 16 1 4 12 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 VALVE; EGR
THA 		8-98133-202-3 01 1 1109- ● ● ●
2 BOLT; EGR VLV
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1109- ● ● ●
2 BOLT; EGR VLV
BUS PREPARATORY PACK<7VX> (B) M8X20 HEX SOCKET IMA 		0-58330-820-0 02 1 1110-1211 ●
4 GASKET; EGR VLV
THA 		8-97356-711-3 01 1 1109- ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 1109- ● ● ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 01 1 1109-1109 ● ● ●
15 STUD; EGR PIPE
EXC. BUS PREPARATORY PACK<7VX> M8X22 L=33 THA 		8-94257-319-0 01 1 1110-1211 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 01 1 1110-1211 ● ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 01 1 1212- ● ● ●
16 STUD; EGR VLV
(A) M8X22 L=40 THA 		0-49140-822-0 02 1 1109- ● ● ●
16 STUD; EGR VLV
(B) M8X22 L=33 THA 		8-94257-319-0 02 1 1109- ● ● ●
271 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1109-1109 ● ● ●
271 BOLT; BRKT
EXC. BUS PREPARATORY PACK<7VX> M8X12 FLANGE THA 		0-28050-812-0 01 1 1110-1211 ●
271 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1110-1211 ● ●
271 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1212- ● ● ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 01 1 1109-1109 ● ● ●
681 NUT; EGR PIPE
EXC. BUS PREPARATORY PACK<7VX> M8 FLANGE THA 		0-91180-208-0 01 1 1110-1211 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 01 1 1110-1211 ● ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 01 1 1212- ● ● ●
709 BOLT; EGR COOLER
M8X23 FLANGE IMA 		8-97378-077-0 01 1 1109-1109 ● ● ●
709 BOLT; EGR COOLER
EXC. BUS PREPARATORY PACK<7VX> M8X23 FLANGE IMA 		8-97378-077-0 01 1 1110-1211 ●
709 BOLT; EGR COOLER
M8X23 FLANGE IMA 		8-97378-077-0 01 1 1110-1211 ● ●
709 BOLT; EGR COOLER
M8X23 FLANGE IMA 		8-97378-077-0 01 1 1212- ● ● ●
718 COOLER; EGR
THA 		8-98132-052-1 01 1 1109-1109 ● ● ●
718 COOLER; EGR
EXC. BUS PREPARATORY PACK<7VX> THA 		8-98132-052-2 01 1 1110-1211 ●
718 COOLER; EGR
THA 		8-98132-052-2 01 1 1110-1211 ● ●
718 COOLER; EGR
THA 		8-98132-052-3 01 1 1212- ● ● ●
720 GASKET; COOLER
THA 		8-97357-684-3 02 1 1109-1109 ● ● ●
720 GASKET; COOLER
EXC. BUS PREPARATORY PACK<7VX> THA 		8-97357-684-3 02 1 1110-1211 ●
720 GASKET; COOLER
THA 		8-97357-684-3 02 1 1110-1211 ● ●
720 GASKET; COOLER
THA 		8-97357-684-3 02 1 1212- ● ● ●

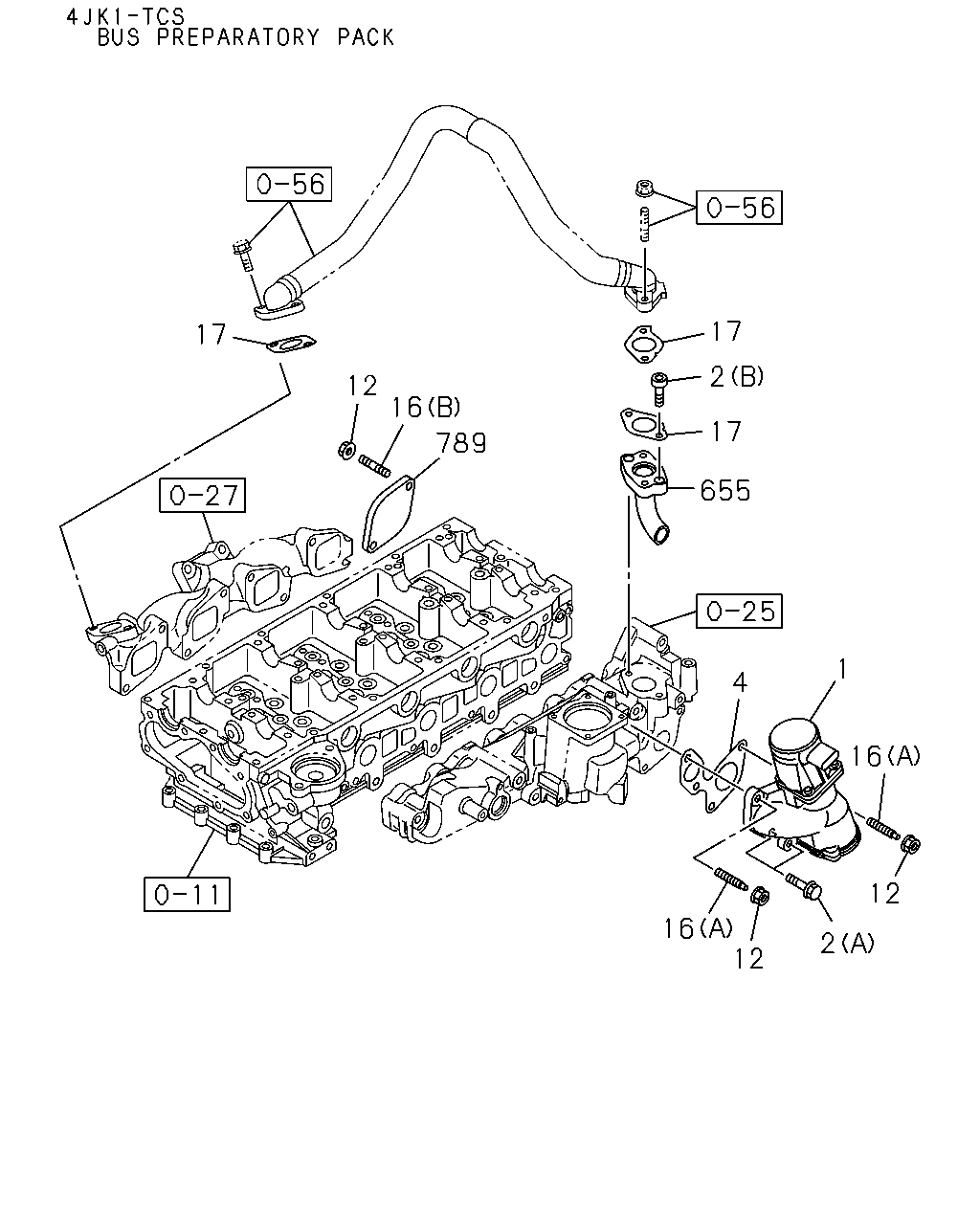

çizim 147372
17 12 789 17 17 2 655 1 4 16 12 2 12 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 VALVE; EGR
THA 		8-98133-202-3 01 1 1109- ● ● ●
2 BOLT; EGR VLV
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1109- ● ● ●
2 BOLT; EGR VLV
BUS PREPARATORY PACK<7VX> (B) M8X20 HEX SOCKET IMA 		0-58330-820-0 02 1 1110-1211 ●
4 GASKET; EGR VLV
THA 		8-97356-711-3 01 1 1109- ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 1109- ● ● ●
16 STUD; EGR VLV
(A) M8X22 L=40 THA 		0-49140-822-0 02 1 1109- ● ● ●
16 STUD; EGR VLV
(B) M8X22 L=33 THA 		8-94257-319-0 02 1 1109- ● ● ●
17 GASKET; EGR PIPE
BUS PREPARATORY PACK<7VX> THA 		8-97357-684-3 03 1 1110-1211 ●
655 PIPE; EGR VLV
BUS PREPARATORY PACK<7VX> THA 		8-98132-053-0 01 1 1110-1211 ●
789 COVER; COOLER,EGR
BUS PREPARATORY PACK<7VX> THA 		8-98105-261-0 01 1 1110-1211 ●

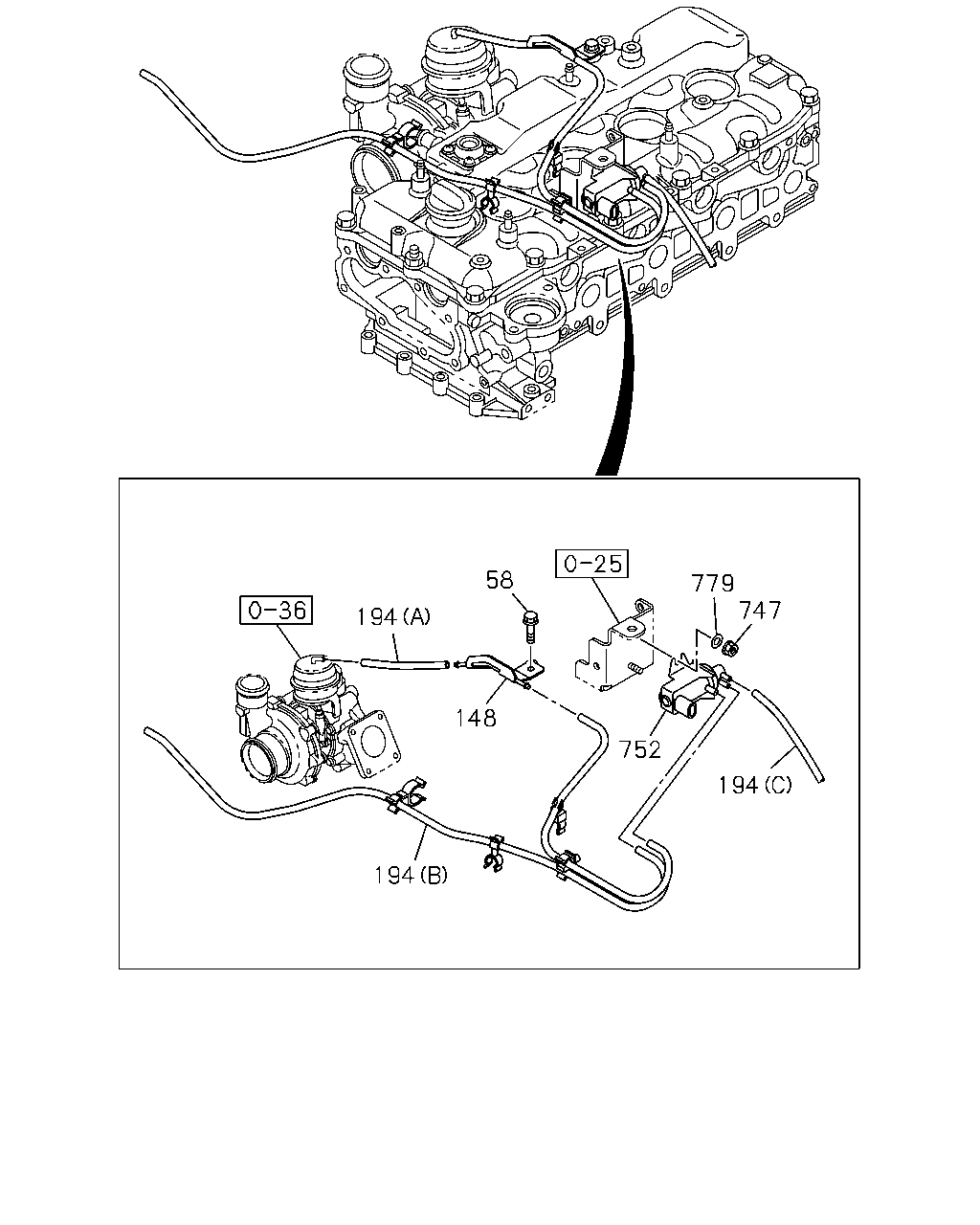

çizim 147374
58 779 747 194 752 148 194 194
BalonParca AdiParca NoAdetTipApplied Date A B C
58 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1109- ● ●
148 PIPE; VAC
THA 		8-98132-082-0 01 1 1109- ● ●
194 HOSE; VAC
(A) THA 		0-14040-110-0 01 1 1109- ● ●
194 HOSE; VAC
(B) THA 		8-98132-500-0 01 1 1109- ● ●
194 HOSE; VAC
(C) THA 		8-98158-205-1 01 1 1109- ● ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 1109- ● ●
752 VALVE; EVRV
IMA 		8-98116-260-0 01 1 1109- ● ●
779 WASHER; VALVE
ID=8.4 OD=18 IMA 		0-91610-608-0 02 1 1109- ● ●
çizim 320015
194 58 779 747 194 752 148 194
BalonParca AdiParca NoAdetTipApplied Date A B C
58 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1109- ● ●
148 PIPE; VAC
THA 		8-98132-082-0 01 1 1109- ● ●
194 HOSE; VAC
(A) THA 		0-14040-110-0 01 1 1109- ● ●
194 HOSE; VAC
(B) THA 		8-98132-500-0 01 1 1109- ● ●
194 HOSE; VAC
(C) THA 		8-98158-205-1 01 1 1109- ● ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 1109- ● ●
752 VALVE; EVRV
IMA 		8-98116-260-0 01 1 1109- ● ●
779 WASHER; VALVE
ID=8.4 OD=18 IMA 		0-91610-608-0 02 1 1109- ● ●
