0-51 — OIL PUMP AND OIL STRAINER (#81657) — 9 parça

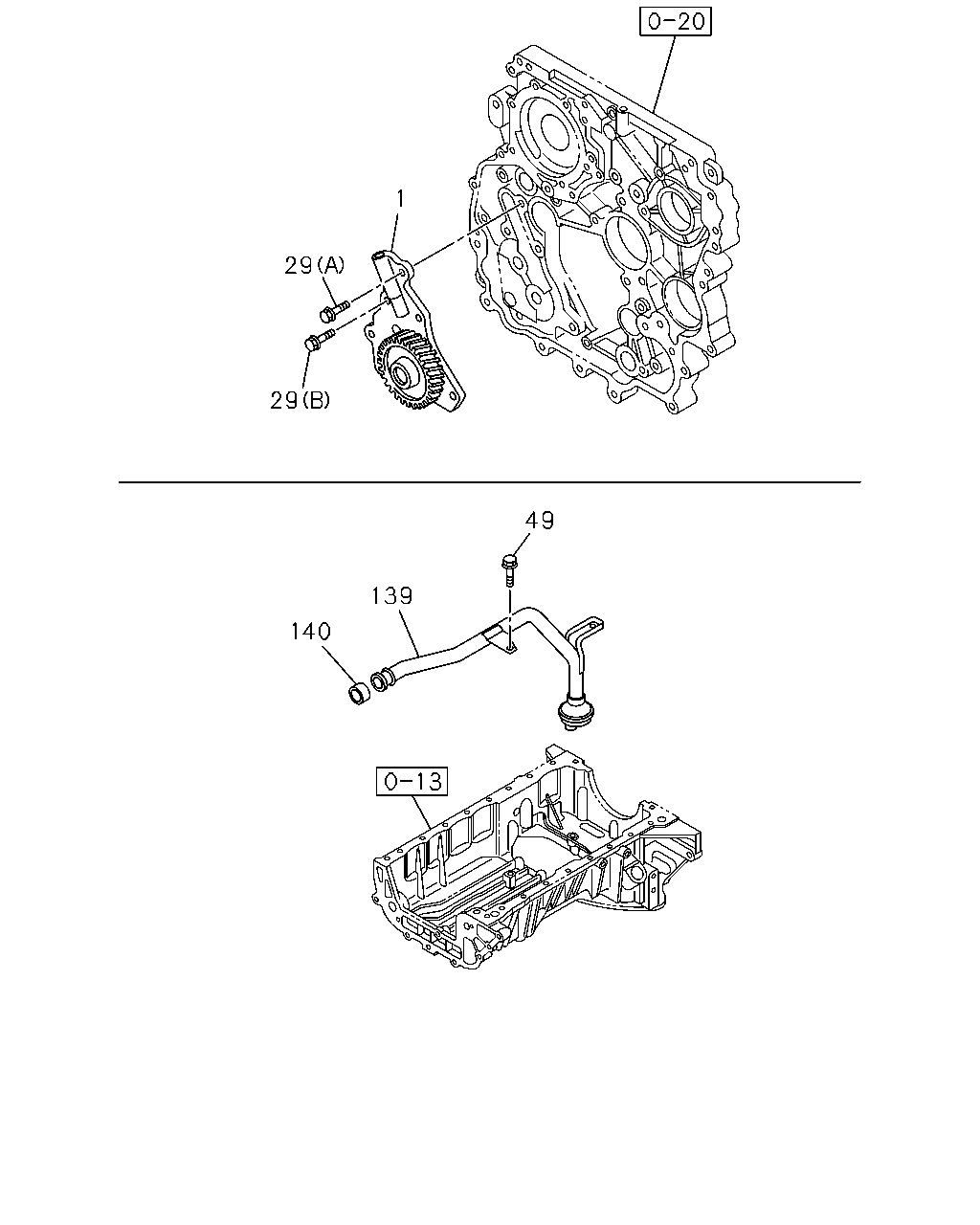

çizim 147352
1 29 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL
THA 		8-98128-134-0 01 1 1109-1303 ● ● ●
1 PUMP ASM; OIL
THA 		8-98232-624-1 01 1 1304- ● ● ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28050-830-0 04 1 1109- ● ● ●
29 BOLT; OIL PUMP
(A) M8X45 FLANGE THA 		0-28050-845-0 02 1 1109- ● ● ●
49 BOLT; STRAINER,OIL PUMP
M8X12 FLANGE THA 		0-28050-812-0 02 1 1109-1405 ● ● ●
49 BOLT; STRAINER,OIL PUMP
M8X16 FLANGE THA 		0-28050-816-0 02 1 1406- ● ● ●
139 PIPE; OIL STRAINER
4X2<TFB***> THA 		8-98127-247-0 01 1 1109- ● ● ●
139 PIPE; OIL STRAINER
4X4<TFS***> THA 		8-98132-012-0 01 1 1109- ● ● ●
140 GASKET; OIL STRAINER
THA 		8-97356-150-0 01 1 1109- ● ● ●
