◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#81653) — 45 parça

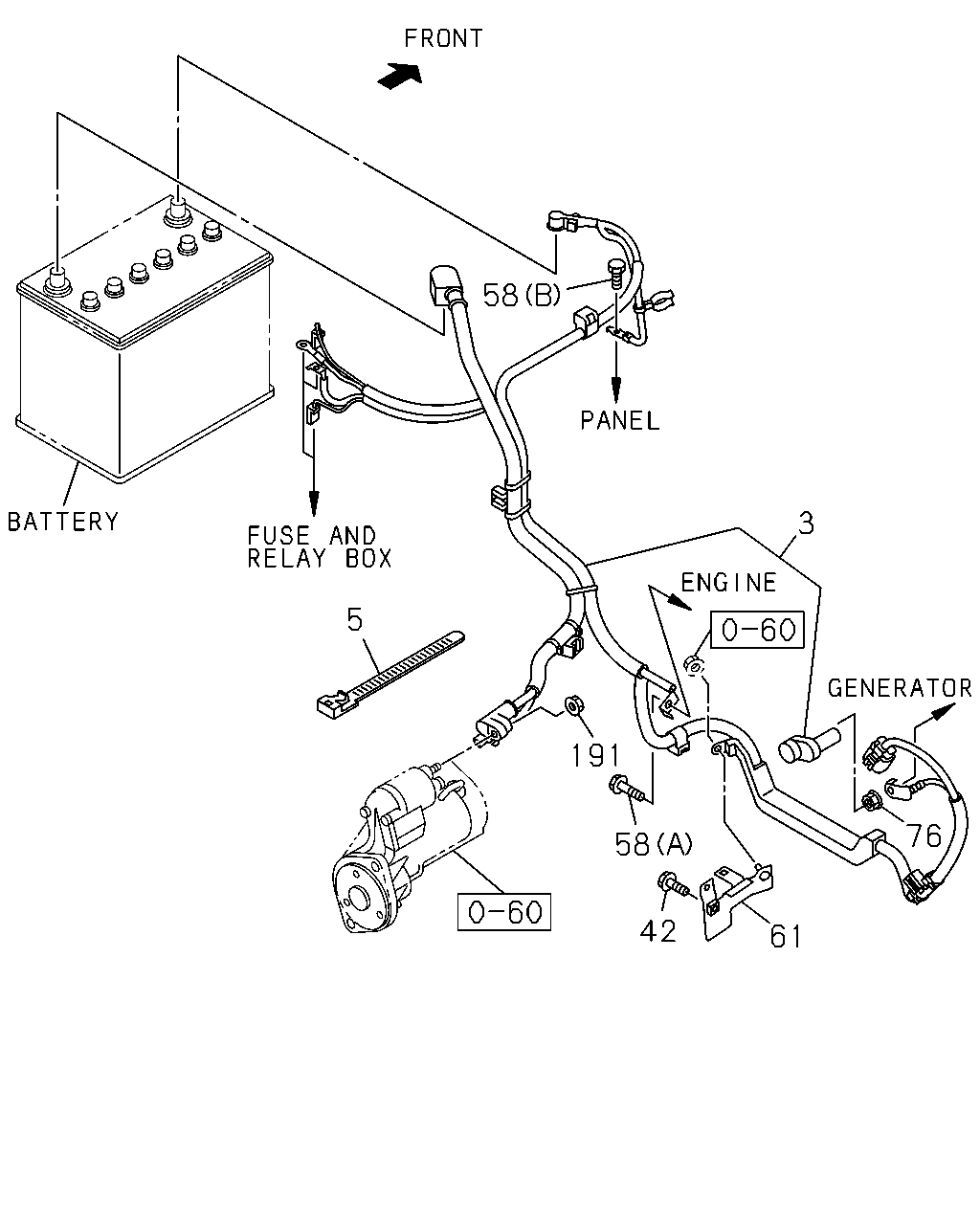

çizim 73754
58 3 76 61 58 191 5 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2 CREW CAB(TFB*W*) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) 		8-98230-233-1 01 1 1210-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) 		8-98230-233-1 01 1 1302- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98160-808-2 01 1 1206-1209 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2 REGULAR CAB(TFB*S*) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98160-808-3 01 1 1210-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2 CREW CAB(TFB*W*) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-808-3 01 1 1210-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-808-3 01 1 1302- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98160-809-3 01 1 1205-1205 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98160-809-3 01 1 1206-1210 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98160-809-3 01 1 1211- ● ● ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 03.162 L=140 		5-09707-031-1 01 1 1210-1301 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) HIGH RIDE SUSPENSION(7YC) 03.162 L=140 		5-09707-031-1 01 1 1302- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1206- ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1205-1205 ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1206-1210 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1211- ● ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1205-1205 ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1206-1210 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1211-1501 ● ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ● ● ●
61 02.333 BRACKET; BATTERY CABLE 8-97260-935-2 01 1 1206- ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1206- ●
191 08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1205-1205 ●
191 08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1206-1210 ● ● ● ●
191 08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1211- ● ● ● ● ● ●

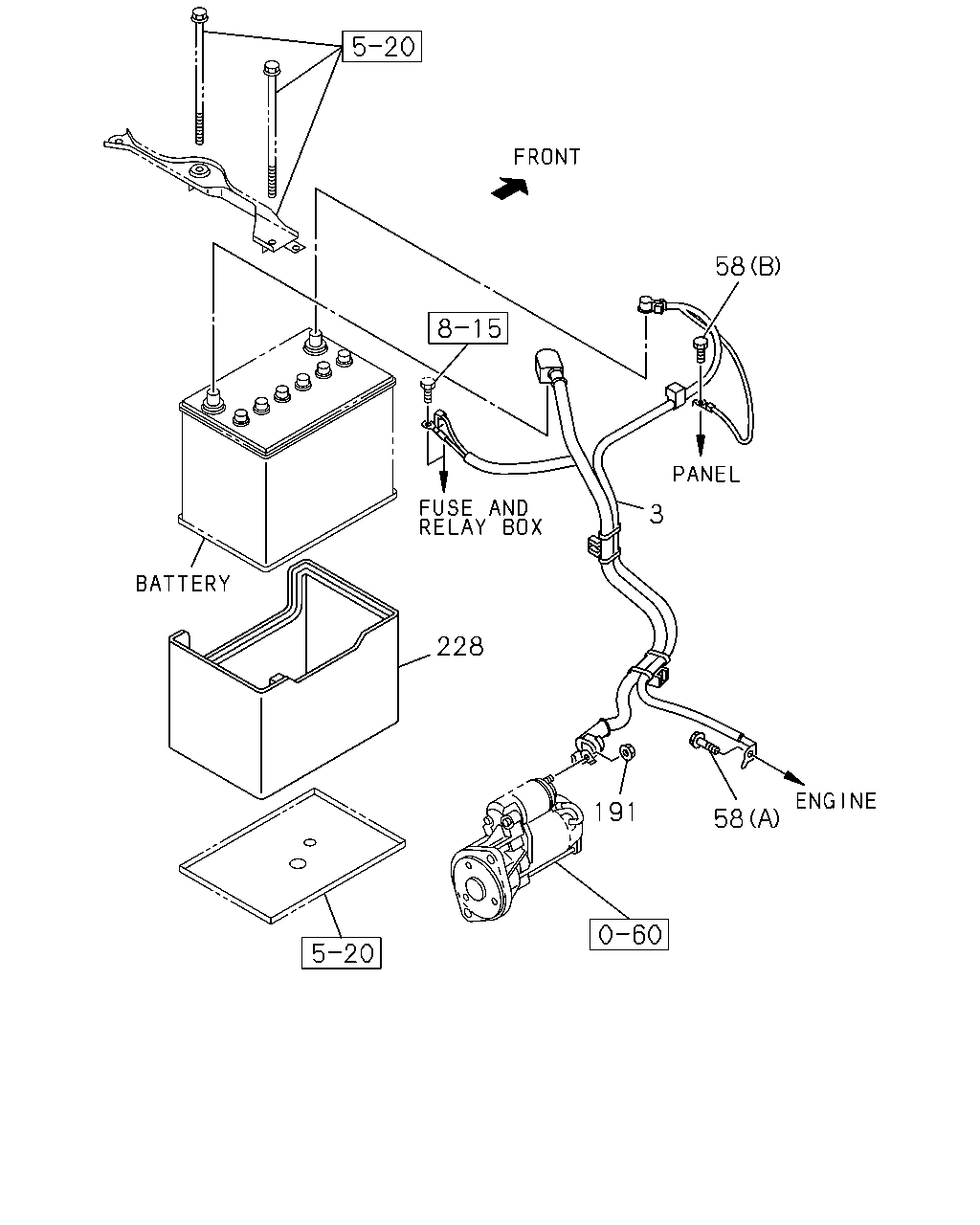

çizim 194344
3 58 228 191 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2 CREW CAB(TFB*W*) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) 		8-98230-233-1 01 1 1210-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) 		8-98230-233-1 01 1 1302- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98160-808-2 01 1 1206-1209 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2 REGULAR CAB(TFB*S*) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98160-808-3 01 1 1210-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2 CREW CAB(TFB*W*) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-808-3 01 1 1210-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-808-3 01 1 1302- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98160-809-3 01 1 1205-1205 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98160-809-3 01 1 1206-1210 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98160-809-3 01 1 1211- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1205-1205 ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1206-1210 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1211- ● ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1205-1205 ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1206-1210 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1211-1501 ● ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ● ● ●
191 08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1205-1205 ●
191 08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1206-1210 ● ● ● ●
191 08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1211- ● ● ● ● ● ●
228 03.602 SHIELD; BATTERY
EURO5 SPECIFICATION<NT5> BATTERY 80D26L(TM1) 		8-98154-328-0 01 1 1206- ●
228 03.602 SHIELD; BATTERY
EURO5 SPECIFICATION<NT5> BATTERY 95D31L(TQ8) 		8-98154-327-0 01 1 1206- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
