0-60 — ENGINE ELECTRICAL CONTROL PARTS (#81652) — 278 parça

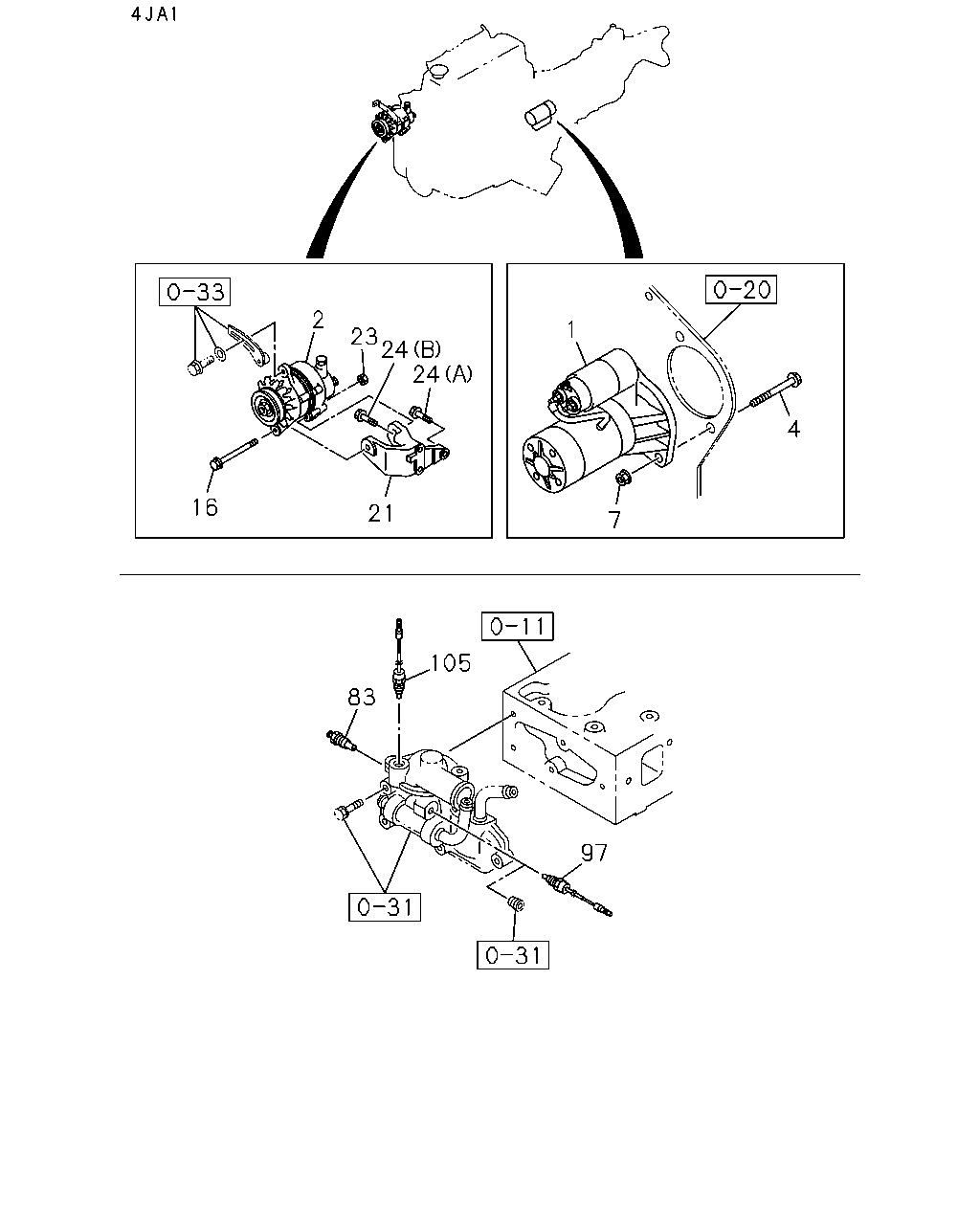

çizim 72573
16 2 23 24 24 21 1 7 4 105 83 97
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 1206- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98183-655-0 01 1 1206- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1205-1205 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1206-1210 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1211- ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-0 01 1 1210-1210 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-0 01 1 1211-1211 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212- ● ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97245-850-2 01 1 1206- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1205-1205 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1206-1209 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98196-585-0 01 1 1210-1211 ● ● ● ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X70 FLANGE 		8-98183-142-0 01 1 1311-1311 ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1206-1209 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1210-1302 ● ● ● ● ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1210-1302 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1303-1311 ● ● ● ● ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1303-1311 ●
4 02.042 BOLT; STARTER
A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1303-1311 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1312- ● ● ● ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1312- ●
4 02.042 BOLT; STARTER
M12X70 FLANGE 		8-98183-142-0 02 1 1206- ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1205-1205 ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1206-1209 ● ● ●
4 02.042 BOLT; STARTER
M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1210-1210 ● ● ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1210-1210 ● ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1210- ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1205-1205 ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1206-1210 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1211- ● ● ● ● ●
16 02.277 BOLT; GEN
4X2(TFB***) M10X130 FLANGE 		0-28056-013-0 01 1 1206- ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1205-1205 ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1206-1210 ● ● ● ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1211- ● ● ● ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 1206- ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1205-1205 ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1206-1210 ● ● ● ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1211- ● ● ● ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1205-1205 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1206-1310 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1311- ● ● ● ● ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 1206- ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 1206- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1206- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1206- ●
97 01.150 SWITCH; THERMO,EGR CONT
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-94457-511-0 01 1 1206- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 1206- ●
395 02.343 NUT; BRKT FIX
16.320 M6 FLANGE 		8-98049-362-0 01 1 1206- ●

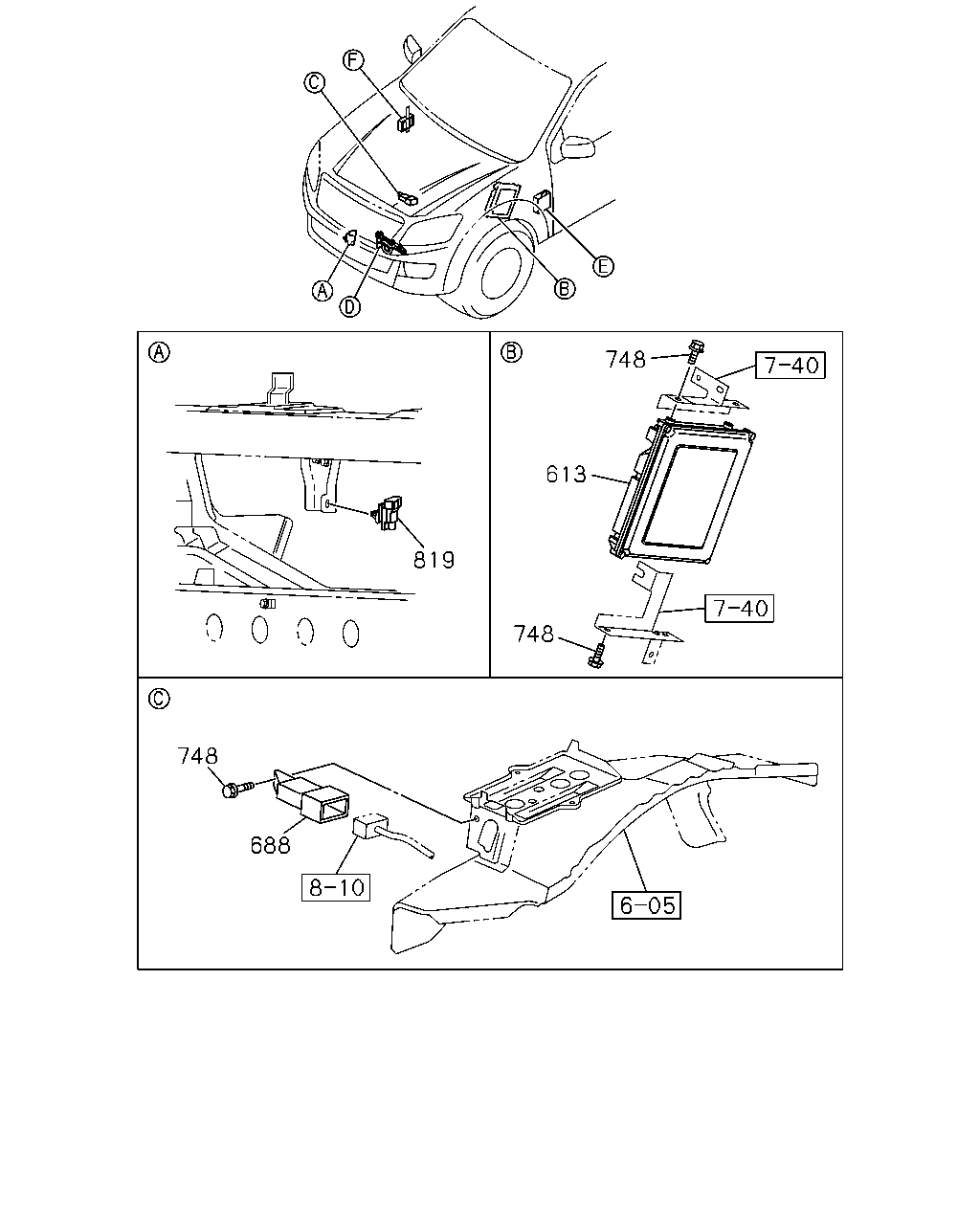

çizim 72649
748 613 748 819 748 688
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
395 02.343 NUT; BRKT FIX
16.320 M6 FLANGE 		8-98049-362-0 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98170-900-2 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-900-2 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98170-902-2 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) MALAYSIA EQUIPMENT(B10) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98170-890-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) MALAYSIA EQUIPMENT(B10) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-890-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) MALAYSIA EQUIPMENT(B10) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98170-891-4 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) MALAYSIA EQUIPMENT(B10) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98170-892-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) MALAYSIA EQUIPMENT(B10) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98170-893-4 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98170-876-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-876-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) MALAYSIA EQUIPMENT(B10) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98170-884-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) MALAYSIA EQUIPMENT(B10) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-884-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) MALAYSIA EQUIPMENT(B10) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98170-886-4 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) MALAYSIA EQUIPMENT(B10) EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98170-887-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) MALAYSIA EQUIPMENT(B10) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98170-887-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) MALAYSIA EQUIPMENT(B10) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98170-889-4 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98170-864-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-864-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98170-872-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) 		8-98170-857-3 01 1 1211-1406 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) 		8-98170-857-3 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98170-857-3 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) 		8-98170-853-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98170-853-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98170-880-3 01 1 1211- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. MALAYSIA EQUIPMENT(B10),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98170-870-3 01 1 1211-1406 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. MALAYSIA EQUIPMENT(B10),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98170-870-3 01 1 1211-1406 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98170-870-3 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98170-870-3 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98178-141-2 01 1 1206-1408 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98288-113-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO1 SPECIFICATION<NT1> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98207-916-0 01 1 1206-1408 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO1 SPECIFICATION<NT1> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98288-115-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98178-139-2 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98178-139-2 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98178-137-2 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98178-137-2 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98178-138-2 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5H(MWQ) EURO1 SPECIFICATION<NT1> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98207-912-0 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO1 SPECIFICATION<NT1> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98207-912-0 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO1 SPECIFICATION<NT1> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98207-913-0 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98178-140-2 01 1 1206-1408 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98178-140-2 01 1 1206-1408 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98288-112-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98288-112-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO1 SPECIFICATION<NT1> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98207-915-0 01 1 1206-1408 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO1 SPECIFICATION<NT1> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98288-114-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98170-909-2 01 1 1206-1408 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98288-117-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98171-347-7 01 1 1206-1212 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98234-568-1 01 1 1301-1310 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98250-654-1 01 1 1311- ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98170-862-2 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98170-862-2 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98170-859-2 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98170-859-2 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION(7YC) 		8-98170-861-2 01 1 1206- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98170-907-2 01 1 1206-1408 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98288-116-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98171-354-7 01 1 1206-1212 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> 		8-98171-354-7 01 1 1206-1212 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98234-572-1 01 1 1301-1310 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> 		8-98234-572-1 01 1 1301-1310 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98250-658-0 01 1 1311-1311 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> 		8-98250-658-0 01 1 1311-1311 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> 		8-98250-658-2 01 1 1312- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98171-352-7 01 1 1206-1212 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98171-352-7 01 1 1206-1212 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98234-571-1 01 1 1301-1310 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98234-571-1 01 1 1301-1310 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98250-657-0 01 1 1311-1311 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98250-657-0 01 1 1311-1311 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98250-657-2 01 1 1312- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98171-350-7 01 1 1206-1212 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> 		8-98171-350-7 01 1 1206-1212 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98234-570-1 01 1 1301-1310 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> 		8-98234-570-1 01 1 1301-1310 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98250-656-0 01 1 1311-1311 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> 		8-98250-656-0 01 1 1311-1311 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98250-656-1 01 1 1312- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> 		8-98250-656-1 01 1 1312- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98171-348-7 01 1 1206-1212 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30> 		8-98171-348-7 01 1 1206-1212 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98234-569-1 01 1 1301-1310 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30> 		8-98234-569-1 01 1 1301-1310 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98250-655-0 01 1 1311-1311 ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30> 		8-98250-655-0 01 1 1311-1311 ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98250-655-1 01 1 1312- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30> 		8-98250-655-1 01 1 1312- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98170-836-2 01 1 1205- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98170-833-2 01 1 1205- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) 		8-98170-839-2 01 1 1205- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98170-839-2 01 1 1205- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98170-837-2 01 1 1205- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-837-2 01 1 1205- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) 		8-98170-834-2 01 1 1205- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98170-834-2 01 1 1205- ●
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98170-831-2 01 1 1205- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98170-831-2 01 1 1205- ●
688 02.510 CONTROLLER; GLOW PLUG 8-98176-474-0 01 1 1206- ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1206- ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1205-1205 ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1206-1210 ● ● ● ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1211- ● ● ● ● ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98008-687-0 01 1 1205- ● ● ● ● ● ●

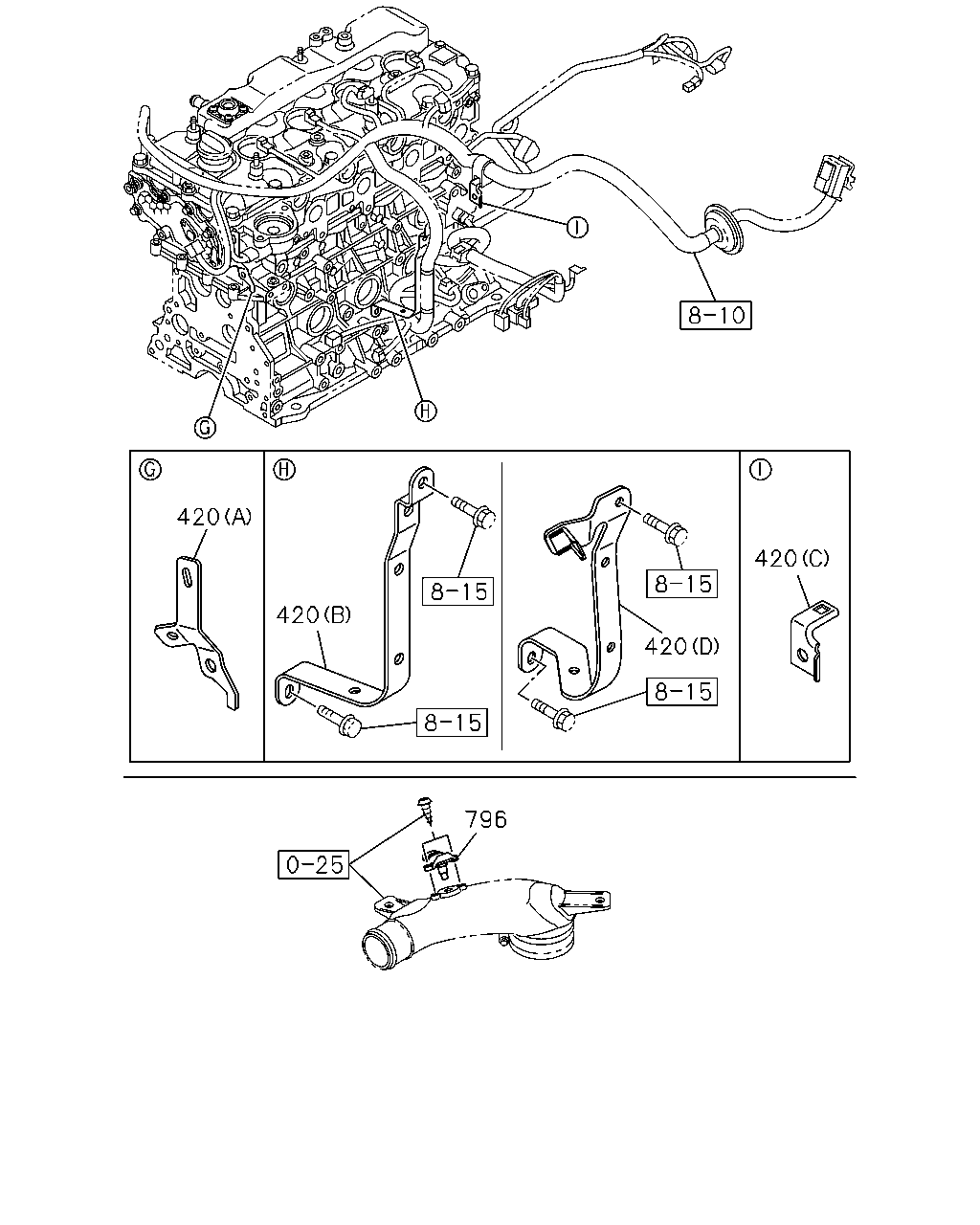

çizim 73254
420 420 420 420 796
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
395 02.343 NUT; BRKT FIX
16.320 M6 FLANGE 		8-98049-362-0 01 1 1206- ●
420 02.183 BRACKET; HARNESS
(D) 		8-98166-379-0 01 1 1206- ●
420 02.183 BRACKET; HARNESS
(A) 		8-98132-062-1 01 1 1205-1205 ●
420 02.183 BRACKET; HARNESS
(A) 		8-98132-062-1 01 1 1206-1210 ● ● ● ●
420 02.183 BRACKET; HARNESS
(A) 		8-98132-062-1 01 1 1211- ● ● ● ● ●
420 02.183 BRACKET; HARNESS
(B) 		8-98165-075-0 01 1 1205-1205 ●
420 02.183 BRACKET; HARNESS
(B) 		8-98165-075-0 01 1 1206-1210 ● ● ●
420 02.183 BRACKET; HARNESS
(B) 		8-98165-075-0 01 1 1211- ● ● ● ●
420 02.183 BRACKET; HARNESS
(C) 		8-98179-101-0 01 1 1205-1205 ●
420 02.183 BRACKET; HARNESS
(C) 		8-98179-101-0 01 1 1206-1210 ● ● ●
420 02.183 BRACKET; HARNESS
(C) 		8-98179-101-0 01 1 1211- ● ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1205-1205 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1206-1210 ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1211- ● ● ●

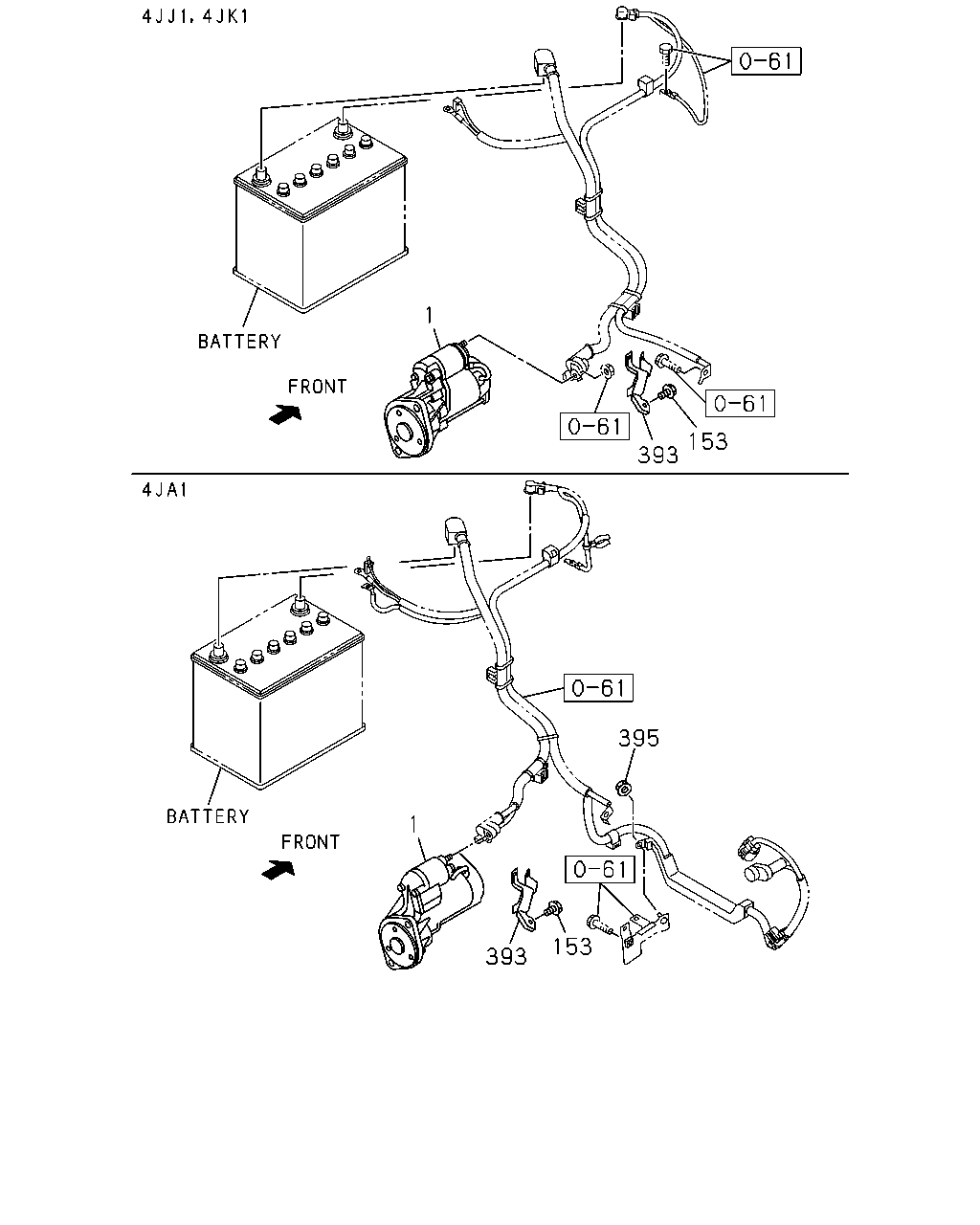

çizim 73339
393 153 396 1 1 393 153
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 1206- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98183-655-0 01 1 1206- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1205-1205 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1206-1210 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1211- ● ● ● ●
153 02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE 		8-98043-527-0 01 1 1205-1205 ●
153 02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE 		8-98043-527-0 01 1 1206- ● ● ● ●
153 02.510 BOLT; BRKT FIX
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1206-1210 ●
153 02.510 BOLT; BRKT FIX
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1211- ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1205-1205 ●
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1206-1210 ● ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1211- ● ● ● ● ● ●
395 02.343 NUT; BRKT FIX
16.320 M6 FLANGE 		8-98049-362-0 01 1 1206- ●

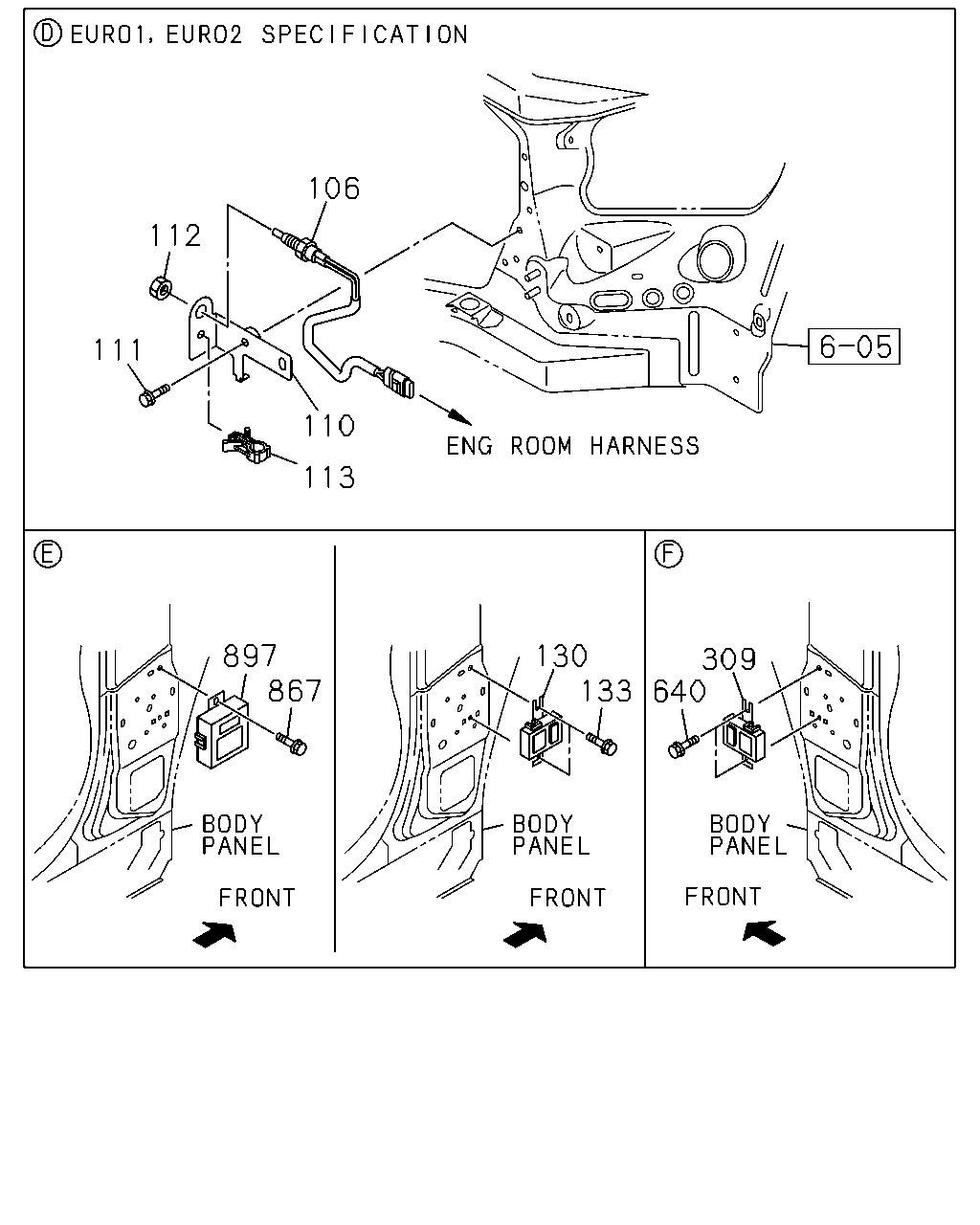

çizim 73417
106 112 111 110 113 897 867 130 133 640 309
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
106 01.150 SWITCH; THERMO,AIR
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97043-749-0 01 1 1206- ●
110 01.251 BRACKET; THERMO SW CONNECTOR
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98205-050-0 01 1 1206- ●
111 01.251 BOLT; SWITCH BRKT
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1206- ●
112 01.251 NUT; SWITCH BRKT
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.785 M16 		0-91111-516-0 01 1 1206- ●
113 02.559 CLIP; THERMO SWITCH
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 04.785 ID=9.6 		8-94147-870-0 01 1 1206- ●
130 02.510 CONTROLLER; EGR
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98205-418-1 01 1 1206- ●
133 02.500 BOLT; EGR CONTROLLER
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1206- ●
309 02.510 TIMER; AFTER GLOW,QOS 8-97361-319-3 01 1 1206- ●
395 02.343 NUT; BRKT FIX
16.320 M6 FLANGE 		8-98049-362-0 01 1 1206- ●
640 02.510 BOLT; BRKT,QOS GLOW TIMER
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1206- ●
867 02.559 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1205-1205 ●
867 02.559 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1206-1210 ● ● ●
867 02.559 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1211- ● ● ● ●
897 02.510 DRM 8-98126-826-4 01 1 1205-1205 ●
897 02.510 DRM 8-98126-826-4 01 1 1206-1210 ● ● ●
897 02.510 DRM 8-98126-826-4 01 1 1211-1301 ● ● ● ●
897 02.510 DRM 8-98221-054-4 01 1 1302- ● ● ● ●

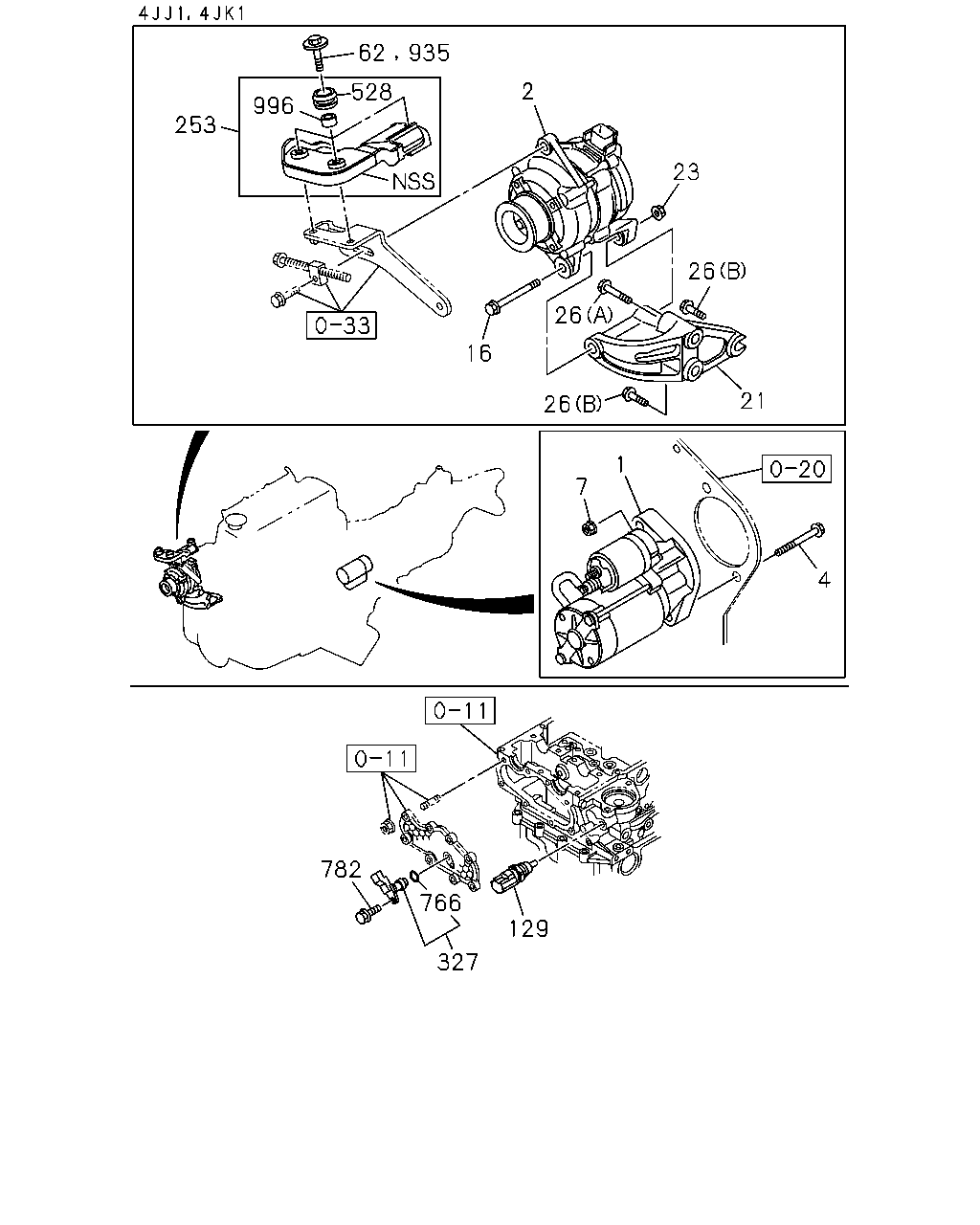

çizim 194343
62 935 528 996 253 2 23 26 26 26 21 16 7 1 4 129 327 766 782
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 1206- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98183-655-0 01 1 1206- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1205-1205 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1206-1210 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1211- ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-0 01 1 1210-1210 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-0 01 1 1211-1211 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212- ● ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97245-850-2 01 1 1206- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1205-1205 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1206-1209 ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98196-585-0 01 1 1210-1211 ● ● ● ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X70 FLANGE 		8-98183-142-0 01 1 1311-1311 ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1206-1209 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1210-1302 ● ● ● ● ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1210-1302 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1303-1311 ● ● ● ● ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1303-1311 ●
4 02.042 BOLT; STARTER
A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1303-1311 ●
4 02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE 		0-28051-260-0 02 1 1312- ● ● ● ● ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 1312- ●
4 02.042 BOLT; STARTER
M12X70 FLANGE 		8-98183-142-0 02 1 1206- ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1205-1205 ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1206-1209 ● ● ●
4 02.042 BOLT; STARTER
M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1210-1210 ● ● ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1210-1210 ● ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1210- ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1205-1205 ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1206-1210 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1211- ● ● ● ● ●
16 02.277 BOLT; GEN
4X2(TFB***) M10X130 FLANGE 		0-28056-013-0 01 1 1206- ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1205-1205 ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1206-1210 ● ● ● ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1211- ● ● ● ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 1206- ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1205-1205 ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1206-1210 ● ● ● ●
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1211- ● ● ● ● ●
23 02.277 NUT; GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1205-1205 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1206-1310 ● ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1311- ● ● ● ● ● ●
26 02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE 		0-28051-060-0 01 1 1205-1205 ●
26 02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE 		0-28051-060-0 01 1 1206-1210 ● ● ● ●
26 02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE 		0-28051-060-0 01 1 1211- ● ● ● ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1205-1205 ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1206-1210 ● ● ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1211- ● ● ● ● ●
62 02.277 BOLT; PROTECTOR 8-97383-407-0 03 1 1205-1205 ●
62 02.277 BOLT; PROTECTOR 8-97383-407-0 03 1 1206-1209 ● ● ● ●
62 02.277 BOLT; PROTECTOR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-407-0 03 1 1210- ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1412-1412 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1501- ● ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1205-1205 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1206-1210 ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1211-1411 ● ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1412-1412 ● ● ● ●
253 02.277 PROTECTOR; HEAT,GEN 8-98157-835-2 01 1 1205-1205 ●
253 02.277 PROTECTOR; HEAT,GEN 8-98157-835-2 01 1 1206-1302 ● ● ● ●
253 02.277 PROTECTOR; HEAT,GEN 8-98157-835-2 01 1 1303- ● ● ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1205-1205 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1206-1210 ● ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1211- ● ● ● ● ●
395 02.343 NUT; BRKT FIX
16.320 M6 FLANGE 		8-98049-362-0 01 1 1206- ●
528 02.270 BUSHING 8-98158-298-0 03 1 1205-1205 ●
528 02.270 BUSHING 8-98158-298-0 03 1 1206-1302 ● ● ● ●
528 02.270 BUSHING 8-98158-298-0 03 1 1303- ● ● ● ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1205-1205 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1206-1210 ● ● ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1211- ● ● ● ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1205-1205 ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1206-1210 ● ● ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1211- ● ● ● ● ●
935 02.042 BOLT; PROTECTOR
IDENTIFICATION LABEL FOR KD<6UT> 02.277 		8-97383-407-0 03 1 1209-1210 ● ● ●
935 02.042 BOLT; PROTECTOR
IDENTIFICATION LABEL FOR KD<6UT> 02.277 		8-97383-407-0 03 1 1211-1310 ● ● ● ●
935 02.042 BOLT; PROTECTOR
IDENTIFICATION LABEL FOR KD<6UT> 02.277 		8-97383-407-0 03 1 1311- ● ● ● ● ●
996 02.042 MOUNT; PROTECTOR 8-98158-299-0 03 1 1205-1205 ●
996 02.042 MOUNT; PROTECTOR 8-98158-299-0 03 1 1206-1302 ● ● ● ●
996 02.042 MOUNT; PROTECTOR 8-98158-299-0 03 1 1303- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
