◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶
0-57 — EMISSION PIPING (#81651) — 803 parça

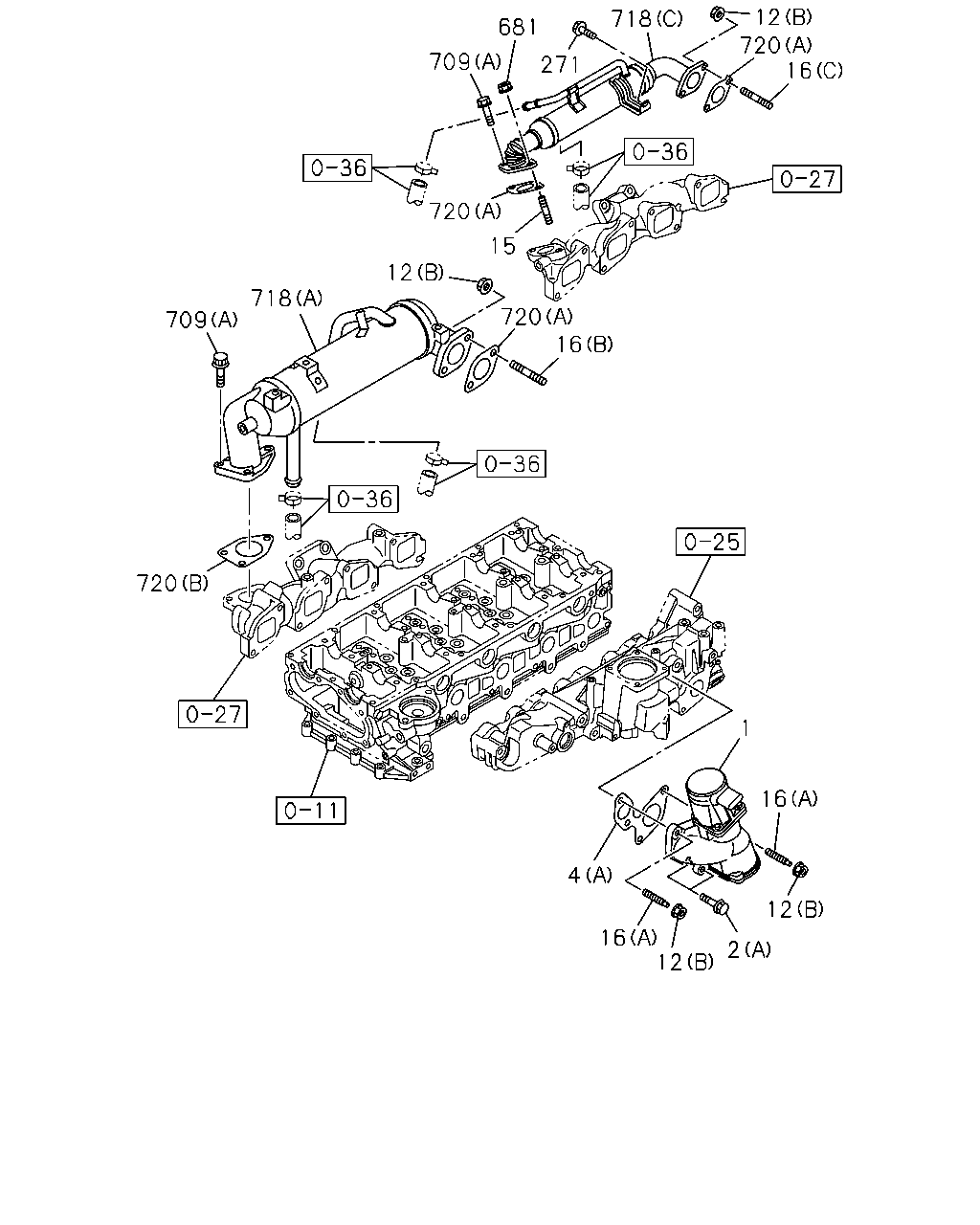

çizim 66339
709 718 12 720 709 681 718 12 720 16 15 720 16 720 1 16 4 16 12 12 2 271
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.670 VALVE; EGR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 1206- ●
1 03.670 VALVE; EGR 8-98164-786-1 01 1 1206- ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1205-1205 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ● ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1211- ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98133-202-3 01 1 1211- ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE 		0-28050-840-0 04 1 1206- ●
2 03.670 BOLT; EGR VLV
00.206 (D) M8X70 FLANGE 		0-28050-870-0 01 1 1206- ●
2 03.670 BOLT; EGR VLV
00.685 (E) M8X40 FLANGE 		0-28650-840-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1205-1205 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ● ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-94334-338-1 02 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C) 		8-94379-754-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98167-347-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (E) 		8-98167-348-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97356-711-3 01 1 1205-1205 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1211- ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97356-711-3 01 1 1211- ●
12 03.671 NUT; EGR VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1206- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1205-1205 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1206-1210 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
15 03.670 STUD; EGR PIPE
EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33 		8-94257-319-0 01 1 1211-1302 ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 01 1 1211-1302 ●
15 03.670 STUD; EGR PIPE
EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33 		8-94257-319-0 01 1 1303- ● ● ●
15 03.670 STUD; EGR PIPE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37 		0-41010-825-0 02 1 1206- ●
15 03.670 STUD; EGR PIPE
03.275 M8X60 L=72 		8-94156-940-0 02 1 1206- ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> (F) M8X25 L=41 		0-40210-825-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 (D) M8X49 L=63 		8-97019-478-0 04 1 1206- ●
16 03.275 STUD; EGR VLV
(E) M8X25 L=37 		0-41010-825-0 02 1 1206- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> 03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ● ● ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
EURO4 SPECIFICATION<NT4> 03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1206- ●
271 03.675 BOLT; BRKT
EURO3 SPECIFICATION<NT3> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1211-1302 ●
271 03.675 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1211-1302 ●
271 03.675 BOLT; BRKT
EURO3 SPECIFICATION<NT3> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1303- ● ● ●
681 03.671 NUT; EGR PIPE
EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 01 1 1211-1302 ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 01 1 1211-1302 ●
681 03.671 NUT; EGR PIPE
EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 01 1 1303- ● ● ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1206- ●
709 03.670 BOLT; EGR COOLER
EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 01 1 1211-1302 ●
709 03.670 BOLT; EGR COOLER
03.417 (A) M8X23 FLANGE 		8-97378-077-0 01 1 1211-1302 ●
709 03.670 BOLT; EGR COOLER
EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 01 1 1303- ● ● ●
709 03.670 BOLT; EGR COOLER
01.252 (B) M8X80 FLANGE 		0-28050-880-0 02 1 1206- ●
709 03.670 BOLT; EGR COOLER
03.417 (A) M8X23 FLANGE 		8-97378-077-0 05 1 1206- ●
709 03.670 BOLT; EGR COOLER
03.417 (A) M8X23 FLANGE 		8-97378-077-0 03 1 1205-1205 ●
709 03.670 BOLT; EGR COOLER
EURO4 SPECIFICATION<NT4> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 03 1 1206- ●
718 03.337 COOLER; EGR
EURO3 SPECIFICATION<NT3> (C) 		8-98132-052-3 01 1 1211-1302 ●
718 03.337 COOLER; EGR
(C) 		8-98132-052-3 01 1 1211-1302 ●
718 03.337 COOLER; EGR
EURO3 SPECIFICATION<NT3> (C) 		8-98132-052-3 01 1 1303- ● ● ●
718 03.337 COOLER; EGR
(B) 		8-98151-206-1 01 1 1206- ●
718 03.337 COOLER; EGR
(A) 		8-98193-967-3 01 1 1205-1205 ●
718 03.337 COOLER; EGR
EURO4 SPECIFICATION<NT4> (A) 		8-98193-967-3 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> 03.665 (A) 		8-97357-684-3 02 1 1211- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (E) 		8-98063-284-1 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-98165-072-0 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98165-073-0 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A) 		8-97357-684-3 01 1 1205-1205 ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A) 		8-97357-684-3 01 1 1206-1210 ● ● ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>. 03.665 (A) 		8-97357-684-3 01 1 1211- ● ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>. 03.665 (A) 		8-97357-684-3 01 1 1211- ● ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A) 		8-97357-684-3 01 1 1211- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B) 		8-98017-551-0 01 1 1205-1205 ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> 03.665 (B) 		8-98017-551-0 01 1 1206- ●

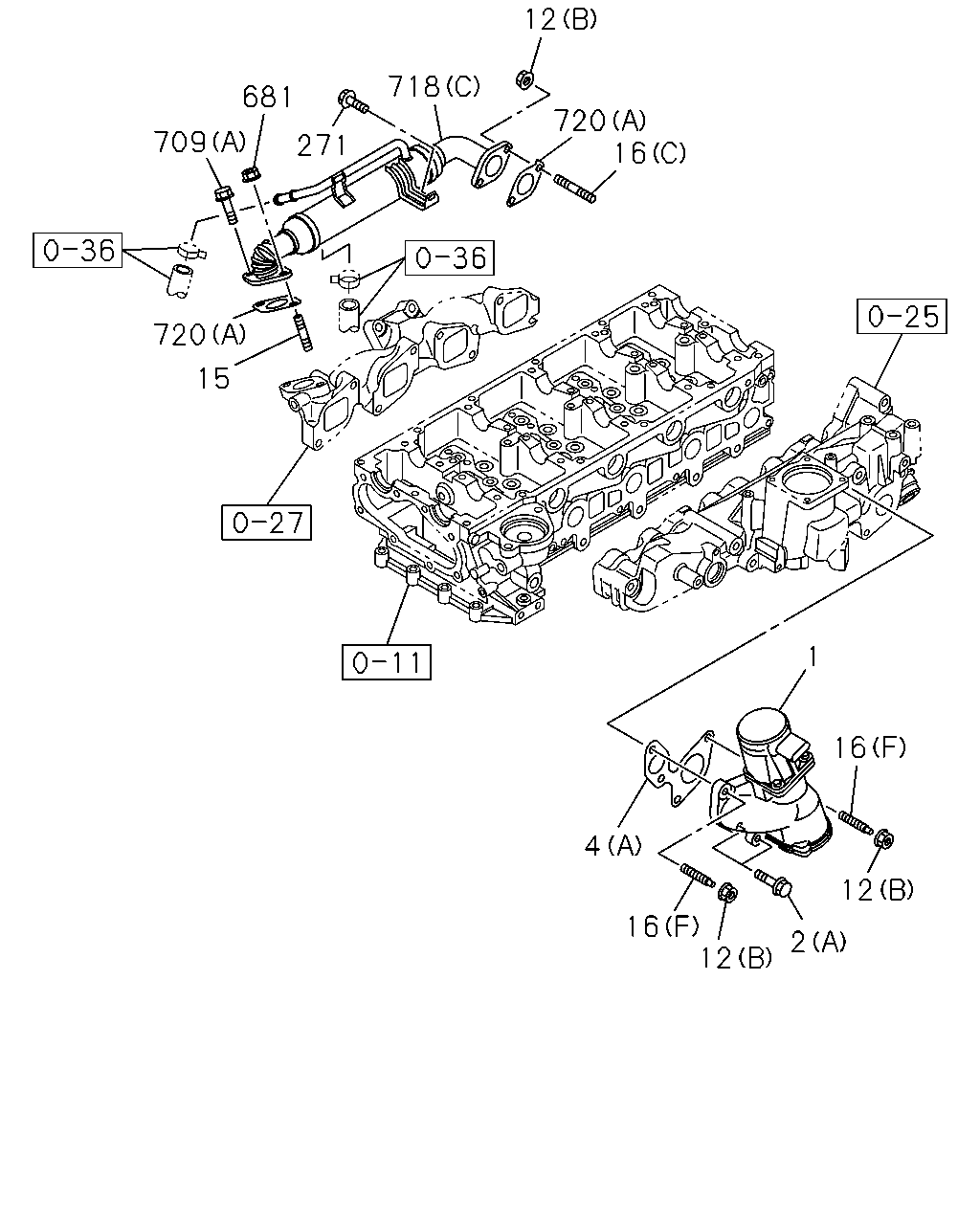

çizim 72046
709 681 271 718 12 720 16 720 15 1 16 12 2 12 16 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.670 VALVE; EGR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 1206- ●
1 03.670 VALVE; EGR 8-98164-786-1 01 1 1206- ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1205-1205 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ● ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1211- ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98133-202-3 01 1 1211- ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE 		0-28050-840-0 04 1 1206- ●
2 03.670 BOLT; EGR VLV
00.206 (D) M8X70 FLANGE 		0-28050-870-0 01 1 1206- ●
2 03.670 BOLT; EGR VLV
00.685 (E) M8X40 FLANGE 		0-28650-840-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1205-1205 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ● ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-94334-338-1 02 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C) 		8-94379-754-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98167-347-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (E) 		8-98167-348-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97356-711-3 01 1 1205-1205 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1211- ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97356-711-3 01 1 1211- ●
12 03.671 NUT; EGR VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1206- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1205-1205 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1206-1210 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
15 03.670 STUD; EGR PIPE
EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33 		8-94257-319-0 01 1 1211-1302 ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 01 1 1211-1302 ●
15 03.670 STUD; EGR PIPE
EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33 		8-94257-319-0 01 1 1303- ● ● ●
15 03.670 STUD; EGR PIPE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37 		0-41010-825-0 02 1 1206- ●
15 03.670 STUD; EGR PIPE
03.275 M8X60 L=72 		8-94156-940-0 02 1 1206- ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> (F) M8X25 L=41 		0-40210-825-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 (D) M8X49 L=63 		8-97019-478-0 04 1 1206- ●
16 03.275 STUD; EGR VLV
(E) M8X25 L=37 		0-41010-825-0 02 1 1206- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> 03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ● ● ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
EURO4 SPECIFICATION<NT4> 03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1206- ●
271 03.675 BOLT; BRKT
EURO3 SPECIFICATION<NT3> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1211-1302 ●
271 03.675 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1211-1302 ●
271 03.675 BOLT; BRKT
EURO3 SPECIFICATION<NT3> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1303- ● ● ●
681 03.671 NUT; EGR PIPE
EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 01 1 1211-1302 ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 01 1 1211-1302 ●
681 03.671 NUT; EGR PIPE
EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 01 1 1303- ● ● ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1206- ●
709 03.670 BOLT; EGR COOLER
EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 01 1 1211-1302 ●
709 03.670 BOLT; EGR COOLER
03.417 (A) M8X23 FLANGE 		8-97378-077-0 01 1 1211-1302 ●
709 03.670 BOLT; EGR COOLER
EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 01 1 1303- ● ● ●
709 03.670 BOLT; EGR COOLER
01.252 (B) M8X80 FLANGE 		0-28050-880-0 02 1 1206- ●
709 03.670 BOLT; EGR COOLER
03.417 (A) M8X23 FLANGE 		8-97378-077-0 05 1 1206- ●
709 03.670 BOLT; EGR COOLER
03.417 (A) M8X23 FLANGE 		8-97378-077-0 03 1 1205-1205 ●
709 03.670 BOLT; EGR COOLER
EURO4 SPECIFICATION<NT4> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 03 1 1206- ●
718 03.337 COOLER; EGR
EURO3 SPECIFICATION<NT3> (C) 		8-98132-052-3 01 1 1211-1302 ●
718 03.337 COOLER; EGR
(C) 		8-98132-052-3 01 1 1211-1302 ●
718 03.337 COOLER; EGR
EURO3 SPECIFICATION<NT3> (C) 		8-98132-052-3 01 1 1303- ● ● ●
718 03.337 COOLER; EGR
(B) 		8-98151-206-1 01 1 1206- ●
718 03.337 COOLER; EGR
(A) 		8-98193-967-3 01 1 1205-1205 ●
718 03.337 COOLER; EGR
EURO4 SPECIFICATION<NT4> (A) 		8-98193-967-3 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> 03.665 (A) 		8-97357-684-3 02 1 1211- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (E) 		8-98063-284-1 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-98165-072-0 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98165-073-0 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A) 		8-97357-684-3 01 1 1205-1205 ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A) 		8-97357-684-3 01 1 1206-1210 ● ● ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>. 03.665 (A) 		8-97357-684-3 01 1 1211- ● ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>. 03.665 (A) 		8-97357-684-3 01 1 1211- ● ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A) 		8-97357-684-3 01 1 1211- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B) 		8-98017-551-0 01 1 1205-1205 ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> 03.665 (B) 		8-98017-551-0 01 1 1206- ●

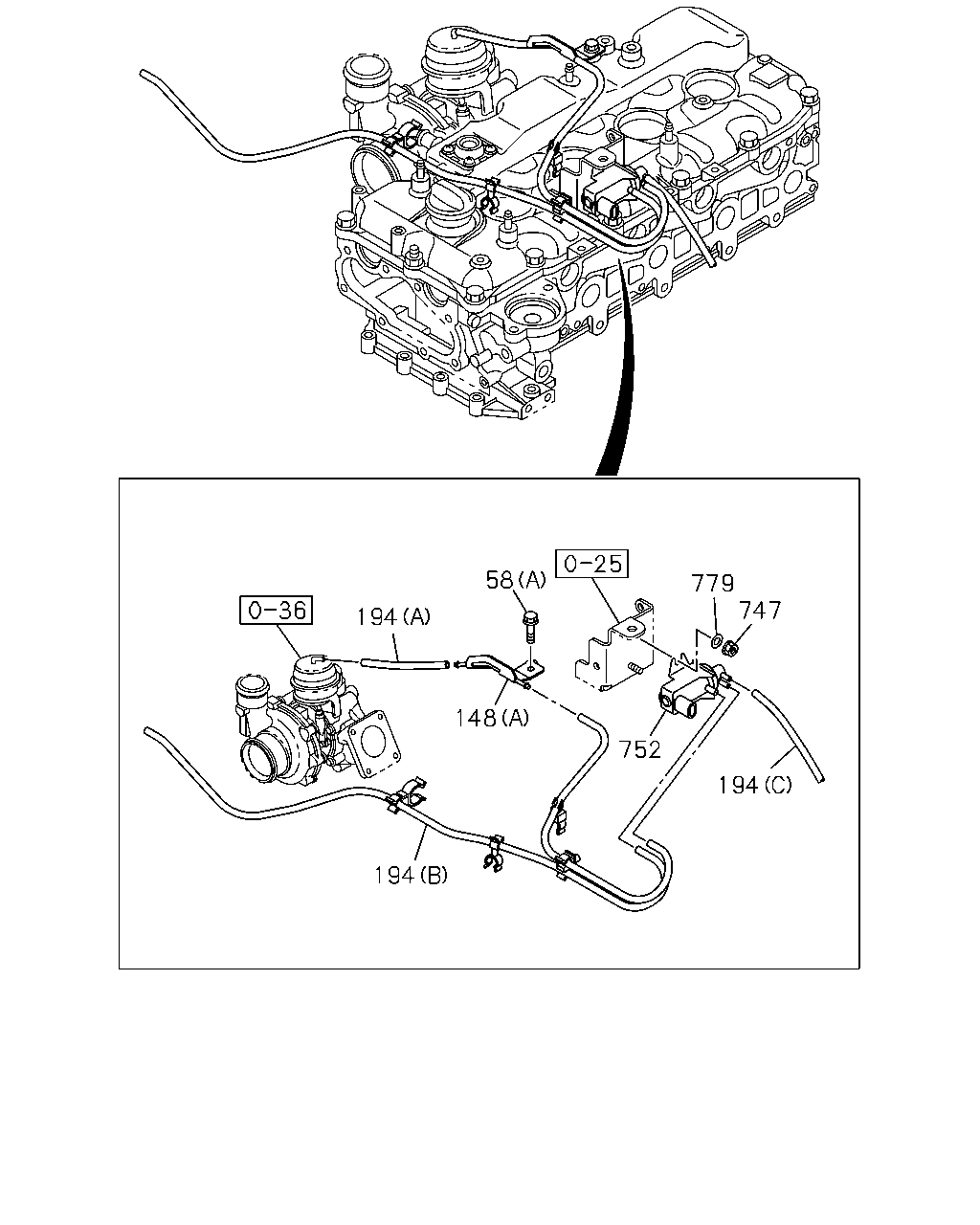

çizim 72582
194 58 779 747 194 752 148 194
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
58 03.417 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1206- ●
58 03.417 BOLT; PIPE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1206- ●
58 03.417 BOLT; PIPE
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 1206- ●
58 03.417 BOLT; PIPE
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1206- ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1205-1205 ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1206-1210 ● ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1206-1210 ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1211- ● ● ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1211- ●
148 03.675 PIPE; VAC
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H) 		8-98194-788-3 01 1 1206- ●
148 03.675 PIPE; VAC
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (G) 		8-98194-786-3 01 1 1206- ●
148 03.675 PIPE; VAC
(F) 		8-98162-920-0 01 1 1206- ●
148 03.675 PIPE; VAC
(B) 		8-98162-921-1 01 1 1206- ●
148 03.675 PIPE; VAC
(C) 		8-98164-735-1 01 1 1206- ●
148 03.675 PIPE; VAC
(D) 		8-98178-322-0 01 1 1206- ●
148 03.675 PIPE; VAC
(E) 		8-98178-323-1 01 1 1206- ●
148 03.675 PIPE; VAC
(A) 		8-98132-082-0 01 1 1205-1210 ●
148 03.675 PIPE; VAC
(A) 		8-98132-082-0 01 1 1211- ● ●
194 03.675 HOSE; VAC
(A) 		0-14040-110-0 01 1 1205-1210 ●
194 03.675 HOSE; VAC
(A) 		0-14040-110-0 01 1 1211- ● ●
194 03.675 HOSE; VAC
(B) 		8-98132-500-0 01 1 1205-1210 ●
194 03.675 HOSE; VAC
(B) 		8-98132-500-0 01 1 1211- ● ●
194 03.675 HOSE; VAC
(C) 		8-98158-205-1 01 1 1205-1210 ●
194 03.675 HOSE; VAC
(C) 		8-98158-205-1 01 1 1211- ● ●
747 03.671 NUT; VAC REG VALVE
EURO3 SPECIFICATION<NT3> 00.349 M8 FLANGE 		8-98053-188-0 02 1 1211- ●
747 03.671 NUT; VAC REG VALVE
01.062 M8 FLANGE 		0-91180-108-0 04 1 1206- ●
747 03.671 NUT; VAC REG VALVE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1205- ●
752 03.670 VALVE; EVRV 8-98116-260-0 02 1 1206- ●
752 03.670 VALVE; EVRV 8-98116-260-0 01 1 1205-1210 ●
752 03.670 VALVE; EVRV 8-98116-260-0 01 1 1211- ● ●
779 03.671 WASHER; VALVE
06.168 ID=8.4 OD=18 		0-91610-608-0 04 1 1206- ●
779 03.671 WASHER; VALVE
06.168 ID=8.4 OD=18 		0-91610-608-0 02 1 1205-1210 ●
779 03.671 WASHER; VALVE
06.168 ID=8.4 OD=18 		0-91610-608-0 02 1 1211- ● ●

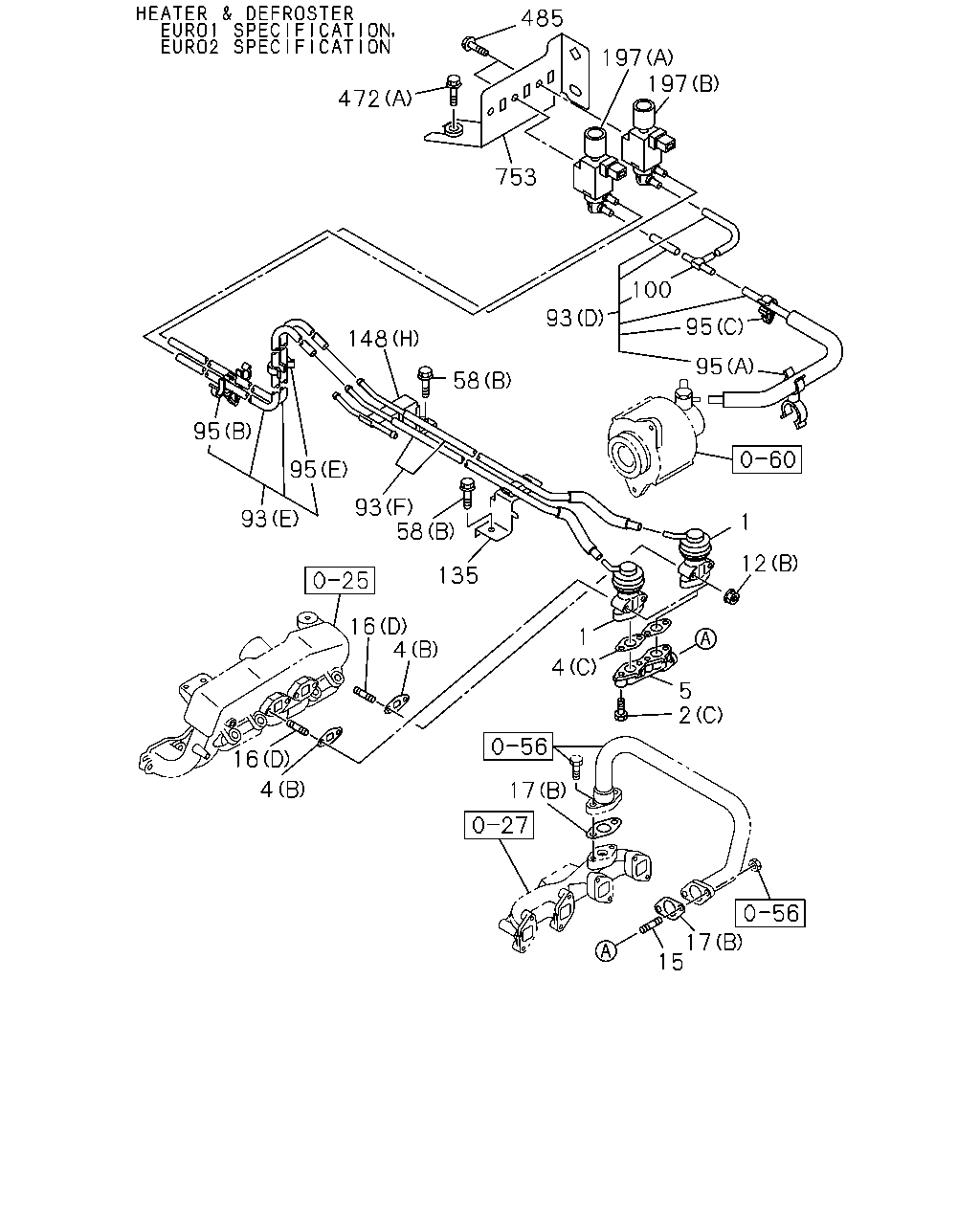

çizim 72722
485 197 197 472 753 100 93 95 95 1 12 5 2 17 15 17 4 1 4 16 16 4 135 58 93 93 95 95 148 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.670 VALVE; EGR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 1206- ●
1 03.670 VALVE; EGR 8-98164-786-1 01 1 1206- ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1205-1205 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ● ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1211- ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98133-202-3 01 1 1211- ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE 		0-28050-840-0 04 1 1206- ●
2 03.670 BOLT; EGR VLV
00.206 (D) M8X70 FLANGE 		0-28050-870-0 01 1 1206- ●
2 03.670 BOLT; EGR VLV
00.685 (E) M8X40 FLANGE 		0-28650-840-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1205-1205 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ● ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-94334-338-1 02 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C) 		8-94379-754-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98167-347-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (E) 		8-98167-348-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97356-711-3 01 1 1205-1205 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1211- ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97356-711-3 01 1 1211- ●
5 03.670 ADAPTER ASM
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97306-490-0 01 1 1206- ●
5 03.670 ADAPTER ASM 8-98151-210-0 01 1 1206- ●
12 03.671 NUT; EGR VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1206- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1205-1205 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1206-1210 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
15 03.670 STUD; EGR PIPE
EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33 		8-94257-319-0 01 1 1211-1302 ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 01 1 1211-1302 ●
15 03.670 STUD; EGR PIPE
EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33 		8-94257-319-0 01 1 1303- ● ● ●
15 03.670 STUD; EGR PIPE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37 		0-41010-825-0 02 1 1206- ●
15 03.670 STUD; EGR PIPE
03.275 M8X60 L=72 		8-94156-940-0 02 1 1206- ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> (F) M8X25 L=41 		0-40210-825-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 (D) M8X49 L=63 		8-97019-478-0 04 1 1206- ●
16 03.275 STUD; EGR VLV
(E) M8X25 L=37 		0-41010-825-0 02 1 1206- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> 03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ● ● ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
EURO4 SPECIFICATION<NT4> 03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-94340-670-0 02 1 1206-1206 ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-97324-052-0 02 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (C) 		8-98150-745-0 01 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98191-943-0 01 1 1206- ●
58 03.417 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1206- ●
58 03.417 BOLT; PIPE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1206- ●
58 03.417 BOLT; PIPE
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 1206- ●
58 03.417 BOLT; PIPE
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1206- ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1205-1205 ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1206-1210 ● ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1206-1210 ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1211- ● ● ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1211- ●
93 03.675 HOSE ASM
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-98192-326-0 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (E) 		8-98194-796-1 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (C) 		8-98192-325-0 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (B) 		8-98194-795-1 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (I) 		8-98192-324-0 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (G) 		8-98194-947-1 01 1 1206- ●
93 03.675 HOSE ASM
HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F) 		8-98194-948-3 01 1 1206- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (A) 		8-98194-794-2 01 1 1206- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H) 		8-98194-949-3 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.162 (E) ID=6.8X2 		8-94126-636-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.589 (A) ID=13 & 16.5 		8-94169-028-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.589 (A) ID=13 & 16.5 		8-94169-028-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 4XID=6.7 		8-94315-422-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 4XID=6.7 		8-94315-422-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 (C) ID=6.8 		8-97134-154-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 (C) ID=6.8 		8-97134-154-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) ID=14.5 & 7X4 		8-94368-499-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 1206- ●
100 03.680 JOINT; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 3WAY 		8-94210-631-0 01 1 1206- ●
100 03.680 JOINT; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 3WAY 		8-94210-631-0 02 1 1206- ●
135 03.680 BRACKET; EGR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98205-853-0 01 1 1206- ●
148 03.675 PIPE; VAC
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H) 		8-98194-788-3 01 1 1206- ●
148 03.675 PIPE; VAC
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (G) 		8-98194-786-3 01 1 1206- ●
148 03.675 PIPE; VAC
(F) 		8-98162-920-0 01 1 1206- ●
148 03.675 PIPE; VAC
(B) 		8-98162-921-1 01 1 1206- ●
148 03.675 PIPE; VAC
(C) 		8-98164-735-1 01 1 1206- ●
148 03.675 PIPE; VAC
(D) 		8-98178-322-0 01 1 1206- ●
148 03.675 PIPE; VAC
(E) 		8-98178-323-1 01 1 1206- ●
148 03.675 PIPE; VAC
(A) 		8-98132-082-0 01 1 1205-1210 ●
148 03.675 PIPE; VAC
(A) 		8-98132-082-0 01 1 1211- ● ●
197 03.670 VALVE; VAC SWITCHING
(D) 		8-94375-331-1 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) 03.130 (C) 		8-94384-336-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97043-750-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.675 (B) 		8-97171-030-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
(E) 		8-94384-335-0 02 1 1206- ●
472 03.671 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1206- ●
472 03.671 BOLT; BRKT
04.338 (B) M8X20 FLANGE 		0-28050-820-0 05 1 1206- ●
472 03.671 BOLT; BRKT
00.206 (C) M8X70 FLANGE 		0-28050-870-0 01 1 1206- ●
485 03.671 BOLT; VSV
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) M5X8 W/LK WASHER 		0-36220-508-0 01 1 1206- ●
485 03.671 BOLT; VSV
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M5X8 W/LK WASHER 		0-36220-508-0 02 1 1206- ●
753 03.670 BRACKET; VALVE 8-98197-795-0 01 1 1206- ●

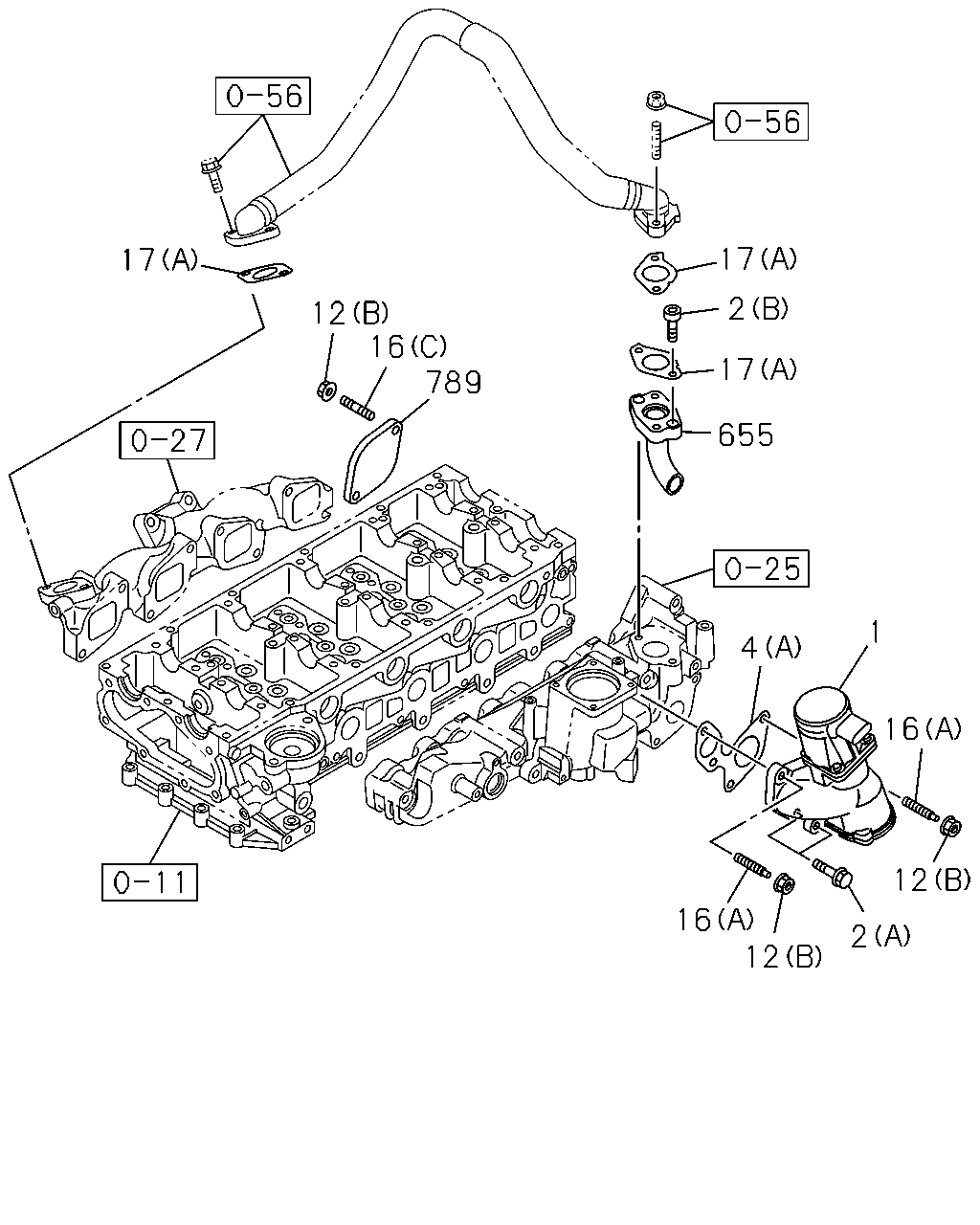

çizim 72823
17 12 16 789 17 2 17 655 4 1 16 12 2 12 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.670 VALVE; EGR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 1206- ●
1 03.670 VALVE; EGR 8-98164-786-1 01 1 1206- ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1205-1205 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ● ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1211- ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98133-202-3 01 1 1211- ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE 		0-28050-840-0 04 1 1206- ●
2 03.670 BOLT; EGR VLV
00.206 (D) M8X70 FLANGE 		0-28050-870-0 01 1 1206- ●
2 03.670 BOLT; EGR VLV
00.685 (E) M8X40 FLANGE 		0-28650-840-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1205-1205 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ● ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-94334-338-1 02 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C) 		8-94379-754-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98167-347-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (E) 		8-98167-348-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97356-711-3 01 1 1205-1205 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1211- ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97356-711-3 01 1 1211- ●
12 03.671 NUT; EGR VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1206- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1205-1205 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1206-1210 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> (F) M8X25 L=41 		0-40210-825-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 (D) M8X49 L=63 		8-97019-478-0 04 1 1206- ●
16 03.275 STUD; EGR VLV
(E) M8X25 L=37 		0-41010-825-0 02 1 1206- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> 03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ● ● ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
EURO4 SPECIFICATION<NT4> 03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-94340-670-0 02 1 1206-1206 ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-97324-052-0 02 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (C) 		8-98150-745-0 01 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98191-943-0 01 1 1206- ●
655 03.675 PIPE; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98132-053-0 01 1 1206- ●
655 03.675 PIPE; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98132-053-0 01 1 1206- ●
655 03.675 PIPE; EGR VLV
EURO2 SPECIFICATION<NT2> 		8-98132-053-0 01 1 1206- ●
655 03.675 PIPE; EGR VLV
01.540 		8-98151-211-0 01 1 1206- ●
789 03.670 COVER; COOLER,EGR 8-98105-261-0 01 1 1206-1302 ● ●
789 03.670 COVER; COOLER,EGR 8-98105-261-0 01 1 1303- ●
789 03.670 COVER; COOLER,EGR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98105-261-0 01 1 1303- ●

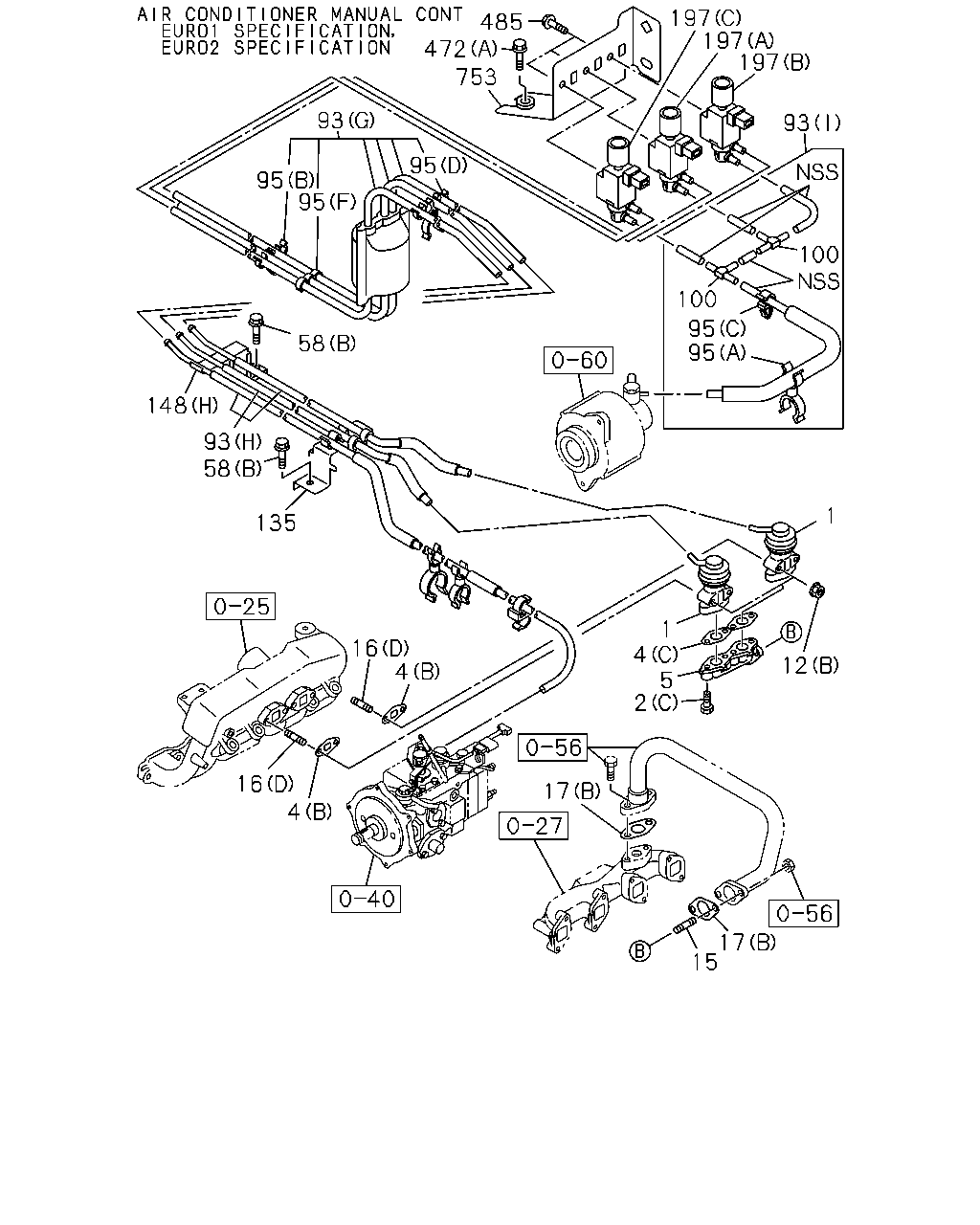

çizim 72858
485 472 197 197 197 93 100 100 95 95 1 12 1 4 5 2 17 15 17 4 16 16 4 135 58 93 148 58 93 95 95 95 753
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.670 VALVE; EGR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 1206- ●
1 03.670 VALVE; EGR 8-98164-786-1 01 1 1206- ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1205-1205 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ● ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1211- ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98133-202-3 01 1 1211- ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE 		0-28050-840-0 04 1 1206- ●
2 03.670 BOLT; EGR VLV
00.206 (D) M8X70 FLANGE 		0-28050-870-0 01 1 1206- ●
2 03.670 BOLT; EGR VLV
00.685 (E) M8X40 FLANGE 		0-28650-840-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1205-1205 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ● ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-94334-338-1 02 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C) 		8-94379-754-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98167-347-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (E) 		8-98167-348-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97356-711-3 01 1 1205-1205 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1211- ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97356-711-3 01 1 1211- ●
5 03.670 ADAPTER ASM
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97306-490-0 01 1 1206- ●
5 03.670 ADAPTER ASM 8-98151-210-0 01 1 1206- ●
12 03.671 NUT; EGR VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1206- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1205-1205 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1206-1210 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
15 03.670 STUD; EGR PIPE
EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33 		8-94257-319-0 01 1 1211-1302 ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 01 1 1211-1302 ●
15 03.670 STUD; EGR PIPE
EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33 		8-94257-319-0 01 1 1303- ● ● ●
15 03.670 STUD; EGR PIPE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37 		0-41010-825-0 02 1 1206- ●
15 03.670 STUD; EGR PIPE
03.275 M8X60 L=72 		8-94156-940-0 02 1 1206- ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> (F) M8X25 L=41 		0-40210-825-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 (D) M8X49 L=63 		8-97019-478-0 04 1 1206- ●
16 03.275 STUD; EGR VLV
(E) M8X25 L=37 		0-41010-825-0 02 1 1206- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> 03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ● ● ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
EURO4 SPECIFICATION<NT4> 03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-94340-670-0 02 1 1206-1206 ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-97324-052-0 02 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (C) 		8-98150-745-0 01 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98191-943-0 01 1 1206- ●
58 03.417 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1206- ●
58 03.417 BOLT; PIPE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1206- ●
58 03.417 BOLT; PIPE
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 1206- ●
58 03.417 BOLT; PIPE
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1206- ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1205-1205 ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1206-1210 ● ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1206-1210 ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1211- ● ● ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1211- ●
93 03.675 HOSE ASM
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-98192-326-0 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (E) 		8-98194-796-1 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (C) 		8-98192-325-0 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (B) 		8-98194-795-1 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (I) 		8-98192-324-0 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (G) 		8-98194-947-1 01 1 1206- ●
93 03.675 HOSE ASM
HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F) 		8-98194-948-3 01 1 1206- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (A) 		8-98194-794-2 01 1 1206- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H) 		8-98194-949-3 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.162 (E) ID=6.8X2 		8-94126-636-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.589 (A) ID=13 & 16.5 		8-94169-028-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.589 (A) ID=13 & 16.5 		8-94169-028-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 4XID=6.7 		8-94315-422-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 4XID=6.7 		8-94315-422-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 (C) ID=6.8 		8-97134-154-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 (C) ID=6.8 		8-97134-154-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) ID=14.5 & 7X4 		8-94368-499-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 1206- ●
100 03.680 JOINT; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 3WAY 		8-94210-631-0 01 1 1206- ●
100 03.680 JOINT; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 3WAY 		8-94210-631-0 02 1 1206- ●
135 03.680 BRACKET; EGR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98205-853-0 01 1 1206- ●
148 03.675 PIPE; VAC
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H) 		8-98194-788-3 01 1 1206- ●
148 03.675 PIPE; VAC
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (G) 		8-98194-786-3 01 1 1206- ●
148 03.675 PIPE; VAC
(F) 		8-98162-920-0 01 1 1206- ●
148 03.675 PIPE; VAC
(B) 		8-98162-921-1 01 1 1206- ●
148 03.675 PIPE; VAC
(C) 		8-98164-735-1 01 1 1206- ●
148 03.675 PIPE; VAC
(D) 		8-98178-322-0 01 1 1206- ●
148 03.675 PIPE; VAC
(E) 		8-98178-323-1 01 1 1206- ●
148 03.675 PIPE; VAC
(A) 		8-98132-082-0 01 1 1205-1210 ●
148 03.675 PIPE; VAC
(A) 		8-98132-082-0 01 1 1211- ● ●
197 03.670 VALVE; VAC SWITCHING
(D) 		8-94375-331-1 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) 03.130 (C) 		8-94384-336-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97043-750-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.675 (B) 		8-97171-030-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
(E) 		8-94384-335-0 02 1 1206- ●
472 03.671 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1206- ●
472 03.671 BOLT; BRKT
04.338 (B) M8X20 FLANGE 		0-28050-820-0 05 1 1206- ●
472 03.671 BOLT; BRKT
00.206 (C) M8X70 FLANGE 		0-28050-870-0 01 1 1206- ●
485 03.671 BOLT; VSV
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) M5X8 W/LK WASHER 		0-36220-508-0 01 1 1206- ●
485 03.671 BOLT; VSV
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M5X8 W/LK WASHER 		0-36220-508-0 02 1 1206- ●
753 03.670 BRACKET; VALVE 8-98197-795-0 01 1 1206- ●
çizim 72938
485 472 197 753 93 95 95 58 148 93 95 93 95
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
58 03.417 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1206- ●
58 03.417 BOLT; PIPE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1206- ●
58 03.417 BOLT; PIPE
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 1206- ●
58 03.417 BOLT; PIPE
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1206- ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1205-1205 ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1206-1210 ● ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1206-1210 ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1211- ● ● ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1211- ●
93 03.675 HOSE ASM
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-98192-326-0 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (E) 		8-98194-796-1 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (C) 		8-98192-325-0 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (B) 		8-98194-795-1 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (I) 		8-98192-324-0 01 1 1206- ●
93 03.675 HOSE ASM
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (G) 		8-98194-947-1 01 1 1206- ●
93 03.675 HOSE ASM
HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F) 		8-98194-948-3 01 1 1206- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (A) 		8-98194-794-2 01 1 1206- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H) 		8-98194-949-3 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.162 (E) ID=6.8X2 		8-94126-636-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.589 (A) ID=13 & 16.5 		8-94169-028-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.589 (A) ID=13 & 16.5 		8-94169-028-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 4XID=6.7 		8-94315-422-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 4XID=6.7 		8-94315-422-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 (C) ID=6.8 		8-97134-154-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 (C) ID=6.8 		8-97134-154-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) ID=14.5 & 7X4 		8-94368-499-0 01 1 1206- ●
95 03.680 CLIP; HOSE
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 1206- ●
148 03.675 PIPE; VAC
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H) 		8-98194-788-3 01 1 1206- ●
148 03.675 PIPE; VAC
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (G) 		8-98194-786-3 01 1 1206- ●
148 03.675 PIPE; VAC
(F) 		8-98162-920-0 01 1 1206- ●
148 03.675 PIPE; VAC
(B) 		8-98162-921-1 01 1 1206- ●
148 03.675 PIPE; VAC
(C) 		8-98164-735-1 01 1 1206- ●
148 03.675 PIPE; VAC
(D) 		8-98178-322-0 01 1 1206- ●
148 03.675 PIPE; VAC
(E) 		8-98178-323-1 01 1 1206- ●
148 03.675 PIPE; VAC
(A) 		8-98132-082-0 01 1 1205-1210 ●
148 03.675 PIPE; VAC
(A) 		8-98132-082-0 01 1 1211- ● ●
197 03.670 VALVE; VAC SWITCHING
(D) 		8-94375-331-1 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) 03.130 (C) 		8-94384-336-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97043-750-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.675 (B) 		8-97171-030-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
(E) 		8-94384-335-0 02 1 1206- ●
472 03.671 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1206- ●
472 03.671 BOLT; BRKT
04.338 (B) M8X20 FLANGE 		0-28050-820-0 05 1 1206- ●
472 03.671 BOLT; BRKT
00.206 (C) M8X70 FLANGE 		0-28050-870-0 01 1 1206- ●
485 03.671 BOLT; VSV
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) M5X8 W/LK WASHER 		0-36220-508-0 01 1 1206- ●
485 03.671 BOLT; VSV
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M5X8 W/LK WASHER 		0-36220-508-0 02 1 1206- ●
753 03.670 BRACKET; VALVE 8-98197-795-0 01 1 1206- ●
çizim 194346
709 720 225 565 509 2 12 16 4 2 4 1 720 681 709 2 2 5 15 795 720 17 655 17 720 709 718
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.670 VALVE; EGR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 1206- ●
1 03.670 VALVE; EGR 8-98164-786-1 01 1 1206- ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1205-1205 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ● ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1206-1210 ●
1 03.670 VALVE; EGR 8-98133-202-3 01 1 1211- ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 		8-98133-202-3 01 1 1211- ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98133-202-3 01 1 1211- ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE 		0-28050-840-0 04 1 1206- ●
2 03.670 BOLT; EGR VLV
00.206 (D) M8X70 FLANGE 		0-28050-870-0 01 1 1206- ●
2 03.670 BOLT; EGR VLV
00.685 (E) M8X40 FLANGE 		0-28650-840-0 02 1 1206- ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1205-1205 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1210 ●
2 03.670 BOLT; EGR VLV
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ● ● ●
2 03.670 BOLT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-94334-338-1 02 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C) 		8-94379-754-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98167-347-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (E) 		8-98167-348-0 01 1 1206- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97356-711-3 01 1 1205-1205 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1206-1210 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-711-3 01 1 1211- ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (A) 		8-97356-711-3 01 1 1211- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97356-711-3 01 1 1211- ●
5 03.670 ADAPTER ASM
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97306-490-0 01 1 1206- ●
5 03.670 ADAPTER ASM 8-98151-210-0 01 1 1206- ●
12 03.671 NUT; EGR VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1206- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1205-1205 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1206-1210 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
15 03.670 STUD; EGR PIPE
EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33 		8-94257-319-0 01 1 1211-1302 ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 01 1 1211-1302 ●
15 03.670 STUD; EGR PIPE
EURO3 SPECIFICATION<NT3> 03.342 M8X22 L=33 		8-94257-319-0 01 1 1303- ● ● ●
15 03.670 STUD; EGR PIPE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37 		0-41010-825-0 02 1 1206- ●
15 03.670 STUD; EGR PIPE
03.275 M8X60 L=72 		8-94156-940-0 02 1 1206- ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> (F) M8X25 L=41 		0-40210-825-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 (D) M8X49 L=63 		8-97019-478-0 04 1 1206- ●
16 03.275 STUD; EGR VLV
(E) M8X25 L=37 		0-41010-825-0 02 1 1206- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
EURO3 SPECIFICATION<NT3> 03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.342 (C) M8X22 L=33 		8-94257-319-0 02 1 1211- ● ● ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ● ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1206-1210 ●
16 03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.073 (A) M8X22 L=40 		0-49140-822-0 02 1 1211- ●
16 03.275 STUD; EGR VLV
03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1205-1205 ●
16 03.275 STUD; EGR VLV
EURO4 SPECIFICATION<NT4> 03.601 (B) M8X25 L=36 		8-97378-062-0 02 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-94340-670-0 02 1 1206-1206 ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-97324-052-0 02 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) 		8-97357-684-3 03 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (C) 		8-98150-745-0 01 1 1206- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98191-943-0 01 1 1206- ●
225 03.670 SENSOR; THERMO,EGR 8-98028-398-0 01 1 1206- ●
509 03.671 BRACKET; HARNESS 8-98166-378-2 01 1 1206- ●
565 03.417 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1206- ●
565 03.417 NUT; BRKT
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206- ●
655 03.675 PIPE; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98132-053-0 01 1 1206- ●
655 03.675 PIPE; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98132-053-0 01 1 1206- ●
655 03.675 PIPE; EGR VLV
EURO2 SPECIFICATION<NT2> 		8-98132-053-0 01 1 1206- ●
655 03.675 PIPE; EGR VLV
01.540 		8-98151-211-0 01 1 1206- ●
681 03.671 NUT; EGR PIPE
EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 01 1 1211-1302 ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 01 1 1211-1302 ●
681 03.671 NUT; EGR PIPE
EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 01 1 1303- ● ● ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1206- ●
709 03.670 BOLT; EGR COOLER
EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 01 1 1211-1302 ●
709 03.670 BOLT; EGR COOLER
03.417 (A) M8X23 FLANGE 		8-97378-077-0 01 1 1211-1302 ●
709 03.670 BOLT; EGR COOLER
EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 01 1 1303- ● ● ●
709 03.670 BOLT; EGR COOLER
01.252 (B) M8X80 FLANGE 		0-28050-880-0 02 1 1206- ●
709 03.670 BOLT; EGR COOLER
03.417 (A) M8X23 FLANGE 		8-97378-077-0 05 1 1206- ●
709 03.670 BOLT; EGR COOLER
03.417 (A) M8X23 FLANGE 		8-97378-077-0 03 1 1205-1205 ●
709 03.670 BOLT; EGR COOLER
EURO4 SPECIFICATION<NT4> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 03 1 1206- ●
718 03.337 COOLER; EGR
EURO3 SPECIFICATION<NT3> (C) 		8-98132-052-3 01 1 1211-1302 ●
718 03.337 COOLER; EGR
(C) 		8-98132-052-3 01 1 1211-1302 ●
718 03.337 COOLER; EGR
EURO3 SPECIFICATION<NT3> (C) 		8-98132-052-3 01 1 1303- ● ● ●
718 03.337 COOLER; EGR
(B) 		8-98151-206-1 01 1 1206- ●
718 03.337 COOLER; EGR
(A) 		8-98193-967-3 01 1 1205-1205 ●
718 03.337 COOLER; EGR
EURO4 SPECIFICATION<NT4> (A) 		8-98193-967-3 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> 03.665 (A) 		8-97357-684-3 02 1 1211- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (E) 		8-98063-284-1 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-98165-072-0 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98165-073-0 01 1 1206- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A) 		8-97357-684-3 01 1 1205-1205 ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A) 		8-97357-684-3 01 1 1206-1210 ● ● ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>. 03.665 (A) 		8-97357-684-3 01 1 1211- ● ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>. 03.665 (A) 		8-97357-684-3 01 1 1211- ● ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A) 		8-97357-684-3 01 1 1211- ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B) 		8-98017-551-0 01 1 1205-1205 ●
720 03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> 03.665 (B) 		8-98017-551-0 01 1 1206- ●
795 03.670 VALVE; EGR COOLER BYPASS 8-98151-207-0 01 1 1206- ●
çizim 320092
472 472 58 148 200 200 747 779 565 472 472 752 197 197 12 200 200 148 58 58 58 148 200 200 200 200 200 148 200 148 200 58 197 747 779 799 752
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 03.671 NUT; EGR VLV
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1206- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ● ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206-1209 ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1210- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1205-1205 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1206-1210 ●
12 03.671 NUT; EGR VLV
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
12 03.671 NUT; EGR VLV
01.540 (B) M8 FLANGE 		0-91180-208-0 04 1 1211- ●
58 03.417 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1206- ●
58 03.417 BOLT; PIPE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1206- ●
58 03.417 BOLT; PIPE
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 1206- ●
58 03.417 BOLT; PIPE
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1206- ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1205-1205 ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1206-1210 ● ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1206-1210 ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1211- ● ● ●
58 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1211- ●
148 03.675 PIPE; VAC
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H) 		8-98194-788-3 01 1 1206- ●
148 03.675 PIPE; VAC
AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (G) 		8-98194-786-3 01 1 1206- ●
148 03.675 PIPE; VAC
(F) 		8-98162-920-0 01 1 1206- ●
148 03.675 PIPE; VAC
(B) 		8-98162-921-1 01 1 1206- ●
148 03.675 PIPE; VAC
(C) 		8-98164-735-1 01 1 1206- ●
148 03.675 PIPE; VAC
(D) 		8-98178-322-0 01 1 1206- ●
148 03.675 PIPE; VAC
(E) 		8-98178-323-1 01 1 1206- ●
148 03.675 PIPE; VAC
(A) 		8-98132-082-0 01 1 1205-1210 ●
148 03.675 PIPE; VAC
(A) 		8-98132-082-0 01 1 1211- ● ●
197 03.670 VALVE; VAC SWITCHING
(D) 		8-94375-331-1 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) AIR CONDITIONER MANUAL CONT(C60) 03.130 (C) 		8-94384-336-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A) 		8-97043-750-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
4X2(TFB***) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.675 (B) 		8-97171-030-0 01 1 1206- ●
197 03.670 VALVE; VAC SWITCHING
(E) 		8-94384-335-0 02 1 1206- ●
200 03.675 HOSE; VAC
(I) 		8-98178-211-1 01 1 1206- ●
200 03.675 HOSE; VAC
(J) 		8-98178-378-0 02 1 1206- ●
200 03.675 HOSE; VAC
(A) 		8-98178-201-2 01 1 1206- ●
200 03.675 HOSE; VAC
(B) 		8-98178-202-3 01 1 1206- ●
200 03.675 HOSE; VAC
(C) 		8-98178-203-2 01 1 1206- ●
200 03.675 HOSE; VAC
(D) 		8-98178-206-1 01 1 1206- ●
200 03.675 HOSE; VAC
(E) 		8-98178-207-1 01 1 1206- ●
200 03.675 HOSE; VAC
(F) 		8-98178-208-1 01 1 1206- ●
200 03.675 HOSE; VAC
(G) 		8-98178-209-0 01 1 1206- ●
200 03.675 HOSE; VAC
(H) 		8-98178-210-0 01 1 1206- ●
472 03.671 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1206- ●
472 03.671 BOLT; BRKT
04.338 (B) M8X20 FLANGE 		0-28050-820-0 05 1 1206- ●
472 03.671 BOLT; BRKT
00.206 (C) M8X70 FLANGE 		0-28050-870-0 01 1 1206- ●
565 03.417 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1206- ●
565 03.417 NUT; BRKT
01.540 (B) M8 FLANGE 		0-91180-208-0 02 1 1206- ●
747 03.671 NUT; VAC REG VALVE
EURO3 SPECIFICATION<NT3> 00.349 M8 FLANGE 		8-98053-188-0 02 1 1211- ●
747 03.671 NUT; VAC REG VALVE
01.062 M8 FLANGE 		0-91180-108-0 04 1 1206- ●
747 03.671 NUT; VAC REG VALVE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1205- ●
752 03.670 VALVE; EVRV 8-98116-260-0 02 1 1206- ●
752 03.670 VALVE; EVRV 8-98116-260-0 01 1 1205-1210 ●
752 03.670 VALVE; EVRV 8-98116-260-0 01 1 1211- ● ●
779 03.671 WASHER; VALVE
06.168 ID=8.4 OD=18 		0-91610-608-0 04 1 1206- ●
779 03.671 WASHER; VALVE
06.168 ID=8.4 OD=18 		0-91610-608-0 02 1 1205-1210 ●
779 03.671 WASHER; VALVE
06.168 ID=8.4 OD=18 		0-91610-608-0 02 1 1211- ● ●
799 03.670 BRACKET; VSV 8-98158-714-3 01 1 1206- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
