Sayfa 0-36 - Isuzu EPC

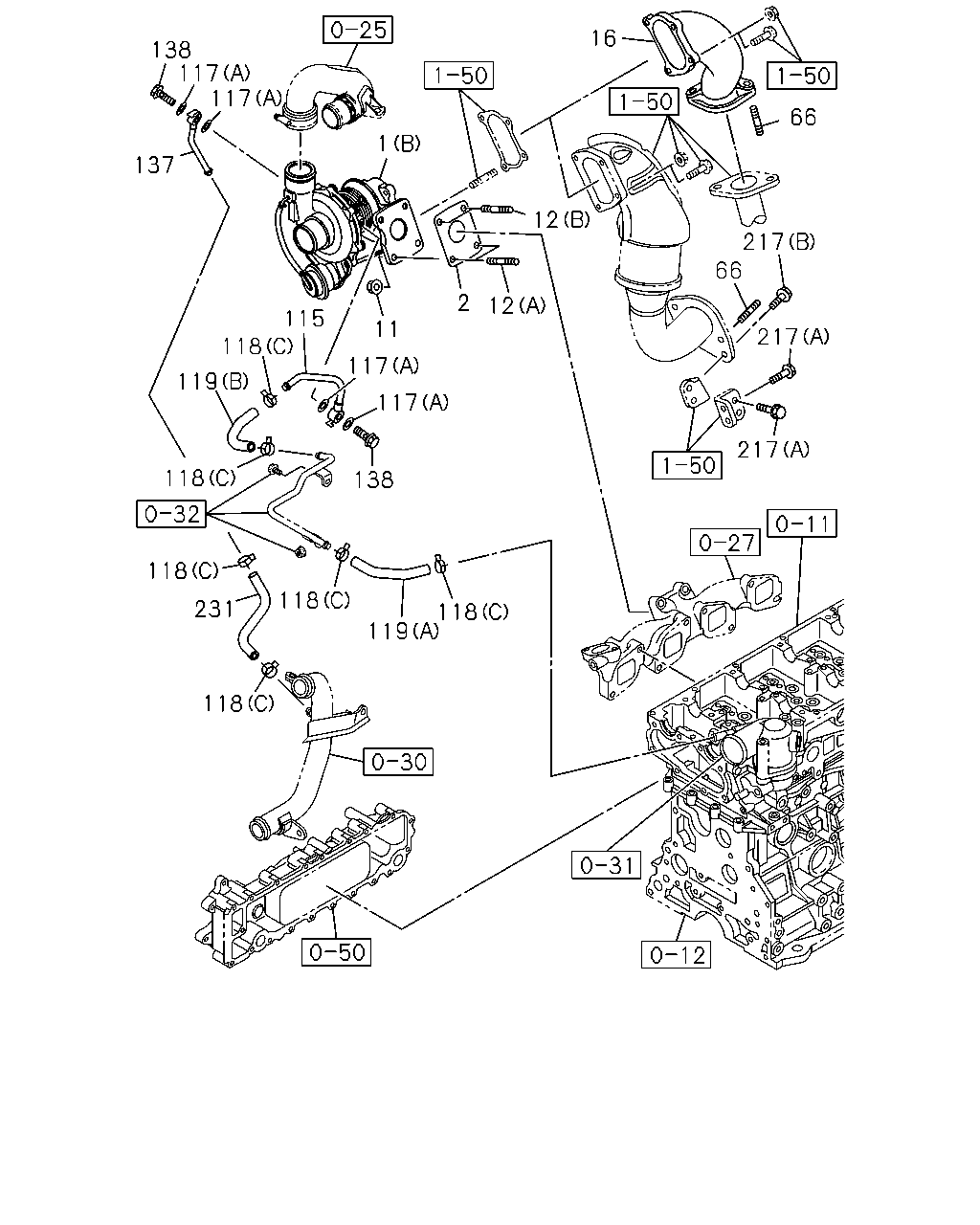

0-36 — TURBOCHARGER SYSTEM (#81643) — 610 parça

21 526 458 118 32 101 217 66 527 320 12 12 2 11 1 118 119 118 118 217 217 118 231 118 119 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION<NT3> (F)	8-98132-070-3	01	1	1211-	●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1206-		●
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1206-			●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1206-					●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1205-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1206-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1206-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1205-1205						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1206-1210		●			●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1211-	●	●			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1206-1210			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1211-	●		●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1206-				●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1205-1205						●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1206-		●			●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1206-			●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1206-				●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1211-	●	●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1211-	●	●			●	●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1206-				●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1206-				●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1205-1210						●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1211-	●					●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1205-1205						●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1206-				●		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-97087-029-0	01	1	1206-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98159-563-1	01	1	1206-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1206-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1205-1210						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1211-	●					●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1206-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1206-				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1205-1205						●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1206-1210		●			●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1211-	●	●			●	●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1206-				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1205-1210						●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1211-	●					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1211-		●				●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	10	1	1211-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1206-				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1205-1205						●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1206-				●		●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1205-1205						●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1206-		●		●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1205-1205						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=26.2	8-98202-540-0	02	1	1206-				●		●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1206-				●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1205-1205						●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1206-1210		●		●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1211-	●	●		●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1205-1205						●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1206-1210		●			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1211-	●	●			●	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1211-1302		●				●
217	03.417 BOLT; BRKT 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1211-1302	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1303-1303	●	●				●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1303-1304	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1211-1302		●				●
217	03.417 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1211-1302	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1303-1303	●	●				●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1303-1304	●
217	03.417 BOLT; BRKT (C) M10X25 FLANGE	8-98189-923-0	03	1	1206-				●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1205-1205						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1206-1302				●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1303-1304		●		●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1305-		●		●		●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1305-	●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1205-1205						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1206-1302				●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1303-1304		●		●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1305-		●		●		●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1305-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1206-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1206-		●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1205-1210						●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1211-	●					●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1206-				●
320	03.342 BOLT; BRKT,TURBOCHARGER 02.277 (D) M10X35 FLANGE	0-28651-035-0	01	1	1206-				●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1205-1210						●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1211-	●					●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1205-1210						●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1211-	●					●
458	03.373 PIPE; WATER,TURBOCHARGER (C)	8-98151-200-0	01	1	1206-				●
458	03.373 PIPE; WATER,TURBOCHARGER (B)	8-98151-201-0	01	1	1206-				●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1205-1210						●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1211-	●					●
526	03.342 GASKET; PLATE (B)	8-98178-929-1	01	1	1206-				●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1205-1205						●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1206-1210				●		●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1211-	●			●		●
527	03.373 BRACKET; TURBOCHARGER (C)	8-98151-382-0	01	1	1206-				●
527	03.373 BRACKET; TURBOCHARGER (B)	8-98182-781-0	01	1	1206-				●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1205-1210						●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1211-	●					●

138 137 117 117 118 119 118 118 231 118 115 118 1 11 117 117 138 119 118 2 12 12 16 66 217 66 217 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION<NT3> (F)	8-98132-070-3	01	1	1211-	●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1206-		●
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1206-			●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1206-					●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1205-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1206-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1206-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1205-1205						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1206-1210		●			●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1211-	●	●			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1206-1210			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1211-	●		●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1206-				●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1205-1205						●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1206-		●			●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1206-			●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1206-				●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1211-	●	●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1211-	●	●			●	●
16	03.609 ADAPTER; EXH PIPE	8-98132-080-0	01	1	1206-1302		●			●
16	03.609 ADAPTER; EXH PIPE	8-98132-080-0	01	1	1303-					●
16	03.609 ADAPTER; EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98132-080-0	01	1	1303-		●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1206-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1206-				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1205-1205						●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1206-1210		●			●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1211-	●	●			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98132-443-0	01	1	1206-		●			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.724 (B) ID=47.7	1-09623-465-0	01	1	1206-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1206-		●			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1211-		●				●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	10	1	1211-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1206-				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1205-1205						●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1206-				●		●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1205-1205						●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1206-		●		●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1205-1205						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=26.2	8-98202-540-0	02	1	1206-				●		●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1206-				●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1205-1205						●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1206-1210		●		●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1211-	●	●		●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1205-1205						●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1206-1210		●			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1211-	●	●			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98132-444-1	01	1	1206-		●			●
138	03.342 BOLT; EYE,WATER PIPE M14X31 EYE-BOLT	8-98037-067-0	02	1	1206-		●			●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1211-1302		●				●
217	03.417 BOLT; BRKT 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1211-1302	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1303-1303	●	●				●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1303-1304	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1211-1302		●				●
217	03.417 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1211-1302	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1303-1303	●	●				●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1303-1304	●
217	03.417 BOLT; BRKT (C) M10X25 FLANGE	8-98189-923-0	03	1	1206-				●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1205-1205						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1206-1302				●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1303-1304		●		●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1305-		●		●		●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1305-	●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1205-1205						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1206-1302				●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1303-1304		●		●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1305-		●		●		●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1305-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1206-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1206-		●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1205-1210						●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1211-	●					●

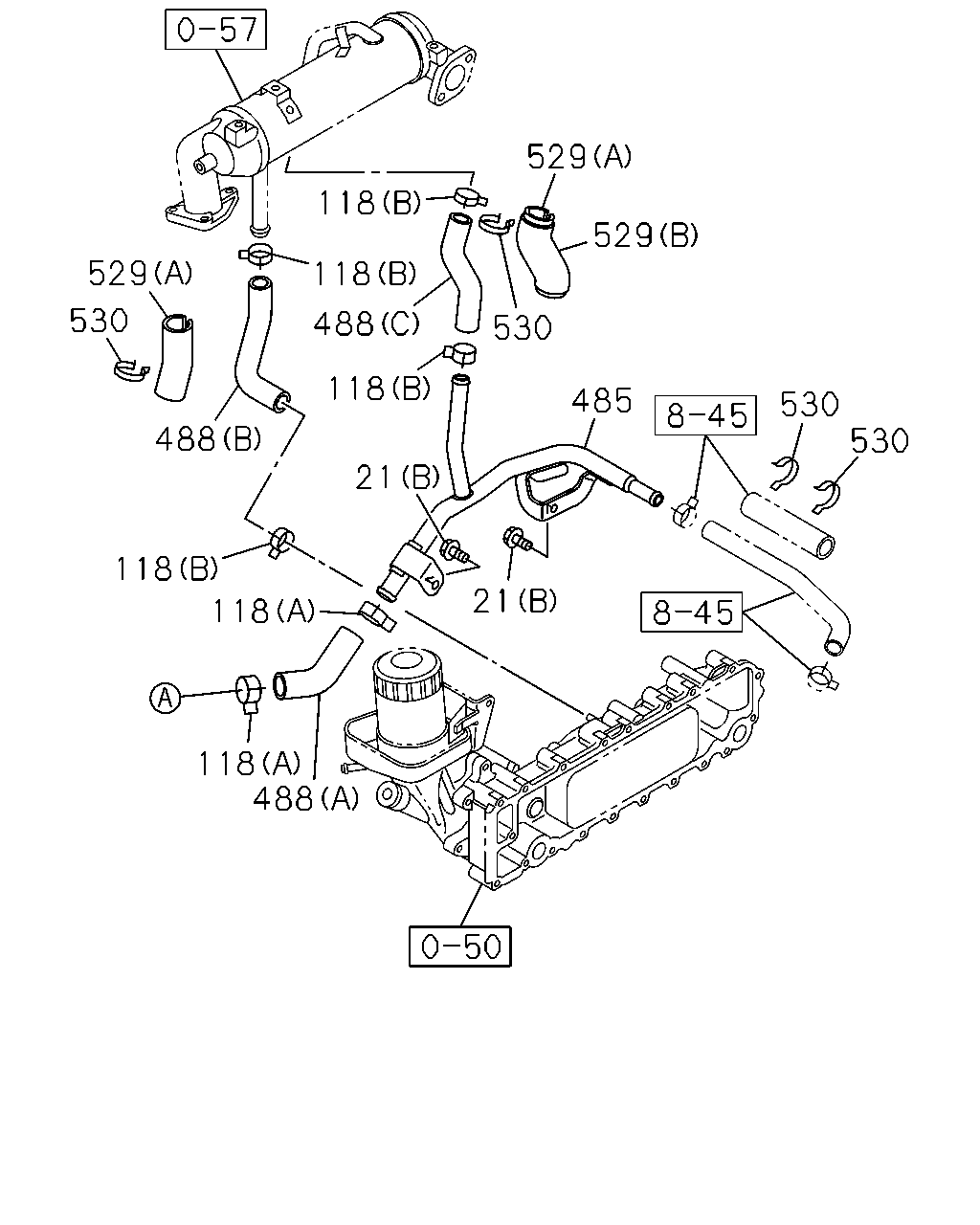

529 530 488 118 118 118 488 21 21 118 488 118 118 529 529 530 485 530 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1206-			●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1206-			●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1205-1210					●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1211-	●				●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1205-1205					●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1206-			●		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1211-		●			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	10	1	1211-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1206-			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1205-1205					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1206-			●		●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1205-1205					●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1206-		●	●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1205-1205					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=26.2	8-98202-540-0	02	1	1206-			●		●
485	01.097 PIPE; WATER EGR	8-98172-521-4	01	1	1206-			●
485	01.097 PIPE; WATER EGR	8-98132-418-2	01	1	1205-1205					●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4>	8-98132-418-2	01	1	1206-					●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (F)	8-98132-445-2	01	1	1211-1302					●
488	03.163 HOSE; RUBBER (F)	8-98132-445-2	01	1	1211-1302	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (F)	8-98132-445-2	01	1	1303-	●	●			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (G)	8-98179-202-0	01	1	1211-1302					●
488	03.163 HOSE; RUBBER (G)	8-98179-202-0	01	1	1211-1302	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (G)	8-98179-202-0	01	1	1303-	●	●			●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1206-			●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1206-			●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1205-1205					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98132-446-0	01	1	1206-			●		●
488	03.163 HOSE; RUBBER (B)	8-98132-447-0	01	1	1205-1205					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98132-447-0	01	1	1206-					●
488	03.163 HOSE; RUBBER (C)	8-98202-356-1	01	1	1205-1205					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98202-356-1	01	1	1206-					●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1206-			●
529	03.374 INSULATOR; HOSE (C)	8-98190-325-0	01	1	1206-			●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	02	1	1205-1205					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (A)	8-98031-883-0	02	1	1206-					●
529	03.374 INSULATOR; HOSE (B)	8-98181-397-0	01	1	1205-1205					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (B)	8-98181-397-0	01	1	1206-					●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	1205-1205					●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	1206-			●		●

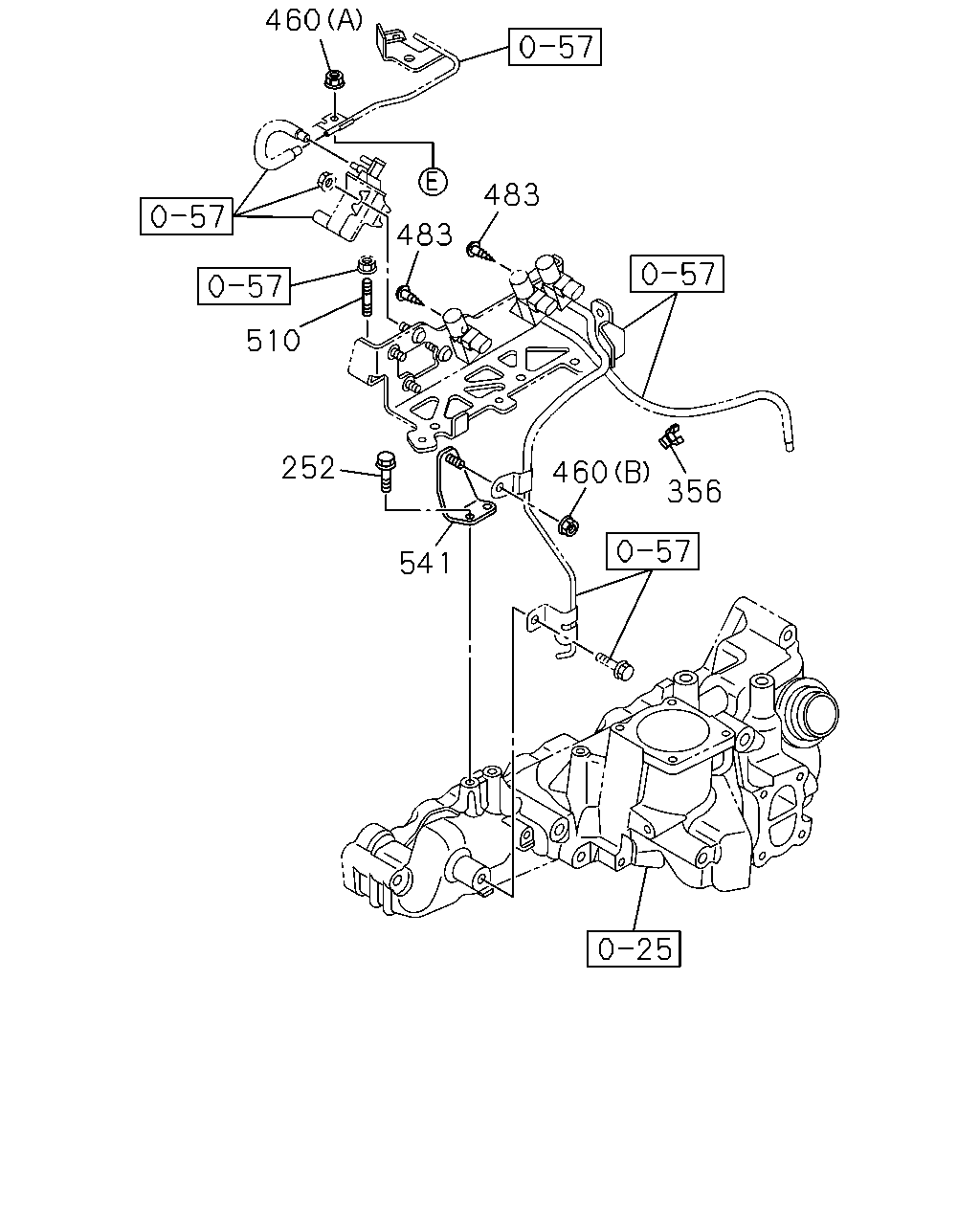

541 252 510 460 483 483 460 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
252	03.417 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1206-	●
356	03.417 CLIP; HOSE,VAC 03.162 ID=6.8 & 22.5	8-97081-816-0	01	1	1206-	●
460	03.374 NUT; PIPE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1206-	●
460	03.374 NUT; PIPE 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1206-	●
483	01.531 SCREW 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1206-	●
510	03.417 STUD; BRKT 02.510 M8X20 L=32	0-41010-820-0	01	1	1206-	●
541	03.616 BRACKET; HOSE	8-98164-824-0	01	1	1206-	●

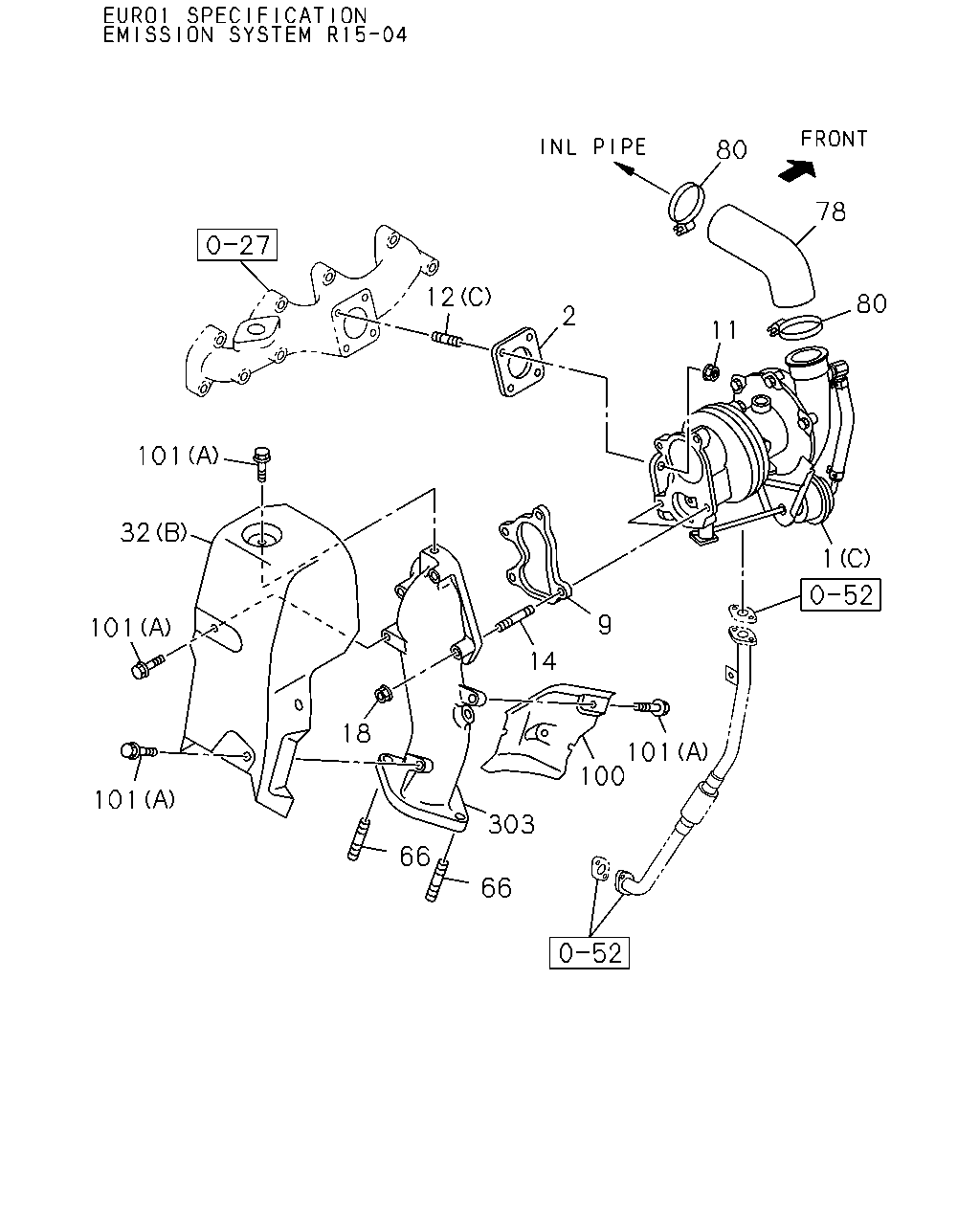

101 101 99 18 66 66 14 9 14 2 12 80 78 80 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION<NT3> (F)	8-98132-070-3	01	1	1211-	●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1206-		●
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1206-			●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1206-					●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1205-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1206-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1206-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1205-1205						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1206-1210		●			●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1211-	●	●			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97139-726-0	01	1	1206-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1206-1210			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1211-	●		●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1206-				●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1205-1205						●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1206-		●			●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1206-			●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1206-				●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1211-	●	●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1211-	●	●			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.601 M8X25 L=36	8-97378-062-0	04	1	1206-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> M8X43 L=54	8-97378-067-0	04	1	1206-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1206-			●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1206-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1206-				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1205-1205						●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1206-1210		●			●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1211-	●	●			●	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1206-			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1206-				●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	1206-			●
99	03.602 PROTECTOR; HEAT EURO2 SPECIFICATION<NT2>	8-97318-472-0	01	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1206-				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1205-1210						●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1211-	●					●

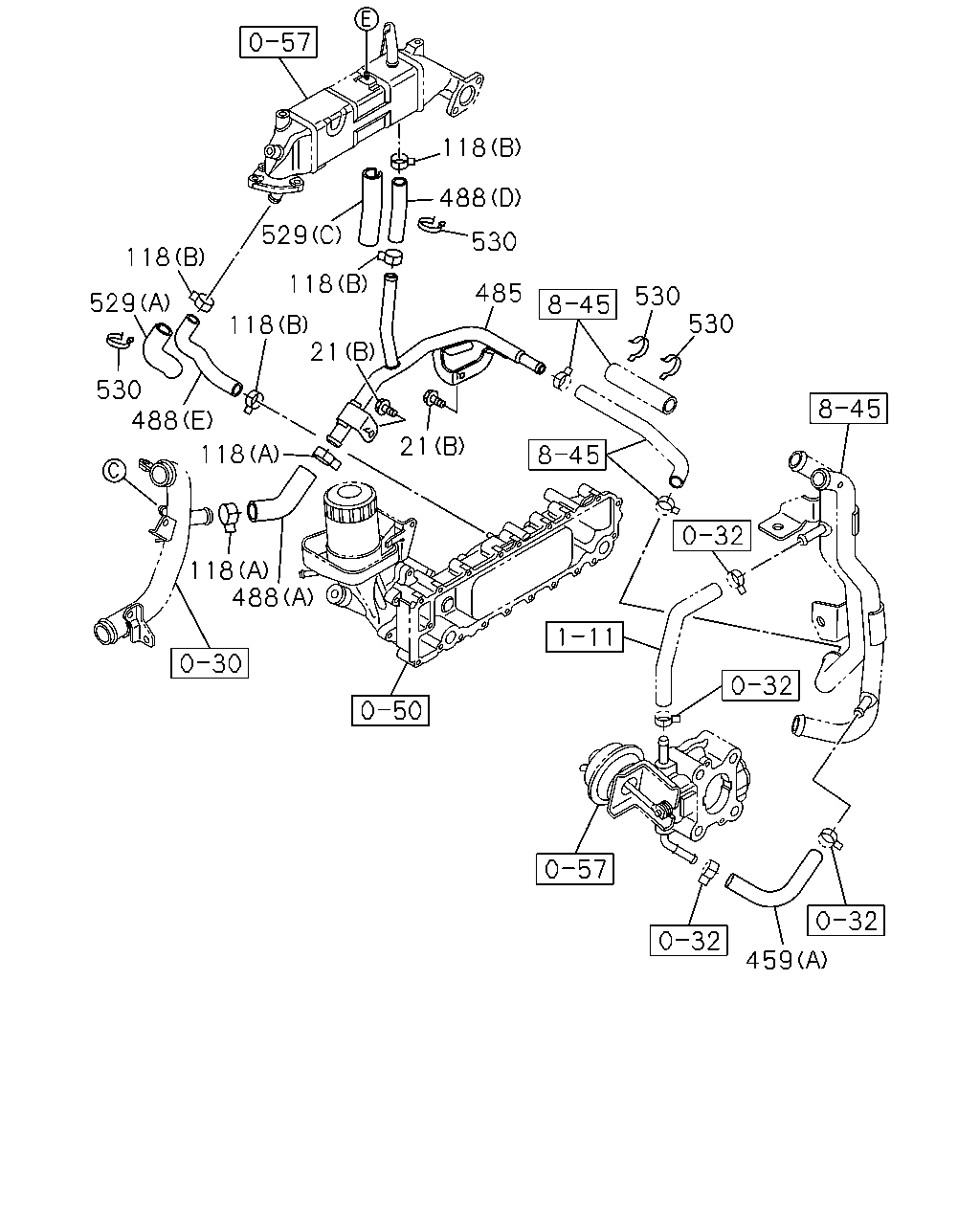

459 530 530 21 485 530 488 118 529 118 21 118 118 118 488 488 530 529 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1206-			●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1206-			●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1205-1210					●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1211-	●				●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1205-1205					●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1206-			●		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1211-		●			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	10	1	1211-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1206-			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1205-1205					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1206-			●		●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1205-1205					●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1206-		●	●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1205-1205					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=26.2	8-98202-540-0	02	1	1206-			●		●
459	03.341 HOSE; WATER (A) L=100 SERVICED BY L=3000	0-03657-300-0	01	1	1206-			●
459	03.341 HOSE; WATER (B)	8-98159-561-0	01	1	1206-			●
485	01.097 PIPE; WATER EGR	8-98172-521-4	01	1	1206-			●
485	01.097 PIPE; WATER EGR	8-98132-418-2	01	1	1205-1205					●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION<NT4>	8-98132-418-2	01	1	1206-					●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (F)	8-98132-445-2	01	1	1211-1302					●
488	03.163 HOSE; RUBBER (F)	8-98132-445-2	01	1	1211-1302	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (F)	8-98132-445-2	01	1	1303-	●	●			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (G)	8-98179-202-0	01	1	1211-1302					●
488	03.163 HOSE; RUBBER (G)	8-98179-202-0	01	1	1211-1302	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (G)	8-98179-202-0	01	1	1303-	●	●			●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1206-			●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1206-			●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1205-1205					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98132-446-0	01	1	1206-			●		●
488	03.163 HOSE; RUBBER (B)	8-98132-447-0	01	1	1205-1205					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98132-447-0	01	1	1206-					●
488	03.163 HOSE; RUBBER (C)	8-98202-356-1	01	1	1205-1205					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98202-356-1	01	1	1206-					●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	1206-			●
529	03.374 INSULATOR; HOSE (C)	8-98190-325-0	01	1	1206-			●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	02	1	1205-1205					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (A)	8-98031-883-0	02	1	1206-					●
529	03.374 INSULATOR; HOSE (B)	8-98181-397-0	01	1	1205-1205					●
529	03.374 INSULATOR; HOSE EURO4 SPECIFICATION<NT4> (B)	8-98181-397-0	01	1	1206-					●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	1205-1205					●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	1206-			●		●

80 78 80 1 11 2 12 101 32 101 101 18 14 9 66 66 303 100 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION<NT3> (F)	8-98132-070-3	01	1	1211-	●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1206-		●
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1206-			●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1206-					●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1205-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1206-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1206-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1205-1205						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1206-1210		●			●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1211-	●	●			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97139-726-0	01	1	1206-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1206-1210			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1211-	●		●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1206-				●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1205-1205						●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1206-		●			●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1206-			●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1206-				●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1211-	●	●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1211-	●	●			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.601 M8X25 L=36	8-97378-062-0	04	1	1206-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> M8X43 L=54	8-97378-067-0	04	1	1206-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1206-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-97087-029-0	01	1	1206-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98159-563-1	01	1	1206-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1206-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1205-1210						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1211-	●					●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1206-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1206-				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1205-1205						●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1206-1210		●			●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1211-	●	●			●	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1206-			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1206-				●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	1206-			●
100	03.417 PROTECTOR; HEAT,EXH MANIF EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>	8-97038-109-1	01	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1206-				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1205-1210						●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1211-	●					●
303	03.440 ADAPTER; THROTTLE BODY,EXH EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>	8-98189-770-0	01	1	1206-			●

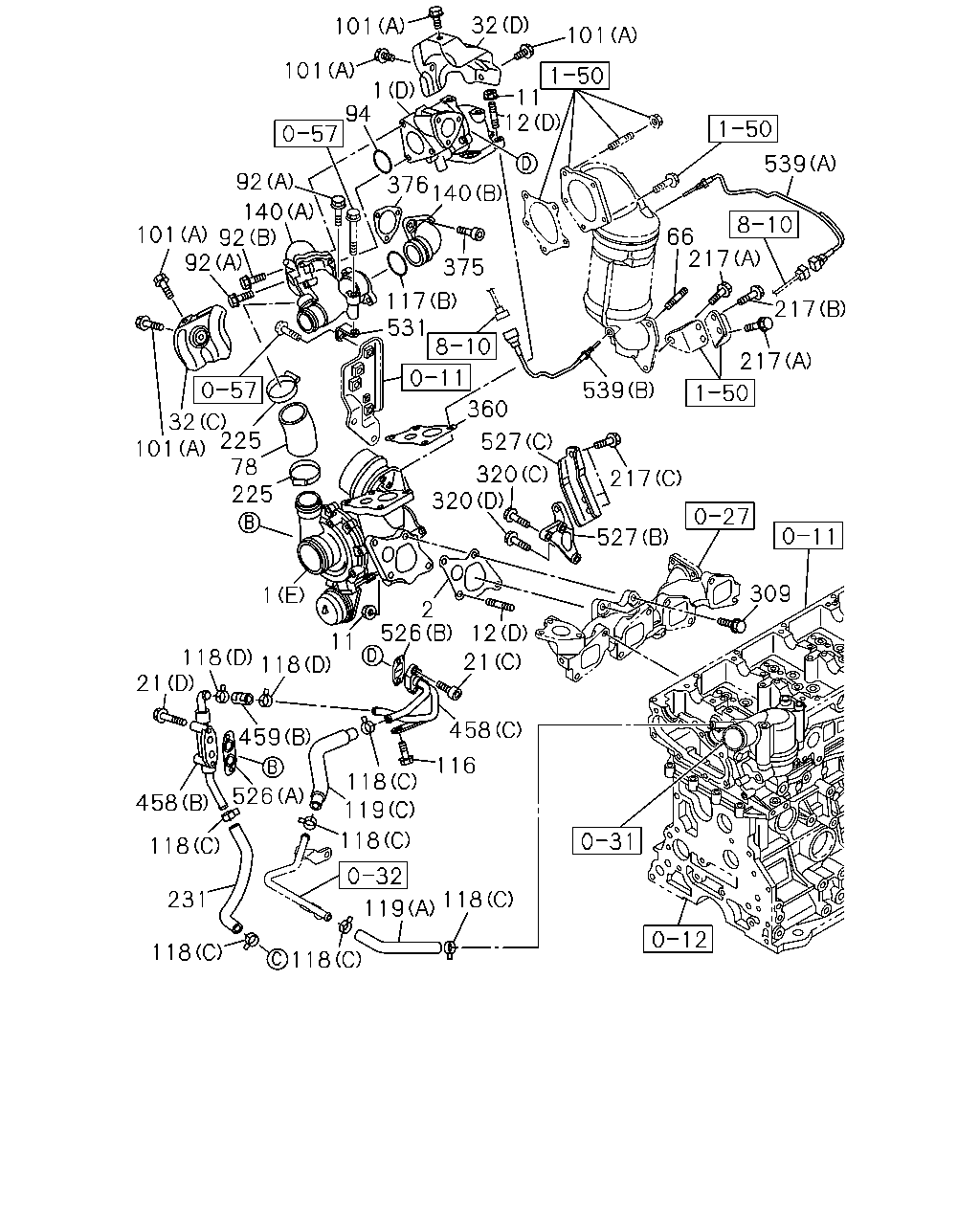

101 101 1 94 92 140 101 92 92 32 101 225 78 225 32 101 11 12 376 140 375 117 531 360 527 320 320 1 2 11 526 12 21 118 118 458 21 459 116 118 119 118 118 119 118 118 231 118 458 526 309 527 217 539 217 217 217 66 539

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION<NT3> (F)	8-98132-070-3	01	1	1211-	●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1206-		●
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1206-			●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1206-					●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1205-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1206-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1206-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1205-1205						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1206-1210		●			●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1211-	●	●			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1206-1210			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1211-	●		●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1206-				●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1205-1205						●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1206-		●			●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1206-			●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1206-				●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1211-	●	●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1211-	●	●			●	●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1206-				●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1206-				●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1205-1210						●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1211-	●					●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1205-1205						●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1206-				●		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-97087-029-0	01	1	1206-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98159-563-1	01	1	1206-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1206-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1205-1210						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1211-	●					●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1206-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1206-				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1205-1205						●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1206-1210		●			●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1211-	●	●			●	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	1206-			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-98179-013-1	01	1	1206-				●
92	03.417 BOLT; INL PIPE 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1206-				●
92	03.417 BOLT; INL PIPE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	1206-				●
94	01.531 GASKET; INL PIPE 03.162 ID=49.7	1-09623-541-0	01	1	1206-				●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1206-				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1205-1210						●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1211-	●					●
116	03.342 BOLT; WATER PIPE 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1206-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.724 (B) ID=47.7	1-09623-465-0	01	1	1206-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1206-		●			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1211-		●				●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	10	1	1211-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1206-				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1205-1205						●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1206-				●		●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1205-1205						●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1206-		●		●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1205-1205						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=26.2	8-98202-540-0	02	1	1206-				●		●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1206-				●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1205-1205						●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1206-1210		●		●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1211-	●	●		●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1205-1205						●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1206-1210		●			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1211-	●	●			●	●
140	03.417 PIPE; AIR PIPE (A)	8-98151-283-0	01	1	1206-				●
140	03.417 PIPE; AIR PIPE (B)	8-98162-352-0	01	1	1206-				●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1211-1302		●				●
217	03.417 BOLT; BRKT 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1211-1302	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1303-1303	●	●				●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1303-1304	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1211-1302		●				●
217	03.417 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1211-1302	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1303-1303	●	●				●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1303-1304	●
217	03.417 BOLT; BRKT (C) M10X25 FLANGE	8-98189-923-0	03	1	1206-				●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1205-1205						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1206-1302				●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1303-1304		●		●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1305-		●		●		●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1305-	●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1205-1205						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1206-1302				●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1303-1304		●		●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1305-		●		●		●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1305-	●
225	03.616 CLIP; CONN HOSE 03.407 ID=60-65	8-98096-418-0	02	1	1206-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1206-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1206-		●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1205-1210						●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1211-	●					●
309	03.342 BOLT; TURBOCHARGER M10X30 FLANGE	8-98173-443-0	02	1	1206-				●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1206-				●
320	03.342 BOLT; BRKT,TURBOCHARGER 02.277 (D) M10X35 FLANGE	0-28651-035-0	01	1	1206-				●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1205-1210						●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1211-	●					●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1205-1210						●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1211-	●					●
360	03.342 GASKET; ADAPTER TO TURBOCHARGER	8-98151-216-0	01	1	1206-				●
375	03.342 BOLT; FLANGE 01.428 M6X25 HEX SOCKET	0-58330-625-0	03	1	1206-				●
376	03.342 GASKET; FLANGE CONNECTOR	8-98089-661-0	01	1	1206-				●
458	03.373 PIPE; WATER,TURBOCHARGER (C)	8-98151-200-0	01	1	1206-				●
458	03.373 PIPE; WATER,TURBOCHARGER (B)	8-98151-201-0	01	1	1206-				●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1205-1210						●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1211-	●					●
459	03.341 HOSE; WATER (A) L=100 SERVICED BY L=3000	0-03657-300-0	01	1	1206-				●
459	03.341 HOSE; WATER (B)	8-98159-561-0	01	1	1206-				●
526	03.342 GASKET; PLATE (B)	8-98178-929-1	01	1	1206-				●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1205-1205						●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1206-1210				●		●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1211-	●			●		●
527	03.373 BRACKET; TURBOCHARGER (C)	8-98151-382-0	01	1	1206-				●
527	03.373 BRACKET; TURBOCHARGER (B)	8-98182-781-0	01	1	1206-				●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1205-1210						●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1211-	●					●
531	03.616 BRACKET; DUCT	8-98158-725-0	01	1	1206-				●
539	03.337 SENSOR; TURBOCHARGER (A)	8-98031-605-1	01	1	1206-				●
539	03.337 SENSOR; TURBOCHARGER (B)	8-98199-353-0	01	1	1206-				●

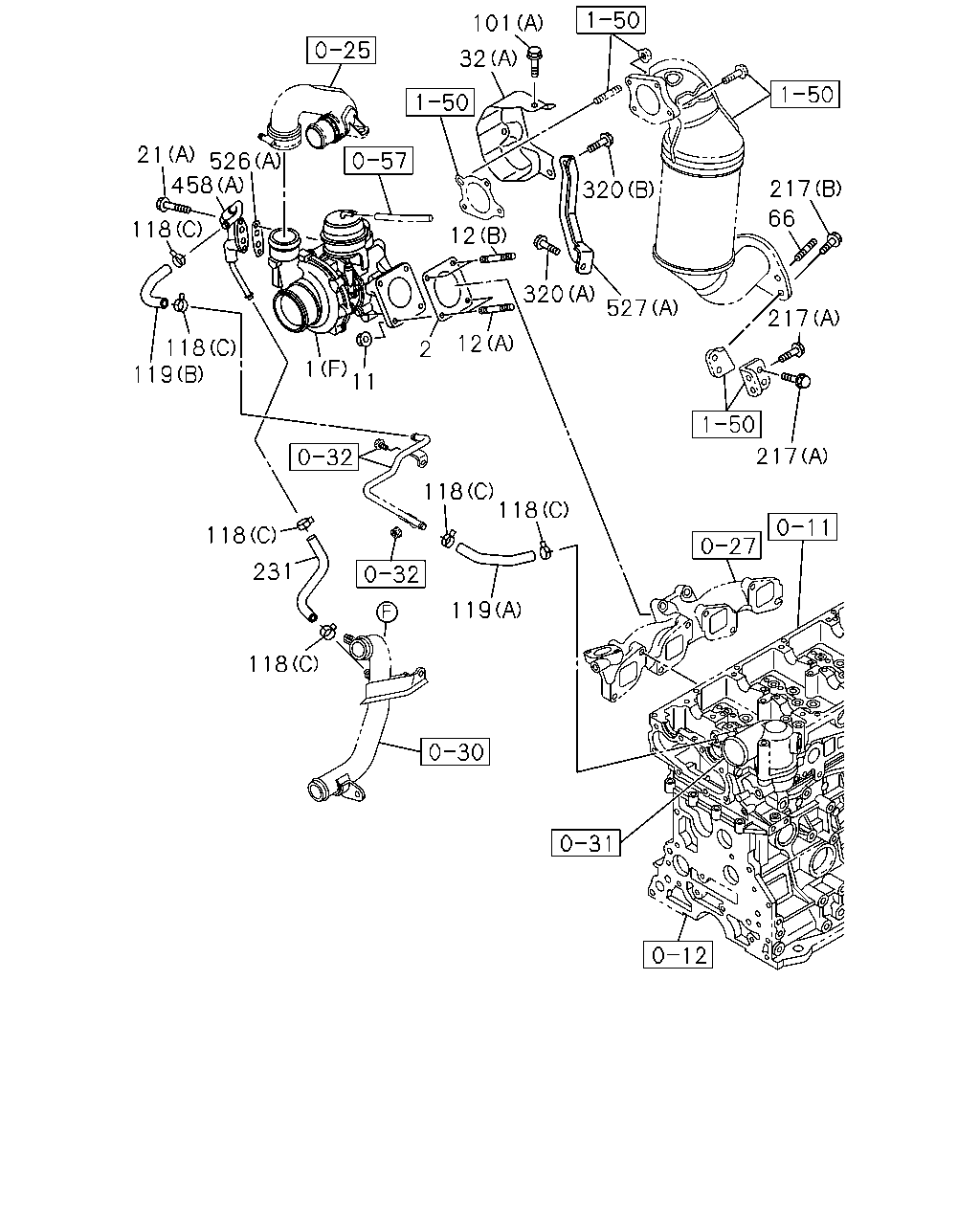

101 217 66 217 217 119 118 118 118 231 118 11 1 2 12 12 320 320 527 32 119 118 118 458 526 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION<NT3> (F)	8-98132-070-3	01	1	1211-	●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-072-0	01	1	1206-		●
1	03.342 TURBOCHARGER ASM (C)	8-97240-210-2	01	1	1206-			●
1	03.342 TURBOCHARGER ASM (D)	8-98150-687-2	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (E)	8-98150-688-3	01	1	1206-				●
1	03.342 TURBOCHARGER ASM (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98132-071-0	01	1	1206-					●
1	03.342 TURBOCHARGER ASM (A)	8-98132-069-2	01	1	1205-						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1206-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98151-215-0	01	1	1206-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1205-1205						●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1206-1210		●			●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98132-073-0	01	1	1211-	●	●			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1206-1210			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1211-	●		●
11	03.342 NUT; TURBOCHARGER M10 FLANGE	8-97309-942-0	06	1	1206-				●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1205-1205						●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	1206-		●			●	●
12	03.342 STUD; TURBOCHARGER (C) M8X20 L=31	8-97378-060-0	04	1	1206-			●
12	03.342 STUD; TURBOCHARGER (D) M10X28.5 L=41.5	8-97378-063-0	06	1	1206-				●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1211-	●	●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1205-1205						●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1206-1210		●			●	●
12	03.342 STUD; TURBOCHARGER 03.604 (B) M8X30 L=41	8-97378-064-0	02	1	1211-	●	●			●	●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	1206-				●
21	03.358 BOLT; PIPE 00.724 (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1206-				●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1205-1210						●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1211-	●					●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1205-1205						●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1206-				●		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-97087-029-0	01	1	1206-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98159-563-1	01	1	1206-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98159-564-2	01	1	1206-				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1205-1210						●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98156-389-0	01	1	1211-	●					●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	1206-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	8-98184-286-0	03	1	1206-				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1205-1205						●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1206-1210		●			●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1211-	●	●			●	●
101	03.602 BOLT; HEAT PROTECTOR EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> 03.162 (B) M6X12 FLANGE	0-28050-612-0	03	1	1206-			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	05	1	1206-				●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1205-1210						●
101	03.602 BOLT; HEAT PROTECTOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1211-	●					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1211-		●				●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	10	1	1211-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1206-				●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1205-1205						●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1206-				●		●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1205-1205						●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1206-		●		●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1205-1205						●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=26.2	8-98202-540-0	02	1	1206-				●		●
119	03.342 HOSE; WATER,TURBOCHARGER (C)	8-98159-560-1	01	1	1206-				●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1205-1205						●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1206-1210		●		●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-98179-510-0	01	1	1211-	●	●		●	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1205-1205						●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1206-1210		●			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-98179-580-0	01	1	1211-	●	●			●	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1211-1302		●				●
217	03.417 BOLT; BRKT 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1211-1302	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1303-1303	●	●				●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 03.275 (A) M8X25 FLANGE	0-28050-825-0	04	1	1303-1304	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1211-1302		●				●
217	03.417 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1211-1302	●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1303-1303	●	●				●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1303-1304	●
217	03.417 BOLT; BRKT (C) M10X25 FLANGE	8-98189-923-0	03	1	1206-				●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1205-1205						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1206-1302				●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1303-1304		●		●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1305-		●		●		●
217	03.417 BOLT; BRKT 06.509 (A) M12X30 FLANGE	0-28661-230-0	03	1	1305-	●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1205-1205						●
217	03.417 BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1206-1302				●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1303-1304		●		●		●
217	03.417 BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1305-		●		●		●
217	03.417 BOLT; BRKT 00.004 (B) M12X35 FLANGE	0-28661-235-0	02	1	1305-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98164-651-1	01	1	1206-				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98168-392-2	01	1	1206-		●			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1205-1210						●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98183-869-0	01	1	1211-	●					●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1206-				●
320	03.342 BOLT; BRKT,TURBOCHARGER 02.277 (D) M10X35 FLANGE	0-28651-035-0	01	1	1206-				●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1205-1210						●
320	03.342 BOLT; BRKT,TURBOCHARGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1211-	●					●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1205-1210						●
320	03.342 BOLT; BRKT,TURBOCHARGER 03.670 (B) M8X18 FLANGE	8-97378-076-0	01	1	1211-	●					●
458	03.373 PIPE; WATER,TURBOCHARGER (C)	8-98151-200-0	01	1	1206-				●
458	03.373 PIPE; WATER,TURBOCHARGER (B)	8-98151-201-0	01	1	1206-				●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1205-1210						●
458	03.373 PIPE; WATER,TURBOCHARGER (A)	8-98184-505-0	01	1	1211-	●					●
526	03.342 GASKET; PLATE (B)	8-98178-929-1	01	1	1206-				●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1205-1205						●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1206-1210				●		●
526	03.342 GASKET; PLATE 01.519 (A)	8-97352-985-0	01	1	1211-	●			●		●
527	03.373 BRACKET; TURBOCHARGER (C)	8-98151-382-0	01	1	1206-				●
527	03.373 BRACKET; TURBOCHARGER (B)	8-98182-781-0	01	1	1206-				●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1205-1210						●
527	03.373 BRACKET; TURBOCHARGER (A)	8-98156-388-0	01	1	1211-	●					●

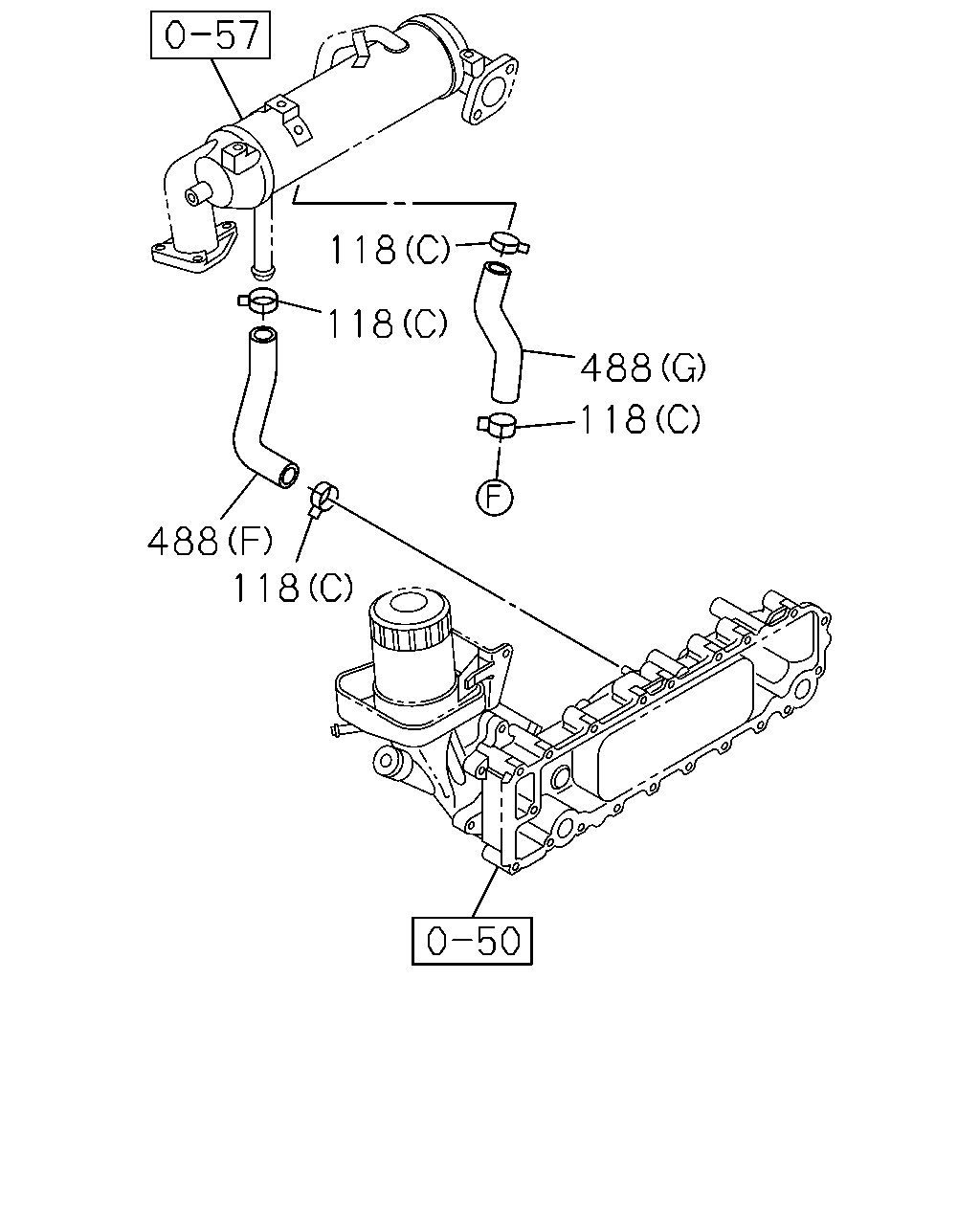

118 118 488 118 488 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	04	1	1211-		●			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> (C) ID=15.1	8-98179-581-0	10	1	1211-	●
118	03.342 CLIP; WATER HOSE (D) ID=12.8	8-97944-125-0	02	1	1206-			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1205-1205					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20.8	8-97944-127-0	04	1	1206-			●		●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1205-1205					●
118	03.342 CLIP; WATER HOSE (C) ID=15.1	8-98179-581-0	06	1	1206-		●	●	●	●
118	03.342 CLIP; WATER HOSE (A) ID=26.2	8-98202-540-0	02	1	1205-1205					●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=26.2	8-98202-540-0	02	1	1206-			●		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (F)	8-98132-445-2	01	1	1211-1302					●
488	03.163 HOSE; RUBBER (F)	8-98132-445-2	01	1	1211-1302	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (F)	8-98132-445-2	01	1	1303-	●	●			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (G)	8-98179-202-0	01	1	1211-1302					●
488	03.163 HOSE; RUBBER (G)	8-98179-202-0	01	1	1211-1302	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION<NT3> (G)	8-98179-202-0	01	1	1303-	●	●			●
488	03.163 HOSE; RUBBER (D)	0-03616-100-0	01	1	1206-			●
488	03.163 HOSE; RUBBER (E)	8-98179-011-2	01	1	1206-			●
488	03.163 HOSE; RUBBER (A)	8-98132-446-0	01	1	1205-1205					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98132-446-0	01	1	1206-			●		●
488	03.163 HOSE; RUBBER (B)	8-98132-447-0	01	1	1205-1205					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98132-447-0	01	1	1206-					●
488	03.163 HOSE; RUBBER (C)	8-98202-356-1	01	1	1205-1205					●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98202-356-1	01	1	1206-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
