◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#81642) — 76 parça

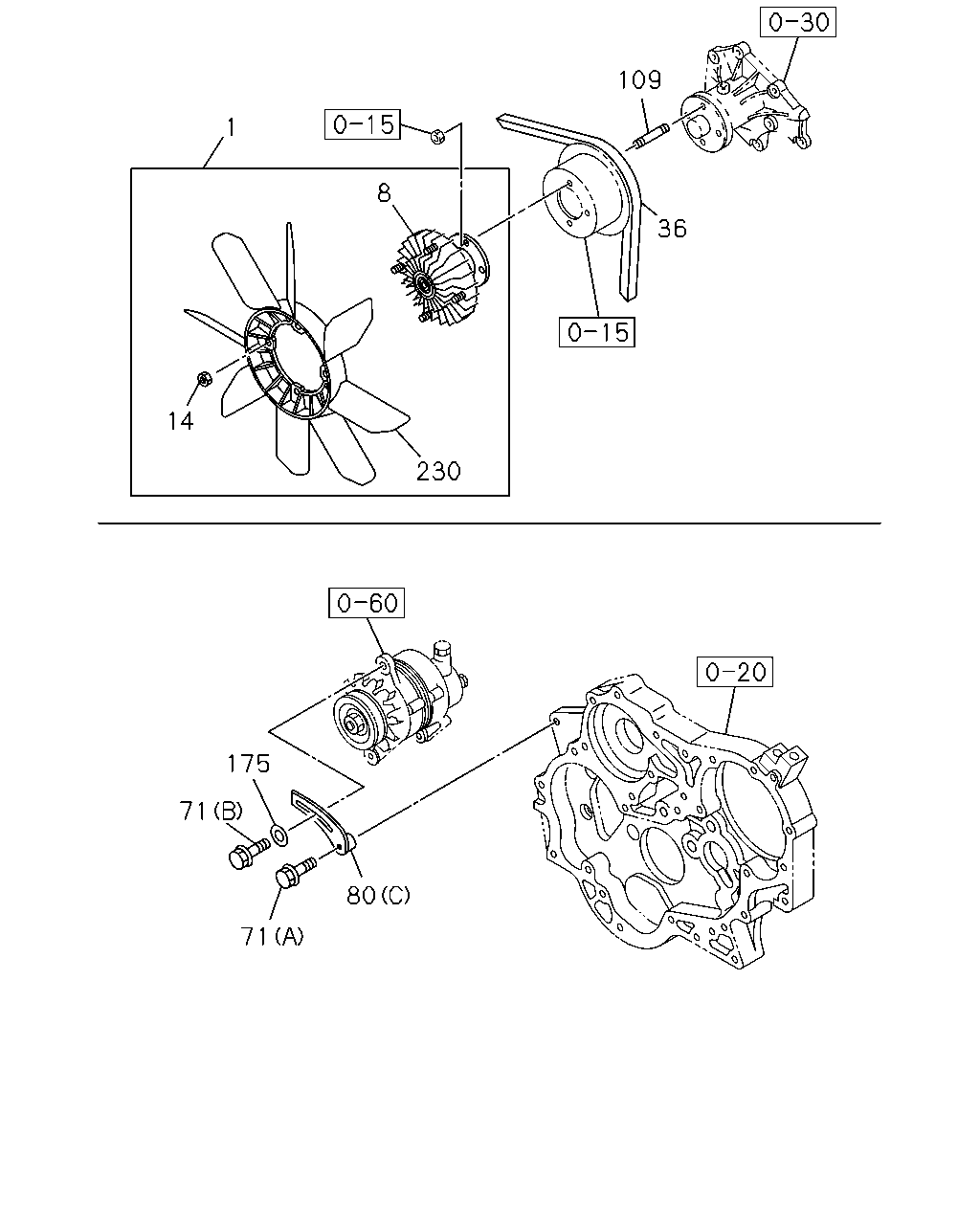

çizim 60680
1 14 230 8 36 109 175 71 71 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING 8-97318-963-1 01 1 1206- ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1205-1205 ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1206-1210 ● ● ● ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1211- ● ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 1206- ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1205-1205 ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1206-1210 ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1211- ● ● ● ● ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 1206- ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 1206- ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1205-1205 ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1206-1210 ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1211- ● ● ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1209-1210 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1211-1310 ● ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ● ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
4X2(TFB***) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 1206- ●
71 02.317 BOLT; ADJ PLATE,GEN
4X2(TFB***) 09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 1206- ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 1206- ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1205-1205 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1206-1209 ● ● ● ●
80 02.317 PLATE; ADJ
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1210- ● ● ● ●
80 02.317 PLATE; ADJ
(B) 		8-98132-102-4 01 1 1205-1205 ●
80 02.317 PLATE; ADJ
(B) 		8-98132-102-4 01 1 1206-1302 ● ● ● ●
80 02.317 PLATE; ADJ
(B) 		8-98132-102-4 01 1 1303- ● ● ● ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1206-1210 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1211- ● ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1205-1205 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1206-1405 ● ● ● ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1406- ● ● ● ●
175 02.317 WASHER; PL,ADJ PLATE
4X2(TFB***) 02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 1206- ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 1206- ●
çizim 60756
24 1 8 13 109 36 73 80 81 71 96 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING 8-97318-963-1 01 1 1206- ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1205-1205 ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1206-1210 ● ● ● ●
1 01.064 FAN; COOLING 8-98162-703-0 01 1 1211- ● ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 1206- ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1205-1205 ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1206-1210 ● ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-98119-213-1 01 1 1211- ● ● ● ● ●
13 01.062 NUT; COOLING FAN
EURO3 SPECIFICATION<NT3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 1211- ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 1205-1205 ●
13 01.062 NUT; COOLING FAN
16.320 M6 FLANGE 		8-98049-362-0 04 1 1206- ● ● ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1205-1205 ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1206-1210 ● ● ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1211- ● ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 1206- ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1205-1205 ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1206-1210 ● ● ● ●
36 01.066 BELT; COOLING FAN
L=1036 		8-98132-367-0 01 1 1211- ● ● ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1209-1210 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1211-1310 ● ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
IDENTIFICATION LABEL FOR KD<6UT> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ● ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
4X2(TFB***) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 1206- ●
71 02.317 BOLT; ADJ PLATE,GEN
4X2(TFB***) 09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 1206- ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1205-1205 ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1206-1210 ● ● ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1211- ● ● ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 1206- ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1205-1205 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1206-1209 ● ● ● ●
80 02.317 PLATE; ADJ
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1210- ● ● ● ●
80 02.317 PLATE; ADJ
(B) 		8-98132-102-4 01 1 1205-1205 ●
80 02.317 PLATE; ADJ
(B) 		8-98132-102-4 01 1 1206-1302 ● ● ● ●
80 02.317 PLATE; ADJ
(B) 		8-98132-102-4 01 1 1303- ● ● ● ● ●
81 02.317 PIECE; SLIDING
IDENTIFICATION LABEL FOR KD<6UT> 		8-97944-144-1 01 1 1209-1210 ● ● ●
81 02.317 PIECE; SLIDING
IDENTIFICATION LABEL FOR KD<6UT> 		8-97944-144-1 01 1 1211-1310 ● ● ● ●
81 02.317 PIECE; SLIDING
IDENTIFICATION LABEL FOR KD<6UT> 		8-97944-144-1 01 1 1311- ● ● ● ● ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1205-1205 ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1206-1209 ● ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1210- ● ● ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1206-1210 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1211- ● ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1205-1205 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1206-1405 ● ● ● ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1406- ● ● ● ●
