Sayfa 4-12 - Isuzu EPC

4-12 — FRONT DRIVE SHAFT (#8164) — 196 parça

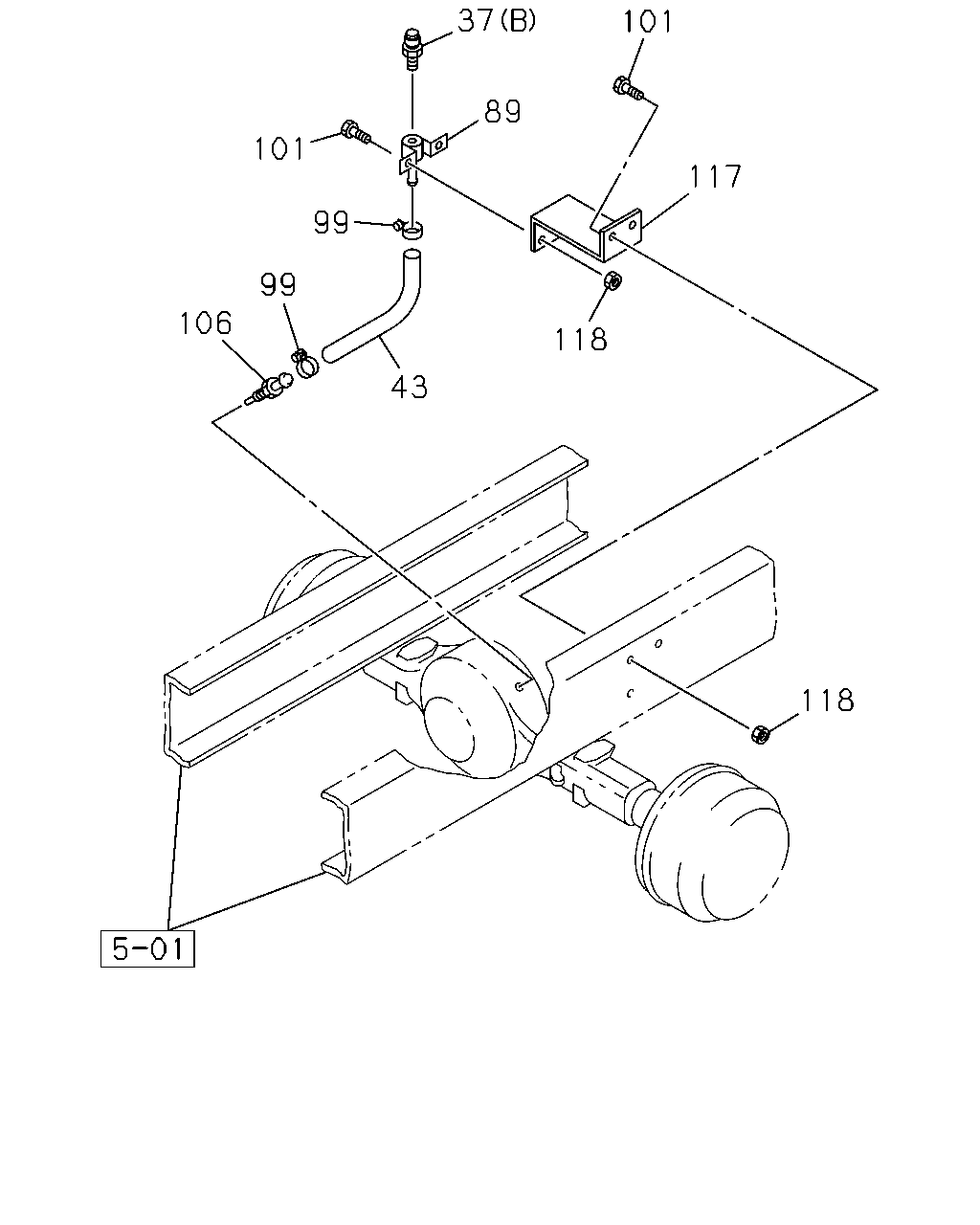

37 101 89 101 117 99 99 106 118 43 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
37	BREATHER; FRT AXLE CASE (C)	9-36122-001-0	01	1	0005-	●	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	0005-0210			●	●
37	BREATHER; FRT AXLE CASE (B)	9-36122-013-0	01	1	0211-			●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-0210			●	●
43	HOSE; RUBBER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M> L=640 SERVICED BY L=3000	0-02857-300-0	01	1	0005-0210			●	●
43	HOSE; RUBBER,AIR BREATHER L=640 SERVICED BY L=3000	0-02857-300-0	01	1	0211-0908			●	●
43	HOSE; RUBBER,AIR BREATHER L=440 SERVICED BY L=3000	0-02857-300-0	01	1	0909-			●	●
89	ADAPTER; AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-09669-066-0	01	1	0005-0210			●	●
89	ADAPTER; AIR BREATHER	1-09669-066-0	01	1	0211-			●	●
99	CLIP; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M> ID=15	1-09704-018-1	02	1	0005-0210			●	●
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	02	1	0211-			●	●
101	BOLT; BRKT,ADAPTER M8X20 FLANGE	0-28050-820-0	02	1	0909-			●	●
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28680-825-0	04	1	0005-0210			●	●
101	BOLT; BRKT,ADAPTER M8X25 FLANGE	0-28680-825-0	04	1	0211-0512			●	●
101	BOLT; BRKT,ADAPTER M8X25 FLANGE	0-28650-825-0	04	1	0601-0908			●	●
101	BOLT; BRKT,ADAPTER M8X25 FLANGE	0-28650-825-0	02	1	0909-			●	●
106	CONNECTOR; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M>	1-09669-081-0	01	1	0005-0210			●	●
106	CONNECTOR; RUBBER HOSE	1-09669-081-0	01	1	0211-			●	●
117	BRACKET; ADAPTER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-42129-203-0	01	1	0005-0210			●	●
117	BRACKET; ADAPTER,AIR BREATHER	1-42129-203-0	01	1	0211-			●	●
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91150-108-0	04	1	0005-0210			●	●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91150-108-0	04	1	0211-0602			●	●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	04	1	0603-			●	●

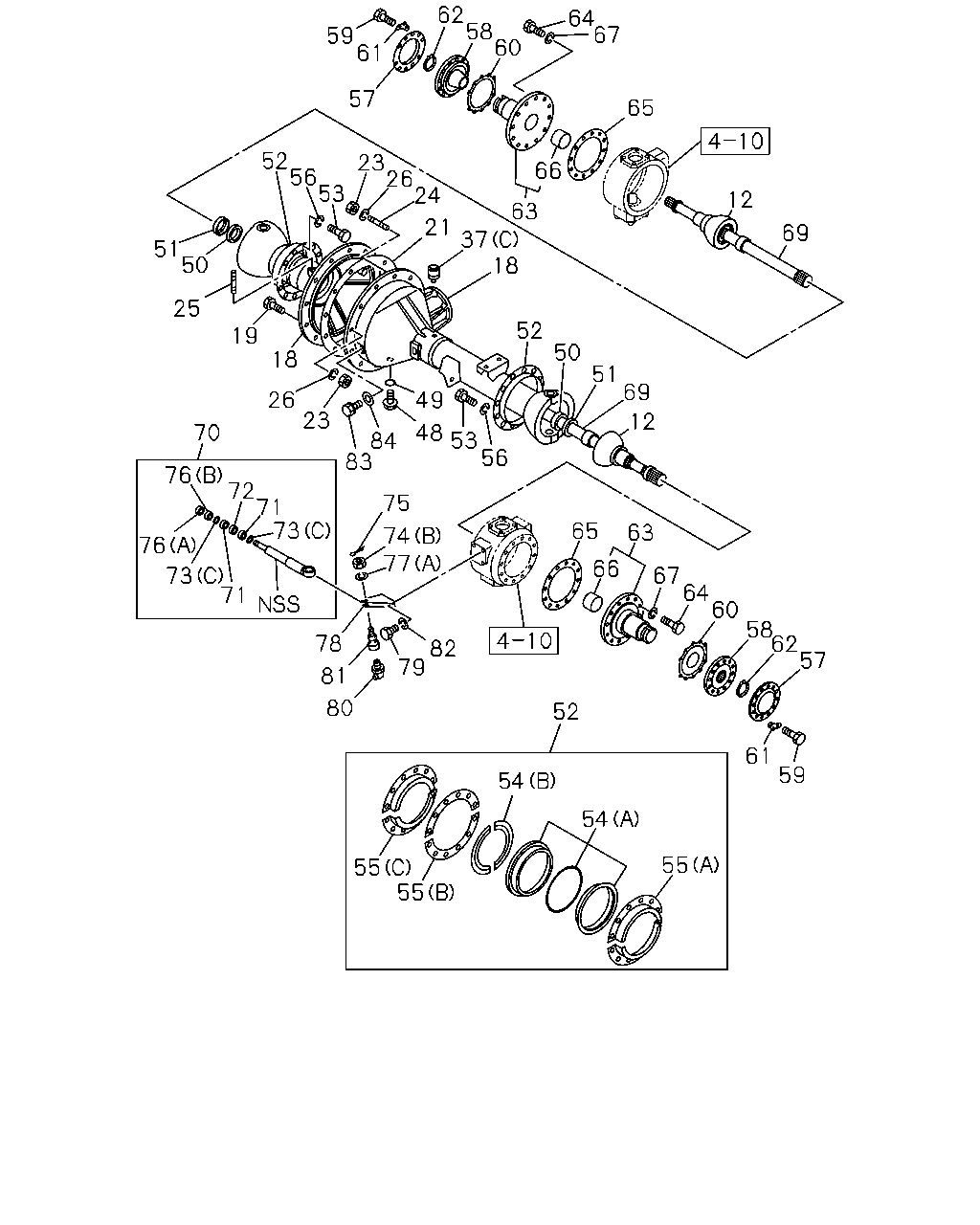

62 58 60 64 67 59 61 57 65 66 52 56 53 23 26 24 12 63 37 18 21 69 51 50 25 52 19 50 18 51 49 69 26 23 12 70 48 53 56 84 83 76 72 71 73 75 65 63 74 77 76 66 67 64 60 58 62 57 73 71 78 82 79 81 80 52 61 59 54 54 55 55 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	0005-	●	●	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	0005-	●	●	●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	0005-	●	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	0005-	●	●
18	CASE; FRT AXLE	1-43210-102-2	01	1	0005-0506			●	●
18	CASE; FRT AXLE	8-98011-801-2	01	1	0507-1109			●	●
18	CASE; FRT AXLE	8-98200-146-0	01	1	1110-			●	●
19	BOLT; FRT AXLE M12X45	9-91066-245-0	12	1	0005-0805	●	●
19	BOLT; FRT AXLE M12X45	8-98036-382-0	12	1	0806-	●	●
21	GASKET; CASE,FRT AXLE	1-43213-002-0	01	1	0005-	●	●
23	NUT; FRT AXLE M12	9-99110-512-0	13	1	0005-0512	●	●
23	NUT; FRT AXLE M12	0-91110-512-0	13	1	0601-	●	●
24	STUD; CASE,FRT AXLE M12X28 L=46	9-94411-228-0	01	1	0005-	●	●
25	STUD; AXLE CASE TO SPRING SEAT M16X149 L=173	1-09302-116-0	04	1	0005-	●	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	9-09150-612-0	13	1	0005-0603	●	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	0-91510-612-0	13	1	0604-	●	●
37	BREATHER; FRT AXLE CASE (C)	9-36122-001-0	01	1	0005-	●	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	0005-0210			●	●
37	BREATHER; FRT AXLE CASE (B)	9-36122-013-0	01	1	0211-			●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-0210			●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0005-	●	●	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0005-	●	●	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0005-	●	●	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0005-	●	●	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0005-	●	●	●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	0005-0512	●	●	●	●
53	BOLT; OIL SEAL M8X16	0-20850-816-0	24	1	0601-	●	●	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0005-	●	●	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0005-	●	●	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0005-	●	●	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0005-	●	●	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0005-	●	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	0005-0603	●	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	0-91510-508-0	24	1	0604-	●	●	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	0005-	●	●	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	0005-	●	●	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	0005-	●	●	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	0005-	●	●	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	0005-	●	●	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0005-	●	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0005-0902	●	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-	●	●	●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	0005-0512	●	●	●	●
64	BOLT; SPINDLE M12X35	0-20951-235-0	08	1	0601-	●	●	●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	0005-	●	●	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0005-	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0005-0902	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-	●	●	●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	0005-0603	●	●	●	●
67	WASHER; LK,SPINDLE ID=12.2	0-91510-512-0	24	1	0604-	●	●	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-024-0	01	1	0005-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-023-0	01	1	0005-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	0005-			●	●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	0005-			●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	0005-	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	0005-			●	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	0005-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	0005-			●	●
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	0005-	●	●
73	WASHER; LWR,FRT S/ABS (C) ID=10.5 OD=32	9-51631-048-0	02	1	0005-	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	0005-			●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	0005-			●	●
74	NUT; S/ABS (B) M12	9-99116-412-0	01	1	0005-0805	●	●	●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0806-	●	●	●	●
74	NUT; S/ABS (A) M16	9-99110-416-0	01	1	0005-0512			●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0601-			●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	0005-0606	●	●	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0607-	●	●	●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	0005-	●	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	0005-	●	●
76	NUT; LWR,FRT S/ABS (C)	9-51631-083-0	01	1	0005-			●	●
77	WASHER; LK,S/ABS (A) ID=12.2	9-09150-512-0	01	1	0005-0603	●	●	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0604-	●	●	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	9-09150-516-0	01	1	0005-0603			●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0604-			●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0005-	●	●	●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	0005-	●	●	●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	0005-	●	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0512	●	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0005-	●	●	●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	0005-0603	●	●	●	●
82	WASHER; LK,BRKT ID=12.2	0-91510-512-0	04	1	0604-	●	●	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0005-	●	●	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0005-	●	●	●	●

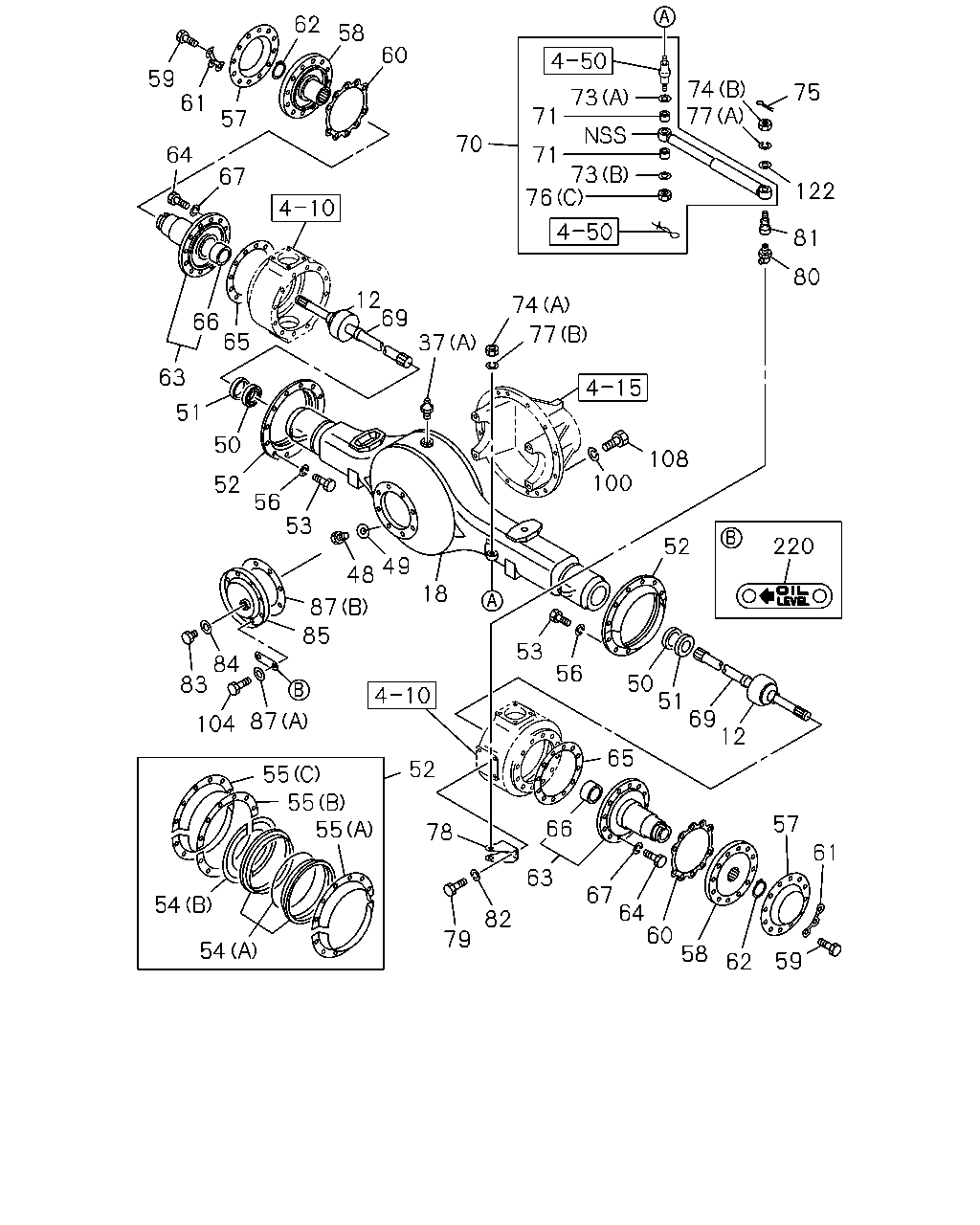

62 58 60 59 61 74 77 75 73 71 57 70 71 64 67 73 76 122 81 80 12 69 74 66 65 77 37 63 51 50 108 100 52 56 53 220 52 49 48 18 87 85 53 84 83 56 50 51 69 12 87 104 65 52 55 55 55 57 66 78 61 63 67 64 60 58 54 82 79 54 59 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	0005-	●	●	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	0005-	●	●	●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	0005-	●	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	0005-	●	●
18	CASE; FRT AXLE	1-43210-102-2	01	1	0005-0506			●	●
18	CASE; FRT AXLE	8-98011-801-2	01	1	0507-1109			●	●
18	CASE; FRT AXLE	8-98200-146-0	01	1	1110-			●	●
37	BREATHER; FRT AXLE CASE (C)	9-36122-001-0	01	1	0005-	●	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	0005-0210			●	●
37	BREATHER; FRT AXLE CASE (B)	9-36122-013-0	01	1	0211-			●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-0210			●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0005-	●	●	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0005-	●	●	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0005-	●	●	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0005-	●	●	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0005-	●	●	●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	0005-0512	●	●	●	●
53	BOLT; OIL SEAL M8X16	0-20850-816-0	24	1	0601-	●	●	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0005-	●	●	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0005-	●	●	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0005-	●	●	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0005-	●	●	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0005-	●	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	0005-0603	●	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	0-91510-508-0	24	1	0604-	●	●	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	0005-	●	●	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	0005-	●	●	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	0005-	●	●	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	0005-	●	●	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	0005-	●	●	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0005-	●	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0005-0902	●	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-	●	●	●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	0005-0512	●	●	●	●
64	BOLT; SPINDLE M12X35	0-20951-235-0	08	1	0601-	●	●	●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	0005-	●	●	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0005-	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0005-0902	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-	●	●	●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	0005-0603	●	●	●	●
67	WASHER; LK,SPINDLE ID=12.2	0-91510-512-0	24	1	0604-	●	●	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-024-0	01	1	0005-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-023-0	01	1	0005-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	0005-			●	●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	0005-			●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	0005-	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	0005-			●	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	0005-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	0005-			●	●
73	WASHER; LWR,FRT S/ABS (C) ID=10.5 OD=32	9-51631-048-0	02	1	0005-	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	0005-			●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	0005-			●	●
74	NUT; S/ABS (B) M12	9-99116-412-0	01	1	0005-0805	●	●	●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0806-	●	●	●	●
74	NUT; S/ABS (A) M16	9-99110-416-0	01	1	0005-0512			●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0601-			●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	0005-0606	●	●	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0607-	●	●	●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	0005-	●	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	0005-	●	●
76	NUT; LWR,FRT S/ABS (C)	9-51631-083-0	01	1	0005-			●	●
77	WASHER; LK,S/ABS (A) ID=12.2	9-09150-512-0	01	1	0005-0603	●	●	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0604-	●	●	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	9-09150-516-0	01	1	0005-0603			●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0604-			●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0005-	●	●	●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	0005-	●	●	●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	0005-	●	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0512	●	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0005-	●	●	●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	0005-0603	●	●	●	●
82	WASHER; LK,BRKT ID=12.2	0-91510-512-0	04	1	0604-	●	●	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0005-	●	●	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0005-	●	●	●	●
85	COVER; AXLE CASE	9-42141-059-0	01	1	0005-1109			●	●
87	GASKET; COVER,AXLE CASE (A) ID=10.2 OD=19	9-09572-010-0	08	1	0005-1109			●	●
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-2	01	1	0005-1109			●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	9-09150-812-0	12	1	0005-0603			●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	0604-			●	●
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	0005-1109			●	●
108	BOLT; FRT FINAL DRIVE M12X35	9-92061-235-0	08	1	0005-0512			●	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	0601-			●	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	0005-			●	●
122	WASHER; S/ABS ID=17	9-09160-516-0	01	1	0005-0605			●	●
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	0606-			●	●
220	PLATE	9-83996-444-1	01	1	0211-1109			●	●
220	PLATE	9-83996-444-1	01	1	0005-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
