Isuzu WW
▶
PICKUP
▶
TFR
▶
51412 - TFR/TFS-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶
0-30 — WATER PUMP AND CORROSION RESISTOR
(#81639) — 34 parça
Tümü
A - 4JA1-T ENG
B - 4JK1-TCX ENG
C - 4JJ1-TCX ENG
D - 4JJ1-TCS ENG
E - 4JK1-TCS ENG
F - 4JK1-TCY ENG
◀

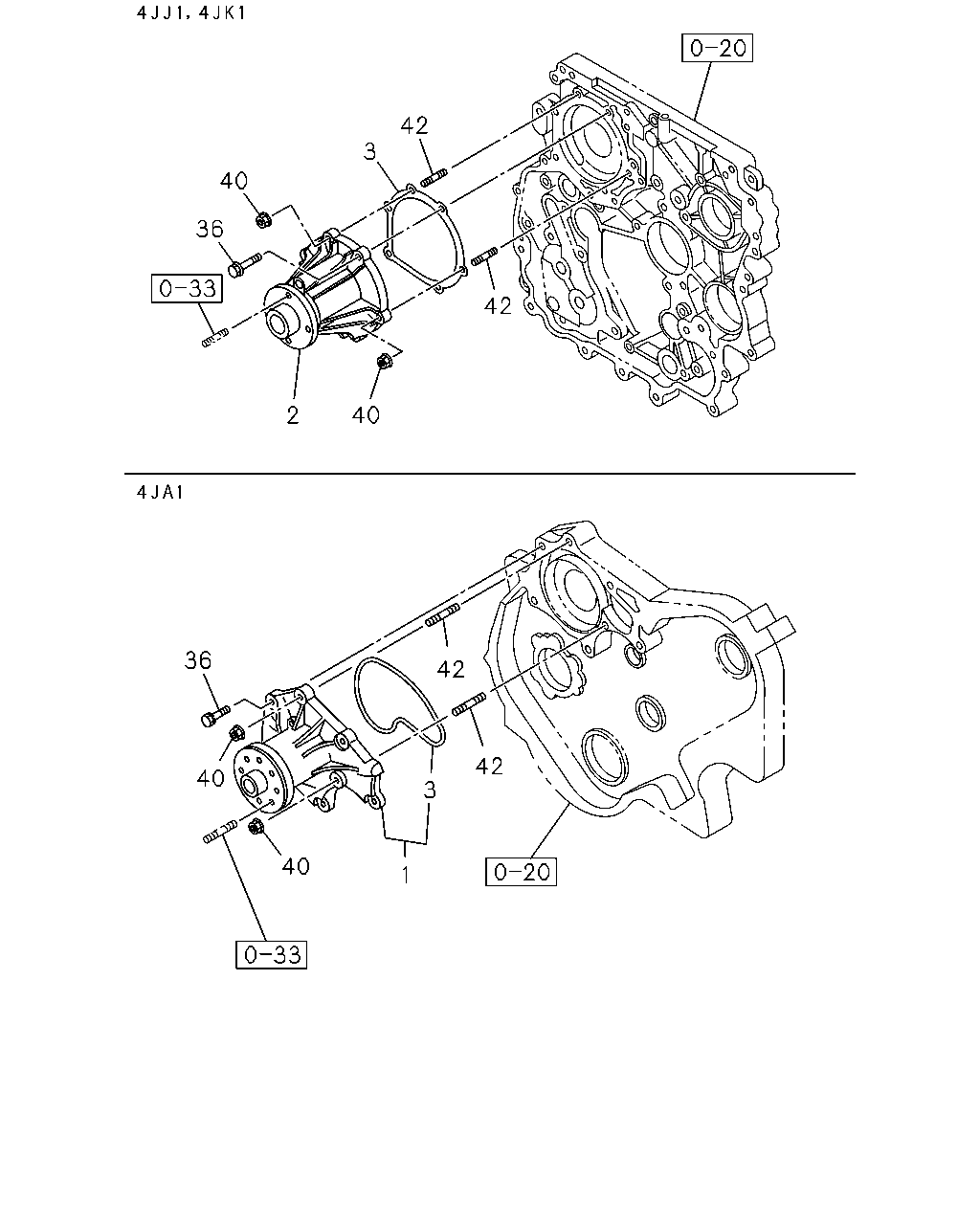

[030A] WATER PUMP ASM (20 parça)

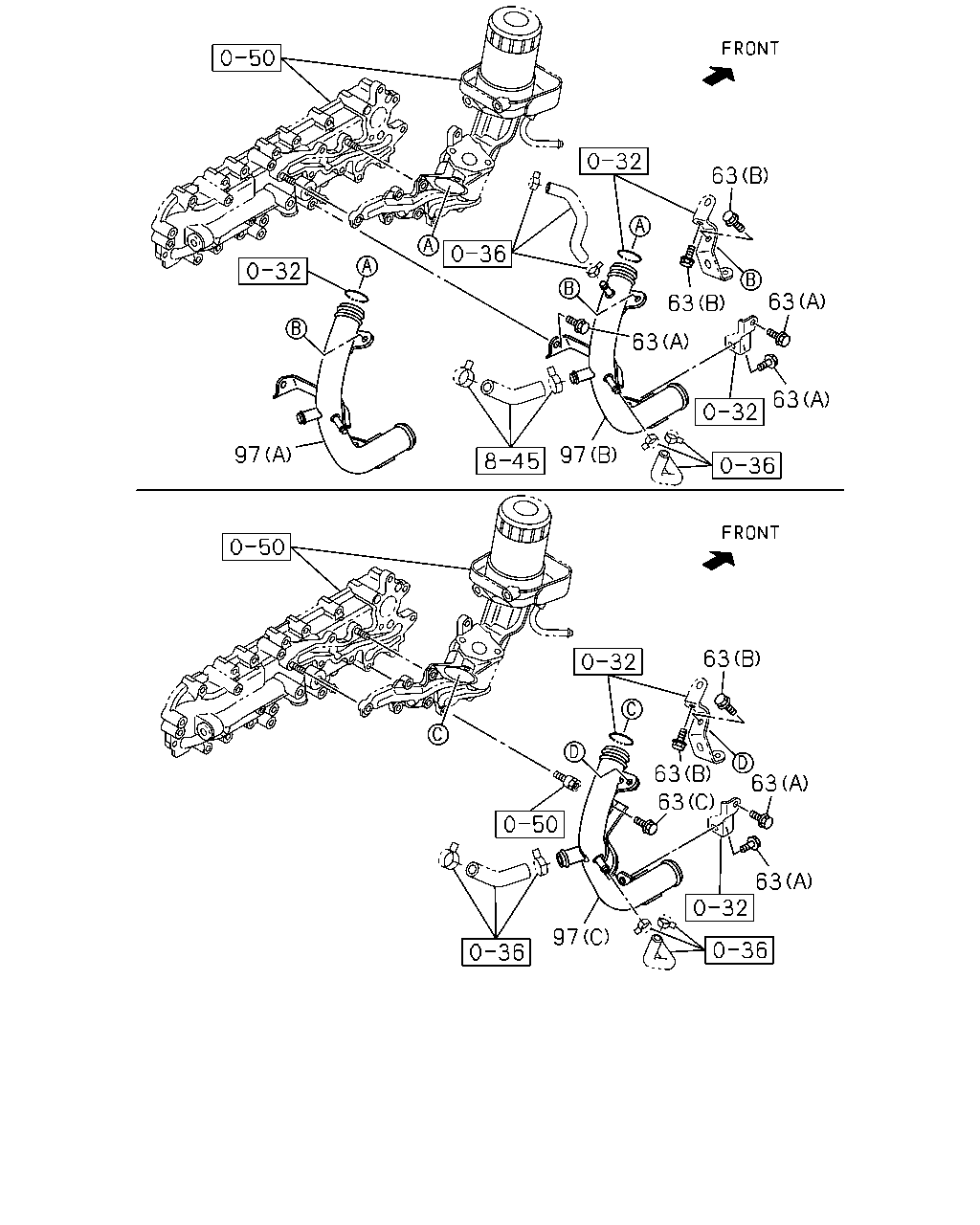

[030A] WATER PIPE (14 parça)
▶
42
3
1
40
40
36
42
40
2
42
42
3
36
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
01.069 PUMP ASM; WATER,W/GASKET
8-97105-012-5
01
1
1206-
●
2
01.069 PUMP ASM; WATER
EURO3 SPECIFICATION<NT3>
8-98004-292-3
01
1
1211-
●
2
01.069 PUMP ASM; WATER
8-97312-147-4
01
1
1205-1205
●
2
01.069 PUMP ASM; WATER
8-97312-147-4
01
1
1206-
●
●
●
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-1
01
1
1206-
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97312-156-0
01
1
1205-1205
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97312-156-0
01
1
1206-1210
●
●
●
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97312-156-0
01
1
1211-
●
●
●
●
●
36
00.386 BOLT; WATER PUMP TO C/BL
EURO3 SPECIFICATION<NT3> 04.686 M8X60 FLANGE
0-28050-860-0
04
1
1211-
●
36
00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER
5-09000-084-1
05
1
1206-
●
36
00.386 BOLT; WATER PUMP TO C/BL
M8X50 FLANGE
0-28050-850-0
04
1
1205-1205
●
36
00.386 BOLT; WATER PUMP TO C/BL
M8X50 FLANGE
0-28050-850-0
04
1
1206-
●
●
●
●
40
07.874 NUT; WATER PUMP
01.062 M8 FLANGE
0-91180-108-0
02
1
1206-
●
40
07.874 NUT; WATER PUMP
01.540 M8 FLANGE
0-91180-208-0
02
1
1205-1205
●
40
07.874 NUT; WATER PUMP
01.540 M8 FLANGE
0-91180-208-0
02
1
1206-1210
●
●
●
●
40
07.874 NUT; WATER PUMP
01.540 M8 FLANGE
0-91180-208-0
02
1
1211-
●
●
●
●
●
42
01.073 STUD; WATER PUMP
EURO3 SPECIFICATION<NT3> M8X28 L=40
0-41010-828-0
02
1
1211-
●
42
01.073 STUD; WATER PUMP
M8X22 L=34
0-41010-822-0
02
1
1206-
●
42
01.073 STUD; WATER PUMP
M8X22 L=40
0-49140-822-0
02
1
1205-1205
●
42
01.073 STUD; WATER PUMP
M8X22 L=40
0-49140-822-0
02
1
1206-
●
●
●
●
63
63
63
63
63
97
97
63
63
63
63
63
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
63
01.073 BOLT; INL PIPE
02.343 (C) M8X12 FLANGE
0-28050-812-0
01
1
1206-
●
63
01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE
0-28050-816-0
02
1
1206-
●
63
01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE
0-28050-816-0
03
1
1205-1205
●
63
01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE
0-28050-816-0
03
1
1206-1210
●
●
●
63
01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE
0-28050-816-0
03
1
1211-
●
●
●
●
63
01.073 BOLT; INL PIPE
04.338 (B) M8X20 FLANGE
0-28050-820-0
02
1
1205-1205
●
63
01.073 BOLT; INL PIPE
04.338 (B) M8X20 FLANGE
0-28050-820-0
02
1
1206-1210
●
●
●
●
63
01.073 BOLT; INL PIPE
04.338 (B) M8X20 FLANGE
0-28050-820-0
02
1
1211-
●
●
●
●
●
97
01.097 PIPE; WATER
(C)
8-98181-124-0
01
1
1206-
●
97
01.097 PIPE; WATER
(B)
8-98132-029-0
01
1
1206-1210
●
●
97
01.097 PIPE; WATER
EURO3 SPECIFICATION<NT3> (B)
8-98132-029-0
01
1
1211-
●
97
01.097 PIPE; WATER
(B)
8-98132-029-0
01
1
1211-
●
●
●
97
01.097 PIPE; WATER
(A)
8-98132-030-0
01
1
1205-1205
●
97
01.097 PIPE; WATER
EURO4 SPECIFICATION<NT4> (A)
8-98132-030-0
01
1
1206-
●
