Sayfa 0-27 - Isuzu EPC

0-27 — EXHAUST MANIFOLD (#81637) — 212 parça

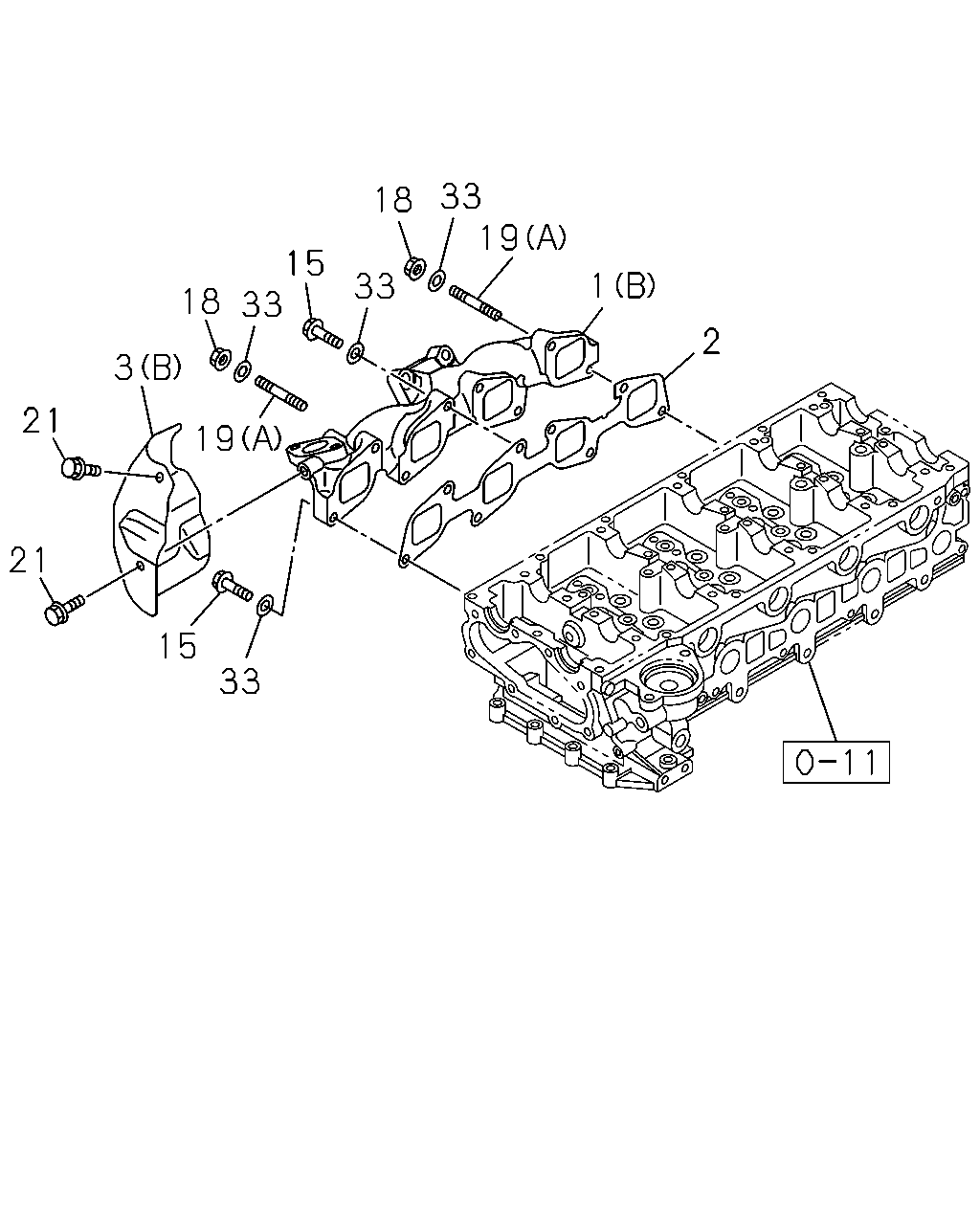

21 3 15 33 1 2 19 19 18 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-97188-177-0	01	1	1206-1206	●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-97942-750-0	01	1	1206-	●
1	03.601 MANIFOLD; EXHAUST EURO3 SPECIFICATION<NT3> (B)	8-98132-040-2	01	1	1211-		●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> (B)	8-98190-386-0	01	1	1206-				●
1	03.601 MANIFOLD; EXHAUST M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98190-386-0	01	1	1206-				●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98190-386-0	01	1	1206-					●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209				●
1	03.601 MANIFOLD; EXHAUST M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209				●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209					●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1210-1210				●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (B)	8-98132-041-2	01	1	1210-1210				●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98132-041-2	01	1	1211-				●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (B)	8-98132-041-2	01	1	1211-				●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75> (C)	8-97183-453-0	01	1	1206-	●
1	03.601 MANIFOLD; EXHAUST (D)	8-98151-204-1	01	1	1206-						●
1	03.601 MANIFOLD; EXHAUST (A)	8-98132-039-2	01	1	1205-1205			●
1	03.601 MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4> (A)	8-98132-039-2	01	1	1206-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO3 SPECIFICATION<NT3>	8-98215-752-0	01	1	1211-1312		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO3 SPECIFICATION<NT3>	8-98229-782-0	01	1	1401-1406		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1407-		●	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-2	01	1	1206-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1205-1205			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1206-1406			●	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1407-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97920-417-1	01	1	1206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (E)	8-97920-418-1	01	1	1206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-98159-562-1	01	1	1206-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98156-384-0	01	1	1206-1210				●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION<NT3> (B)	8-98156-384-0	01	1	1211-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98156-384-0	01	1	1211-		●		●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-98132-049-1	01	1	1205-1205			●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION<NT4> (A)	8-98132-049-1	01	1	1206-			●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	1206-	●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1205-1205			●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1206-1210			●	●	●	●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1211-		●	●	●	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-	●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1205-1205			●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1206-1210			●	●	●	●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1211-		●	●	●	●	●
19	03.604 STUD; MANIF TO CYL HD EURO3 SPECIFICATION<NT3> 03.275 (A) M10X33 L=48	8-97307-075-2	02	1	1211-		●
19	03.604 STUD; MANIF TO CYL HD (B) M8X35 L=46	8-97378-065-0	02	1	1206-	●
19	03.604 STUD; MANIF TO CYL HD (A) M10X33 L=48	8-97379-383-0	02	1	1205-1205			●
19	03.604 STUD; MANIF TO CYL HD (A) M10X33 L=48	8-97379-383-0	02	1	1206-			●	●	●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1206-	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1206-1210	●		●	●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1211-	●	●	●	●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1205-1205			●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1206-						●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	1205-1205			●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	1206-1210			●	●	●	●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	1211-		●	●	●	●	●

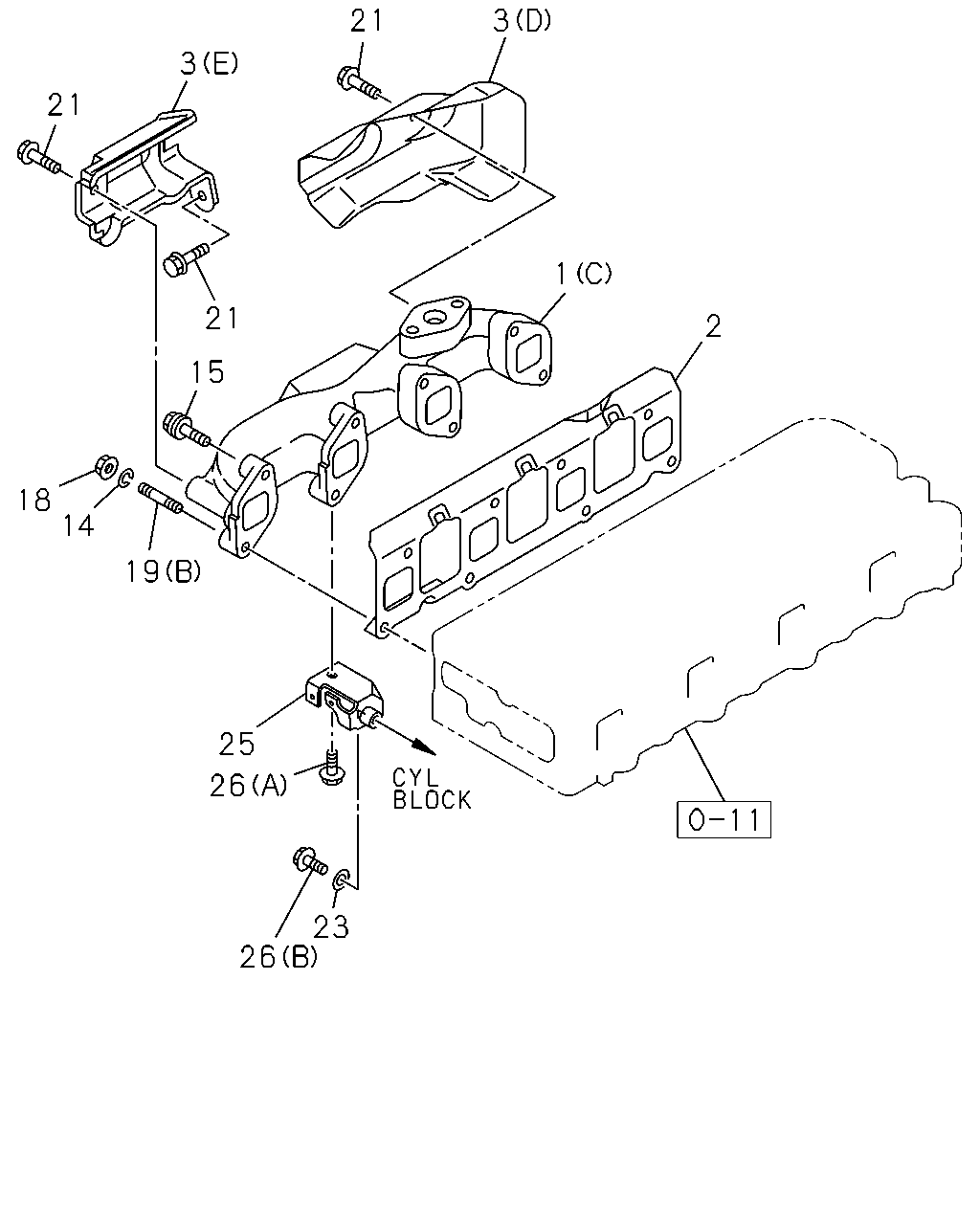

21 3 21 21 1 2 3 15 19 14 18 25 26 26 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-97188-177-0	01	1	1206-1206	●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-97942-750-0	01	1	1206-	●
1	03.601 MANIFOLD; EXHAUST EURO3 SPECIFICATION<NT3> (B)	8-98132-040-2	01	1	1211-		●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> (B)	8-98190-386-0	01	1	1206-				●
1	03.601 MANIFOLD; EXHAUST M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98190-386-0	01	1	1206-				●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98190-386-0	01	1	1206-					●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209				●
1	03.601 MANIFOLD; EXHAUST M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209				●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209					●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1210-1210				●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (B)	8-98132-041-2	01	1	1210-1210				●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98132-041-2	01	1	1211-				●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (B)	8-98132-041-2	01	1	1211-				●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75> (C)	8-97183-453-0	01	1	1206-	●
1	03.601 MANIFOLD; EXHAUST (D)	8-98151-204-1	01	1	1206-						●
1	03.601 MANIFOLD; EXHAUST (A)	8-98132-039-2	01	1	1205-1205			●
1	03.601 MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4> (A)	8-98132-039-2	01	1	1206-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO3 SPECIFICATION<NT3>	8-98215-752-0	01	1	1211-1312		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO3 SPECIFICATION<NT3>	8-98229-782-0	01	1	1401-1406		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1407-		●	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-2	01	1	1206-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1205-1205			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1206-1406			●	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1407-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97920-417-1	01	1	1206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (E)	8-97920-418-1	01	1	1206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-98159-562-1	01	1	1206-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98156-384-0	01	1	1206-1210				●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION<NT3> (B)	8-98156-384-0	01	1	1211-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98156-384-0	01	1	1211-		●		●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-98132-049-1	01	1	1205-1205			●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION<NT4> (A)	8-98132-049-1	01	1	1206-			●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	1206-	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	1206-	●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1205-1205			●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1206-1210			●	●	●	●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1211-		●	●	●	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-	●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1205-1205			●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1206-1210			●	●	●	●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1211-		●	●	●	●	●
19	03.604 STUD; MANIF TO CYL HD EURO3 SPECIFICATION<NT3> 03.275 (A) M10X33 L=48	8-97307-075-2	02	1	1211-		●
19	03.604 STUD; MANIF TO CYL HD (B) M8X35 L=46	8-97378-065-0	02	1	1206-	●
19	03.604 STUD; MANIF TO CYL HD (A) M10X33 L=48	8-97379-383-0	02	1	1205-1205			●
19	03.604 STUD; MANIF TO CYL HD (A) M10X33 L=48	8-97379-383-0	02	1	1206-			●	●	●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1206-	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1206-1210	●		●	●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1211-	●	●	●	●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1205-1205			●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1206-						●
23	03.613 WASHER; PL EXH MANIF BRKT 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-	●
25	03.602 BRACKET; EXH MANIF	8-97188-069-1	01	1	1206-	●
26	03.602 BOLT; BRKT TO EXH MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	01	1	1206-	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1206-	●

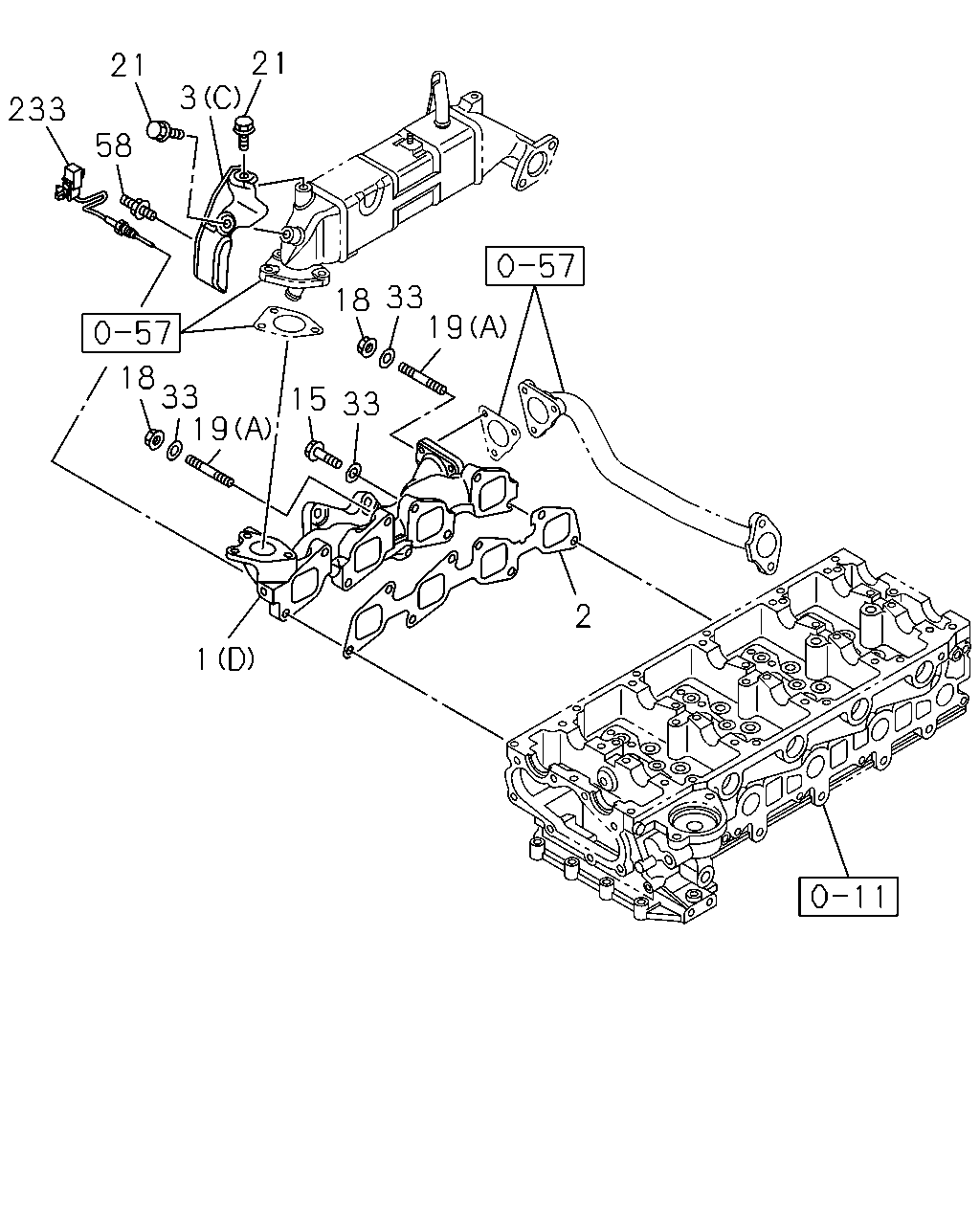

2 1 19 33 18 33 15 33 18 3 21 21 15 33 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-97188-177-0	01	1	1206-1206	●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-97942-750-0	01	1	1206-	●
1	03.601 MANIFOLD; EXHAUST EURO3 SPECIFICATION<NT3> (B)	8-98132-040-2	01	1	1211-		●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> (B)	8-98190-386-0	01	1	1206-				●
1	03.601 MANIFOLD; EXHAUST M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98190-386-0	01	1	1206-				●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98190-386-0	01	1	1206-					●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209				●
1	03.601 MANIFOLD; EXHAUST M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209				●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209					●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1210-1210				●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (B)	8-98132-041-2	01	1	1210-1210				●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98132-041-2	01	1	1211-				●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (B)	8-98132-041-2	01	1	1211-				●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75> (C)	8-97183-453-0	01	1	1206-	●
1	03.601 MANIFOLD; EXHAUST (D)	8-98151-204-1	01	1	1206-						●
1	03.601 MANIFOLD; EXHAUST (A)	8-98132-039-2	01	1	1205-1205			●
1	03.601 MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4> (A)	8-98132-039-2	01	1	1206-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO3 SPECIFICATION<NT3>	8-98215-752-0	01	1	1211-1312		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO3 SPECIFICATION<NT3>	8-98229-782-0	01	1	1401-1406		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1407-		●	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-2	01	1	1206-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1205-1205			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1206-1406			●	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1407-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97920-417-1	01	1	1206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (E)	8-97920-418-1	01	1	1206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-98159-562-1	01	1	1206-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98156-384-0	01	1	1206-1210				●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION<NT3> (B)	8-98156-384-0	01	1	1211-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98156-384-0	01	1	1211-		●		●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-98132-049-1	01	1	1205-1205			●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION<NT4> (A)	8-98132-049-1	01	1	1206-			●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	1206-	●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1205-1205			●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1206-1210			●	●	●	●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1211-		●	●	●	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-	●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1205-1205			●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1206-1210			●	●	●	●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1211-		●	●	●	●	●
19	03.604 STUD; MANIF TO CYL HD EURO3 SPECIFICATION<NT3> 03.275 (A) M10X33 L=48	8-97307-075-2	02	1	1211-		●
19	03.604 STUD; MANIF TO CYL HD (B) M8X35 L=46	8-97378-065-0	02	1	1206-	●
19	03.604 STUD; MANIF TO CYL HD (A) M10X33 L=48	8-97379-383-0	02	1	1205-1205			●
19	03.604 STUD; MANIF TO CYL HD (A) M10X33 L=48	8-97379-383-0	02	1	1206-			●	●	●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1206-	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1206-1210	●		●	●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1211-	●	●	●	●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1205-1205			●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1206-						●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	1205-1205			●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	1206-1210			●	●	●	●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	1211-		●	●	●	●	●

21 21 3 233 58 18 33 19 15 33 18 33 19 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-97188-177-0	01	1	1206-1206	●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-97942-750-0	01	1	1206-	●
1	03.601 MANIFOLD; EXHAUST EURO3 SPECIFICATION<NT3> (B)	8-98132-040-2	01	1	1211-		●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> (B)	8-98190-386-0	01	1	1206-				●
1	03.601 MANIFOLD; EXHAUST M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98190-386-0	01	1	1206-				●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98190-386-0	01	1	1206-					●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209				●
1	03.601 MANIFOLD; EXHAUST M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209				●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1206-1209					●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2> (B)	8-98132-041-2	01	1	1210-1210				●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (B)	8-98132-041-2	01	1	1210-1210				●
1	03.601 MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98132-041-2	01	1	1211-				●	●
1	03.601 MANIFOLD; EXHAUST A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (B)	8-98132-041-2	01	1	1211-				●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75> (C)	8-97183-453-0	01	1	1206-	●
1	03.601 MANIFOLD; EXHAUST (D)	8-98151-204-1	01	1	1206-						●
1	03.601 MANIFOLD; EXHAUST (A)	8-98132-039-2	01	1	1205-1205			●
1	03.601 MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4> (A)	8-98132-039-2	01	1	1206-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO3 SPECIFICATION<NT3>	8-98215-752-0	01	1	1211-1312		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO3 SPECIFICATION<NT3>	8-98229-782-0	01	1	1401-1406		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1407-		●	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-2	01	1	1206-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1205-1205			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1206-1406			●	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1407-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97920-417-1	01	1	1206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (E)	8-97920-418-1	01	1	1206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-98159-562-1	01	1	1206-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98156-384-0	01	1	1206-1210				●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION<NT3> (B)	8-98156-384-0	01	1	1211-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98156-384-0	01	1	1211-		●		●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-98132-049-1	01	1	1205-1205			●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION<NT4> (A)	8-98132-049-1	01	1	1206-			●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	1206-	●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1205-1205			●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1206-1210			●	●	●	●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	06	1	1211-		●	●	●	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-	●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1205-1205			●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1206-1210			●	●	●	●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	02	1	1211-		●	●	●	●	●
19	03.604 STUD; MANIF TO CYL HD EURO3 SPECIFICATION<NT3> 03.275 (A) M10X33 L=48	8-97307-075-2	02	1	1211-		●
19	03.604 STUD; MANIF TO CYL HD (B) M8X35 L=46	8-97378-065-0	02	1	1206-	●
19	03.604 STUD; MANIF TO CYL HD (A) M10X33 L=48	8-97379-383-0	02	1	1205-1205			●
19	03.604 STUD; MANIF TO CYL HD (A) M10X33 L=48	8-97379-383-0	02	1	1206-			●	●	●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1206-	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1206-1210	●		●	●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1211-	●	●	●	●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1205-1205			●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1206-						●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	1205-1205			●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	1206-1210			●	●	●	●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	1211-		●	●	●	●	●
58	03.403 STUD; HEAT PROTECTOR 00.413 M8X15,M8X17 L=40	8-98009-913-0	01	1	1206-						●
233	01.150 SENSOR; EXH 03.670	8-98030-955-0	01	1	1206-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
