Sayfa 0-20 - Isuzu EPC

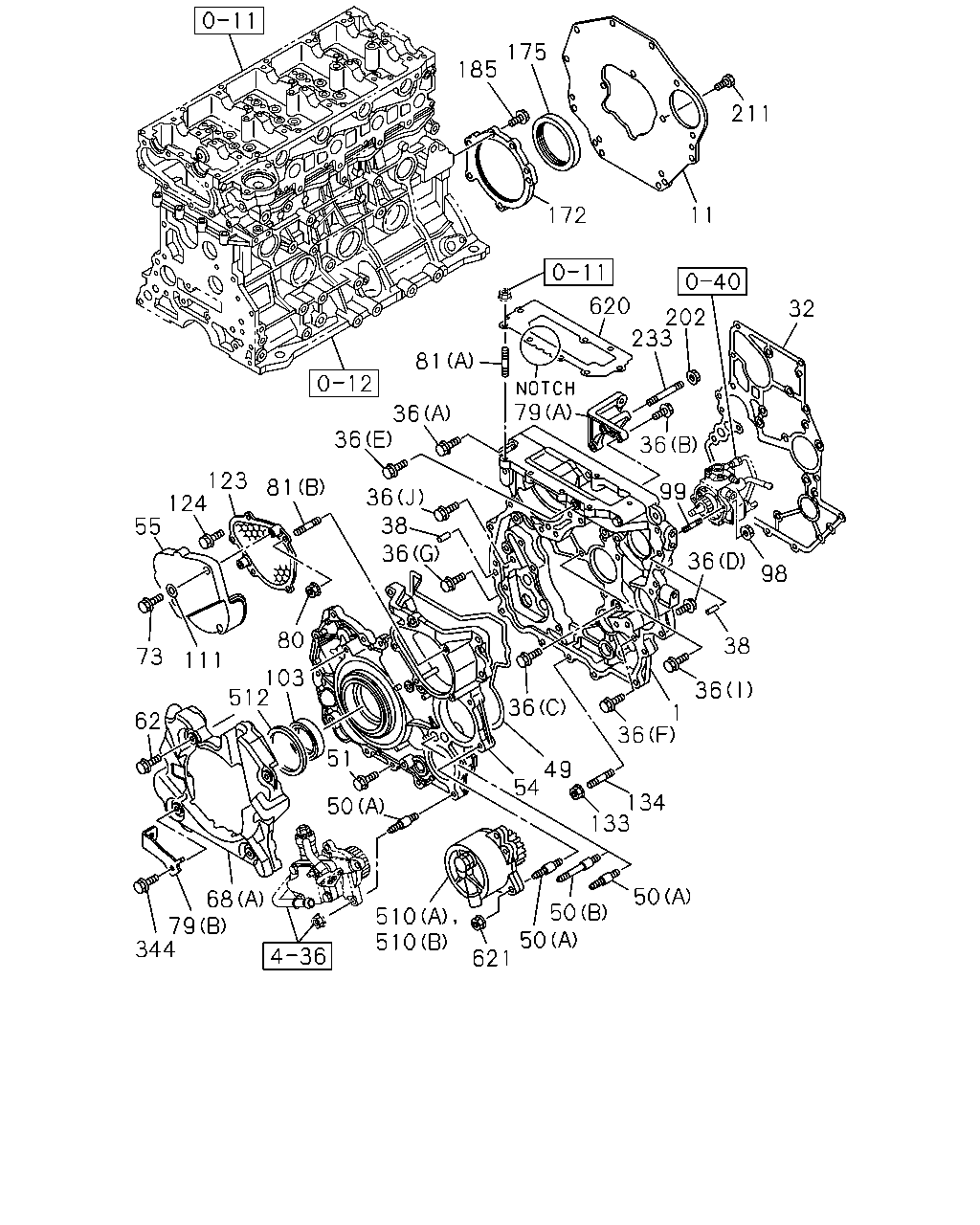

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#81634) — 273 parça

175 185 211 11 172 620 32 202 233 79 81 36 36 36 36 38 81 123 124 55 73 111 512 80 103 51 50 36 49 54 36 134 36 38 98 36 99 36 133 50 50 50 621 510 510 68 79 344 62 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR	8-97306-429-1	01	1	1206-	●
1	00.206 CASE; TIMING GEAR	8-98186-648-0	01	1	1206-1310		●
1	00.206 CASE; TIMING GEAR	8-98186-648-0	01	1	1311-		●	●	●	●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1205-1205					●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1206-1210			●	●	●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1211-1310			●	●	●	●
1	00.206 CASE; TIMING GEAR EURO3 SPECIFICATION<NT3>	8-98074-747-1	01	1	1311-						●
11	00.683 PLATE; RR,C/BL M/T MUA 5 SPEED 5H(MWQ)	8-98162-657-1	01	1	1206-1210			●	●
11	00.683 PLATE; RR,C/BL M/T MUA 5 SPEED 5H(MWQ)	8-98162-657-1	01	1	1211-			●	●		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	1206-	●
11	00.683 PLATE; RR,C/BL	8-98132-021-0	01	1	1205-1205					●
11	00.683 PLATE; RR,C/BL A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)	8-98132-021-0	01	1	1206-1210			●		●
11	00.683 PLATE; RR,C/BL A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)	8-98132-021-0	01	1	1211-		●	●		●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-426-1	01	1	1206-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	1205-1205					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	1206-1210		●	●	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	1211-		●	●	●	●	●
36	00.206 BOLT; GEAR CASE EURO3 SPECIFICATION<NT3> 04.338 (I) M8X20 FLANGE	0-28050-820-0	13	1	1211-						●
36	00.206 BOLT; GEAR CASE EURO3 SPECIFICATION<NT3> 06.216 (J) M8X25 FLANGE	0-28650-825-0	01	1	1211-						●
36	00.206 BOLT; GEAR CASE (H) M8X20 W/LK WASHER	0-50540-820-0	06	1	1206-	●
36	00.206 BOLT; GEAR CASE 03.704 (H) M8X45 W/LK WASHER	0-50540-845-0	02	1	1206-	●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1206-1210		●	●	●	●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1211-		●	●	●	●	●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	1206-		●	●	●	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE	0-28050-835-0	01	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE	0-28050-835-0	01	1	1206-1210		●	●	●	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE	0-28050-835-0	01	1	1211-		●	●	●	●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	1206-1210		●	●	●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	1211-		●	●	●	●	●
36	00.206 BOLT; GEAR CASE 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1206-1210		●	●	●	●
36	00.206 BOLT; GEAR CASE 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1211-		●	●	●	●	●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE	0-28650-825-0	15	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE	0-28650-825-0	15	1	1206-		●	●	●	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1206-1210		●	●	●	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1211-		●	●	●	●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	1206-1210	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	1211-	●					●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	1205-1205					●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	1206-		●	●	●	●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	1205-1205					●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	1206-1210		●	●	●	●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	1211-		●	●	●	●	●
50	00.206 STUD (A) M8X27,M8X14 L=64.5	8-97354-808-2	06	1	1206-			●	●
50	00.206 STUD (A) M8X27,M8X14 L=64.5	8-97354-808-2	05	1	1205-1205					●
50	00.206 STUD (A) M8X27,M8X14 L=64.5	8-97354-808-2	05	1	1206-1210		●			●
50	00.206 STUD (A) M8X27,M8X14 L=64.5	8-97354-808-2	05	1	1211-		●			●	●
50	00.206 STUD (B) M8X70,M8X14 L=107.5	8-98134-221-0	01	1	1205-1205					●
50	00.206 STUD (B) M8X70,M8X14 L=107.5	8-98134-221-0	01	1	1206-1210		●			●
50	00.206 STUD (B) M8X70,M8X14 L=107.5	8-98134-221-0	01	1	1211-		●			●	●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	1205-1205					●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	1206-1210		●	●	●	●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	1211-		●	●	●	●	●
54	00.206 COVER; GEAR CASE	8-98228-336-1	01	1	1407-1411						●
54	00.206 COVER; GEAR CASE	8-98228-336-1	01	1	1412-		●	●	●	●	●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1205-1205					●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1206-1210		●	●	●	●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1211-1406		●	●	●	●	●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1407-1411		●	●	●	●
54	00.206 COVER; GEAR CASE	8-97306-431-2	01	1	1206-	●
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	1205-1205					●
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	1206-1210		●	●	●	●
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	1211-		●	●	●	●	●
62	00.206 BOLT; COVER 03.162 M6X20 FLANGE	0-28650-620-0	04	1	1205-1205					●
62	00.206 BOLT; COVER 03.162 M6X20 FLANGE	0-28650-620-0	04	1	1206-1210		●			●
62	00.206 BOLT; COVER 03.162 M6X20 FLANGE	0-28650-620-0	04	1	1211-		●			●	●
62	00.206 BOLT; COVER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 03.162 M6X20 FLANGE	0-28650-620-0	04	1	1211-				●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97255-034-1	01	1	1206-	●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97943-086-0	01	1	1206-	●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-98171-756-4	01	1	1205-1205					●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-98171-756-4	01	1	1206-1210		●			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-98171-756-4	01	1	1211-		●			●	●
68	00.206 COVER ASM; GEAR CASE COVER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98171-756-4	01	1	1211-				●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	1206-	●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1205-1205					●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1206-1210		●	●	●	●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1211-		●	●	●	●	●
79	00.219 BRACKET; GEAR CASE COVER (B)	8-98203-450-0	01	1	1206-1302			●	●
79	00.219 BRACKET; GEAR CASE COVER (B)	8-98203-450-0	01	1	1303-			●
79	00.219 BRACKET; GEAR CASE COVER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98203-450-0	01	1	1303-				●
79	00.219 BRACKET; GEAR CASE COVER (A)	8-98107-106-0	01	1	1205-1205					●
79	00.219 BRACKET; GEAR CASE COVER (A)	8-98107-106-0	01	1	1206-1210		●	●	●	●
79	00.219 BRACKET; GEAR CASE COVER (A)	8-98107-106-0	01	1	1211-		●	●	●	●	●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	1205-1205					●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	1206-1210		●	●	●	●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	1211-		●	●	●	●	●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	1205-1205					●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	1206-1210		●	●	●	●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	1211-		●	●	●	●	●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	1205-1205					●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	1206-1210		●	●	●	●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	1211-		●	●	●	●	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1205-1205					●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-1210		●	●	●	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1211-		●	●	●	●	●
99	00.206 STUD; INJ PUMP EURO3 SPECIFICATION<NT3> M8X30 L=41	8-97369-449-0	02	1	1211-1510						●
99	00.206 STUD; INJ PUMP EURO3 SPECIFICATION<NT3> M8X30 L=41	8-98336-983-0	02	1	1511-						●
99	00.206 STUD; INJ PUMP 00.413 M8X30 L=48	0-49140-830-0	02	1	1205-1205					●
99	00.206 STUD; INJ PUMP 00.413 M8X30 L=48	0-49140-830-0	02	1	1206-		●	●	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	1206-1210	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	1211-	●					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97943-951-0	01	1	1205-1205					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97943-951-0	01	1	1206-		●	●	●	●
111	00.206 WASHER; PL ID=6.4 OD=22	0-91614-806-0	02	1	1205-1205					●
111	00.206 WASHER; PL ID=6.4 OD=22	0-91614-806-0	02	1	1206-1210		●	●	●	●
111	00.206 WASHER; PL ID=6.4 OD=22	0-91614-806-0	02	1	1211-		●	●	●	●	●
123	00.206 COVER; TIMING,LWR	8-97371-720-1	01	1	1205-1205					●
123	00.206 COVER; TIMING,LWR	8-97371-720-1	01	1	1206-1210		●	●	●	●
123	00.206 COVER; TIMING,LWR	8-97371-720-1	01	1	1211-		●	●	●	●	●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	1205-1205					●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	1206-1210		●	●	●	●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	1211-		●	●	●	●	●
133	00.206 NUT; TIMING GEAR CASE EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE	0-91180-208-0	02	1	1211-						●
134	00.669 STUD; TIMING GEAR CASE EURO3 SPECIFICATION<NT3> 02.510 M8X20 L=32	0-41010-820-0	02	1	1211-						●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1205-1205					●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1206-1210		●	●	●	●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1211-		●	●	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1205-1205					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1206-1210	●	●	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1211-	●	●	●	●	●	●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1205-1205					●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1206-1210		●	●	●	●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1211-		●	●	●	●	●
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1205-1205					●
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1206-1210		●	●	●	●
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1211-		●	●	●	●	●
211	00.669 BOLT; HSG EURO3 SPECIFICATION<NT3> 00.683 M12X25	5-09000-227-0	03	1	1211-						●
211	00.669 BOLT; HSG 00.683 M12X25	8-97916-324-1	03	1	1205-1205					●
211	00.669 BOLT; HSG 00.683 M12X25	8-97916-324-1	03	1	1206-		●	●	●	●
233	00.669 STUD; BRKT EURO3 SPECIFICATION<NT3> 03.275 M8X71 L=83	8-98017-063-0	01	1	1211-						●
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-97367-083-0	01	1	1205-1205					●
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-97367-083-0	01	1	1206-		●	●	●	●
344	00.206 BOLT; BRKT TO GEAR CASE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1206-1302			●	●
344	00.206 BOLT; BRKT TO GEAR CASE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1303-			●
344	00.206 BOLT; BRKT TO GEAR CASE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1303-				●

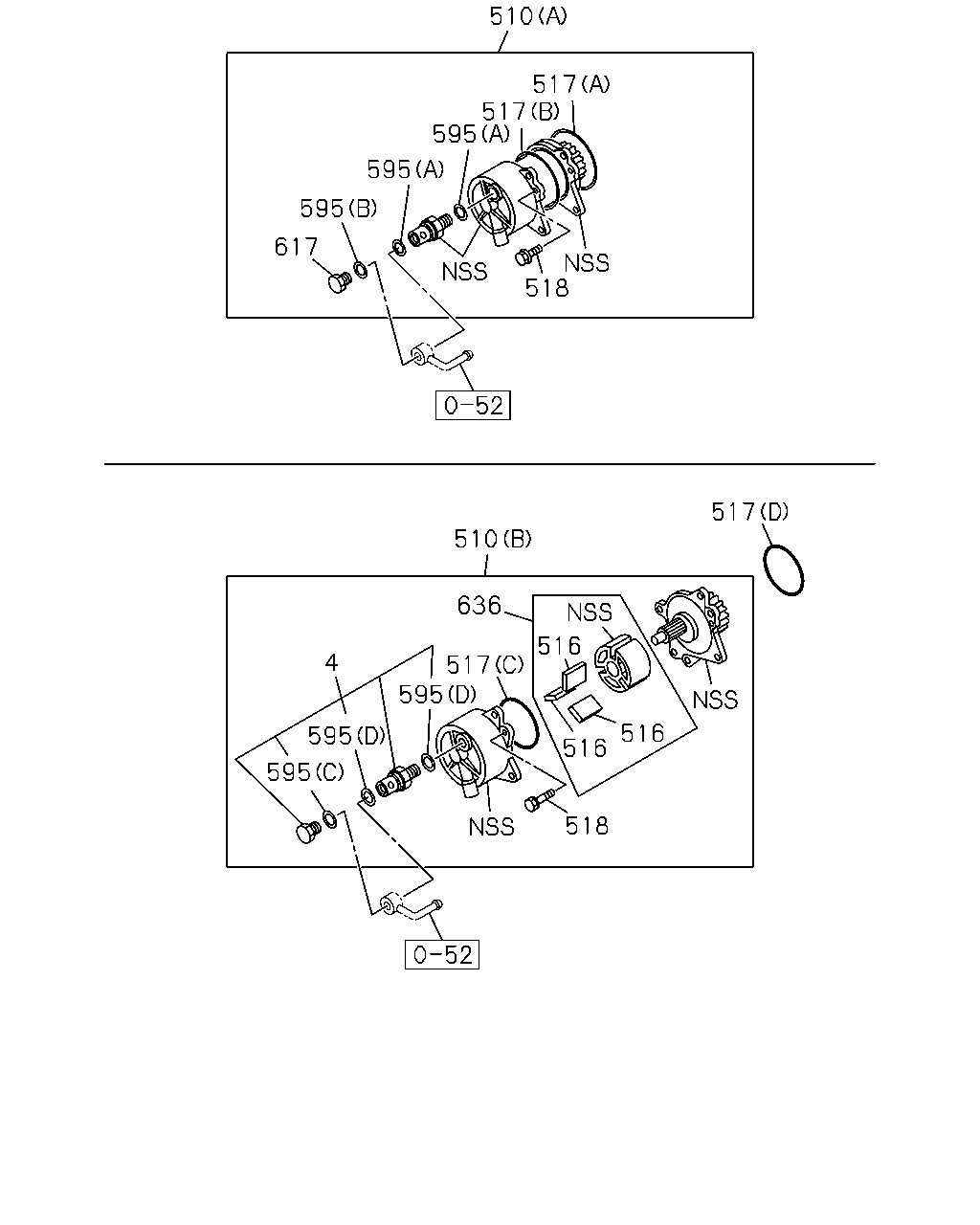

510	04.895 PUMP ASM; VACUUM EURO3 SPECIFICATION<NT3> (B)	8-98162-748-0	01	1	1211-1311						●
510	04.895 PUMP ASM; VACUUM EURO3 SPECIFICATION<NT3> (B)	8-98251-764-0	01	1	1312-						●
510	04.895 PUMP ASM; VACUUM (A)	8-98178-027-2	01	1	1205-1205					●
510	04.895 PUMP ASM; VACUUM (A)	8-98178-027-2	01	1	1206-1302		●	●	●	●
510	04.895 PUMP ASM; VACUUM (A)	8-98211-157-0	01	1	1303-1312		●	●	●	●
510	04.895 PUMP ASM; VACUUM (A)	8-98251-765-0	01	1	1401-		●	●	●	●
512	04.895 RUBBER; SPACE EURO3 SPECIFICATION<NT3>	8-97322-675-1	01	1	1211-						●
512	04.895 RUBBER; SPACE	8-97373-716-0	01	1	1205-1205					●
512	04.895 RUBBER; SPACE	8-97373-716-0	01	1	1206-		●	●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GRADE A T=1.40 1-NOTCH	8-97328-828-2	01	1	1205-1205					●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GRADE A T=1.40 1-NOTCH	8-97328-828-2	01	1	1206-1210		●	●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GRADE A T=1.40 1-NOTCH	8-97328-828-2	01	1	1211-		●	●	●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GRADE B T=1.45 2-NOTCH	8-97331-631-2	01	1	1205-1205					●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GRADE B T=1.45 2-NOTCH	8-97331-631-2	01	1	1206-1210		●	●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GRADE B T=1.45 2-NOTCH	8-97331-631-2	01	1	1211-		●	●	●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GRADE C T=1.50 3-NOTCH	8-97331-632-2	01	1	1205-1205					●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GRADE C T=1.50 3-NOTCH	8-97331-632-2	01	1	1206-1210		●	●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GRADE C T=1.50 3-NOTCH	8-97331-632-2	01	1	1211-		●	●	●	●	●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	1205-1205					●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	1206-1210		●	●	●	●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	1211-		●	●	●	●	●

510 517 517 595 595 595 617 518 517 510 636 516 516 516 517 595 4 595 595 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E	F
4	00.213 VALVE ASM; CHECK EURO3 SPECIFICATION<NT3>	8-98049-521-0	01	1	1211-					●
510	04.895 PUMP ASM; VACUUM EURO3 SPECIFICATION<NT3> (B)	8-98162-748-0	01	1	1211-1311					●
510	04.895 PUMP ASM; VACUUM EURO3 SPECIFICATION<NT3> (B)	8-98251-764-0	01	1	1312-					●
510	04.895 PUMP ASM; VACUUM (A)	8-98178-027-2	01	1	1205-1205				●
510	04.895 PUMP ASM; VACUUM (A)	8-98178-027-2	01	1	1206-1302	●	●	●	●
510	04.895 PUMP ASM; VACUUM (A)	8-98211-157-0	01	1	1303-1312	●	●	●	●
510	04.895 PUMP ASM; VACUUM (A)	8-98251-765-0	01	1	1401-	●	●	●	●
516	04.895 VANE; VAC PUMP EURO3 SPECIFICATION<NT3>	8-98051-275-0	03	1	1211-					●
517	04.895 GASKET; VAC PUMP EURO3 SPECIFICATION<NT3> (C)	8-98049-522-0	01	1	1211-1311					●
517	04.895 GASKET; VAC PUMP EURO3 SPECIFICATION<NT3> (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-98251-769-0	01	1	1312-					●
517	04.895 GASKET; VAC PUMP EURO3 SPECIFICATION<NT3> 00.206 (D)	9-09566-271-0	01	1	1211-					●
517	04.895 GASKET; VAC PUMP (A)	0-95690-271-0	01	1	1205-1205				●
517	04.895 GASKET; VAC PUMP (A)	0-95690-271-0	01	1	1206-	●	●	●	●
517	04.895 GASKET; VAC PUMP (B)	8-97184-175-0	01	1	1205-1205				●
517	04.895 GASKET; VAC PUMP (B)	8-97184-175-0	01	1	1206-1312	●	●	●	●
517	04.895 GASKET; VAC PUMP (B) ALSO INCLUDED IN GASKET SET(ENGINE).	8-98251-768-0	01	1	1401-	●	●	●	●
518	04.895 BOLT; VAC PUMP EURO3 SPECIFICATION<NT3>	8-98049-523-0	03	1	1211-					●
518	04.895 BOLT; VAC PUMP	8-97184-180-0	03	1	1205-1205				●
518	04.895 BOLT; VAC PUMP	8-97184-180-0	03	1	1206-	●	●	●	●
595	00.213 GASKET; VLV EURO3 SPECIFICATION<NT3> (C) ID=12	8-98018-518-0	01	1	1211-					●
595	00.213 GASKET; VLV EURO3 SPECIFICATION<NT3> (D) ID=18	8-98018-519-0	02	1	1211-					●
595	00.213 GASKET; VLV 03.280 (A) ID=18 OD=24	5-19679-002-0	02	1	1205-1205				●
595	00.213 GASKET; VLV 03.280 (A) ID=18 OD=24	5-19679-002-0	02	1	1206-	●	●	●	●
595	00.213 GASKET; VLV 03.280 (B) ID=12 OD=24	5-19679-003-0	01	1	1205-1205				●
595	00.213 GASKET; VLV 03.280 (B) ID=12 OD=24	5-19679-003-0	01	1	1206-	●	●	●	●
617	00.206 BOLT; CHECK VLV	8-97376-402-0	01	1	1205-1205				●
617	00.206 BOLT; CHECK VLV	8-97376-402-0	01	1	1206-	●	●	●	●
636	00.206 ROTOR & VANE ASM; VAC PUMP EURO3 SPECIFICATION<NT3>	8-98049-520-0	01	1	1211-					●

15 11 175 33 32 36 36 38 1 68 71 72 69 58 57 65 60 60 56 54 73 58 57 65 73 71 72 103 60 60 58 57 65 68 60 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR	8-97306-429-1	01	1	1206-	●
1	00.206 CASE; TIMING GEAR	8-98186-648-0	01	1	1206-1310		●
1	00.206 CASE; TIMING GEAR	8-98186-648-0	01	1	1311-		●	●	●	●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1205-1205					●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1206-1210			●	●	●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1211-1310			●	●	●	●
1	00.206 CASE; TIMING GEAR EURO3 SPECIFICATION<NT3>	8-98074-747-1	01	1	1311-						●
11	00.683 PLATE; RR,C/BL M/T MUA 5 SPEED 5H(MWQ)	8-98162-657-1	01	1	1206-1210			●	●
11	00.683 PLATE; RR,C/BL M/T MUA 5 SPEED 5H(MWQ)	8-98162-657-1	01	1	1211-			●	●		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	1206-	●
11	00.683 PLATE; RR,C/BL	8-98132-021-0	01	1	1205-1205					●
11	00.683 PLATE; RR,C/BL A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)	8-98132-021-0	01	1	1206-1210			●		●
11	00.683 PLATE; RR,C/BL A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)	8-98132-021-0	01	1	1211-		●	●		●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	1206-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-426-1	01	1	1206-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	1205-1205					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	1206-1210		●	●	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	1211-		●	●	●	●	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	1206-	●
36	00.206 BOLT; GEAR CASE EURO3 SPECIFICATION<NT3> 04.338 (I) M8X20 FLANGE	0-28050-820-0	13	1	1211-						●
36	00.206 BOLT; GEAR CASE EURO3 SPECIFICATION<NT3> 06.216 (J) M8X25 FLANGE	0-28650-825-0	01	1	1211-						●
36	00.206 BOLT; GEAR CASE (H) M8X20 W/LK WASHER	0-50540-820-0	06	1	1206-	●
36	00.206 BOLT; GEAR CASE 03.704 (H) M8X45 W/LK WASHER	0-50540-845-0	02	1	1206-	●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1206-1210		●	●	●	●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1211-		●	●	●	●	●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	1206-		●	●	●	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE	0-28050-835-0	01	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE	0-28050-835-0	01	1	1206-1210		●	●	●	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE	0-28050-835-0	01	1	1211-		●	●	●	●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	1206-1210		●	●	●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	1211-		●	●	●	●	●
36	00.206 BOLT; GEAR CASE 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1206-1210		●	●	●	●
36	00.206 BOLT; GEAR CASE 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1211-		●	●	●	●	●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE	0-28650-825-0	15	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE	0-28650-825-0	15	1	1206-		●	●	●	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1205-1205					●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1206-1210		●	●	●	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1211-		●	●	●	●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	1206-1210	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	1211-	●					●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	1205-1205					●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	1206-		●	●	●	●
54	00.206 COVER; GEAR CASE	8-98228-336-1	01	1	1407-1411						●
54	00.206 COVER; GEAR CASE	8-98228-336-1	01	1	1412-		●	●	●	●	●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1205-1205					●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1206-1210		●	●	●	●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1211-1406		●	●	●	●	●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1407-1411		●	●	●	●
54	00.206 COVER; GEAR CASE	8-97306-431-2	01	1	1206-	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	1206-	●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	1206-	●
57	00.206 COVER; TIMING CHECK HOLE (B)	8-97353-706-2	01	1	1206-	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	1206-	●
60	00.206 BOLT; COVER TO CASE (A) M8X30 FLANGE	0-28050-830-0	08	1	1206-	●
60	00.206 BOLT; COVER TO CASE (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	1206-	●
60	00.206 BOLT; COVER TO CASE (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	1206-	●
60	00.206 BOLT; COVER TO CASE 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	1206-	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	1206-	●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97255-034-1	01	1	1206-	●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97943-086-0	01	1	1206-	●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-98171-756-4	01	1	1205-1205					●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-98171-756-4	01	1	1206-1210		●			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-98171-756-4	01	1	1211-		●			●	●
68	00.206 COVER ASM; GEAR CASE COVER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98171-756-4	01	1	1211-				●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97306-548-1	01	1	1206-	●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97329-009-1	01	1	1206-	●
71	00.206 RUBBER; MTG,COVER (A)	5-19389-002-0	03	1	1206-	●
71	00.206 RUBBER; MTG,COVER (B)	8-97914-631-0	03	1	1206-	●
72	00.206 BUSHING; SPACER,COVER TO COVER (A)	5-19389-009-0	03	1	1206-	●
72	00.206 BUSHING; SPACER,COVER TO COVER (B)	8-97914-630-1	03	1	1206-	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	1206-	●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1205-1205					●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1206-1210		●	●	●	●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1211-		●	●	●	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	1206-1210	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	1211-	●					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97943-951-0	01	1	1205-1205					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97943-951-0	01	1	1206-		●	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1205-1205					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1206-1210	●	●	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1211-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
