Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#81630) — 268 parça

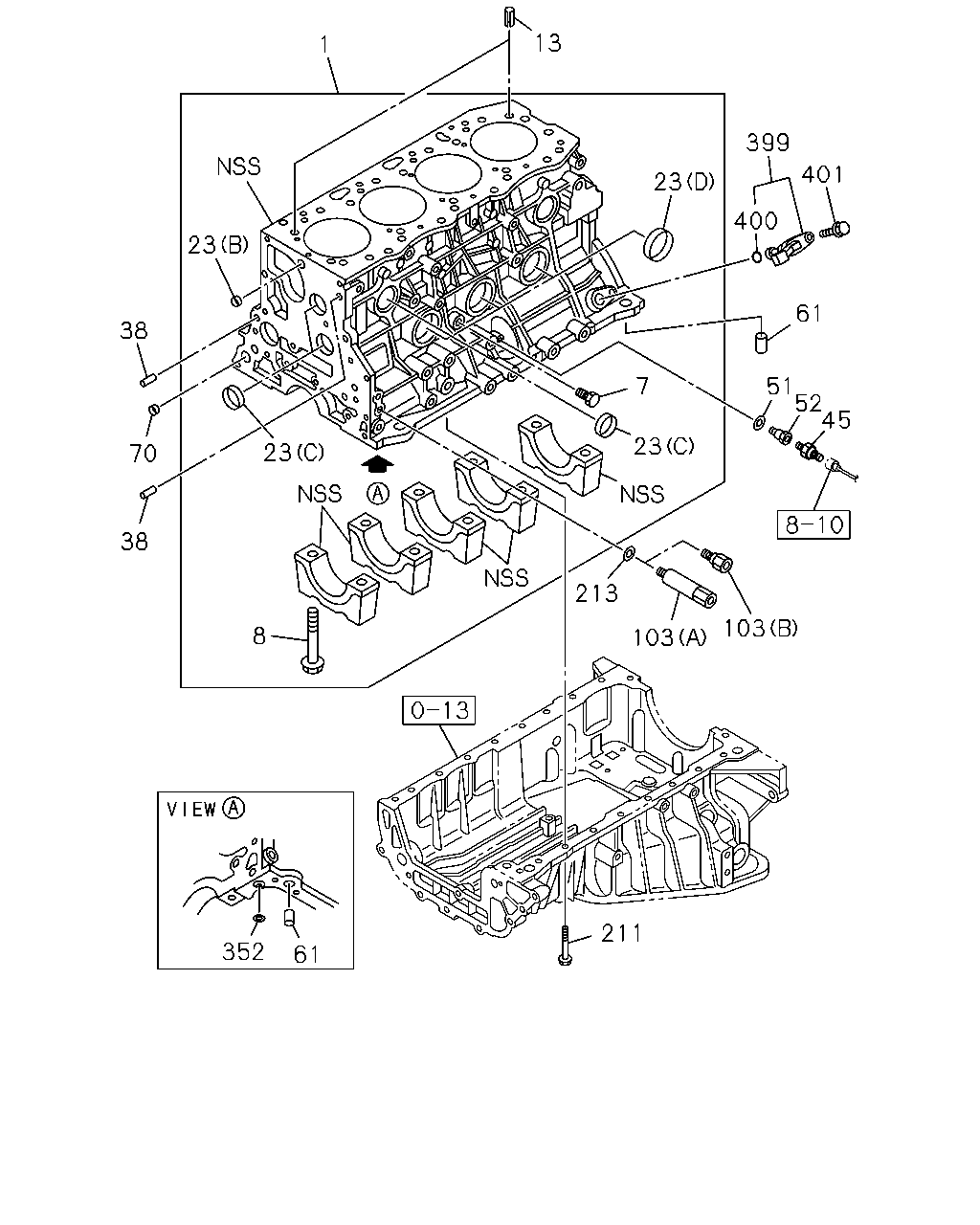

1 13 23 399 401 400 61 51 52 45 7 23 103 103 213 211 61 352 8 23 38 70 38 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1206-1210	●
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1211-1304	●	●
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1305-1405	●
1	00.033 BLOCK ASM; CYL	8-98239-517-2	01	1	1406-	●		●
1	00.033 BLOCK ASM; CYL	8-98204-473-0	01	1	1206-1405			●
1	00.033 BLOCK ASM; CYL	8-98243-797-1	01	1	1305-		●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1205-1205				●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1206-1405				●	●
1	00.033 BLOCK ASM; CYL	8-98239-516-2	01	1	1406-				●	●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	1206-						●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1205-1205				●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1206-1210	●		●	●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1211-	●	●	●	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1205-1205				●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1206-1210	●		●	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1211-	●	●	●	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1205-1205				●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1206-1210	●		●	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1211-	●	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	03	1	1206-						●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	1206-						●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1206-1210	●		●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1211-	●	●	●	●	●	●
38	00.206 PIN; TIMING GEAR CASE EURO3 SPECIFICATION<NT3> 04.510 OD=10 L=20	8-97135-423-0	02	1	1211-		●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	1205-1205				●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	1206-	●		●	●	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1205-1205				●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1206-1210	●		●	●	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1211-	●	●	●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1206-1210						●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1211-		●				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	1205-1205				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	1206-	●		●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1206-1501						●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1502-1502		●				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1503-	●	●	●	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1205-1205				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1206-1210	●		●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1211-1501	●	●	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1502-1502	●		●	●	●
61	00.206 PIN; STRAIGHT EURO3 SPECIFICATION<NT3> 01.428 L=31	9-09878-597-0	02	1	1211-		●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	1206-						●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1205-1205				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1206-	●		●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	1206-						●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1205-1205				●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1206-1210	●		●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1211-	●	●	●	●	●
103	01.531 NIPPLE; OIL FEED EURO3 SPECIFICATION<NT3> 00.293 (B)	8-94469-596-0	01	1	1301-		●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	1205-1205				●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	1206-1210	●		●	●	●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	1211-1212	●	●	●	●	●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	1301-	●		●	●	●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE	0-28050-830-0	05	1	1205-1205				●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE	0-28050-830-0	05	1	1206-1210	●		●	●	●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE	0-28050-830-0	05	1	1211-	●	●	●	●	●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE	0-28650-825-0	14	1	1205-1205				●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE	0-28650-825-0	14	1	1206-1210	●		●	●	●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE	0-28650-825-0	14	1	1211-	●	●	●	●	●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1205-1205				●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1206-1210	●		●	●	●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1211-	●	●	●	●	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1205-1205				●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1206-1210	●		●	●	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1211-	●	●	●	●	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	1205-1205				●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	1206-1210	●		●	●	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	1211-	●	●	●	●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	1205-1205				●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	1206-1210	●		●	●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	1211-	●	●	●	●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	1205-1205				●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	1206-1210	●		●	●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	1211-	●	●	●	●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1205-1205				●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1206-1210	●		●	●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1211-	●	●	●	●	●

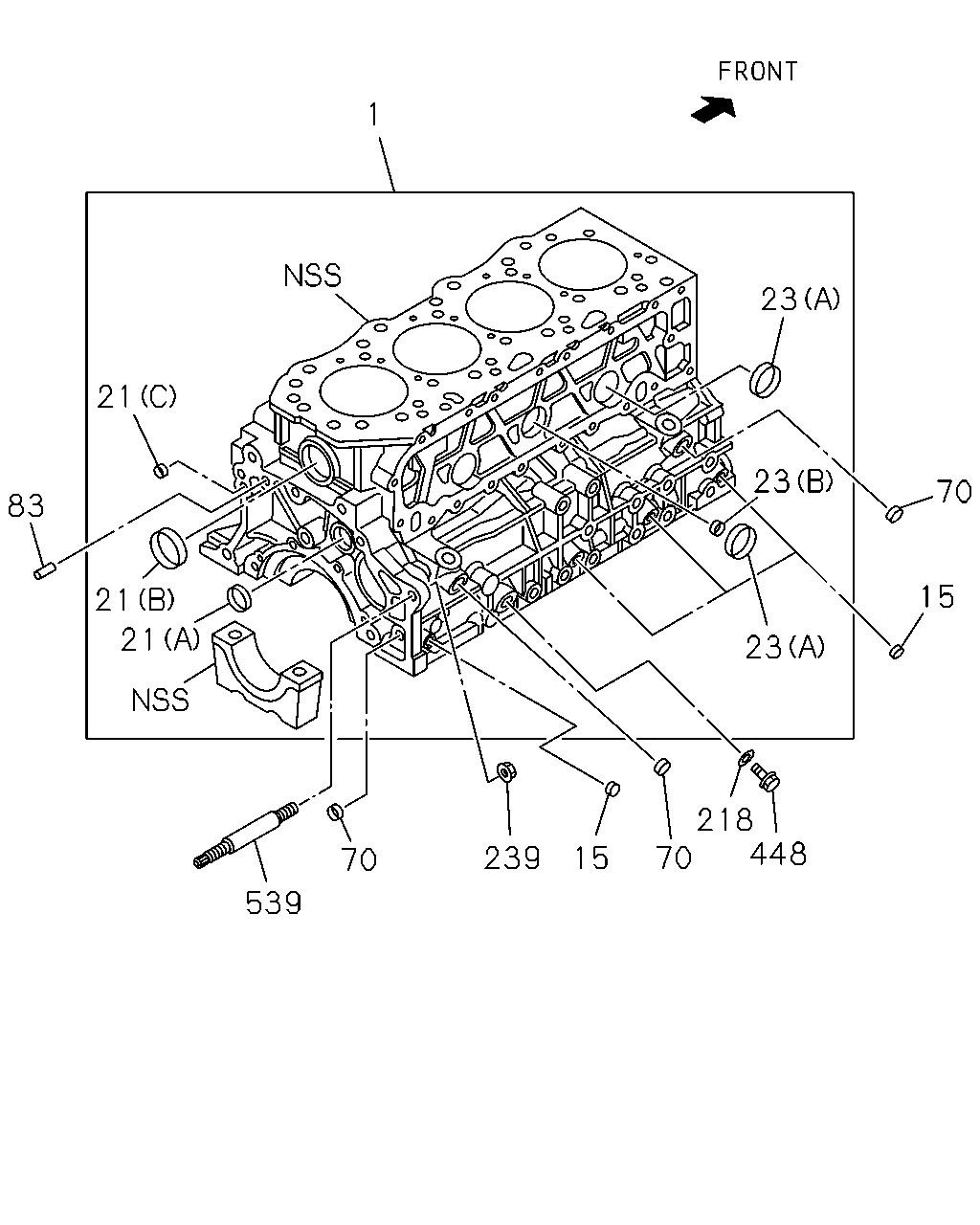

1 23 23 70 15 23 218 448 70 15 239 70 539 21 21 83 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1206-1210	●
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1211-1304	●	●
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1305-1405	●
1	00.033 BLOCK ASM; CYL	8-98239-517-2	01	1	1406-	●		●
1	00.033 BLOCK ASM; CYL	8-98204-473-0	01	1	1206-1405			●
1	00.033 BLOCK ASM; CYL	8-98243-797-1	01	1	1305-		●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1205-1205				●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1206-1405				●	●
1	00.033 BLOCK ASM; CYL	8-98239-516-2	01	1	1406-				●	●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	1206-						●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	1206-						●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1205-1205				●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1206-1210	●		●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1211-	●	●	●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1205-1205				●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1206-1210	●		●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1211-	●	●	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1205-1205				●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1206-1210	●		●	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1211-	●	●	●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1205-1205				●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1206-1210	●		●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1211-	●	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	03	1	1206-						●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	1206-						●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1206-1210	●		●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1211-	●	●	●	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	1206-						●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1205-1205				●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1206-1210	●		●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1211-	●	●	●	●	●
83	00.685 PIN; FLYWHEEL HSG M/T MUA 5 SPEED 5H(MWQ) 08.939 OD=10 L=32	9-08161-032-0	01	1	1206-1210	●				●
83	00.685 PIN; FLYWHEEL HSG M/T MUA 5 SPEED 5H(MWQ) 08.939 OD=10 L=32	9-08161-032-0	01	1	1211-	●	●			●
218	01.531 GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1205-1205				●
218	01.531 GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1206-1210	●			●	●
218	01.531 GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1211-	●	●		●	●
239	02.100 NUT; STUD,C/BL M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> 04.085 M10 FLANGE	0-91180-210-0	01	1	1211-		●
239	02.100 NUT; STUD,C/BL M/T MUA 5 SPEED 5H(MWQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1206-	●				●
448	00.034 PLUG; C/BL EURO3 SPECIFICATION<NT3> 03.001 M14X14	8-94152-613-0	01	1	1211-		●
448	00.034 PLUG; C/BL	8-97379-656-1	01	1	1205-1205				●
448	00.034 PLUG; C/BL	8-97379-656-1	01	1	1206-	●			●	●
539	01.428 STUD; REAMER M/T MUA 5 SPEED 5H(MWQ) 00.862 M10X40 L=75.5	8-97371-842-1	01	1	1206-1210	●				●
539	01.428 STUD; REAMER M/T MUA 5 SPEED 5H(MWQ) 00.862 M10X40 L=75.5	8-97371-842-1	01	1	1211-	●	●			●

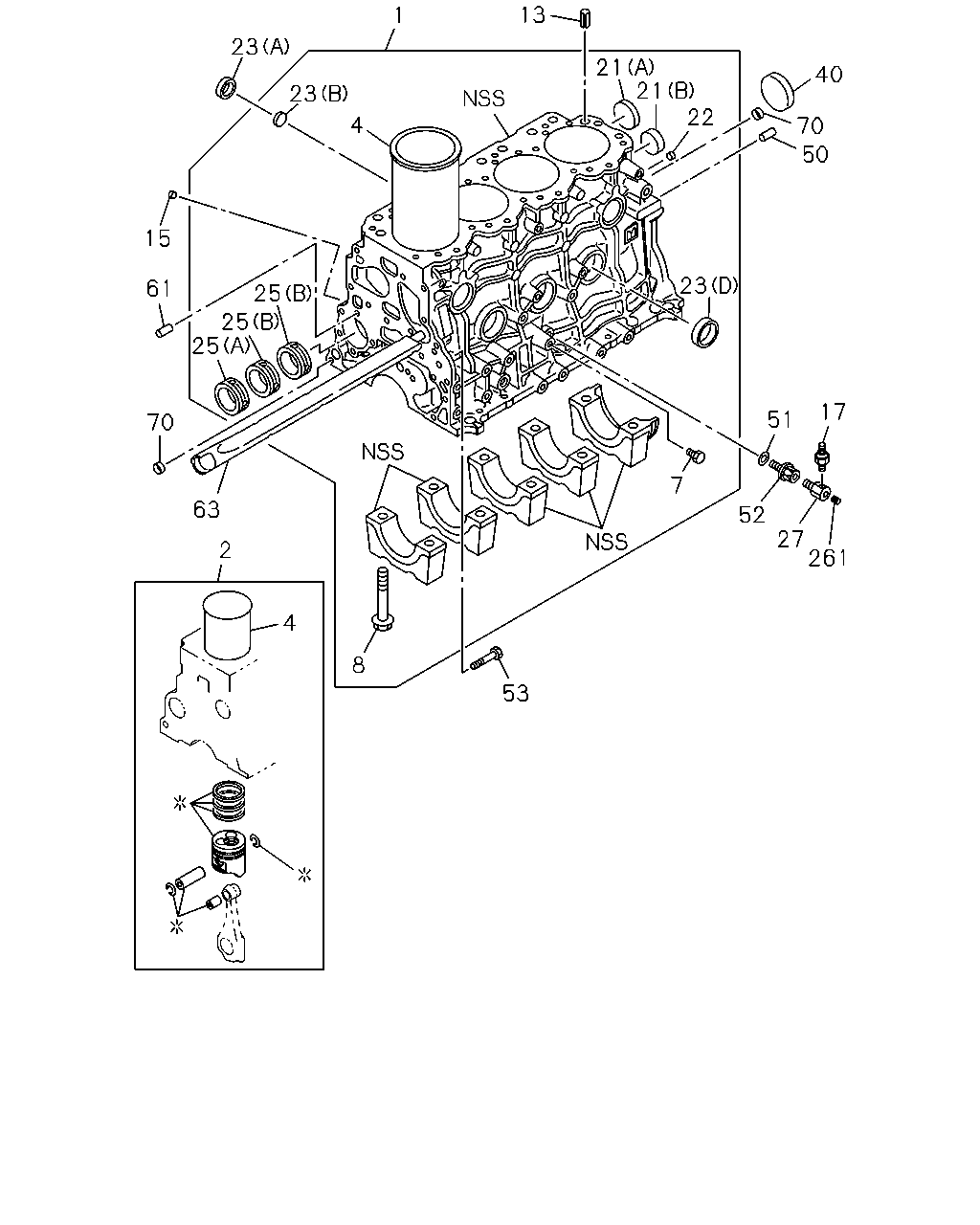

23 23 1 4 15 61 70 63 4 2 8 53 7 51 27 52 17 261 23 50 70 40 22 21 21 13 25 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1206-1210	●
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1211-1304	●	●
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1305-1405	●
1	00.033 BLOCK ASM; CYL	8-98239-517-2	01	1	1406-	●		●
1	00.033 BLOCK ASM; CYL	8-98204-473-0	01	1	1206-1405			●
1	00.033 BLOCK ASM; CYL	8-98243-797-1	01	1	1305-		●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1205-1205				●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1206-1405				●	●
1	00.033 BLOCK ASM; CYL	8-98239-516-2	01	1	1406-				●	●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	1206-						●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-401-2	04	1	1206-						●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-402-2	04	1	1206-						●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-403-2	04	1	1206-						●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-404-2	04	1	1206-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	1206-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	1206-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	1206-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	1206-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	1206-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	1206-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	1206-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	1206-						●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1205-1205				●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1206-1210	●		●	●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1211-	●	●	●	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1205-1205				●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1206-1210	●		●	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1211-	●	●	●	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1205-1205				●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1206-1210	●		●	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1211-	●	●	●	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	1206-						●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1205-1205				●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1206-1210	●		●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1211-	●	●	●	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-3	01	1	1206-						●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1205-1205				●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1206-1210	●		●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1211-	●	●	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1205-1205				●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1206-1210	●		●	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1211-	●	●	●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1205-1205				●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1206-1210	●		●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1211-	●	●	●	●	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	1206-						●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	03	1	1206-						●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	1206-						●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1206-1210	●		●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1211-	●	●	●	●	●	●
25	00.539 METAL; CM/SHF (B)	8-97378-147-0	02	1	1206-						●
25	00.539 METAL; CM/SHF (A)	8-97378-148-0	01	1	1206-						●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-1	01	1	1206-						●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	1206-						●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	1206-						●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1206-1210						●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1211-		●				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	1205-1205				●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	1206-	●		●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1206-1501						●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1502-1502		●				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1503-	●	●	●	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1205-1205				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1206-1210	●		●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1211-1501	●	●	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	1502-1502	●		●	●	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	1206-						●
61	00.206 PIN; STRAIGHT EURO3 SPECIFICATION<NT3> 01.428 L=31	9-09878-597-0	02	1	1211-		●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	1206-						●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1205-1205				●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	1206-	●		●	●	●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	1206-						●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	1206-						●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1205-1205				●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1206-1210	●		●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1211-	●	●	●	●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	1206-						●

1 21 23 23 70 15 23 21 21 70 15 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1206-1210	●
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1211-1304	●	●
1	00.033 BLOCK ASM; CYL	8-97386-618-5	01	1	1305-1405	●
1	00.033 BLOCK ASM; CYL	8-98239-517-2	01	1	1406-	●		●
1	00.033 BLOCK ASM; CYL	8-98204-473-0	01	1	1206-1405			●
1	00.033 BLOCK ASM; CYL	8-98243-797-1	01	1	1305-		●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1205-1205				●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1206-1405				●	●
1	00.033 BLOCK ASM; CYL	8-98239-516-2	01	1	1406-				●	●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	1206-						●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	1206-						●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1205-1205				●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1206-1210	●		●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1211-	●	●	●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1205-1205				●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1206-1210	●		●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1211-	●	●	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1205-1205				●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1206-1210	●		●	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1211-	●	●	●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1205-1205				●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1206-1210	●		●	●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1211-	●	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	03	1	1206-						●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	1206-						●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1206-1210	●		●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1211-	●	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1205-1205				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1206-1210	●		●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1211-	●	●	●	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	1206-						●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1205-1205				●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1206-1210	●		●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	1211-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
