◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#81627) — 435 parça

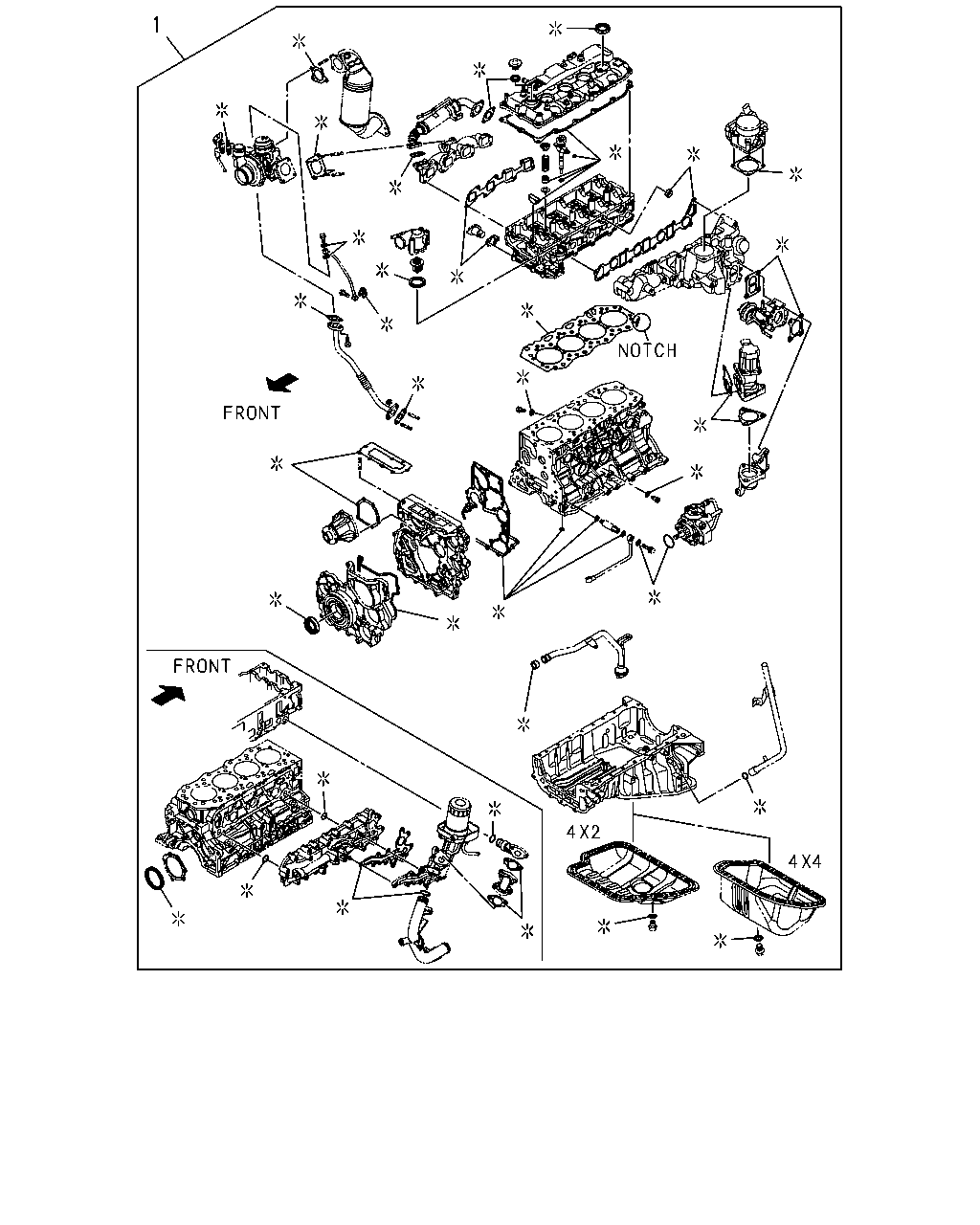

çizim 14843
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-443-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-552-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-623-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-697-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-868-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-424-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-444-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-553-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-624-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-698-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-869-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-425-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-445-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-554-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-625-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-699-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-870-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-426-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-209-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-210-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-211-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-215-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-862-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-216-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-863-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-217-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-864-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-212-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-212-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-212-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-835-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-835-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-213-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-213-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-213-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-836-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-836-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-214-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-214-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-214-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-837-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-837-1 01 1 1310- ●

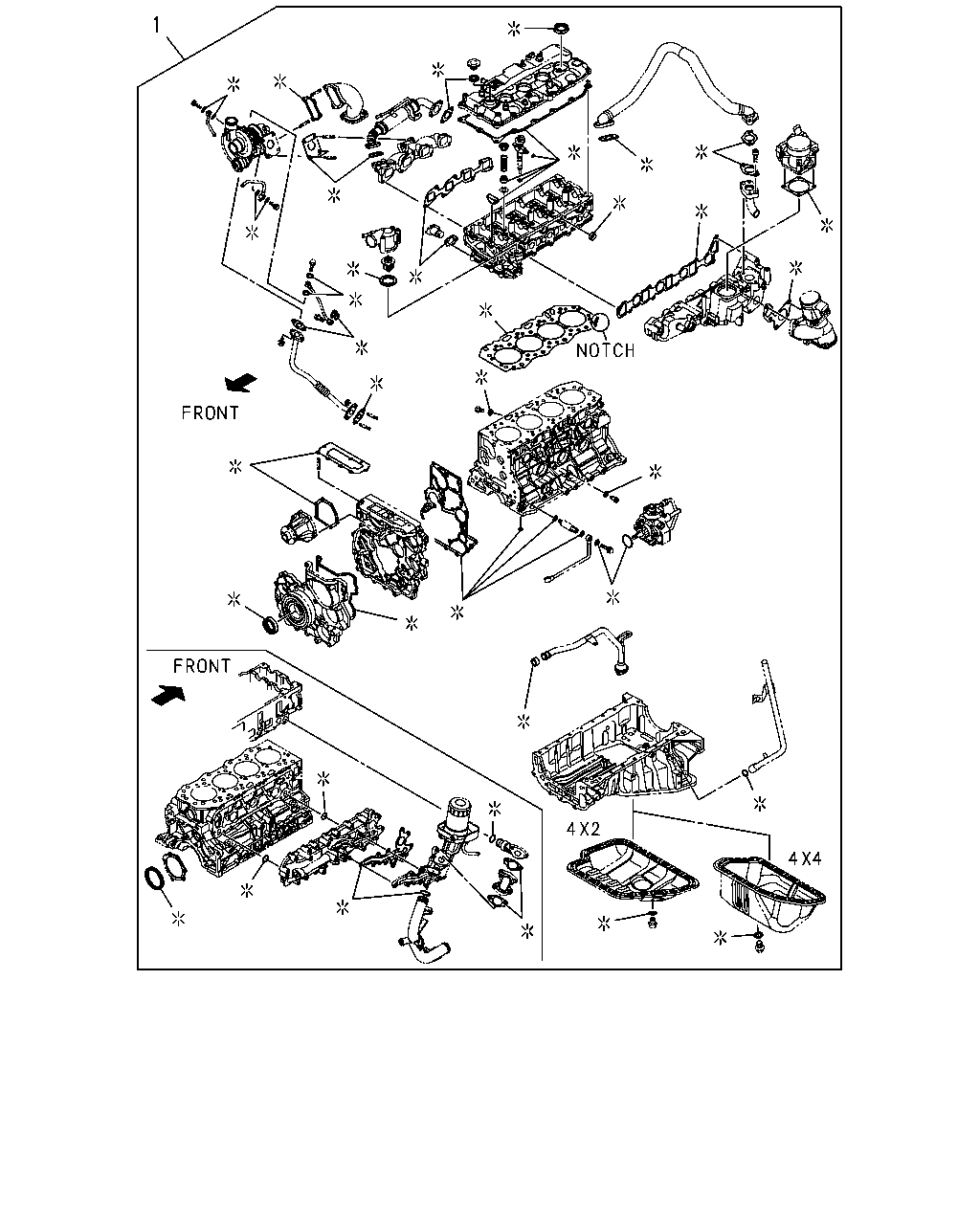

çizim 14990
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-443-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-552-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-623-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-697-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-868-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-424-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-444-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-553-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-624-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-698-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-869-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-425-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-445-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-554-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-625-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-699-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-870-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-426-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-209-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-210-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-211-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-215-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-862-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-216-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-863-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-217-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-864-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-212-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-212-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-212-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-835-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-835-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-213-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-213-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-213-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-836-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-836-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-214-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-214-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-214-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-837-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-837-1 01 1 1310- ●

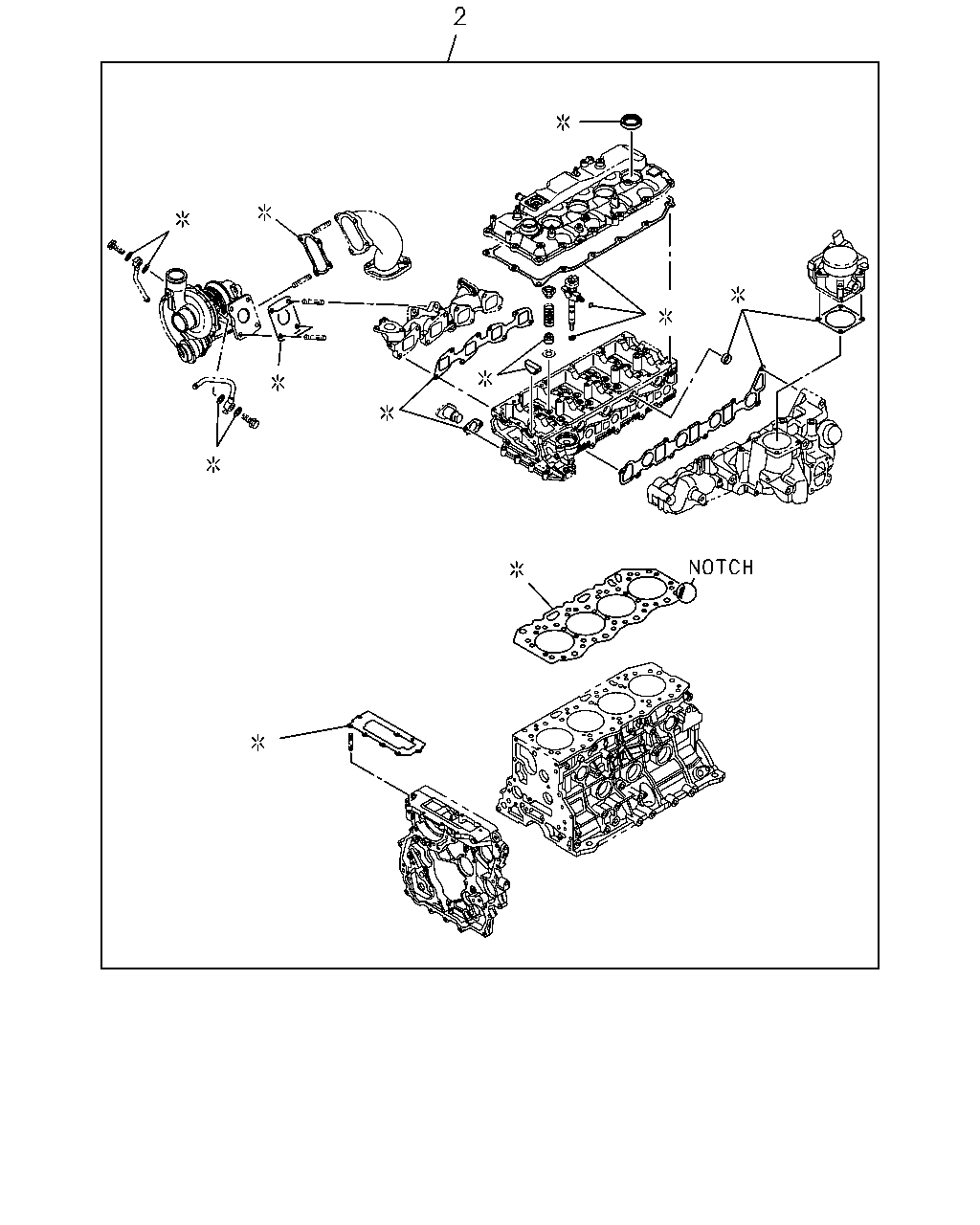

çizim 15044
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-446-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-555-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-954-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-447-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-556-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-955-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-448-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-557-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-956-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-218-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-219-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-220-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-224-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-990-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-225-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-991-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-226-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-992-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-221-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-221-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-221-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-865-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-865-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-222-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-222-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-222-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-866-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-866-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-223-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-223-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-223-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-867-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-867-1 01 1 1310- ●

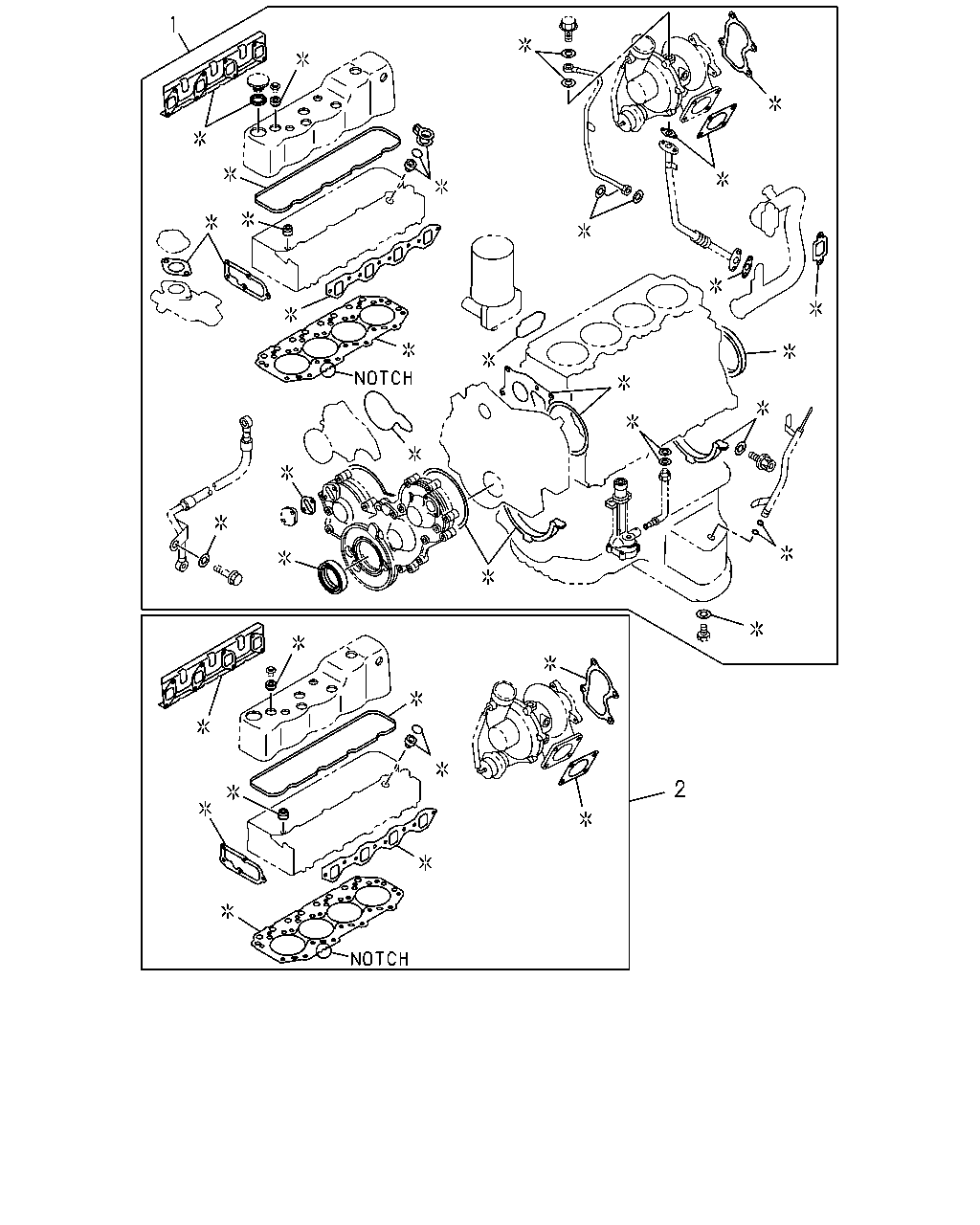

çizim 15211
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-443-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-552-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-623-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-697-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-868-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-424-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-444-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-553-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-624-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-698-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-869-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-425-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-445-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-554-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-625-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-699-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-870-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-426-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-209-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-210-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-211-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-215-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-862-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-216-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-863-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-217-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-864-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-212-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-212-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-212-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-835-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-835-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-213-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-213-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-213-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-836-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-836-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-214-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-214-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-214-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-837-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-837-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-446-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-555-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-954-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-447-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-556-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-955-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-448-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-557-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-956-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-218-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-219-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-220-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-224-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-990-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-225-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-991-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-226-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-992-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-221-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-221-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-221-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-865-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-865-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-222-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-222-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-222-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-866-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-866-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-223-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-223-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-223-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-867-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-867-1 01 1 1310- ●

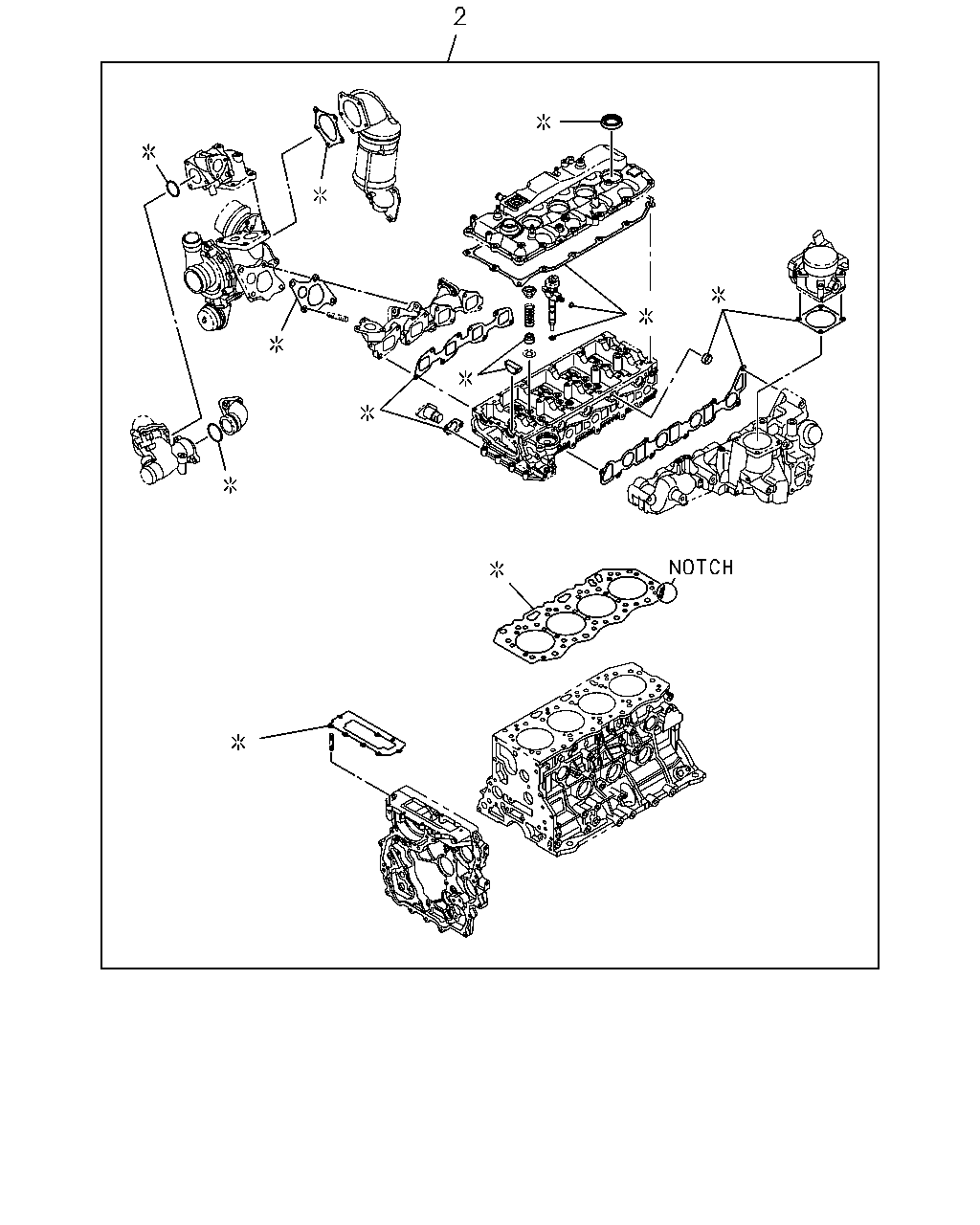

çizim 15300
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-446-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-555-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-954-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-447-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-556-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-955-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-448-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-557-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-956-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-218-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-219-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-220-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-224-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-990-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-225-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-991-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-226-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-992-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-221-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-221-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-221-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-865-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-865-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-222-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-222-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-222-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-866-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-866-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-223-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-223-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-223-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-867-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-867-1 01 1 1310- ●

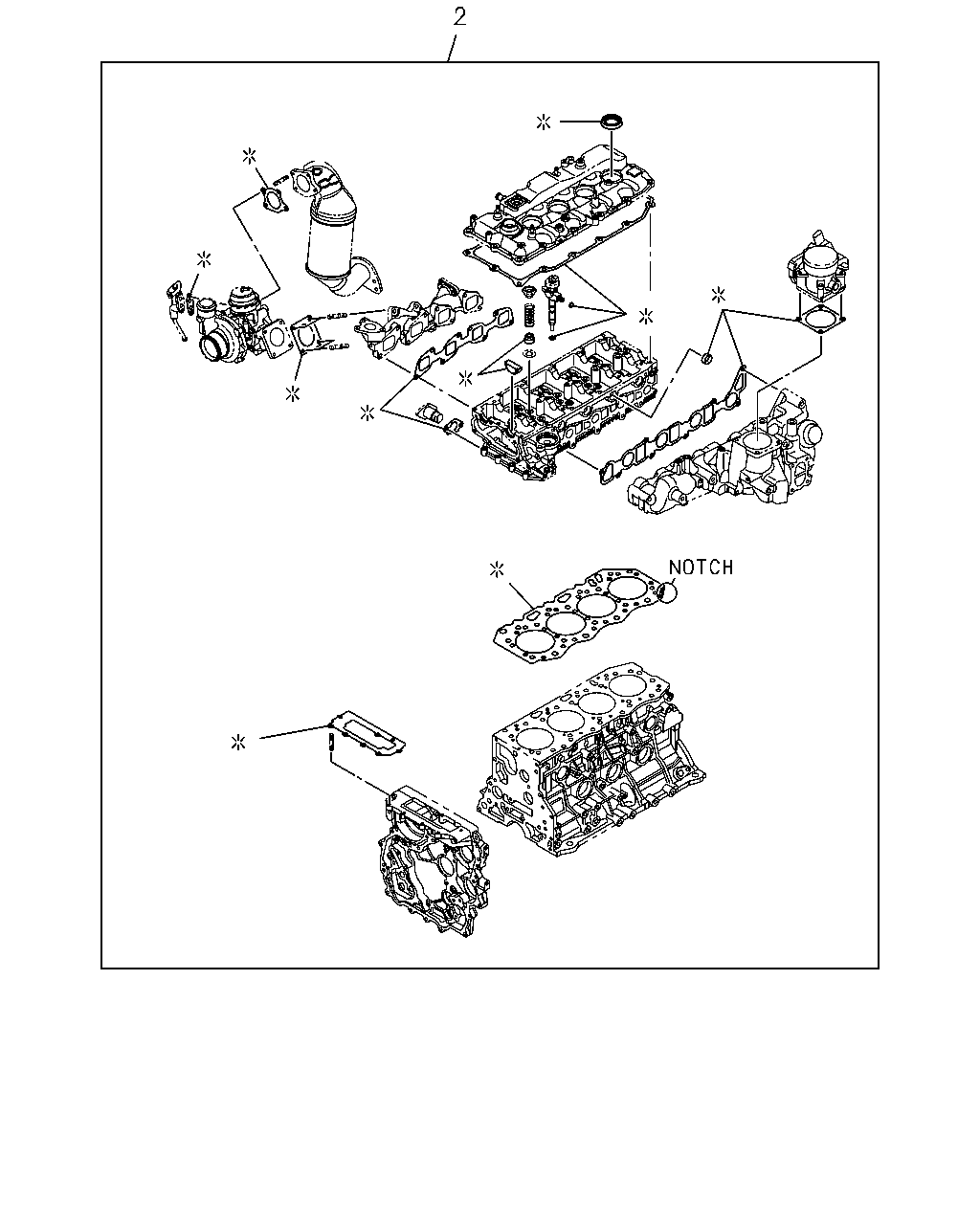

çizim 194321
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-446-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-555-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-954-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-447-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-556-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-955-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-448-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-557-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-956-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-218-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-219-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-220-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-224-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-990-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-225-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-991-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-226-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-992-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-221-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-221-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-221-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-865-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-865-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-222-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-222-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-222-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-866-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-866-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-223-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-223-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-223-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-867-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-867-1 01 1 1310- ●

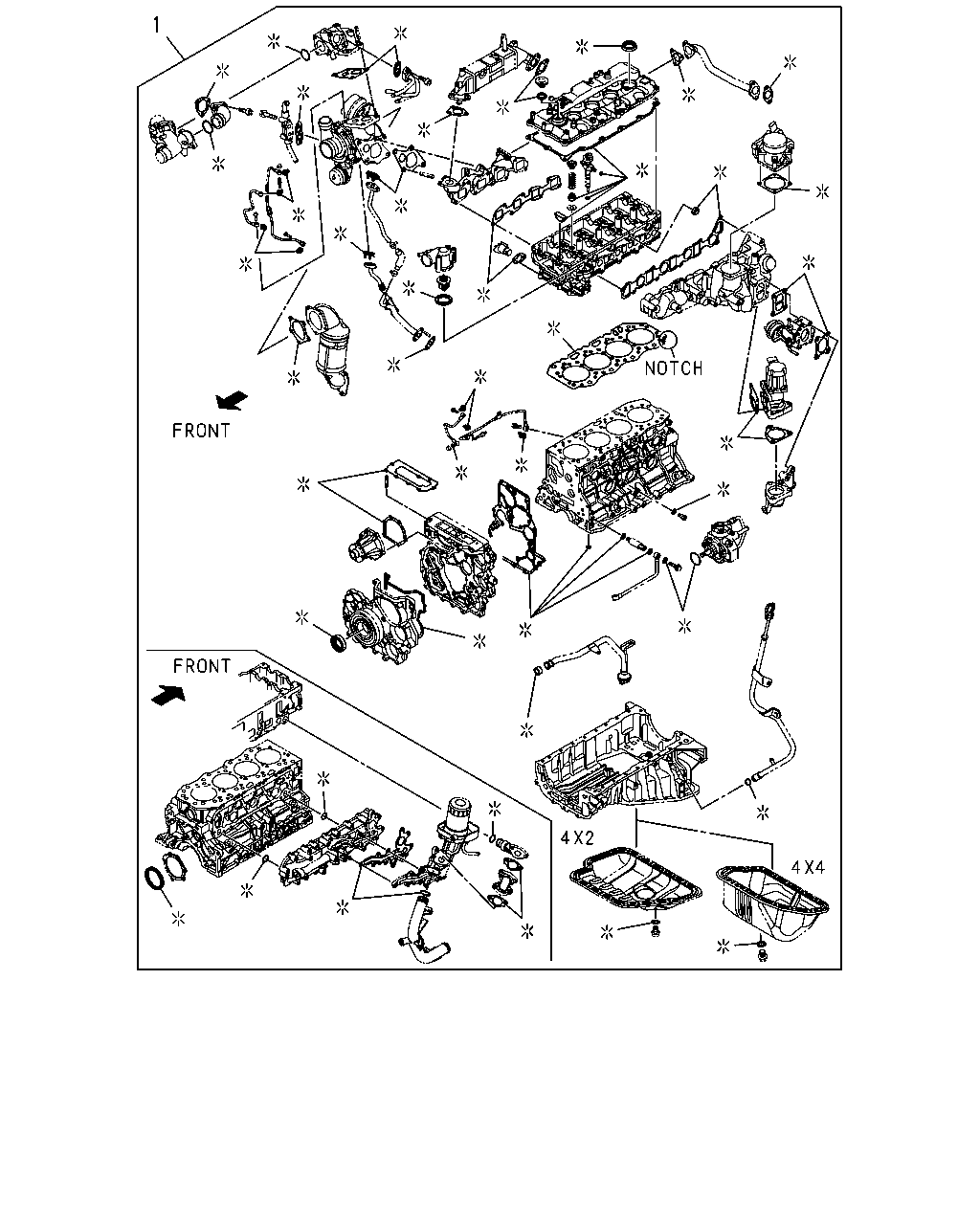

çizim 194322
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-443-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-552-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-623-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-697-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-868-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-424-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-444-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-553-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-624-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-698-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-869-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-425-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-445-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-554-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-625-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-699-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-870-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-426-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-209-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-210-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-211-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-215-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-862-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-216-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-863-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-217-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-864-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-212-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-212-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-212-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-835-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-835-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-213-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-213-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-213-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-836-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-836-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-214-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-214-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-214-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-837-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-837-1 01 1 1310- ●
çizim 320003
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-443-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-552-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-623-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-697-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-868-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-424-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-444-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-553-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-624-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-698-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-869-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-425-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-445-0 01 1 1211-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-554-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-625-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-699-0 01 1 1303-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-870-1 01 1 1310-1407 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-426-1 01 1 1408- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-209-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-832-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-210-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-833-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-211-0 01 1 1206-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-834-1 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-181-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-182-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-183-4 01 1 1206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-215-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-862-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-216-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-863-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-217-0 01 1 1206-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-864-0 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-212-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-212-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-212-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-835-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-835-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-213-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-213-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-213-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-836-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-836-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-214-0 01 1 1205-1210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-214-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-214-0 01 1 1211-1309 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-837-1 01 1 1310- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-837-1 01 1 1310- ●
çizim 320100
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-446-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-555-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.05 1-NOTCH 		5-87816-954-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-447-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-556-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.10 2-NOTCH 		5-87816-955-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-448-0 01 1 1211-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-557-0 01 1 1212-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.15 3-NOTCH 		5-87816-956-2 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-218-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-844-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-219-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-845-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-220-0 01 1 1206-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-846-1 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-5 01 1 1206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-224-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-990-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-225-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-991-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-226-0 01 1 1206-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-992-0 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-221-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-221-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-221-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-865-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.05 1-NOTCH 		5-87816-865-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-222-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-222-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-222-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-866-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.10 2-NOTCH 		5-87816-866-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-223-0 01 1 1205-1210 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-223-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-223-0 01 1 1211-1309 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-867-1 01 1 1310- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.15 3-NOTCH 		5-87816-867-1 01 1 1310- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
