9-33 — REAR BODY; GATE AND SIDE GUARD (#81625) — 127 parça

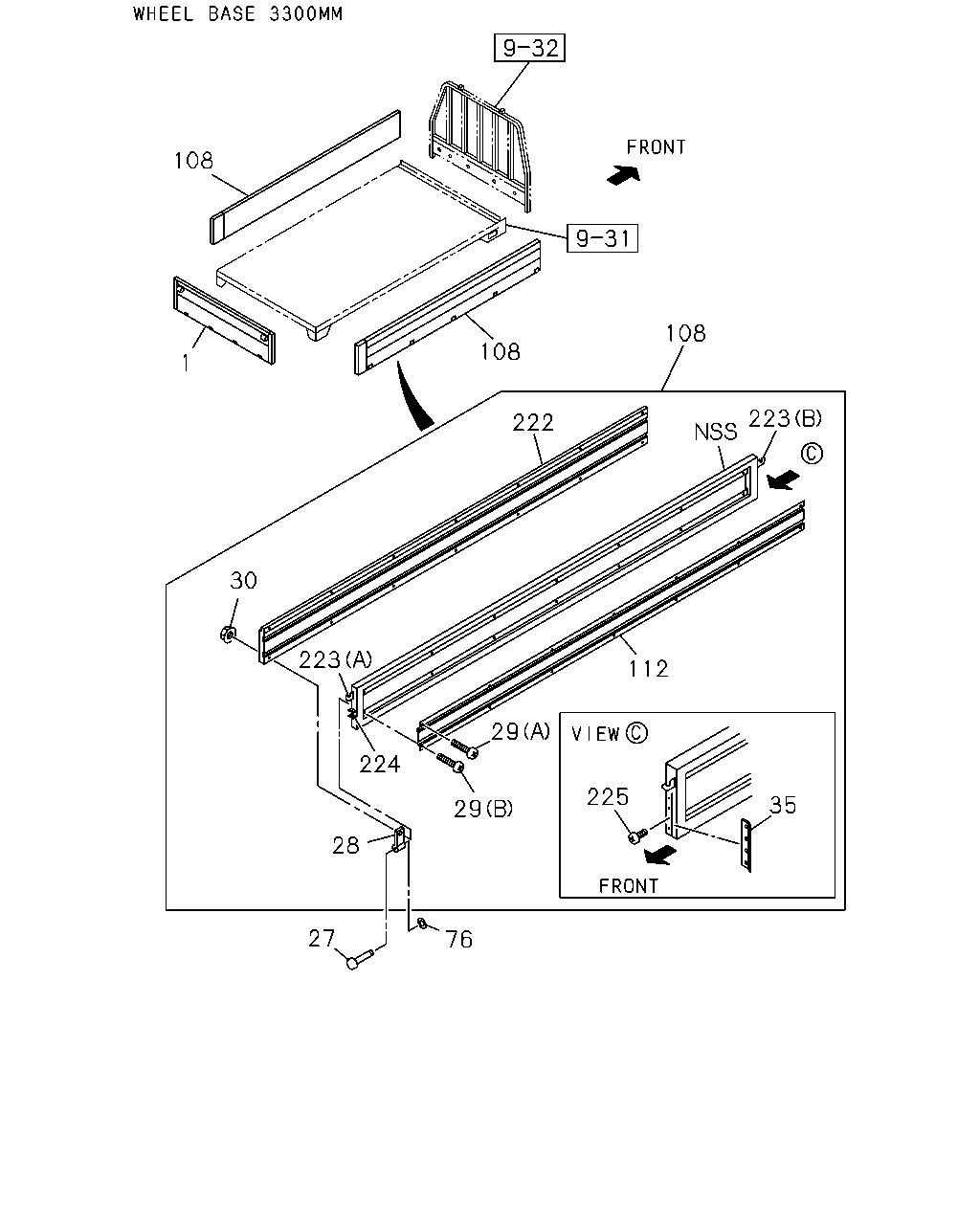

108 108 108 1 223 222 30 223 112 29 224 225 35 29 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=398 B=50 PLYWOOD TAKADA	8-97594-653-0	01	1	0810-0810
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=422 B=50 PLYWOOD TAKADA	8-97594-773-1	01	1	0811-1404
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=422 B=50 PLYWOOD TAKADA	8-97565-790-1	01	1	1405-
27	17.208 PIN; HINGE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	14	1	0810-
27	17.208 PIN; HINGE,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	16	1	0810-
28	17.208 HINGE; UPR,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	14	1	0810-
28	17.208 HINGE; UPR,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	16	1	0810-
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	14	1	0810-
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	14	1	0810-
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	16	1	0810-
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	16	1	0810-
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 17.185 M8	8-94193-954-1	28	1	0810-1303
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	28	1	1304-
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 17.185 M8	8-94193-954-1	32	1	0810-1303
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	32	1	1304-
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97593-750-0	02	1	0810-
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	0810-
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	20	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=4963 H=398 B=50 PLYWOOD TAKADA	8-97594-767-2	01	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=4963 H=398 B=50 PLYWOOD TAKADA	8-97594-768-2	01	1	0810-
112	17.455 PANEL; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-607-0	02	1	0810-
112	17.455 PANEL; SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2050.5	8-97594-784-0	02	1	0810-
112	17.455 PANEL; SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2740.5	8-97594-785-0	02	1	0810-
222	17.505 BOARD; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-611-1	02	1	0810-
222	17.505 BOARD; SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6)	8-97594-786-1	02	1	0810-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) REAR TAKADA	8-94194-396-0	01	1	0810-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) REAR TAKADA	8-94194-397-0	01	1	0810-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) FRONT TAKADA	8-97593-673-0	01	1	0810-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) FRONT TAKADA	8-97593-674-0	01	1	0810-
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-275-0	01	1	0810-
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-276-0	01	1	0810-
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED(RS6) TAKADA	8-94194-351-0	08	1	0810-

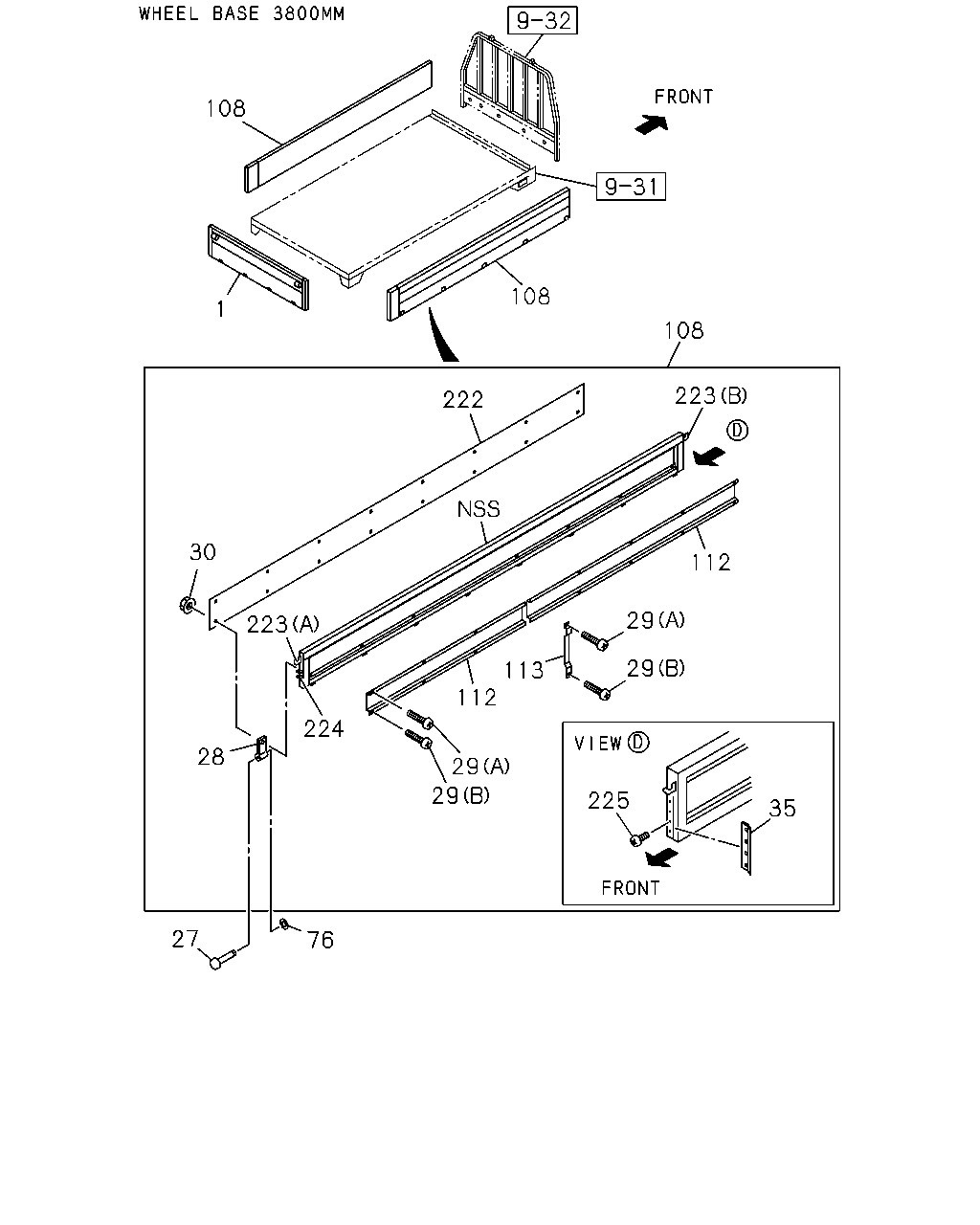

108 108 1 108 223 222 30 112 29 223 29 113 112 224 28 29 29 225 35 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=398 B=50 PLYWOOD TAKADA	8-97594-653-0	01	1	0810-0810
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=422 B=50 PLYWOOD TAKADA	8-97594-773-1	01	1	0811-1404
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=422 B=50 PLYWOOD TAKADA	8-97565-790-1	01	1	1405-
27	17.208 PIN; HINGE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	14	1	0810-
27	17.208 PIN; HINGE,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	16	1	0810-
28	17.208 HINGE; UPR,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	14	1	0810-
28	17.208 HINGE; UPR,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	16	1	0810-
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	14	1	0810-
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	14	1	0810-
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	16	1	0810-
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	16	1	0810-
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 17.185 M8	8-94193-954-1	28	1	0810-1303
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	28	1	1304-
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 17.185 M8	8-94193-954-1	32	1	0810-1303
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	32	1	1304-
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97593-750-0	02	1	0810-
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	0810-
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	20	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=4963 H=398 B=50 PLYWOOD TAKADA	8-97594-767-2	01	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=4963 H=398 B=50 PLYWOOD TAKADA	8-97594-768-2	01	1	0810-
112	17.455 PANEL; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-607-0	02	1	0810-
112	17.455 PANEL; SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2050.5	8-97594-784-0	02	1	0810-
112	17.455 PANEL; SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2740.5	8-97594-785-0	02	1	0810-
113	17.505 BAR; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97592-794-0	02	1	0810-
222	17.505 BOARD; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-611-1	02	1	0810-
222	17.505 BOARD; SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6)	8-97594-786-1	02	1	0810-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) REAR TAKADA	8-94194-396-0	01	1	0810-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) REAR TAKADA	8-94194-397-0	01	1	0810-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) FRONT TAKADA	8-97593-673-0	01	1	0810-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) FRONT TAKADA	8-97593-674-0	01	1	0810-
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-275-0	01	1	0810-
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-276-0	01	1	0810-
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED(RS6) TAKADA	8-94194-351-0	08	1	0810-

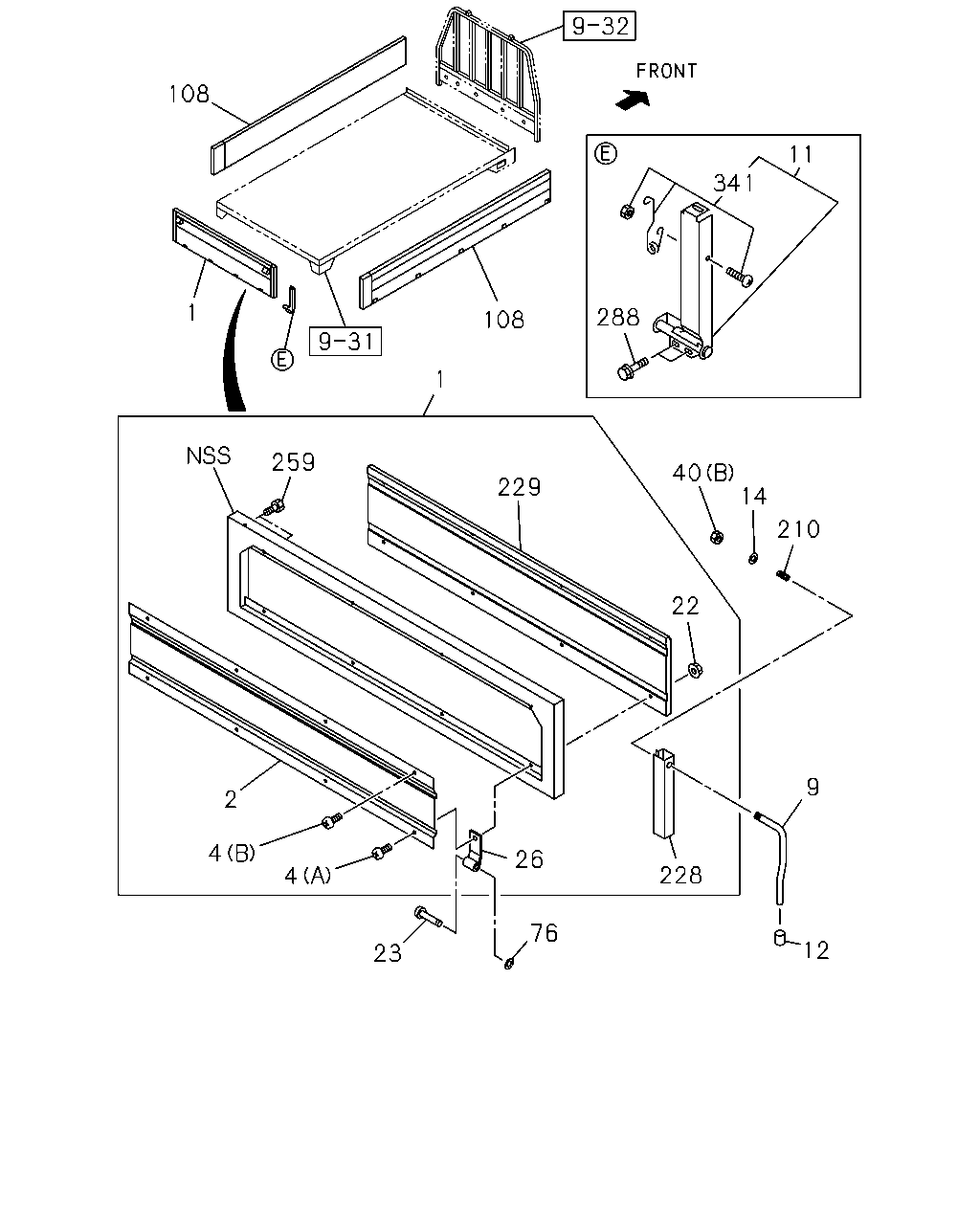

108 11 341 1 288 108 1 259 40 14 229 210 22 9 2 4 26 228 4 76 12 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=398 B=50 PLYWOOD TAKADA	8-97594-653-0	01	1	0810-0810
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=422 B=50 PLYWOOD TAKADA	8-97594-773-1	01	1	0811-1404
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=422 B=50 PLYWOOD TAKADA	8-97565-790-1	01	1	1405-
2	17.185 PANEL; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-084-0	01	1	0810-
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (B) M8X16	8-94193-952-3	04	1	0810-
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (A) M8X21	8-94193-953-3	04	1	0810-
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-400-2	01	1	0810-
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-401-2	01	1	0810-
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) TAKADA	8-97591-898-0	01	1	0810-
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) TAKADA	8-97591-899-0	01	1	0810-
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94193-344-0	02	1	0810-
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED(RS6) ID=12.5	0-91614-512-0	02	1	0810-
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED(RS6) M8	8-94193-954-1	08	1	0810-1303
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	08	1	1304-
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED(RS6) OD=10 L=58.5	8-94193-933-2	04	1	0810-
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-079-0	04	1	0810-0810
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-078-0	04	1	0811-
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0810-
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	0810-
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	0810-
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	20	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=4963 H=398 B=50 PLYWOOD TAKADA	8-97594-767-2	01	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=4963 H=398 B=50 PLYWOOD TAKADA	8-97594-768-2	01	1	0810-
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94194-192-1	02	1	0810-
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97593-782-0	01	1	0810-
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97593-783-0	01	1	0810-
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-245-0	01	1	0810-1404
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97565-795-1	01	1	1405-
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) M8X20 TAKADA	8-94194-115-0	02	1	0810-1303
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) M8X20 TAKADA	8-97590-324-0	02	1	1304-
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) M8X40 TAKADA	8-97593-296-0	02	1	0810-1303
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) M8X40 TAKADA	8-97590-325-0	02	1	1304-
288	17.505 BOLT; LOCK ASM,VERTICAL RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	04	1	0810-
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-448-0	01	1	0810-
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-449-0	01	1	0810-

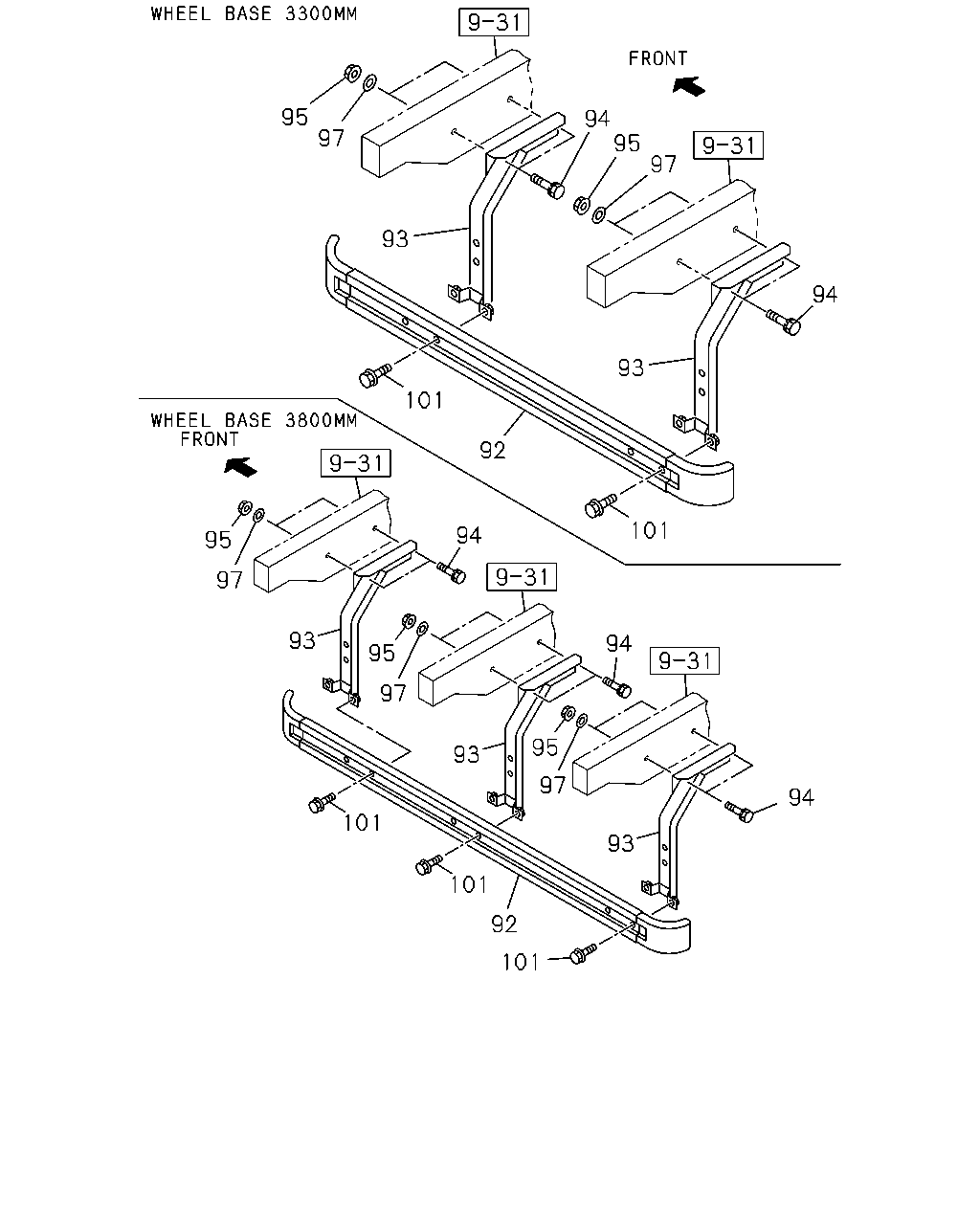

95 94 95 97 97 93 94 93 101 92 101 94 95 97 93 94 95 97 95 93 97 94 101 93 101 92 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98118-131-0	01	1	0810-
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98118-132-0	01	1	0810-
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6)	8-98089-857-0	01	1	0810-
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6)	8-98089-858-0	01	1	0810-
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98035-148-0	02	1	0810-
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98035-149-0	02	1	0810-
93	17.505 STAY; SIDE GUARD WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6)	8-98035-148-0	03	1	0810-
93	17.505 STAY; SIDE GUARD WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6)	8-98035-149-0	03	1	0810-
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10X70 W/LK WASHER	0-50541-070-0	08	1	0810-
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) M10X70 W/LK WASHER	0-50541-070-0	12	1	0810-
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	0810-
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	12	1	0810-
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	0810-
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	12	1	0810-
101	17.507 BOLT; PIPE TO STAY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 06.216 M8X25 FLANGE	0-28650-825-0	08	1	0810-
101	17.507 BOLT; PIPE TO STAY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 06.216 M8X25 FLANGE	0-28650-825-0	12	1	0810-

40 40 40 37 37 36 37 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97592-525-0	02	1	0810-
37	17.202 SCREW RR BODY FLAT BED(RS6) TAKADA	8-94194-119-1	06	1	0810-
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0810-
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	0810-
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) 17.507 OD=60 H=22	8-94193-455-0	02	1	0810-
