Sayfa 9-31 - Isuzu EPC

9-31 — REAR BODY; FLOOR AND FENDER (#81623) — 229 parça

23 24 81 81 64 52 1 71 53 53 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6)	8-97162-720-0	02	1	0810-1604
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6)	8-98253-302-0	02	1	1605-
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED(RS6)	8-97179-829-0	02	1	0810-
23	17.405 NUT; ANGLE RR BODY FLAT BED(RS6) 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	0810-
24	17.405 WASHER; ANGLE RR BODY FLAT BED(RS6) 04.047 ID=8.2 OD=40	8-97182-975-0	01	1	0810-
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED(RS6) M8X60 W/LK WASHER	0-50740-860-0	08	1	0810-
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED(RS6) 01.062 M8 FLANGE	0-91180-108-0	16	1	0810-
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED(RS6) 03.706 ID=8.4 OD=26	0-91614-808-0	08	1	0810-
71	08.212 STAY; RR FENDER RR BODY FLAT BED(RS6)	8-97179-830-1	08	1	0810-
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-770-7	01	1	0810-
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-771-8	01	1	0810-

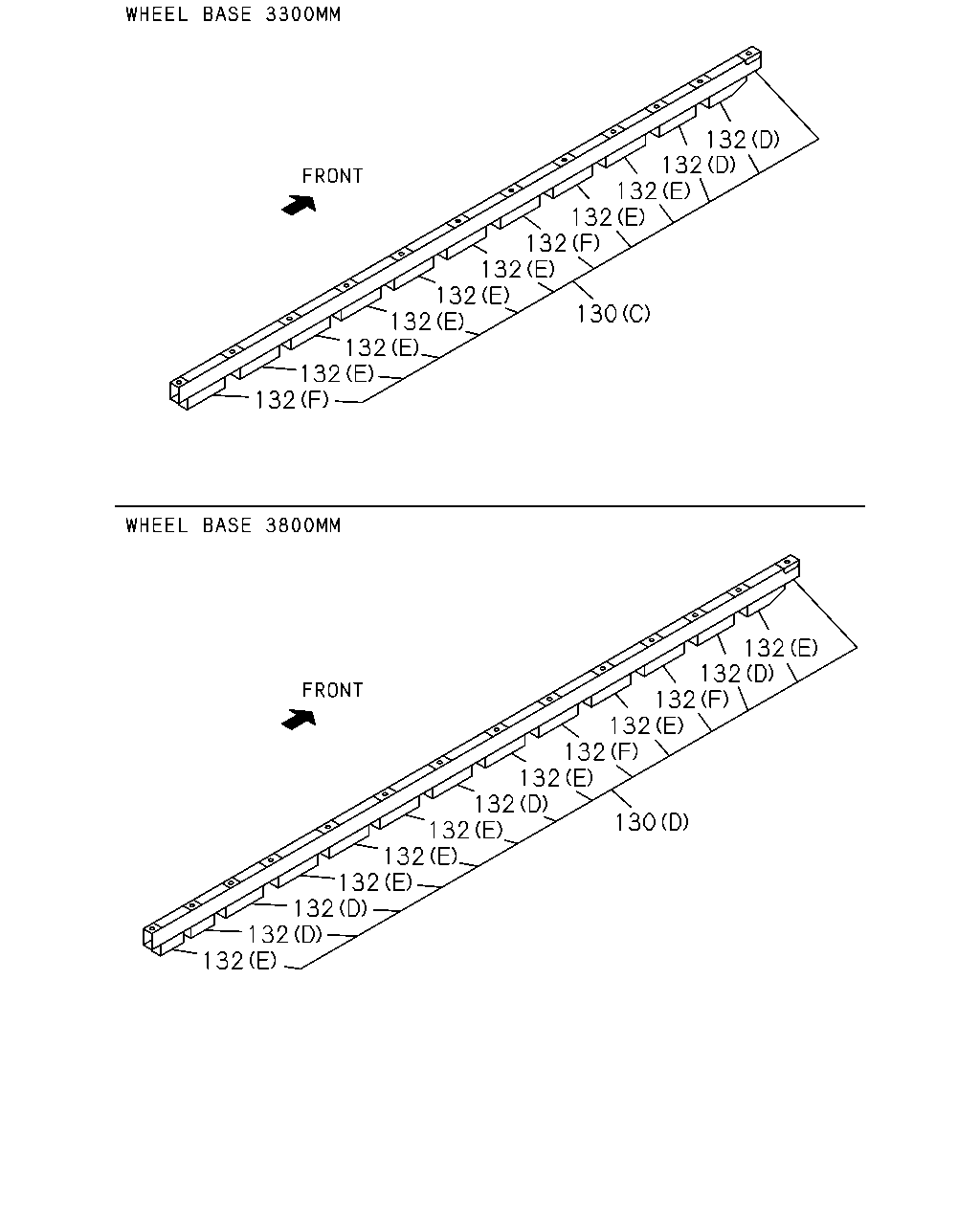

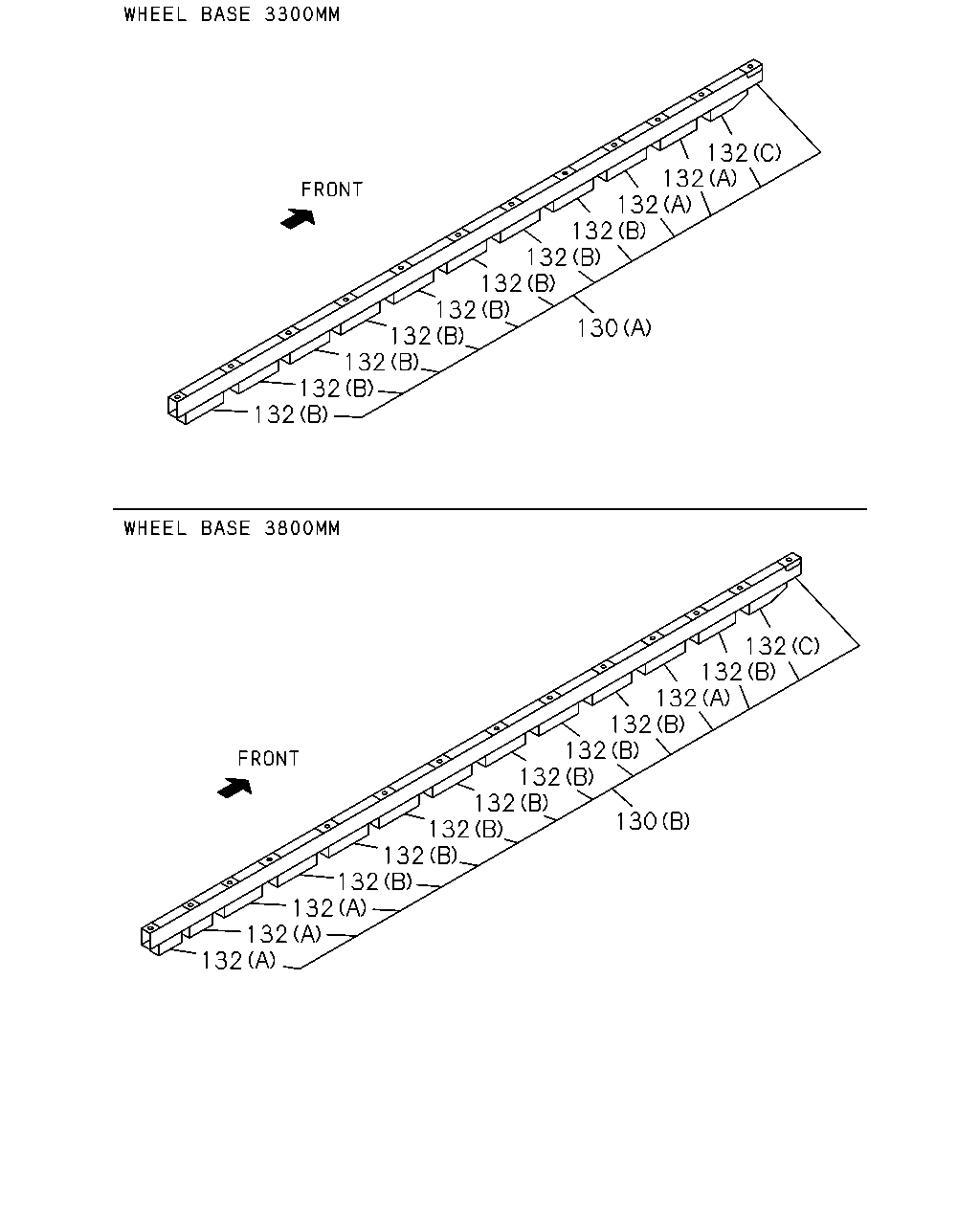

132 132 132 132 132 132 132 132 132 132 132 130 132 132 132 132 132 132 132 132 132 132 132 132 132 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-818-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-240-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-819-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-241-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-820-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (D) TAKADA	8-97565-242-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-821-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (D) TAKADA	8-97565-243-0	01	1	1204-
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97594-160-0	04	1	0810-1203
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (D)	8-97565-164-0	04	1	1204-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (C)	8-97594-156-0	01	1	0810-1203
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (F)	8-97565-166-0	04	1	1204-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (C)	8-97594-157-0	01	1	0810-1203
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (E)	8-97565-165-0	14	1	1204-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (B)	8-97594-158-0	16	1	0810-1203
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (A)	8-97594-160-0	08	1	0810-1203
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (D)	8-97565-164-0	08	1	1204-

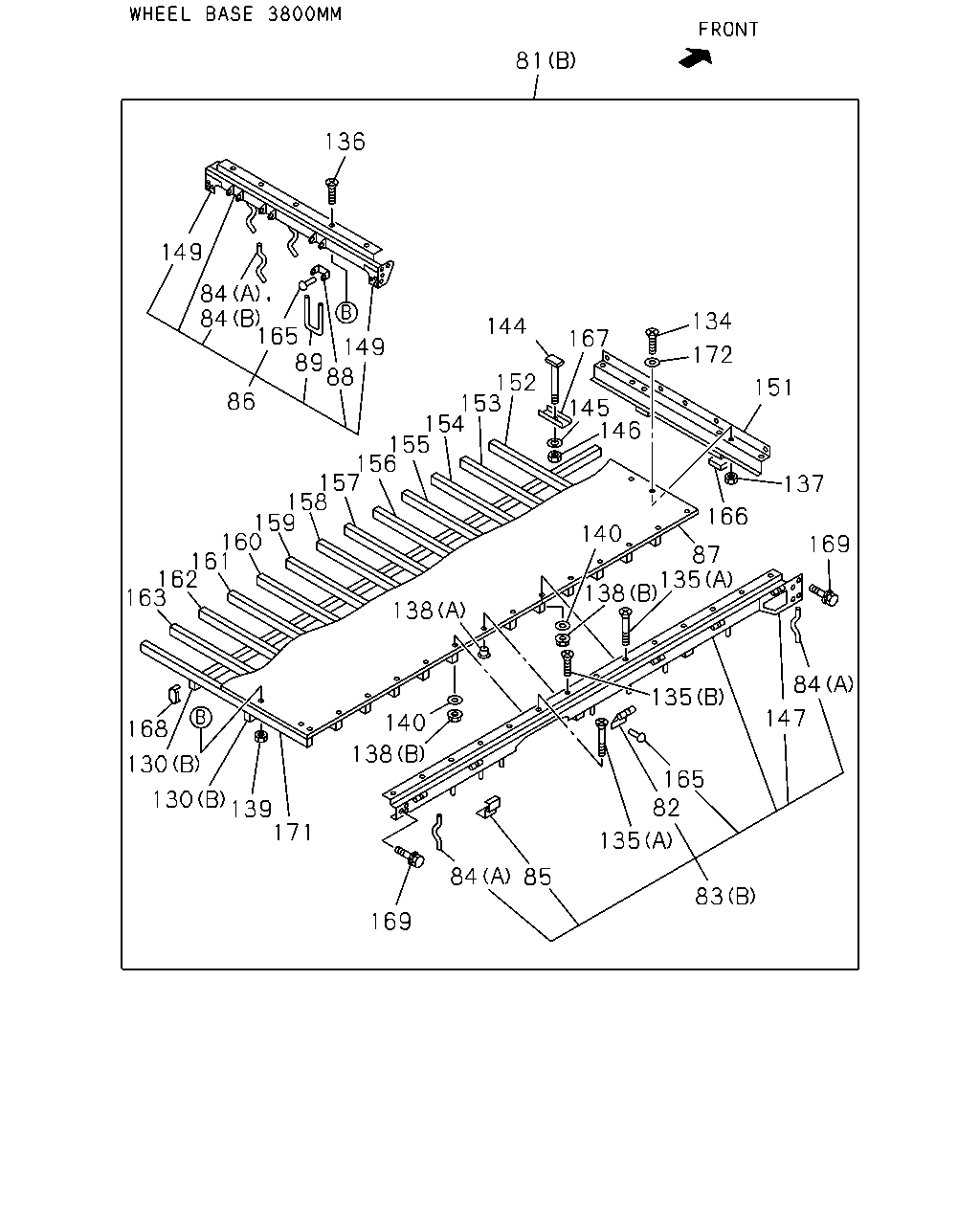

81 136 149 84 84 165 89 88 134 144 167 149 172 152 153 154 155 156 157 158 159 160 161 162 163 151 86 145 146 137 166 140 169 87 135 138 138 84 135 147 140 168 138 130 165 82 130 139 171 135 84 85 83 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-770-7	01	1	0810-
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-771-8	01	1	0810-
82	17.510 HINGE; SIDE GATE,LWR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	14	1	0810-
82	17.510 HINGE; SIDE GATE,LWR WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	16	1	0810-
83	08.309 FRAME; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-514-0	01	1	0810-
83	08.309 FRAME; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-515-0	01	1	0810-
83	08.309 FRAME; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-808-0	01	1	0810-
83	08.309 FRAME; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-809-0	01	1	0810-
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-318-0	03	1	0810-0810
84	08.820 HOOK; ROPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) SIDE TAKADA	8-97593-866-0	18	1	0810-0810
84	08.820 HOOK; ROPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) SIDE TAKADA	8-97593-866-0	21	1	0811-
84	08.820 HOOK; ROPE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (A) SIDE TAKADA	8-97593-866-0	22	1	0810-0810
84	08.820 HOOK; ROPE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (A) SIDE TAKADA	8-97593-866-0	25	1	0811-
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	06	1	0810-
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97593-864-0	02	1	0810-
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	04	1	0810-
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) TAKADA	8-97594-525-0	01	1	0810-
87	17.400 BOARD; FLOOR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-810-0	01	1	0810-1110
87	17.400 BOARD; FLOOR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97565-208-1	01	1	1111-
87	17.400 BOARD; FLOOR WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97594-811-0	01	1	0810-1110
87	17.400 BOARD; FLOOR WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97565-210-1	01	1	1111-
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	0810-0810
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-250-0	04	1	0811-1203
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	1204-
89	17.400 STEP; RR RR BODY FLAT BED(RS6) TAKADA	8-97593-886-0	01	1	0810-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-818-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-240-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-819-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-241-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-820-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (D) TAKADA	8-97565-242-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-821-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (D) TAKADA	8-97565-243-0	01	1	1204-
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	06	1	0810-1110
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1111-
135	17.505 SCREW; BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	18	1	0810-
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8X16 TAKADA	8-94195-024-3	02	1	0810-
135	17.505 SCREW; BOARD,SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	22	1	0810-
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	0810-
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	06	1	0810-1110
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1111-
138	17.447 NUT; BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	18	1	0810-
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) 17.185 (A) M8	8-94193-954-1	02	1	0810-1303
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8	8-97565-434-0	02	1	1304-
138	17.447 NUT; BOARD,SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	22	1	0810-
139	17.447 NUT; BOARD,RR RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	0810-
140	17.447 WASHER; PL,BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	12	1	0810-
140	17.447 WASHER; PL,BOARD,SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	16	1	0810-
144	17.447 BOLT; BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	20	1	0810-
144	17.447 BOLT; BOLSTER TO SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	24	1	0810-
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 03.706 ID=10.5 OD=32	9-09164-810-0	24	1	0810-1203
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	24	1	1204-
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 03.706 ID=10.5 OD=32	9-09164-810-0	28	1	0810-1203
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	28	1	1204-
146	17.447 NUT; BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	24	1	0810-
146	17.447 NUT; BOLSTER TO SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	28	1	0810-
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-174-0	01	1	0810-
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-175-0	01	1	0810-
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-186-0	01	1	0810-
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-187-0	01	1	0810-
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-812-0	01	1	0810-1110
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97565-217-0	01	1	1111-1203
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97565-223-0	01	1	1204-
152	17.208 BOLSTER; NO 2,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-814-1	01	1	0810-
153	17.208 BOLSTER; NO 3,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
154	17.208 BOLSTER; NO 4,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
154	17.208 BOLSTER; NO 4,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-814-1	01	1	0810-
155	17.208 BOLSTER; NO 5,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
156	17.208 BOLSTER; NO 6,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-814-1	01	1	0810-
156	17.208 BOLSTER; NO 6,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
157	17.208 BOLSTER; NO 7,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-815-1	01	1	0810-
157	17.208 BOLSTER; NO 7,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-814-1	01	1	0810-
158	17.208 BOLSTER; NO 8,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1888 TAKADA	8-97594-816-1	01	1	0810-
158	17.208 BOLSTER; NO 8,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-815-1	01	1	0810-
159	17.208 BOLSTER; NO 9,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-815-1	01	1	0810-
159	17.208 BOLSTER; NO 9,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=1888 TAKADA	8-97594-816-1	01	1	0810-
160	17.208 BOLSTER; NO 10,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
160	17.208 BOLSTER; NO 10,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-815-1	01	1	0810-
161	17.208 BOLSTER; NO 11,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
162	17.208 BOLSTER; NO 12,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-817-0	01	1	0810-
162	17.208 BOLSTER; NO 12,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
163	17.208 BOLSTER; NO 13,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
165	17.447 RIVET; HINGE LWR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97592-609-0	36	1	0810-
165	17.447 RIVET; HINGE LWR WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97592-609-0	40	1	0810-
166	17.208 SPACER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97594-119-0	02	1	0810-
167	17.447 WASHER; BOLSTER,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	20	1	0810-
167	17.447 WASHER; BOLSTER,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	24	1	0810-
168	08.212 COVER; SILL,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97565-106-0	02	1	1204-
169	17.447 BOLT; CONNECTOR,RR CORNER RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	06	1	0810-
171	17.208 BOLSTER; NO 14,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-817-0	01	1	0810-
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-94193-940-1	04	1	0810-1110
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-94193-940-1	05	1	1111-1303
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-97565-435-0	05	1	1304-

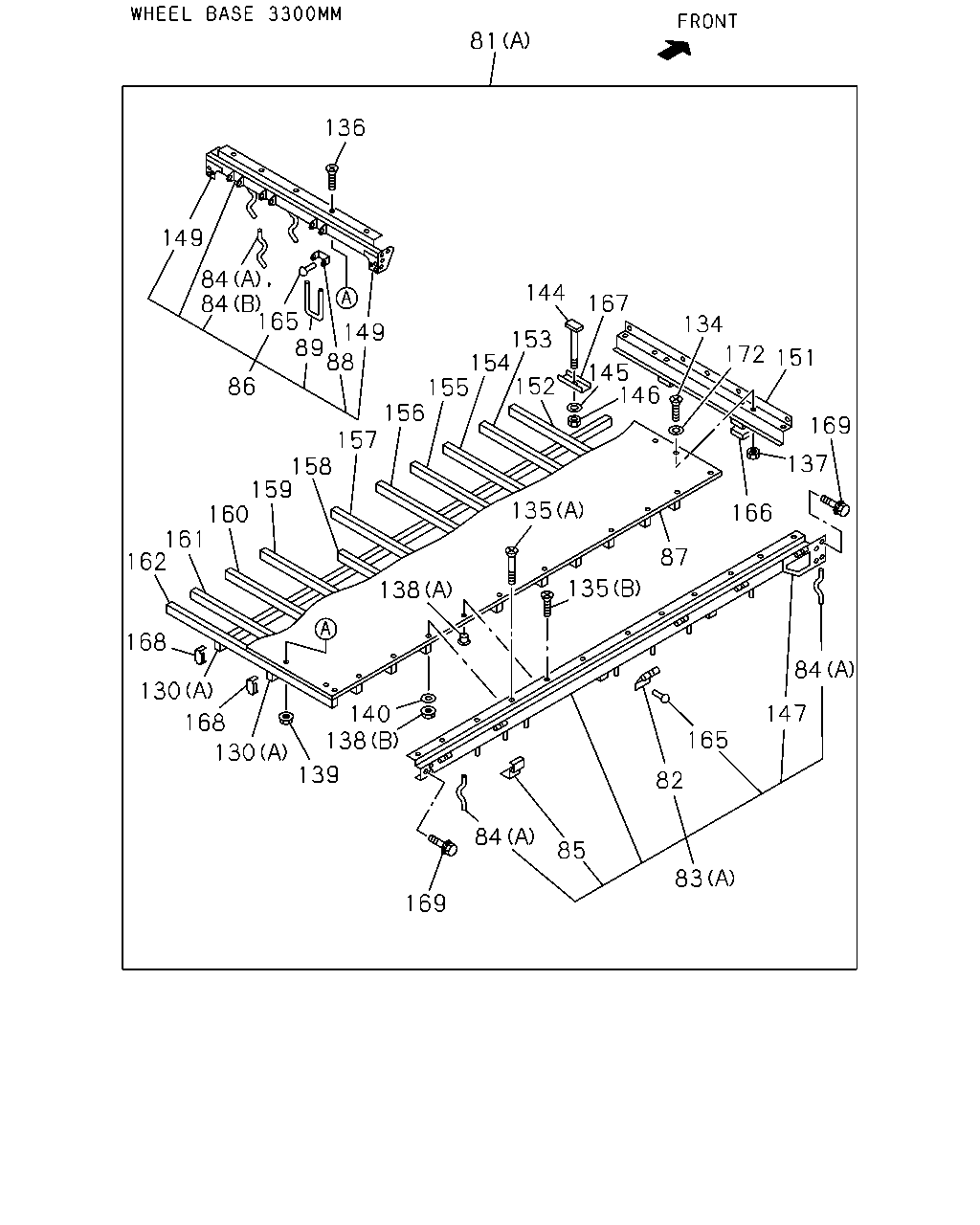

81 136 149 84 84 165 89 88 144 167 134 149 153 154 155 152 156 157 158 159 160 161 162 172 151 145 146 86 169 137 135 166 87 135 138 168 84 130 147 140 138 168 165 130 139 82 84 85 83 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-770-7	01	1	0810-
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-771-8	01	1	0810-
82	17.510 HINGE; SIDE GATE,LWR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	14	1	0810-
82	17.510 HINGE; SIDE GATE,LWR WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	16	1	0810-
83	08.309 FRAME; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-514-0	01	1	0810-
83	08.309 FRAME; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-515-0	01	1	0810-
83	08.309 FRAME; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-808-0	01	1	0810-
83	08.309 FRAME; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-809-0	01	1	0810-
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-318-0	03	1	0810-0810
84	08.820 HOOK; ROPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) SIDE TAKADA	8-97593-866-0	18	1	0810-0810
84	08.820 HOOK; ROPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) SIDE TAKADA	8-97593-866-0	21	1	0811-
84	08.820 HOOK; ROPE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (A) SIDE TAKADA	8-97593-866-0	22	1	0810-0810
84	08.820 HOOK; ROPE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (A) SIDE TAKADA	8-97593-866-0	25	1	0811-
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	06	1	0810-
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97593-864-0	02	1	0810-
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	04	1	0810-
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) TAKADA	8-97594-525-0	01	1	0810-
87	17.400 BOARD; FLOOR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-810-0	01	1	0810-1110
87	17.400 BOARD; FLOOR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97565-208-1	01	1	1111-
87	17.400 BOARD; FLOOR WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97594-811-0	01	1	0810-1110
87	17.400 BOARD; FLOOR WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97565-210-1	01	1	1111-
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	0810-0810
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-250-0	04	1	0811-1203
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	1204-
89	17.400 STEP; RR RR BODY FLAT BED(RS6) TAKADA	8-97593-886-0	01	1	0810-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-818-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-240-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-819-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-241-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-820-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (D) TAKADA	8-97565-242-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-821-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (D) TAKADA	8-97565-243-0	01	1	1204-
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	06	1	0810-1110
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1111-
135	17.505 SCREW; BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	18	1	0810-
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8X16 TAKADA	8-94195-024-3	02	1	0810-
135	17.505 SCREW; BOARD,SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	22	1	0810-
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	0810-
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	06	1	0810-1110
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1111-
138	17.447 NUT; BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	18	1	0810-
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) 17.185 (A) M8	8-94193-954-1	02	1	0810-1303
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8	8-97565-434-0	02	1	1304-
138	17.447 NUT; BOARD,SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	22	1	0810-
139	17.447 NUT; BOARD,RR RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	0810-
140	17.447 WASHER; PL,BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	12	1	0810-
140	17.447 WASHER; PL,BOARD,SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	16	1	0810-
144	17.447 BOLT; BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	20	1	0810-
144	17.447 BOLT; BOLSTER TO SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	24	1	0810-
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 03.706 ID=10.5 OD=32	9-09164-810-0	24	1	0810-1203
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	24	1	1204-
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 03.706 ID=10.5 OD=32	9-09164-810-0	28	1	0810-1203
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	28	1	1204-
146	17.447 NUT; BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	24	1	0810-
146	17.447 NUT; BOLSTER TO SILL WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	28	1	0810-
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-174-0	01	1	0810-
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-175-0	01	1	0810-
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-186-0	01	1	0810-
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-187-0	01	1	0810-
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-812-0	01	1	0810-1110
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97565-217-0	01	1	1111-1203
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97565-223-0	01	1	1204-
152	17.208 BOLSTER; NO 2,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-814-1	01	1	0810-
153	17.208 BOLSTER; NO 3,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
154	17.208 BOLSTER; NO 4,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
154	17.208 BOLSTER; NO 4,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-814-1	01	1	0810-
155	17.208 BOLSTER; NO 5,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
156	17.208 BOLSTER; NO 6,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-814-1	01	1	0810-
156	17.208 BOLSTER; NO 6,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
157	17.208 BOLSTER; NO 7,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-815-1	01	1	0810-
157	17.208 BOLSTER; NO 7,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-814-1	01	1	0810-
158	17.208 BOLSTER; NO 8,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1888 TAKADA	8-97594-816-1	01	1	0810-
158	17.208 BOLSTER; NO 8,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-815-1	01	1	0810-
159	17.208 BOLSTER; NO 9,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-815-1	01	1	0810-
159	17.208 BOLSTER; NO 9,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=1888 TAKADA	8-97594-816-1	01	1	0810-
160	17.208 BOLSTER; NO 10,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
160	17.208 BOLSTER; NO 10,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-815-1	01	1	0810-
161	17.208 BOLSTER; NO 11,RR BODY RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
162	17.208 BOLSTER; NO 12,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-817-0	01	1	0810-
162	17.208 BOLSTER; NO 12,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=2048 TAKADA	8-97594-813-1	01	1	0810-
165	17.447 RIVET; HINGE LWR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97592-609-0	36	1	0810-
165	17.447 RIVET; HINGE LWR WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) TAKADA	8-97592-609-0	40	1	0810-
166	17.208 SPACER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97594-119-0	02	1	0810-
167	17.447 WASHER; BOLSTER,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	20	1	0810-
167	17.447 WASHER; BOLSTER,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	24	1	0810-
168	08.212 COVER; SILL,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97565-106-0	02	1	1204-
169	17.447 BOLT; CONNECTOR,RR CORNER RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	06	1	0810-
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-94193-940-1	04	1	0810-1110
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-94193-940-1	05	1	1111-1303
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-97565-435-0	05	1	1304-

132 132 132 132 132 132 132 132 132 132 132 130 132 132 132 132 132 132 132 132 132 132 132 132 132 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-818-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-240-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-819-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-241-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-820-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (D) TAKADA	8-97565-242-0	01	1	1204-
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97594-821-0	01	1	0810-1203
130	17.208 SILL ASM; RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (D) TAKADA	8-97565-243-0	01	1	1204-
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97594-160-0	04	1	0810-1203
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (D)	8-97565-164-0	04	1	1204-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (C)	8-97594-156-0	01	1	0810-1203
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (F)	8-97565-166-0	04	1	1204-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (C)	8-97594-157-0	01	1	0810-1203
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (E)	8-97565-165-0	14	1	1204-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (B)	8-97594-158-0	16	1	0810-1203
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (A)	8-97594-160-0	08	1	0810-1203
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) (D)	8-97565-164-0	08	1	1204-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
