◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#8162) — 97 parça

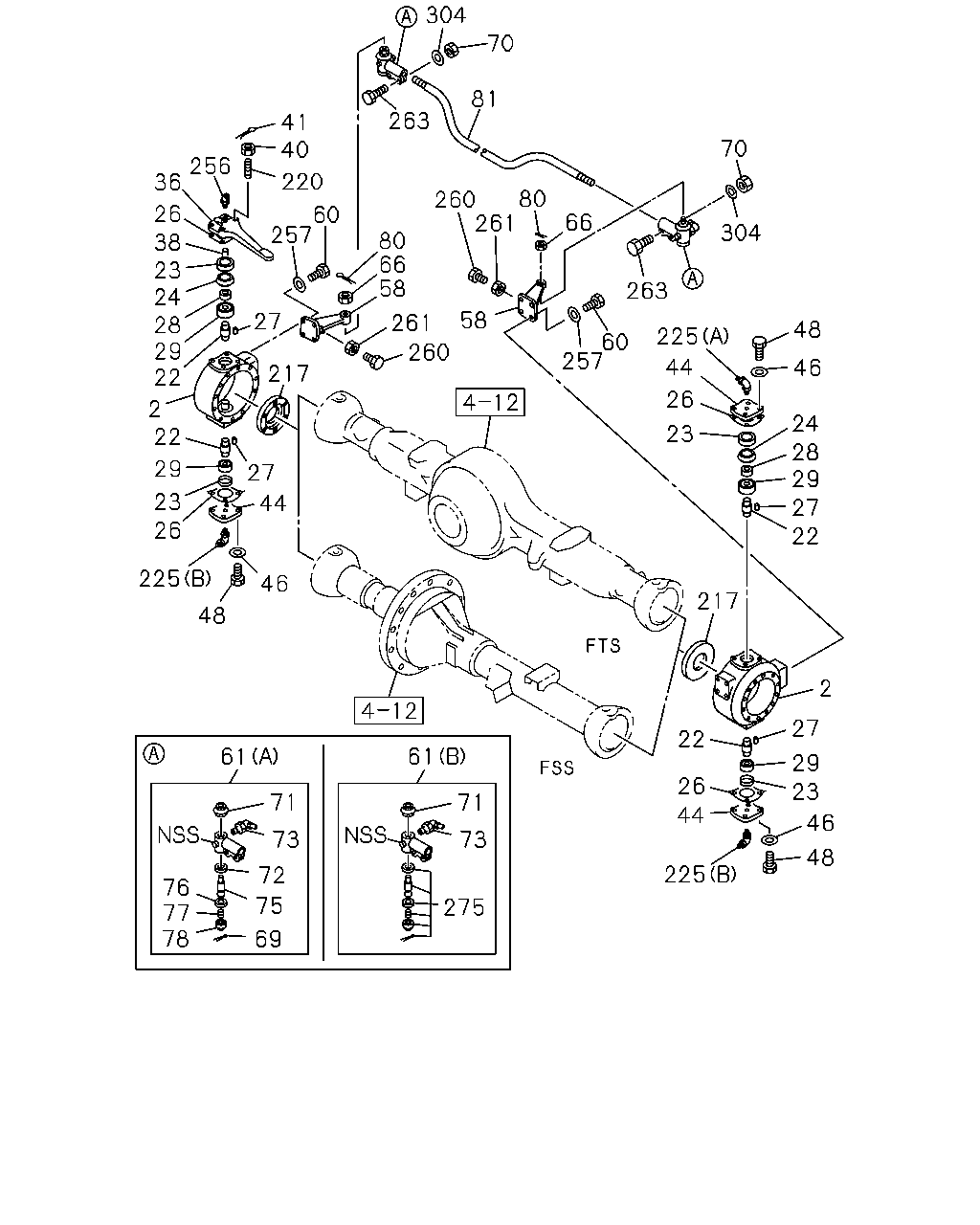

çizim 103162
304 70 81 263 41 40 220 60 257 256 36 26 38 23 24 28 29 22 2 22 29 23 26 225 48 46 44 27 217 27 80 66 58 261 58 261 260 80 66 257 60 263 304 70 225 44 26 23 48 46 24 28 29 27 22 217 22 2 27 29 23 46 48 225 26 44 260 61 71 73 72 75 69 76 77 78 71 61 73 275
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 KNUCKLE; FRT AXLE 1-43242-006-3 01 1 0005- ● ● ● ●
2 KNUCKLE; FRT AXLE 9-43241-037-1 01 1 0005- ● ● ● ●
22 PIN; KING,FRT AXLE
H=50 		1-43264-003-0 04 1 0005- ● ● ● ●
23 COLLAR; DIST BRG 9-43267-004-0 04 1 0005- ● ● ● ●
24 RECEIVER; KING PIN 9-43269-008-0 02 1 0005- ● ● ● ●
26 SHIM; KING PIN,BRG
T=0.1 		9-43266-013-0 AR 1 0005- ● ● ● ●
26 SHIM; KING PIN,BRG
T=0.2 		9-43266-014-0 AR 1 0005- ● ● ● ●
26 SHIM; KING PIN,BRG
T=0.5 		9-43266-015-0 AR 1 0005- ● ● ● ●
27 PIN; STRAIGHT,KING PIN
OD=5 L=10 		9-08160-510-0 04 1 0005- ● ● ● ●
28 WASHER; KING PIN 9-43269-007-0 02 1 0005- ● ● ● ●
29 BEARING; KING PIN 9-00093-181-0 04 1 0005- ● ● ● ●
36 ARM; KNUCKLE 1-43261-025-0 01 1 0005- ● ●
36 ARM; KNUCKLE 1-43261-029-0 01 1 0005-1003 ● ●
36 ARM; KNUCKLE 1-43261-035-0 01 1 1004- ● ●
38 KNOCK; KNUCKLE ARM 9-43269-009-1 02 1 0005- ● ● ● ●
40 NUT; KNUCKLE ARM
M14 		9-99116-414-0 04 1 0005-0604 ● ● ● ●
40 NUT; KNUCKLE ARM
M14 SLOTTED 		0-91116-514-0 04 1 0605- ● ● ● ●
41 PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25 		9-08113-025-0 04 1 0005-0606 ● ● ● ●
41 PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25 		0-81123-025-0 04 1 0607- ● ● ● ●
44 COVER; KING PIN 9-43265-007-1 03 1 0005- ● ● ● ●
46 WASHER; LK,COVER
ID=14.2 		9-09150-814-0 12 1 0005-0603 ● ● ● ●
46 WASHER; LK,COVER
ID=14.2 		0-91510-814-0 12 1 0604- ● ● ● ●
48 BOLT; COVER
M14X35 		9-92061-435-0 12 1 0005-0512 ● ● ● ●
48 BOLT; COVER
M14X35 		0-20951-435-0 12 1 0601- ● ● ● ●
58 ARM; TIE ROD 8-98138-221-0 01 1 1406- ● ●
58 ARM; TIE ROD 8-98138-222-0 01 1 1406- ● ●
58 ARM; TIE ROD 9-43263-011-1 01 1 0005-1405 ● ● ● ●
58 ARM; TIE ROD 9-43263-011-1 01 1 1406- ● ●
58 ARM; TIE ROD 9-43262-017-1 01 1 0005-1405 ● ● ● ●
58 ARM; TIE ROD 9-43262-017-1 01 1 1406- ● ●
60 BOLT; TIE ROD ARM
M16X40 		9-92061-640-0 08 1 0005-0512 ● ● ● ●
60 BOLT; TIE ROD ARM
M16X40 		0-20951-640-0 08 1 0601- ● ● ● ●
61 ROD END; TIE ROD 1-43150-192-0 01 1 0005-1405 ● ● ● ●
61 ROD END; TIE ROD 1-43150-192-0 01 1 1406- ● ●
61 ROD END; TIE ROD 8-98236-793-1 01 1 1406- ● ●
61 ROD END; TIE ROD 1-43150-191-0 01 1 0005-1405 ● ● ● ●
61 ROD END; TIE ROD 1-43150-191-0 01 1 1406- ● ●
61 ROD END; TIE ROD 8-98236-792-1 01 1 1406- ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1406- ● ●
66 NUT; TIE ROD END
M16 		9-09841-068-0 02 1 0005-1405 ● ● ● ●
66 NUT; TIE ROD END
M16 		9-09841-068-0 02 1 1406- ● ●
69 PIN; SPLIT,TIE ROD END 9-08114-065-0 02 1 0005-0808 ● ● ● ●
69 PIN; SPLIT,TIE ROD END 0-81124-065-0 02 1 0809-1405 ● ● ● ●
69 PIN; SPLIT,TIE ROD END 0-81124-065-0 02 1 1406- ● ●
70 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0005-0512 ● ● ● ●
70 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0601- ● ● ● ●
71 BOOT; TIE ROD END 8-98229-116-0 02 1 1406- ● ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 1203-1206 ● ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 0005-1202 ● ● ● ●
71 BOOT; TIE ROD END 1-43159-009-0 04 1 1203-1206 ● ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 1207-1405 ● ● ● ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 1406- ● ●
72 SEAT; BALL,TIE ROD JOINT 9-44371-133-0 02 1 0005-1405 ● ● ● ●
72 SEAT; BALL,TIE ROD JOINT 9-44371-133-0 02 1 1406- ● ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-132-0 02 1 1406- ● ●
73 NIPPLE; GREASE,TIE ROD END
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ● ● ● ●
73 NIPPLE; GREASE,TIE ROD END
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-1405 ● ● ● ●
73 NIPPLE; GREASE,TIE ROD END
PT1/8 ELBOW 		0-90301-610-0 02 1 1406- ● ●
75 JOINT; BALL,DRAG LINK 1-44361-042-2 02 1 0005-1405 ● ● ● ●
75 JOINT; BALL,DRAG LINK 1-44361-042-2 02 1 1406- ● ●
76 SEAT; SPR,DRAG LINK 9-44373-006-0 02 1 0005-1405 ● ● ● ●
76 SEAT; SPR,DRAG LINK 9-44373-006-0 02 1 1406- ● ●
77 SPRING; TIE ROD END 9-09940-057-0 02 1 0005-1405 ● ● ● ●
77 SPRING; TIE ROD END 9-09940-057-0 02 1 1406- ● ●
78 PLUG; ADJ,ROD END 1-44375-017-0 02 1 0005-1405 ● ● ● ●
78 PLUG; ADJ,ROD END 1-44375-017-0 02 1 1406- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1406- ● ●
80 PIN; SPLIT,ROD END 9-08114-030-0 02 1 0005-0606 ● ● ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=30 		0-81124-030-0 02 1 0607-1405 ● ● ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=30 		0-81124-030-0 02 1 1406- ● ●
81 ROD; TIE 1-43151-048-0 01 1 0005- ● ●
81 ROD; TIE 1-43151-070-0 01 1 0005-1405 ● ●
217 WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71 		9-43321-005-0 02 1 0005-0902 ● ● ● ●
217 WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71 		1-43321-009-0 02 1 0903- ● ● ● ●
220 STUD; KNUCKLE ARM
M14X54.5 L=72 		9-09830-131-0 01 1 0005- ● ● ● ●
220 STUD; KNUCKLE ARM
M14X41.5 L=60.5 		9-09830-132-0 01 1 0005- ● ● ● ●
220 STUD; KNUCKLE ARM
M14X46.5 L=72 		9-09830-133-0 01 1 0005- ● ● ● ●
220 STUD; KNUCKLE ARM
M14X33.5 L=60.5 		9-09830-134-0 01 1 0005- ● ● ● ●
225 NIPPLE; GREASE,COVER
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0005-0512 ● ● ● ●
225 NIPPLE; GREASE,COVER
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ● ● ●
225 NIPPLE; GREASE,COVER
(B) PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ● ● ● ●
225 NIPPLE; GREASE,COVER
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ● ●
256 NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0005-0512 ● ● ● ●
256 NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ● ● ●
257 WASHER; LK,TIE ROD ARM
ID=16.2 		9-09150-516-0 08 1 0005-0603 ● ● ● ●
257 WASHER; LK,TIE ROD ARM
ID=16.2 		0-91510-516-0 08 1 0604- ● ● ● ●
260 BOLT; STOPPER,TIE ROD ARM
M14X35 		0-20801-435-0 02 1 0005-0512 ● ● ● ●
260 BOLT; STOPPER,TIE ROD ARM
M14X35 		0-20851-435-0 02 1 0601- ● ● ● ●
261 NUT; STOPPER BOLT
M14 		9-99111-414-0 02 1 0005-0512 ● ● ● ●
261 NUT; STOPPER BOLT
M14 		0-91111-514-0 02 1 0601- ● ● ● ●
263 BOLT; ROD END
M12X65 		8-98053-922-0 04 1 1406- ● ●
263 BOLT; ROD END
M12X45 		9-92061-245-0 04 1 0005-0808 ● ● ● ●
263 BOLT; ROD END
M12X50 		0-20951-250-0 04 1 0809-1405 ● ● ● ●
263 BOLT; ROD END
M12X50 		0-20951-250-0 04 1 1406- ● ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1406- ● ●
304 WASHER; PL
ID=12.5 		9-09164-512-0 04 1 0005-0808 ● ● ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 0809- ● ● ● ●
