◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#8161) — 1570 parça

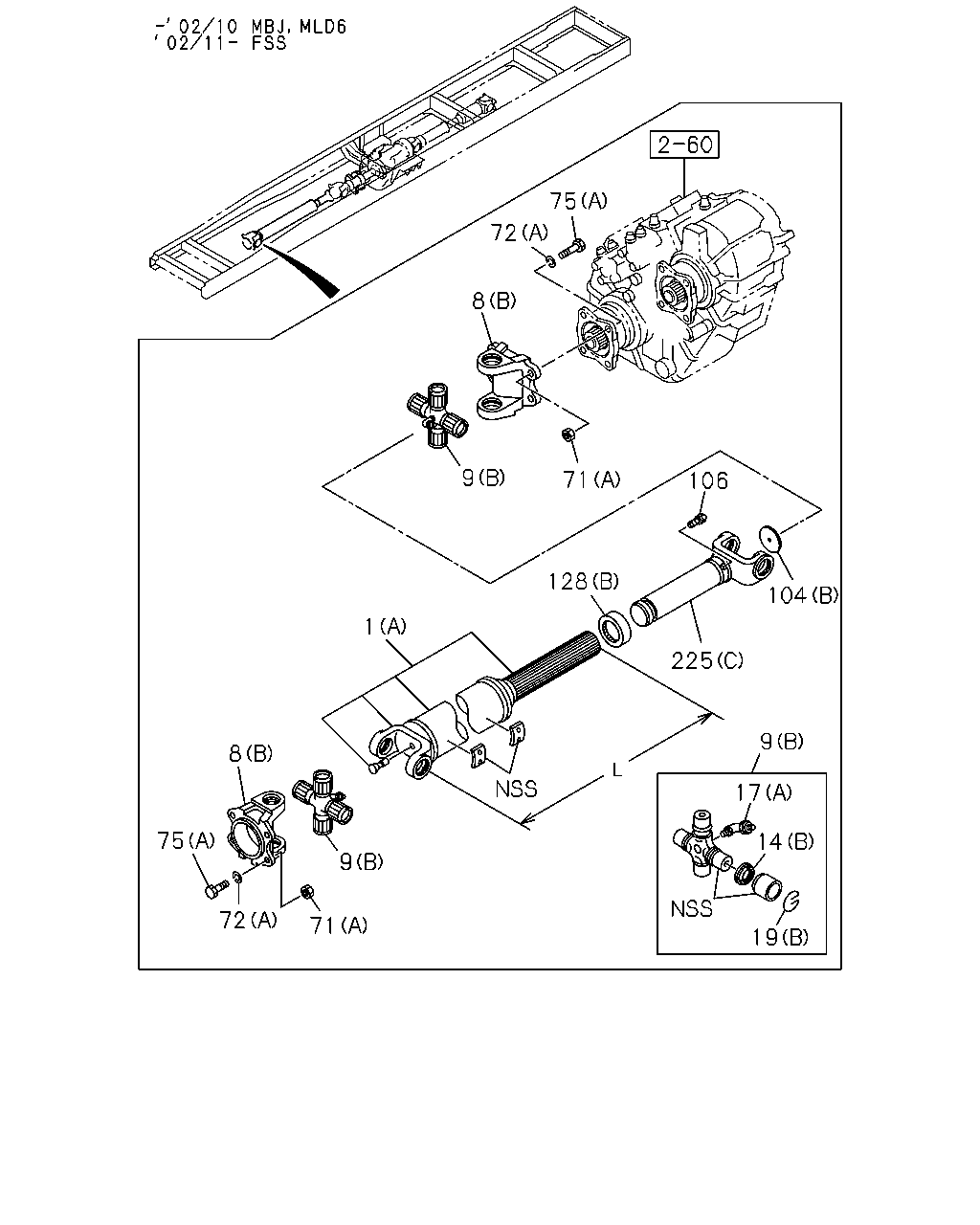

çizim 77632
19 14 17 9 225 104 106 128 1 8 9 75 72 71 71 9 8 72 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=621 		1-37125-060-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (B) L=756 		1-37123-512-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) L=312 		1-37152-086-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) 		8-98014-036-0 01 1 0507- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (C) L=1392 		1-37123-578-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (B) L=1041 		1-37124-183-1 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (E) L=521 		1-37124-890-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (G) L=1432 		1-37124-317-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (D) L=370 		1-37152-549-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) L=369 		1-37151-974-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) 		8-98014-035-0 01 1 0507- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1121 		1-37151-257-1 01 1 0211- ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		1-37211-054-1 01 1 0211-1111 ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (E) 		8-98048-925-0 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0211-1111 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (C) 		1-37300-059-1 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (D) 		1-37300-106-1 01 1 0211- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (D) 		8-98020-800-0 08 1 1112- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0211-1111 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (C) 		1-37319-012-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (B) 		9-09928-049-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (B) 		9-09928-049-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 0005-0210 ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0211-0512 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ●
71 NUT; YOKE
FTS ALL(FT****) (C) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		9-99110-512-0 04 1 0211-0512 ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		0-91110-512-0 04 1 0601- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0211-0603 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ●
72 WASHER; LK,YOKE
MLD7Q M/T(X5K) (C) ID=11.4 		9-09850-072-0 04 1 0005-0210 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (C) ID=11.4 		9-09850-072-0 08 1 0211- ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		9-09150-612-0 04 1 0211-0603 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		0-91510-612-0 04 1 0604- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
MLD7Q M/T(X5K) (C) UNF7/16X27 		9-09820-144-0 04 1 0005-0210 ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (C) UNF7/16X27 		9-09820-144-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (D) 		9-91061-275-0 04 1 0211- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0005-0210 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
MLD7Q M/T(X5K) (A) 		1-09600-064-0 02 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) (A) 		1-09600-064-0 02 1 0211- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD7Q M/T(X5K) PT1/8 STRAIGHT 		9-09031-010-0 03 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FTS ALL(FT****) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
(A) 		1-37247-002-1 01 1 0301- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 1112- ● ●
128 SEAL; SLEEVE
FTS ALL(FT****) (C) 		1-37247-015-0 01 1 0211-1111 ●
225 YOKE; SLEEVE,PROP SHAFT
ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0211-0212 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0211-0212 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=174 		1-37241-115-1 01 1 0301- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=174 		1-37241-115-1 01 1 0301- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0005-0210 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (C) L=228 		1-37241-098-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0210 ● ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0211- ● ●

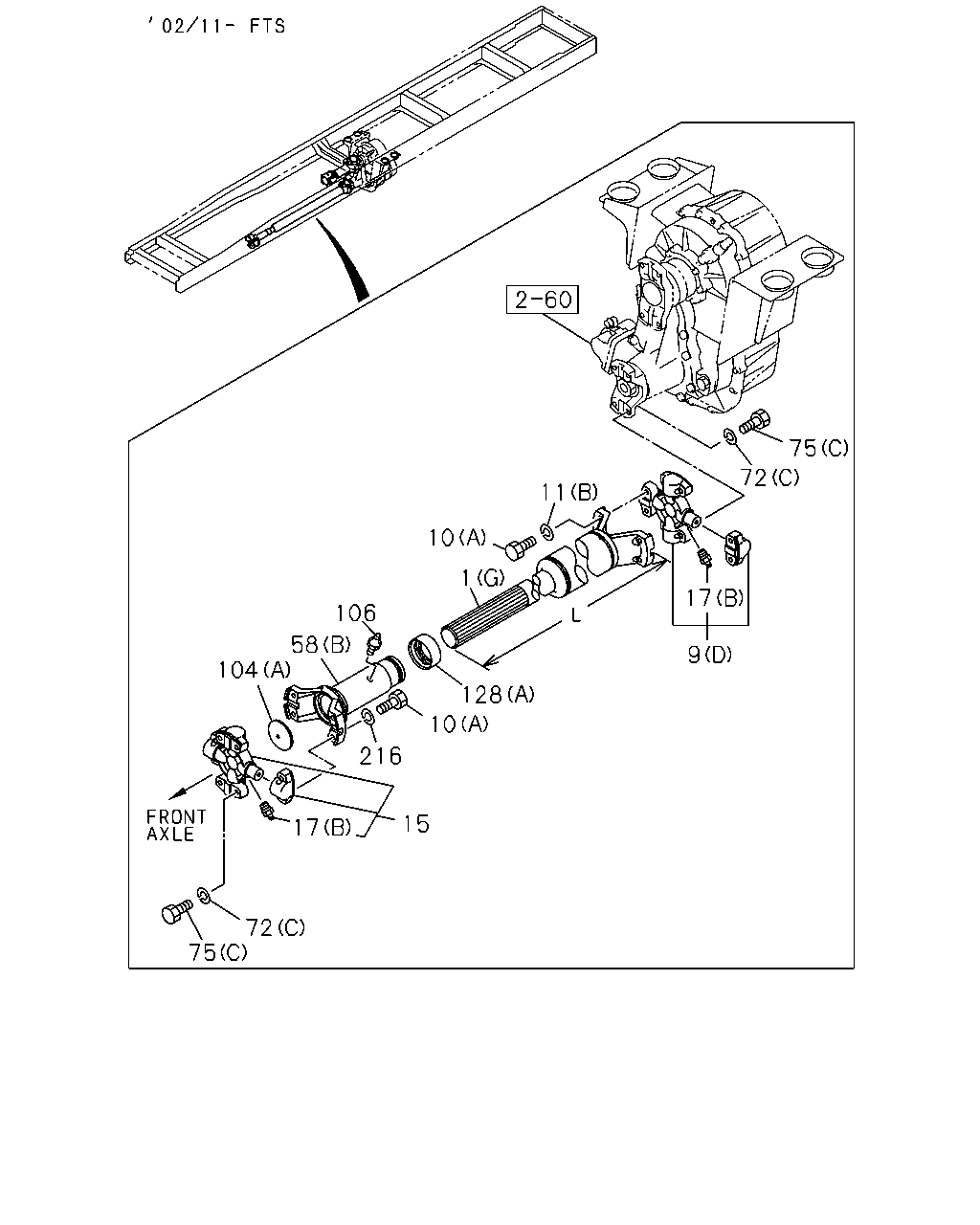

çizim 78139
75 72 11 10 1 17 106 58 9 104 128 10 216 15 17 72 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=621 		1-37125-060-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (B) L=756 		1-37123-512-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) L=312 		1-37152-086-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) 		8-98014-036-0 01 1 0507- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (C) L=1392 		1-37123-578-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (B) L=1041 		1-37124-183-1 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (E) L=521 		1-37124-890-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (G) L=1432 		1-37124-317-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (D) L=370 		1-37152-549-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) L=369 		1-37151-974-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) 		8-98014-035-0 01 1 0507- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1121 		1-37151-257-1 01 1 0211- ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (E) 		8-98048-925-0 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0211-1111 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (C) 		1-37300-059-1 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (D) 		1-37300-106-1 01 1 0211- ●
10 BOLT; UJT
MLD7Q M/T(X5K) (A) UNF7/16X27 		9-09820-144-0 04 1 0005-0210 ●
10 BOLT; UJT
FTS ALL(FT****) (A) UNF7/16X27 		9-09820-144-0 08 1 0211- ●
10 BOLT; UJT
FTS ALL(FT****) (B) 		9-91061-275-0 04 1 0211- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
FTS ALL(FT****) (A) ID=12.2 		9-09150-612-0 04 1 0211-0603 ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
FTS ALL(FT****) (A) ID=12.2 		0-91510-612-0 04 1 0604- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
FTS ALL(FT****) (B) ID=11.4 		9-09850-072-0 08 1 0211- ●
15 UNIVERSAL CENTER
MLD7Q M/T(X5K) 		1-37300-106-0 01 1 0005-0210 ●
15 UNIVERSAL CENTER
FTS ALL(FT****) 		1-37300-106-1 01 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (B) 		9-09928-049-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (B) 		9-09928-049-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ●
58 FLANGE; SPLINED
MLD7Q M/T(X5K) (A) 		1-37245-331-0 01 1 0005-0210 ●
58 FLANGE; SPLINED
FTS ALL(FT****) (B) 		1-37245-314-0 01 1 0211- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0211-0603 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ●
72 WASHER; LK,YOKE
MLD7Q M/T(X5K) (C) ID=11.4 		9-09850-072-0 04 1 0005-0210 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (C) ID=11.4 		9-09850-072-0 08 1 0211- ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		9-09150-612-0 04 1 0211-0603 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		0-91510-612-0 04 1 0604- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
MLD7Q M/T(X5K) (C) UNF7/16X27 		9-09820-144-0 04 1 0005-0210 ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (C) UNF7/16X27 		9-09820-144-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (D) 		9-91061-275-0 04 1 0211- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0005-0210 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
MLD7Q M/T(X5K) (A) 		1-09600-064-0 02 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) (A) 		1-09600-064-0 02 1 0211- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD7Q M/T(X5K) PT1/8 STRAIGHT 		9-09031-010-0 03 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FTS ALL(FT****) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
(A) 		1-37247-002-1 01 1 0301- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 1112- ● ●
128 SEAL; SLEEVE
FTS ALL(FT****) (C) 		1-37247-015-0 01 1 0211-1111 ●
216 WASHER; LK,UJT
MLD7Q M/T(X5K) ID=11.4 		9-09850-072-0 04 1 0005-0210 ●
216 WASHER; LK,UJT
FTS ALL(FT****) ID=11.4 		9-09850-072-0 04 1 0211- ●

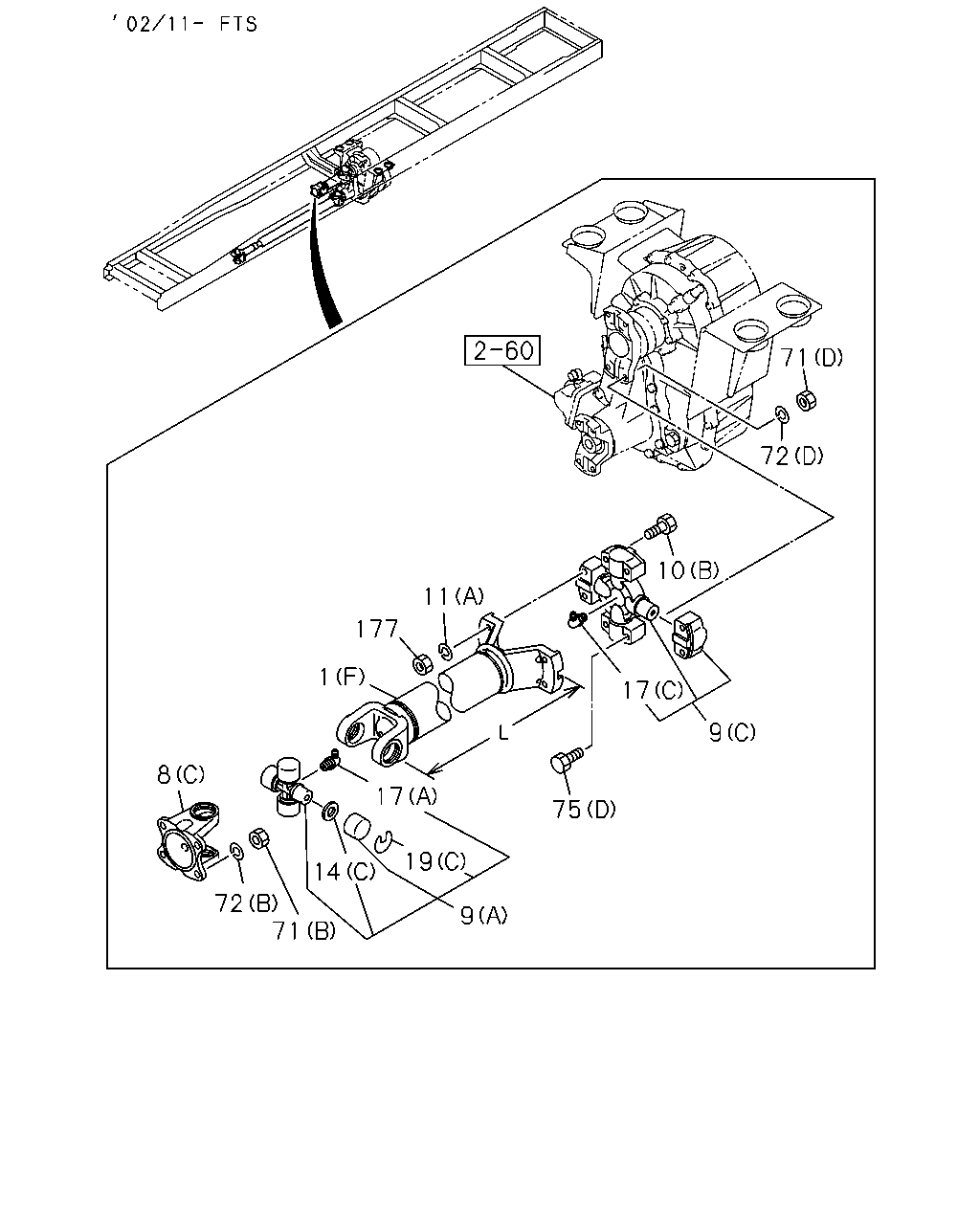

çizim 78140
71 72 10 11 177 1 17 9 8 17 75 19 14 72 71 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=621 		1-37125-060-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (B) L=756 		1-37123-512-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) L=312 		1-37152-086-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) 		8-98014-036-0 01 1 0507- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (C) L=1392 		1-37123-578-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (B) L=1041 		1-37124-183-1 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (E) L=521 		1-37124-890-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (G) L=1432 		1-37124-317-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (D) L=370 		1-37152-549-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) L=369 		1-37151-974-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) 		8-98014-035-0 01 1 0507- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1121 		1-37151-257-1 01 1 0211- ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		1-37211-054-1 01 1 0211-1111 ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (E) 		8-98048-925-0 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0211-1111 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (C) 		1-37300-059-1 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (D) 		1-37300-106-1 01 1 0211- ●
10 BOLT; UJT
MLD7Q M/T(X5K) (A) UNF7/16X27 		9-09820-144-0 04 1 0005-0210 ●
10 BOLT; UJT
FTS ALL(FT****) (A) UNF7/16X27 		9-09820-144-0 08 1 0211- ●
10 BOLT; UJT
FTS ALL(FT****) (B) 		9-91061-275-0 04 1 0211- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
FTS ALL(FT****) (A) ID=12.2 		9-09150-612-0 04 1 0211-0603 ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
FTS ALL(FT****) (A) ID=12.2 		0-91510-612-0 04 1 0604- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
FTS ALL(FT****) (B) ID=11.4 		9-09850-072-0 08 1 0211- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (D) 		8-98020-800-0 08 1 1112- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0211-1111 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (C) 		1-37319-012-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (B) 		9-09928-049-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (B) 		9-09928-049-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 0005-0210 ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0211-0512 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ●
71 NUT; YOKE
FTS ALL(FT****) (C) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		9-99110-512-0 04 1 0211-0512 ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		0-91110-512-0 04 1 0601- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0211-0603 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ●
72 WASHER; LK,YOKE
MLD7Q M/T(X5K) (C) ID=11.4 		9-09850-072-0 04 1 0005-0210 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (C) ID=11.4 		9-09850-072-0 08 1 0211- ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		9-09150-612-0 04 1 0211-0603 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		0-91510-612-0 04 1 0604- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
MLD7Q M/T(X5K) (C) UNF7/16X27 		9-09820-144-0 04 1 0005-0210 ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (C) UNF7/16X27 		9-09820-144-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (D) 		9-91061-275-0 04 1 0211- ●
177 NUT
FTS ALL(FT****) M12 		9-99110-512-0 04 1 0211-0512 ●
177 NUT
FTS ALL(FT****) M12 		0-91110-512-0 04 1 0601- ●

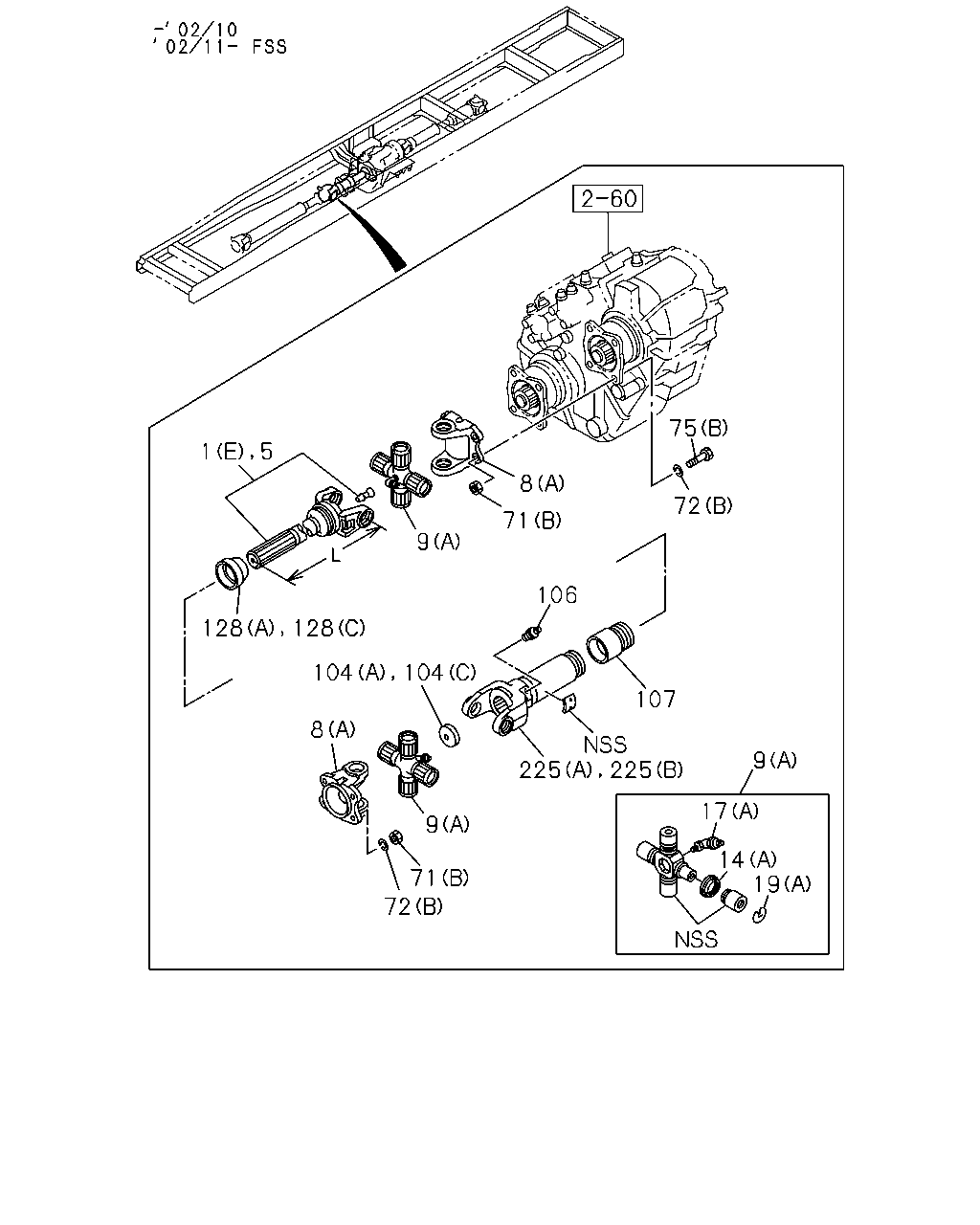

çizim 78141
75 8 72 71 9 106 128 128 104 104 107 8 9 225 17 9 14 19 71 72 225 1 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=621 		1-37125-060-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (B) L=756 		1-37123-512-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) L=312 		1-37152-086-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) 		8-98014-036-0 01 1 0507- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (C) L=1392 		1-37123-578-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (B) L=1041 		1-37124-183-1 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (E) L=521 		1-37124-890-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (G) L=1432 		1-37124-317-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (D) L=370 		1-37152-549-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) L=369 		1-37151-974-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) 		8-98014-035-0 01 1 0507- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1121 		1-37151-257-1 01 1 0211- ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0005-0210 ●
5 YOKE; STUB,PROP SHAFT
ENGINE REAR PTO(SV1) L=237 		1-37171-087-1 01 1 0005-0210 ●
5 YOKE; STUB,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) L=237 		1-37171-087-1 01 1 0005-0210 ●
5 YOKE; STUB,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) L=237 		1-37171-087-1 01 1 0005-0210 ●
5 YOKE; STUB,PROP SHAFT
ENGINE REAR PTO(SV1) L=237 		1-37171-087-1 01 1 0211- ●
5 YOKE; STUB,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) L=237 		1-37171-087-1 01 1 0211- ●
5 YOKE; STUB,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) L=302 		1-37171-092-1 01 1 0005-0210 ●
5 YOKE; STUB,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) L=302 		1-37171-092-1 01 1 0005-0210 ●
5 YOKE; STUB,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) L=302 		1-37171-092-1 01 1 0005-0210 ●
5 YOKE; STUB,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) L=302 		1-37171-092-1 01 1 0211-0212 ●
5 YOKE; STUB,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) L=302 		1-37171-092-1 01 1 0211-0212 ●
5 YOKE; STUB,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) L=257 		1-37171-112-1 01 1 0301- ●
5 YOKE; STUB,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) L=257 		1-37171-112-1 01 1 0301- ●
5 YOKE; STUB,PROP SHAFT
FTS ALL(FT****) MBJ5J M/T(Y1Y) L=387 		1-37171-086-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		1-37211-054-1 01 1 0211-1111 ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (E) 		8-98048-925-0 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0211-1111 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (C) 		1-37300-059-1 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (D) 		1-37300-106-1 01 1 0211- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (D) 		8-98020-800-0 08 1 1112- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0211-1111 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (C) 		1-37319-012-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (B) 		9-09928-049-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (B) 		9-09928-049-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 0005-0210 ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0211-0512 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ●
71 NUT; YOKE
FTS ALL(FT****) (C) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		9-99110-512-0 04 1 0211-0512 ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		0-91110-512-0 04 1 0601- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0211-0603 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ●
72 WASHER; LK,YOKE
MLD7Q M/T(X5K) (C) ID=11.4 		9-09850-072-0 04 1 0005-0210 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (C) ID=11.4 		9-09850-072-0 08 1 0211- ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		9-09150-612-0 04 1 0211-0603 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		0-91510-612-0 04 1 0604- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
MLD7Q M/T(X5K) (C) UNF7/16X27 		9-09820-144-0 04 1 0005-0210 ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (C) UNF7/16X27 		9-09820-144-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (D) 		9-91061-275-0 04 1 0211- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0005-0210 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
MLD7Q M/T(X5K) (A) 		1-09600-064-0 02 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) (A) 		1-09600-064-0 02 1 0211- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD7Q M/T(X5K) PT1/8 STRAIGHT 		9-09031-010-0 03 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 0005-0210 ● ●
107 COVER; RET,SLEEVE
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) 		1-37249-060-0 01 1 0005-0210 ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0211- ● ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FTS ALL(FT****) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
(A) 		1-37247-002-1 01 1 0301- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 1112- ● ●
128 SEAL; SLEEVE
FTS ALL(FT****) (C) 		1-37247-015-0 01 1 0211-1111 ●
225 YOKE; SLEEVE,PROP SHAFT
ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0211-0212 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0211-0212 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=174 		1-37241-115-1 01 1 0301- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=174 		1-37241-115-1 01 1 0301- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0005-0210 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (C) L=228 		1-37241-098-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0210 ● ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0211- ● ●
çizim 79087
19 14 17 128 107 225 104 9 8 106 71 72 75 160 170 9 1 8 171 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=621 		1-37125-060-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (B) L=756 		1-37123-512-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) L=312 		1-37152-086-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) 		8-98014-036-0 01 1 0507- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (C) L=1392 		1-37123-578-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (B) L=1041 		1-37124-183-1 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (E) L=521 		1-37124-890-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (G) L=1432 		1-37124-317-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (D) L=370 		1-37152-549-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) L=369 		1-37151-974-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) 		8-98014-035-0 01 1 0507- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1121 		1-37151-257-1 01 1 0211- ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		1-37211-054-1 01 1 0211-1111 ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (E) 		8-98048-925-0 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0211-1111 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (C) 		1-37300-059-1 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (D) 		1-37300-106-1 01 1 0211- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (D) 		8-98020-800-0 08 1 1112- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0211-1111 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (C) 		1-37319-012-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (B) 		9-09928-049-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (B) 		9-09928-049-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 0005-0210 ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0211-0512 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ●
71 NUT; YOKE
FTS ALL(FT****) (C) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		9-99110-512-0 04 1 0211-0512 ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		0-91110-512-0 04 1 0601- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0211-0603 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ●
72 WASHER; LK,YOKE
MLD7Q M/T(X5K) (C) ID=11.4 		9-09850-072-0 04 1 0005-0210 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (C) ID=11.4 		9-09850-072-0 08 1 0211- ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		9-09150-612-0 04 1 0211-0603 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		0-91510-612-0 04 1 0604- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
MLD7Q M/T(X5K) (C) UNF7/16X27 		9-09820-144-0 04 1 0005-0210 ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (C) UNF7/16X27 		9-09820-144-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (D) 		9-91061-275-0 04 1 0211- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0005-0210 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
MLD7Q M/T(X5K) (A) 		1-09600-064-0 02 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) (A) 		1-09600-064-0 02 1 0211- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD7Q M/T(X5K) PT1/8 STRAIGHT 		9-09031-010-0 03 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 0005-0210 ● ●
107 COVER; RET,SLEEVE
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) 		1-37249-060-0 01 1 0005-0210 ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0211- ● ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FTS ALL(FT****) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
(A) 		1-37247-002-1 01 1 0301- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 1112- ● ●
128 SEAL; SLEEVE
FTS ALL(FT****) (C) 		1-37247-015-0 01 1 0211-1111 ●
160 BOLT; PROP SHAFT TO RR AXLE
M14X37 		1-09000-121-0 04 1 0005- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 		9-09150-614-0 04 1 0005-0603 ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
171 NUT; YOKE,SLEEVE
M14 		9-99110-514-0 04 1 0005-0512 ● ●
171 NUT; YOKE,SLEEVE
M14 		0-91110-514-0 04 1 0601- ● ●
225 YOKE; SLEEVE,PROP SHAFT
ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0211-0212 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0211-0212 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=174 		1-37241-115-1 01 1 0301- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=174 		1-37241-115-1 01 1 0301- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0005-0210 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (C) L=228 		1-37241-098-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0210 ● ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0211- ● ●
çizim 79121
75 8 9 1 72 119 106 9 8 9 128 225 17 104 14 71 72 75 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=621 		1-37125-060-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (B) L=756 		1-37123-512-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) L=312 		1-37152-086-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) 		8-98014-036-0 01 1 0507- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (C) L=1392 		1-37123-578-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (B) L=1041 		1-37124-183-1 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (E) L=521 		1-37124-890-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (G) L=1432 		1-37124-317-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (D) L=370 		1-37152-549-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) L=369 		1-37151-974-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) 		8-98014-035-0 01 1 0507- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1121 		1-37151-257-1 01 1 0211- ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		1-37211-054-1 01 1 0211-1111 ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (E) 		8-98048-925-0 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0211-1111 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (C) 		1-37300-059-1 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (D) 		1-37300-106-1 01 1 0211- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (D) 		8-98020-800-0 08 1 1112- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0211-1111 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (C) 		1-37319-012-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (B) 		9-09928-049-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (B) 		9-09928-049-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 0005-0210 ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0211-0512 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ●
71 NUT; YOKE
FTS ALL(FT****) (C) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		9-99110-512-0 04 1 0211-0512 ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		0-91110-512-0 04 1 0601- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0211-0603 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ●
72 WASHER; LK,YOKE
MLD7Q M/T(X5K) (C) ID=11.4 		9-09850-072-0 04 1 0005-0210 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (C) ID=11.4 		9-09850-072-0 08 1 0211- ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		9-09150-612-0 04 1 0211-0603 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		0-91510-612-0 04 1 0604- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
MLD7Q M/T(X5K) (C) UNF7/16X27 		9-09820-144-0 04 1 0005-0210 ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (C) UNF7/16X27 		9-09820-144-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (D) 		9-91061-275-0 04 1 0211- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0005-0210 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
MLD7Q M/T(X5K) (A) 		1-09600-064-0 02 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) (A) 		1-09600-064-0 02 1 0211- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD7Q M/T(X5K) PT1/8 STRAIGHT 		9-09031-010-0 03 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
119 NUT; PROP SHAFT
MLD7Q M/T(X5K) M12 		9-99110-512-0 04 1 0005-0210 ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FTS ALL(FT****) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
(A) 		1-37247-002-1 01 1 0301- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 1112- ● ●
128 SEAL; SLEEVE
FTS ALL(FT****) (C) 		1-37247-015-0 01 1 0211-1111 ●
225 YOKE; SLEEVE,PROP SHAFT
ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0211-0212 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0211-0212 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=174 		1-37241-115-1 01 1 0301- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=174 		1-37241-115-1 01 1 0301- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0005-0210 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (C) L=228 		1-37241-098-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0210 ● ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0211- ● ●
çizim 103166
75 72 15 17 58 104 128 106 1 216 10 21 22 23 20 24 25 21 123 174 46 173 173 51 173 174 172 319 173 174 174 172 172 45 64 172 318 319 317 318
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=621 		1-37125-060-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (B) L=756 		1-37123-512-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) L=312 		1-37152-086-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) 		8-98014-036-0 01 1 0507- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (C) L=1392 		1-37123-578-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (B) L=1041 		1-37124-183-1 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (E) L=521 		1-37124-890-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (G) L=1432 		1-37124-317-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (D) L=370 		1-37152-549-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) L=369 		1-37151-974-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) 		8-98014-035-0 01 1 0507- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1121 		1-37151-257-1 01 1 0211- ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0005-0210 ●
10 BOLT; UJT
MLD7Q M/T(X5K) (A) UNF7/16X27 		9-09820-144-0 04 1 0005-0210 ●
10 BOLT; UJT
FTS ALL(FT****) (A) UNF7/16X27 		9-09820-144-0 08 1 0211- ●
10 BOLT; UJT
FTS ALL(FT****) (B) 		9-91061-275-0 04 1 0211- ●
15 UNIVERSAL CENTER
MLD7Q M/T(X5K) 		1-37300-106-0 01 1 0005-0210 ●
15 UNIVERSAL CENTER
FTS ALL(FT****) 		1-37300-106-1 01 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (B) 		9-09928-049-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (B) 		9-09928-049-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7Q M/T(X5K) 		1-37510-105-0 01 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
MLD7Q M/T(X5K) ID=54 		1-09625-161-0 02 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7Q M/T(X5K) 		1-37516-059-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT
MLD7Q M/T(X5K) 		9-00090-071-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST
MLD7Q M/T(X5K) 		1-37529-068-0 01 1 0005-0210 ●
25 NIPPLE; GREASE,CENTER BRG
MLD7Q M/T(X5K) MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0210 ●
45 WASHER; PL,RET TO BRKT
MLD7Q M/T(X5K) ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7Q M/T(X5K) 		1-37245-115-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
MLD7Q M/T(X5K) M30 		8-97160-857-0 01 1 0005-0210 ●
58 FLANGE; SPLINED
MLD7Q M/T(X5K) (A) 		1-37245-331-0 01 1 0005-0210 ●
58 FLANGE; SPLINED
FTS ALL(FT****) (B) 		1-37245-314-0 01 1 0211- ●
64 NUT; RET TO BRKT
MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0211-0603 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ●
72 WASHER; LK,YOKE
MLD7Q M/T(X5K) (C) ID=11.4 		9-09850-072-0 04 1 0005-0210 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (C) ID=11.4 		9-09850-072-0 08 1 0211- ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		9-09150-612-0 04 1 0211-0603 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		0-91510-612-0 04 1 0604- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
MLD7Q M/T(X5K) (C) UNF7/16X27 		9-09820-144-0 04 1 0005-0210 ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (C) UNF7/16X27 		9-09820-144-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (D) 		9-91061-275-0 04 1 0211- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0005-0210 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
MLD7Q M/T(X5K) (A) 		1-09600-064-0 02 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) (A) 		1-09600-064-0 02 1 0211- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD7Q M/T(X5K) PT1/8 STRAIGHT 		9-09031-010-0 03 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
123 BOLT; RET
MLD7Q M/T(X5K) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FTS ALL(FT****) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
(A) 		1-37247-002-1 01 1 0301- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 1112- ● ●
128 SEAL; SLEEVE
FTS ALL(FT****) (C) 		1-37247-015-0 01 1 0211-1111 ●
172 BRACKET; CENTER BRG
FTS ALL(FT****) MLD7Q M/T(X5K) (B) 		1-37515-182-0 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-37515-172-1 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
FTS ALL(FT****) MLD7Q M/T(X5K) (B) 		1-37515-181-1 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
FTS STD CAB(FT**M*) MLD7Q M/T(X5K) (A) 		1-37515-179-0 01 1 0005-0007 ●
172 BRACKET; CENTER BRG
FTS STD CAB(FT**M*) MLD7Q M/T(X5K) (A) 		1-37515-186-0 01 1 0008-0210 ●
172 BRACKET; CENTER BRG
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) (A) 		1-37515-173-1 01 1 0005-0007 ●
172 BRACKET; CENTER BRG
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) (A) 		1-37515-185-0 01 1 0008-0210 ●
173 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) M10X30 FLANGE 		0-28681-030-0 10 1 0005-0006 ●
173 BOLT; BRKT
MLD7Q M/T(X5K) M10X30 FLANGE 		0-28681-030-0 04 1 0007-0210 ●
173 BOLT; BRKT
FTS STD CAB(FT**M*) MLD7Q M/T(X5K) M10X30 FLANGE 		0-28681-030-0 04 1 0005-0006 ●
173 BOLT; BRKT
MLD7Q M/T(X5K) M10X30 FLANGE 		0-28681-030-0 14 1 0007-0210 ●
173 BOLT; BRKT
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) M10X30 FLANGE 		0-28681-030-0 08 1 0005-0006 ●
174 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 04 1 9005-0210 ●
174 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 07 1 0005-0210 ●
216 WASHER; LK,UJT
MLD7Q M/T(X5K) ID=11.4 		9-09850-072-0 04 1 0005-0210 ●
216 WASHER; LK,UJT
FTS ALL(FT****) ID=11.4 		9-09850-072-0 04 1 0211- ●
317 MEMBER; CENTER BRG
FTS ALL(FT****) MLD7Q M/T(X5K) 		1-37529-117-1 01 1 0005-0005 ●
317 MEMBER; CENTER BRG
MLD7Q M/T(X5K) 		1-37529-118-0 01 1 0006-0210 ●
318 BOLT; MEMBER
FTS ALL(FT****) MLD7Q M/T(X5K) M10X30 FLANGE 		0-28681-030-0 08 1 0005-0210 ●
319 NUT; MEMBER
FTS ALL(FT****) MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 08 1 0005-0210 ●
çizim 288423
19 14 17 9 128 107 225 9 71 72 75 8 104 106 160 170 171 8 1 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1527 		1-37124-073-1 01 1 0211- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=621 		1-37125-060-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (B) L=756 		1-37123-512-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) L=312 		1-37152-086-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) ENGINE REAR PTO(SV1) (F) 		8-98014-036-0 01 1 0507- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (C) L=1392 		1-37123-578-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (B) L=1041 		1-37124-183-1 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (E) L=521 		1-37124-890-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) (G) L=1432 		1-37124-317-0 01 1 0211- ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (D) L=370 		1-37152-549-0 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) L=369 		1-37151-974-1 01 1 0211-0506 ●
1 SHAFT; PROP
FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (F) 		8-98014-035-0 01 1 0507- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 0005-0210 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1121 		1-37151-257-1 01 1 0211- ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0005-0210 ●
1 SHAFT; PROP
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) D=80 		1-37211-037-4 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) 		1-37211-056-3 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		1-37211-054-1 01 1 0211-1111 ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (D) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FTS ALL(FT****) (C) 		1-37211-056-3 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (E) 		8-98048-925-0 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0211-1111 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		1-37300-103-0 AR 1 0211-1106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (C) 		1-37300-059-1 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FTS ALL(FT****) (D) 		1-37300-106-1 01 1 0211- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (D) 		8-98020-800-0 08 1 1112- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		1-37319-011-0 AR 1 0211-1106 ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (B) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 AR 1 0211-1111 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FSS DOUBLE CAB(FS**W*) (A) 		1-37319-012-0 08 1 1112- ●
14 COVER; DUST,SPIDER
FTS ALL(FT****) (C) 		1-37319-012-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) (B) 		9-09928-049-0 AR 1 0005-0210 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (B) 		9-09928-049-0 AR 1 0211- ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FTS ALL(FT****) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=1.95 		1-09587-014-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.00 		1-09587-015-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FSS DOUBLE CAB(FS**W*) (B) T=2.05 		1-09587-016-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FTS ALL(FT****) (C) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		9-99110-514-0 08 1 0211-0512 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M12 		9-99110-512-0 04 1 0005-0210 ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		9-99110-512-0 08 1 0211-0512 ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
FSS DOUBLE CAB(FS**W*) (A) M12 		0-91110-512-0 08 1 0601- ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 0005-0210 ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0211-0512 ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ●
71 NUT; YOKE
FTS ALL(FT****) (C) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		9-99110-512-0 04 1 0211-0512 ●
71 NUT; YOKE
FTS ALL(FT****) (D) M12 		0-91110-512-0 04 1 0601- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		9-09150-614-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
FSS DOUBLE CAB(FS**W*) (A) ID=12.2 		0-91510-612-0 08 1 0604- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 0005-0210 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0211-0603 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ●
72 WASHER; LK,YOKE
MLD7Q M/T(X5K) (C) ID=11.4 		9-09850-072-0 04 1 0005-0210 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (C) ID=11.4 		9-09850-072-0 08 1 0211- ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		9-09150-612-0 04 1 0211-0603 ●
72 WASHER; LK,YOKE
FTS ALL(FT****) (D) ID=12.2 		0-91510-612-0 04 1 0604- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (A) M12X32 		1-09000-076-1 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0005-0210 ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FSS DOUBLE CAB(FS**W*) (B) M14X37 		1-09000-121-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
MLD7Q M/T(X5K) (C) UNF7/16X27 		9-09820-144-0 04 1 0005-0210 ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (C) UNF7/16X27 		9-09820-144-0 08 1 0211- ●
75 BOLT; PROP SHAFT TO TRANS
FTS ALL(FT****) (D) 		9-91061-275-0 04 1 0211- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (A) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) 		1-09600-064-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (A) 		1-09600-064-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (C) 		1-09600-033-0 01 1 0211-0212 ●
104 PLUG; SLEEVE YOKE
(C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (C) 		1-09600-033-0 01 1 0301- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0005-0210 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
FSS DOUBLE CAB(FS**W*) (B) 		1-09600-014-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
MLD7Q M/T(X5K) (A) 		1-09600-064-0 02 1 0005-0210 ●
104 PLUG; SLEEVE YOKE
FTS ALL(FT****) (A) 		1-09600-064-0 02 1 0211- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MLD7Q M/T(X5K) PT1/8 STRAIGHT 		9-09031-010-0 03 1 0005-0210 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS ALL(FT****) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 0005-0210 ● ●
107 COVER; RET,SLEEVE
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) 		1-37249-060-0 01 1 0005-0210 ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0211- ● ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-37247-002-1 01 1 0005-0210 ●
128 SEAL; SLEEVE
ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
FTS ALL(FT****) (A) 		1-37247-002-1 01 1 0211-0212 ●
128 SEAL; SLEEVE
(A) 		1-37247-002-1 01 1 0301- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (B) 		1-37247-001-1 01 1 0211- ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0005-0210 ● ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (C) 		1-37247-024-0 01 1 0211-0212 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
FSS DOUBLE CAB(FS**W*) (C) 		1-37247-024-0 01 1 0301-1111 ●
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 1112- ● ●
128 SEAL; SLEEVE
FTS ALL(FT****) (C) 		1-37247-015-0 01 1 0211-1111 ●
160 BOLT; PROP SHAFT TO RR AXLE
M14X37 		1-09000-121-0 04 1 0005- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 		9-09150-614-0 04 1 0005-0603 ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
171 NUT; YOKE,SLEEVE
M14 		9-99110-514-0 04 1 0005-0512 ● ●
171 NUT; YOKE,SLEEVE
M14 		0-91110-514-0 04 1 0601- ● ●
225 YOKE; SLEEVE,PROP SHAFT
ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) ENGINE REAR PTO(SV1) (A) L=154 		1-37241-081-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD6D M/T(X5Q) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0211-0212 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=229 		1-37241-086-2 01 1 0211-0212 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. ENGINE REAR PTO(SV1) (A) L=174 		1-37241-115-1 01 1 0301- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) EXC. ENGINE REAR PTO(SV1) (A) L=174 		1-37241-115-1 01 1 0301- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0005-0210 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (C) L=228 		1-37241-098-2 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0210 ● ●
225 YOKE; SLEEVE,PROP SHAFT
FTS ALL(FT****) MLD7Q M/T(X5K),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
