◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51396 - NPR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#81604) — 117 parça

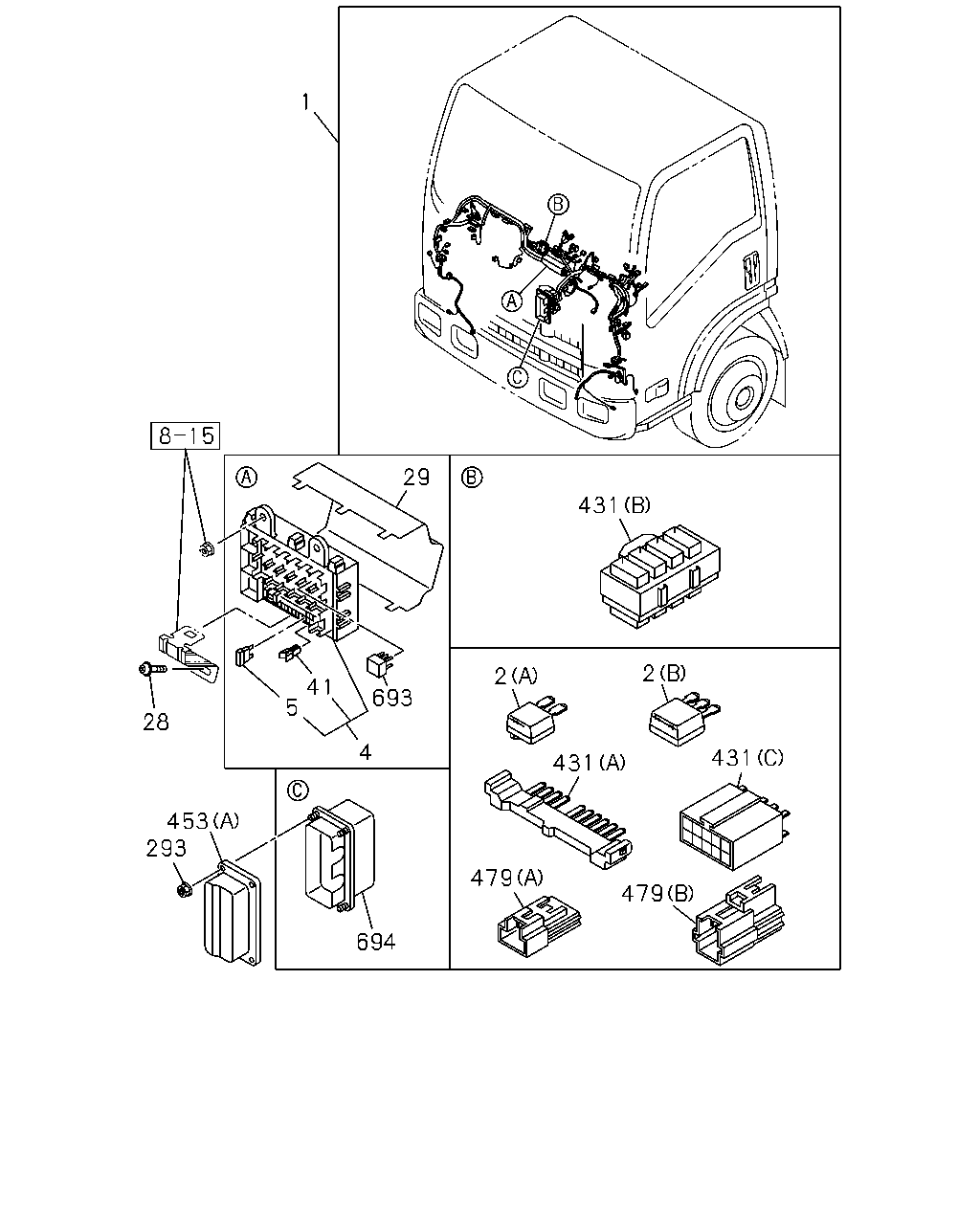

çizim 136016
1 29 431 2 2 41 5 693 28 4 431 431 453 293 479 479 694
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB 8-98106-625-6 01 1 0810-1007
1 02.480 HARNESS; CAB
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98106-625-6 01 1 1008-
1 02.480 HARNESS; CAB
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98106-626-6 01 1 1008-
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0810-
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0810-
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0810-
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0810-
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0810-
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0810-
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0810-1101
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 0810-
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 0810-
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0810-
431 02.530 CONNECTOR; JOINT
(A) 10P BLUE 		1-82699-598-0 01 1 0810-1003
431 02.530 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 0810-
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 02 1 0810-1007
453 02.483 PROTECTOR; HARNESS
DUMP CHASSIS(V4D) (C) 		8-94417-716-0 01 1 1008-1101
453 02.483 PROTECTOR; HARNESS
DUMP CHASSIS(V4D) (C) 		8-94417-716-0 02 1 1102-
453 02.483 PROTECTOR; HARNESS
EXC. DUMP CHASSIS(V4D) (C) 		8-94417-716-0 02 1 1008-1101
453 02.483 PROTECTOR; HARNESS
EXC. DUMP CHASSIS(V4D) (C) 		8-94417-716-0 03 1 1102-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 0810-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 0810-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0810-
694 02.483 BOX ASM; CONNECTOR 8-98057-640-0 01 1 0810-

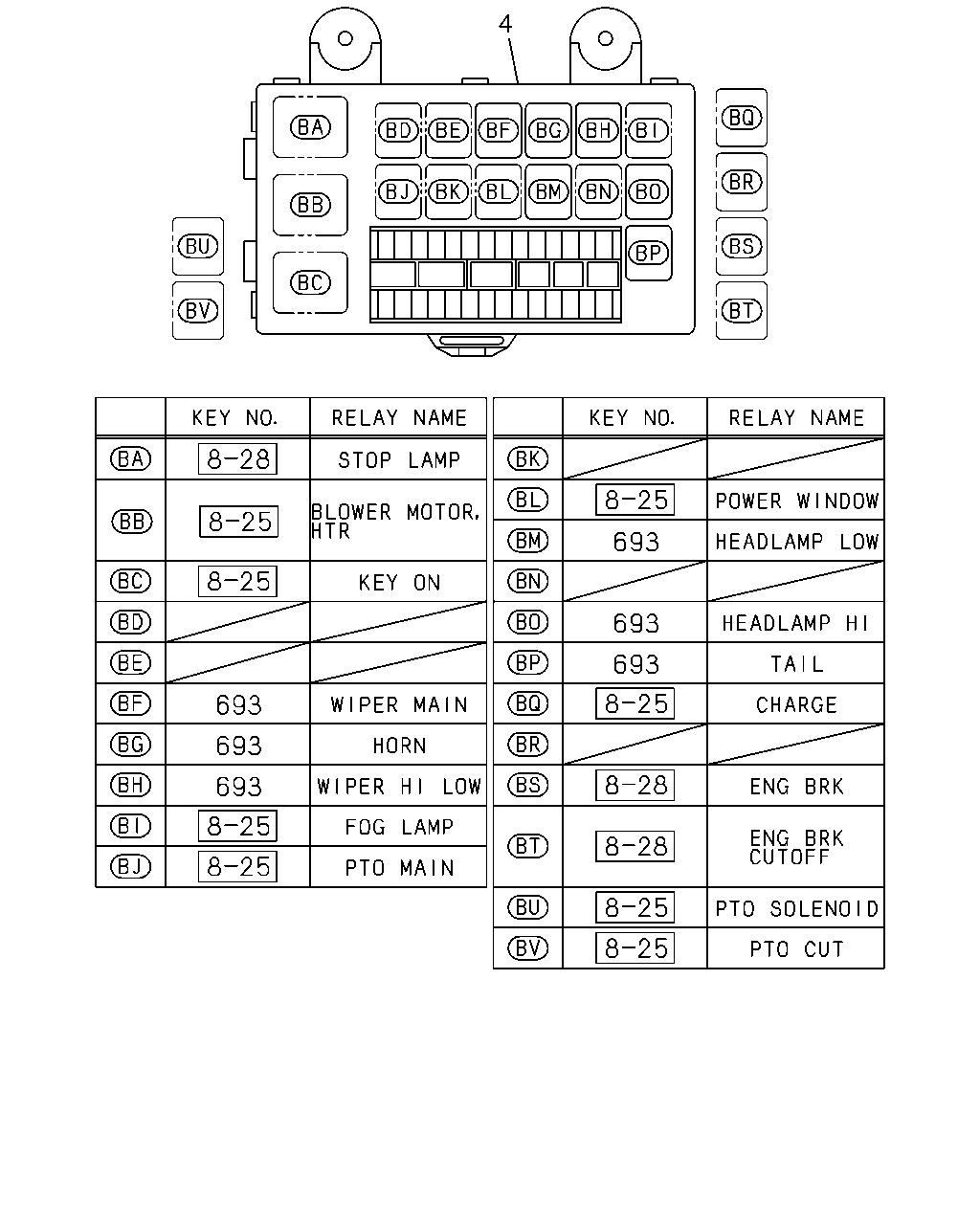

çizim 136274
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0810-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0810-

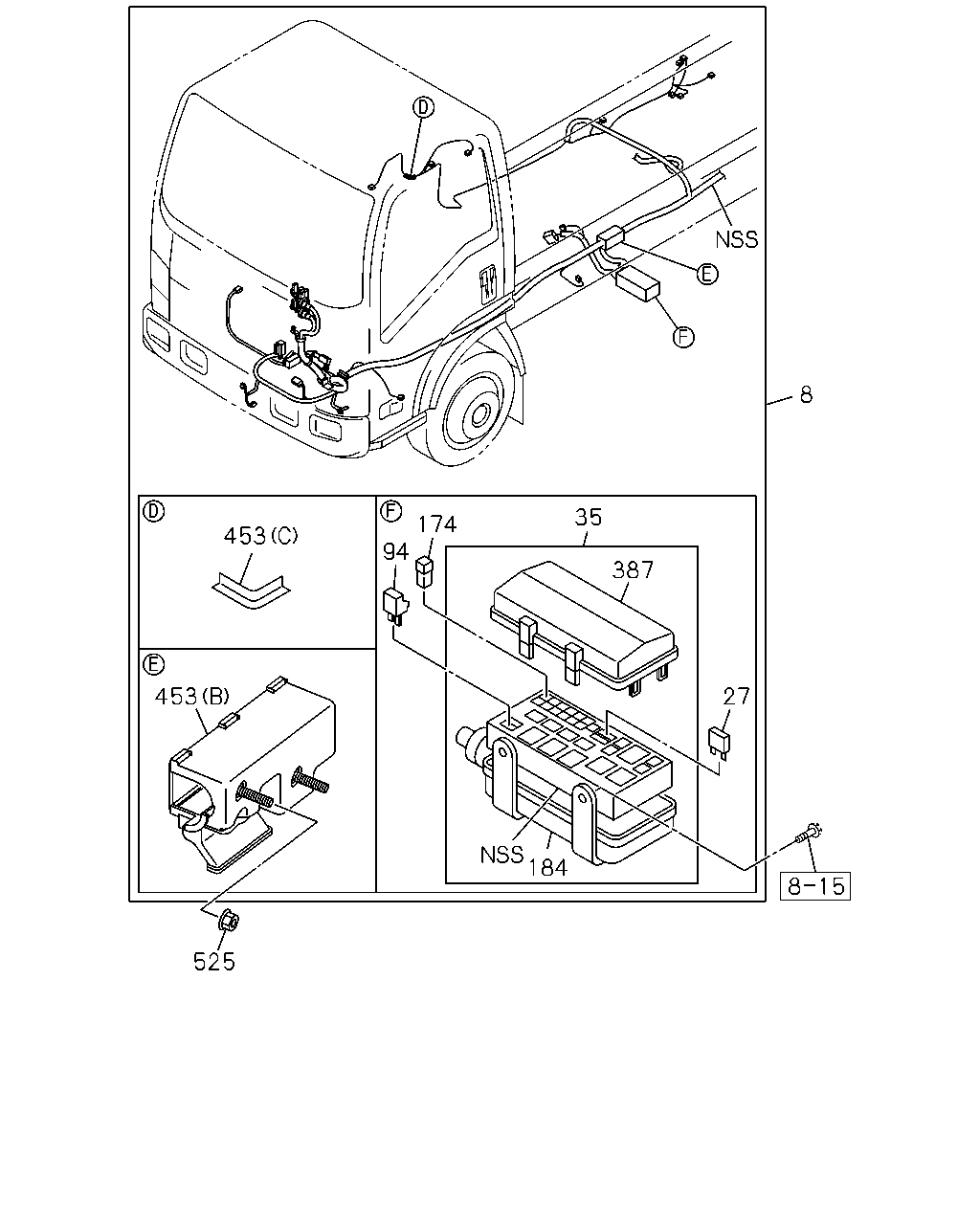

çizim 136507
8 35 174 94 453 387 453 27 184 525
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-98245-268-0 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-98294-402-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-98245-269-0 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-98294-403-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT 8-98126-190-3 01 1 0810-1007
8 02.480 HARNESS; FRAME,FRT
EXHAUST BRAKE<NF8> 		8-98156-021-2 01 1 1008-1008
8 02.480 HARNESS; FRAME,FRT
EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 		8-98156-021-2 01 1 1008-1101
8 02.480 HARNESS; FRAME,FRT
EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 		8-98180-745-1 01 1 1102-1306
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 		8-98180-745-1 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED(RS6) EXC. DUMP CHASSIS(V4D) 		8-98180-745-1 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 		8-98294-397-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED(RS6) EXC. DUMP CHASSIS(V4D) 		8-98294-397-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
EXC. EXHAUST BRAKE<NF8> 		8-98156-022-2 01 1 1008-1008
8 02.480 HARNESS; FRAME,FRT
EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98156-022-2 01 1 1008-1101
8 02.480 HARNESS; FRAME,FRT
EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98180-746-1 01 1 1102-1306
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98180-746-1 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98180-746-1 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98294-398-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98294-398-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98124-657-6 01 1 1008-1101
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98180-750-1 01 1 1102-1409
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98294-407-0 01 1 1410-
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 0810-
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0810-
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 0810-
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 0810-1101
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 0810-
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 0810-
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 0810-
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 0810-
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 02 1 0810-1007
453 02.483 PROTECTOR; HARNESS
DUMP CHASSIS(V4D) (C) 		8-94417-716-0 01 1 1008-1101
453 02.483 PROTECTOR; HARNESS
DUMP CHASSIS(V4D) (C) 		8-94417-716-0 02 1 1102-
453 02.483 PROTECTOR; HARNESS
EXC. DUMP CHASSIS(V4D) (C) 		8-94417-716-0 02 1 1008-1101
453 02.483 PROTECTOR; HARNESS
EXC. DUMP CHASSIS(V4D) (C) 		8-94417-716-0 03 1 1102-
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0810-

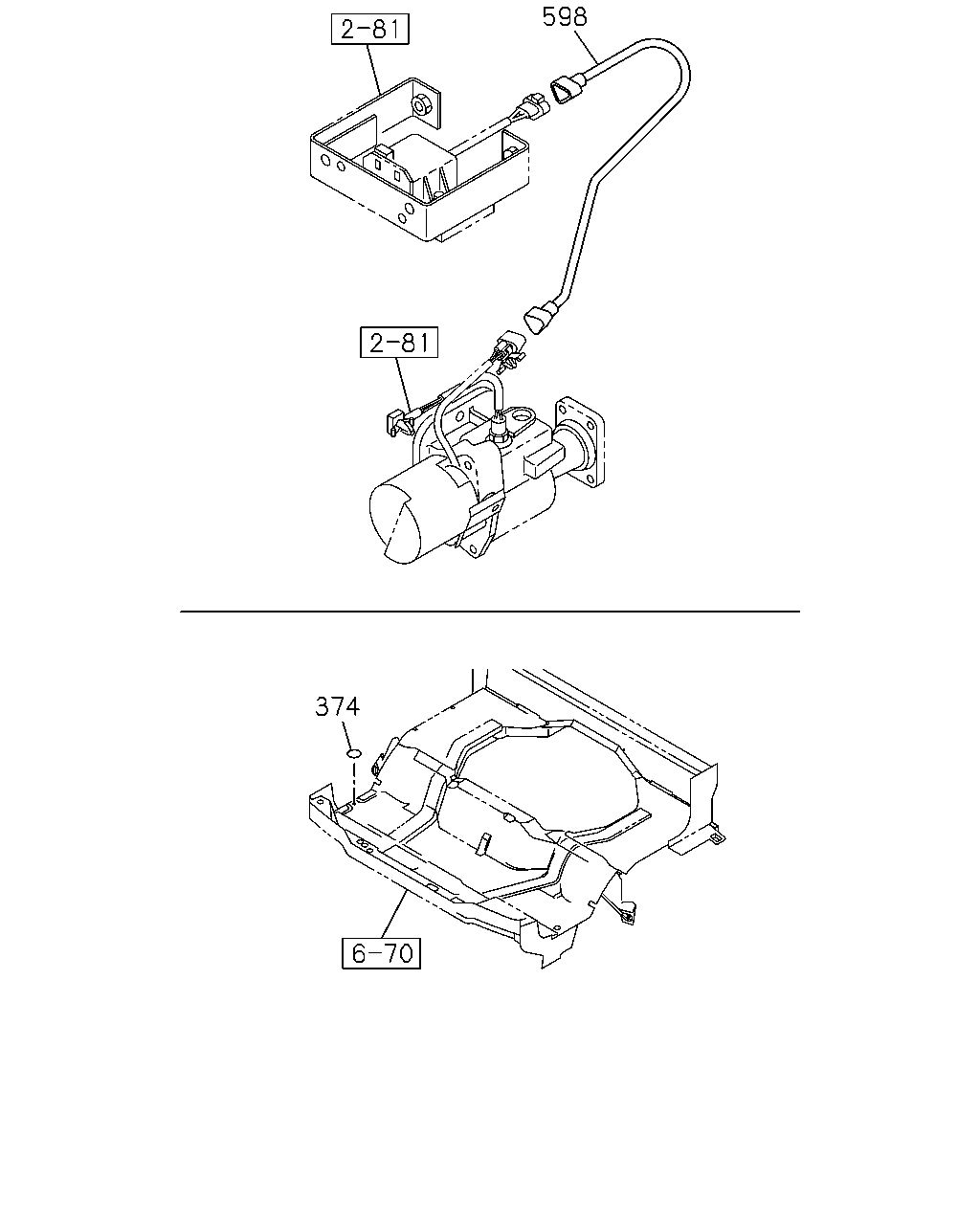

çizim 136819
598 374
BalonParca AdiParca NoAdetTipApplied Date
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 0810-
598 02.480 HARNESS; EXT,PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98123-454-1 01 1 1008-1506
598 02.480 HARNESS; EXT,PTO
WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98123-454-1 01 1 1507-

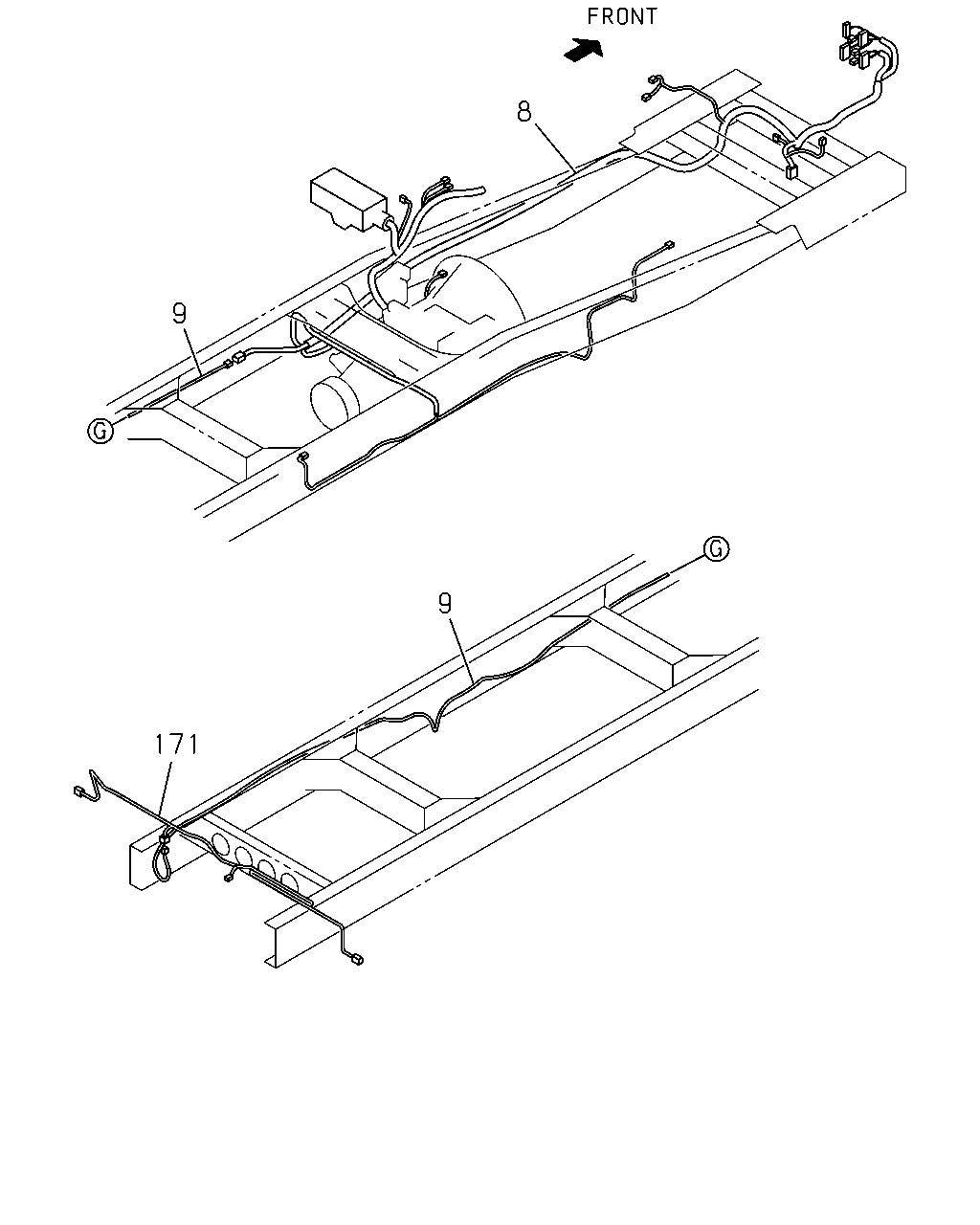

çizim 136992
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-98245-268-0 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-98294-402-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-98245-269-0 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 		8-98294-403-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT 8-98126-190-3 01 1 0810-1007
8 02.480 HARNESS; FRAME,FRT
EXHAUST BRAKE<NF8> 		8-98156-021-2 01 1 1008-1008
8 02.480 HARNESS; FRAME,FRT
EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 		8-98156-021-2 01 1 1008-1101
8 02.480 HARNESS; FRAME,FRT
EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 		8-98180-745-1 01 1 1102-1306
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 		8-98180-745-1 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED(RS6) EXC. DUMP CHASSIS(V4D) 		8-98180-745-1 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 		8-98294-397-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED(RS6) EXC. DUMP CHASSIS(V4D) 		8-98294-397-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
EXC. EXHAUST BRAKE<NF8> 		8-98156-022-2 01 1 1008-1008
8 02.480 HARNESS; FRAME,FRT
EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98156-022-2 01 1 1008-1101
8 02.480 HARNESS; FRAME,FRT
EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98180-746-1 01 1 1102-1306
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98180-746-1 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98180-746-1 01 1 1307-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98294-398-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) 		8-98294-398-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98124-657-6 01 1 1008-1101
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98180-750-1 01 1 1102-1409
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98294-407-0 01 1 1410-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98117-248-0 01 1 0810-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 		8-98117-249-0 01 1 0810-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 		8-98117-247-0 01 1 1008-
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98008-095-2 01 1 0810-0911
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 0912-

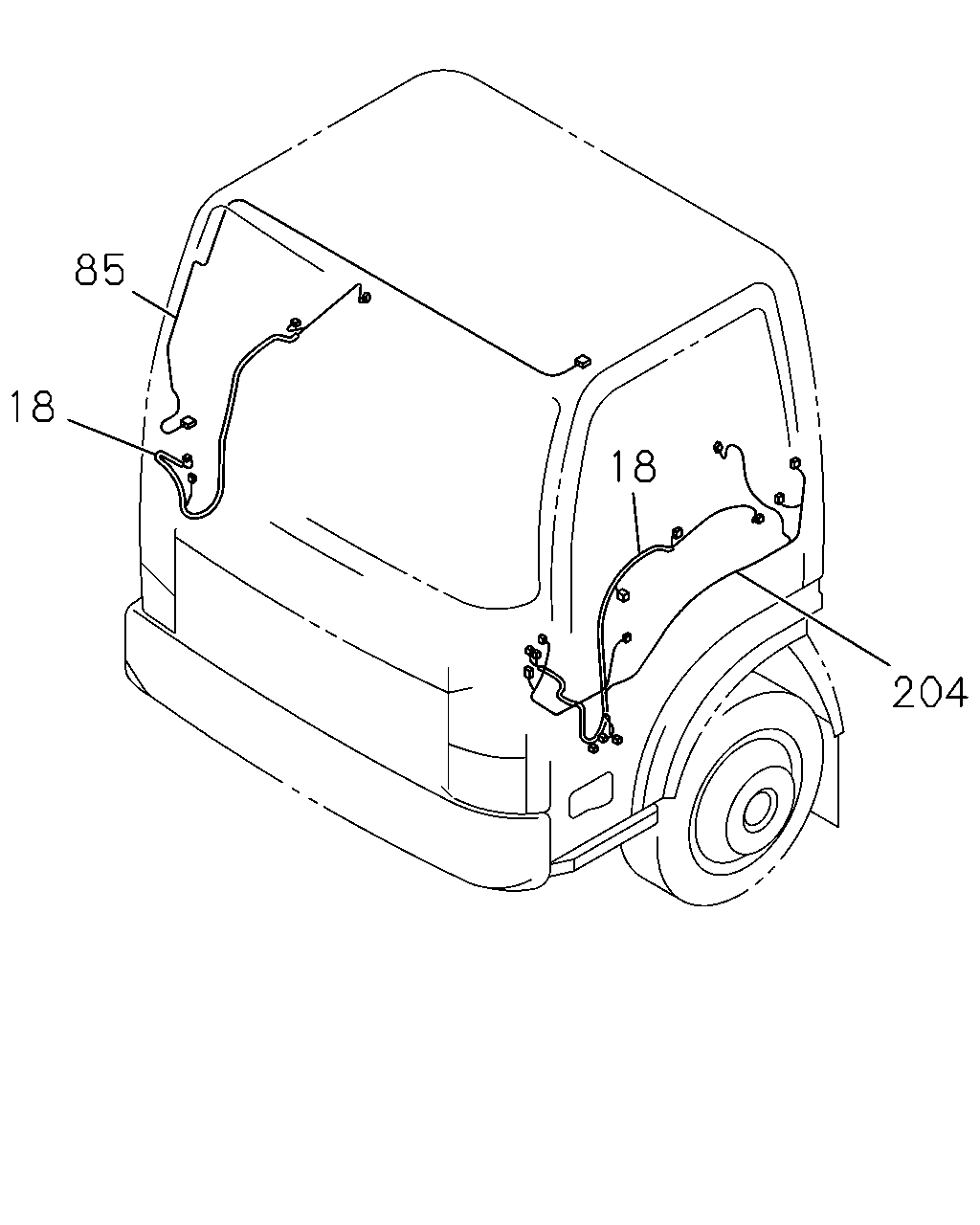

çizim 183721
85 18 18 204
BalonParca AdiParca NoAdetTipApplied Date
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98077-592-3 01 1 0810-1007
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98077-592-3 01 1 1008-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98077-600-3 01 1 0810-1007
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98077-600-3 01 1 1008-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-591-2 01 1 0810-1007
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-591-2 01 1 1008-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-599-2 01 1 0810-1007
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-599-2 01 1 1008-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-080-3 01 1 1008-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-088-3 01 1 1008-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> 		8-98071-079-2 01 1 1008-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> 		8-98071-087-2 01 1 1008-
85 06.495 HARNESS; ROOM LAMP 8-98050-518-3 01 1 0810-
204 02.559 HARNESS; CABLE,FLOOR 8-98070-799-5 01 1 0810-

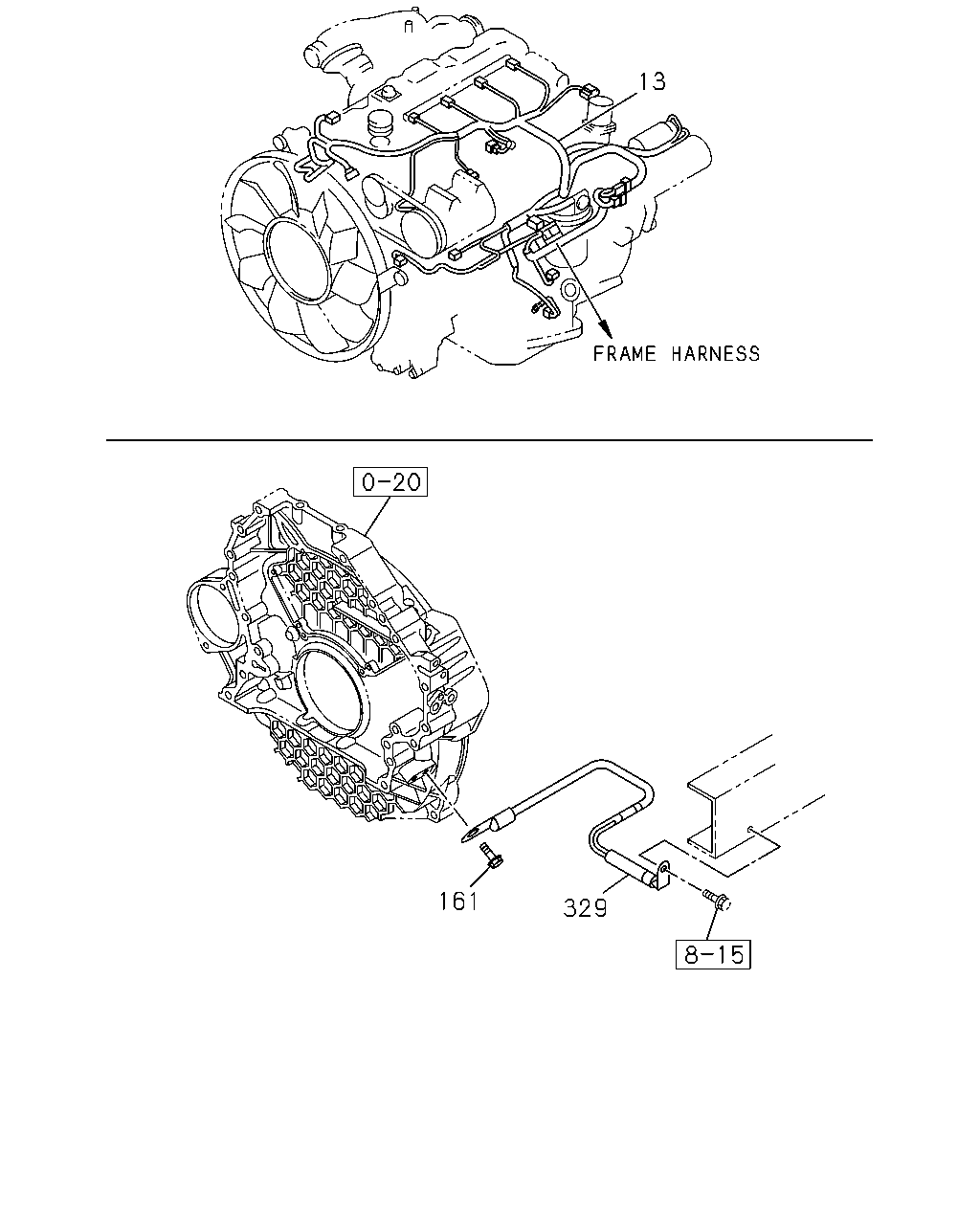

çizim 183724
13 161 329
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG 8-97356-988-1 01 1 0810-
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0810-
329 02.480 CABLE; ENG TO FRAME 8-98123-064-0 01 1 0810-
