◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51396 - NPR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#81600) — 19 parça

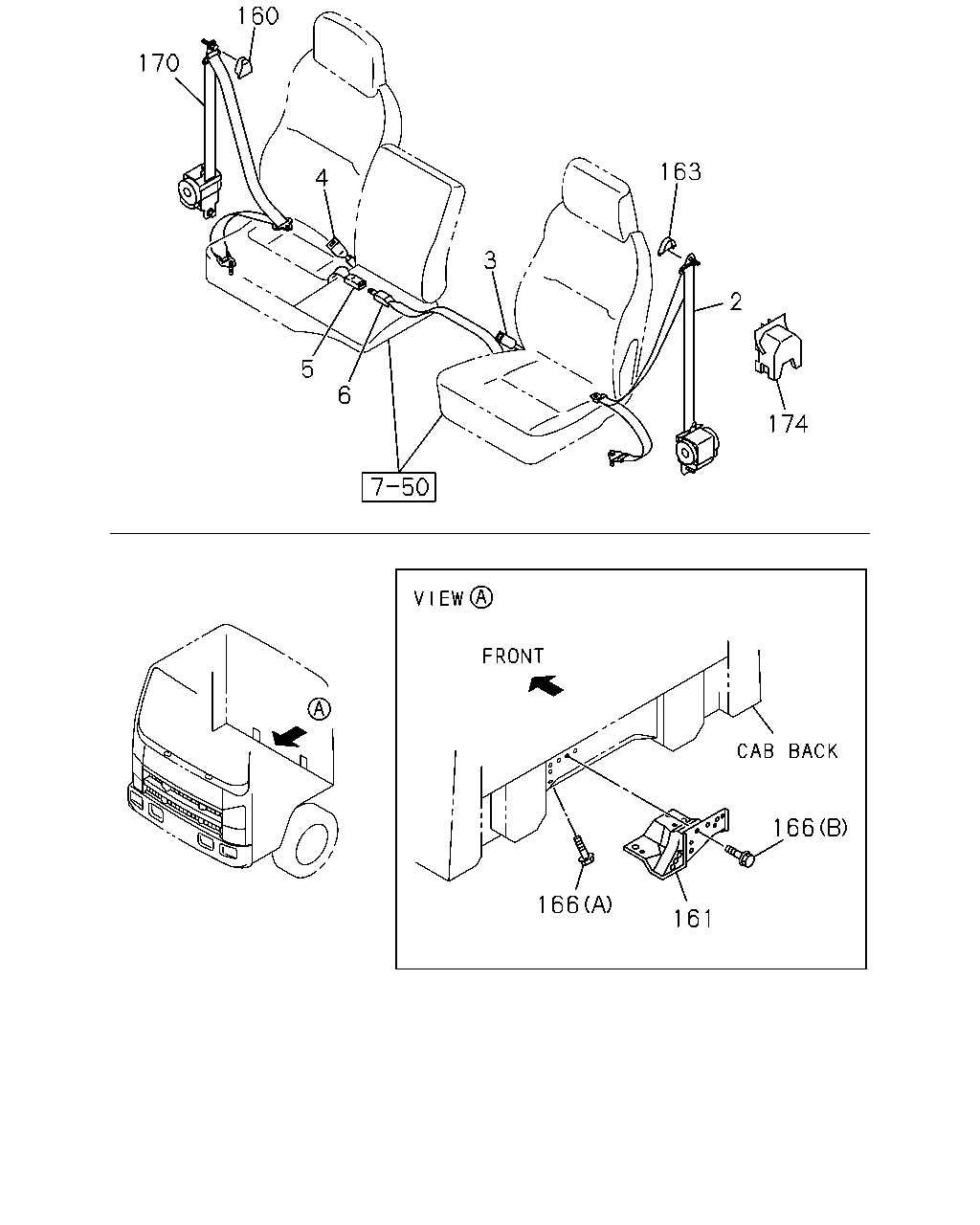

çizim 135653
160 170 163 4 3 2 5 6 174 166 166 161
BalonParca AdiParca NoAdetTipApplied Date
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 0810-1406
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407-
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 0810-
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 0810-
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 0810-
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 0810-
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0810-
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 16.545 		8-98017-005-2 01 1 0810-
163 16.714 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0810-
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 09 1 0810-
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0810-
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 0810-1406
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407-
174 16.714 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 0810-

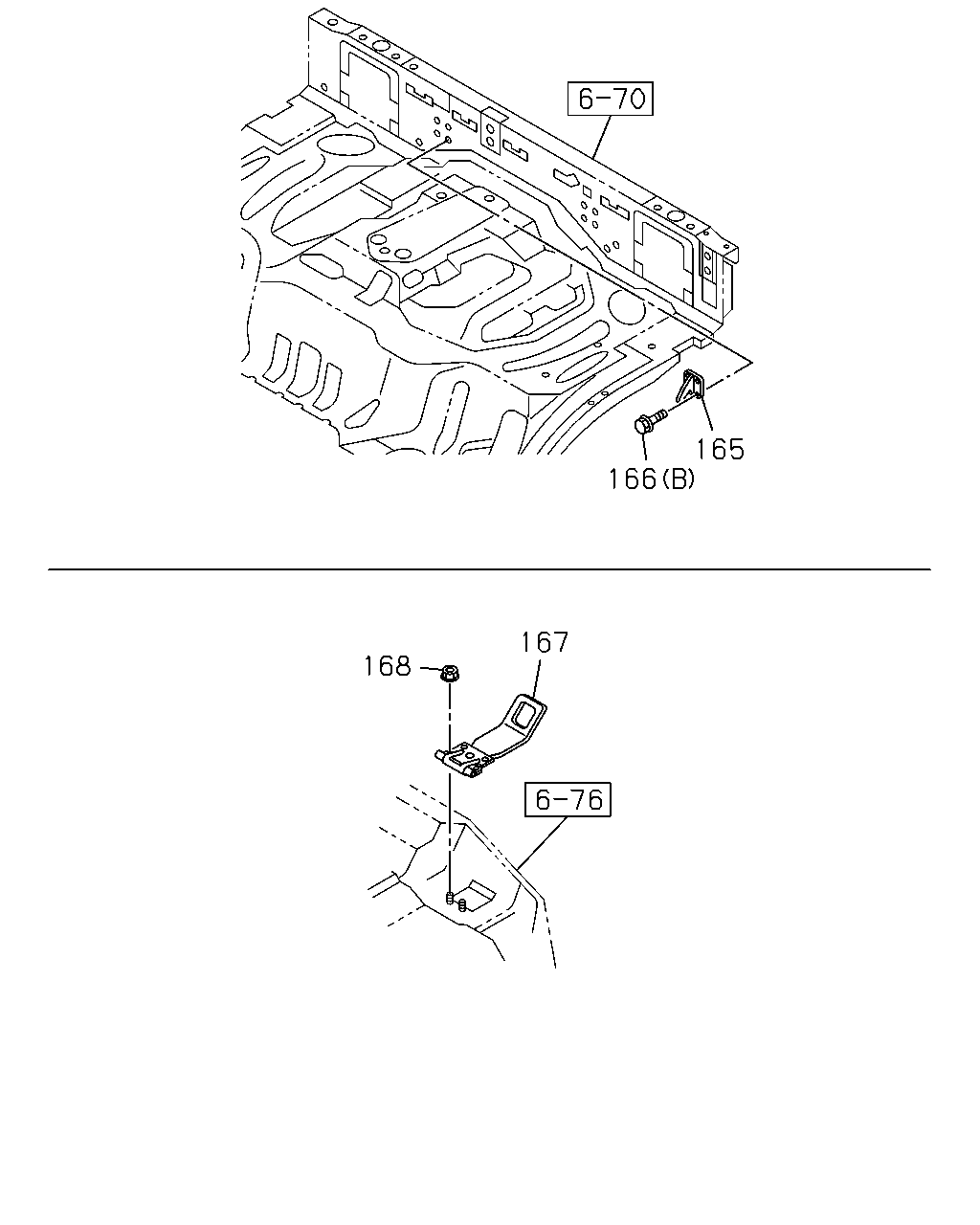

çizim 183719
165 166 167 168
BalonParca AdiParca NoAdetTipApplied Date
165 16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 0810-
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 09 1 0810-
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0810-
167 16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 0810-
168 16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0810-
