Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#8160) — 270 parça

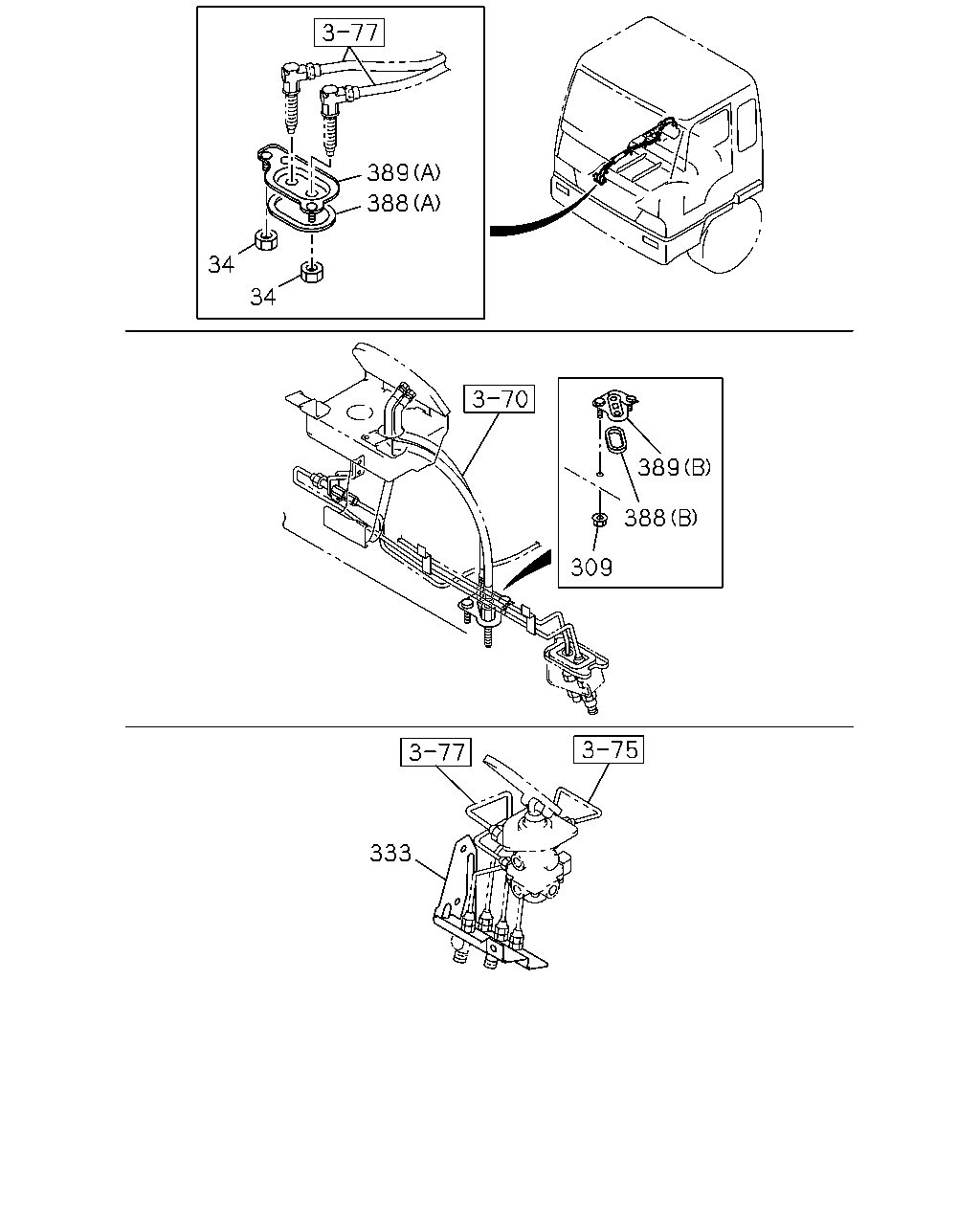

389 388 34 34 389 388 309 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-	●	●	●	●
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0510-	●	●	●	●
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0005-0210	●	●	●	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0005-	●	●	●	●
388	SEAL (B)	1-79738-826-0	01	1	0510-	●	●	●	●
388	SEAL (A) L=280	1-79738-793-1	01	1	0005-	●	●	●	●
388	SEAL (B)	1-79738-826-0	01	1	0005-0210	●	●	●	●
389	BRACKET; UNION (A)	1-79738-814-2	01	1	0005-	●	●	●	●
389	BRACKET; UNION (B)	1-79738-827-1	01	1	0005-	●	●	●	●

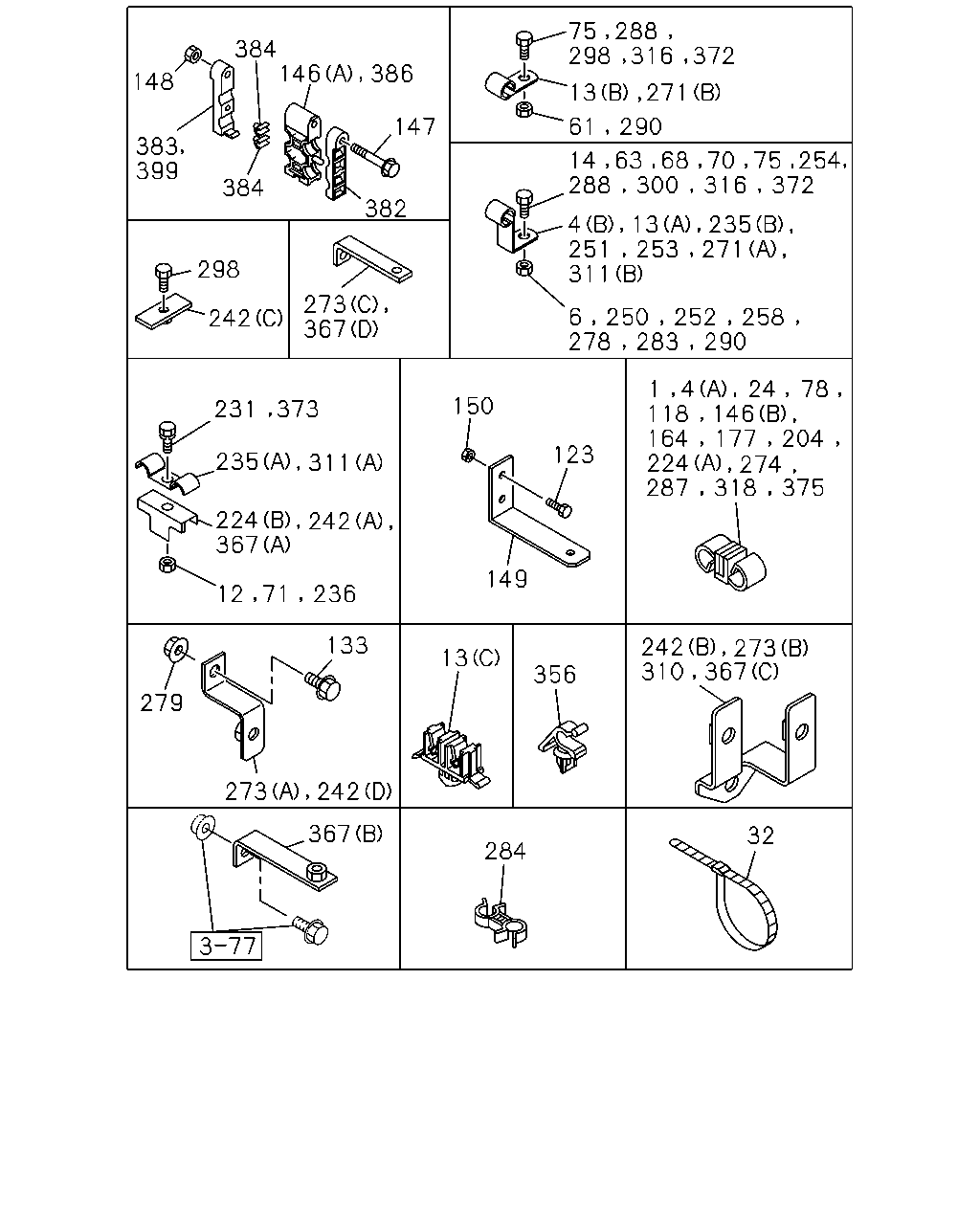

384 146 372 386 148 61 290 147 383 399 384 382 4 251 311 298 273 367 242 118 146 164 78 150 231 373 123 235 367 149 236 133 13 356 279 273 367 32 284 75 288 298 316 13 271 14 63 68 70 75 254 288 300 316 372 13 235 253 271 6 250 252 258 278 283 290 1 4 24 177 204 224 287 274 318 375 311 224 242 242 273 367 310 242 12 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0005-	●	●	●	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	01	1	0005-	●	●	●	●
4	CLIP; AIR PIPE MLD7Q M/T(X5K) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-0210			●	●
4	CLIP; AIR PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0211-			●	●
6	NUT; PIPE CLIP MLD7Q M/T(X5K) M8 FLANGE	0-91150-108-0	01	1	0005-0210			●	●
6	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0211-0602			●	●
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-			●	●
12	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
12	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0211-0602	●	●
12	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0210	●	●	●	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0211-	●		●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0005-	●	●	●	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0005-0210	●	●	●	●
13	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0211-0606	●		●
13	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0607-	●		●
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0211-		●		●
14	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●	●	●	●
14	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●	●
24	CLIP; PIPE ID=6.35 & 15	1-09709-276-1	03	1	0211-	●	●
24	CLIP; PIPE ID=6.35 & 15	1-09709-276-1	01	1	0005-0210			●	●
24	CLIP; PIPE ID=6.35 & 15	1-09709-276-1	02	1	0211-			●	●
32	CLIP; BAND,RUBBER SLEEVE L=250	5-09707-030-1	01	1	0005-0210		●		●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0005-0602			●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0603-			●	●
63	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0005-0210	●	●
63	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0211-0512	●	●	●	●
63	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●	●	●
63	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●	●
63	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0211-0512			●	●
63	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0601-			●	●
63	BOLT; CLIP MLD6D M/T(X5Q) M8X40 FLANGE	0-28680-840-0	01	1	0005-0210			●	●
63	BOLT; CLIP MLD7Q M/T(X5K) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210			●	●
68	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28080-850-0	02	1	0005-0512	●	●
68	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28050-850-0	02	1	0601-	●	●
68	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28080-850-0	01	1	0005-0512			●	●
68	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28050-850-0	01	1	0601-			●	●
70	BOLT; CLIP,AIR PIPE MLD7Q M/T(X5K) M8X30 FLANGE	0-28680-830-0	01	1	0005-0210			●	●
70	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28680-830-0	02	1	0211-0512			●	●
70	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-			●	●
71	NUT; BRKT MLD6D M/T(X5Q) M8 FLANGE	0-91150-108-0	01	1	0005-0104			●
71	NUT; BRKT MLD6D M/T(X5Q) DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0005-0104				●
71	NUT; BRKT MLD6D M/T(X5Q) M8 FLANGE	0-91150-108-0	01	1	0105-0210			●	●
75	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	0005-0104	●
75	BOLT; CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8X16 FLANGE	0-28080-816-0	02	1	0005-0104		●
75	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0210	●	●
75	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0211-0512	●	●
75	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0005-0006	●
75	BOLT; CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	01	1	0005-0006		●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0007-0104	●
75	BOLT; CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	02	1	0007-0104		●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0105-0210	●	●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	0211-0512	●	●
75	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
75	BOLT; CLIP MLD6D M/T(X5Q) M8X16 FLANGE	0-28080-816-0	01	1	0005-0104			●
75	BOLT; CLIP MLD6D M/T(X5Q) DRIVER ISRINGHAUSEN SEAT<SJA> M8X16 FLANGE	0-28080-816-0	01	1	0005-0104				●
75	BOLT; CLIP MLD6D M/T(X5Q) M8X16 FLANGE	0-28080-816-0	01	1	0105-0210			●	●
75	BOLT; CLIP MLD6D M/T(X5Q) M8X25 FLANGE	0-28680-825-0	03	1	0005-0104			●
75	BOLT; CLIP MLD6D M/T(X5Q) DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	03	1	0005-0104				●
75	BOLT; CLIP MLD6D M/T(X5Q) M8X25 FLANGE	0-28680-825-0	03	1	0105-0210			●	●
75	BOLT; CLIP MLD6D M/T(X5Q) M8X40 FLANGE	0-28680-840-0	01	1	0005-0104			●
75	BOLT; CLIP MLD6D M/T(X5Q) DRIVER ISRINGHAUSEN SEAT<SJA> M8X40 FLANGE	0-28680-840-0	01	1	0005-0104				●
75	BOLT; CLIP MLD6D M/T(X5Q) M8X40 FLANGE	0-28680-840-0	01	1	0105-0210			●	●
75	BOLT; CLIP MLD7Q M/T(X5K) M8X25 FLANGE	0-28680-825-0	04	1	0005-0104			●
75	BOLT; CLIP MLD7Q M/T(X5K) DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	04	1	0005-0104				●
75	BOLT; CLIP MLD7Q M/T(X5K) M8X25 FLANGE	0-28680-825-0	04	1	0105-0210			●	●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	04	1	0211-0512			●	●
75	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	04	1	0601-			●	●
78	CLIP; AIR PIPE ID=12 & 12	1-09709-280-1	01	1	0005-0210	●
118	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	0005-	●
118	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0005-	●
118	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0005-		●	●	●
118	CLIP; AIR PIPE ID=6.35 & 12.2	1-09709-275-1	02	1	0005-		●	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0512			●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-			●	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0512	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0211-0512			●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-			●	●
146	CLIP; AIR PIPE (A) ID=10	1-09709-242-0	01	1	0005-	●	●	●	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	01	1	0005-			●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	03	1	0005-0210	●	●	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	04	1	0211-0512	●	●	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0601-	●	●	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0210	●	●	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0211-0602	●	●	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	0005-	●	●
149	BRACKET; PIPE CLIP	1-47478-791-0	01	1	0005-			●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0602			●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
164	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0005-0210	●
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0005-0210		●	●	●
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0211-	●	●	●	●
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0005-			●	●
204	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0005-			●	●
224	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	02	1	0005-0210	●
224	CLIP; AIR PIPE (B) ID=9 & 9 L=17 & 17	1-09700-651-0	01	1	0005-0210	●	●
231	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●	●
231	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
235	CLIP; AIR PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	03	1	0005-0210	●	●
235	CLIP; AIR PIPE MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) ID=9 & 9 L=17 & 17	1-09700-651-0	03	1	0005-0210			●	●
235	CLIP; AIR PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	03	1	0211-	●	●
235	CLIP; AIR PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	04	1	0005-	●	●	●	●
235	CLIP; AIR PIPE MLD7Q M/T(X5K) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-0210			●	●
235	CLIP; AIR PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0211-			●	●
235	CLIP; AIR PIPE MLD7Q M/T(X5K) (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0005-0210			●	●
235	CLIP; AIR PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0211-			●	●
236	NUT; CLIP MLD7Q M/T(X5K),MLD6D M/T(X5Q) M8 FLANGE	0-91150-108-0	01	1	0005-0210			●	●
236	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0211-0602			●	●
236	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-			●	●
242	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	0005-	●	●
242	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	02	1	0005-	●	●
242	BRACKET; PIPE CLIP (A)	1-47475-427-1	03	1	0005-0210			●	●
242	BRACKET; PIPE CLIP (A)	1-47475-427-1	04	1	0211-			●	●
242	BRACKET; PIPE CLIP MLD6D M/T(X5Q) (C) M8 W/NUT	1-47475-729-0	01	1	0005-0210			●	●
242	BRACKET; PIPE CLIP (D)	1-47478-981-0	01	1	0211-	●	●
250	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210	●		●
250	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●
250	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0210		●
250	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0211-0602		●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-		●
250	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0210				●
250	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0211-0602			●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-			●
251	CLIP; AIR PIPE MLD6D M/T(X5Q) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-0210			●	●
252	NUT; PIPE CLIP MLD6D M/T(X5Q) M8 FLANGE	0-91150-108-0	01	1	0005-0210			●	●
253	CLIP; AIR PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0005-0210	●	●	●	●
253	CLIP; AIR PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0005-0210	●
253	CLIP; AIR PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0211-	●	●	●	●
253	CLIP; AIR PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0005-0210		●	●
253	CLIP; AIR PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0211-	●		●
253	CLIP; AIR PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0210				●
253	CLIP; AIR PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0211-		●
254	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
254	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●		●
254	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●
254	BOLT; PIPE CLIP M8X40 FLANGE	0-28680-840-0	01	1	0005-0210	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0204	●	●	●	●
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205	●	●	●	●
254	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●	●
254	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	03	1	0211-0512		●
254	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-		●
254	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	03	1	0005-0210				●
258	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●	●	●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
271	CLIP; AIR PIPE FIX (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-	●	●
271	CLIP; AIR PIPE FIX (B) ID=9 L=40	9-09524-875-0	01	1	0005-0606	●	●
271	CLIP; AIR PIPE FIX (B) ID=9 L=40	0-95234-875-0	01	1	0607-	●	●
271	CLIP; AIR PIPE FIX (B) ID=9	9-09524-872-0	01	1	0005-			●	●
273	BRACKET; CLIP (A)	1-47478-981-0	01	1	0005-0210	●	●
273	BRACKET; CLIP (B) M8 W/NUT	1-47475-439-2	01	1	0211-	●	●
273	BRACKET; CLIP (C) L=95	1-82699-085-0	01	1	0211-			●	●
274	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0005-	●	●
274	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	0005-0210	●	●
274	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	0211-	●	●	●	●
274	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	04	1	0005-0210			●	●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0005-0602			●	●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
283	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0104	●
283	NUT; CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0005-0104		●
283	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0210	●	●
283	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●
283	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
283	NUT; CLIP MLD6D M/T(X5Q) M8 FLANGE	0-91150-108-0	03	1	0005-0104			●
283	NUT; CLIP MLD6D M/T(X5Q) DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	03	1	0005-0104				●
283	NUT; CLIP MLD6D M/T(X5Q) M8 FLANGE	0-91150-108-0	03	1	0105-0210			●	●
283	NUT; CLIP MLD7Q M/T(X5K) M8 FLANGE	0-91150-108-0	04	1	0005-0104			●
283	NUT; CLIP MLD7Q M/T(X5K) DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	04	1	0005-0104				●
283	NUT; CLIP MLD7Q M/T(X5K) M8 FLANGE	0-91150-108-0	04	1	0105-0210			●	●
283	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0211-0602			●	●
283	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-			●	●
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	0005-	●	●	●	●
287	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0005-	●	●	●	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●	●	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	03	1	0211-0512	●		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	03	1	0601-	●		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-		●		●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	0211-0602	●		●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●		●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0211-0602		●		●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
298	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0005-0512	●	●
298	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
298	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0005-0512	●	●
298	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-	●	●
298	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	03	1	0005-0210			●	●
298	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	04	1	0211-0512			●	●
298	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	0601-			●	●
298	BOLT; CLIP MLD6D M/T(X5Q) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●	●
298	BOLT; CLIP MLD7Q M/T(X5K) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210			●	●
298	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0211-0512			●	●
298	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-			●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0206-0904	●	●	●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●	●	●
310	BRACKET; PIPE CLIP MLD6D M/T(X5Q) M8 W/NUT	1-47475-439-2	01	1	0005-0104			●
310	BRACKET; PIPE CLIP MLD6D M/T(X5Q) DRIVER ISRINGHAUSEN SEAT<SJA> M8 W/NUT	1-47475-439-2	01	1	0005-0104				●
310	BRACKET; PIPE CLIP MLD6D M/T(X5Q) M8 W/NUT	1-47475-439-2	01	1	0105-0210			●	●
311	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0005-0006	●
311	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT<SJA> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0005-0006		●
311	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	02	1	0007-0104	●
311	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT<SJA> (B) ID=6 H=20 L=20	1-09700-603-0	02	1	0007-0104		●
311	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-0210	●	●
311	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	03	1	0211-	●	●
311	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0005-0104	●
311	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT<SJA> (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0005-0104		●
311	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0105-0210	●	●
311	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0211-	●	●
311	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	04	1	0005-0104			●
311	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT<SJA> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	0005-0104				●
311	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	04	1	0105-			●	●
316	BOLT; CLIP M8X10 FLANGE	0-28080-810-0	02	1	0005-0512	●	●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	02	1	0601-	●	●
316	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0211-0512	●	●
316	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
316	BOLT; CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	0005-0512			●	●
316	BOLT; CLIP M6X12 W/LK WASHER	0-50540-612-0	01	1	0601-			●	●
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	0005-0210	●
318	CLIP; AIR PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0211-	●	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0005-0104	●		●
356	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT<SJA> ID=4.8	8-94128-483-0	01	1	0005-0104		●		●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0105-	●	●	●	●
367	BRACKET ASM (A)	1-47475-427-1	01	1	0005-			●	●
367	BRACKET ASM (D) L=95	1-82699-085-0	01	1	0211-			●	●
367	BRACKET ASM MLD7Q M/T(X5K) (B)	1-23335-352-0	01	1	0005-0210			●	●
367	BRACKET ASM (C) M8 W/NUT	1-47475-439-2	01	1	0211-			●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	0211-0512	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
373	BOLT; PIPE CLIP MLD6D M/T(X5Q) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210			●	●
375	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	05	1	0005-0210	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0211-	●	●	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	0211-			●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0005-0210	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	0005-0210	●	●	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0211-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	0005-			●	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	04	1	0211-	●	●	●	●
383	CLIP; LWR ID=6 & 6	1-09709-244-0	02	1	0005-	●	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	03	1	0005-0210	●	●	●	●
383	CLIP; LWR ID=6 & 6	1-09709-244-0	01	1	0005-			●	●
383	CLIP; LWR ID=10 & 10	1-09709-243-0	01	1	0211-			●	●
384	COLLAR ID=6	1-47459-010-0	02	1	0211-			●	●
384	COLLAR ID=8	1-47459-011-0	04	1	0211-			●	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0211-	●	●	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	0005-0210	●	●	●	●
399	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	0211-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
