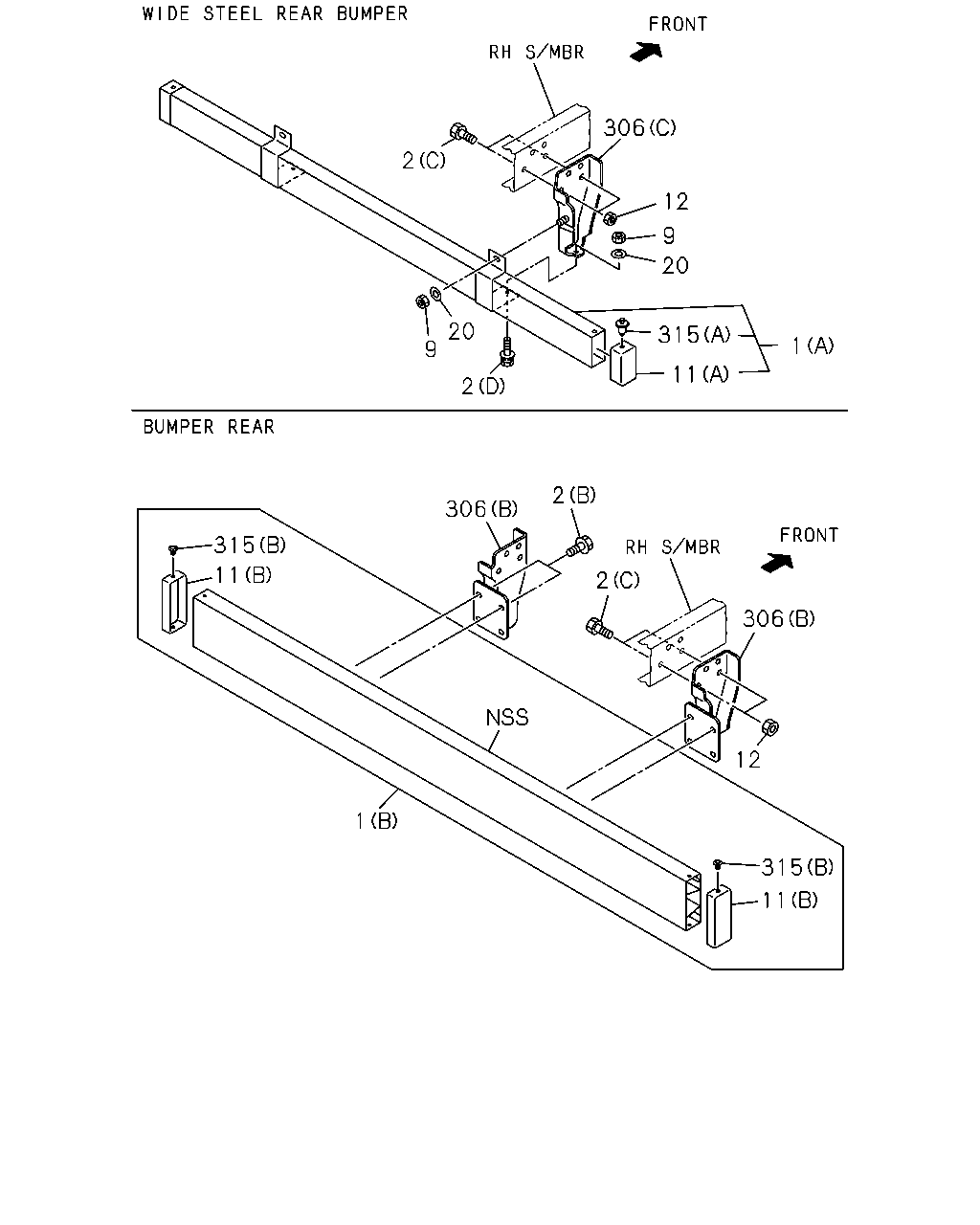

6-90 — REAR BUMPER (#81590) — 82 parça

2 306 12 9 20 315 11 1 2 20 9 315 11 1 11 315 12 306 2 2 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.070 BUMPER; RR (B) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	0810-0907
1	07.070 BUMPER; RR (A) STEEL BUMPER STAMP IJ2Q	8-98000-148-1	01	1	0908-0909
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2Q	8-98000-148-1	01	1	0910-
1	07.070 BUMPER; RR BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1008-
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	0810-0907
2	07.874 BOLT; BACK BAR 01.271 (A) M10X30	8-94324-205-0	04	1	0908-0909
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30	8-94324-205-0	04	1	0910-1209
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE	0-28651-025-0	02	1	1210-
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1008-
2	07.874 BOLT; BACK BAR (C) M14X30	0-20851-430-0	08	1	0810-0909
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> (C) M14X30	0-20851-430-0	08	1	0910-1007
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1008-
9	07.070 NUT; BUMPER 04.085 M10 FLANGE	0-91180-210-0	02	1	0908-0909
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	02	1	0910-1209
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-
11	07.829 CAP; RR BUMPER (B)	8-98070-331-0	02	1	0810-0907
11	07.829 CAP; RR BUMPER (A)	8-97174-008-0	02	1	0908-0909
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> (A)	8-97174-008-0	02	1	0910-
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> (B)	1-71290-064-0	02	1	1008-
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	0810-0909
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	0910-1007
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1008-
20	07.070 WASHER; PL,BUMPER WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1210-
306	07.836 BAR; BACK,RR (A) STAMP IA3	8-98039-408-0	01	1	0810-0907
306	07.836 BAR; BACK,RR (A) STAMP IA1	8-98039-406-0	01	1	0908-0909
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1	8-98039-406-0	01	1	0910-1209
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-979-0	01	1	1210-
306	07.836 BAR; BACK,RR (A) STAMP IA3	8-98039-409-0	01	1	0810-0907
306	07.836 BAR; BACK,RR (A) STAMP IA1	8-98039-407-0	01	1	0908-0909
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1	8-98039-407-0	01	1	0910-1209
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-980-0	01	1	1210-
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-408-0	01	1	1008-
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-409-0	01	1	1008-
315	07.829 RIVET; CAP (B)	1-71290-062-0	04	1	0810-0907
315	07.829 RIVET; CAP 08.155 (A) D8X13.5	1-09987-248-1	04	1	0908-0909
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5	1-09987-248-1	04	1	0910-
315	07.829 RIVET; CAP BUMPER REAR<7HZ> (B)	1-71290-062-0	04	1	1008-

2 2 2 306 12 9 315 11 1 306 2 2 306 12 315 11 1 11 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.070 BUMPER; RR (B) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	0810-0907
1	07.070 BUMPER; RR (A) STEEL BUMPER STAMP IJ2Q	8-98000-148-1	01	1	0908-0909
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2Q	8-98000-148-1	01	1	0910-
1	07.070 BUMPER; RR BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1008-
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	0810-0907
2	07.874 BOLT; BACK BAR 01.271 (A) M10X30	8-94324-205-0	04	1	0908-0909
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30	8-94324-205-0	04	1	0910-1209
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE	0-28651-025-0	02	1	1210-
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1008-
2	07.874 BOLT; BACK BAR (C) M14X30	0-20851-430-0	08	1	0810-0909
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> (C) M14X30	0-20851-430-0	08	1	0910-1007
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1008-
9	07.070 NUT; BUMPER 04.085 M10 FLANGE	0-91180-210-0	02	1	0908-0909
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	02	1	0910-1209
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-
11	07.829 CAP; RR BUMPER (B)	8-98070-331-0	02	1	0810-0907
11	07.829 CAP; RR BUMPER (A)	8-97174-008-0	02	1	0908-0909
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> (A)	8-97174-008-0	02	1	0910-
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> (B)	1-71290-064-0	02	1	1008-
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	0810-0909
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	0910-1007
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1008-
306	07.836 BAR; BACK,RR (A) STAMP IA3	8-98039-408-0	01	1	0810-0907
306	07.836 BAR; BACK,RR (A) STAMP IA1	8-98039-406-0	01	1	0908-0909
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1	8-98039-406-0	01	1	0910-1209
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-979-0	01	1	1210-
306	07.836 BAR; BACK,RR (A) STAMP IA3	8-98039-409-0	01	1	0810-0907
306	07.836 BAR; BACK,RR (A) STAMP IA1	8-98039-407-0	01	1	0908-0909
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1	8-98039-407-0	01	1	0910-1209
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-980-0	01	1	1210-
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-408-0	01	1	1008-
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-409-0	01	1	1008-
315	07.829 RIVET; CAP (B)	1-71290-062-0	04	1	0810-0907
315	07.829 RIVET; CAP 08.155 (A) D8X13.5	1-09987-248-1	04	1	0908-0909
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5	1-09987-248-1	04	1	0910-
315	07.829 RIVET; CAP BUMPER REAR<7HZ> (B)	1-71290-062-0	04	1	1008-

113 114 114 128 128 114 113 134 136 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED(RS6) (B)	8-97077-573-2	01	1	0810-
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED(RS6) (A)	8-98029-390-3	01	1	0810-
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED(RS6) 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	0810-
114	07.800 BOLT; BRKT,LICENSE PLATE EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	0810-
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED(RS6) 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0810-
134	07.068 BOLT; HOOK 07.039 M14X50	0-10856-450-0	02	1	0810-1011
134	07.068 BOLT; HOOK M14X60	0-10861-460-0	02	1	1012-
136	07.068 NUT; HOOK 00.429 M14 FLANGE	0-91180-214-0	02	1	0810-
