Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#8159) — 305 parça

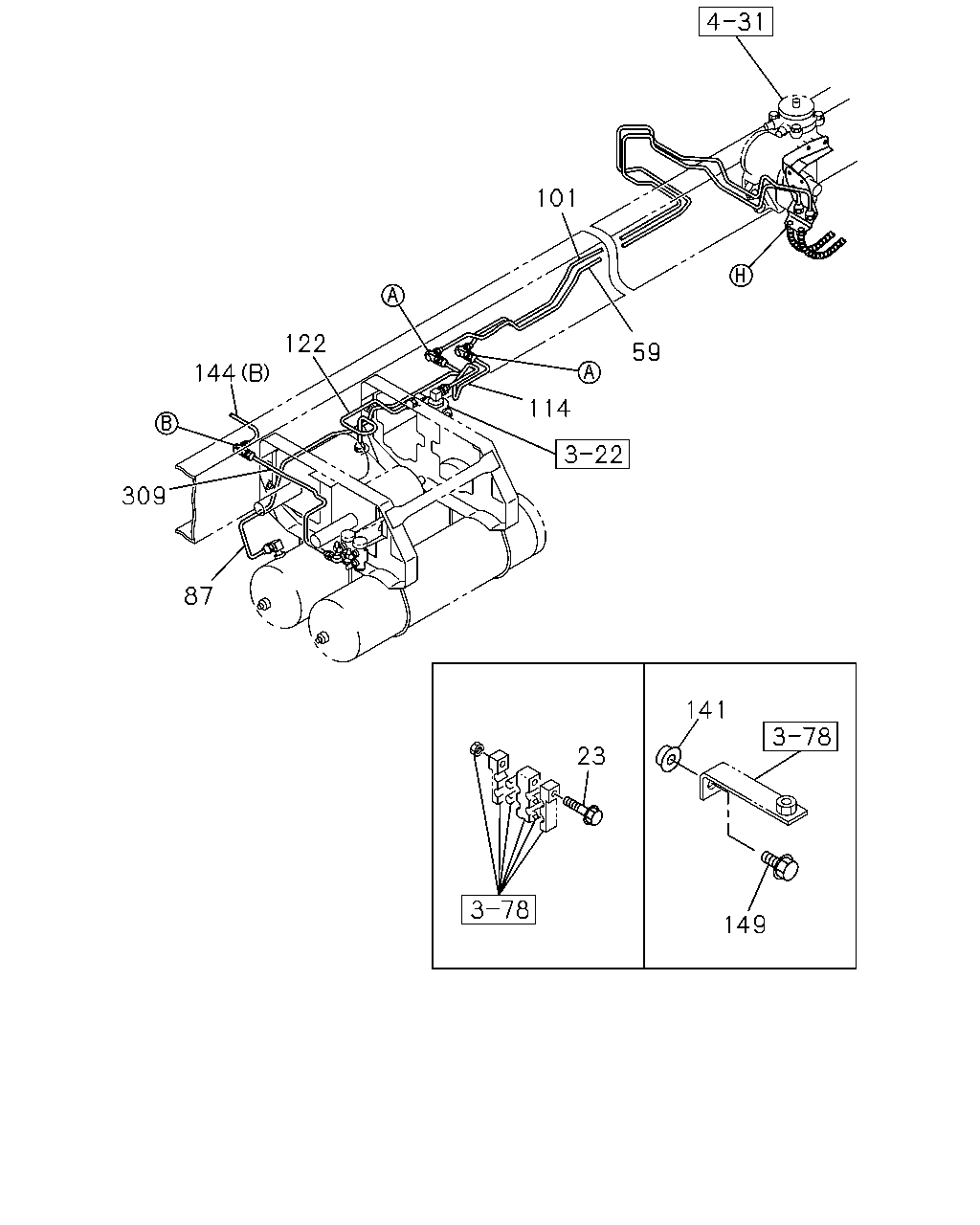

101 122 59 144 114 309 87 141 23 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BOLT; UNION BRKT M8X50 FLANGE	0-28080-850-0	01	1	0211-0512	●	●
23	BOLT; UNION BRKT M8X50 FLANGE	0-28050-850-0	01	1	0601-	●	●
59	PIPE; AIR,UNION TO FLEX HOSE	1-49119-378-0	01	1	0005-0012			●
59	PIPE; AIR,UNION TO FLEX HOSE L=3377 SERVICED BY L=3500	1-47428-887-0	01	1	0101-0210			●
59	PIPE; AIR,UNION TO FLEX HOSE L=3380 SERVICED BY L=3500	1-47428-887-0	01	1	0211-			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0012				●
59	PIPE; AIR,UNION TO FLEX HOSE L=3420 SERVICED BY L=3500	1-47428-887-0	01	1	0101-0102				●
59	PIPE; AIR,UNION TO FLEX HOSE L=3429 SERVICED BY L=3500	1-47428-887-0	01	1	0103-0210				●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0008	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3500	1-47428-887-0	01	1	0009-0009	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3470 SERVICED BY L=3500	1-47428-887-0	01	1	0010-0210	●	●
59	PIPE; AIR,UNION TO FLEX HOSE	1-49123-304-0	01	1	0211-0304	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3521	1-49124-087-0	01	1	0305-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=476	1-49119-380-0	01	1	0005-0210			●
87	PIPE; AIR,AIR TANK TO UNION L=1091 SERVICED BY L=1100	1-47428-875-0	01	1	0211-			●
87	PIPE; AIR,AIR TANK TO UNION L=1158 SERVICED BY L=1250	1-47426-416-0	01	1	0005-0210				●
87	PIPE; AIR,AIR TANK TO UNION L=1202 SERVICED BY L=1250	1-47428-876-0	01	1	0211-				●
87	PIPE; AIR,AIR TANK TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0005-0210	●	●
87	PIPE; AIR,AIR TANK TO UNION MLD7Q M/T(X5K) L=1318 SERVICED BY L=1370	1-47428-818-0	01	1	0005-0005	●	●
87	PIPE; AIR,AIR TANK TO UNION MLD7Q M/T(X5K) L=1422 SERVICED BY L=1300	1-47428-877-0	01	1	0006-0012	●	●
87	PIPE; AIR,AIR TANK TO UNION MLD7Q M/T(X5K) L=1369 SERVICED BY L=1400	1-47428-878-0	01	1	0101-0210	●	●
87	PIPE; AIR,AIR TANK TO UNION L=1257 SERVICED BY L=1300	1-47428-877-0	01	1	0211-	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3103 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3108 SERVICED BY L=3300	1-47428-886-0	01	1	0101-0102			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3117 SERVICED BY L=3300	1-47428-886-0	01	1	0103-0210			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3102 SERVICED BY L=3300	1-47428-886-0	01	1	0211-			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0008	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	0009-0009	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3199 SERVICED BY L=3300	1-47428-886-0	01	1	0010-0210	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3248 SERVICED BY L=3300	1-47428-886-0	01	1	0211-0304	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3249 SERVICED BY L=3300	1-47428-801-0	01	1	0305-	●	●
114	PIPE; AIR,QUICK RELEASE VLV	1-49116-392-0	01	1	0005-0210			●
114	PIPE; AIR,QUICK RELEASE VLV	1-49123-463-0	01	1	0211-			●
114	PIPE; AIR,QUICK RELEASE VLV	1-49117-305-0	01	1	0005-0210				●
114	PIPE; AIR,QUICK RELEASE VLV	1-49123-464-0	01	1	0211-				●
114	PIPE; AIR,QUICK RELEASE VLV MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	1-49116-499-0	01	1	0005-0210	●	●
114	PIPE; AIR,QUICK RELEASE VLV MLD7Q M/T(X5K) L=725 SERVICED BY L=800	1-47428-812-0	01	1	0005-0210	●	●
114	PIPE; AIR,QUICK RELEASE VLV	1-49123-234-0	01	1	0211-	●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER	1-49118-382-0	01	1	0005-0210			●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER	1-49119-497-0	01	1	0005-0210	●	●		●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER	1-49119-497-0	01	1	0211-	●	●	●	●
141	NUT; PIPE BRKT MLD7Q M/T(X5K) M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●
141	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●
141	NUT; PIPE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
144	PIPE; AIR,UNION TO UNION (B) L=2664 SERVICED BY L=2700	1-47428-857-0	01	1	0302-			●
144	PIPE; AIR,UNION TO UNION (A) L=1787 SERVICED BY L=1800	1-47428-853-0	01	1	0005-0210			●	●
144	PIPE; AIR,UNION TO UNION (A) L=1806 SERVICED BY L=1950	1-47428-854-0	01	1	0211-			●	●
144	PIPE; AIR,UNION TO UNION (B) L=2525 SERVICED BY L=2700	1-47428-857-0	01	1	0005-0210			●	●
144	PIPE; AIR,UNION TO UNION (B) L=2683 SERVICED BY L=2700	1-47428-857-0	01	1	0211-0301			●	●
144	PIPE; AIR,UNION TO UNION (B) L=2683 SERVICED BY L=2700	1-47428-857-0	01	1	0302-				●
144	PIPE; AIR,UNION TO UNION (A) L=1974 SERVICED BY L=2150	1-47428-855-0	01	1	0005-0210	●	●
144	PIPE; AIR,UNION TO UNION (A) L=2015 SERVICED BY L=2150	1-47428-855-0	01	1	0211-0304	●	●
144	PIPE; AIR,UNION TO UNION (A) L=2015 SERVICED BY L=2150	1-47428-855-0	01	1	0305-	●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0009	●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0010-0210	●	●
144	PIPE; AIR,UNION TO UNION MLD7Q M/T(X5K) (B) L=2388 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0005	●	●
144	PIPE; AIR,UNION TO UNION MLD7Q M/T(X5K) (B) L=2412 SERVICED BY L=2400	1-47428-856-0	01	1	0006-0210	●	●
144	PIPE; AIR,UNION TO UNION (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0211-	●	●
149	BOLT; PIPE BRKT M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●
149	BOLT; PIPE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
149	BOLT; PIPE BRKT MLD7Q M/T(X5K) M8X30 FLANGE	0-28680-830-0	01	1	0005-0210	●	●
149	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0211-0512	●	●
149	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
309	PIPE; AIR,MPV TO UNION L=995	1-49122-554-0	01	1	0005-0210			●
309	PIPE; AIR,MPV TO UNION	1-49123-725-0	01	1	0211-			●
309	PIPE; AIR,MPV TO UNION L=778	1-49119-389-0	01	1	0005-0210				●
309	PIPE; AIR,MPV TO UNION	1-49123-724-0	01	1	0211-				●
309	PIPE; AIR,MPV TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) L=648	1-49119-388-0	01	1	0005-0210	●	●
309	PIPE; AIR,MPV TO UNION MLD7Q M/T(X5K) L=555	1-49122-338-0	01	1	0005-0005	●	●
309	PIPE; AIR,MPV TO UNION MLD7Q M/T(X5K) L=545	1-49122-669-0	01	1	0006-0012	●	●
309	PIPE; AIR,MPV TO UNION MLD7Q M/T(X5K) L=571	1-49122-753-0	01	1	0101-0210	●	●
309	PIPE; AIR,MPV TO UNION L=571	1-49122-753-0	01	1	0211-	●	●

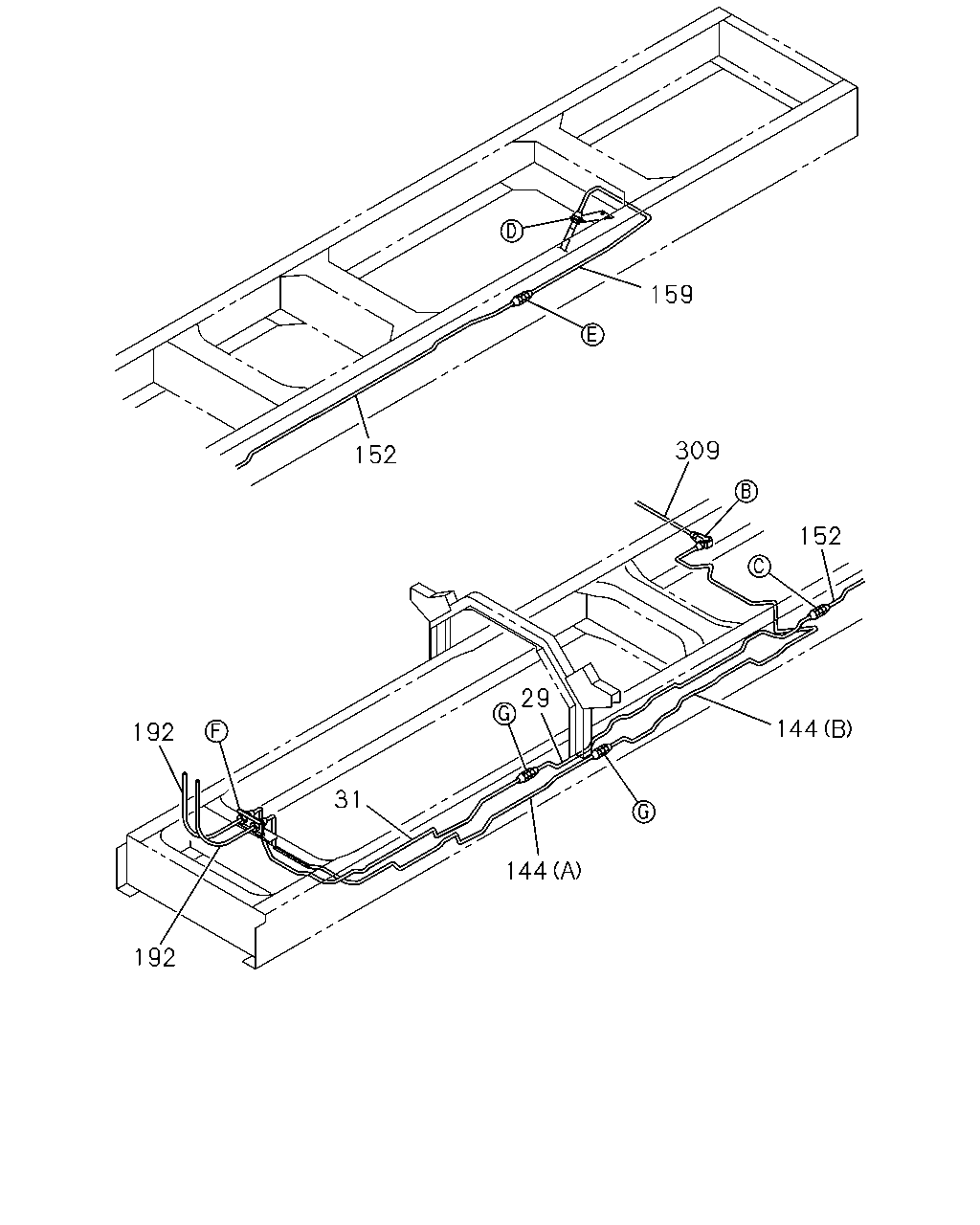

159 309 152 152 29 144 192 31 144 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	PIPE; AIR,UNION TO UNION SERVICED BY L=1950	1-47428-854-0	01	1	0302-			●
29	PIPE; AIR,UNION TO UNION L=1658 SERVICED BY L=1700	1-47428-852-0	01	1	0005-0005			●	●
29	PIPE; AIR,UNION TO UNION L=1665 SERVICED BY L=1700	1-47428-852-0	01	1	0006-0210			●	●
29	PIPE; AIR,UNION TO UNION L=1944 SERVICED BY L=1950	1-47428-854-0	01	1	0211-0301			●	●
29	PIPE; AIR,UNION TO UNION L=1944 SERVICED BY L=1950	1-47428-854-0	01	1	0302-				●
29	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	0005-0009	●	●
29	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q) L=1767 SERVICED BY L=1800	1-47428-853-0	01	1	0010-0210	●	●
29	PIPE; AIR,UNION TO UNION MLD7Q M/T(X5K) L=1665 SERVICED BY L=1700	1-47428-852-0	01	1	0005-0005	●	●
29	PIPE; AIR,UNION TO UNION MLD7Q M/T(X5K) L=1648 SERVICED BY L=1700	1-47428-852-0	01	1	0006-0210	●	●
29	PIPE; AIR,UNION TO UNION L=1419 SERVICED BY L=1550	1-47428-851-0	01	1	0211-	●	●
31	PIPE; AIR,UNION TO UNION L=1939 SERVICED BY L=1950	1-47428-854-0	01	1	0005-0210			●	●
31	PIPE; AIR,UNION TO UNION L=1936 SERVICED BY L=1950	1-47428-854-0	01	1	0211-			●	●
31	PIPE; AIR,UNION TO UNION L=1956 SERVICED BY L=2150	1-47428-855-0	01	1	0005-0210	●	●
31	PIPE; AIR,UNION TO UNION L=1998 SERVICED BY L=2150	1-47428-855-0	01	1	0211-	●	●
144	PIPE; AIR,UNION TO UNION (B) L=2664 SERVICED BY L=2700	1-47428-857-0	01	1	0302-			●
144	PIPE; AIR,UNION TO UNION (A) L=1787 SERVICED BY L=1800	1-47428-853-0	01	1	0005-0210			●	●
144	PIPE; AIR,UNION TO UNION (A) L=1806 SERVICED BY L=1950	1-47428-854-0	01	1	0211-			●	●
144	PIPE; AIR,UNION TO UNION (B) L=2525 SERVICED BY L=2700	1-47428-857-0	01	1	0005-0210			●	●
144	PIPE; AIR,UNION TO UNION (B) L=2683 SERVICED BY L=2700	1-47428-857-0	01	1	0211-0301			●	●
144	PIPE; AIR,UNION TO UNION (B) L=2683 SERVICED BY L=2700	1-47428-857-0	01	1	0302-				●
144	PIPE; AIR,UNION TO UNION (A) L=1974 SERVICED BY L=2150	1-47428-855-0	01	1	0005-0210	●	●
144	PIPE; AIR,UNION TO UNION (A) L=2015 SERVICED BY L=2150	1-47428-855-0	01	1	0211-0304	●	●
144	PIPE; AIR,UNION TO UNION (A) L=2015 SERVICED BY L=2150	1-47428-855-0	01	1	0305-	●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0009	●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0010-0210	●	●
144	PIPE; AIR,UNION TO UNION MLD7Q M/T(X5K) (B) L=2388 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0005	●	●
144	PIPE; AIR,UNION TO UNION MLD7Q M/T(X5K) (B) L=2412 SERVICED BY L=2400	1-47428-856-0	01	1	0006-0210	●	●
144	PIPE; AIR,UNION TO UNION (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0211-	●	●
152	PIPE; AIR,UNION TO UNION L=1348 SERVICED BY L=1400	1-47428-850-0	01	1	0005-0006			●
152	PIPE; AIR,UNION TO UNION L=1352 SERVICED BY L=1400	1-47428-850-0	01	1	0007-0210			●
152	PIPE; AIR,UNION TO UNION L=1156 SERVICED BY L=1250	1-47428-849-0	01	1	0211-0302			●
152	PIPE; AIR,UNION TO UNION L=1150 SERVICED BY L=1250	1-47428-849-0	01	1	0303-			●
152	PIPE; AIR,UNION TO UNION L=1846 SERVICED BY L=1950	1-47428-854-0	01	1	0005-0210				●
152	PIPE; AIR,UNION TO UNION L=1673 SERVICED BY L=1700	1-47428-852-0	01	1	0211-0302				●
152	PIPE; AIR,UNION TO UNION L=1666 SERVICED BY L=1700	1-47428-852-0	01	1	0303-				●
152	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) L=1671 SERVICED BY L=1700	1-47426-391-0	01	1	0005-0210	●	●
152	PIPE; AIR,UNION TO UNION MLD7Q M/T(X5K) L=1858 SERVICED BY L=1950	1-47428-854-0	01	1	0005-0210	●	●
152	PIPE; AIR,UNION TO UNION L=2089 SERVICED BY L=2150	1-47428-855-0	01	1	0211-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE L=1142 SERVICED BY L=1250	1-47426-388-0	01	1	0005-			●	●
159	PIPE; AIR,UNION TO FLEX HOSE L=1230 SERVICED BY L=1250	1-47426-388-0	01	1	0005-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0301-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0301			●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0301-			●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-0212	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-0212	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-0301			●	●
309	PIPE; AIR,MPV TO UNION L=995	1-49122-554-0	01	1	0005-0210			●
309	PIPE; AIR,MPV TO UNION	1-49123-725-0	01	1	0211-			●
309	PIPE; AIR,MPV TO UNION L=778	1-49119-389-0	01	1	0005-0210				●
309	PIPE; AIR,MPV TO UNION	1-49123-724-0	01	1	0211-				●
309	PIPE; AIR,MPV TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) L=648	1-49119-388-0	01	1	0005-0210	●	●
309	PIPE; AIR,MPV TO UNION MLD7Q M/T(X5K) L=555	1-49122-338-0	01	1	0005-0005	●	●
309	PIPE; AIR,MPV TO UNION MLD7Q M/T(X5K) L=545	1-49122-669-0	01	1	0006-0012	●	●
309	PIPE; AIR,MPV TO UNION MLD7Q M/T(X5K) L=571	1-49122-753-0	01	1	0101-0210	●	●
309	PIPE; AIR,MPV TO UNION L=571	1-49122-753-0	01	1	0211-	●	●

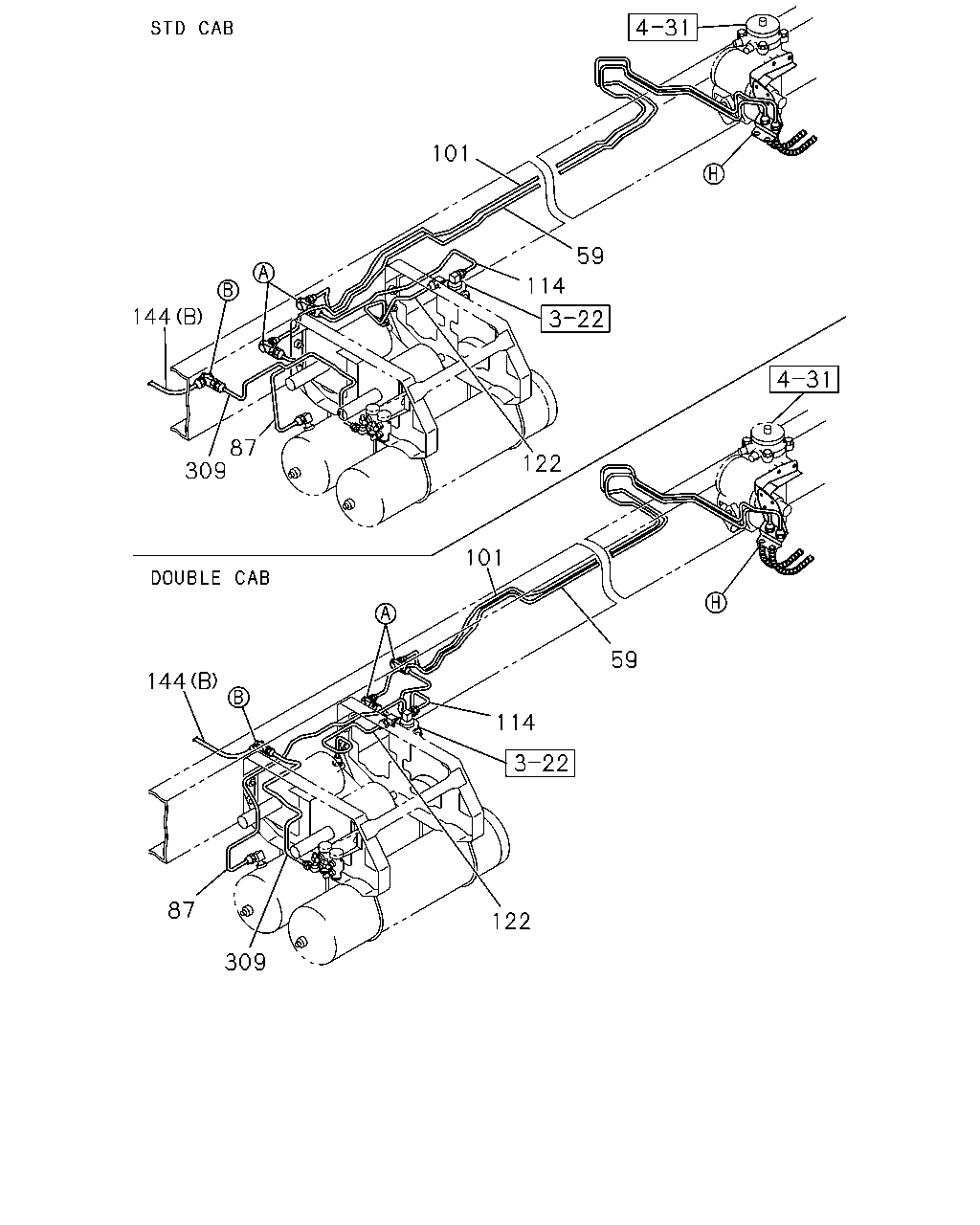

101 59 114 144 87 309 122 101 59 144 114 87 122 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
59	PIPE; AIR,UNION TO FLEX HOSE	1-49119-378-0	01	1	0005-0012			●
59	PIPE; AIR,UNION TO FLEX HOSE L=3377 SERVICED BY L=3500	1-47428-887-0	01	1	0101-0210			●
59	PIPE; AIR,UNION TO FLEX HOSE L=3380 SERVICED BY L=3500	1-47428-887-0	01	1	0211-			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0012				●
59	PIPE; AIR,UNION TO FLEX HOSE L=3420 SERVICED BY L=3500	1-47428-887-0	01	1	0101-0102				●
59	PIPE; AIR,UNION TO FLEX HOSE L=3429 SERVICED BY L=3500	1-47428-887-0	01	1	0103-0210				●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0008	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3500	1-47428-887-0	01	1	0009-0009	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3470 SERVICED BY L=3500	1-47428-887-0	01	1	0010-0210	●	●
59	PIPE; AIR,UNION TO FLEX HOSE	1-49123-304-0	01	1	0211-0304	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3521	1-49124-087-0	01	1	0305-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=476	1-49119-380-0	01	1	0005-0210			●
87	PIPE; AIR,AIR TANK TO UNION L=1091 SERVICED BY L=1100	1-47428-875-0	01	1	0211-			●
87	PIPE; AIR,AIR TANK TO UNION L=1158 SERVICED BY L=1250	1-47426-416-0	01	1	0005-0210				●
87	PIPE; AIR,AIR TANK TO UNION L=1202 SERVICED BY L=1250	1-47428-876-0	01	1	0211-				●
87	PIPE; AIR,AIR TANK TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0005-0210	●	●
87	PIPE; AIR,AIR TANK TO UNION MLD7Q M/T(X5K) L=1318 SERVICED BY L=1370	1-47428-818-0	01	1	0005-0005	●	●
87	PIPE; AIR,AIR TANK TO UNION MLD7Q M/T(X5K) L=1422 SERVICED BY L=1300	1-47428-877-0	01	1	0006-0012	●	●
87	PIPE; AIR,AIR TANK TO UNION MLD7Q M/T(X5K) L=1369 SERVICED BY L=1400	1-47428-878-0	01	1	0101-0210	●	●
87	PIPE; AIR,AIR TANK TO UNION L=1257 SERVICED BY L=1300	1-47428-877-0	01	1	0211-	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3103 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3108 SERVICED BY L=3300	1-47428-886-0	01	1	0101-0102			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3117 SERVICED BY L=3300	1-47428-886-0	01	1	0103-0210			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3102 SERVICED BY L=3300	1-47428-886-0	01	1	0211-			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0008	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	0009-0009	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3199 SERVICED BY L=3300	1-47428-886-0	01	1	0010-0210	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3248 SERVICED BY L=3300	1-47428-886-0	01	1	0211-0304	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3249 SERVICED BY L=3300	1-47428-801-0	01	1	0305-	●	●
114	PIPE; AIR,QUICK RELEASE VLV	1-49116-392-0	01	1	0005-0210			●
114	PIPE; AIR,QUICK RELEASE VLV	1-49123-463-0	01	1	0211-			●
114	PIPE; AIR,QUICK RELEASE VLV	1-49117-305-0	01	1	0005-0210				●
114	PIPE; AIR,QUICK RELEASE VLV	1-49123-464-0	01	1	0211-				●
114	PIPE; AIR,QUICK RELEASE VLV MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	1-49116-499-0	01	1	0005-0210	●	●
114	PIPE; AIR,QUICK RELEASE VLV MLD7Q M/T(X5K) L=725 SERVICED BY L=800	1-47428-812-0	01	1	0005-0210	●	●
114	PIPE; AIR,QUICK RELEASE VLV	1-49123-234-0	01	1	0211-	●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER	1-49118-382-0	01	1	0005-0210			●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER	1-49119-497-0	01	1	0005-0210	●	●		●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER	1-49119-497-0	01	1	0211-	●	●	●	●
144	PIPE; AIR,UNION TO UNION (B) L=2664 SERVICED BY L=2700	1-47428-857-0	01	1	0302-			●
144	PIPE; AIR,UNION TO UNION (A) L=1787 SERVICED BY L=1800	1-47428-853-0	01	1	0005-0210			●	●
144	PIPE; AIR,UNION TO UNION (A) L=1806 SERVICED BY L=1950	1-47428-854-0	01	1	0211-			●	●
144	PIPE; AIR,UNION TO UNION (B) L=2525 SERVICED BY L=2700	1-47428-857-0	01	1	0005-0210			●	●
144	PIPE; AIR,UNION TO UNION (B) L=2683 SERVICED BY L=2700	1-47428-857-0	01	1	0211-0301			●	●
144	PIPE; AIR,UNION TO UNION (B) L=2683 SERVICED BY L=2700	1-47428-857-0	01	1	0302-				●
144	PIPE; AIR,UNION TO UNION (A) L=1974 SERVICED BY L=2150	1-47428-855-0	01	1	0005-0210	●	●
144	PIPE; AIR,UNION TO UNION (A) L=2015 SERVICED BY L=2150	1-47428-855-0	01	1	0211-0304	●	●
144	PIPE; AIR,UNION TO UNION (A) L=2015 SERVICED BY L=2150	1-47428-855-0	01	1	0305-	●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0009	●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0010-0210	●	●
144	PIPE; AIR,UNION TO UNION MLD7Q M/T(X5K) (B) L=2388 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0005	●	●
144	PIPE; AIR,UNION TO UNION MLD7Q M/T(X5K) (B) L=2412 SERVICED BY L=2400	1-47428-856-0	01	1	0006-0210	●	●
144	PIPE; AIR,UNION TO UNION (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0211-	●	●
309	PIPE; AIR,MPV TO UNION L=995	1-49122-554-0	01	1	0005-0210			●
309	PIPE; AIR,MPV TO UNION	1-49123-725-0	01	1	0211-			●
309	PIPE; AIR,MPV TO UNION L=778	1-49119-389-0	01	1	0005-0210				●
309	PIPE; AIR,MPV TO UNION	1-49123-724-0	01	1	0211-				●
309	PIPE; AIR,MPV TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) L=648	1-49119-388-0	01	1	0005-0210	●	●
309	PIPE; AIR,MPV TO UNION MLD7Q M/T(X5K) L=555	1-49122-338-0	01	1	0005-0005	●	●
309	PIPE; AIR,MPV TO UNION MLD7Q M/T(X5K) L=545	1-49122-669-0	01	1	0006-0012	●	●
309	PIPE; AIR,MPV TO UNION MLD7Q M/T(X5K) L=571	1-49122-753-0	01	1	0101-0210	●	●
309	PIPE; AIR,MPV TO UNION L=571	1-49122-753-0	01	1	0211-	●	●

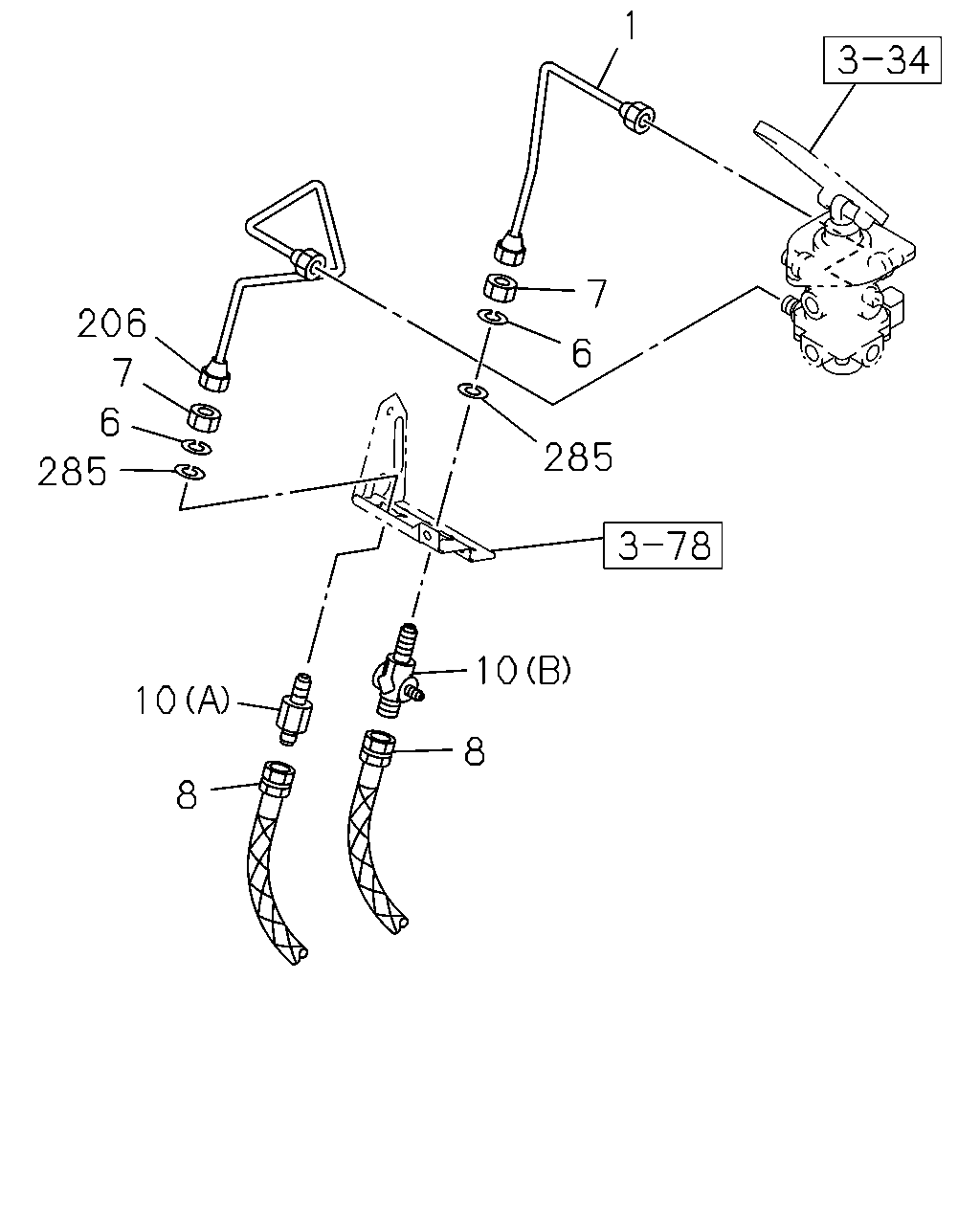

1 7 206 6 7 6 285 285 10 10 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	0005-	●	●	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●	●	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●	●	●	●
7	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=520	1-09363-605-0	02	1	0005-0210	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=580	1-09363-764-0	02	1	0211-	●	●	●	●
10	CONNECTOR; FLEX HOSE (A)	1-09654-394-0	01	1	0005-	●	●	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-721-0	01	1	0005-0103	●	●	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-754-0	01	1	0104-	●	●	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	0005-	●	●	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0605	●	●	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0605	●	●	●	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●	●	●	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●	●	●	●

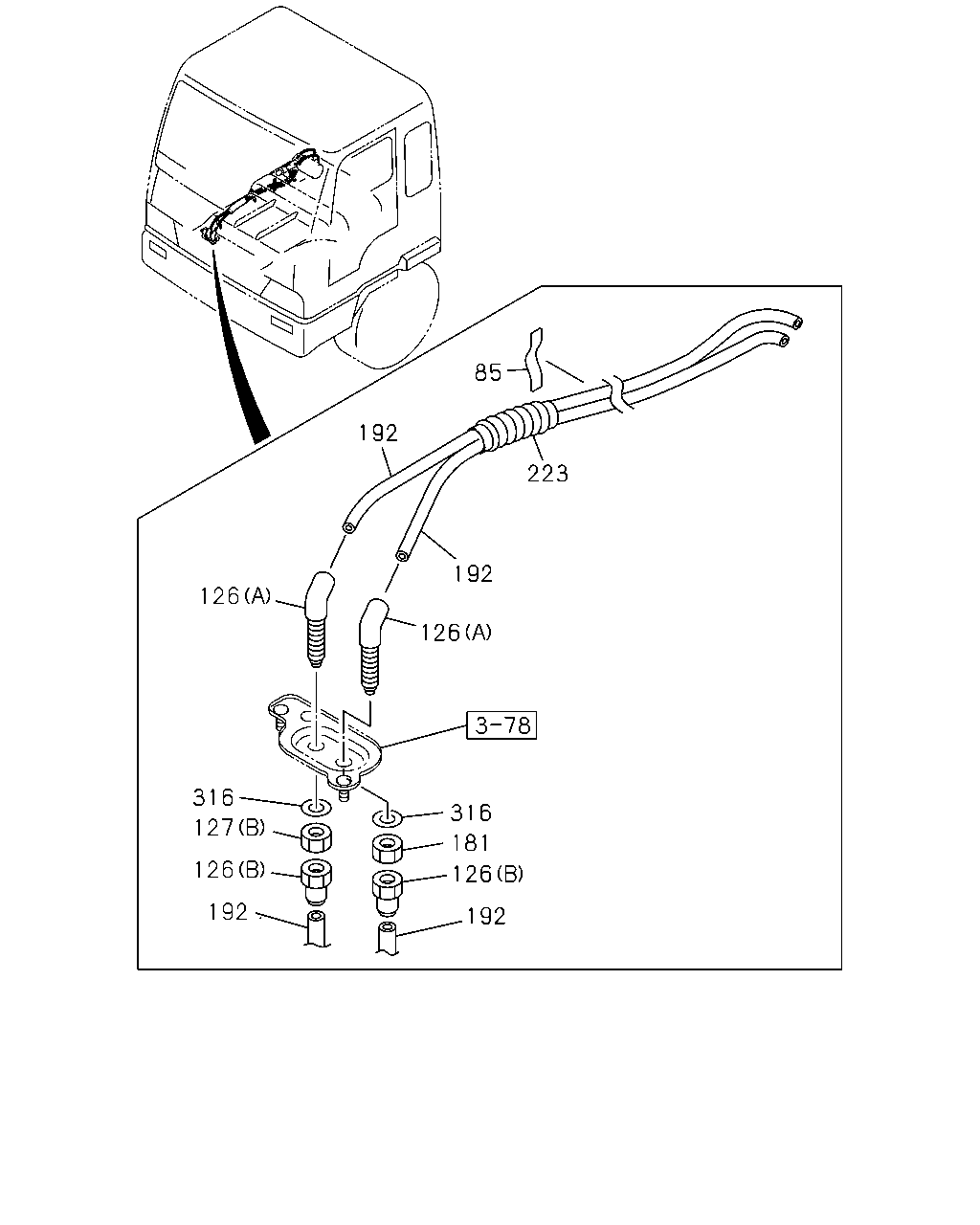

85 192 223 192 126 126 316 316 127 181 126 126 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
85	GASKET; NYLON TUBE 100X40	1-72498-022-1	05	1	0005-	●	●	●	●
126	UNION; NYLON TUBE (A) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-0706	●	●	●	●
126	UNION; NYLON TUBE (A) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-	●	●	●	●
126	UNION; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	0005-0007	●	●	●	●
126	UNION; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0008-0706	●	●	●	●
127	NUT; UNION (A) M14	9-99111-414-0	02	1	0005-0512	●	●	●	●
127	NUT; UNION (A) M14	0-91111-514-0	02	1	0601-	●	●	●	●
127	NUT; UNION (B) M20	9-99111-420-0	01	1	0005-0512	●	●	●	●
127	NUT; UNION (B) M20	0-91111-520-0	01	1	0601-	●	●	●	●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	0005-0512	●	●	●	●
181	NUT; TUBE UNION M20	0-91111-520-0	01	1	0601-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0301-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0301			●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0301-			●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-0212	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-0212	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-0301			●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	0005-	●	●	●	●
316	WASHER; PL ID=21	9-09160-520-0	02	1	0005-0605	●	●	●	●
316	WASHER; PL ID=21	0-91610-520-0	02	1	0606-	●	●	●	●

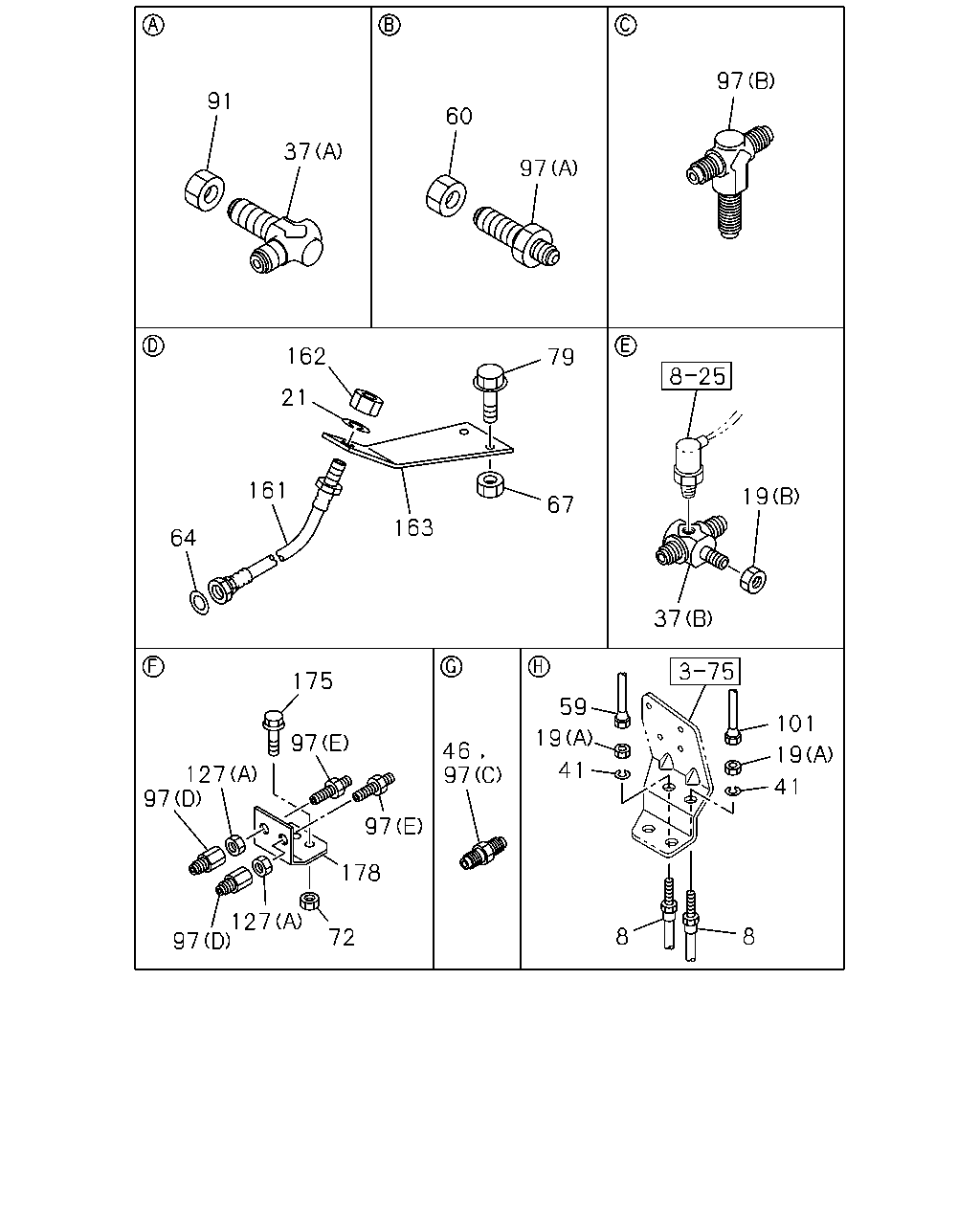

97 91 60 37 97 162 79 21 161 19 67 163 64 37 175 59 101 19 97 46 97 19 41 127 97 41 97 178 127 97 8 8 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	HOSE; FLEX,AIR,CAB SIDE L=520	1-09363-605-0	02	1	0005-0210	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=580	1-09363-764-0	02	1	0211-	●	●	●	●
19	NUT; PIPE UNION (B) M12	9-99111-412-0	01	1	0005-0210	●	●	●	●
19	NUT; PIPE UNION MLD7Q M/T(X5K) (B) M12	9-99111-412-0	01	1	0005-0210	●	●
19	NUT; PIPE UNION (B) M12	9-99111-412-0	01	1	0211-0512	●	●	●	●
19	NUT; PIPE UNION (B) M12	9-99111-412-0	01	1	0211-0512	●	●
19	NUT; PIPE UNION (B) M12	0-91111-512-0	01	1	0601-	●	●	●	●
19	NUT; PIPE UNION (B) M12	0-91111-512-0	01	1	0601-	●	●
19	NUT; PIPE UNION (A) M16	9-99111-416-0	02	1	0005-0512	●	●	●	●
19	NUT; PIPE UNION (A) M16	0-91111-516-0	02	1	0601-	●	●	●	●
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0603	●	●	●	●
21	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●	●	●
37	UNION; AIR PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0005-	●	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	0005-0210	●	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	0005-0210	●	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	02	1	0211-0607	●	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0608-	●	●	●	●
41	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●	●	●	●
41	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●
46	NIPPLE; AIR PIPE M14 STRAIGHT	9-09223-008-1	01	1	0005-0607	●	●	●	●
46	NIPPLE; AIR PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE	1-49119-378-0	01	1	0005-0012			●
59	PIPE; AIR,UNION TO FLEX HOSE L=3377 SERVICED BY L=3500	1-47428-887-0	01	1	0101-0210			●
59	PIPE; AIR,UNION TO FLEX HOSE L=3380 SERVICED BY L=3500	1-47428-887-0	01	1	0211-			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0012				●
59	PIPE; AIR,UNION TO FLEX HOSE L=3420 SERVICED BY L=3500	1-47428-887-0	01	1	0101-0102				●
59	PIPE; AIR,UNION TO FLEX HOSE L=3429 SERVICED BY L=3500	1-47428-887-0	01	1	0103-0210				●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0008	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3500	1-47428-887-0	01	1	0009-0009	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3470 SERVICED BY L=3500	1-47428-887-0	01	1	0010-0210	●	●
59	PIPE; AIR,UNION TO FLEX HOSE	1-49123-304-0	01	1	0211-0304	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3521	1-49124-087-0	01	1	0305-	●	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	01	1	0005-0512	●	●	●	●
60	NUT; NIPPLE,AIR PIPE M16	0-91111-516-0	01	1	0601-	●	●	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0005-	●	●	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
79	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●	●
79	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	01	1	0005-0210	●	●	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	01	1	0005-0210	●	●	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	0211-0512	●	●	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0601-	●	●	●	●
97	UNION; AIR PIPE (B) M14 2WAY	1-09654-176-2	01	1	0005-0210			●	●
97	UNION; AIR PIPE MLD7Q M/T(X5K) (B) M14 2WAY	1-09654-176-2	01	1	0005-0210	●	●
97	UNION; AIR PIPE (B) M14 2WAY	1-09654-176-2	01	1	0211-	●	●	●	●
97	UNION; AIR PIPE (A)	1-09654-229-1	01	1	0005-	●	●	●	●
97	UNION; AIR PIPE (D) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	0005-0007	●	●	●	●
97	UNION; AIR PIPE (D) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-	●	●	●	●
97	UNION; AIR PIPE (C) M14 STRAIGHT	9-09223-008-1	01	1	0005-0607	●	●	●	●
97	UNION; AIR PIPE (C) M14 STRAIGHT	9-09223-008-1	01	1	0005-0607	●	●
97	UNION; AIR PIPE (C) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●	●
97	UNION; AIR PIPE (C) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●
97	UNION; AIR PIPE (E) M14 L=59.5	9-09223-108-1	02	1	0005-0607	●	●	●	●
97	UNION; AIR PIPE (E) M14 L=59.5	0-92113-108-0	02	1	0608-	●	●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3103 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3108 SERVICED BY L=3300	1-47428-886-0	01	1	0101-0102			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3117 SERVICED BY L=3300	1-47428-886-0	01	1	0103-0210			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3102 SERVICED BY L=3300	1-47428-886-0	01	1	0211-			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0008	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	0009-0009	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3199 SERVICED BY L=3300	1-47428-886-0	01	1	0010-0210	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3248 SERVICED BY L=3300	1-47428-886-0	01	1	0211-0304	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3249 SERVICED BY L=3300	1-47428-801-0	01	1	0305-	●	●
127	NUT; UNION (A) M14	9-99111-414-0	02	1	0005-0512	●	●	●	●
127	NUT; UNION (A) M14	0-91111-514-0	02	1	0601-	●	●	●	●
127	NUT; UNION (B) M20	9-99111-420-0	01	1	0005-0512	●	●	●	●
127	NUT; UNION (B) M20	0-91111-520-0	01	1	0601-	●	●	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=580	0-07462-580-1	01	1	0005-0605	●	●	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=580	0-57462-580-1	01	1	0606-	●	●	●	●
162	NUT; FLEX HOSE M14	9-99111-414-0	01	1	0005-0512	●	●	●	●
162	NUT; FLEX HOSE M14	0-91111-514-0	01	1	0601-	●	●	●	●
163	BRACKET; FLEX HOSE	1-47475-464-0	01	1	0005-	●	●	●	●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●	●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
178	BRACKET; UNION	1-47475-611-4	01	1	0005-0210	●	●	●	●
178	BRACKET; UNION	1-47479-420-0	01	1	0211-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
