Isuzu WW
▶
TRUCKS
▶
NPR
▶
51396 - NPR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

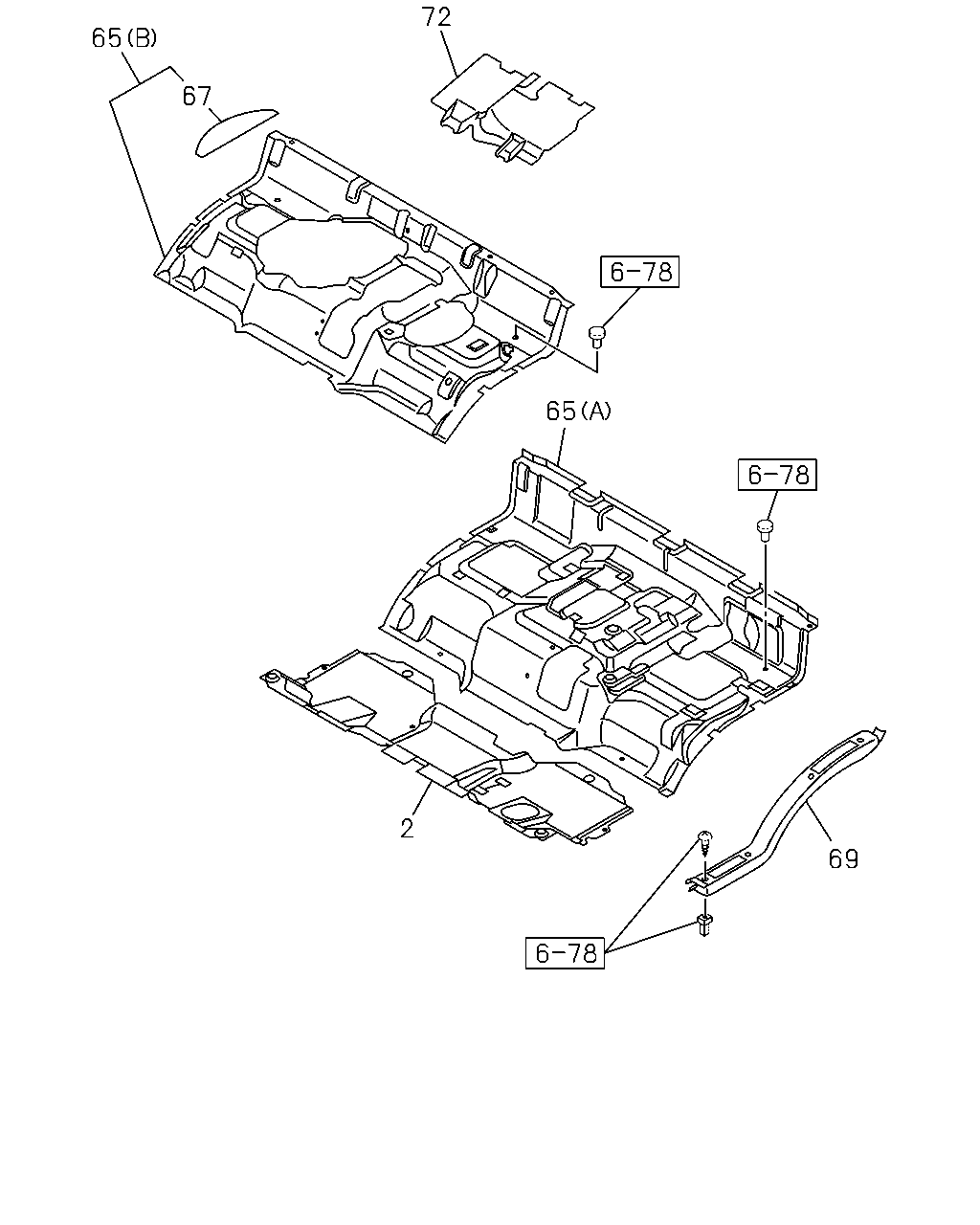

6-75 — MAT AND CARPET
(#81584) — 10 parça
72
65
67
65
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.800 MAT; FLOOR
GRAY
8-97405-979-4
01
1
0810-
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-98112-607-4
01
1
0810-1303
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-97425-115-0
01
1
1304-
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97411-889-4
01
1
0810-1303
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-127-0
01
1
1304-
67
16.549 LID; COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97408-863-0
01
1
0810-0904
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
0810-
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
0810-
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97405-998-3
01
1
0810-0911
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97417-599-1
01
1
0912-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
