3-75 — BRAKE PIPING; AIR,FRONT (#8158) — 122 parça
çizim 77562

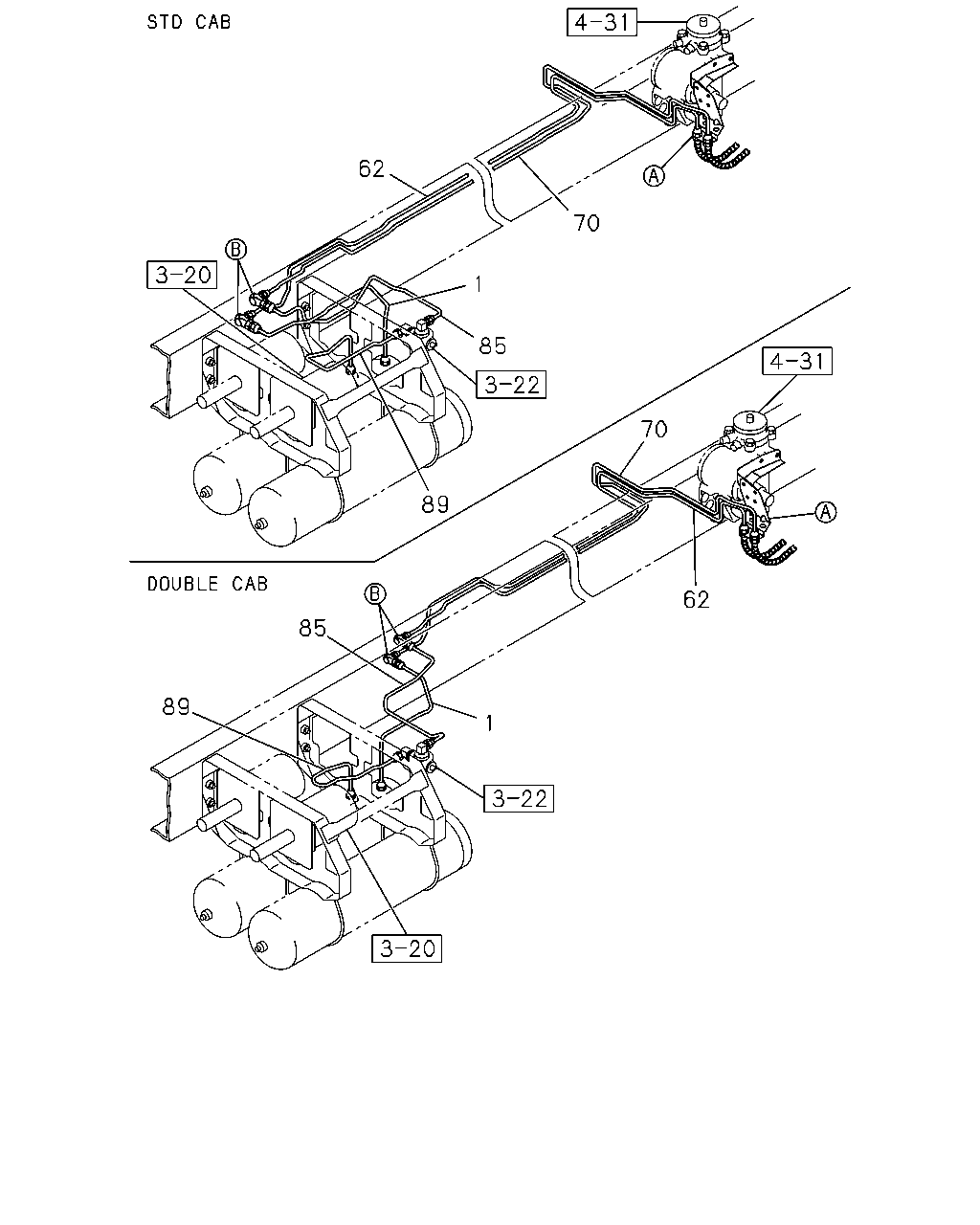

62 70 1 85 70 89 62 85 89 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; AIR,AIR TANK TO UNION 1-49116-390-0 01 1 0005-0210 ●
1 PIPE; AIR,AIR TANK TO UNION 1-49123-720-0 01 1 0211- ●
1 PIPE; AIR,AIR TANK TO UNION 1-49116-494-0 01 1 0005-0210 ●
1 PIPE; AIR,AIR TANK TO UNION 1-49123-685-0 01 1 0211- ●
1 PIPE; AIR,AIR TANK TO UNION
MLD6D M/T(X5Q) 		1-49122-627-0 01 1 0005-0210 ● ●
1 PIPE; AIR,AIR TANK TO UNION
MLD7Q M/T(X5K) 		1-49122-619-0 01 1 0005-0210 ● ●
1 PIPE; AIR,AIR TANK TO UNION 1-49123-206-0 01 1 0211- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2753 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2752 SERVICED BY L=2900 		1-47428-885-0 01 1 0101-0102 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2758 SERVICED BY L=2900 		1-47428-885-0 01 1 0103-0210 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2903 SERVICED BY L=3300 		1-47428-886-0 01 1 0211- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3029 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0210 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3089 SERVICED BY L=3300 		1-47428-886-0 01 1 0211-0304 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3090 SERVICED BY L=3300 		1-47428-801-0 01 1 0305- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2885 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2884 SERVICED BY L=2900 		1-47428-885-0 01 1 0101-0102 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2895 SERVICED BY L=2900 		1-47428-885-0 01 1 0103-0210 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3136 SERVICED BY L=3300 		1-47428-886-0 01 1 0211-0302 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3133 SERVICED BY L=3300 		1-47428-886-0 01 1 0303- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3177 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0210 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3233 SERVICED BY L=3500 		1-47428-887-0 01 1 0211-0304 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3234 SERVICED BY L=3300 		1-47428-801-0 01 1 0305- ● ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV 1-49116-391-0 01 1 0005-0210 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV 1-49123-721-0 01 1 0211- ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV 1-49116-495-0 01 1 0005-0210 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV 1-49123-686-0 01 1 0211- ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
MLD6D M/T(X5Q) L=598 SERVICED BY L=600 		1-47428-868-0 01 1 0005-0210 ● ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
MLD7Q M/T(X5K) L=763 SERVICED BY L=800 		1-47428-872-0 01 1 0005-0210 ● ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV 1-49123-233-0 01 1 0211- ● ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER 1-49118-381-0 01 1 0005-0210 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER 1-49118-121-0 01 1 0005-0210 ● ● ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER 1-49118-121-0 01 1 0211- ● ● ● ●
çizim 77663

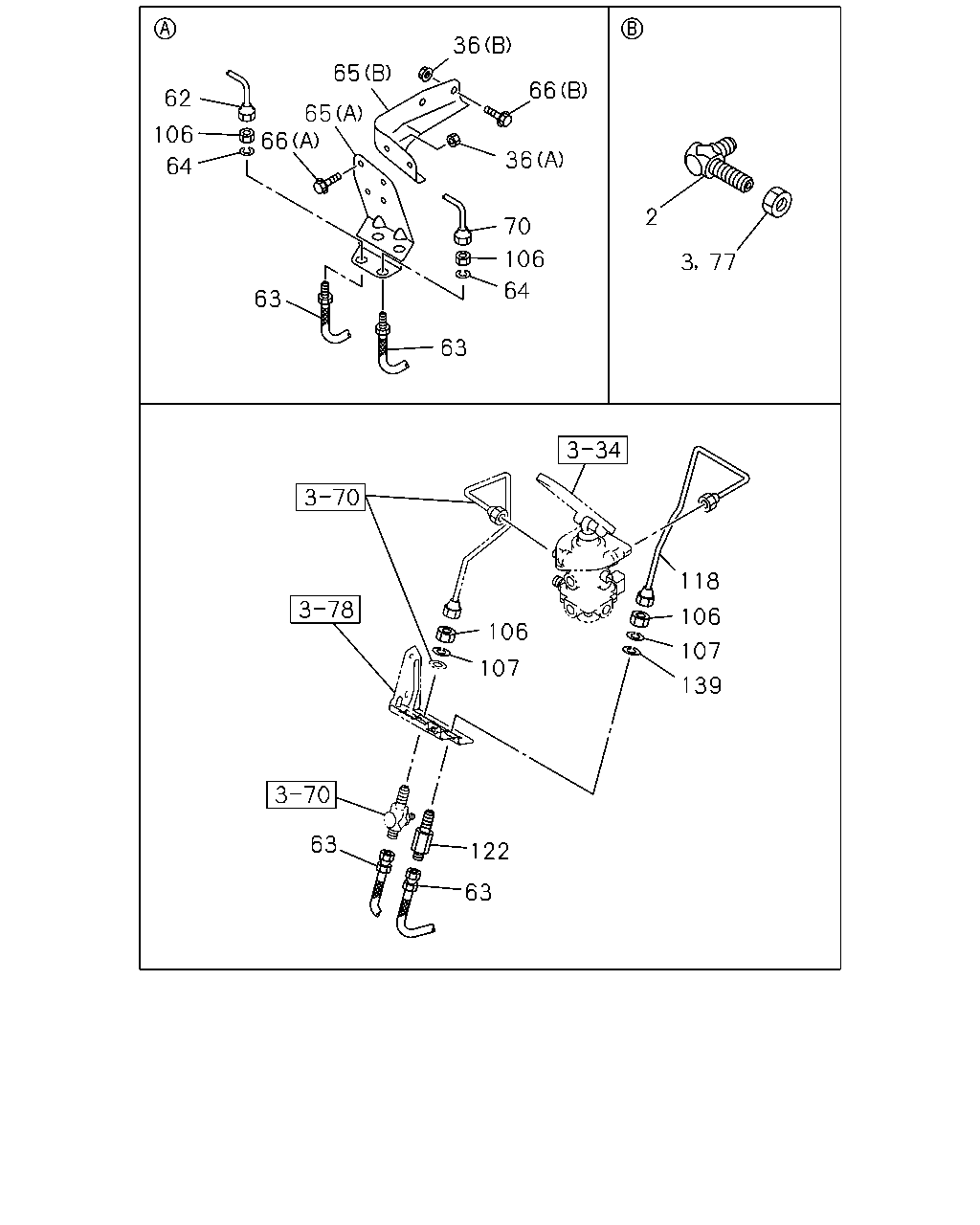

36 65 66 62 65 66 106 36 64 2 70 106 3 77 64 63 63 118 106 106 107 107 139 63 122 63
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 UNION; AIR PIPE
M16 ELBOW 		9-09235-210-1 02 1 0005-0607 ● ● ● ●
2 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 0608- ● ● ● ●
3 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 0005-0512 ● ● ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0601- ● ● ● ●
36 NUT; HOSE BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ●
36 NUT; HOSE BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
36 NUT; HOSE BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ● ● ●
36 NUT; HOSE BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2753 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2752 SERVICED BY L=2900 		1-47428-885-0 01 1 0101-0102 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2758 SERVICED BY L=2900 		1-47428-885-0 01 1 0103-0210 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2903 SERVICED BY L=3300 		1-47428-886-0 01 1 0211- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3029 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0210 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3089 SERVICED BY L=3300 		1-47428-886-0 01 1 0211-0304 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3090 SERVICED BY L=3300 		1-47428-801-0 01 1 0305- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=700 		1-09363-604-1 02 1 0005-0210 ● ● ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=760 		1-09363-886-0 02 1 0211- ● ● ● ●
64 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ● ● ●
64 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ● ●
65 BRACKET; FLEX HOSE
(B) 		1-47476-762-0 01 1 0005- ● ●
65 BRACKET; FLEX HOSE
(A) 		1-47476-761-1 01 1 0005- ● ● ● ●
65 BRACKET; FLEX HOSE
(B) 		1-47477-215-0 01 1 0005- ● ●
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28181-016-0 02 1 0005-0512 ● ● ● ●
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ● ● ●
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ●
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2885 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2884 SERVICED BY L=2900 		1-47428-885-0 01 1 0101-0102 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2895 SERVICED BY L=2900 		1-47428-885-0 01 1 0103-0210 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3136 SERVICED BY L=3300 		1-47428-886-0 01 1 0211-0302 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3133 SERVICED BY L=3300 		1-47428-886-0 01 1 0303- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3177 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0210 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3233 SERVICED BY L=3500 		1-47428-887-0 01 1 0211-0304 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3234 SERVICED BY L=3300 		1-47428-801-0 01 1 0305- ● ●
77 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 0005-0512 ● ● ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0601- ● ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 0005-0210 ● ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 0005-0210 ● ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 04 1 0211-0512 ● ● ● ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 04 1 0601- ● ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=419 		1-49115-942-3 01 1 0005- ● ● ● ●
122 CONNECTOR; FLEX HOSE 1-09654-394-0 01 1 0005- ● ● ● ●
139 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0005-0605 ● ● ● ●
139 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ● ●
çizim 103056

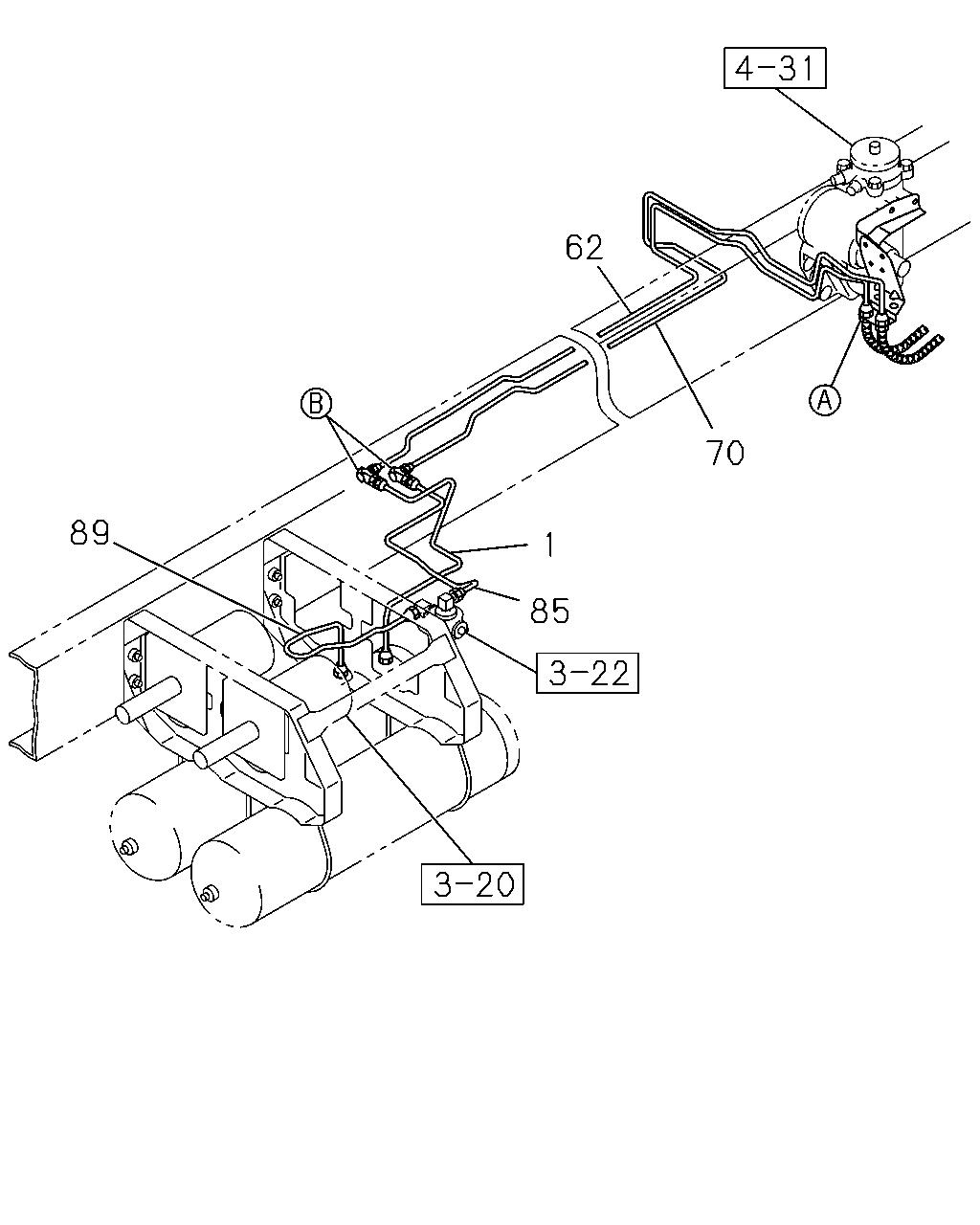

62 70 89 1 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; AIR,AIR TANK TO UNION 1-49116-390-0 01 1 0005-0210 ●
1 PIPE; AIR,AIR TANK TO UNION 1-49123-720-0 01 1 0211- ●
1 PIPE; AIR,AIR TANK TO UNION 1-49116-494-0 01 1 0005-0210 ●
1 PIPE; AIR,AIR TANK TO UNION 1-49123-685-0 01 1 0211- ●
1 PIPE; AIR,AIR TANK TO UNION
MLD6D M/T(X5Q) 		1-49122-627-0 01 1 0005-0210 ● ●
1 PIPE; AIR,AIR TANK TO UNION
MLD7Q M/T(X5K) 		1-49122-619-0 01 1 0005-0210 ● ●
1 PIPE; AIR,AIR TANK TO UNION 1-49123-206-0 01 1 0211- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2753 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2752 SERVICED BY L=2900 		1-47428-885-0 01 1 0101-0102 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2758 SERVICED BY L=2900 		1-47428-885-0 01 1 0103-0210 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2903 SERVICED BY L=3300 		1-47428-886-0 01 1 0211- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3029 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0210 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3089 SERVICED BY L=3300 		1-47428-886-0 01 1 0211-0304 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3090 SERVICED BY L=3300 		1-47428-801-0 01 1 0305- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2885 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2884 SERVICED BY L=2900 		1-47428-885-0 01 1 0101-0102 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2895 SERVICED BY L=2900 		1-47428-885-0 01 1 0103-0210 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3136 SERVICED BY L=3300 		1-47428-886-0 01 1 0211-0302 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3133 SERVICED BY L=3300 		1-47428-886-0 01 1 0303- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3177 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0210 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3233 SERVICED BY L=3500 		1-47428-887-0 01 1 0211-0304 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3234 SERVICED BY L=3300 		1-47428-801-0 01 1 0305- ● ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV 1-49116-391-0 01 1 0005-0210 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV 1-49123-721-0 01 1 0211- ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV 1-49116-495-0 01 1 0005-0210 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV 1-49123-686-0 01 1 0211- ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
MLD6D M/T(X5Q) L=598 SERVICED BY L=600 		1-47428-868-0 01 1 0005-0210 ● ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
MLD7Q M/T(X5K) L=763 SERVICED BY L=800 		1-47428-872-0 01 1 0005-0210 ● ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV 1-49123-233-0 01 1 0211- ● ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER 1-49118-381-0 01 1 0005-0210 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER 1-49118-121-0 01 1 0005-0210 ● ● ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER 1-49118-121-0 01 1 0211- ● ● ● ●
