◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51396 - NPR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#81574) — 53 parça

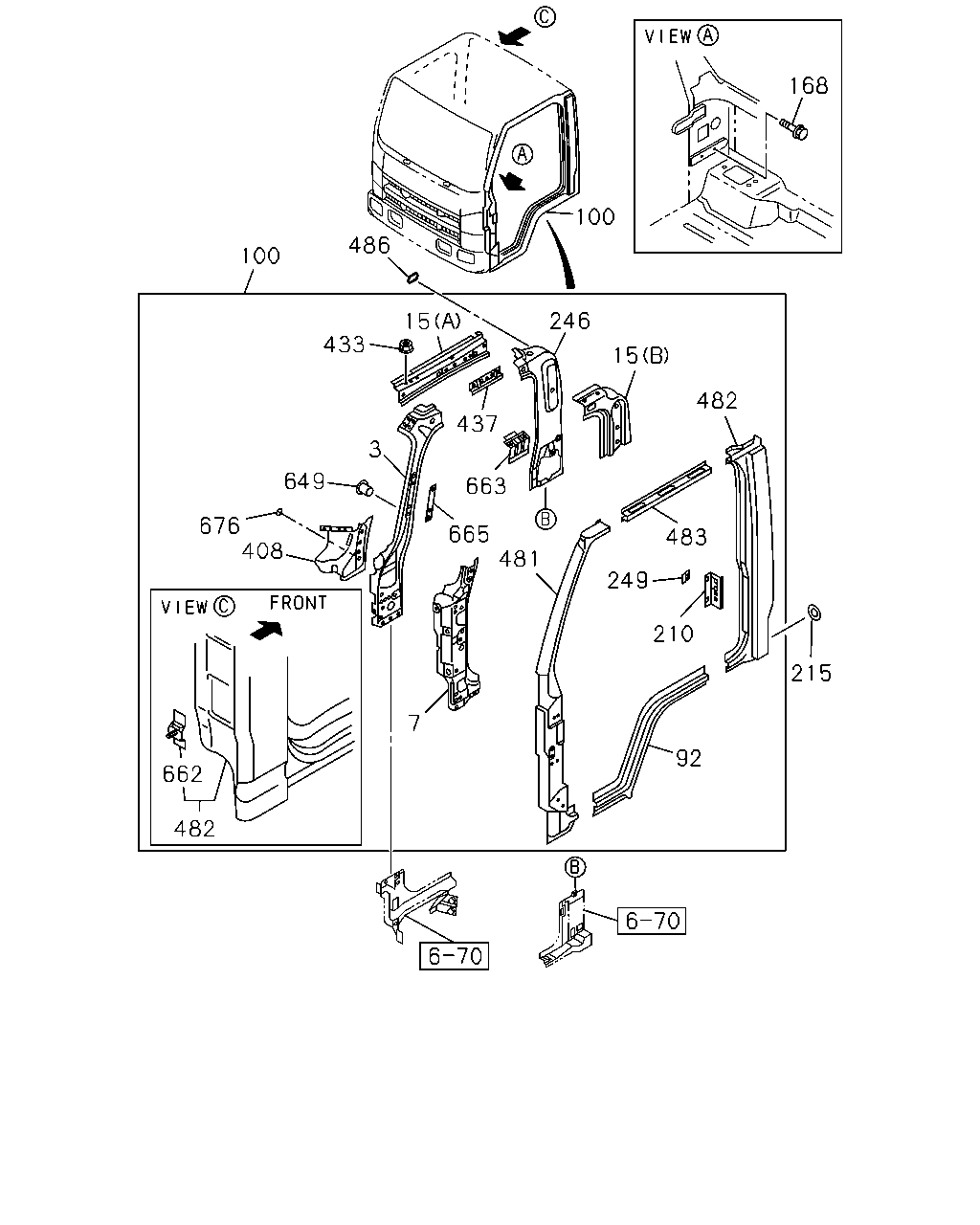

çizim 126836
168 100 486 100 246 15 433 15 482 437 3 649 663 676 408 665 481 483 249 210 215 7 92 662 482
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0810-
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0810-
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0810-
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0810-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 0810-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 0810-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 0810-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 0810-
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0810-
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0810-
100 16.570 PANEL ASM; BODY SIDE 8-97586-030-6 01 1 0810-
100 16.570 PANEL ASM; BODY SIDE 8-98088-548-3 01 1 0810-
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0810-
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 0810-
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 0810-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0810-
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 0810-
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 0810-
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0810-
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0810-
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 0810-
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 0810-
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0810-
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0810-
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 0810-
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 0810-
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-787-0 01 1 0810-
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 0810-
482 16.570 PANEL; SIDE RR PILLAR 8-98092-921-0 01 1 0810-
482 16.570 PANEL; SIDE RR PILLAR 8-98055-472-0 01 1 0810-0811
482 16.570 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 0812-
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0810-
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0810-
486 16.570 SEAL; BODY SIDE
BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0810-0810
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0811-0903
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BO DY COLOR WOODLAND GREEN(807),BODY COLOR FRENCH VANILLA(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLO R HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904-
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0810-0903
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904-
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 0810-
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 0810-
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 0810-
663 08.228 BRACKET; AIR 8-97585-208-2 01 1 0810-
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0810-
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0810-
676 16.520 SEAL
EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0810-1007
676 16.520 SEAL
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1008-

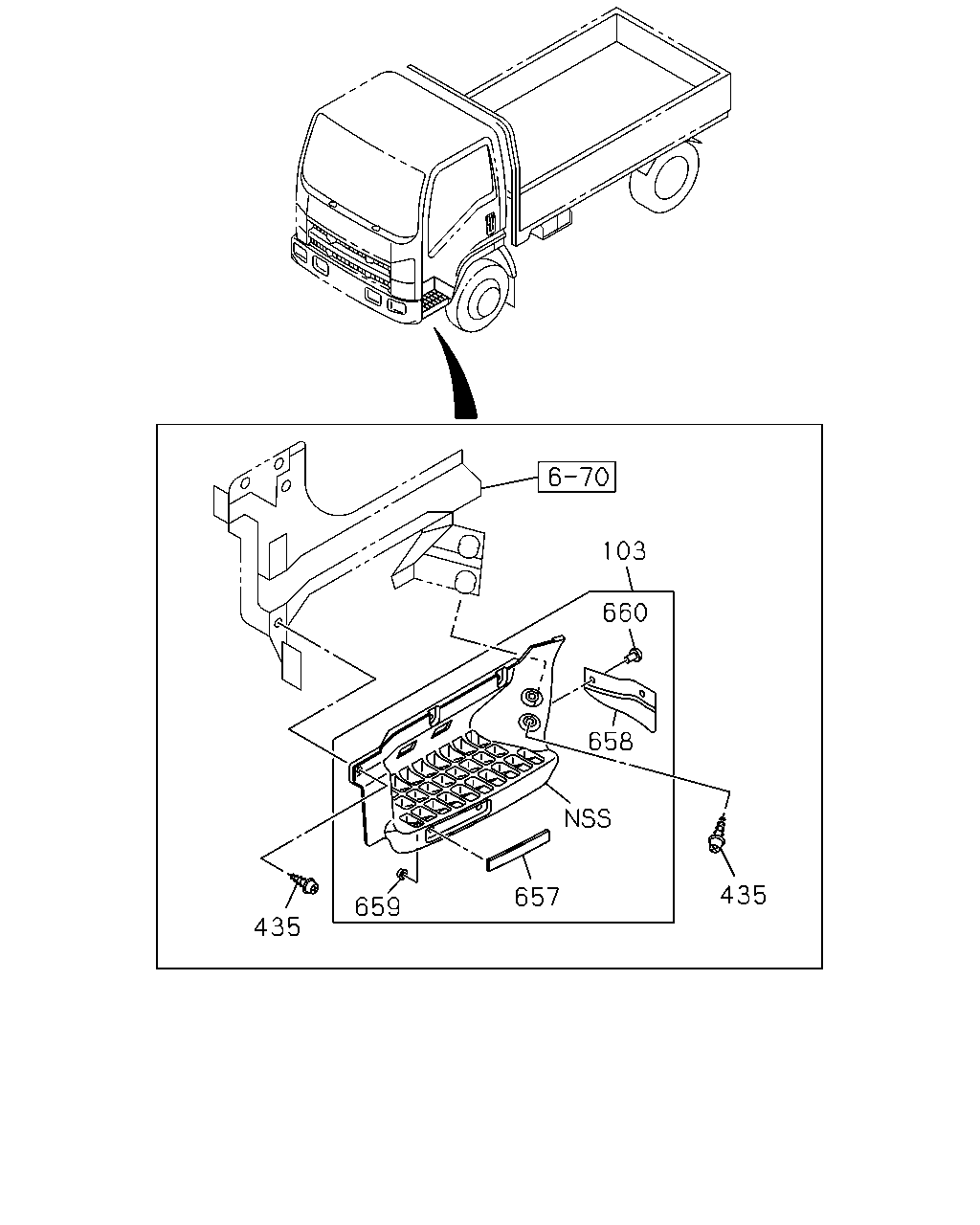

çizim 130598
103 660 658 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP 8-98022-774-3 01 1 0810-
103 08.228 PLATE; STEP 8-98022-775-3 01 1 0810-
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 0810-
657 16.585 REFLECTOR; REFLEX 8-97378-910-0 02 1 0810-
658 08.228 FLAP; STEP 8-98037-560-1 02 1 0810-
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 0810-
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 0810-
