◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#8157) — 334 parça

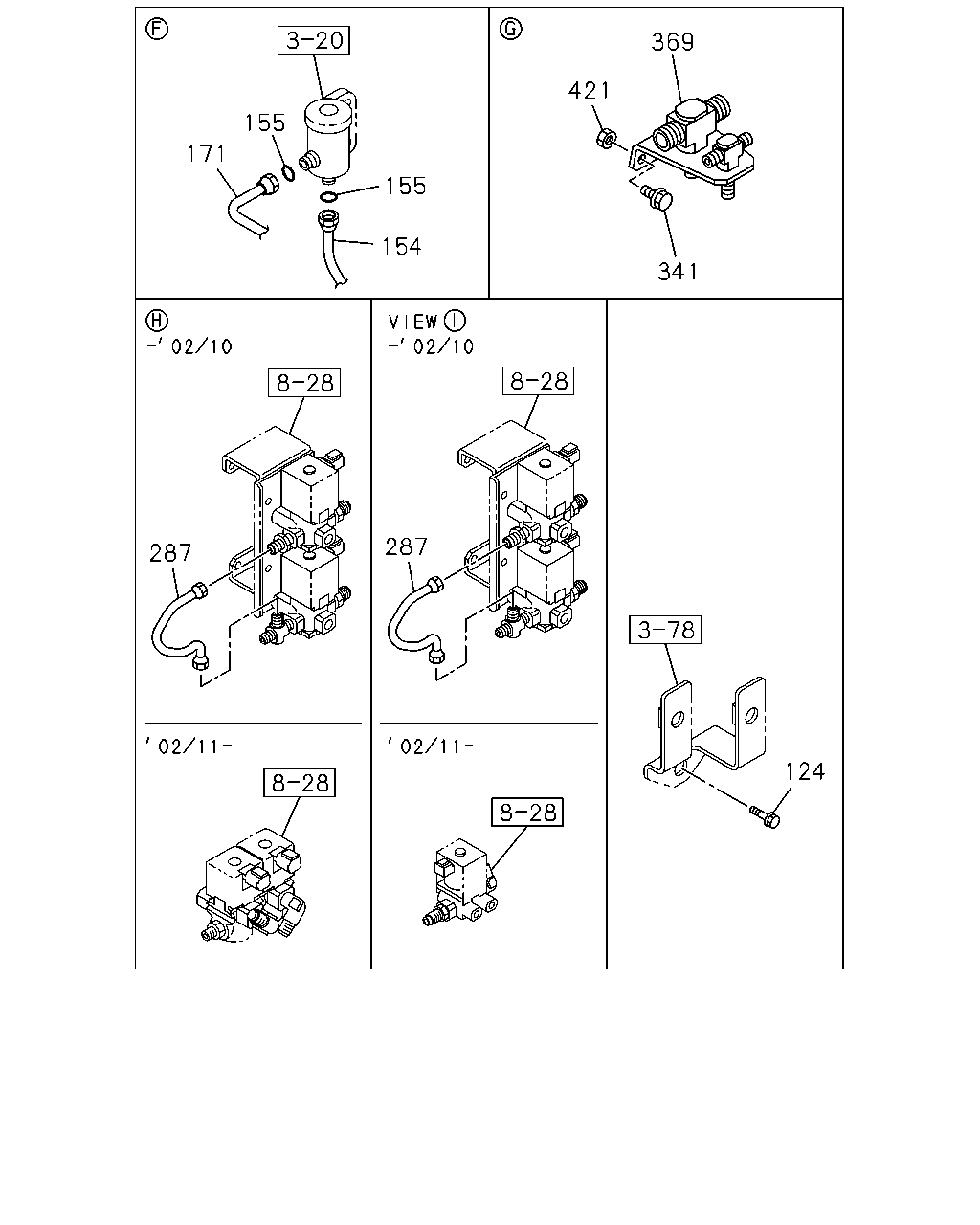

çizim 77630
369 421 155 171 155 154 341 287 287 124
BalonParca AdiParca NoAdetTipApplied Date A B C D
124 BOLT; BRKT
MLD6D M/T(X5Q) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0104 ●
124 BOLT; BRKT
MLD6D M/T(X5Q) DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE 		0-28680-825-0 01 1 0005-0104 ●
124 BOLT; BRKT
MLD6D M/T(X5Q) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0210 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-125-0 01 1 0005- ● ● ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 0005- ● ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-548-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1328 SERVICED BY L=2500 		1-47428-826-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49117-304-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1570 SERVICED BY L=1620 		1-47428-820-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-49115-577-0 01 1 0005-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
MLD7Q M/T(X5K) L=1654 SERVICED BY L=1700 		1-47428-821-0 01 1 0005-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1388 SERVICED BY L=1500 		1-47428-819-0 01 1 0211- ● ●
287 PIPE; AIR,MAG VLV
L=207 		1-49113-918-0 01 1 0005-0210 ● ● ● ●
287 PIPE; AIR,MAG VLV
L=207 		1-49113-918-0 01 1 0005-0210 ● ● ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
369 UNION; AIR PIPE 1-47470-494-0 01 1 0005-0210 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●

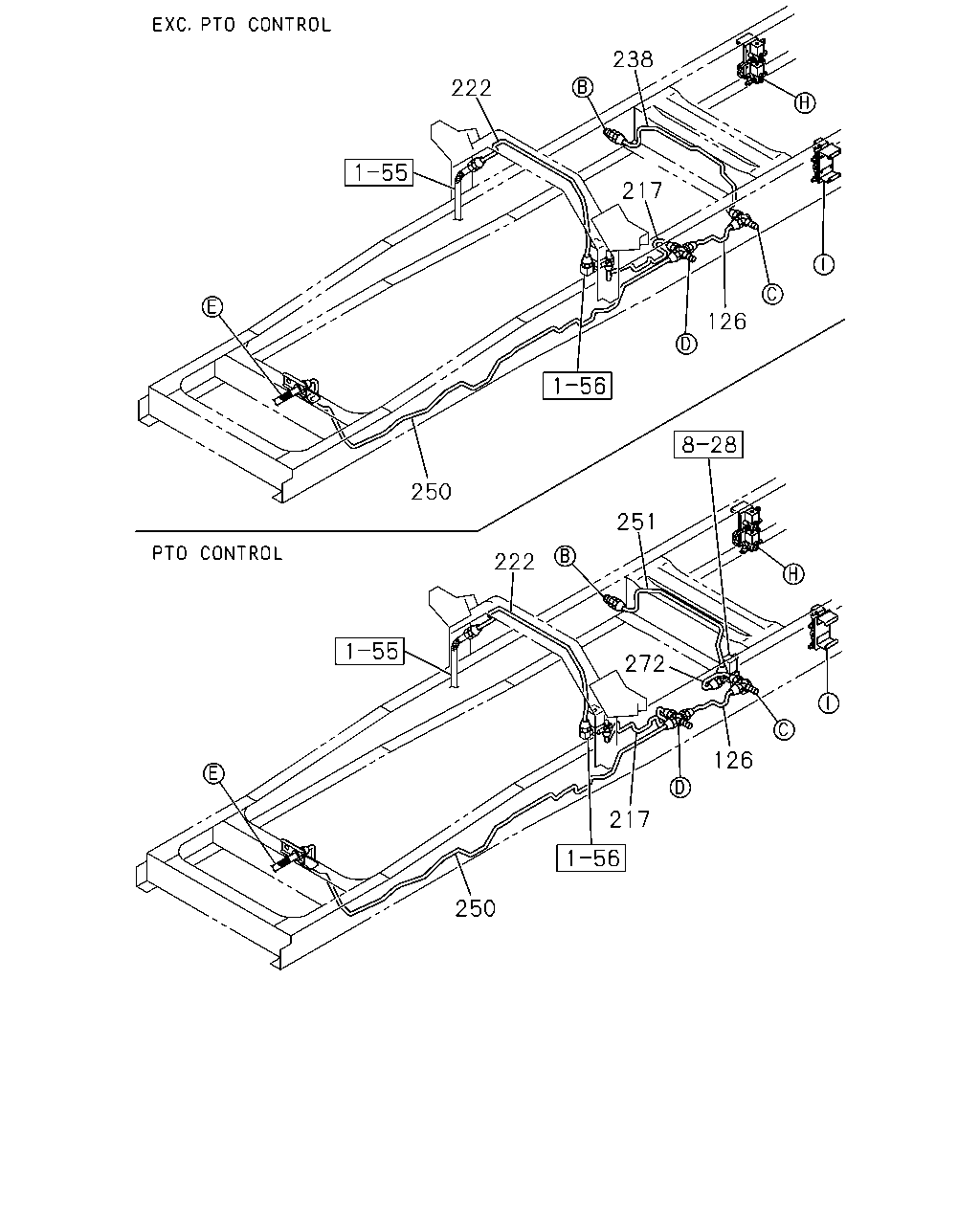

çizim 77732
238 222 217 126 250 251 222 272 126 217 250
BalonParca AdiParca NoAdetTipApplied Date A B C D
126 PIPE; AIR,UNION TO UNION 1-49118-969-0 01 1 0005-0210 ● ●
126 PIPE; AIR,UNION TO UNION 1-49123-719-0 01 1 0211- ● ●
126 PIPE; AIR,UNION TO UNION 1-49117-312-0 01 1 0005-0210 ●
126 PIPE; AIR,UNION TO UNION 1-49123-480-0 01 1 0211- ● ●
126 PIPE; AIR,UNION TO UNION 1-49116-465-0 01 1 0005-0210 ●
217 PIPE; VAC,UNION TO MAG VLV
ASSISTOR SHIFT CONTROL<WX8> L=696 SERVICED BY L=700 		1-47428-811-0 01 1 0406- ●
217 PIPE; VAC,UNION TO MAG VLV
ASSISTOR SHIFT CONTROL<WX8> L=615 SERVICED BY L=650 		1-47428-810-0 01 1 0406- ●
217 PIPE; VAC,UNION TO MAG VLV
L=777 SERVICED BY L=800 		1-47428-812-0 01 1 0005-0210 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-726-0 01 1 0211-0405 ●
217 PIPE; VAC,UNION TO MAG VLV
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-726-0 01 1 0406- ●
217 PIPE; VAC,UNION TO MAG VLV
L=670 SERVICED BY L=650 		1-47428-810-0 01 1 0005-0210 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-727-0 01 1 0211-0301 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-995-0 01 1 0302-0405 ●
217 PIPE; VAC,UNION TO MAG VLV
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-995-0 01 1 0406- ●
217 PIPE; VAC,UNION TO MAG VLV
L=760 SERVICED BY L=800 		1-47428-812-0 01 1 0005-0010 ●
217 PIPE; VAC,UNION TO MAG VLV
L=760 SERVICED BY L=800 		1-47428-812-0 01 1 0011-0210 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-492-0 01 1 0211- ●
217 PIPE; VAC,UNION TO MAG VLV
L=731 SERVICED BY L=800 		1-47428-812-0 01 1 0005-0210 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-498-0 01 1 0211- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1035 SERVICED BY L=1100 		1-47426-351-0 01 1 0005-0210 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0211- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1046 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE 1-49123-693-0 01 1 0211- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1103 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1101 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1030 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1025 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
238 PIPE; AIR,UNION TO UNION
L=1024 SERVICED BY L=1100 		1-47428-815-0 01 1 0211- ● ●
238 PIPE; AIR,UNION TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. PTO CONTROL<SV6> L=1352 SERVICED BY L=1370 		1-47426-354-0 01 1 0005-0210 ● ●
238 PIPE; AIR,UNION TO UNION
MLD7Q M/T(X5K) EXC. PTO CONTROL<SV6> L=1478 SERVICED BY L=1500 		1-47428-819-0 01 1 0005-0210 ● ●
238 PIPE; AIR,UNION TO UNION
L=1466 SERVICED BY L=1550 		1-47428-879-0 01 1 0211- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2606 SERVICED BY L=2650 		1-47426-363-0 01 1 0005-0006 ●
250 PIPE; AIR,UNION TO FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> L=2606 SERVICED BY L=2650 		1-47426-363-0 01 1 0005-0006 ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2594 SERVICED BY L=2650 		1-47428-827-0 01 1 0007-0104 ●
250 PIPE; AIR,UNION TO FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> L=2594 SERVICED BY L=2650 		1-47428-827-0 01 1 0007-0104 ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2594 SERVICED BY L=2650 		1-47428-827-0 01 1 0105-0210 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2604 SERVICED BY L=2650 		1-47428-827-0 01 1 0211-0301 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2606 SERVICED BY L=2650 		1-47428-827-0 01 1 0302- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2473 SERVICED BY L=2500 		1-47426-362-0 01 1 0005-0104 ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2462 SERVICED BY L=2500 		1-47428-826-0 01 1 0105-0210 ●
250 PIPE; AIR,UNION TO FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> L=2464 SERVICED BY L=2500 		1-47426-362-0 01 1 0005-0104 ●
250 PIPE; AIR,UNION TO FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> L=2455 SERVICED BY L=2500 		1-47428-826-0 01 1 0105-0105 ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2455 SERVICED BY L=2500 		1-47428-826-0 01 1 0106-0210 ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2412 SERVICED BY L=2500 		1-47428-826-0 01 1 0211-0304 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2418 SERVICED BY L=2500 		1-47428-826-0 01 1 0305- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=882 SERVICED BY L=900 		1-47428-813-0 01 1 0005-0210 ● ●
251 PIPE; AIR,UNION TO MAG VLV
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PTO CONTROL<SV6> L=955 SERVICED BY L=1000 		1-47428-814-0 01 1 0005-0210 ● ●
251 PIPE; AIR,UNION TO MAG VLV
MLD7Q M/T(X5K) PTO CONTROL<SV6> L=1251 SERVICED BY L=1250 		1-47428-817-0 01 1 0005-0210 ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> 		1-49116-360-0 01 1 0005-0210 ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> 		1-49116-466-0 01 1 0005-0210 ● ●

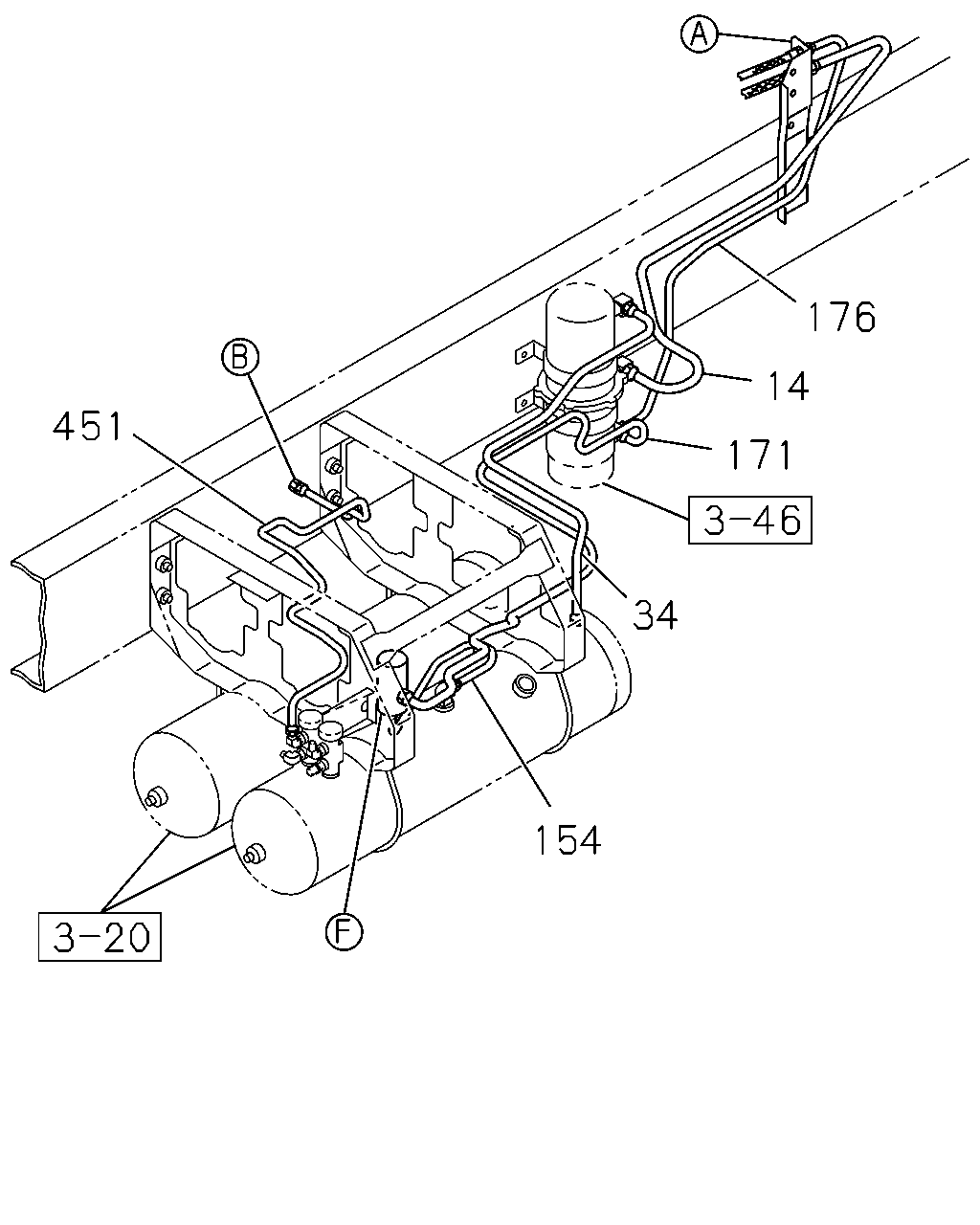

çizim 78073
176 14 451 171 34 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-301-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-444-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-445-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49122-543-0 01 1 0005-0210 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-449-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-204-0 01 1 0211- ●
34 PIPE; AIR
L=1337 SERVICED BY L=1450 		1-49115-466-0 01 1 0005-0210 ●
34 PIPE; AIR 1-49123-722-0 01 1 0211- ●
34 PIPE; AIR
L=1127 SERVICED BY L=1200 		1-49111-445-0 01 1 0005-0210 ●
34 PIPE; AIR
L=1043 SERVICED BY L=1100 		1-49115-486-0 01 1 0211- ●
34 PIPE; AIR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-49115-576-0 01 1 0005-0210 ● ●
34 PIPE; AIR
MLD7Q M/T(X5K) 		1-49122-331-0 01 1 0005-0210 ● ●
34 PIPE; AIR 1-49123-448-0 01 1 0211- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-125-0 01 1 0005- ● ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-548-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1328 SERVICED BY L=2500 		1-47428-826-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49117-304-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1570 SERVICED BY L=1620 		1-47428-820-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-49115-577-0 01 1 0005-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
MLD7Q M/T(X5K) L=1654 SERVICED BY L=1700 		1-47428-821-0 01 1 0005-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1388 SERVICED BY L=1500 		1-47428-819-0 01 1 0211- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1039 SERVICED BY L=1100 		1-47426-351-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1156 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49117-303-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1162 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1195 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION
L=895 		1-49115-807-0 01 1 0005-0210 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1231 SERVICED BY L=1250 		1-47428-876-0 01 1 0211- ●
451 PIPE; AIR,AIR TANK TO NIPPLE
L=1025 		1-49122-550-0 01 1 0005-0005 ●
451 PIPE; AIR,AIR TANK TO NIPPLE
L=1020 		1-49122-679-0 01 1 0006-0210 ●
451 PIPE; AIR,AIR TANK TO NIPPLE
L=1092 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0005 ●
451 PIPE; AIR,AIR TANK TO NIPPLE
L=1087 		1-49122-678-0 01 1 0006-0210 ●
451 PIPE; AIR,AIR TANK TO NIPPLE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) L=1135 SERVICED BY L=1200 		1-47428-816-0 01 1 0005-0210 ● ●
451 PIPE; AIR,AIR TANK TO NIPPLE
MLD7Q M/T(X5K) L=1159 SERVICED BY L=1200 		1-47428-816-0 01 1 0005-0210 ● ●

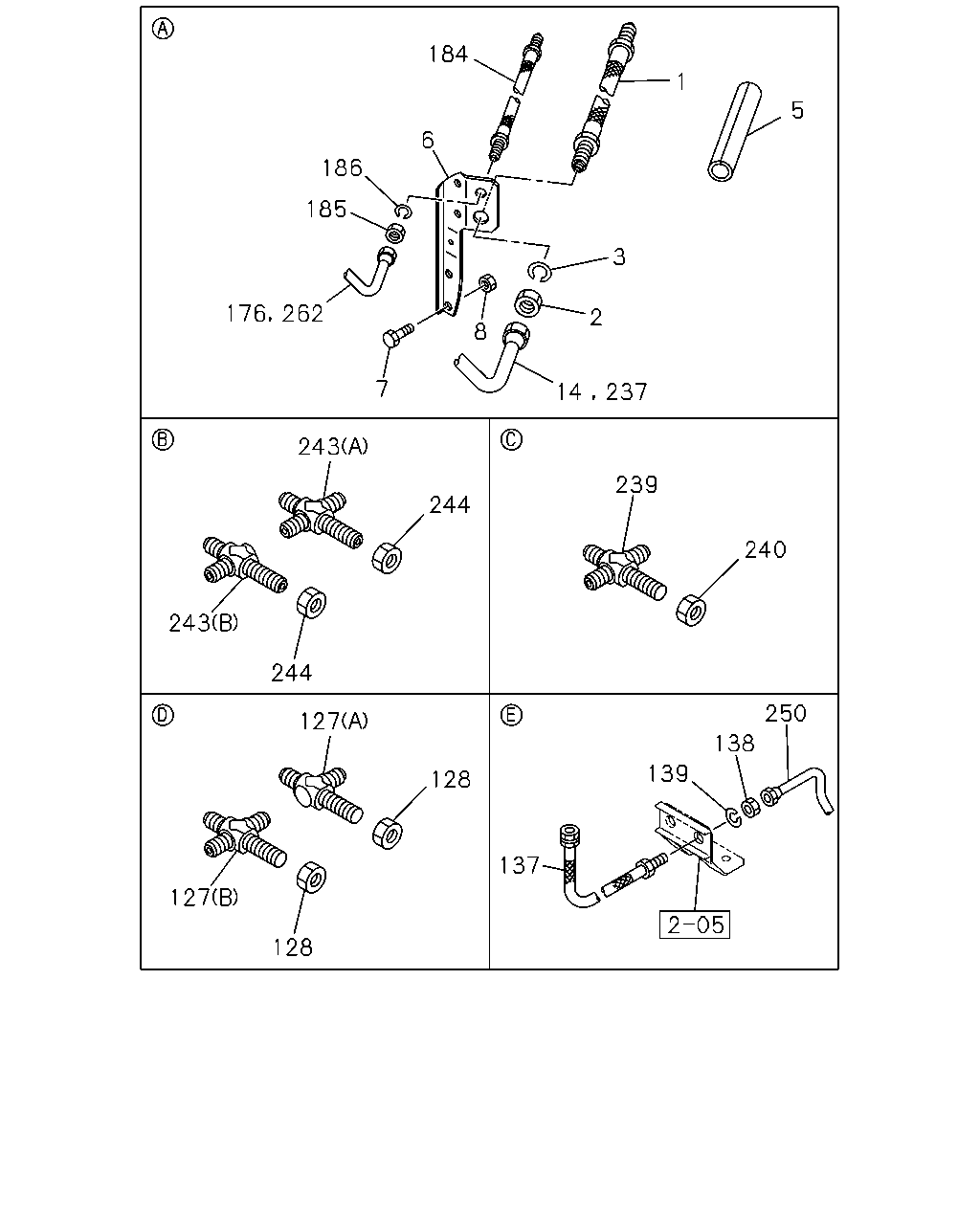

çizim 78109
184 1 5 6 186 185 3 2 8 7 243 239 244 240 243 244 250 127 138 139 128 137 127 128 176 262 14 237
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO(SV1) L=350 		1-09363-558-0 01 1 0005-0210 ● ●
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO(SV1) 		1-09363-904-0 01 1 0211- ● ●
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO(SV1) L=430 		1-09363-559-0 01 1 0005- ● ● ● ●
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO(SV1) L=360 		1-09363-530-0 01 1 0005-0210 ● ●
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO(SV1) L=320 		1-09363-560-1 01 1 0211- ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0005-0512 ● ● ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0005-0603 ● ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ● ● ●
5 SLEEVE; FLEX HOSE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0005-0210 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 0005-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-507-1 01 1 0005- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-301-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-444-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-445-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49122-543-0 01 1 0005-0210 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-449-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-204-0 01 1 0211- ●
127 UNION; AIR PIPE
(B) M12 		9-09228-306-1 01 1 0005-0104 ● ●
127 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) M12 		9-09228-306-1 01 1 0005-0104 ● ●
127 UNION; AIR PIPE
(B) M12 		9-09228-306-1 01 1 0105-0607 ● ● ● ●
127 UNION; AIR PIPE
(B) M12 		0-92138-306-0 01 1 0608- ● ● ● ●
127 UNION; AIR PIPE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) M12 2WAY 		1-09654-059-2 01 1 0005-0104 ● ●
128 NUT; PIPE UNION
M12 		9-99111-412-0 01 1 0005-0512 ● ● ● ●
128 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 0601- ● ● ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=420 		1-09363-633-0 01 1 0005-0104 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
DRIVER ISRINGHAUSEN SEAT<SJA> L=420 		1-09363-633-0 01 1 0005-0104 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=420 		1-09363-633-0 01 1 0105- ● ● ● ●
138 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0005-0104 ● ●
138 NUT; FLEX HOSE,AIR GOV
DRIVER ISRINGHAUSEN SEAT<SJA> M12 		9-09840-280-0 01 1 0005-0104 ● ●
138 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0105- ● ● ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0005-0104 ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
DRIVER ISRINGHAUSEN SEAT<SJA> ID=12.2 		9-09150-512-0 01 1 0005-0104 ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0105-0603 ● ● ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1039 SERVICED BY L=1100 		1-47426-351-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1156 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49117-303-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1162 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1195 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION
L=895 		1-49115-807-0 01 1 0005-0210 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1231 SERVICED BY L=1250 		1-47428-876-0 01 1 0211- ●
184 HOSE; FLEX,AIR GOV
ENGINE REAR PTO(SV1) L=370 		1-09363-586-0 01 1 0211- ● ●
184 HOSE; FLEX,AIR GOV
ENGINE REAR PTO(SV1) L=390 		1-09363-629-0 01 1 0005-0210 ● ● ● ●
184 HOSE; FLEX,AIR GOV
ENGINE REAR PTO(SV1) L=390 		1-09363-629-0 01 1 0211- ● ●
184 HOSE; FLEX,AIR GOV
EXC. ENGINE REAR PTO(SV1) L=350 		1-09363-651-0 01 1 0005-0210 ● ● ● ●
184 HOSE; FLEX,AIR GOV
EXC. ENGINE REAR PTO(SV1) L=330 		1-09363-584-0 01 1 0211- ● ● ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0005- ● ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ● ●
237 PIPE; AIR,FLEX HOSE TO UNION 1-49116-342-1 01 1 0005-0210 ●
239 UNION; AIR PIPE
M12 		9-09228-306-1 01 1 0005-0607 ● ● ● ●
239 UNION; AIR PIPE
M12 		0-92138-306-0 01 1 0608- ● ● ● ●
240 NUT; UNION,AIR PIPE
M12 		9-99111-412-0 01 1 0005-0512 ● ● ● ●
240 NUT; UNION,AIR PIPE
M12 		0-91111-512-0 01 1 0601- ● ● ● ●
243 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0005-0210 ● ● ● ●
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0210 ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09229-206-1 01 1 0005-0210 ● ●
243 UNION; AIR PIPE
(A) M12 		9-09229-206-1 01 1 0211-0607 ● ● ● ●
243 UNION; AIR PIPE
(A) 		0-92149-206-0 01 1 0608- ● ● ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0005- ● ● ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2606 SERVICED BY L=2650 		1-47426-363-0 01 1 0005-0006 ●
250 PIPE; AIR,UNION TO FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> L=2606 SERVICED BY L=2650 		1-47426-363-0 01 1 0005-0006 ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2594 SERVICED BY L=2650 		1-47428-827-0 01 1 0007-0104 ●
250 PIPE; AIR,UNION TO FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> L=2594 SERVICED BY L=2650 		1-47428-827-0 01 1 0007-0104 ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2594 SERVICED BY L=2650 		1-47428-827-0 01 1 0105-0210 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2604 SERVICED BY L=2650 		1-47428-827-0 01 1 0211-0301 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2606 SERVICED BY L=2650 		1-47428-827-0 01 1 0302- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2473 SERVICED BY L=2500 		1-47426-362-0 01 1 0005-0104 ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2462 SERVICED BY L=2500 		1-47428-826-0 01 1 0105-0210 ●
250 PIPE; AIR,UNION TO FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> L=2464 SERVICED BY L=2500 		1-47426-362-0 01 1 0005-0104 ●
250 PIPE; AIR,UNION TO FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> L=2455 SERVICED BY L=2500 		1-47428-826-0 01 1 0105-0105 ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2455 SERVICED BY L=2500 		1-47428-826-0 01 1 0106-0210 ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2412 SERVICED BY L=2500 		1-47428-826-0 01 1 0211-0304 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2418 SERVICED BY L=2500 		1-47428-826-0 01 1 0305- ● ●
262 PIPE; AIR,UNION TO FLEX
L=1280 SERVICED BY L=1370 		1-47426-354-0 01 1 0005-0210 ●

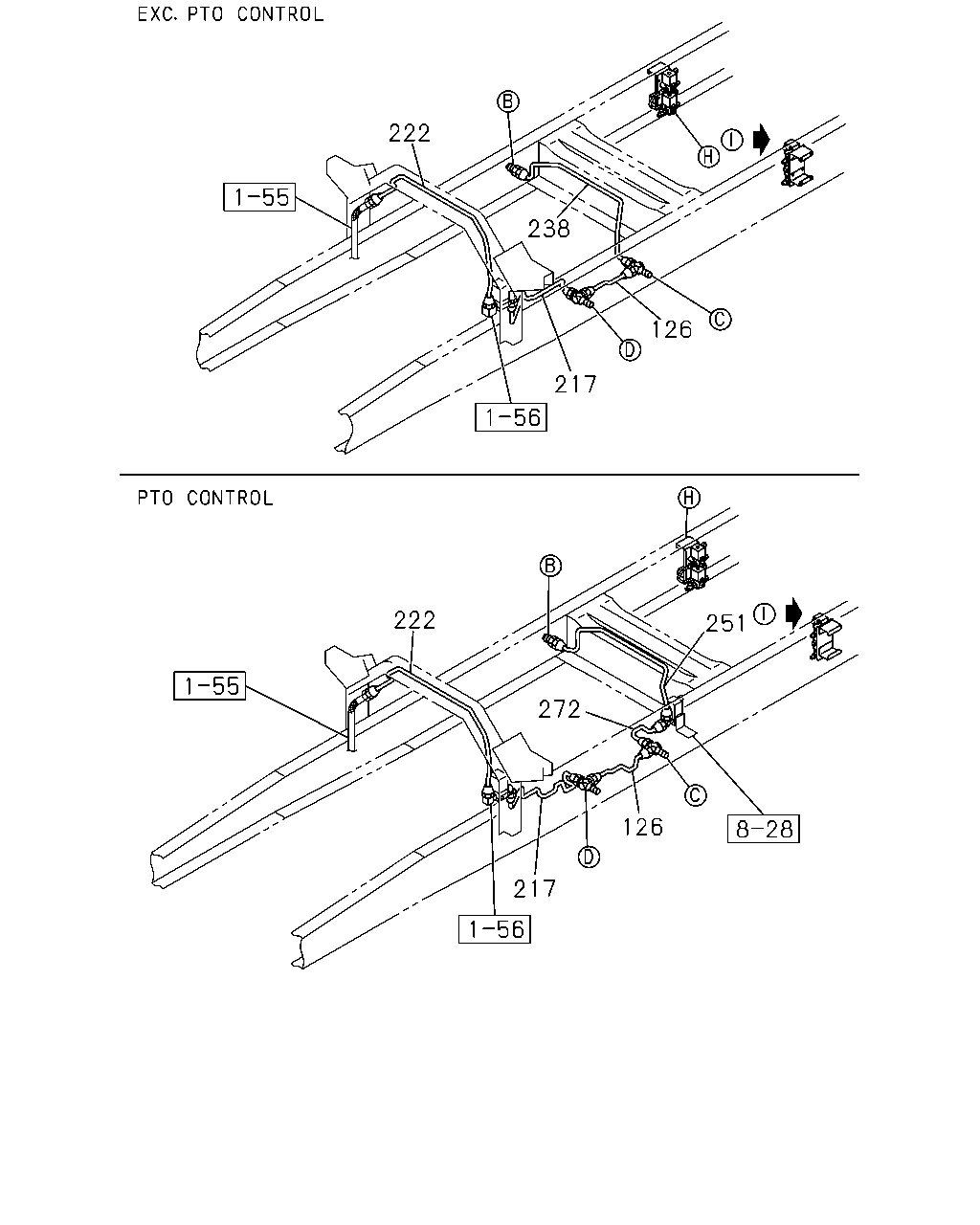

çizim 78142
222 238 126 217 251 222 272 126 217
BalonParca AdiParca NoAdetTipApplied Date A B C D
126 PIPE; AIR,UNION TO UNION 1-49118-969-0 01 1 0005-0210 ● ●
126 PIPE; AIR,UNION TO UNION 1-49123-719-0 01 1 0211- ● ●
126 PIPE; AIR,UNION TO UNION 1-49117-312-0 01 1 0005-0210 ●
126 PIPE; AIR,UNION TO UNION 1-49123-480-0 01 1 0211- ● ●
126 PIPE; AIR,UNION TO UNION 1-49116-465-0 01 1 0005-0210 ●
217 PIPE; VAC,UNION TO MAG VLV
ASSISTOR SHIFT CONTROL<WX8> L=696 SERVICED BY L=700 		1-47428-811-0 01 1 0406- ●
217 PIPE; VAC,UNION TO MAG VLV
ASSISTOR SHIFT CONTROL<WX8> L=615 SERVICED BY L=650 		1-47428-810-0 01 1 0406- ●
217 PIPE; VAC,UNION TO MAG VLV
L=777 SERVICED BY L=800 		1-47428-812-0 01 1 0005-0210 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-726-0 01 1 0211-0405 ●
217 PIPE; VAC,UNION TO MAG VLV
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-726-0 01 1 0406- ●
217 PIPE; VAC,UNION TO MAG VLV
L=670 SERVICED BY L=650 		1-47428-810-0 01 1 0005-0210 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-727-0 01 1 0211-0301 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-995-0 01 1 0302-0405 ●
217 PIPE; VAC,UNION TO MAG VLV
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-995-0 01 1 0406- ●
217 PIPE; VAC,UNION TO MAG VLV
L=760 SERVICED BY L=800 		1-47428-812-0 01 1 0005-0010 ●
217 PIPE; VAC,UNION TO MAG VLV
L=760 SERVICED BY L=800 		1-47428-812-0 01 1 0011-0210 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-492-0 01 1 0211- ●
217 PIPE; VAC,UNION TO MAG VLV
L=731 SERVICED BY L=800 		1-47428-812-0 01 1 0005-0210 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-498-0 01 1 0211- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1035 SERVICED BY L=1100 		1-47426-351-0 01 1 0005-0210 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0211- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1046 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE 1-49123-693-0 01 1 0211- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1103 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1101 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1030 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1025 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
238 PIPE; AIR,UNION TO UNION
L=1024 SERVICED BY L=1100 		1-47428-815-0 01 1 0211- ● ●
238 PIPE; AIR,UNION TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. PTO CONTROL<SV6> L=1352 SERVICED BY L=1370 		1-47426-354-0 01 1 0005-0210 ● ●
238 PIPE; AIR,UNION TO UNION
MLD7Q M/T(X5K) EXC. PTO CONTROL<SV6> L=1478 SERVICED BY L=1500 		1-47428-819-0 01 1 0005-0210 ● ●
238 PIPE; AIR,UNION TO UNION
L=1466 SERVICED BY L=1550 		1-47428-879-0 01 1 0211- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=882 SERVICED BY L=900 		1-47428-813-0 01 1 0005-0210 ● ●
251 PIPE; AIR,UNION TO MAG VLV
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PTO CONTROL<SV6> L=955 SERVICED BY L=1000 		1-47428-814-0 01 1 0005-0210 ● ●
251 PIPE; AIR,UNION TO MAG VLV
MLD7Q M/T(X5K) PTO CONTROL<SV6> L=1251 SERVICED BY L=1250 		1-47428-817-0 01 1 0005-0210 ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> 		1-49116-360-0 01 1 0005-0210 ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> 		1-49116-466-0 01 1 0005-0210 ● ●

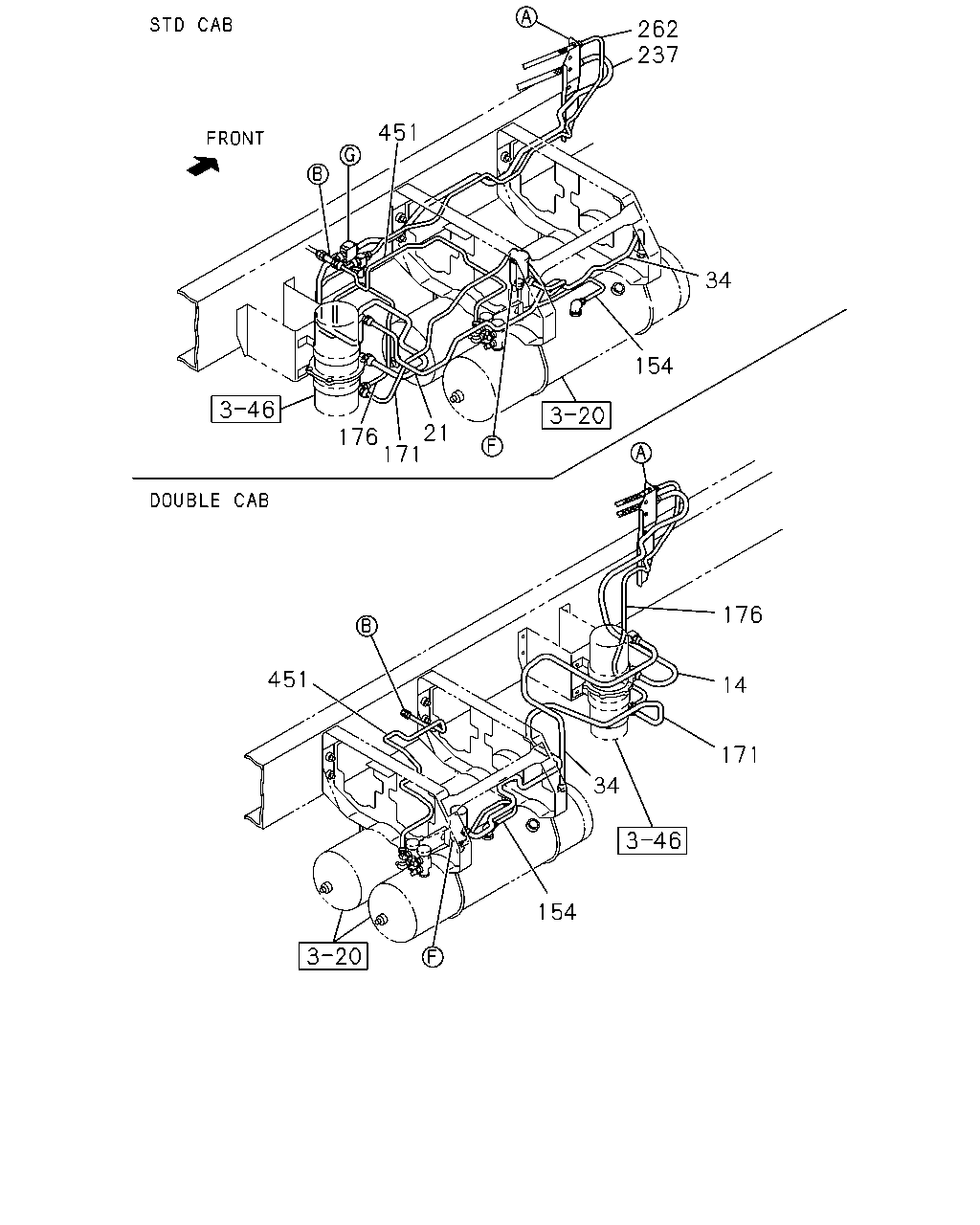

çizim 78143
262 237 451 34 154 176 21 171 176 451 14 171 34 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-301-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-444-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-445-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49122-543-0 01 1 0005-0210 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-449-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-204-0 01 1 0211- ●
21 PIPE; AIR,UNION TO AIR DRYER 1-49116-343-1 01 1 0005-0210 ●
34 PIPE; AIR
L=1337 SERVICED BY L=1450 		1-49115-466-0 01 1 0005-0210 ●
34 PIPE; AIR 1-49123-722-0 01 1 0211- ●
34 PIPE; AIR
L=1127 SERVICED BY L=1200 		1-49111-445-0 01 1 0005-0210 ●
34 PIPE; AIR
L=1043 SERVICED BY L=1100 		1-49115-486-0 01 1 0211- ●
34 PIPE; AIR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-49115-576-0 01 1 0005-0210 ● ●
34 PIPE; AIR
MLD7Q M/T(X5K) 		1-49122-331-0 01 1 0005-0210 ● ●
34 PIPE; AIR 1-49123-448-0 01 1 0211- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-125-0 01 1 0005- ● ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-548-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1328 SERVICED BY L=2500 		1-47428-826-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49117-304-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1570 SERVICED BY L=1620 		1-47428-820-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-49115-577-0 01 1 0005-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
MLD7Q M/T(X5K) L=1654 SERVICED BY L=1700 		1-47428-821-0 01 1 0005-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1388 SERVICED BY L=1500 		1-47428-819-0 01 1 0211- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1039 SERVICED BY L=1100 		1-47426-351-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1156 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49117-303-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1162 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1195 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION
L=895 		1-49115-807-0 01 1 0005-0210 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1231 SERVICED BY L=1250 		1-47428-876-0 01 1 0211- ●
237 PIPE; AIR,FLEX HOSE TO UNION 1-49116-342-1 01 1 0005-0210 ●
262 PIPE; AIR,UNION TO FLEX
L=1280 SERVICED BY L=1370 		1-47426-354-0 01 1 0005-0210 ●
451 PIPE; AIR,AIR TANK TO NIPPLE
L=1025 		1-49122-550-0 01 1 0005-0005 ●
451 PIPE; AIR,AIR TANK TO NIPPLE
L=1020 		1-49122-679-0 01 1 0006-0210 ●
451 PIPE; AIR,AIR TANK TO NIPPLE
L=1092 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0005 ●
451 PIPE; AIR,AIR TANK TO NIPPLE
L=1087 		1-49122-678-0 01 1 0006-0210 ●
451 PIPE; AIR,AIR TANK TO NIPPLE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) L=1135 SERVICED BY L=1200 		1-47428-816-0 01 1 0005-0210 ● ●
451 PIPE; AIR,AIR TANK TO NIPPLE
MLD7Q M/T(X5K) L=1159 SERVICED BY L=1200 		1-47428-816-0 01 1 0005-0210 ● ●

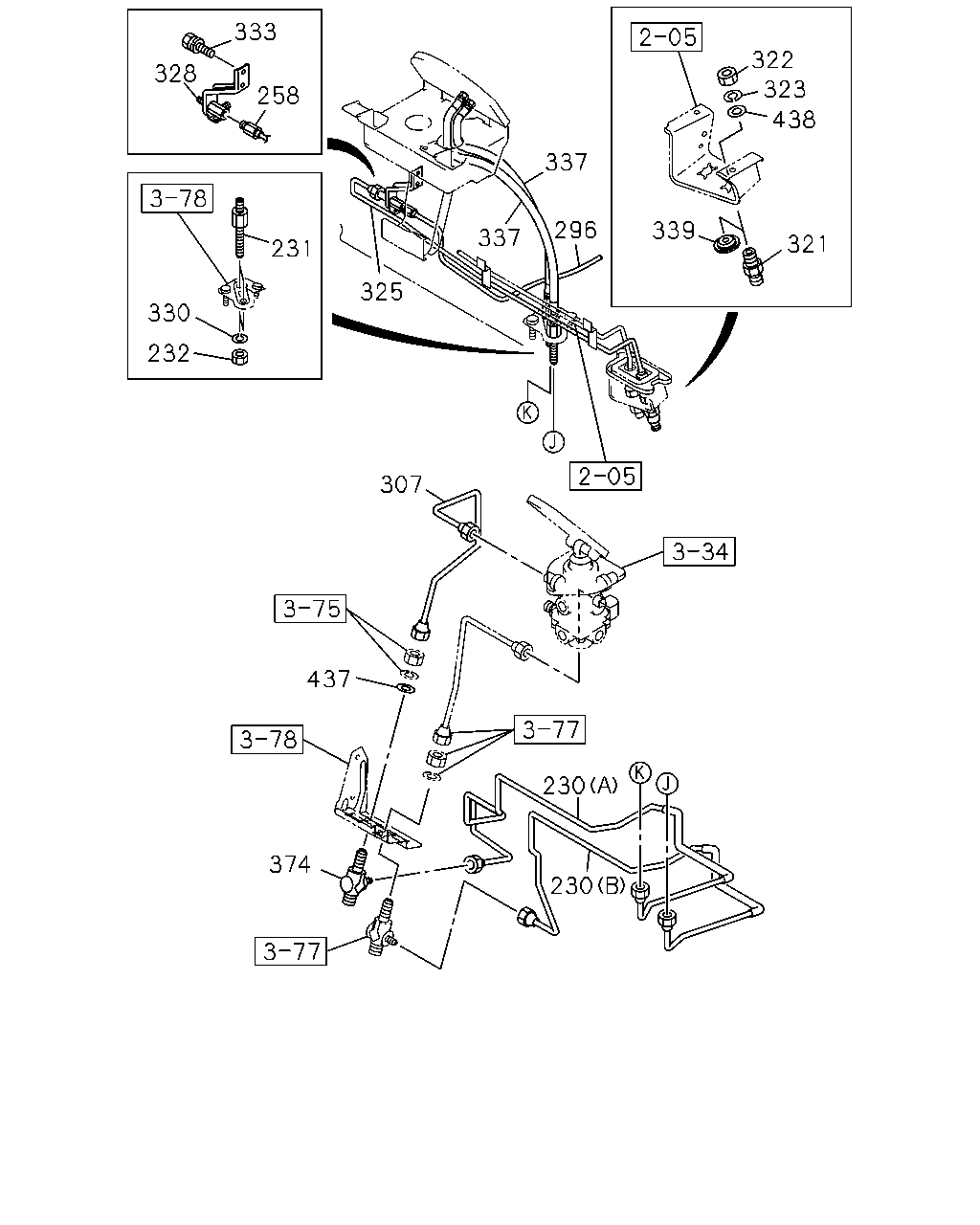

çizim 78724
333 322 323 328 258 438 337 296 339 337 321 231 325 330 232 307 437 230 374 230
BalonParca AdiParca NoAdetTipApplied Date A B C D
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 0005-0103 ● ● ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0104- ● ● ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 0005-0103 ● ● ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0104- ● ● ● ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 0005- ● ● ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 0005- ● ● ● ●
258 CONNECTOR; NYLON TUBE
DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0104 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0104 ● ●
258 CONNECTOR; NYLON TUBE
DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0105-0302 ● ● ● ●
258 CONNECTOR; NYLON TUBE
DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ● ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 01 1 0005-0104 ● ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> L=1200 OD=6 		1-09366-256-0 01 1 0005-0104 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0105- ● ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0005- ● ● ● ●
321 JOINT; FLEX HOSE 1-09656-742-0 01 1 0005-0104 ● ●
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09656-742-0 01 1 0005-0104 ● ●
321 JOINT; FLEX HOSE 1-09656-742-0 01 1 0105- ● ● ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0005-0104 ● ●
322 NUT; JOINT,FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> M10 H=8 		1-09400-029-0 01 1 0005-0104 ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0105- ● ● ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0005-0104 ● ●
323 WASHER; LK,JOINT
DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2 		9-09150-510-0 01 1 0005-0104 ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0105-0603 ● ● ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ● ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0005-0104 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47492-452-2 01 1 0005-0104 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0105- ● ● ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0005-0104 ● ●
328 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47470-392-0 01 1 0005-0104 ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0105- ● ● ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0005-0603 ● ● ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604- ● ● ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0104 ● ●
333 BOLT; PIPE UNION
DRIVER ISRINGHAUSEN SEAT<SJA> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0104 ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0005-0608 ● ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609- ● ● ● ●
339 GROMMET; AIR PIPE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 0005-0104 ● ●
374 CONNECTOR 1-09656-721-0 01 1 0005-0103 ● ● ● ●
374 CONNECTOR 1-09656-754-0 01 1 0104- ● ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0005-0605 ● ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0104 ● ●
438 WASHER; PL,JOINT
DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0104 ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0105- ● ● ● ●

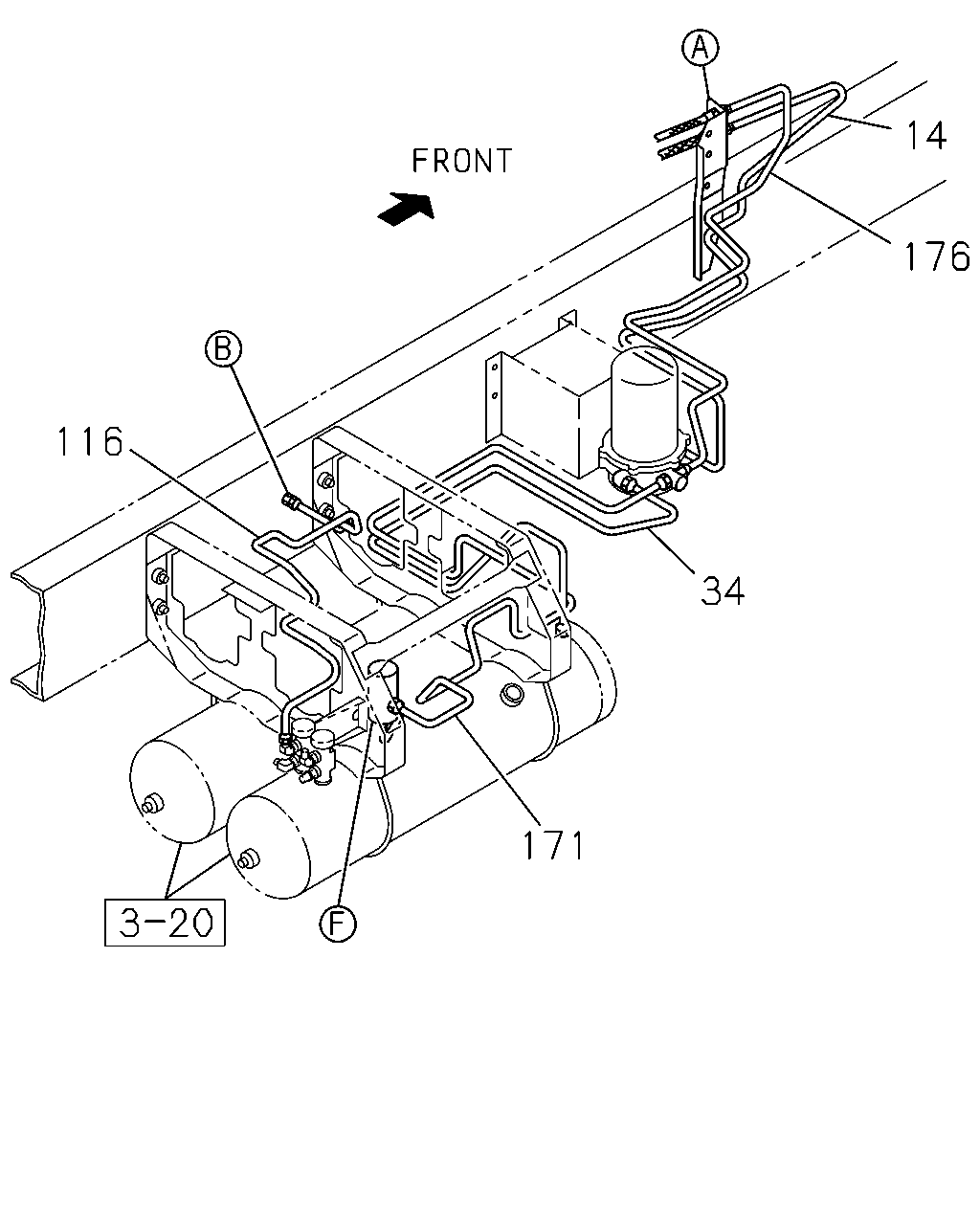

çizim 103055
14 176 116 34 171
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-301-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-444-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-445-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49122-543-0 01 1 0005-0210 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-449-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-204-0 01 1 0211- ●
34 PIPE; AIR
L=1337 SERVICED BY L=1450 		1-49115-466-0 01 1 0005-0210 ●
34 PIPE; AIR 1-49123-722-0 01 1 0211- ●
34 PIPE; AIR
L=1127 SERVICED BY L=1200 		1-49111-445-0 01 1 0005-0210 ●
34 PIPE; AIR
L=1043 SERVICED BY L=1100 		1-49115-486-0 01 1 0211- ●
34 PIPE; AIR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-49115-576-0 01 1 0005-0210 ● ●
34 PIPE; AIR
MLD7Q M/T(X5K) 		1-49122-331-0 01 1 0005-0210 ● ●
34 PIPE; AIR 1-49123-448-0 01 1 0211- ● ●
116 PIPE; AIR,PROTECTION VLV
L=1018 SERVICED BY L=1100 		1-47428-815-0 01 1 0211- ●
116 PIPE; AIR,PROTECTION VLV
L=1133 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
116 PIPE; AIR,PROTECTION VLV
L=1159 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-548-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1328 SERVICED BY L=2500 		1-47428-826-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49117-304-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1570 SERVICED BY L=1620 		1-47428-820-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-49115-577-0 01 1 0005-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
MLD7Q M/T(X5K) L=1654 SERVICED BY L=1700 		1-47428-821-0 01 1 0005-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
L=1388 SERVICED BY L=1500 		1-47428-819-0 01 1 0211- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1039 SERVICED BY L=1100 		1-47426-351-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1156 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49117-303-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1162 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1195 SERVICED BY L=1200 		1-47428-816-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION
L=895 		1-49115-807-0 01 1 0005-0210 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1231 SERVICED BY L=1250 		1-47428-876-0 01 1 0211- ●

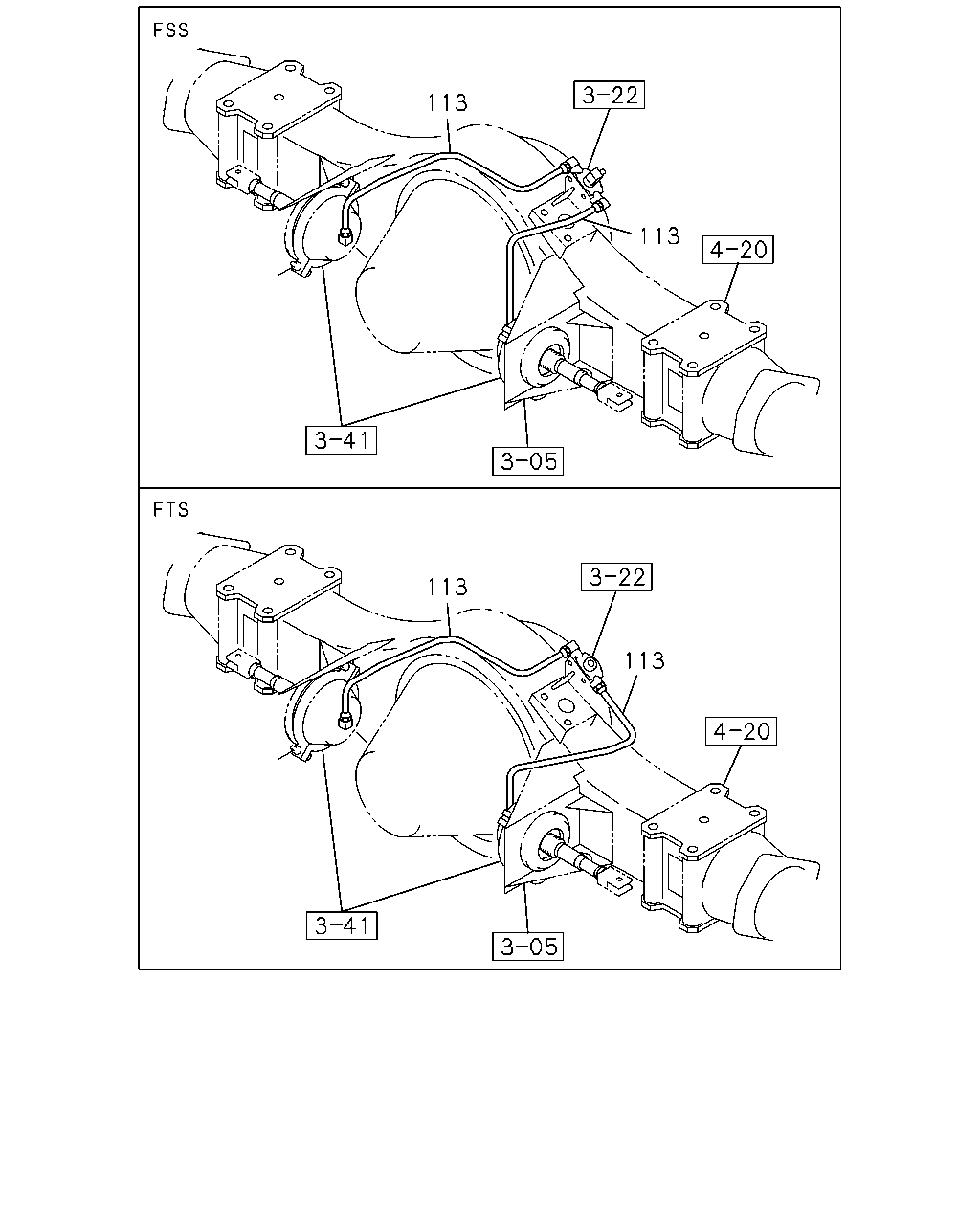

çizim 103105
113 113 113 113
BalonParca AdiParca NoAdetTipApplied Date A B C D
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=409 SERVICED BY L=600 		1-47426-379-0 01 1 0005- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB 1-49112-660-0 01 1 0005- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=501 		1-47498-511-0 01 1 0005- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=693 		1-47498-510-0 01 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
