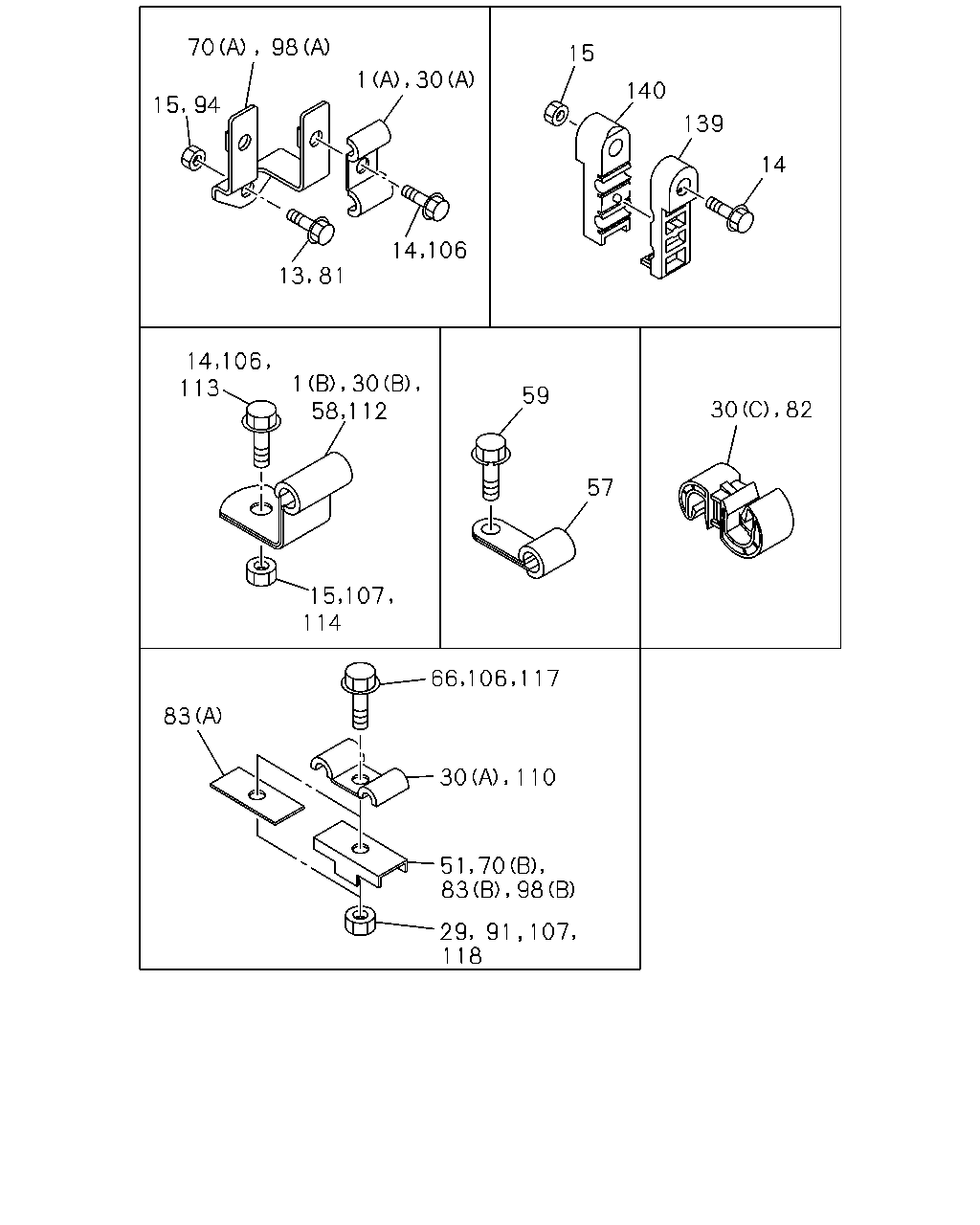

3-58 — FIXING PARTS; OIL PIPING (#8156) — 126 parça

70 98 15 30 1 140 139 14 113 59 57 114 83 30 110 107 118 1 30 58 112 14 106 30 82 66 106 117 13 81 51 70 83 98 29 91 14 106 15 107 15 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CLIP; OIL PIPE TO BODY (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	0504-	●	●
1	CLIP; OIL PIPE TO BODY (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	0005-0210	●	●	●	●
1	CLIP; OIL PIPE TO BODY (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0211-0503	●	●	●	●
1	CLIP; OIL PIPE TO BODY (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0504-			●	●
1	CLIP; OIL PIPE TO BODY (B) ID=6 H=20 L=20	1-09700-603-0	02	1	0005-0210	●	●
1	CLIP; OIL PIPE TO BODY (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0211-	●	●
13	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	0005-0210			●	●
13	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●
13	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
13	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●
13	BOLT; BRKT,OIL PIPE MLD7Q M/T(X5K) M8X40 FLANGE	0-28680-840-0	01	1	0005-0104	●	●
13	BOLT; BRKT,OIL PIPE EXC. DRIVER ISRINGHAUSEN SEAT<SJA> M8X40 FLANGE	0-28680-840-0	01	1	0005-0104		●
13	BOLT; BRKT,OIL PIPE MLD7Q M/T(X5K) M8X40 FLANGE	0-28680-840-0	01	1	0105-0210	●	●
13	BOLT; BRKT,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	0211-0512	●	●
13	BOLT; BRKT,OIL PIPE M8X40 FLANGE	0-28650-840-0	01	1	0601-	●	●
14	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●	●
14	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	0211-0512			●	●
14	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28050-816-0	01	1	0601-			●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0005-0210			●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
14	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●	●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	02	1	0211-0512	●	●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28050-850-0	02	1	0601-	●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0210			●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0211-0602			●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0211-0602	●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
29	NUT; CLIP LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●	●	●
30	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0005-0006			●	●
30	CLIP; OIL PIPE MLD7Q M/T(X5K) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0005-0006	●	●
30	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0007-0210			●	●
30	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0211-			●	●
30	CLIP; OIL PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0005-0007	●	●	●	●
30	CLIP; OIL PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0008-0210	●	●	●	●
30	CLIP; OIL PIPE MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0008-0210	●	●
30	CLIP; OIL PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0211-	●	●	●
30	CLIP; OIL PIPE MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0005-0006	●	●
30	CLIP; OIL PIPE MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0007-0210	●	●
30	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0211-	●	●
30	CLIP; OIL PIPE MLD7Q M/T(X5K) (C) ID=6.35 & 6.35	1-09709-273-1	01	1	0007-0210	●	●
30	CLIP; OIL PIPE (C) ID=6.35 & 6.35	1-09709-273-1	01	1	0211-	●	●
51	BRACKET; OIL PIPE LOAD SENSING PROPORTIONING VALVE(JR7)	1-47475-427-1	01	1	0005-0210	●	●	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	0005-0606			●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	04	1	0607-			●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	0005-			●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	0005-	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	04	1	0005-0512			●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	04	1	0601-			●	●
66	BOLT; CLIP LOAD SENSING PROPORTIONING VALVE(JR7) M8X30 FLANGE	0-28680-830-0	01	1	0005-0210	●	●	●	●
70	BRACKET; CLIP (A) M8 W/NUT	1-47475-439-2	02	1	0005-0210			●	●
70	BRACKET; CLIP (A) M8 W/NUT	1-47475-439-2	01	1	0211-			●	●
70	BRACKET; CLIP (A) M8 W/NUT	1-47475-439-2	01	1	0005-0210	●	●
70	BRACKET; CLIP (B)	1-47475-427-1	02	1	0211-	●	●
81	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●
82	CLIP; OIL PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0005-0210			●
82	CLIP; OIL PIPE ID=6.35 & 10.0	1-09709-274-1	03	1	0211-	●	●	●	●
82	CLIP; OIL PIPE ID=6.35 & 10.0	1-09709-274-1	06	1	0005-0210				●
82	CLIP; OIL PIPE ID=6.35 & 10.0	1-09709-274-1	03	1	0005-0210	●	●
83	BRACKET; PIPE CLIP MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=50	1-47475-299-2	01	1	0005-0210	●	●
83	BRACKET; PIPE CLIP MLD7Q M/T(X5K) (B)	1-47475-427-1	01	1	0005-0210	●	●
83	BRACKET; PIPE CLIP (B)	1-47475-427-1	01	1	0211-	●	●
91	NUT; BRKT,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0005-0006			●	●
91	NUT; BRKT,OIL PIPE MLD7Q M/T(X5K) M8 FLANGE	0-91150-108-0	03	1	0005-0006	●	●
91	NUT; BRKT,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0007-0210			●	●
91	NUT; BRKT,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0211-0602			●	●
91	NUT; BRKT,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-			●	●
91	NUT; BRKT,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0006	●	●
91	NUT; BRKT,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0007-0210	●	●
91	NUT; BRKT,OIL PIPE MLD7Q M/T(X5K) M8 FLANGE	0-91150-108-0	02	1	0007-0210	●	●
91	NUT; BRKT,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0211-0602	●	●
91	NUT; BRKT,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
94	NUT; BRKT,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
98	BRACKET; OIL PIPE (A) M8 W/NUT	1-47475-439-2	03	1	0005-0210			●	●
98	BRACKET; OIL PIPE (B)	1-47475-427-1	01	1	0211-			●	●
98	BRACKET; OIL PIPE (A) M8 W/NUT	1-47475-439-2	02	1	0005-0210	●	●
98	BRACKET; OIL PIPE (A) M8 W/NUT	1-47475-439-2	02	1	0211-	●	●	●	●
98	BRACKET; OIL PIPE EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B)	1-47475-427-1	01	1	0005-0104		●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	03	1	0005-0210			●	●
106	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28080-840-0	01	1	0211-0512			●	●
106	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28050-840-0	01	1	0601-			●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0006	●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	0007-0210	●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	0211-0512	●	●	●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●
106	BOLT; CLIP,OIL PIPE MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X25 FLANGE	0-28680-825-0	01	1	0008-0210	●	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0211-0512			●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0211-0602				●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-				●
107	NUT; CLIP,OIL PIPE MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8 FLANGE	0-91150-108-0	01	1	0008-0210	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
110	CLIP; OIL PIPE LOAD SENSING PROPORTIONING VALVE(JR7) ID=7 & 7 L=15 & 15	1-09700-059-0	01	1	0005-0210	●	●	●	●
112	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	0005-0210	●	●	●	●
112	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	0211-			●
112	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	0211-				●
112	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	0211-	●	●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●	●	●	●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0211-0512			●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	0211-0512				●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	03	1	0601-				●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	04	1	0211-0512	●	●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●	●	●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0211-0602			●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-			●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0211-0602				●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-				●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0211-0602	●	●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	04	1	0005-0512			●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	04	1	0601-			●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	0005-0512	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0005-0602			●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-			●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0005-0602	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	0005-			●	●
140	CLIP; LWR ID=6 & 6	1-09709-244-0	01	1	0005-			●	●
