Isuzu WW
▶
TRUCKS
▶
FSS
▶
10831 - FSS/FTS(AUSTRALIA)
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#8155) — 68 parça
Tümü
A - FSS5MF
B - FSS5WF
C - FTS5MF
D - FTS5WF
◀

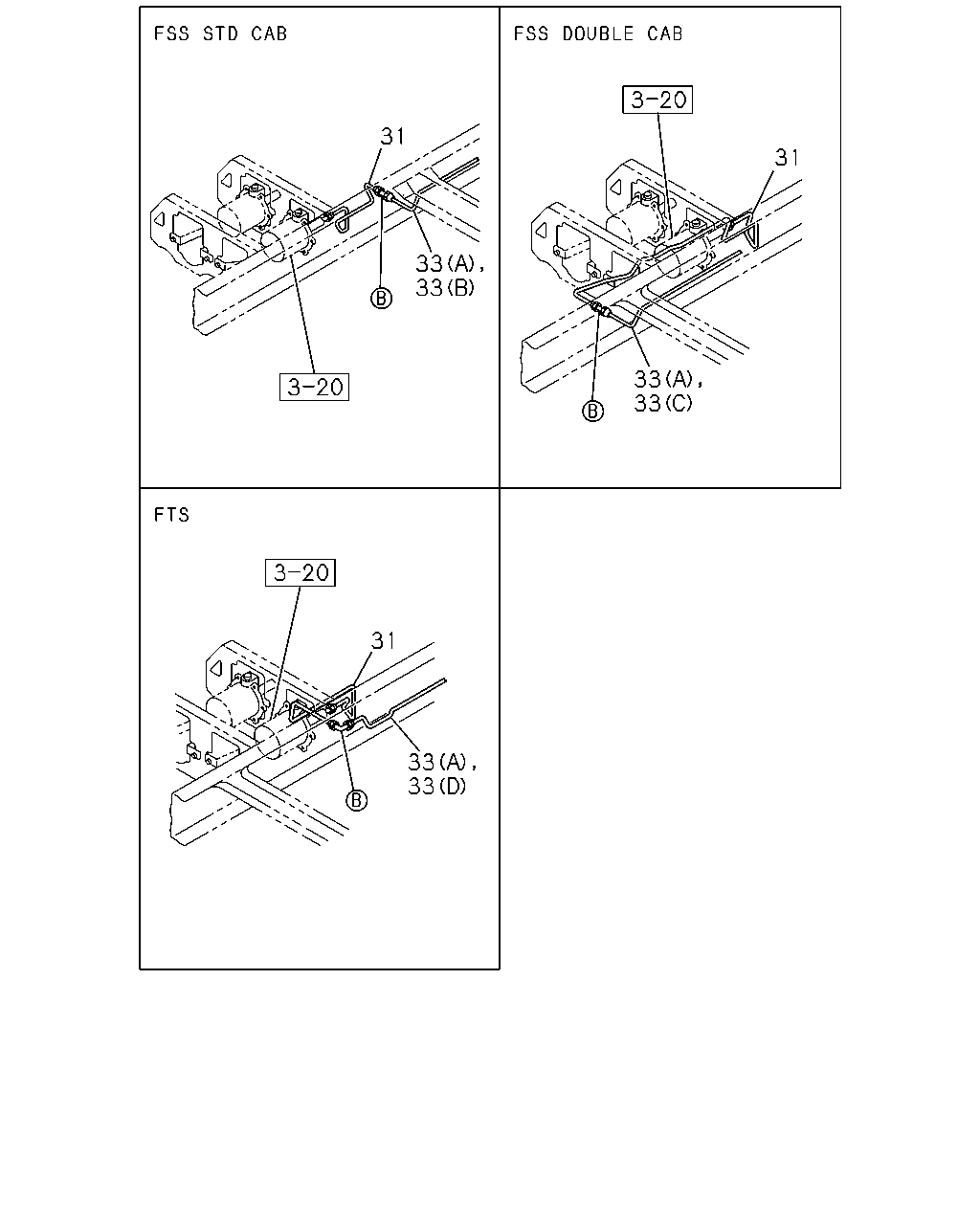

[355A] AIR TANK SIDE (15 parça)

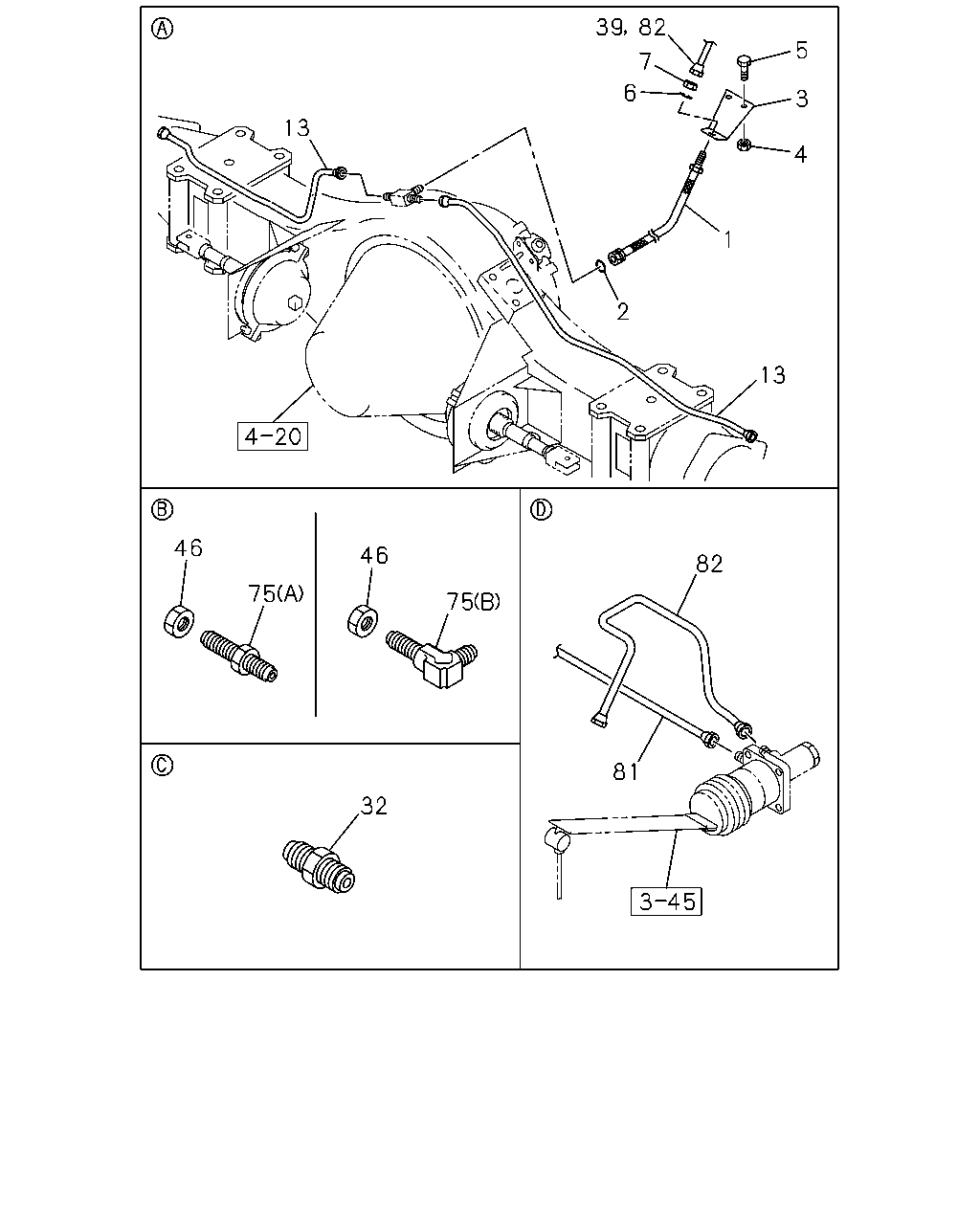

[355A] REAR AXLE SIDE AND UNION (33 parça)

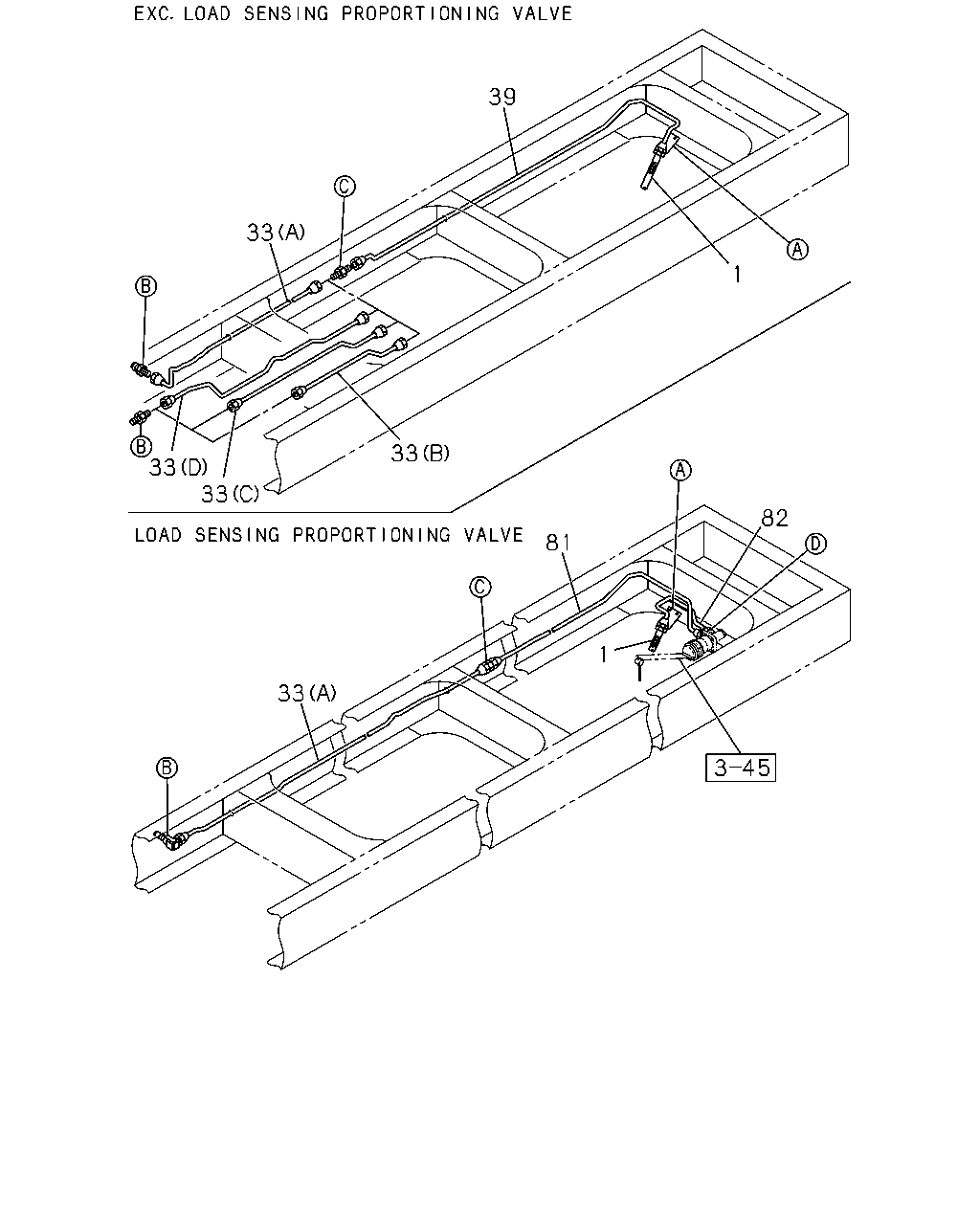

[355A] FRAME SIDE (20 parça)
▶
31
31
7
33
33
33
33
31
33
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0005-
●
●
●
●
31
PIPE; OIL,AIR MASTER TO UNION
1-49161-612-0
01
1
0005-0210
●
31
PIPE; OIL,AIR MASTER TO UNION
1-49166-547-0
01
1
0211-
●
31
PIPE; OIL,AIR MASTER TO UNION
1-49162-052-0
01
1
0005-0210
●
31
PIPE; OIL,AIR MASTER TO UNION
1-49166-548-0
01
1
0211-
●
31
PIPE; OIL,AIR MASTER TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)
1-49162-672-0
01
1
0005-0210
●
●
31
PIPE; OIL,AIR MASTER TO UNION
MLD7Q M/T(X5K)
1-49165-003-0
01
1
0005-0210
●
●
31
PIPE; OIL,AIR MASTER TO UNION
1-49166-313-0
01
1
0211-
●
●
33
PIPE; OIL,UNION TO UNION
(A) L=1190 SERVICED BY L=1200
1-47426-352-0
01
1
0005-0210
●
33
PIPE; OIL,UNION TO UNION
(B)
1-49166-690-0
01
1
0211-
●
33
PIPE; OIL,UNION TO UNION
(A) L=1690 SERVICED BY L=1700
1-47426-357-0
01
1
0005-0210
●
33
PIPE; OIL,UNION TO UNION
(C) L=1057 SERVICED BY L=1100
1-47426-351-0
01
1
0211-
●
33
PIPE; OIL,UNION TO UNION
MLD6D M/T(X5Q) (A) L=2082 SERVICED BY L=2200
1-47426-360-0
01
1
0005-0210
●
●
33
PIPE; OIL,UNION TO UNION
MLD7Q M/T(X5K) (A) L=1860 SERVICED BY L=2000
1-47426-359-0
01
1
0005-0210
●
●
33
PIPE; OIL,UNION TO UNION
(D) L=1916 SERVICED BY L=2000
1-47426-359-0
01
1
0211-
●
●
39
82
5
7
6
3
13
4
1
2
13
46
46
82
75
75
81
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
HOSE; FLEX,RR BRK
L=690
0-05313-690-0
01
1
0005-0511
●
●
1
HOSE; FLEX,RR BRK
L=690
0-05213-690-0
01
1
0512-
●
●
1
HOSE; FLEX,RR BRK
L=700
0-05312-700-0
01
1
0005-0907
●
●
1
HOSE; FLEX,RR BRK
L=700
0-05212-700-0
01
1
0908-
●
●
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0005-
●
●
3
BRACKET; FLEX HOSE,RR BRK
1-47465-251-0
01
1
0005-
●
●
●
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91150-108-0
02
1
0005-0602
●
●
●
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
●
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28680-825-0
02
1
0005-0512
●
●
●
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
●
●
6
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
0005-0603
●
●
●
●
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
0604-
●
●
●
●
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0005-
●
●
●
●
13
PIPE; BRK,RR AXLE
L=858
1-47427-108-0
01
1
0005-
●
●
13
PIPE; BRK,RR AXLE
L=685
1-47427-107-0
01
1
0005-
●
●
13
PIPE; BRK,RR AXLE
1-47428-644-0
01
1
0005-
●
●
13
PIPE; BRK,RR AXLE
1-47428-643-0
01
1
0005-
●
●
32
UNION; OIL PIPE
M12 L=40
9-09223-006-1
01
1
0005-0607
●
●
●
●
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
01
1
0608-
●
●
●
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1910 SERVICED BY L=2000
1-47426-359-0
01
1
0005-0006
●
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1909 SERVICED BY L=2000
1-47426-359-0
01
1
0007-0210
●
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1909 SERVICED BY L=2000
1-47426-359-0
01
1
0211-
●
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1325 SERVICED BY L=1370
1-47426-354-0
01
1
0005-0210
●
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1325 SERVICED BY L=1370
1-47426-354-0
01
1
0211-
●
●
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
0005-
●
●
●
●
75
UNION; OIL PIPE
(A) M12 L=66.5
9-09223-306-1
01
1
0005-0607
●
●
75
UNION; OIL PIPE
(A) M12 L=66.5
0-92113-306-0
01
1
0608-
●
●
75
UNION; OIL PIPE
(B) M12 ELBOW
9-09225-206-1
01
1
0005-0607
●
●
75
UNION; OIL PIPE
(B) M12 ELBOW
0-92125-206-0
01
1
0608-
●
●
81
PIPE; OIL,UNION TO LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) L=1994 SERVICED BY L=2200
1-47426-360-0
01
1
0005-0210
●
●
81
PIPE; OIL,UNION TO LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) L=1369 SERVICED BY L=1500
1-47426-355-0
01
1
0005-0210
●
●
82
PIPE; OIL,LSPV TO FLEX HOSE
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47429-783-0
01
1
0005-0210
●
●
82
PIPE; OIL,LSPV TO FLEX HOSE
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47429-787-0
01
1
0005-0210
●
●
39
33
1
33
33
33
82
81
1
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
HOSE; FLEX,RR BRK
L=690
0-05313-690-0
01
1
0005-0511
●
●
1
HOSE; FLEX,RR BRK
L=690
0-05213-690-0
01
1
0512-
●
●
1
HOSE; FLEX,RR BRK
L=700
0-05312-700-0
01
1
0005-0907
●
●
1
HOSE; FLEX,RR BRK
L=700
0-05212-700-0
01
1
0908-
●
●
33
PIPE; OIL,UNION TO UNION
(A) L=1190 SERVICED BY L=1200
1-47426-352-0
01
1
0005-0210
●
33
PIPE; OIL,UNION TO UNION
(B)
1-49166-690-0
01
1
0211-
●
33
PIPE; OIL,UNION TO UNION
(A) L=1690 SERVICED BY L=1700
1-47426-357-0
01
1
0005-0210
●
33
PIPE; OIL,UNION TO UNION
(C) L=1057 SERVICED BY L=1100
1-47426-351-0
01
1
0211-
●
33
PIPE; OIL,UNION TO UNION
MLD6D M/T(X5Q) (A) L=2082 SERVICED BY L=2200
1-47426-360-0
01
1
0005-0210
●
●
33
PIPE; OIL,UNION TO UNION
MLD7Q M/T(X5K) (A) L=1860 SERVICED BY L=2000
1-47426-359-0
01
1
0005-0210
●
●
33
PIPE; OIL,UNION TO UNION
(D) L=1916 SERVICED BY L=2000
1-47426-359-0
01
1
0211-
●
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1910 SERVICED BY L=2000
1-47426-359-0
01
1
0005-0006
●
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1909 SERVICED BY L=2000
1-47426-359-0
01
1
0007-0210
●
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1909 SERVICED BY L=2000
1-47426-359-0
01
1
0211-
●
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1325 SERVICED BY L=1370
1-47426-354-0
01
1
0005-0210
●
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1325 SERVICED BY L=1370
1-47426-354-0
01
1
0211-
●
●
81
PIPE; OIL,UNION TO LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) L=1994 SERVICED BY L=2200
1-47426-360-0
01
1
0005-0210
●
●
81
PIPE; OIL,UNION TO LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) L=1369 SERVICED BY L=1500
1-47426-355-0
01
1
0005-0210
●
●
82
PIPE; OIL,LSPV TO FLEX HOSE
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47429-783-0
01
1
0005-0210
●
●
82
PIPE; OIL,LSPV TO FLEX HOSE
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47429-787-0
01
1
0005-0210
●
●
