4-01 — PROPELLER SHAFT (#81545) — 61 parça

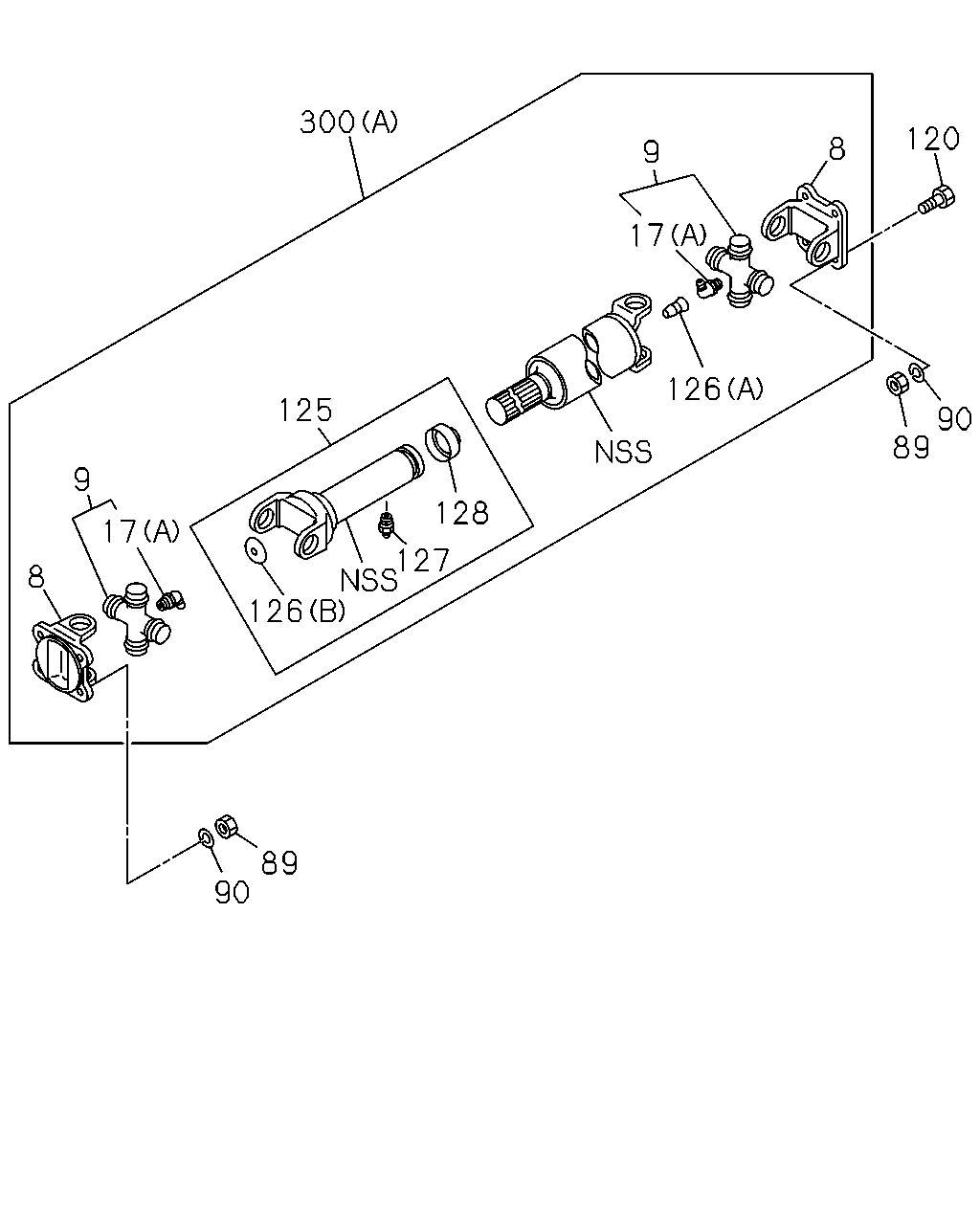

300 120 8 9 17 126 125 90 89 9 128 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97322-663-0	01	1	0810-
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97322-663-0	01	1	0810-
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2700MM(27W)	8-97322-663-0	02	1	1008-
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98033-605-1	01	1	0810-
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0810-
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0810-
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0810-
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0810-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) L=183	8-98033-647-2	01	1	0810-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2700MM(27W) L=246	8-98034-338-1	01	1	1008-
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	02	1	0810-
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0810-
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0810-
127	05.586 NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2700MM(27W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0810-
128	05.586 SEAL; SLEEVE WHEEL BASE 2700MM(27W)	8-97145-746-0	01	1	1008-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (B) L=800	8-98107-137-1	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3800MM(38W) (B) L=1240	8-98107-138-1	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1041	8-98107-141-2	01	1	0810-1007
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1041	8-98107-141-2	01	1	1008-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3800MM(38W) (C) L=1051	8-98107-142-2	01	1	0810-1007
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3800MM(38W) (C) L=1051	8-98107-142-2	01	1	1008-
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2700MM(27W) (A) L=1184	8-97387-797-3	01	1	1008-
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 2700MM(27W) (A) L=1169	8-98001-989-2	01	1	1008-
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) (C) L=1031	8-98107-139-2	01	1	1008-
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (C) L=1036	8-98107-140-2	01	1	1008-

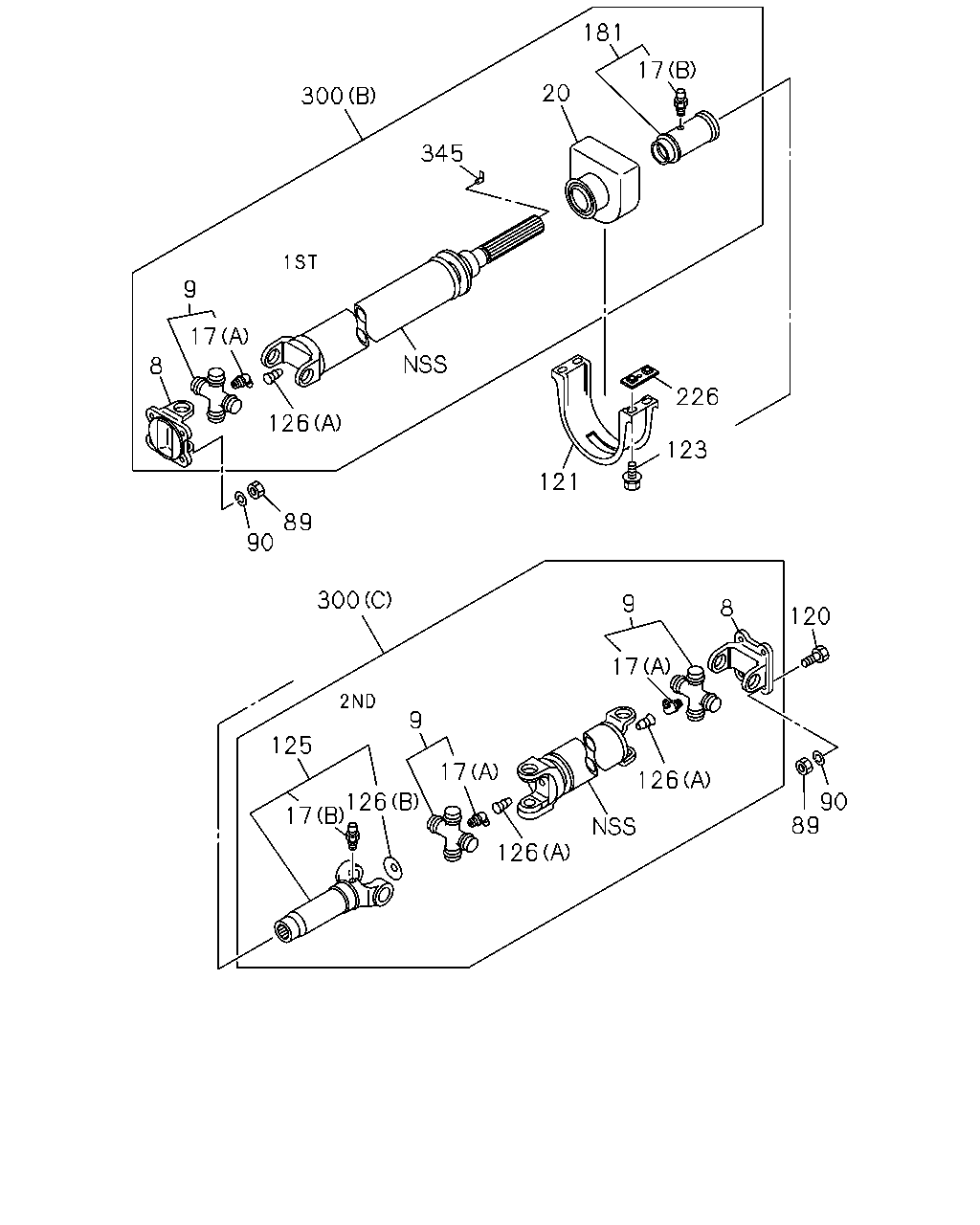

300 181 17 345 17 9 8 126 89 90 300 125 17 17 9 17 9 8 120 90 89 126 126 126 123 121 226 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97322-663-0	01	1	0810-
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97322-663-0	01	1	0810-
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2700MM(27W)	8-97322-663-0	02	1	1008-
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98033-605-1	01	1	0810-
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0810-
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98033-936-0	01	1	0810-
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0810-
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0810-
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0810-
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97035-623-1	01	1	0810-
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0810-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) L=183	8-98033-647-2	01	1	0810-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2700MM(27W) L=246	8-98034-338-1	01	1	1008-
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	02	1	0810-
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0810-
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0810-
181	05.586 COVER; BRG,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98046-526-0	01	1	0810-
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97371-572-0	02	1	0810-1211
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W)	8-97371-572-0	02	1	1212-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (B) L=800	8-98107-137-1	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3800MM(38W) (B) L=1240	8-98107-138-1	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1041	8-98107-141-2	01	1	0810-1007
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1041	8-98107-141-2	01	1	1008-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3800MM(38W) (C) L=1051	8-98107-142-2	01	1	0810-1007
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3800MM(38W) (C) L=1051	8-98107-142-2	01	1	1008-
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2700MM(27W) (A) L=1184	8-97387-797-3	01	1	1008-
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 2700MM(27W) (A) L=1169	8-98001-989-2	01	1	1008-
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) (C) L=1031	8-98107-139-2	01	1	1008-
300	05.544 SHAFT ASM; PROP,RR REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (C) L=1036	8-98107-140-2	01	1	1008-
345	05.600 PLUG; PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98042-692-0	01	1	0810-
