3-60 — BRAKE PIPING; VACUUM (#81544) — 142 parça

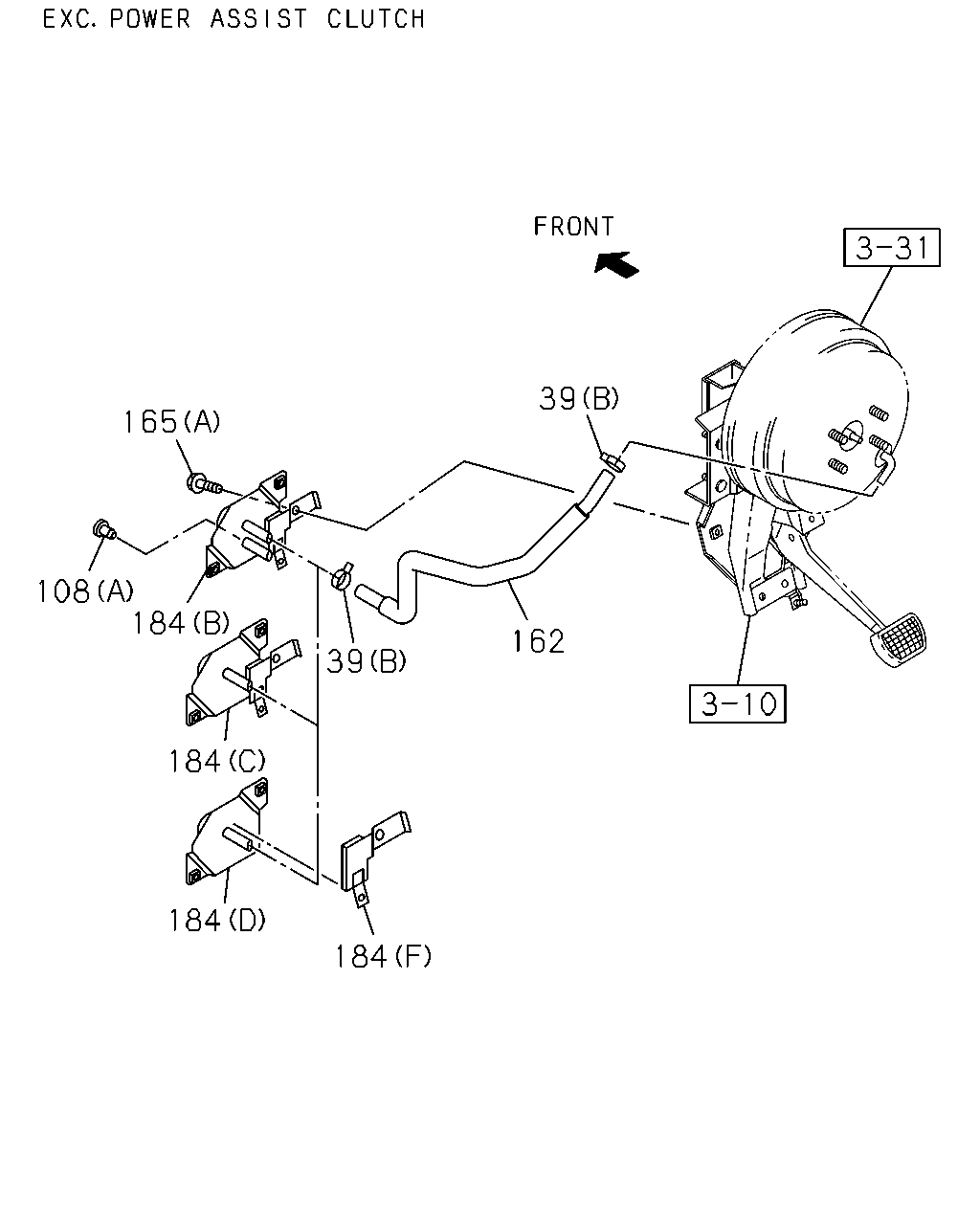

184 184 184 184 108 165 39 162 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0810-0908
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	0810-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	0810-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0810-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0810-
184	04.685 BRACKET; UNION FIX (F)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0810-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (E)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0810-1007
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1008-1204
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98255-537-0	01	1	1312-

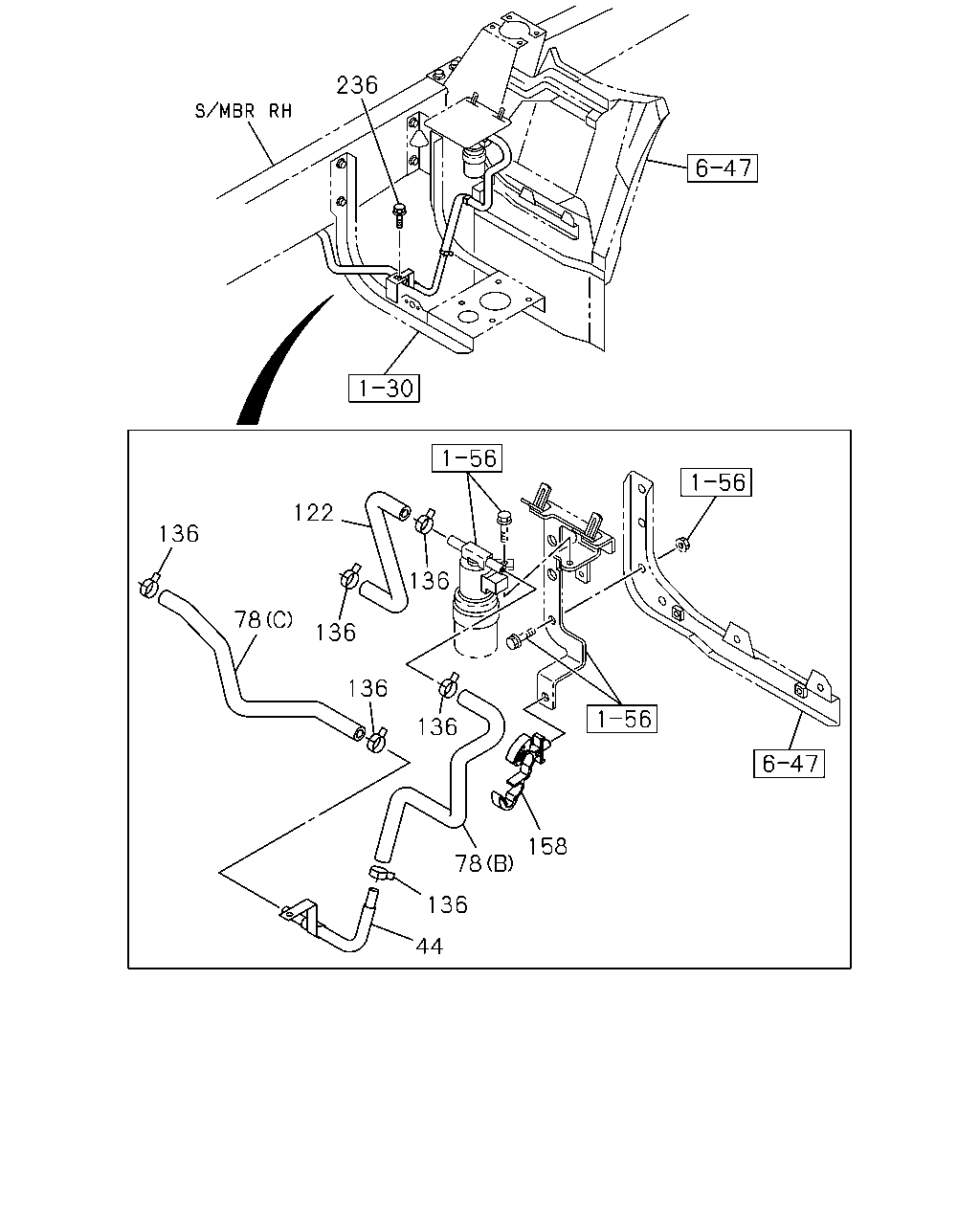

236 122 136 136 78 136 136 136 158 78 136 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8>	8-98034-281-1	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (C)	8-98082-309-1	01	1	0810-0903
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (C)	8-98133-654-1	01	1	0904-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B)	8-98034-104-4	01	1	0810-1103
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B)	8-98189-106-0	01	1	1104-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8>	8-98034-103-2	01	1	0810-1103
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8>	8-98189-104-0	01	1	1104-
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 04.930 ID=16	8-94238-568-0	06	1	0810-0911
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	0912-
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	0810-
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-

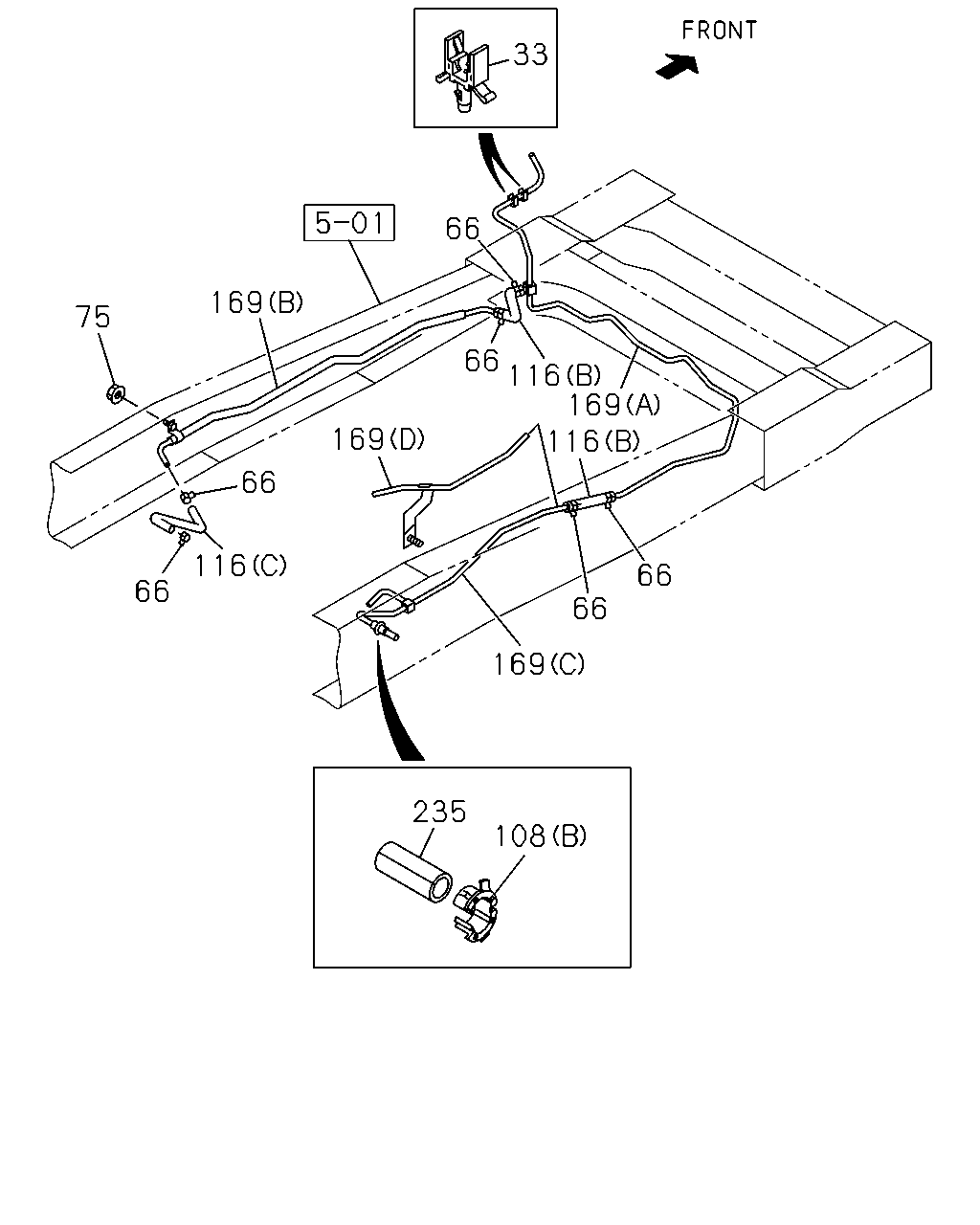

33 66 169 75 66 116 169 116 169 66 116 66 66 66 169 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	0810-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0810-0901
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	04	1	0902-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	04	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	02	1	0902-0911
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	0912-
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
75	04.930 NUT; CLIP,VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0810-0908
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (C)	8-98100-244-1	01	1	0810-1104
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (C)	8-98189-220-0	01	1	1105-
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (C)	8-98130-735-0	01	1	0810-1104
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (C)	8-98189-219-0	01	1	1105-
169	04.930 PIPE; VAC,BOOSTER SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B)	8-98100-234-2	01	1	0810-
169	04.930 PIPE; VAC,BOOSTER SIDE EXHAUST BRAKE<NF8> (B)	8-98100-234-2	01	1	0810-
169	04.930 PIPE; VAC,BOOSTER SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (A)	8-98122-739-1	01	1	0810-
169	04.930 PIPE; VAC,BOOSTER SIDE EXHAUST BRAKE<NF8> (A)	8-98122-739-1	01	1	0810-
169	04.930 PIPE; VAC,BOOSTER SIDE EXHAUST BRAKE<NF8> (C)	8-98132-683-1	01	1	0810-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> (A)	8-98130-319-0	01	1	0810-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. EXHAUST BRAKE<NF8> (D)	8-98118-156-2	01	1	0810-
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0810-

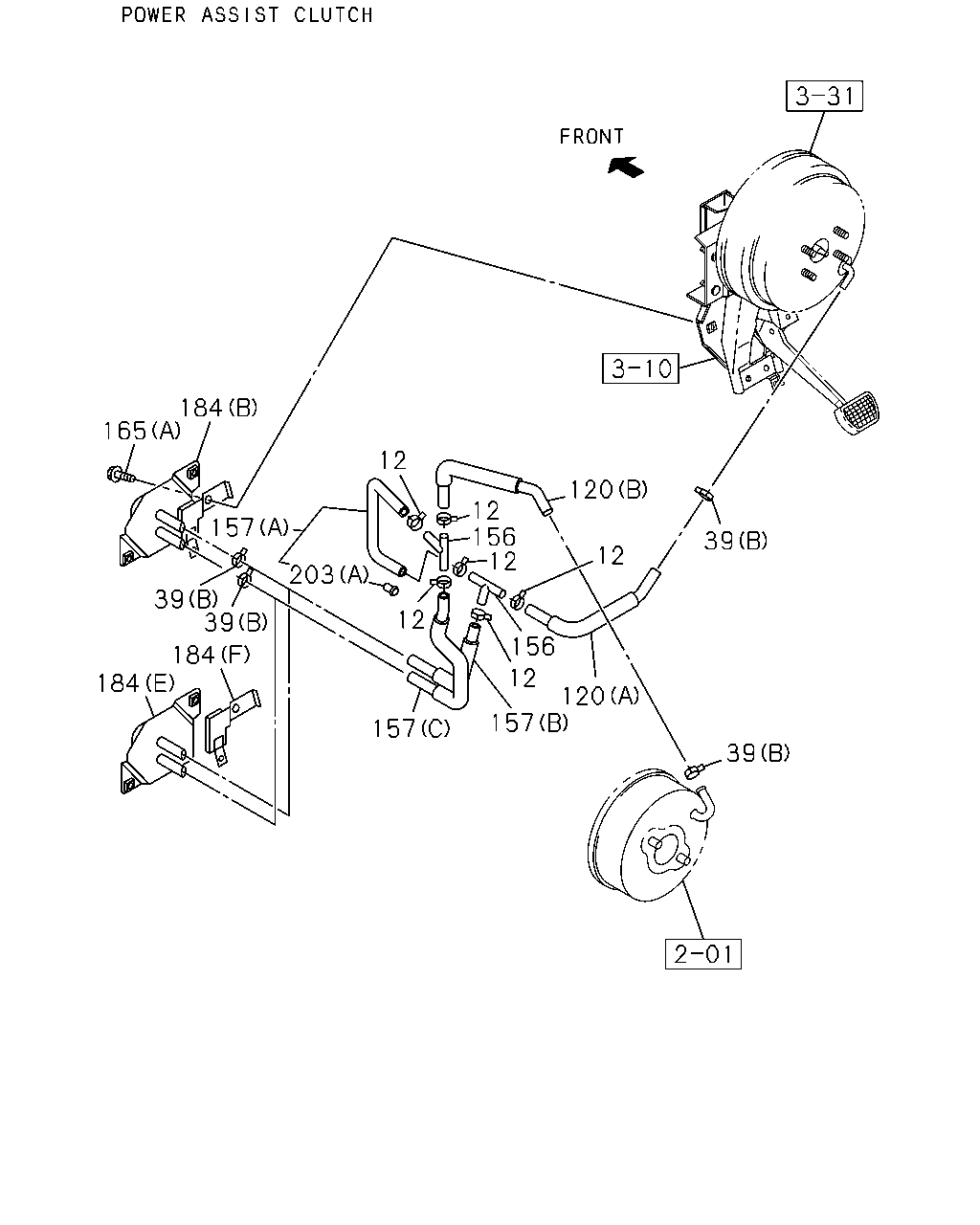

39 120 12 157 157 184 184 39 39 203 12 12 156 12 12 120 39 156 12 157 165 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	0810-
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	0810-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	0810-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	0810-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	0810-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0810-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0810-
184	04.685 BRACKET; UNION FIX (F)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0810-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (E)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0810-1007
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1008-1204
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98255-537-0	01	1	1312-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0810-
203	04.690 VALVE; CHECK EXC. POWER ASSIST CLUTCH(S2T) (A)	8-94386-540-0	01	1	0810-0906
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0907-

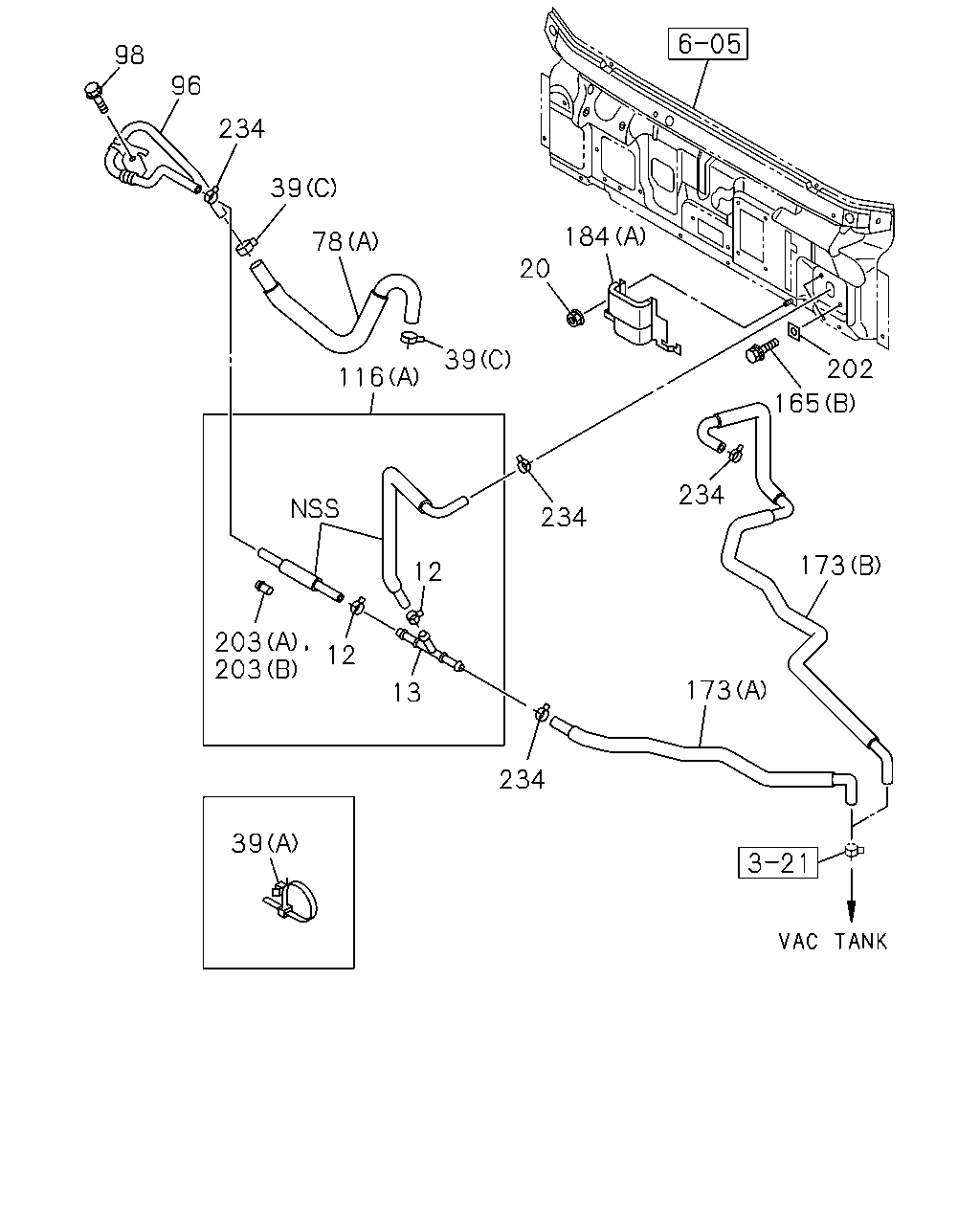

98 96 234 39 184 78 20 39 202 116 165 234 234 173 12 203 203 12 173 13 234 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	0810-
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	0810-
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	0810-
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-1007
20	04.686 NUT; BRKT EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1008-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (C)	8-98082-309-1	01	1	0810-0903
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (C)	8-98133-654-1	01	1	0904-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B)	8-98034-104-4	01	1	0810-1103
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B)	8-98189-106-0	01	1	1104-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98082-322-0	01	1	0810-
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (C)	8-98100-244-1	01	1	0810-1104
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (C)	8-98189-220-0	01	1	1105-
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (C)	8-98130-735-0	01	1	0810-1104
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (C)	8-98189-219-0	01	1	1105-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0810-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0810-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	0810-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	0810-
184	04.685 BRACKET; UNION FIX (F)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0810-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (E)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0810-1007
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1008-1204
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98255-537-0	01	1	1312-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0810-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0810-
203	04.690 VALVE; CHECK EXC. POWER ASSIST CLUTCH(S2T) (A)	8-94386-540-0	01	1	0810-0906
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0907-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0810-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0810-
