◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51396 - NPR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#81542) — 10 parça

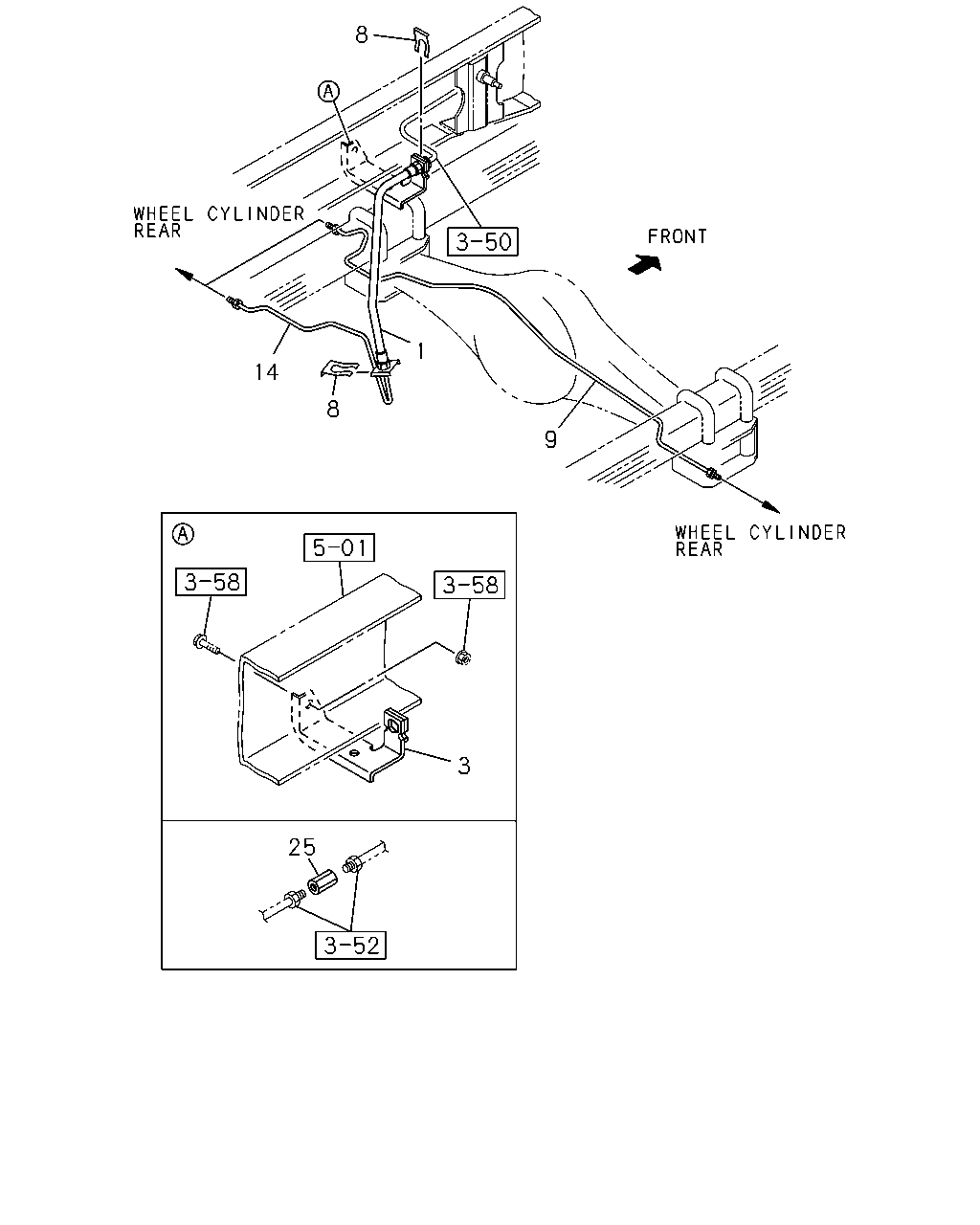

çizim 183673
8 1 14 8 9 3 25
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,RR BRK
L=405 		8-97089-061-0 01 1 0810-
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0810-
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0810-
9 04.685 PIPE; BRK,RR AXLE 8-98118-216-0 01 1 0810-1007
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) 		8-98118-216-0 01 1 1008-
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-98026-057-0 01 1 1008-
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 0810-1007
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 1008-
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-746-0 01 1 1008-
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0810-
