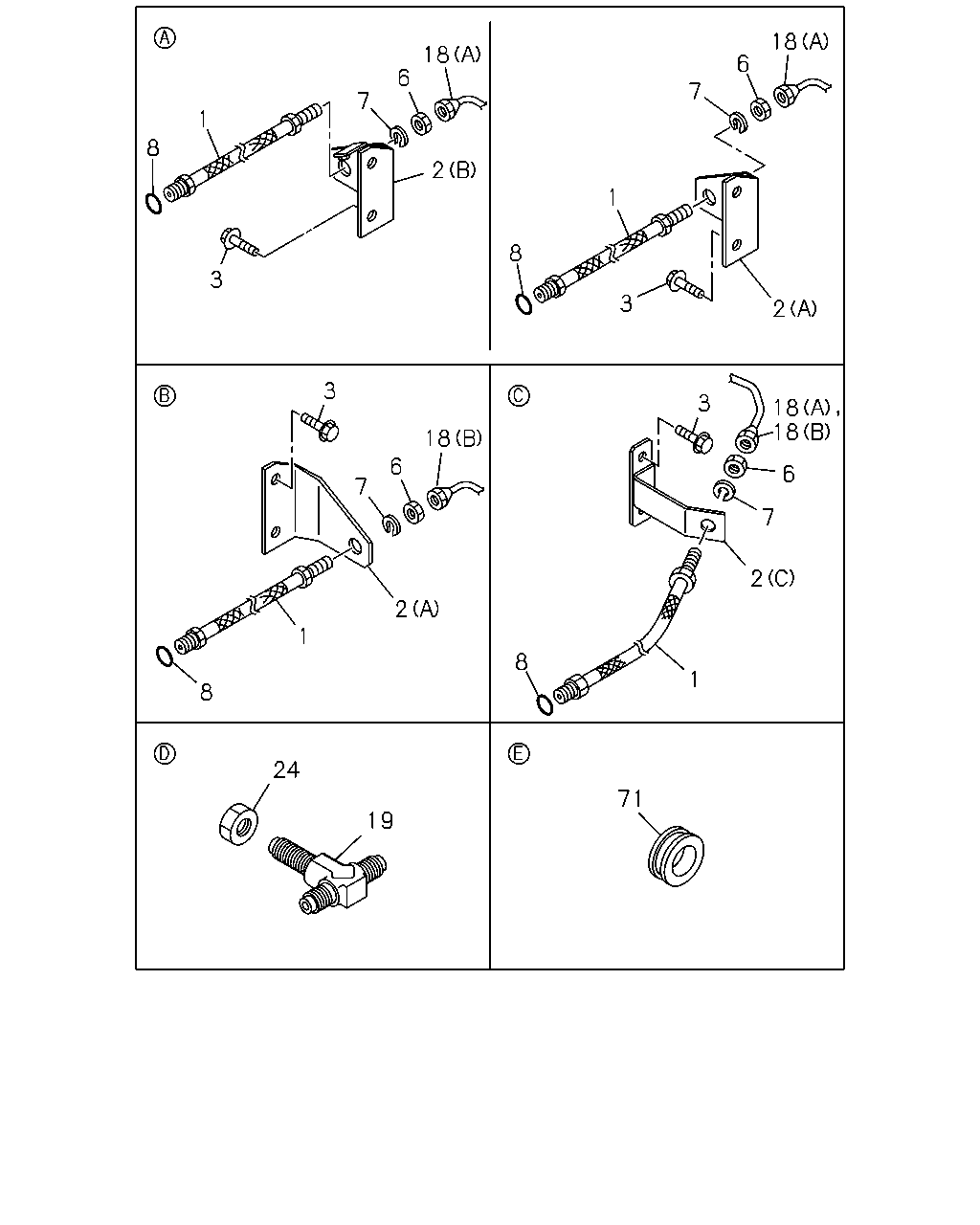

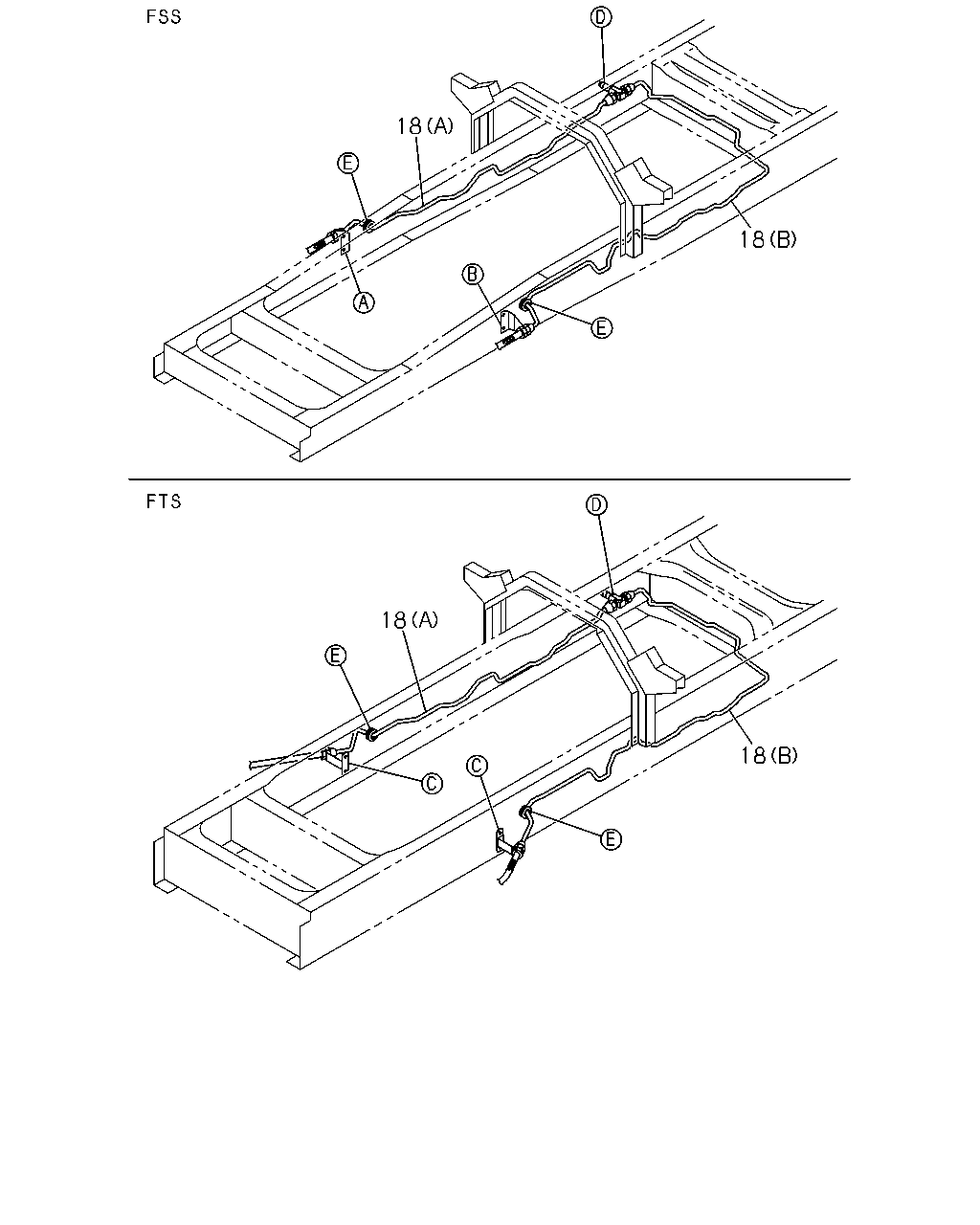

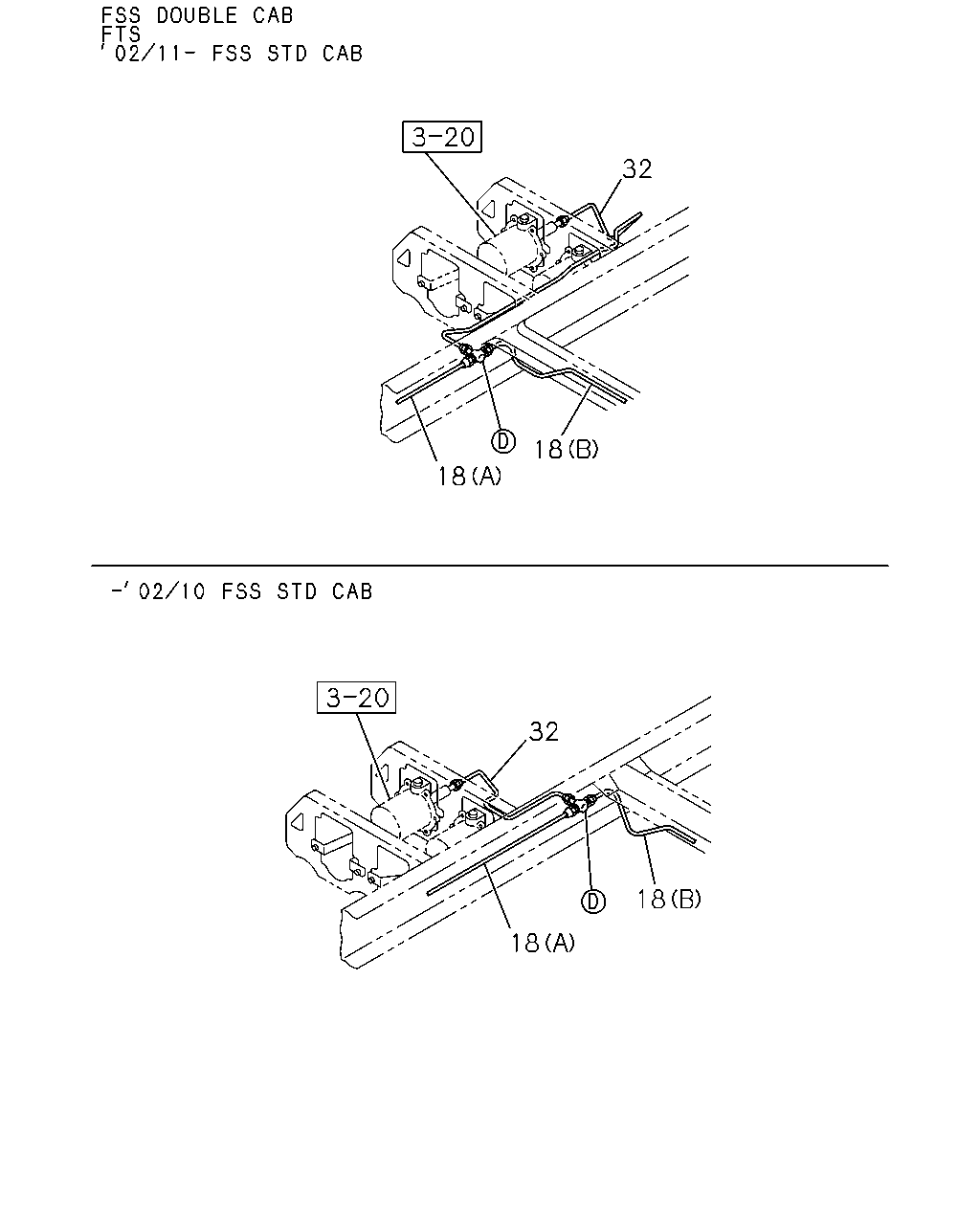

3-52 — BRAKE PIPING; OIL,FRONT (#8154) — 60 parça

18 18 6 6 7 7 1 8 2 1 8 3 3 2 3 3 18 18 18 6 6 7 7 2 2 1 8 1 8 24 71 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,FRT BRK L=550	0-05312-550-0	02	1	0005-	●	●
1	HOSE; FLEX,FRT BRK L=690	0-05312-690-0	02	1	0005-			●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	1-47477-323-1	01	1	0005-	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	1-47477-322-1	01	1	0005-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	1-47478-206-1	01	1	0005-		●
2	BRACKET; FLEX HOSE,FRT BRK (C)	1-47476-817-0	02	1	0005-			●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28080-825-0	02	1	0005-0512	●	●	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0005-	●	●	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	9-09150-512-0	02	1	0005-0603	●	●	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	0604-	●	●	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0005-	●	●	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1611 SERVICED BY L=1620	1-47426-356-0	01	1	0005-0012	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1634 SERVICED BY L=1620	1-47426-356-0	01	1	0101-0210	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1630 SERVICED BY L=1700	1-47426-357-0	01	1	0211-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2703 SERVICED BY L=2900	1-47426-364-0	01	1	0005-0210	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2671 SERVICED BY L=2900	1-47426-364-0	01	1	0211-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1623 SERVICED BY L=1700	1-47426-357-0	01	1	0005-0210			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1614 SERVICED BY L=1620	1-47426-356-0	01	1	0211-			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=2725 SERVICED BY L=2900	1-47426-364-0	01	1	0005-0210			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE MLD7Q M/T(X5K) (B) L=2831 SERVICED BY L=2900	1-47426-364-0	01	1	0005-0005			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE MLD7Q M/T(X5K) (B) L=2832 SERVICED BY L=2900	1-47426-364-0	01	1	0006-0210			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2799 SERVICED BY L=2900	1-47426-364-0	01	1	0211-			●	●
19	UNION; OIL PIPE M12 3WAY	9-09228-606-1	01	1	0005-0607	●	●	●	●
19	UNION; OIL PIPE M12 3WAY	0-92138-606-0	01	1	0608-	●	●	●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0005-	●	●	●	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0005-	●	●	●	●

32 18 18 32 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1611 SERVICED BY L=1620	1-47426-356-0	01	1	0005-0012	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1634 SERVICED BY L=1620	1-47426-356-0	01	1	0101-0210	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1630 SERVICED BY L=1700	1-47426-357-0	01	1	0211-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2703 SERVICED BY L=2900	1-47426-364-0	01	1	0005-0210	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2671 SERVICED BY L=2900	1-47426-364-0	01	1	0211-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1623 SERVICED BY L=1700	1-47426-357-0	01	1	0005-0210			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1614 SERVICED BY L=1620	1-47426-356-0	01	1	0211-			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=2725 SERVICED BY L=2900	1-47426-364-0	01	1	0005-0210			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE MLD7Q M/T(X5K) (B) L=2831 SERVICED BY L=2900	1-47426-364-0	01	1	0005-0005			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE MLD7Q M/T(X5K) (B) L=2832 SERVICED BY L=2900	1-47426-364-0	01	1	0006-0210			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2799 SERVICED BY L=2900	1-47426-364-0	01	1	0211-			●	●
32	PIPE; OIL,AIR MASTER TO UNION	1-49161-611-0	01	1	0005-0210	●
32	PIPE; OIL,AIR MASTER TO UNION L=1022 SERVICED BY L=1100	1-47426-351-0	01	1	0211-	●
32	PIPE; OIL,AIR MASTER TO UNION L=1069 SERVICED BY L=1100	1-47426-351-0	01	1	0005-0210		●
32	PIPE; OIL,AIR MASTER TO UNION L=1137 SERVICED BY L=1200	1-47426-352-0	01	1	0211-		●
32	PIPE; OIL,AIR MASTER TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) L=996	1-49161-480-0	01	1	0005-0210			●	●
32	PIPE; OIL,AIR MASTER TO UNION MLD7Q M/T(X5K) L=1159 SERVICED BY L=1200	1-47426-352-0	01	1	0005-0005			●	●
32	PIPE; OIL,AIR MASTER TO UNION MLD7Q M/T(X5K) L=1167 SERVICED BY L=1200	1-47434-388-0	01	1	0006-0012			●	●
32	PIPE; OIL,AIR MASTER TO UNION MLD7Q M/T(X5K) L=1212 SERVICED BY L=1200	1-47426-352-0	01	1	0101-0210			●	●
32	PIPE; OIL,AIR MASTER TO UNION L=1201 SERVICED BY L=1200	1-47426-352-0	01	1	0211-			●	●

18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1611 SERVICED BY L=1620	1-47426-356-0	01	1	0005-0012	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1634 SERVICED BY L=1620	1-47426-356-0	01	1	0101-0210	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1630 SERVICED BY L=1700	1-47426-357-0	01	1	0211-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2703 SERVICED BY L=2900	1-47426-364-0	01	1	0005-0210	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2671 SERVICED BY L=2900	1-47426-364-0	01	1	0211-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1623 SERVICED BY L=1700	1-47426-357-0	01	1	0005-0210			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=1614 SERVICED BY L=1620	1-47426-356-0	01	1	0211-			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=2725 SERVICED BY L=2900	1-47426-364-0	01	1	0005-0210			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE MLD7Q M/T(X5K) (B) L=2831 SERVICED BY L=2900	1-47426-364-0	01	1	0005-0005			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE MLD7Q M/T(X5K) (B) L=2832 SERVICED BY L=2900	1-47426-364-0	01	1	0006-0210			●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2799 SERVICED BY L=2900	1-47426-364-0	01	1	0211-			●	●
