Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#81531) — 183 parça

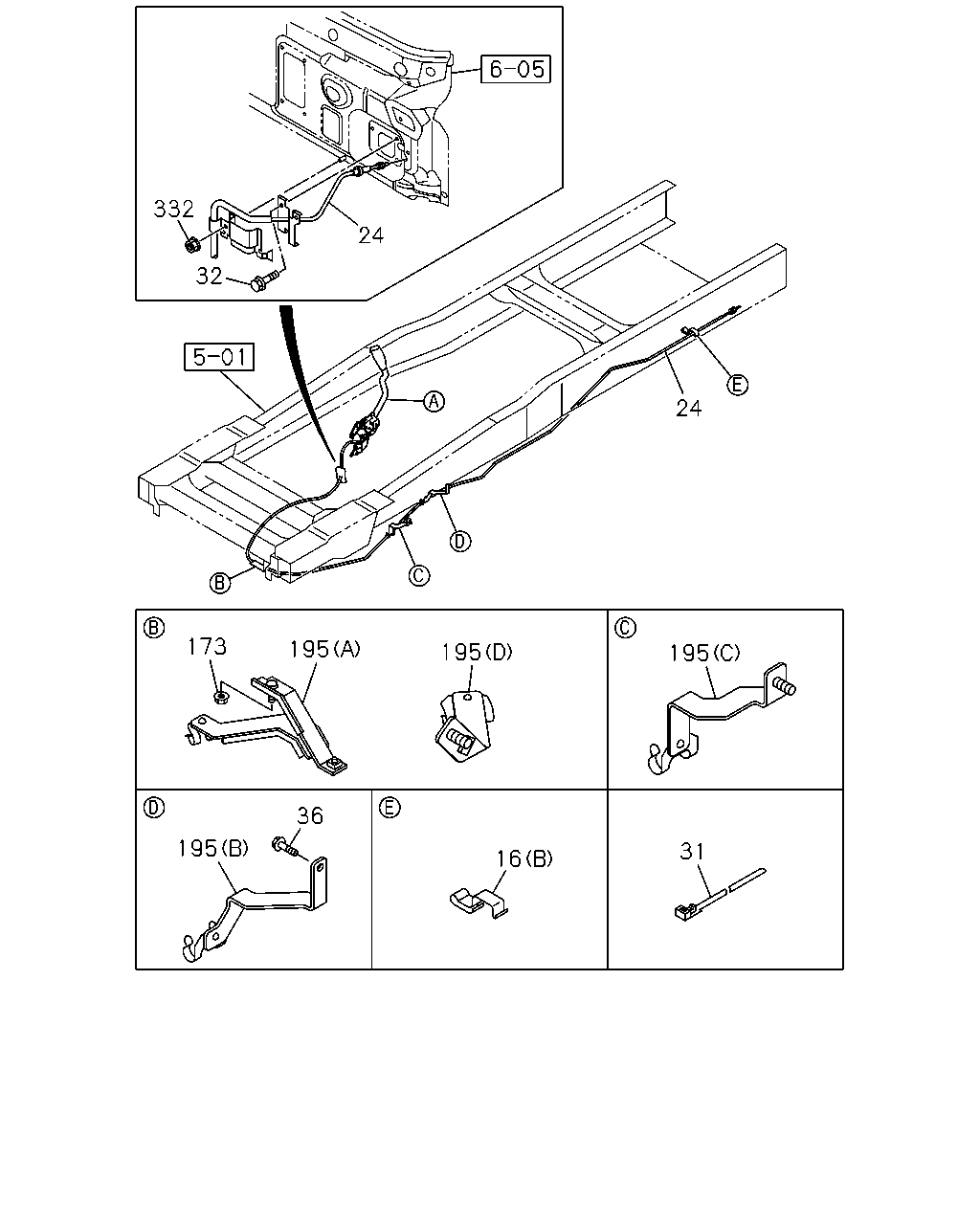

332 24 32 24 173 195 195 195 36 195 31 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) (A)	8-98050-126-0	01	1	0810-1007
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1008-
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1008-
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	1008-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3376	8-98125-321-0	01	1	0810-1204
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3376	8-98212-277-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3362	8-98223-361-1	01	1	1208-
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4149	8-98128-392-0	01	1	1008-1204
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4149	8-98212-285-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4149	8-98223-303-0	01	1	1208-
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 L=250	5-09707-030-1	01	1	0810-1007
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	1008-
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	1008-
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	0810-1007
32	04.439 BOLT; CLIP,CABLE DUMP CHASSIS(V4D) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	1008-
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	1008-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-1007
36	04.439 BOLT; PTO BRKT DUMP CHASSIS(V4D) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1008-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1008-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-0906
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-0906
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-0906
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-1007
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-1007
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-1007
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-1007
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98119-504-0	01	1	0810-1007
195	04.439 BRACKET; CONT CABLE DUMP CHASSIS(V4D) (A)	8-98119-504-0	01	1	1008-1112
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98119-504-0	01	1	1008-1112
195	04.439 BRACKET; CONT CABLE DUMP CHASSIS(V4D) (A)	8-98203-717-0	01	1	1201-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98203-717-0	01	1	1201-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98122-800-0	01	1	0810-1007
195	04.439 BRACKET; CONT CABLE DUMP CHASSIS(V4D) (B)	8-98122-800-0	01	1	1008-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98122-800-0	01	1	1008-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (C)	8-98124-679-1	01	1	0810-1007
195	04.439 BRACKET; CONT CABLE DUMP CHASSIS(V4D) (C)	8-98124-679-1	01	1	1008-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (C)	8-98124-679-1	01	1	1008-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (D)	8-98139-185-0	01	1	0907-1007
195	04.439 BRACKET; CONT CABLE DUMP CHASSIS(V4D) (D)	8-98139-185-0	01	1	1008-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (D)	8-98139-185-0	01	1	1008-
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-1007
332	04.439 NUT; PTO CONT CABLE DUMP CHASSIS(V4D) 01.062 M6 FLANGE	0-91180-106-0	01	1	1008-
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M6 FLANGE	0-91180-106-0	01	1	1008-

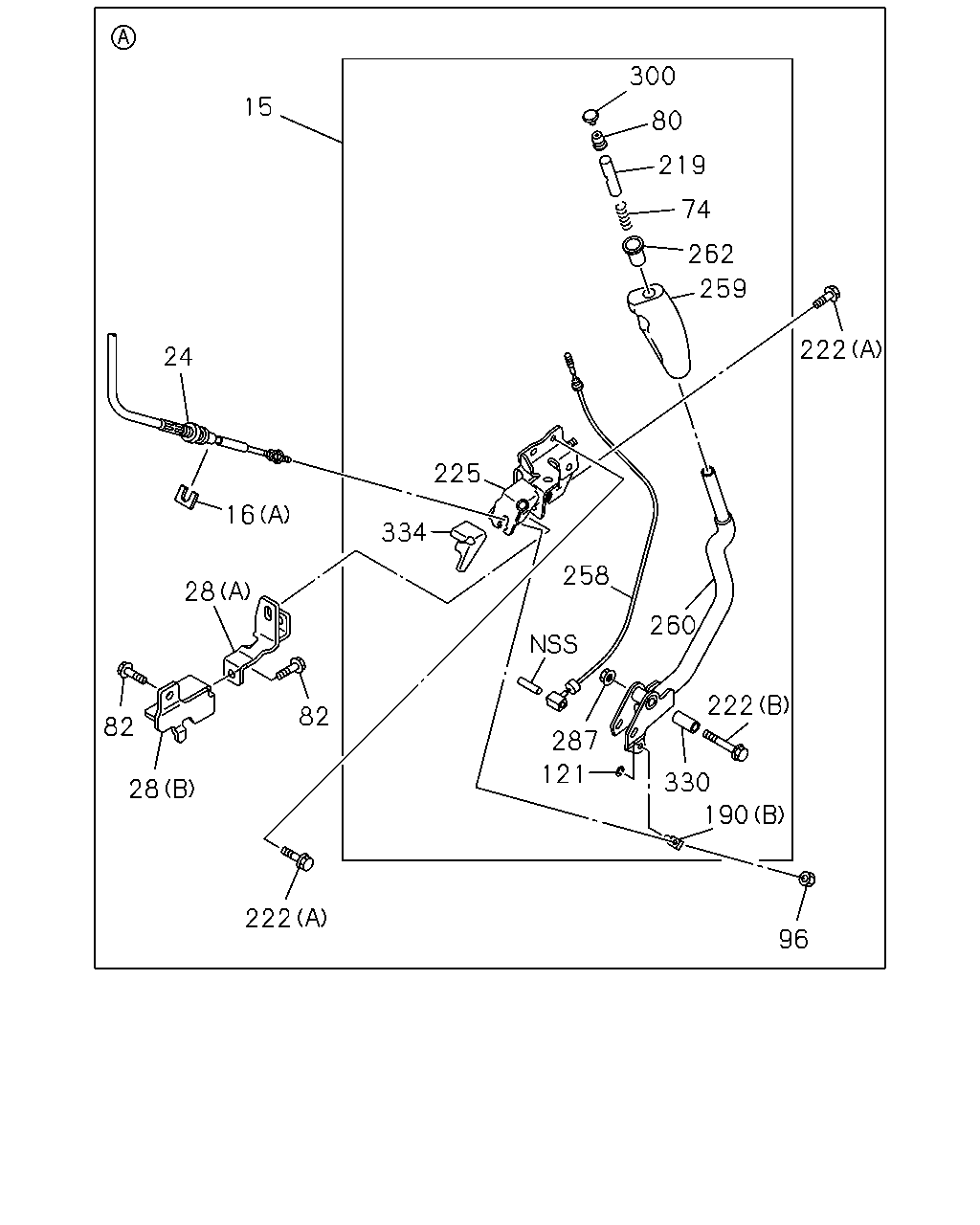

15 24 16 28 82 82 28 222 334 225 258 260 222 287 121 330 190 96 259 262 74 219 80 300 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98124-519-0	01	1	0810-1007
15	04.439 LEVER ASM; PTO CONT DUMP CHASSIS(V4D)	8-98124-519-0	01	1	1008-
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98124-519-0	01	1	1008-
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) (A)	8-98050-126-0	01	1	0810-1007
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1008-
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1008-
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	1008-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3376	8-98125-321-0	01	1	0810-1204
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3376	8-98212-277-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3362	8-98223-361-1	01	1	1208-
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4149	8-98128-392-0	01	1	1008-1204
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4149	8-98212-285-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4149	8-98223-303-0	01	1	1208-
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	0810-1007
28	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) (A)	8-98096-005-2	01	1	1008-
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98096-005-2	01	1	1008-
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	0810-1007
28	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) (B)	8-98096-006-0	01	1	1008-
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98096-006-0	01	1	1008-
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	0810-1007
74	04.439 SPRING; RETURN,CONT LEVER DUMP CHASSIS(V4D)	8-98029-874-0	01	1	1008-
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98029-874-0	01	1	1008-
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	0810-1007
80	04.439 COVER; CONT LEVER DUMP CHASSIS(V4D)	8-97122-741-0	01	1	1008-
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-741-0	01	1	1008-
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0810-1007
82	04.128 BOLT; CONT LEVER DUMP CHASSIS(V4D) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1008-
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1008-
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	0810-1007
96	04.439 NUT DUMP CHASSIS(V4D) 03.330 M6	0-91110-506-0	01	1	1008-
96	04.439 NUT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.330 M6	0-91110-506-0	01	1	1008-
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 ID=4	0-91805-504-0	01	1	0810-1007
121	04.439 RING; SNAP DUMP CHASSIS(V4D) 03.485 ID=4	0-91805-504-0	01	1	1008-
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.485 ID=4	0-91805-504-0	01	1	1008-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0810-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0810-1007
190	04.439 BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1008-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1008-
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	0810-1007
219	04.439 KNOB; LEVER DUMP CHASSIS(V4D)	8-97122-736-0	01	1	1008-
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-736-0	01	1	1008-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	0810-1007
222	04.439 BOLT; LEVER DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	1008-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	1008-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-1007
222	04.439 BOLT; LEVER DUMP CHASSIS(V4D) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1008-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1008-
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98077-250-2	01	1	0810-1007
225	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D)	8-98077-250-2	01	1	1008-
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-250-2	01	1	1008-
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-160-1	01	1	0810-1007
258	04.439 CABLE; DUMP CONT DUMP CHASSIS(V4D)	8-98077-160-1	01	1	1008-
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-160-1	01	1	1008-
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	0810-1007
259	04.439 GRIP; CONT LEVER DUMP CHASSIS(V4D)	8-97141-653-0	01	1	1008-
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97141-653-0	01	1	1008-
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-136-1	01	1	0810-1007
260	04.439 LEVER; DUMP CONT DUMP CHASSIS(V4D)	8-98077-136-1	01	1	1008-
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-136-1	01	1	1008-
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	0810-1007
262	04.439 RETAINER; SPRING DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1008-
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1008-
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 M8 FLANGE	0-91180-208-0	01	1	0810-1007
287	04.439 NUT; SWITCH,CONT LEVER DUMP CHASSIS(V4D) 01.540 M8 FLANGE	0-91180-208-0	01	1	1008-
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.540 M8 FLANGE	0-91180-208-0	01	1	1008-
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	0810-1007
300	04.439 CAP; KNOB DUMP CHASSIS(V4D)	8-97122-740-0	01	1	1008-
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-740-0	01	1	1008-
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	0810-1007
330	04.439 COLOR; DUMP CONT DUMP CHASSIS(V4D)	8-98049-802-0	01	1	1008-
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98049-802-0	01	1	1008-
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC)	8-98109-990-1	01	1	0811-1007
334	04.439 SHEET; PTO DUMP CHASSIS(V4D)	8-98109-990-1	01	1	1008-
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98109-990-1	01	1	1008-

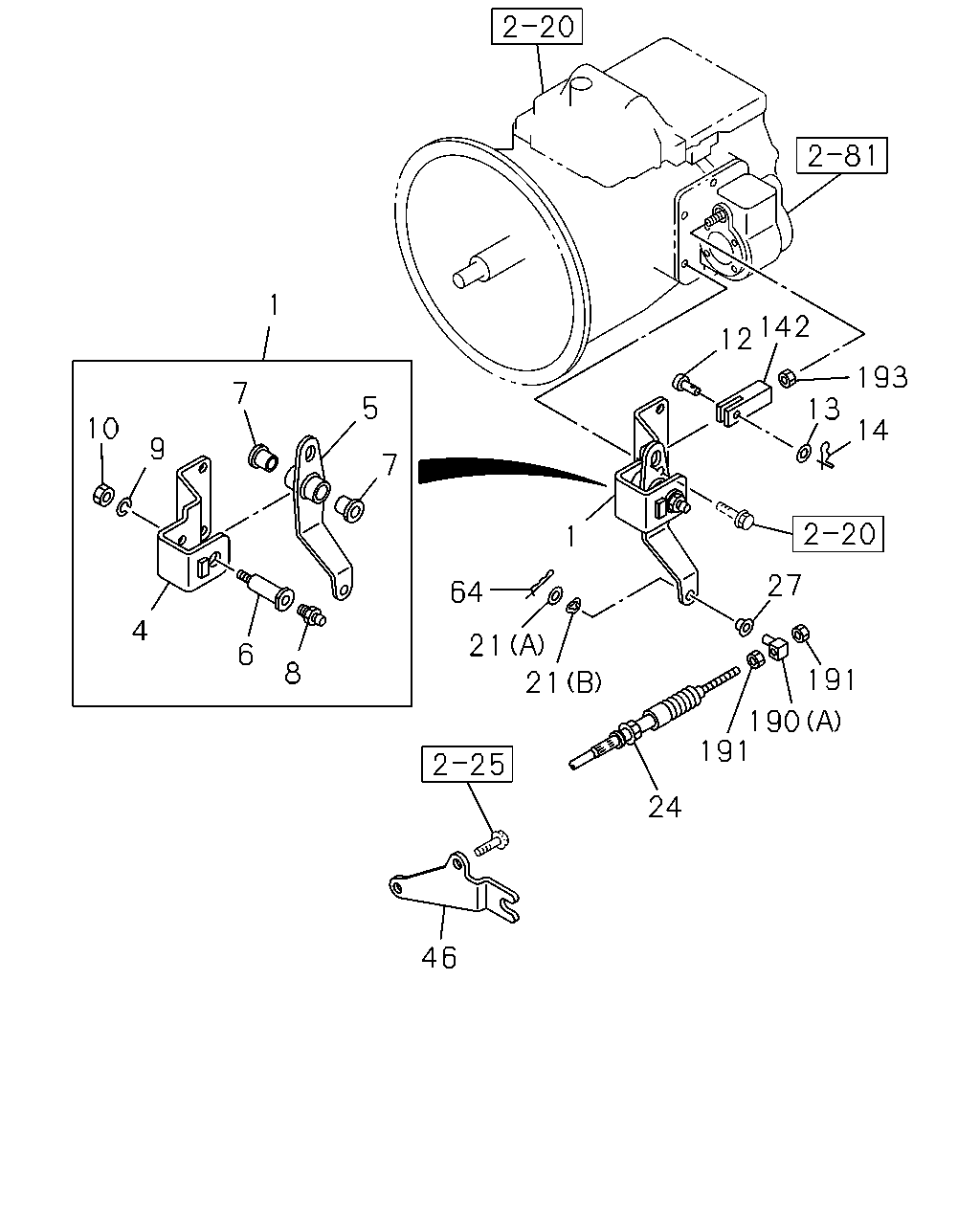

1 142 12 193 7 5 13 10 14 9 7 1 27 64 4 21 21 6 8 191 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	0810-1007
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-714-0	01	1	1008-1107
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-089-1	01	1	1108-1506
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1507-
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	0810-1007
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-717-0	01	1	1008-1107
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-099-1	01	1	1108-1506
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1507-
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0810-1007
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-718-0	01	1	1008-1506
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1507-
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0810-1007
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-720-0	01	1	1008-1107
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-101-0	01	1	1108-1506
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1507-
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0810-1007
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	5-33659-053-0	02	1	1008-1506
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1507-
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0810-1007
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1008-1506
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1507-
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0810-1007
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=8.2	0-91510-508-0	01	1	1008-1506
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1507-
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0810-1007
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.334 M8	0-91110-508-0	01	1	1008-1506
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1507-
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0810-1007
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-692-0	01	1	1008-1506
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1507-
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0810-1007
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=12.5 OD=22	0-91610-512-0	01	1	1008-1506
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1507-
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0810-1007
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97581-216-0	01	1	1008-1506
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1507-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0810-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0810-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3376	8-98125-321-0	01	1	0810-1204
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3376	8-98212-277-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3362	8-98223-361-1	01	1	1208-
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4149	8-98128-392-0	01	1	1008-1204
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4149	8-98212-285-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4149	8-98223-303-0	01	1	1208-
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	0810-
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC)	8-98032-829-2	01	1	0810-
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	0810-
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	0810-1007
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-691-0	01	1	1008-1506
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1507-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0810-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0810-1007
190	04.439 BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1008-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1008-
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	0810-
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0810-1007
193	04.439 NUT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M12	0-91111-512-0	01	1	1008-1506
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
