3-46 — AIR DRYER (#8153) — 86 parça
çizim 77555

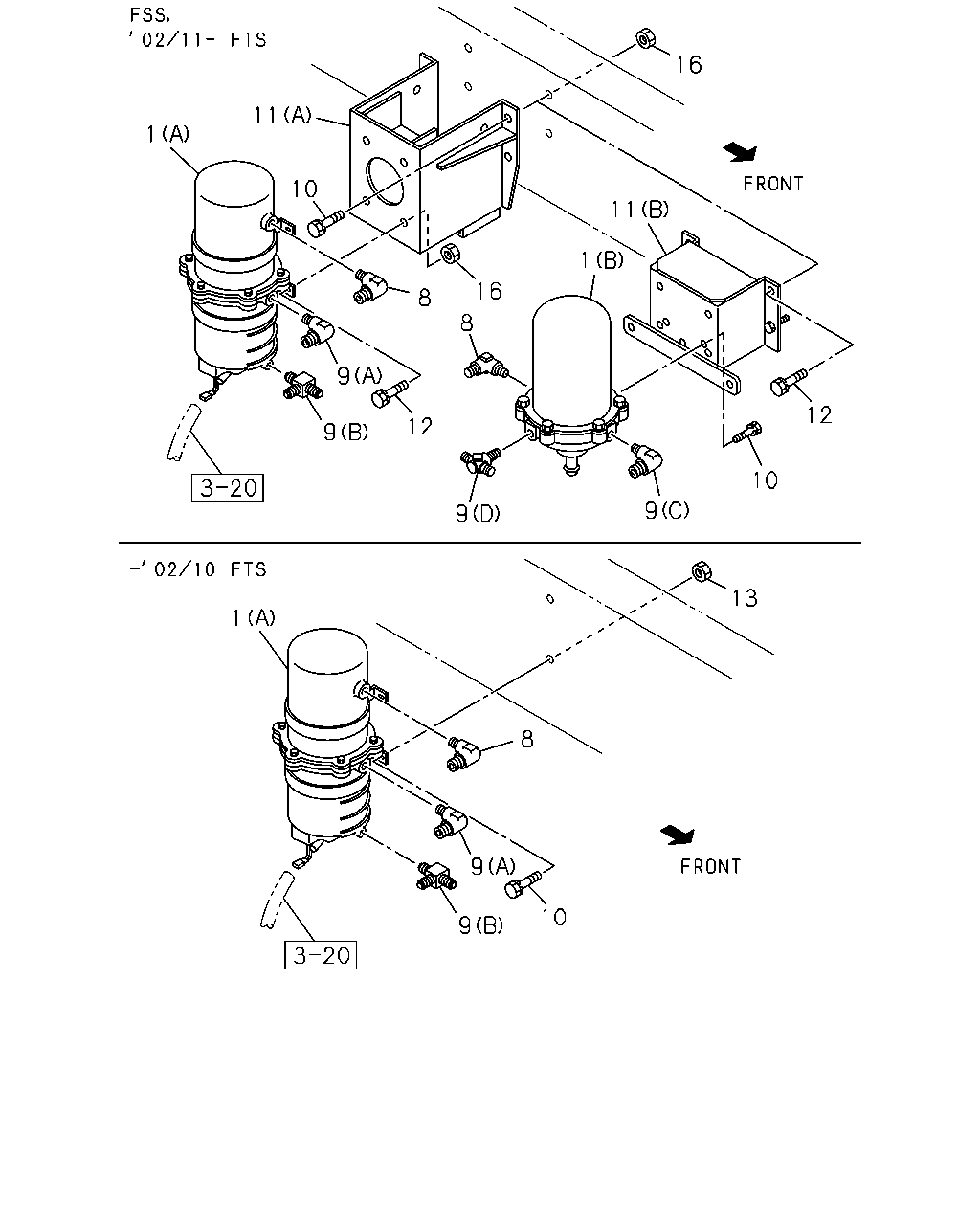

16 11 1 10 11 1 16 8 8 9 12 12 9 10 9 9 13 1 8 9 10 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRYER; AIR
(A) 		1-48190-090-1 01 1 0005-0210 ● ● ● ●
1 DRYER; AIR
(B) 		1-48190-210-1 01 1 0211- ● ● ● ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0005- ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 0005-0210 ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
(C) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0211- ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0005-0210 ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
(D) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0211- ● ● ● ●
10 BOLT; AIR DRYER
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ● ● ● ●
10 BOLT; AIR DRYER
M10X16 		0-20801-016-0 03 1 0211-0512 ● ● ● ●
10 BOLT; AIR DRYER
M10X16 		0-20851-016-0 03 1 0601- ● ● ● ●
11 BRACKET; AIR DRYER
(A) 		1-48195-078-0 01 1 0005-0210 ● ●
11 BRACKET; AIR DRYER
(B) 		1-48195-113-0 01 1 0211- ● ● ● ●
12 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 0005-0210 ● ●
12 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ● ● ● ●
12 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ● ● ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ● ●
16 NUT; BRKT
M10 		9-09110-510-0 04 1 0005-0210 ● ●
16 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ● ● ●
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
çizim 77593

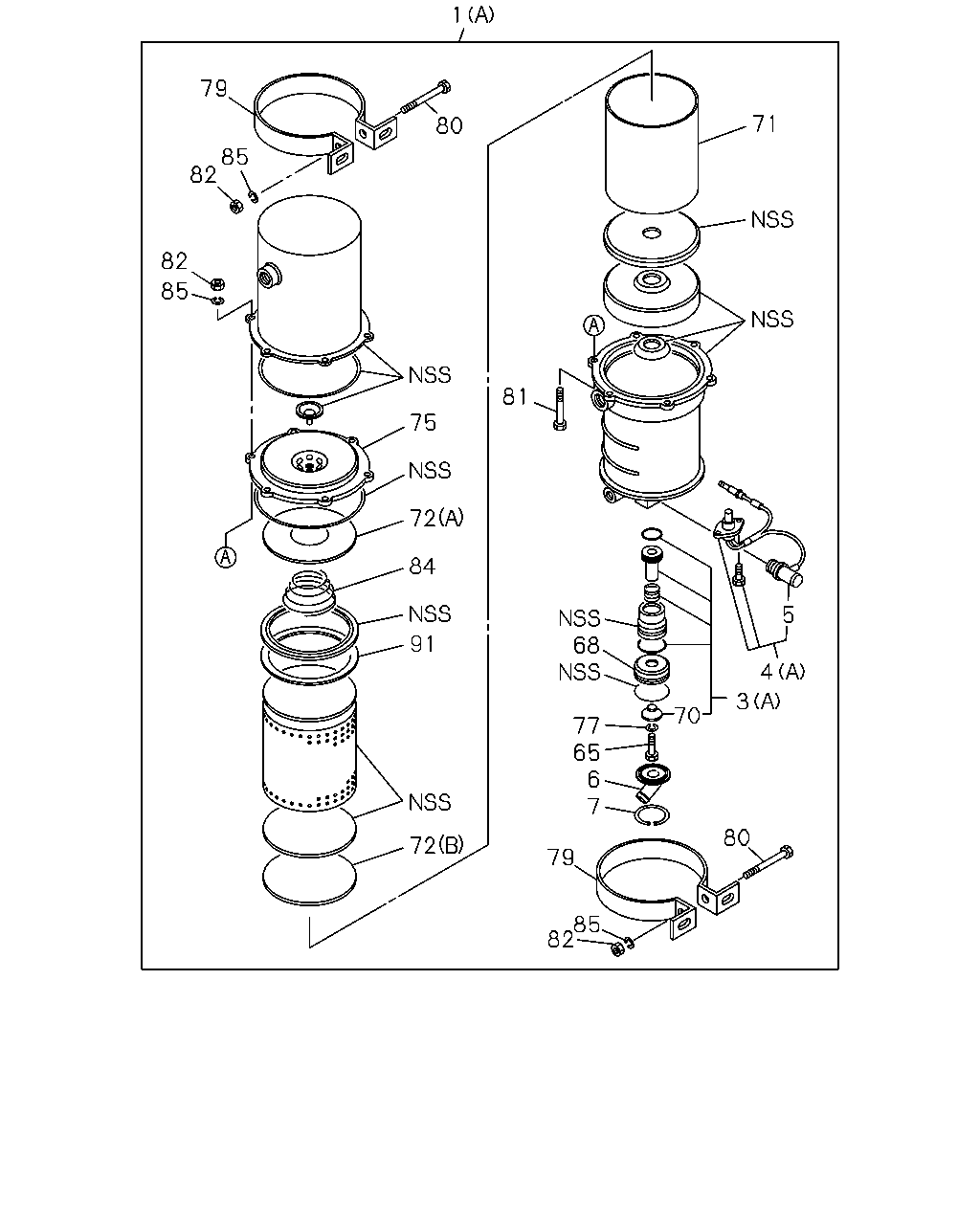

1 79 71 80 85 82 82 85 81 75 72 84 5 68 91 4 3 70 77 65 6 7 80 72 79 85 82
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRYER; AIR
(A) 		1-48190-090-1 01 1 0005-0210 ● ● ● ●
1 DRYER; AIR
(B) 		1-48190-210-1 01 1 0211- ● ● ● ●
3 PISTON KIT; AIR DRYER
(A) 		1-85576-084-0 01 1 0005-0210 ● ● ● ●
3 PISTON KIT; AIR DRYER
(B) 		1-85576-193-0 01 1 0211- ● ● ● ●
4 THERMOSTAT KIT; AIR DRYER
(A) 		1-85576-121-0 01 1 0005-0210 ● ● ● ●
4 THERMOSTAT KIT; AIR DRYER
(B) 		1-85576-218-0 01 1 0211- ● ● ● ●
5 HEATER ASM; AIR DRYER 1-48199-200-0 01 1 0005-0210 ● ● ● ●
5 HEATER ASM; AIR DRYER 1-48199-085-0 01 1 0211- ● ● ● ●
6 COVER; EXH,AIR DRYER 1-48199-132-0 01 1 0005-0210 ● ● ● ●
6 COVER; EXH,AIR DRYER 1-48199-404-0 01 1 0211- ● ● ● ●
7 RING; SNAP,AIR DRYER 1-48199-100-0 01 1 0005-0210 ● ● ● ●
7 RING; SNAP,AIR DRYER 1-48199-403-0 01 1 0211- ● ● ● ●
65 BOLT; PURGE VLV 1-48199-102-0 01 1 0005-0210 ● ● ● ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 0211- ● ● ● ●
68 BODY; VALVE 1-48199-216-0 01 1 0005-0210 ● ● ● ●
68 BODY; VALVE 1-48199-408-0 01 1 0211- ● ● ● ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 0005- ● ● ● ●
71 CASE; INNER,AIR DRYER 1-48199-099-0 01 1 0005-0210 ● ● ● ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-097-0 01 1 0005-0210 ● ● ● ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-098-0 01 1 0005-0210 ● ● ● ●
75 COVER; CASE,AIR DRYER 1-48199-201-0 01 1 0005-0210 ● ● ● ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0211- ● ● ● ●
77 WASHER; LK,VALVE 1-48199-103-0 01 1 0005-0210 ● ● ● ●
79 BRACKET; AIR DRYER 1-48199-209-0 02 1 0005-0210 ● ● ● ●
80 BOLT; BRKT 1-48199-212-0 02 1 0005-0210 ● ● ● ●
81 BOLT; CASE,AIR DRYER 1-48199-208-0 06 1 0005-0210 ● ● ● ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0211- ● ● ● ●
82 NUT; CASE,AIR DRYER 1-48199-211-0 08 1 0005-0210 ● ● ● ●
84 SPRING; AIR DRYER 1-48199-092-0 01 1 0005-0210 ● ● ● ●
84 SPRING; AIR DRYER 1-48199-425-0 01 1 0211- ● ● ● ●
85 WASHER; CASE,AIR DRYER 1-48199-024-0 08 1 0005-0210 ● ● ● ●
91 GUIDE; CASE,AIR DRYER 1-48199-091-0 01 1 0005-0210 ● ● ● ●
çizim 79020

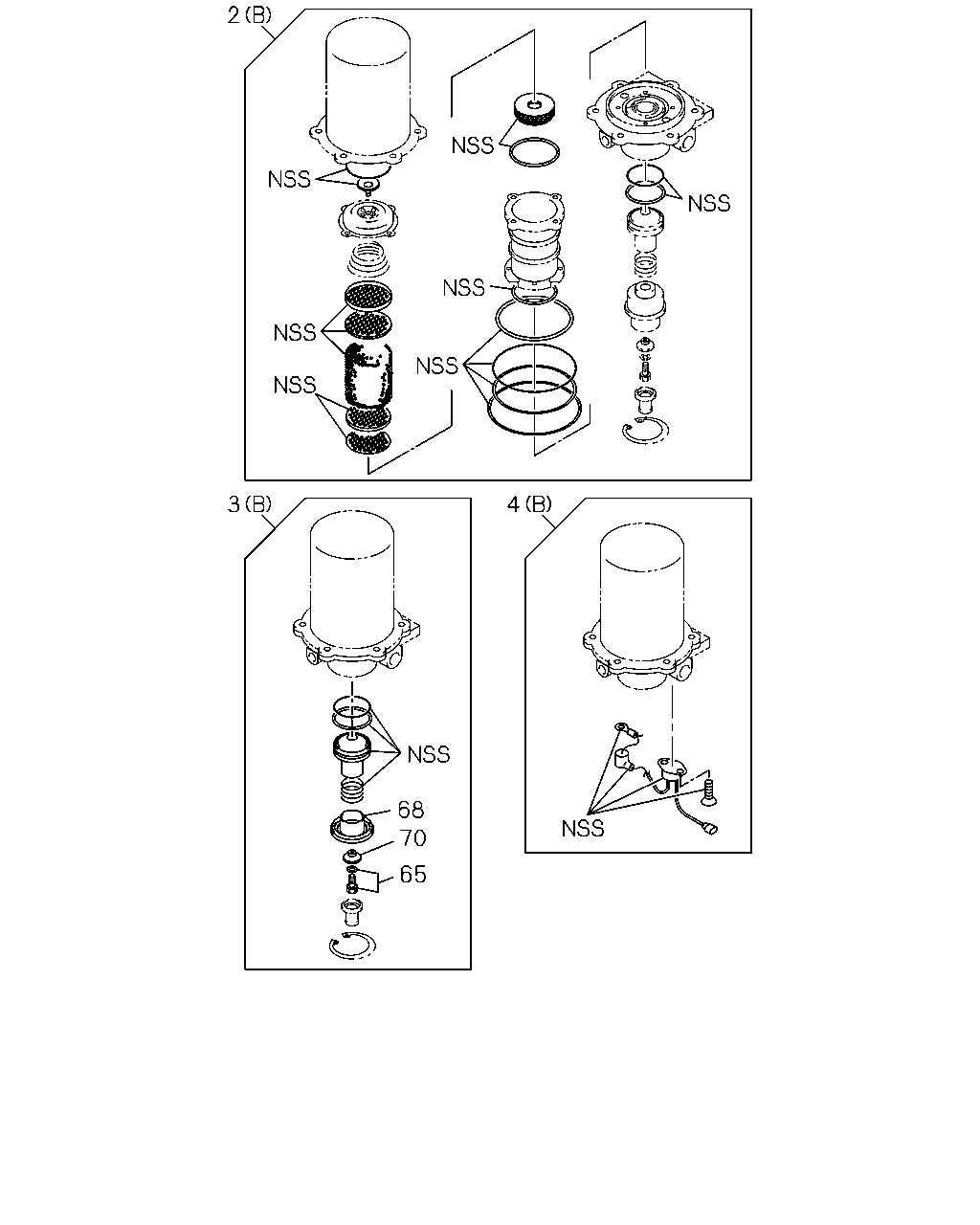

2 3 4 68 70 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-083-0 01 1 0005-0210 ● ● ● ●
2 REPAIR KIT; AIR DRYER
(B) 		1-85576-217-0 01 1 0211- ● ● ● ●
3 PISTON KIT; AIR DRYER
(A) 		1-85576-084-0 01 1 0005-0210 ● ● ● ●
3 PISTON KIT; AIR DRYER
(B) 		1-85576-193-0 01 1 0211- ● ● ● ●
4 THERMOSTAT KIT; AIR DRYER
(A) 		1-85576-121-0 01 1 0005-0210 ● ● ● ●
4 THERMOSTAT KIT; AIR DRYER
(B) 		1-85576-218-0 01 1 0211- ● ● ● ●
65 BOLT; PURGE VLV 1-48199-102-0 01 1 0005-0210 ● ● ● ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 0211- ● ● ● ●
68 BODY; VALVE 1-48199-216-0 01 1 0005-0210 ● ● ● ●
68 BODY; VALVE 1-48199-408-0 01 1 0211- ● ● ● ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 0005- ● ● ● ●
çizim 103010

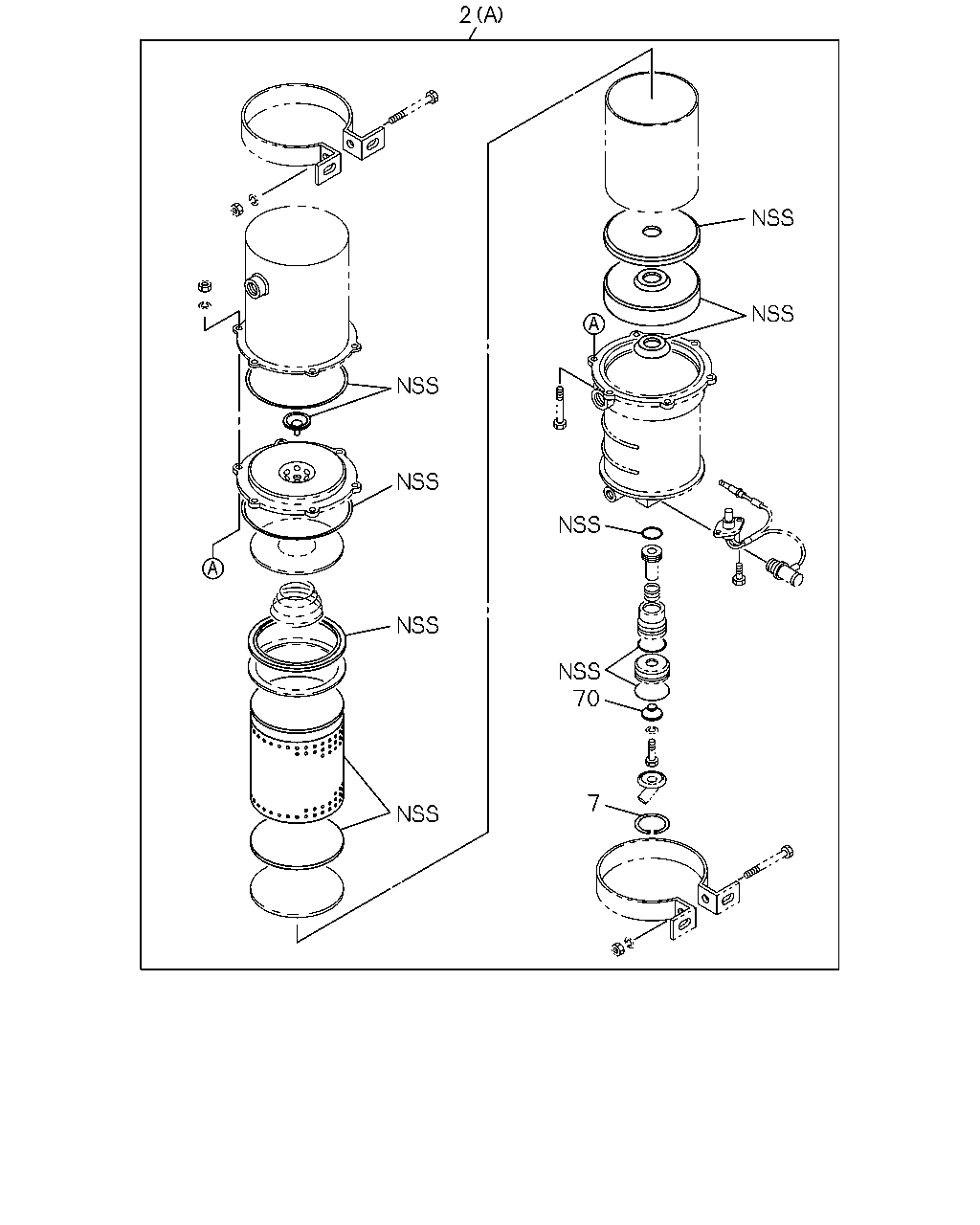

2 70 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-083-0 01 1 0005-0210 ● ● ● ●
2 REPAIR KIT; AIR DRYER
(B) 		1-85576-217-0 01 1 0211- ● ● ● ●
7 RING; SNAP,AIR DRYER 1-48199-100-0 01 1 0005-0210 ● ● ● ●
7 RING; SNAP,AIR DRYER 1-48199-403-0 01 1 0211- ● ● ● ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 0005- ● ● ● ●
çizim 103542

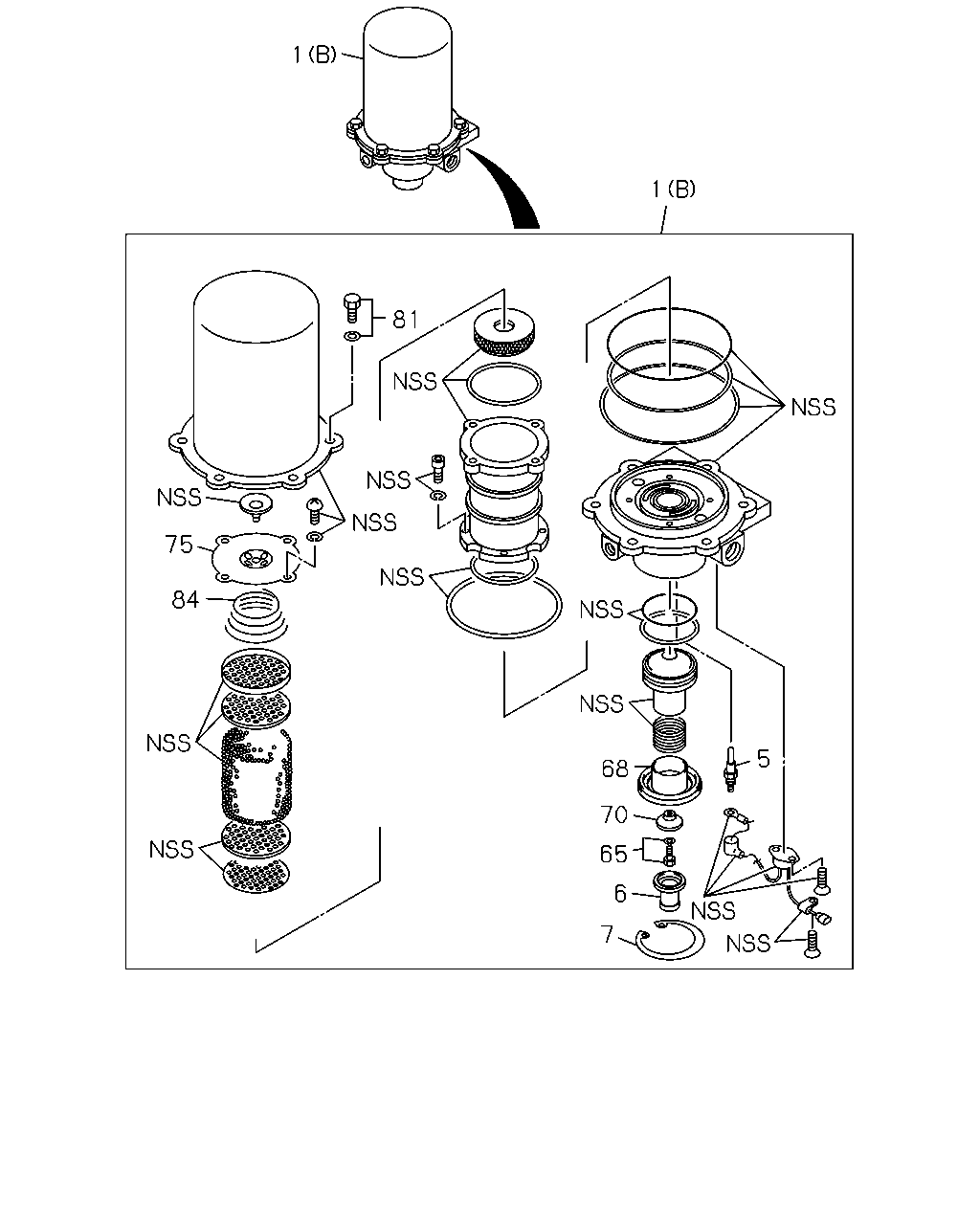

1 1 81 75 84 5 68 70 65 6 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRYER; AIR
(A) 		1-48190-090-1 01 1 0005-0210 ● ● ● ●
1 DRYER; AIR
(B) 		1-48190-210-1 01 1 0211- ● ● ● ●
5 HEATER ASM; AIR DRYER 1-48199-200-0 01 1 0005-0210 ● ● ● ●
5 HEATER ASM; AIR DRYER 1-48199-085-0 01 1 0211- ● ● ● ●
6 COVER; EXH,AIR DRYER 1-48199-132-0 01 1 0005-0210 ● ● ● ●
6 COVER; EXH,AIR DRYER 1-48199-404-0 01 1 0211- ● ● ● ●
7 RING; SNAP,AIR DRYER 1-48199-100-0 01 1 0005-0210 ● ● ● ●
7 RING; SNAP,AIR DRYER 1-48199-403-0 01 1 0211- ● ● ● ●
65 BOLT; PURGE VLV 1-48199-102-0 01 1 0005-0210 ● ● ● ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 0211- ● ● ● ●
68 BODY; VALVE 1-48199-216-0 01 1 0005-0210 ● ● ● ●
68 BODY; VALVE 1-48199-408-0 01 1 0211- ● ● ● ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 0005- ● ● ● ●
75 COVER; CASE,AIR DRYER 1-48199-201-0 01 1 0005-0210 ● ● ● ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0211- ● ● ● ●
81 BOLT; CASE,AIR DRYER 1-48199-208-0 06 1 0005-0210 ● ● ● ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0211- ● ● ● ●
84 SPRING; AIR DRYER 1-48199-092-0 01 1 0005-0210 ● ● ● ●
84 SPRING; AIR DRYER 1-48199-425-0 01 1 0211- ● ● ● ●
