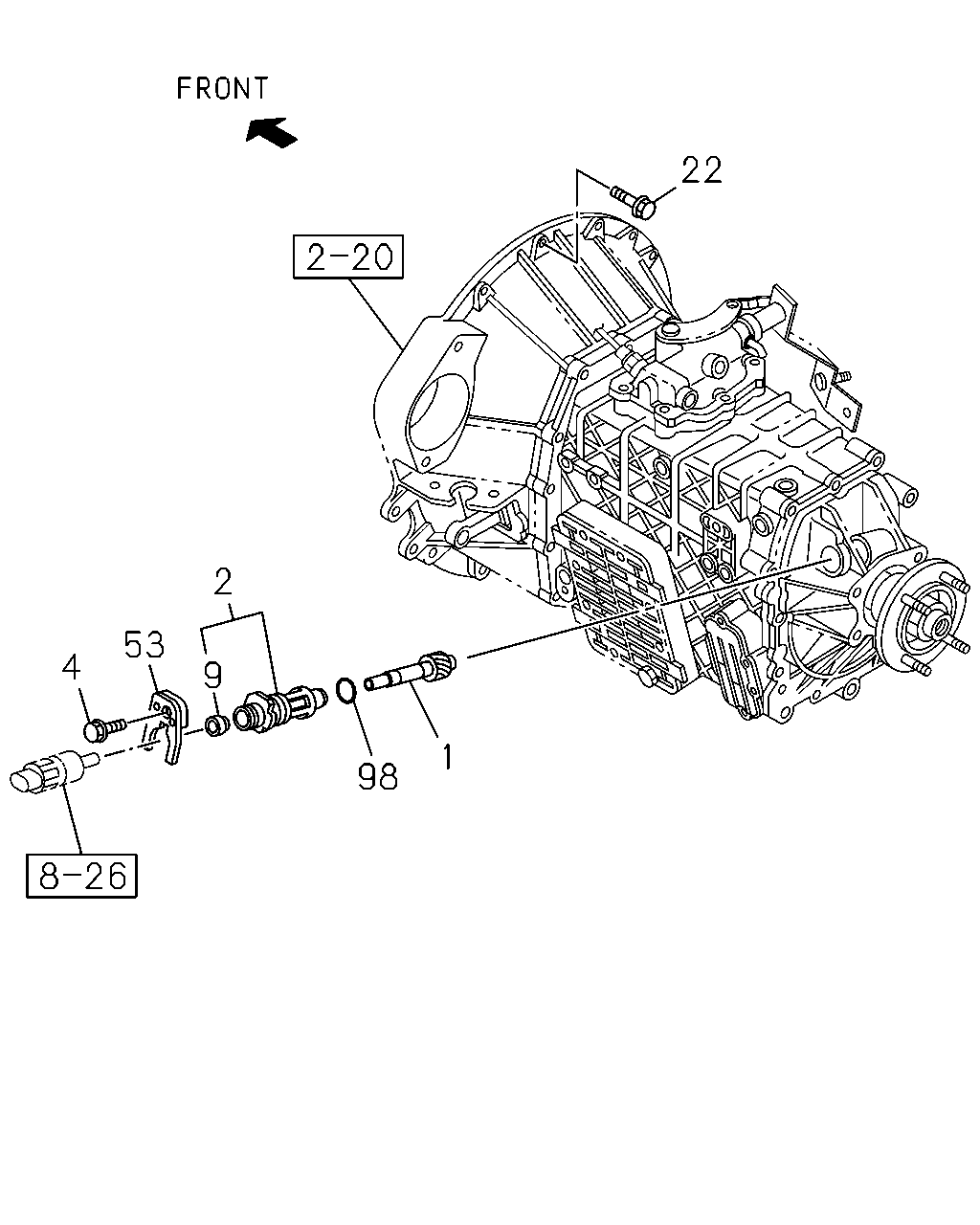

2-25 — SPEEDOMETER DRIVEN GEAR (#81525) — 33 parça

22 2 53 4 9 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) Z=14	8-97253-561-1	01	1	0810-
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7(R41) FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) Z=14	8-97253-561-1	01	1	0810-
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7(R41) FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) Z=15	8-97253-560-1	01	1	0810-1007
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7(R41) FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) Z=15	8-97253-560-1	01	1	1008-
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/7(R42) Z=15	8-97253-560-1	01	1	1008-
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 39/7(GV1) MARK "12,13,14,15"	8-97253-125-0	01	1	0810-1007
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/7(R41) MARK "12,13,14,15"	8-97253-125-0	01	1	0810-1007
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/7(R41) MARK "12,13,14,15"	8-97253-125-0	01	1	1008-
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) MARK "12,13,14,15"	8-97253-125-0	01	1	1008-
4	04.338 BOLT; RET,DRIVEN GEAR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0810-
9	04.338 SEAL; OIL,DRIVEN GEAR FINAL GEAR RATIO 39/7(GV1) NOK	8-97131-328-1	01	1	0810-1007
9	04.338 SEAL; OIL,DRIVEN GEAR FINAL GEAR RATIO 41/7(R41) NOK	8-97131-328-1	01	1	0810-1007
9	04.338 SEAL; OIL,DRIVEN GEAR FINAL GEAR RATIO 41/7(R41) NOK	8-97131-328-1	01	1	1008-
9	04.338 SEAL; OIL,DRIVEN GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) NOK	8-97131-328-1	01	1	1008-
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 09.171 M10X30 FLANGE	0-28151-030-0	04	1	1507-
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),POWER TAKE OFF CONTROL ELECT RIC(7GR) 09.171 M10X30 FLANGE	0-28151-030-0	04	1	1507-
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0810-1506
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.670 M10X35 FLANGE	0-28151-035-0	05	1	1507-
22	00.685 BOLT; TRANS CASE TO ENG 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0810-1506
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0810-1506
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0810-1506
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	1507-
22	00.685 BOLT; TRANS CASE TO ENG 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0810-1506
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	1507-
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),POWER TAKE OFF CONTROL ELECT RIC(7GR) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	1507-
22	00.685 BOLT; TRANS CASE TO ENG 00.683 M10X55 FLANGE	8-97365-449-0	02	1	0810-1506
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	1507-
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),POWER TAKE OFF CONTROL ELECT RIC(7GR) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	1507-
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	0810-
98	04.338 SEAL; OIL,BUSH FINAL GEAR RATIO 39/7(GV1) 04.439	9-09561-324-0	01	1	0810-1007
98	04.338 SEAL; OIL,BUSH FINAL GEAR RATIO 41/7(R41) 04.439	9-09561-324-0	01	1	0810-1007
98	04.338 SEAL; OIL,BUSH FINAL GEAR RATIO 41/7(R41) 04.439	9-09561-324-0	01	1	1008-
98	04.338 SEAL; OIL,BUSH FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) 04.439	9-09561-324-0	01	1	1008-
