◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#81521) — 44 parça

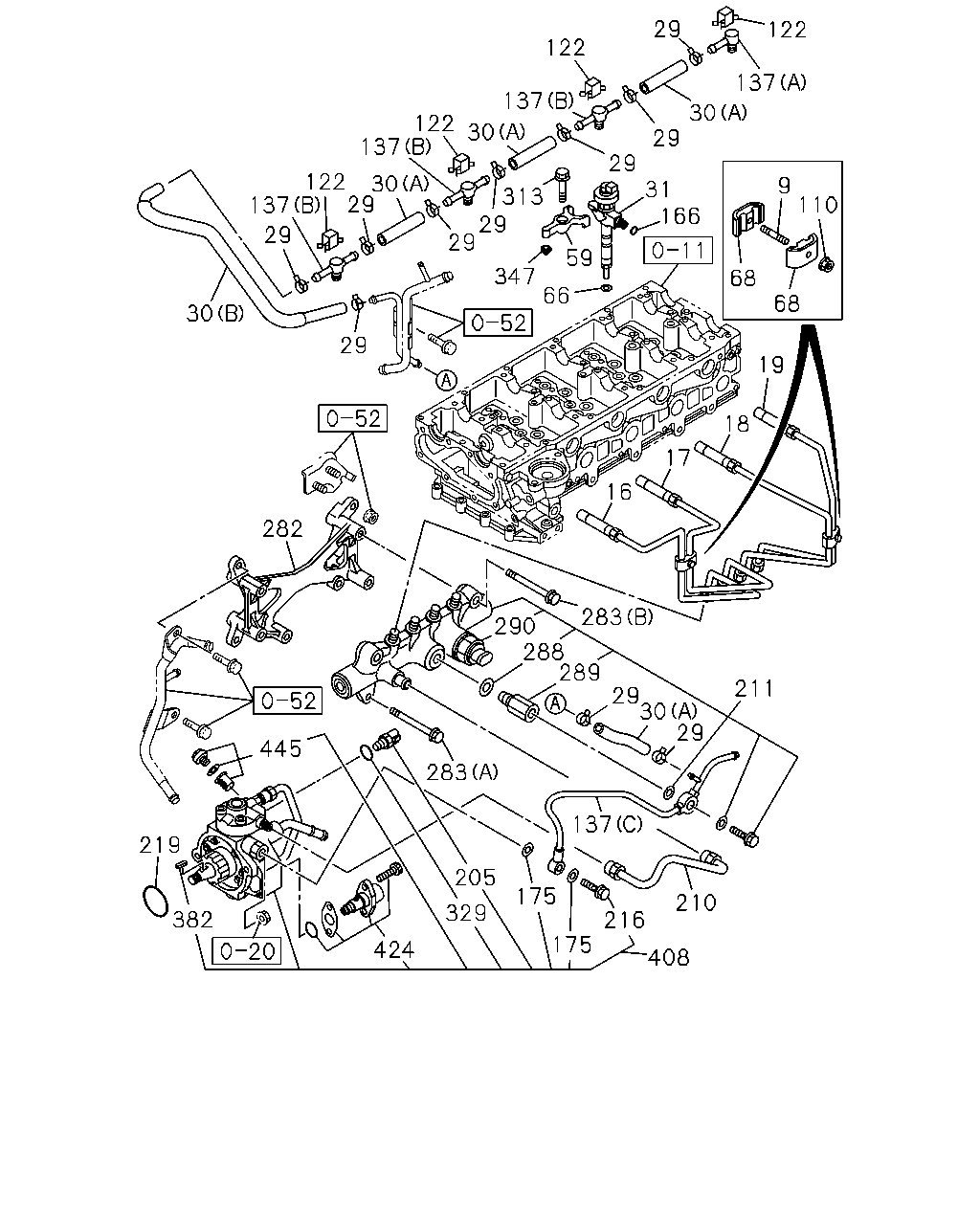

çizim 147367
137 122 29 29 30 137 122 30 137 122 29 122 137 30 29 29 313 29 29 29 30 347 59 66 31 166 9 110 68 68 19 18 17 16 211 283 290 288 289 29 30 29 282 283 445 219 382 424 205 329 175 137 175 216 210 408
BalonParca AdiParca NoAdetTipApplied Date A B C
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 1109- ● ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 1109- ● ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 1109- ● ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 1109- ● ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 1109- ● ● ●
29 CLIP; HOSE
ID=10.5 THA 		8-97944-126-0 10 1 1109- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=96 THA 		8-98053-693-0 04 1 1109- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) THA 		8-98168-394-0 01 1 1109- ● ● ●
31 NOZZLE ASM; INJ
THA 		8-98106-694-1 04 1 1109- ● ●
31 NOZZLE ASM; INJ
THA 		8-98106-693-2 04 1 1109- ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 1109- ● ● ●
66 GASKET; INJ NOZZLE
IMA 		8-98181-540-0 04 1 1109- ● ● ●
68 CLIP; INJ PIPE
THA 		8-97213-481-0 04 1 1109- ● ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 1109- ● ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 1109- ● ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-98132-085-0 01 1 1109- ● ● ●
137 PIPE ASM; LEAK OFF
(B) IMA 		8-98161-061-0 03 1 1109-1208 ● ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-98211-775-0 03 1 1209- ● ● ●
137 PIPE ASM; LEAK OFF
(A) IMA 		8-98161-062-0 01 1 1109-1208 ● ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-98211-776-0 01 1 1209- ● ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 1109- ● ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 IMA 		1-09630-083-0 02 1 1109-1505 ● ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
IMA 		1-15619-508-0 02 1 1506- ● ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 1109- ● ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 1109- ● ● ●
211 RAIL ASM; COMMON
THA 		8-98132-055-1 01 1 1109- ● ● ●
216 BOLT; EYE
THA 		9-88130-088-0 01 1 1109-1409 ● ● ●
216 BOLT; EYE
THA 		8-98209-777-0 01 1 1410- ● ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 1109- ● ● ●
282 BRACKET; COMMON RAIL
THA 		8-98132-056-0 01 1 1109- ● ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 1109- ● ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 1109- ● ● ●
288 GASKET
ID=11 OD=16.3 IMA 		1-15641-046-0 01 1 1109- ● ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 1109- ● ● ●
290 SENSOR; PRESS
THA 		8-98014-320-0 01 1 1109-1208 ● ● ●
290 SENSOR; PRESS
THA 		8-98181-616-0 01 1 1209- ● ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 1109- ● ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 THA 		9-09566-110-0 01 1 1109-1409 ● ● ●
347 PIN
THA 		8-98165-035-0 04 1 1109- ● ● ●
382 KEY; DRIVE SHAFT
THA 		8-97375-384-0 01 1 1212-1409 ● ● ●
382 KEY; DRIVE SHAFT
IMA 		8-98161-995-0 01 1 1410- ● ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-98155-988-3 01 1 1109- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-1 01 1 1109- ● ● ●
445 SCREW; FILTER,INLET
THA 		8-98209-778-0 01 1 1212- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
