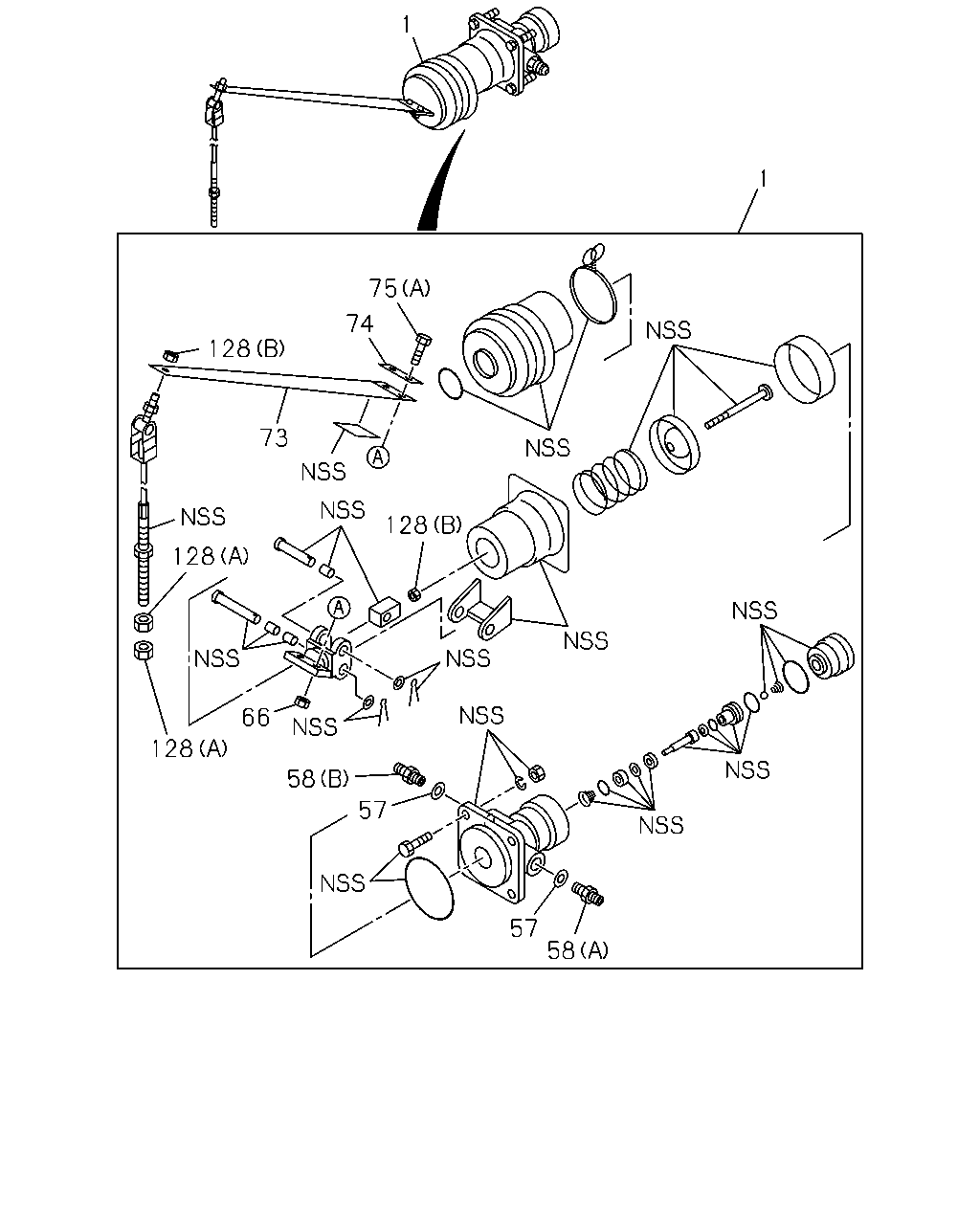

3-45 — LOAD SENSING PROPORTIONING VALVE (#8152) — 83 parça

1 1 75 74 128 73 128 128 66 128 58 57 57 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-014-0	01	1	0005-0102	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-090-0	01	1	0103-0210	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-022-0	01	1	0005-0102			●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-092-0	01	1	0103-0210			●	●
57	GASKET; CONNECTOR LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-039-0	02	1	0005-0210	●	●	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47719-035-0	01	1	0005-0210	●	●	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47719-040-0	01	1	0005-0210	●	●	●	●
66	NUT; LEAF SPR,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47819-021-0	03	1	0005-0102	●	●	●	●
66	NUT; LEAF SPR,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47819-021-0	02	1	0103-0210	●	●	●	●
73	SPRING; LEAF,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47714-004-0	01	1	0005-0102	●	●
73	SPRING; LEAF,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47714-016-0	01	1	0103-0210	●	●
73	SPRING; LEAF,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47714-005-0	01	1	0005-0102			●	●
73	SPRING; LEAF,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47714-010-0	01	1	0103-0210			●	●
74	PLATE; LEAF SPRING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-030-0	01	1	0005-0102	●	●	●	●
74	PLATE; LEAF SPRING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-067-0	01	1	0103-0210	●	●	●	●
75	BOLT; LEAF SPRING LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47719-031-0	02	1	0005-0210	●	●	●	●
75	BOLT; LEAF SPRING LOAD SENSING PROPORTIONING VALVE(JR7) (B)	9-88510-122-0	01	1	0005-0102	●	●	●	●
128	NUT; CABLE LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47819-021-0	02	1	0103-0210	●	●	●	●
128	NUT; CABLE LOAD SENSING PROPORTIONING VALVE(JR7) (A)	9-83315-085-0	02	1	0103-0210	●	●	●	●

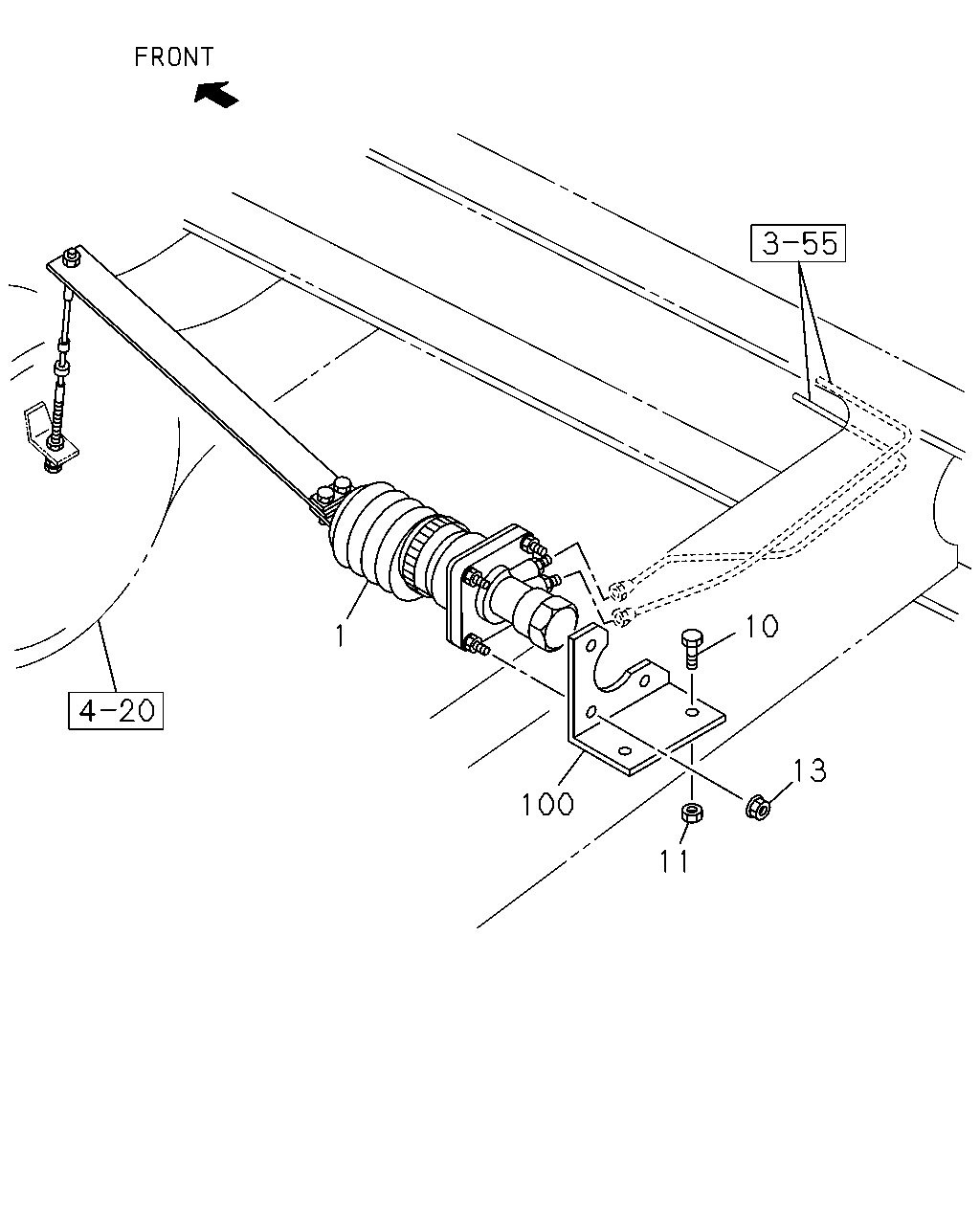

10 1 13 100 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-014-0	01	1	0005-0102	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-090-0	01	1	0103-0210	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-022-0	01	1	0005-0102			●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-092-0	01	1	0103-0210			●	●
10	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE(JR7) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●	●	●
11	NUT; BRKT LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●	●	●
13	NUT; LSPV TO BRKT LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE	0-91150-108-0	03	1	0005-0210	●	●	●	●
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47477-214-0	01	1	0005-0210	●	●	●	●

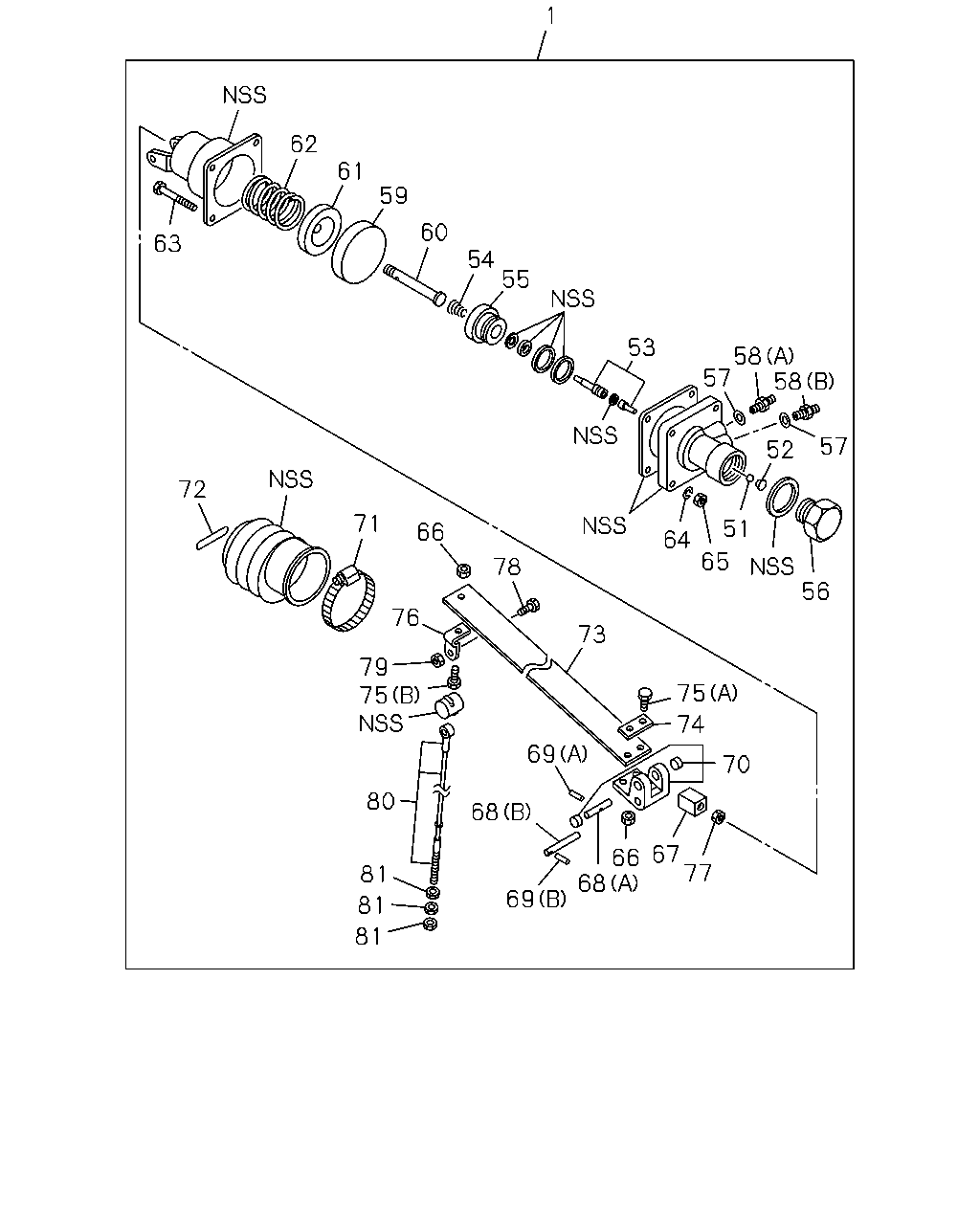

1 62 61 59 60 63 54 55 53 58 57 58 52 57 72 71 51 66 64 65 56 78 76 73 79 75 75 74 69 70 80 68 67 77 66 68 81 69 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-014-0	01	1	0005-0102	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-090-0	01	1	0103-0210	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-022-0	01	1	0005-0102			●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47710-092-0	01	1	0103-0210			●	●
51	BALL; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-010-0	01	1	0005-0102	●	●	●	●
52	SPRING; BALL LOAD SENSING PROPORTIONING VALVE(JR7)	1-47714-001-0	01	1	0005-0102	●	●	●	●
53	PLUNGER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-012-0	01	1	0005-0102	●	●
53	PLUNGER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-038-0	01	1	0005-0102			●	●
54	SPRING; RET,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47714-002-0	01	1	0005-0102	●	●	●	●
55	RETAINER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-015-0	01	1	0005-0102	●	●	●	●
56	PLUG; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-011-0	01	1	0005-0102	●	●	●	●
57	GASKET; CONNECTOR LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-039-0	02	1	0005-0210	●	●	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47719-035-0	01	1	0005-0210	●	●	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47719-040-0	01	1	0005-0210	●	●	●	●
59	SPACER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-019-0	01	1	0005-0102	●	●	●	●
60	ROD; ACTUATOR LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-020-0	01	1	0005-0102	●	●	●	●
61	RETAINER; SPRING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-021-0	01	1	0005-0102	●	●	●	●
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47714-003-0	01	1	0005-0102	●	●	●	●
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-31829-015-0	04	1	0005-0102	●	●	●	●
64	WASHER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) ID=8.2	9-09150-508-0	04	1	0005-0102	●	●	●	●
65	NUT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	9-83315-085-0	04	1	0005-0102	●	●	●	●
66	NUT; LEAF SPR,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47819-021-0	03	1	0005-0102	●	●	●	●
66	NUT; LEAF SPR,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47819-021-0	02	1	0103-0210	●	●	●	●
67	CLEVIS; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-023-0	01	1	0005-0102	●	●	●	●
68	PIN; LEVER LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47719-024-0	01	1	0005-0102	●	●	●	●
68	PIN; LEVER LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47719-026-0	01	1	0005-0102	●	●	●	●
69	PIN; SPR LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47719-025-0	01	1	0005-0102	●	●	●	●
69	PIN; SPR LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47719-027-0	01	1	0005-0102	●	●	●	●
70	LEVER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47711-001-0	01	1	0005-0102	●	●	●	●
71	CLAMP; BOOT LOAD SENSING PROPORTIONING VALVE(JR7)	9-44519-012-0	01	1	0005-0102	●	●	●	●
72	CLIP; BOOT LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-029-0	01	1	0005-0102	●	●	●	●
73	SPRING; LEAF,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47714-004-0	01	1	0005-0102	●	●
73	SPRING; LEAF,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47714-016-0	01	1	0103-0210	●	●
73	SPRING; LEAF,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47714-005-0	01	1	0005-0102			●	●
73	SPRING; LEAF,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47714-010-0	01	1	0103-0210			●	●
74	PLATE; LEAF SPRING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-030-0	01	1	0005-0102	●	●	●	●
74	PLATE; LEAF SPRING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-067-0	01	1	0103-0210	●	●	●	●
75	BOLT; LEAF SPRING LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47719-031-0	02	1	0005-0210	●	●	●	●
75	BOLT; LEAF SPRING LOAD SENSING PROPORTIONING VALVE(JR7) (B)	9-88510-122-0	01	1	0005-0102	●	●	●	●
76	BRACKET; WIRE LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-032-0	01	1	0005-0102	●	●	●	●
77	NUT; CLEVIS LOAD SENSING PROPORTIONING VALVE(JR7)	1-47819-021-0	01	1	0005-0102	●	●	●	●
78	BOLT; WIRE BRKT LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-033-0	01	1	0005-0102	●	●	●	●
79	NUT; WIRE BRKT LOAD SENSING PROPORTIONING VALVE(JR7)	1-47819-021-0	01	1	0005-0102	●	●	●	●
80	WIRE; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-043-0	01	1	0005-0102	●	●	●	●
81	NUT; WIRE LOAD SENSING PROPORTIONING VALVE(JR7)	9-83315-085-0	03	1	0005-0102	●	●	●	●

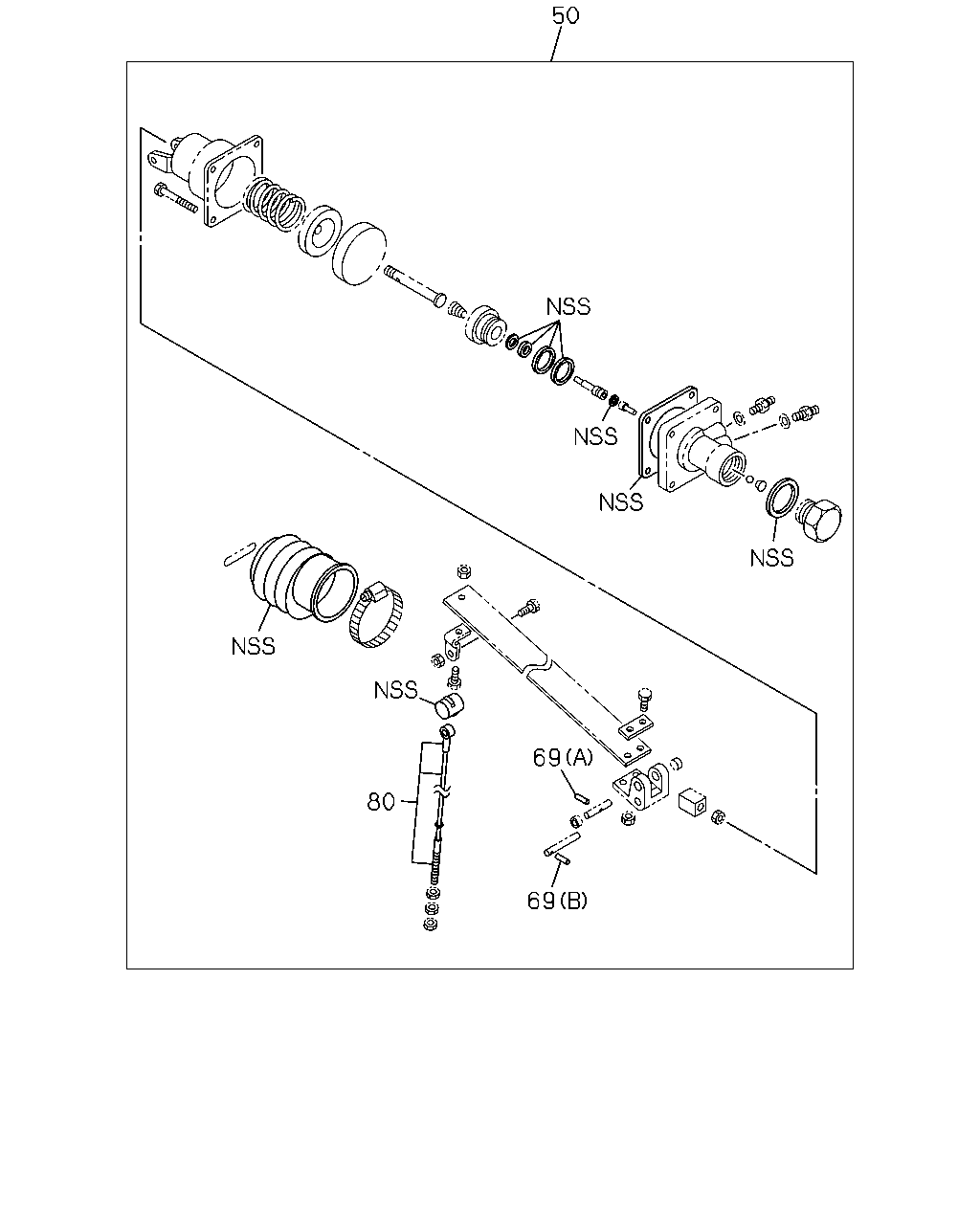

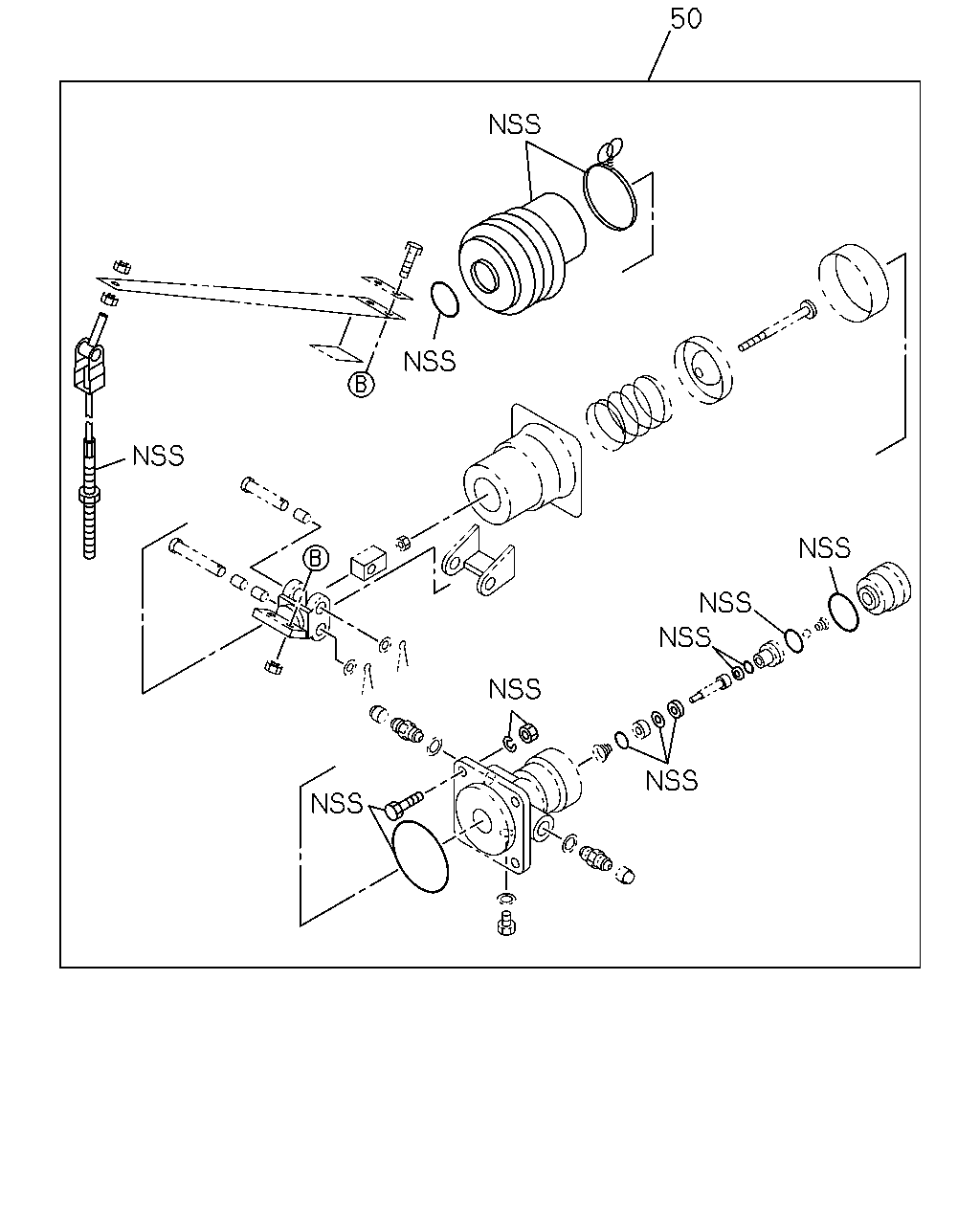

50 69 80 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-85576-010-0	01	1	0005-0102	●	●
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-85576-297-0	01	1	0103-0210	●	●
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-85576-174-0	01	1	0005-0102			●	●
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-85576-295-0	01	1	0103-0210			●	●
69	PIN; SPR LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47719-025-0	01	1	0005-0102	●	●	●	●
69	PIN; SPR LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47719-027-0	01	1	0005-0102	●	●	●	●
80	WIRE; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47719-043-0	01	1	0005-0102	●	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-85576-010-0	01	1	0005-0102	●	●
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-85576-297-0	01	1	0103-0210	●	●
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-85576-174-0	01	1	0005-0102			●	●
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-85576-295-0	01	1	0103-0210			●	●
