0-36 — TURBOCHARGER SYSTEM (#81519) — 84 parça

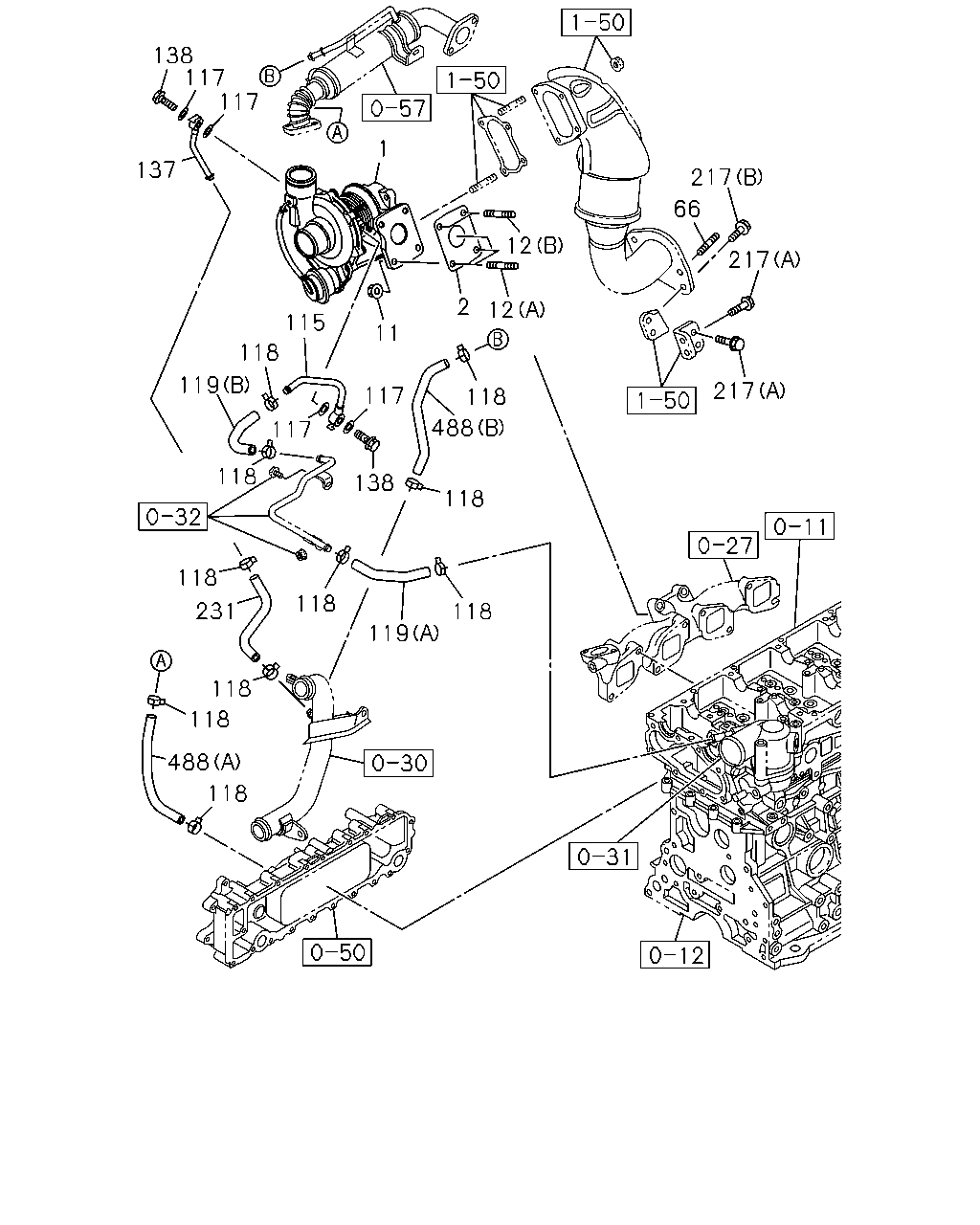

çizim 147346
217 66 217 217 12 2 12 1 117 117 138 137 115 118 119 117 11 118 488 118 138 118 117 118 118 231 119 118 118 118 488 118
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98132-072-0 01 1 1109- ●
1 TURBOCHARGER ASM
THA 		8-98132-070-3 01 1 1109- ●
1 TURBOCHARGER ASM
THA 		8-98132-069-2 01 1 1109- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98132-073-0 01 1 1109- ● ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 1109- ● ● ●
12 STUD; TURBOCHARGER
(A) M8X25 L=36 THA 		8-97378-062-0 02 1 1109- ● ● ●
12 STUD; TURBOCHARGER
(B) M8X30 L=41 IMA 		8-97378-064-0 02 1 1109- ● ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 1109- ● ● ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-98132-443-0 01 1 1109- ●
117 GASKET; WATER PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 1109- ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 10 1 1109-1109 ● ● ●
118 CLIP; WATER HOSE
EXC. BUS PREPARATORY PACK<7VX> ID=15.1 THA 		8-98179-581-0 04 1 1110-1211 ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 04 1 1110-1211 ● ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 10 1 1212- ● ● ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 06 1 1110-1211 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(A) THA 		8-98179-510-0 01 1 1109- ● ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-98179-580-0 01 1 1109- ● ● ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-98132-444-1 01 1 1109- ●
138 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT THA 		8-98037-067-0 02 1 1109- ●
217 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28050-825-0 04 1 1109-1302 ● ● ●
217 BOLT; BRKT
(B) M12X30 FLANGE THA 		0-28661-230-0 03 1 1303- ● ● ●
217 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 01 1 1109-1302 ● ● ●
217 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28661-235-0 02 1 1303- ● ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98168-392-2 01 1 1109- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98183-869-0 01 1 1109- ● ●
488 HOSE; RUBBER
(A) THA 		8-98132-445-2 01 1 1109-1109 ● ● ●
488 HOSE; RUBBER
EXC. BUS PREPARATORY PACK<7VX> (A) THA 		8-98132-445-2 01 1 1110-1211 ●
488 HOSE; RUBBER
(A) THA 		8-98132-445-2 01 1 1110-1211 ● ●
488 HOSE; RUBBER
(A) THA 		8-98132-445-2 01 1 1212- ● ● ●
488 HOSE; RUBBER
(B) THA 		8-98179-202-0 01 1 1109-1109 ● ● ●
488 HOSE; RUBBER
EXC. BUS PREPARATORY PACK<7VX> (B) THA 		8-98179-202-0 01 1 1110-1211 ●
488 HOSE; RUBBER
(B) THA 		8-98179-202-0 01 1 1110-1211 ● ●
488 HOSE; RUBBER
(B) THA 		8-98179-202-0 01 1 1212- ● ● ●

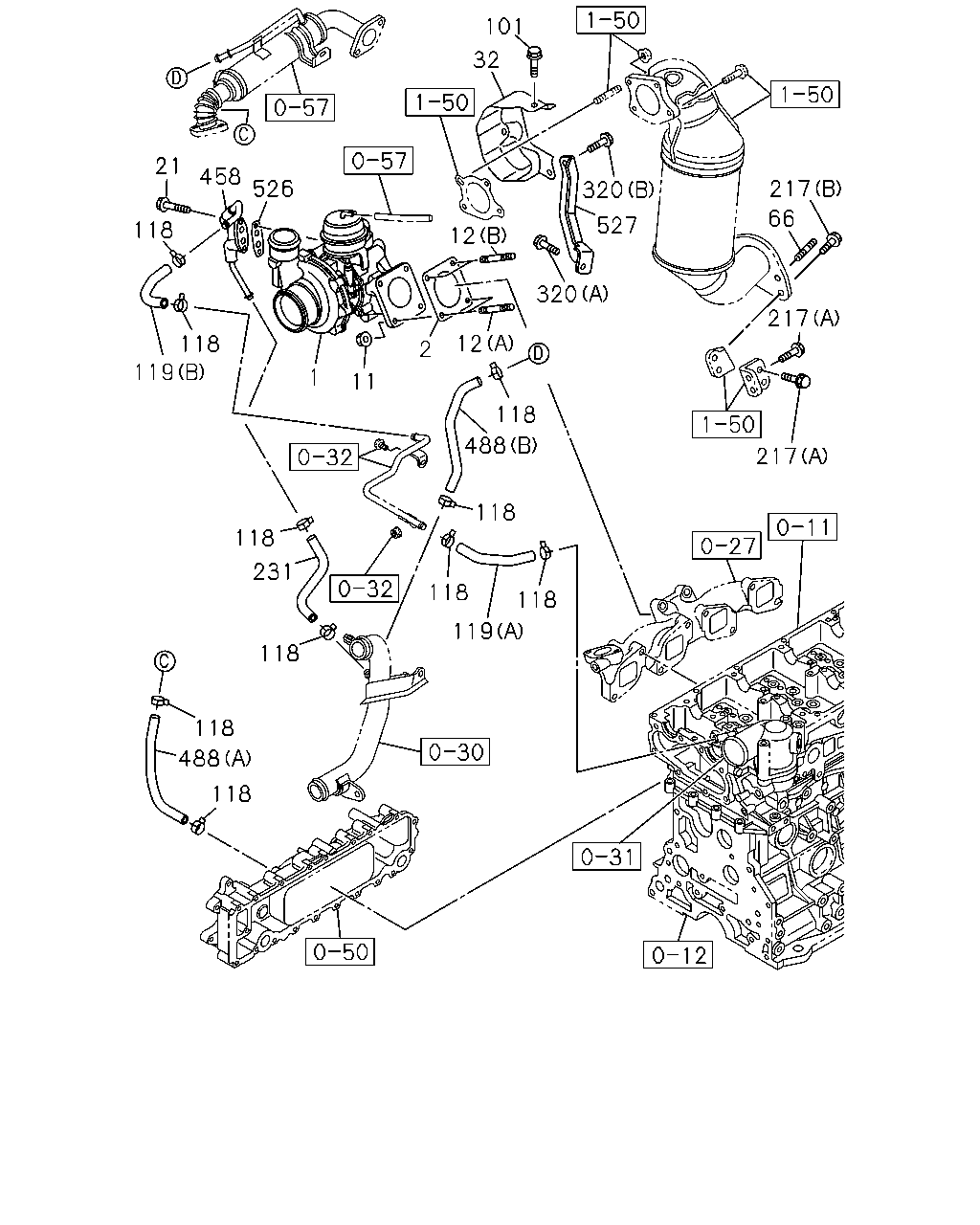

çizim 147356
21 458 526 118 118 119 1 11 2 12 320 12 527 320 32 101 217 66 217 217 118 118 118 231 118 118 488 118 118 488 118 119
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98132-072-0 01 1 1109- ●
1 TURBOCHARGER ASM
THA 		8-98132-070-3 01 1 1109- ●
1 TURBOCHARGER ASM
THA 		8-98132-069-2 01 1 1109- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98132-073-0 01 1 1109- ● ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 1109- ● ● ●
12 STUD; TURBOCHARGER
(A) M8X25 L=36 THA 		8-97378-062-0 02 1 1109- ● ● ●
12 STUD; TURBOCHARGER
(B) M8X30 L=41 IMA 		8-97378-064-0 02 1 1109- ● ● ●
21 BOLT; PIPE
M6X45 FLANGE THA 		0-28050-645-0 02 1 1109- ● ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98156-389-0 01 1 1109- ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 1109- ● ● ●
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 1109- ● ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 10 1 1109-1109 ● ● ●
118 CLIP; WATER HOSE
EXC. BUS PREPARATORY PACK<7VX> ID=15.1 THA 		8-98179-581-0 04 1 1110-1211 ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 04 1 1110-1211 ● ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 10 1 1212- ● ● ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 06 1 1110-1211 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(A) THA 		8-98179-510-0 01 1 1109- ● ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-98179-580-0 01 1 1109- ● ● ●
217 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28050-825-0 04 1 1109-1302 ● ● ●
217 BOLT; BRKT
(B) M12X30 FLANGE THA 		0-28661-230-0 03 1 1303- ● ● ●
217 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 01 1 1109-1302 ● ● ●
217 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28661-235-0 02 1 1303- ● ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98168-392-2 01 1 1109- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98183-869-0 01 1 1109- ● ●
320 BOLT; BRKT,TURBOCHARGER
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1109- ● ●
320 BOLT; BRKT,TURBOCHARGER
(B) M8X18 FLANGE IMA 		8-97378-076-0 01 1 1109- ● ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98184-505-0 01 1 1109- ● ●
488 HOSE; RUBBER
(A) THA 		8-98132-445-2 01 1 1109-1109 ● ● ●
488 HOSE; RUBBER
EXC. BUS PREPARATORY PACK<7VX> (A) THA 		8-98132-445-2 01 1 1110-1211 ●
488 HOSE; RUBBER
(A) THA 		8-98132-445-2 01 1 1110-1211 ● ●
488 HOSE; RUBBER
(A) THA 		8-98132-445-2 01 1 1212- ● ● ●
488 HOSE; RUBBER
(B) THA 		8-98179-202-0 01 1 1109-1109 ● ● ●
488 HOSE; RUBBER
EXC. BUS PREPARATORY PACK<7VX> (B) THA 		8-98179-202-0 01 1 1110-1211 ●
488 HOSE; RUBBER
(B) THA 		8-98179-202-0 01 1 1110-1211 ● ●
488 HOSE; RUBBER
(B) THA 		8-98179-202-0 01 1 1212- ● ● ●
526 GASKET; PLATE
THA 		8-97352-985-0 01 1 1109- ● ●
527 BRACKET; TURBOCHARGER
THA 		8-98156-388-0 01 1 1109- ● ●

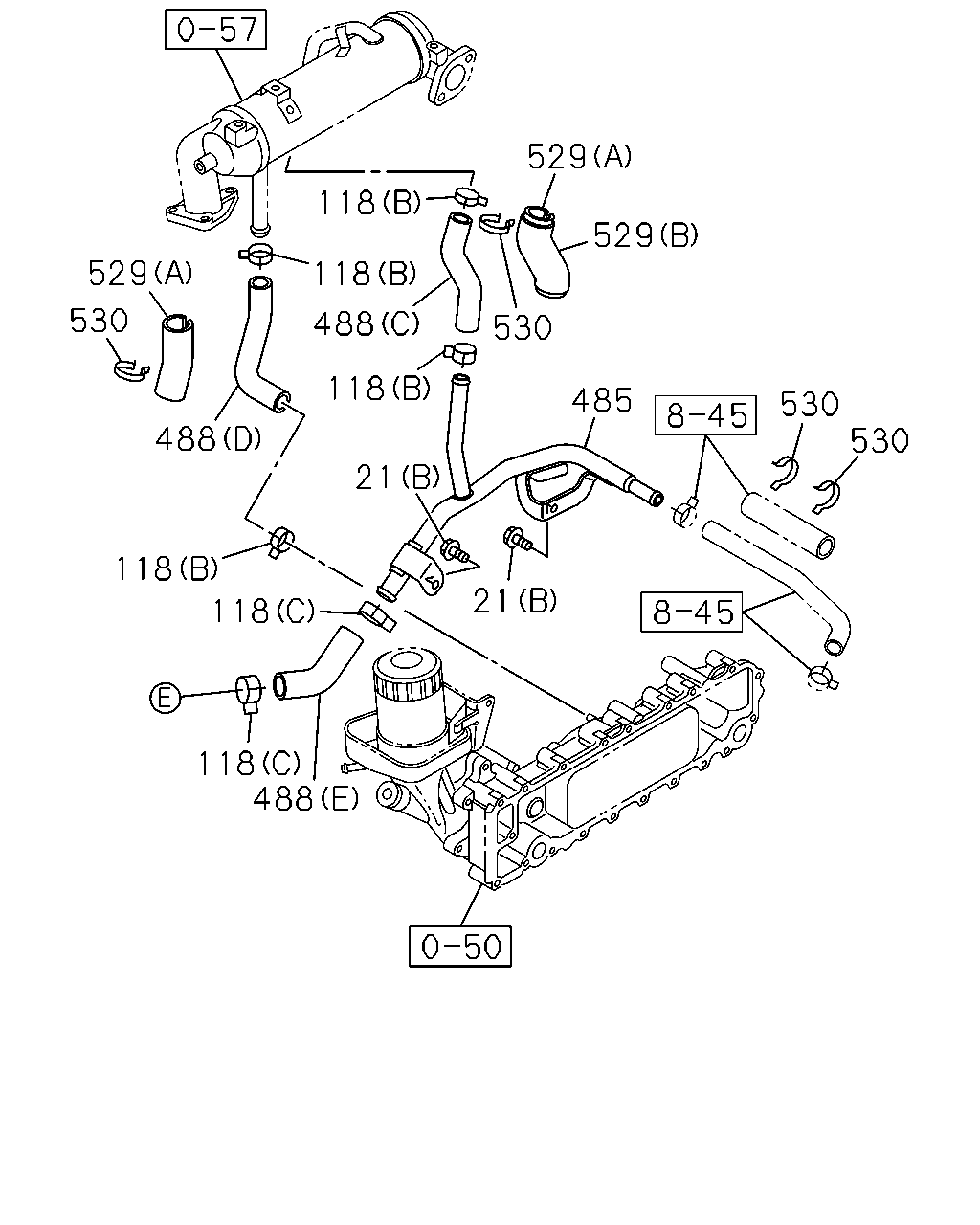

çizim 320005
529 530 488 118 118 118 488 21 21 118 488 118 118 529 529 530 485 530 530
BalonParca AdiParca NoAdetTipApplied Date A B C
21 BOLT; PIPE
M6X45 FLANGE THA 		0-28050-645-0 02 1 1109- ● ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 10 1 1109-1109 ● ● ●
118 CLIP; WATER HOSE
EXC. BUS PREPARATORY PACK<7VX> ID=15.1 THA 		8-98179-581-0 04 1 1110-1211 ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 04 1 1110-1211 ● ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 10 1 1212- ● ● ●
118 CLIP; WATER HOSE
ID=15.1 THA 		8-98179-581-0 06 1 1110-1211 ● ● ●
488 HOSE; RUBBER
(A) THA 		8-98132-445-2 01 1 1109-1109 ● ● ●
488 HOSE; RUBBER
EXC. BUS PREPARATORY PACK<7VX> (A) THA 		8-98132-445-2 01 1 1110-1211 ●
488 HOSE; RUBBER
(A) THA 		8-98132-445-2 01 1 1110-1211 ● ●
488 HOSE; RUBBER
(A) THA 		8-98132-445-2 01 1 1212- ● ● ●
488 HOSE; RUBBER
(B) THA 		8-98179-202-0 01 1 1109-1109 ● ● ●
488 HOSE; RUBBER
EXC. BUS PREPARATORY PACK<7VX> (B) THA 		8-98179-202-0 01 1 1110-1211 ●
488 HOSE; RUBBER
(B) THA 		8-98179-202-0 01 1 1110-1211 ● ●
488 HOSE; RUBBER
(B) THA 		8-98179-202-0 01 1 1212- ● ● ●
