0-33 — FAN AND FAN BELT (#81518) — 15 parça

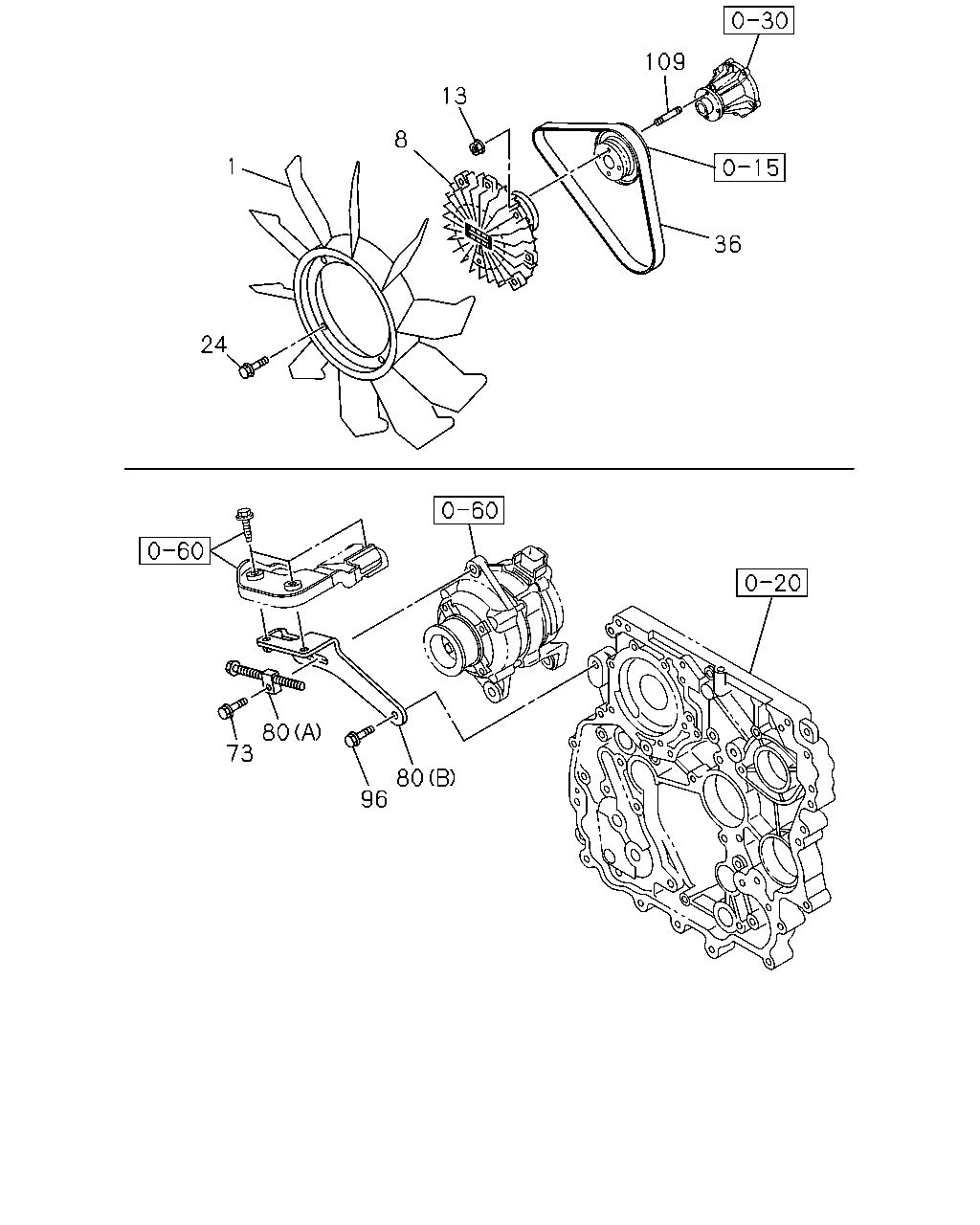

çizim 147361
24 1 8 13 109 36 73 80 96 80
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FAN; COOLING
THA 		8-98162-703-0 01 1 1109- ● ● ●
8 CLUTCH; COOLING FAN
THA 		8-98119-213-1 01 1 1109- ● ● ●
13 NUT; COOLING FAN
M6 FLANGE THA 		8-98049-362-0 04 1 1109- ● ● ●
24 BOLT; FAN
M6X25 FLANGE THA 		0-28650-625-0 04 1 1109- ● ● ●
36 BELT; COOLING FAN
L=1036 THA 		8-98132-367-0 01 1 1109- ● ● ●
73 BOLT; GEN TO ADJ PLATE
M8X35 FLANGE THA 		0-28650-835-0 01 1 1109- ● ● ●
80 PLATE; ADJ
REFRIGERATION KIT<7FH> (B) THA 		8-98214-357-1 01 1 1203-1211 ●
80 PLATE; ADJ
(A) THA 		8-97944-144-1 01 1 1109- ● ● ●
80 PLATE; ADJ
EXC. REFRIGERATION KIT<7FH> (B) THA 		8-98132-102-4 01 1 1203-1211 ●
80 PLATE; ADJ
(B) THA 		8-98132-102-4 01 1 1203-1211 ● ●
80 PLATE; ADJ
(B) THA 		8-98132-102-4 01 1 1212- ● ● ●
80 PLATE; ADJ
(B) THA 		8-98132-102-4 01 1 1109-1202 ● ● ●
96 BOLT; ADJ PLATE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1109- ● ● ●
109 STUD; FAN CLU
M6X18 L=29 THA 		8-97373-779-0 04 1 1109-1405 ● ● ●
109 STUD; FAN CLU
M6X20 L=31 THA 		8-98256-636-0 04 1 1406- ● ● ●
