0-25 — INLET MANIFOLD (#81513) — 28 parça

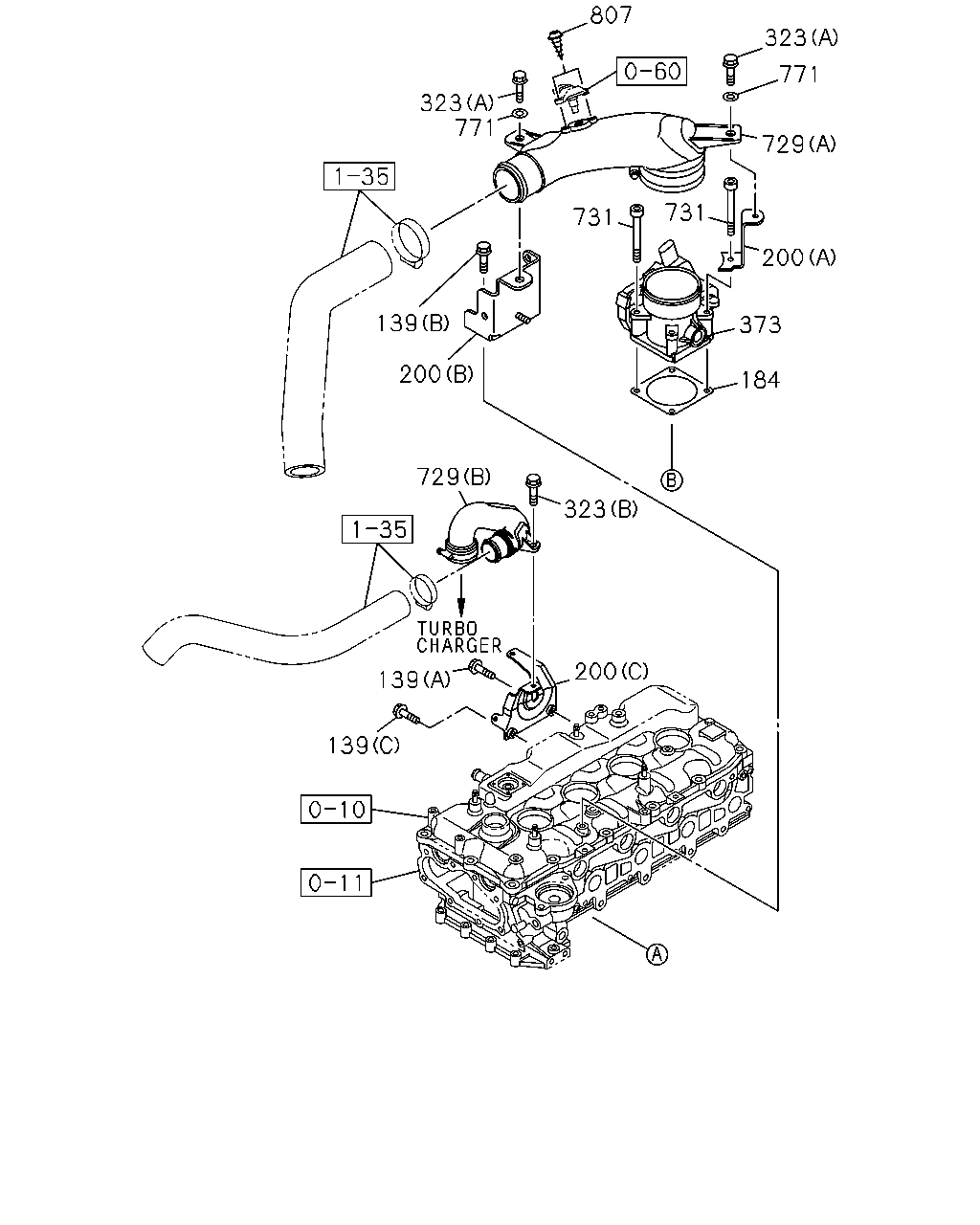

çizim 147358
200 139 729 323 200 139 731 731 373 184 200 729 771 323 807 323 771 139
BalonParca AdiParca NoAdetTipApplied Date A B C
139 BOLT; BRKT FIX
(A) M6X20 FLANGE IMA 		0-28050-620-0 01 1 1109- ● ● ●
139 BOLT; BRKT FIX
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1109- ● ● ●
139 BOLT; BRKT FIX
(C) M10X25 FLANGE THA 		0-28151-025-0 01 1 1109- ● ● ●
184 GASKET; T/V
THA 		8-98096-968-0 01 1 1109- ● ● ●
200 BRACKET; AIR DUCT
(A) THA 		8-98154-158-2 01 1 1109- ● ● ●
200 BRACKET; AIR DUCT
(C) THA 		8-98167-223-0 01 1 1109- ● ● ●
200 BRACKET; AIR DUCT
(B) THA 		8-98184-529-0 01 1 1109- ●
200 BRACKET; AIR DUCT
(B) THA 		8-98132-099-1 01 1 1109- ● ●
323 BOLT; DUCT
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1109- ● ● ●
323 BOLT; DUCT
(B) M8X25 FLANGE THA 		0-28050-825-0 02 1 1109- ● ● ●
373 THROTTLE ASM; INT
THA 		8-98131-738-3 01 1 1109- ● ● ●
729 DUCT; INLET
(B) THA 		8-98167-113-3 01 1 1109- ● ● ●
729 DUCT; INLET
(A) THA 		8-98117-650-1 01 1 1109- ●
729 DUCT; INLET
(A) THA 		8-98117-651-1 01 1 1109- ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 1109- ● ● ●
771 WASHER; DUCT
ID=6.4 OD=18 IMA 		0-91610-706-0 02 1 1109- ● ● ●
807 SCREW; SENSOR
M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1109- ● ●

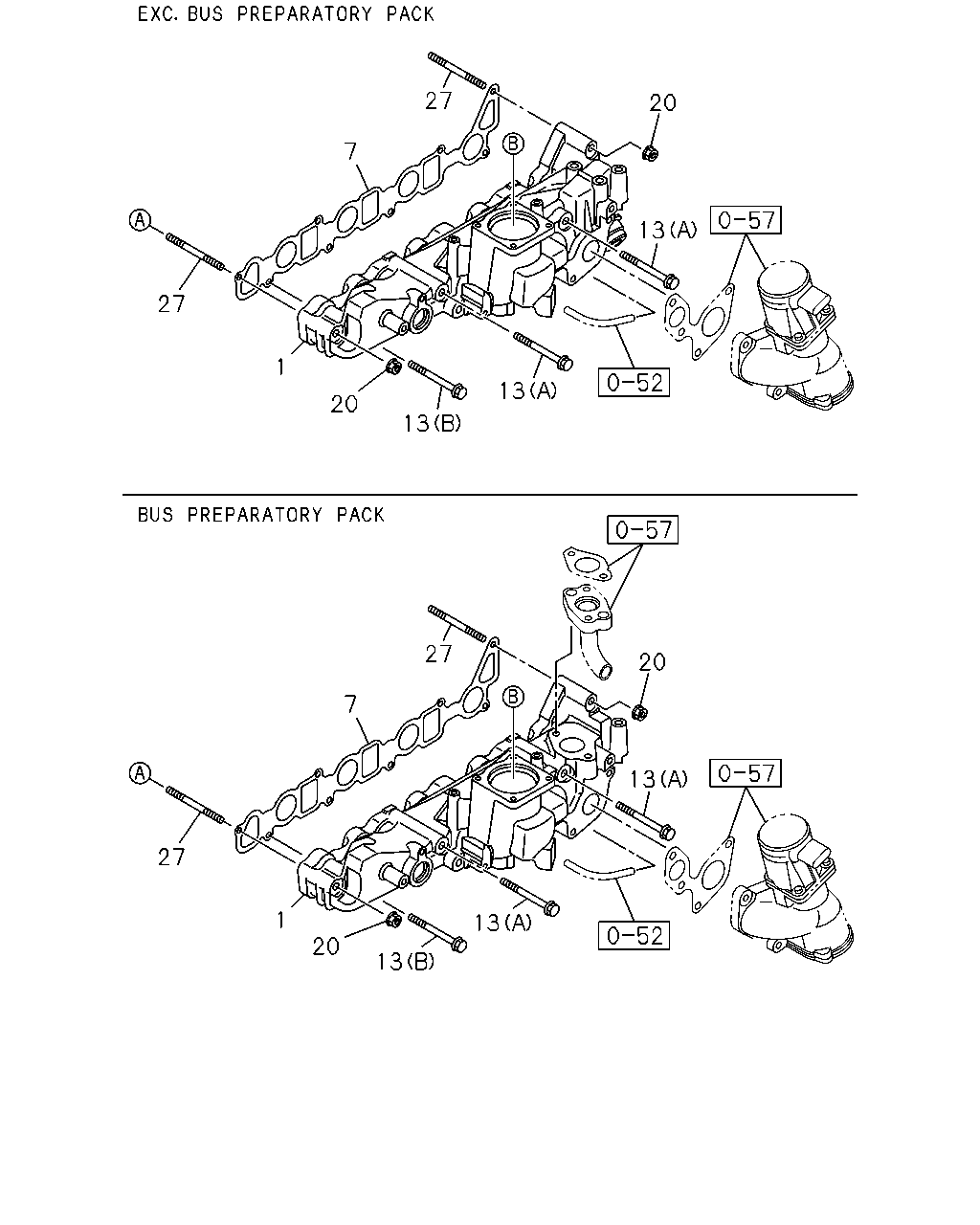

çizim 147359
27 20 13 13 13 20 1 7 27 20 13 13 27 7 27 1 20 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MANIFOLD; INL
THA 		8-98132-037-1 01 1 1109-1109 ● ● ●
1 MANIFOLD; INL
EXC. BUS PREPARATORY PACK<7VX> THA 		8-98132-037-1 01 1 1110-1211 ●
1 MANIFOLD; INL
THA 		8-98132-037-1 01 1 1110-1211 ● ●
1 MANIFOLD; INL
THA 		8-98132-037-1 01 1 1212-1406 ● ● ●
1 MANIFOLD; INL
THA 		8-98228-251-0 01 1 1407- ● ● ●
1 MANIFOLD; INL
BUS PREPARATORY PACK<7VX> THA 		8-98132-038-1 01 1 1110-1211 ●
7 GASKET; INL MANIF TO HD
THA 		8-98063-396-0 01 1 1109- ● ● ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE THA 		0-28055-811-0 02 1 1109- ● ● ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 1109- ● ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 1109- ● ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 1109- ● ● ●
