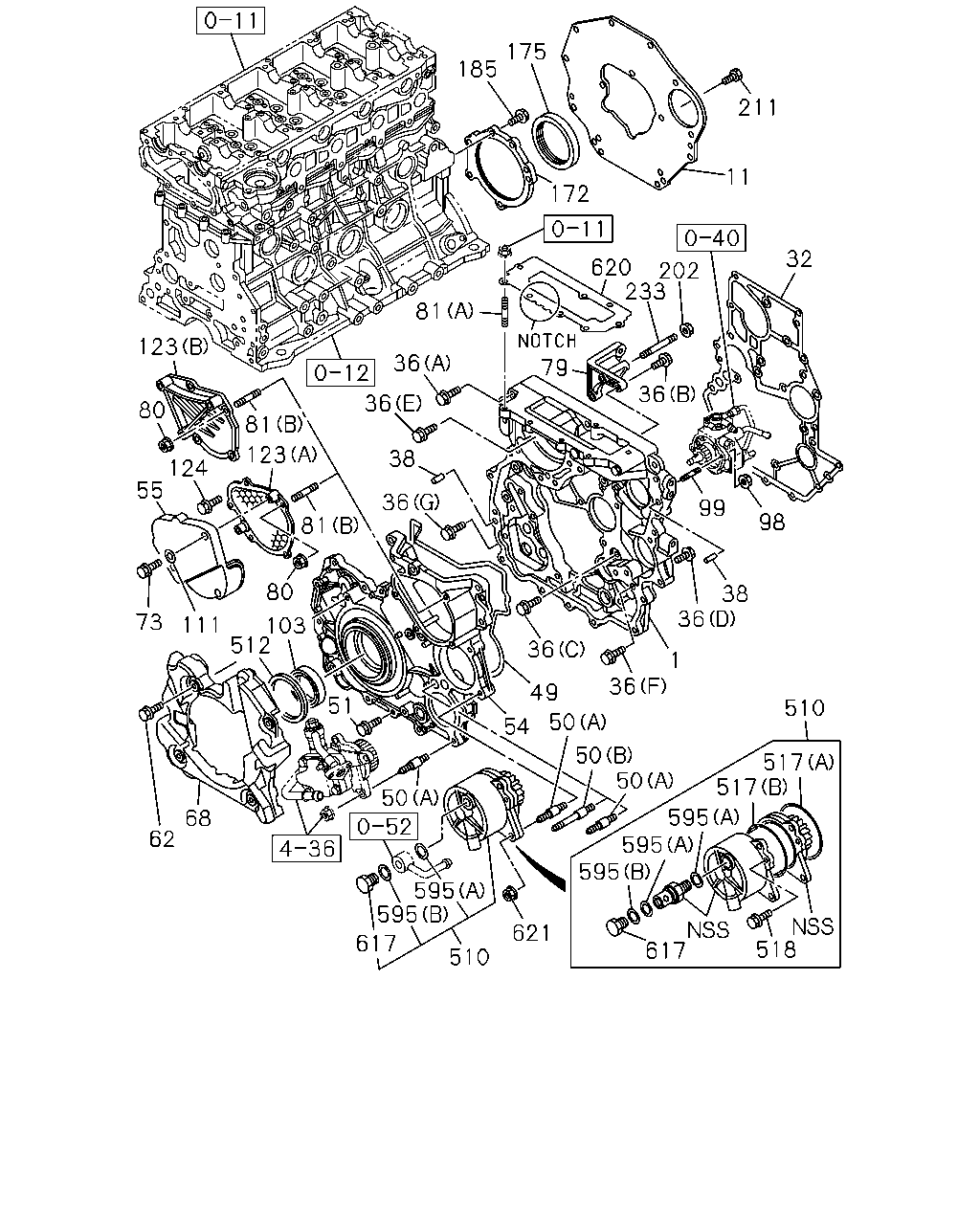

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#81511) — 68 parça

81 36 185 175 211 11 32 202 233 620 172 123 81 80 124 55 123 38 36 36 81 80 103 512 111 73 68 62 595 50 51 49 36 36 1 36 99 98 38 36 79 510 50 54 50 50 517 595 517 595 595 595 621 617 510 617 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR THA	8-98074-747-1	01	1	1109-1310	●	●	●
1	CASE; TIMING GEAR THA	8-98186-648-0	01	1	1311-	●	●	●
11	PLATE; RR,C/BL M/T MUA 5 SPEED 5H<MWQ> THA	8-98162-657-1	01	1	1109-	●	●
11	PLATE; RR,C/BL A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98132-021-0	01	1	1109-		●	●
32	GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	1109-	●	●	●
36	BOLT; GEAR CASE (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1109-	●	●	●
36	BOLT; GEAR CASE (D) M8X20 FLANGE THA	0-28050-820-0	01	1	1109-	●	●	●
36	BOLT; GEAR CASE (E) M8X35 FLANGE THA	0-28050-835-0	01	1	1109-	●	●	●
36	BOLT; GEAR CASE (F) M8X45 FLANGE THA	0-28050-845-0	02	1	1109-	●	●	●
36	BOLT; GEAR CASE (A) M8X60 FLANGE THA	0-28050-860-0	01	1	1109-	●	●	●
36	BOLT; GEAR CASE (G) M8X25 FLANGE THA	0-28650-825-0	15	1	1109-	●	●	●
36	BOLT; GEAR CASE (B) M8X30 FLANGE THA	0-28650-830-0	03	1	1109-	●	●	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	1109-	●	●	●
49	GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	1109-	●	●	●
50	STUD (A) M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	1109-	●
50	STUD (A) M8X27,M8X14 L=64.5 THA	8-97354-808-2	05	1	1109-		●	●
50	STUD (B) M8X70,M8X14 L=107.5 THA	8-98134-221-0	01	1	1109-		●	●
51	BOLT; GEAR CASE COVER THA	8-97354-697-1	14	1	1109-	●	●	●
54	COVER; GEAR CASE THA	8-98170-215-0	01	1	1109-1411	●	●	●
54	COVER; GEAR CASE THA	8-98228-336-1	01	1	1412-	●	●	●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	1109-1203	●	●	●
55	COVER; NOISE SHIELD EXC. REFRIGERATION KIT<7FH> THA	8-97375-190-1	01	1	1204-1211	●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	1204-1211		●	●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	1212-	●	●	●
62	BOLT; COVER M6X20 FLANGE THA	0-28650-620-0	04	1	1109-	●	●	●
68	COVER ASM; GEAR CASE COVER THA	8-98171-756-4	01	1	1109-	●	●	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	1109-1203	●	●	●
73	BOLT; COVER FIX EXC. REFRIGERATION KIT<7FH> M6X12 FLANGE THA	0-28050-612-0	02	1	1204-1211	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	1204-1211		●	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	1212-	●	●	●
79	BRACKET; GEAR CASE COVER THA	8-98107-106-0	01	1	1109-	●	●	●
80	NUT; COVER M6 FLANGE THA	0-91180-206-0	02	1	1109-	●	●	●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	1109-	●	●	●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48 THA	0-49140-830-0	02	1	1109-	●	●	●
98	NUT; STUD,INJ PUMP M8 FLANGE THA	0-91180-208-0	02	1	1109-	●	●	●
99	STUD; INJ PUMP M8X30 L=48 THA	0-49140-830-0	02	1	1109-	●	●	●
103	SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	1109-	●	●	●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	1109-1203	●	●	●
111	WASHER; PL EXC. REFRIGERATION KIT<7FH> ID=6.4 OD=22 THA	0-91614-806-0	02	1	1204-1211	●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	1204-1211		●	●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	1212-	●	●	●
123	COVER; TIMING,LWR REFRIGERATION KIT<7FH> (B) THA	8-98001-143-1	01	1	1209-1211	●
123	COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	1109-1208	●	●	●
123	COVER; TIMING,LWR EXC. REFRIGERATION KIT<7FH> (A) THA	8-97371-720-1	01	1	1209-1211	●
123	COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	1209-1211		●	●
123	COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	1212-	●	●	●
124	BOLT; TIMING COVER M6X16 FLANGE THA	0-28050-616-0	03	1	1109-	●	●	●
172	RETAINER; CR/SHF THA	8-97379-826-0	01	1	1109-	●	●	●
175	SEAL; OIL,CR/SHF,RR ID=95 OD=118 IMA	8-97071-561-1	01	1	1109-	●	●	●
185	BOLT; RET TO C/BL M8X25 FLANGE THA	0-28650-825-0	05	1	1109-	●	●	●
202	NUT; BRKT M8 FLANGE THA	0-91180-208-0	01	1	1109-	●	●	●
211	BOLT; HSG M12X25 THA	8-97916-324-1	03	1	1109-	●	●	●
233	STUD; BRKT M8X71 L=83 THA	8-97367-083-0	01	1	1109-	●	●	●
510	PUMP ASM; VACUUM THA	8-98178-027-2	01	1	1109-1302	●	●	●
510	PUMP ASM; VACUUM THA	8-98211-157-0	01	1	1303-1312	●	●	●
510	PUMP ASM; VACUUM THA	8-98251-765-0	01	1	1401-	●	●	●
512	RUBBER; SPACE THA	8-97373-716-0	01	1	1109-	●	●	●
517	GASKET; VAC PUMP (A) IMA	0-95690-271-0	01	1	1109-	●	●	●
517	GASKET; VAC PUMP (B) THA	8-97184-175-0	01	1	1109-1312	●	●	●
517	GASKET; VAC PUMP (B) THA	8-98251-768-0	01	1	1401-	●	●	●
518	BOLT; VAC PUMP THA	8-97184-180-0	03	1	1109-	●	●	●
595	GASKET; VLV (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	1109-	●	●	●
595	GASKET; VLV (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	1109-	●	●	●
617	BOLT; CHECK VLV THA	8-97376-402-0	01	1	1109-	●	●	●
620	GASKET; GEAR CASE GRADE A T=1.40 1-NOTCH THA	8-97328-828-2	01	1	1109-	●	●	●
620	GASKET; GEAR CASE GRADE B T=1.45 2-NOTCH THA	8-97331-631-2	01	1	1109-	●	●	●
620	GASKET; GEAR CASE GRADE C T=1.50 3-NOTCH THA	8-97331-632-2	01	1	1109-	●	●	●
621	NUT; VAC PUMP M8 FLANGE THA	0-91180-208-0	03	1	1109-	●	●	●
