0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#81510) — 73 parça

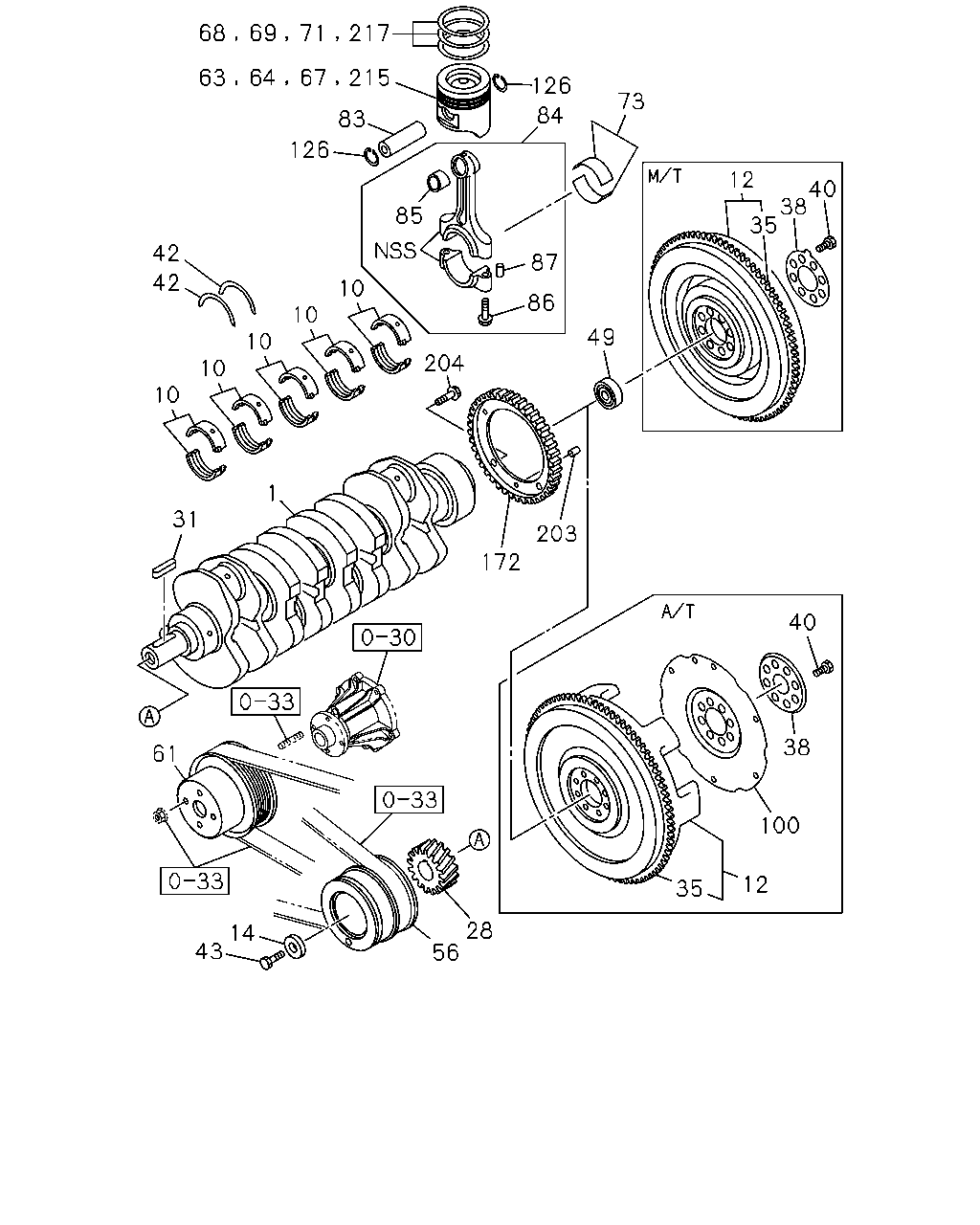

çizim 147365
68 69 71 217 63 64 67 215 83 126 85 87 86 10 10 10 10 10 42 42 31 1 204 203 172 61 14 43 56 28 35 12 100 38 40 49 35 38 40 12 73 84 126
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CRANKSHAFT
JAPAN IMA 		8-97388-828-4 01 1 1211- ●
1 CRANKSHAFT
THA 		8-98131-999-1 01 1 1109- ● ●
1 CRANKSHAFT
THAILAND THA 		8-97311-632-1 01 1 1109- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN THA 		8-97388-502-0 05 1 1109- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK THA 		8-97388-503-0 05 1 1109- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE THA 		8-97388-504-0 05 1 1109- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW THA 		8-97388-505-0 05 1 1109- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
RED THA 		8-97388-506-0 05 1 1109- ● ● ●
12 FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98077-180-0 01 1 1109- ● ●
12 FLYWHEEL
A/T 5 SPEED-AISIN<MA1> THA 		8-98132-505-0 01 1 1109- ● ●
12 FLYWHEEL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98186-653-1 01 1 1109-1409 ●
12 FLYWHEEL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98283-475-0 01 1 1410- ●
14 WASHER; PULLEY DAMPER
REFRIGERATION KIT<7FH> ID=16.5 OD=45 T=40 IMA 		8-98101-010-0 01 1 1209-1211 ●
14 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 IMA 		5-09503-127-1 01 1 1109-1208 ● ● ●
14 WASHER; PULLEY DAMPER
EXC. REFRIGERATION KIT<7FH> ID=16.5 OD=45 T=12 IMA 		5-09503-127-1 01 1 1209-1211 ●
14 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 IMA 		5-09503-127-1 01 1 1209-1211 ● ●
14 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 IMA 		5-09503-127-1 01 1 1212- ● ● ●
28 GEAR; CR/SHF
Z=44 THA 		8-97312-199-1 01 1 1109- ● ● ●
31 KEY; FEATHER,CR/SHF
JAPAN IMA 		8-94201-641-0 01 1 1211- ● ● ●
31 KEY; FEATHER,CR/SHF
THAILAND IMA 		9-08030-743-0 01 1 1109- ● ● ●
35 GEAR; RING
M/T MUA 5 SPEED 5H<MWQ> Z=108 THA 		8-97912-516-1 01 1 1109- ● ●
35 GEAR; RING
A/T 5 SPEED-AISIN<MA1> Z=122 IMA 		8-94364-395-1 01 1 1109-1211 ● ●
35 GEAR; RING
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> Z=122 IMA 		8-94364-395-1 01 1 1212- ● ●
35 GEAR; RING
M/T MUX 5 SPEED 5S<MZJ> Z=122 IMA 		8-94364-395-1 01 1 1109-1211 ●
38 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-94133-970-1 01 1 1109- ● ● ●
38 WASHER; FLYWHEEL
A/T 5 SPEED-AISIN<MA1> THA 		8-98132-506-0 01 1 1109- ● ●
40 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M13X36 THA 		8-97941-069-0 08 1 1109- ● ● ●
40 BOLT; FLYWHEEL
A/T 5 SPEED-AISIN<MA1> M13X78 IMA 		8-97080-561-1 08 1 1109- ● ●
42 WASHER; THRUST,CR/SHF
THA 		8-97354-055-1 02 1 1109- ● ● ●
43 BOLT; CR/SHF PULLEY
REFRIGERATION KIT<7FH> M16X69 THA 		8-98161-509-0 01 1 1209-1211 ●
43 BOLT; CR/SHF PULLEY
M16X43 THA 		8-97373-852-1 01 1 1109-1208 ● ● ●
43 BOLT; CR/SHF PULLEY
EXC. REFRIGERATION KIT<7FH> M16X43 THA 		8-97373-852-1 01 1 1209-1211 ●
43 BOLT; CR/SHF PULLEY
M16X43 THA 		8-97373-852-1 01 1 1209-1211 ● ●
43 BOLT; CR/SHF PULLEY
M16X43 THA 		8-97373-852-1 01 1 1212- ● ● ●
49 BEARING; PILOT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> NSK THA 		8-97920-344-2 01 1 1109- ● ● ●
49 BEARING; PILOT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> NACHI THA 		8-97922-552-1 01 1 1109- ● ● ●
56 PULLEY; CR/SHF DAMPER
REFRIGERATION KIT<7FH> 3-GROOVE THA 		8-98101-013-0 01 1 1209-1211 ●
56 PULLEY; CR/SHF DAMPER
2-GROOVE THA 		8-98183-902-0 01 1 1109-1208 ● ● ●
56 PULLEY; CR/SHF DAMPER
EXC. REFRIGERATION KIT<7FH> 2-GROOVE THA 		8-98183-902-0 01 1 1209-1211 ●
56 PULLEY; CR/SHF DAMPER
2-GROOVE THA 		8-98183-902-0 01 1 1209-1211 ● ●
56 PULLEY; CR/SHF DAMPER
2-GROOVE THA 		8-98183-902-0 01 1 1212- ● ● ●
61 PULLEY; FAN DRIVE
1-GROOVE THA 		8-98131-628-0 01 1 1109- ● ● ●
63 PISTON
GRADE=A THA 		8-98132-548-1 04 1 1109- ● ●
63 PISTON
GRADE=B THA 		8-98132-549-1 04 1 1109- ● ●
63 PISTON
GRADE=C THA 		8-98132-550-1 04 1 1109- ● ●
63 PISTON
GRADE=A THA 		8-98133-458-1 04 1 1109- ●
63 PISTON
GRADE=B THA 		8-98133-459-1 04 1 1109- ●
63 PISTON
GRADE=C THA 		8-98133-460-1 04 1 1109- ●
64 PISTON; O/S=0.50
THA 		8-98132-708-1 04 1 1109- ● ●
64 PISTON; O/S=0.50
THA 		8-98132-711-1 04 1 1109- ●
67 PISTON; O/S=0.25
THA 		8-98132-707-1 04 1 1109- ● ●
67 PISTON; O/S=0.25
THA 		8-98132-710-1 04 1 1109- ●
68 RING SET; PISTON,STANDARD
THA 		8-98171-040-0 04 1 1109- ● ●
68 RING SET; PISTON,STANDARD
THA 		8-98171-044-0 04 1 1109- ●
69 RING SET; PISTON,O/S=0.50
THA 		8-98171-042-0 04 1 1109- ● ●
69 RING SET; PISTON,O/S=0.50
THA 		8-98171-046-0 04 1 1109- ●
71 RING SET; PISTON,O/S=0.25
THA 		8-98171-041-0 04 1 1109- ● ●
71 RING SET; PISTON,O/S=0.25
THA 		8-98171-045-0 04 1 1109- ●
73 METAL SET; CONN ROD,STANDARD
THA 		8-97388-735-0 04 1 1109- ● ● ●
83 PIN; PISTON
THA 		8-98150-333-0 04 1 1109- ● ● ●
84 ROD ASM; CONN
THA 		8-97357-716-3 04 1 1109- ● ● ●
85 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. IMA 		8-97383-066-0 04 1 1109- ● ● ●
86 BOLT; CONNROD
M11X44.5 IMA 		8-98048-538-0 08 1 1109- ● ● ●
87 PIN; CONNROD BIG END
OD=5 L=8 THA 		9-08160-508-0 08 1 1109- ● ● ●
100 PLATE; FLEX
A/T 5 SPEED-AISIN<MA1> IMA 		8-98192-379-0 01 1 1109- ● ●
126 RING; SNAP,PISTON PIN
OD=37.5 IMA 		8-94460-687-0 08 1 1109- ● ● ●
172 ROTOR; CRANK SENSOR
THA 		8-97312-337-0 01 1 1109- ● ● ●
203 PIN; ROTOR
OD=5 L=8 THA 		9-08160-508-0 01 1 1109- ● ● ●
204 BOLT; ROTOR
THA 		8-97944-142-1 03 1 1109- ● ● ●
215 PISTON; O/S=0.75
THA 		8-98132-709-1 04 1 1109- ● ●
215 PISTON; O/S=0.75
THA 		8-98132-712-1 04 1 1109- ●
217 RING SET; PISTON,O/S=0.75
THA 		8-98171-043-0 04 1 1109- ● ●
217 RING SET; PISTON,O/S=0.75
THA 		8-98171-047-0 04 1 1109- ●
