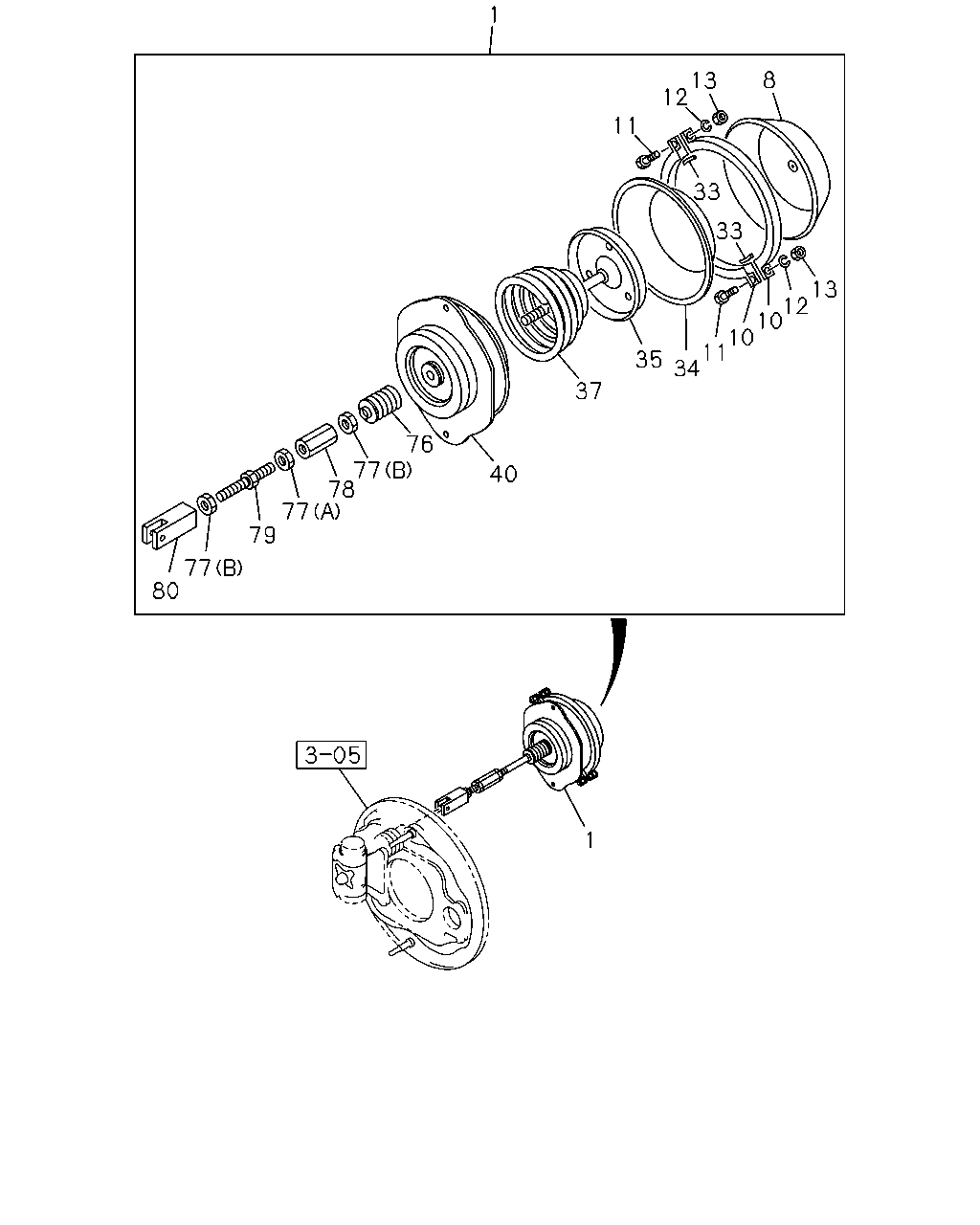

3-41 — REAR BRAKE POWER CHAMBER
(#8151) — 22 parça
Tümü
A - FSS5MF
B - FSS5WF
C - FTS5MF
D - FTS5WF
1
8
13
12
11
33
33
13
12
10
10
11
34
35
37
76
77
78
77
79
40
77
80
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
CHAMBER ASM; SPRING
1-48250-305-1
01
1
0005-
●
●
1
CHAMBER ASM; SPRING
1-48250-304-1
01
1
0005-
●
●
1
CHAMBER ASM; SPRING
1-48250-350-1
01
1
0005-
●
●
1
CHAMBER ASM; SPRING
1-48250-349-1
01
1
0005-
●
●
8
SHELL; CYL,SPR CHAMBER
1-48251-031-0
02
1
0005-
●
●
●
●
10
RING; CLAMP,SPR CHAMBER
1-48259-016-0
04
1
0005-
●
●
●
●
11
BOLT; CLAMP RING
1-48259-035-0
04
1
0005-
●
●
●
●
12
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
04
1
0005-
●
●
●
●
13
NUT; CLAMP RING
9-83315-080-0
04
1
0005-
●
●
●
●
33
RETAINER; DIAPH
1-48259-044-0
04
1
0005-
●
●
●
●
34
DIAPHRAGM
1-48252-026-0
02
1
0005-
●
●
●
●
35
PLATE; ROD END,SPR CHAMBER
1-48253-024-0
02
1
0005-
●
●
●
●
37
SPRING; LWR,SPR CHAMBER
1-48255-008-0
02
1
0005-
●
●
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48251-032-0
02
1
0005-
●
●
●
●
76
GUARD; SPR CHAMBER BRK
1-48259-096-0
02
1
0005-
●
●
●
●
77
NUT; SPR CHAMBER BRK
(A)
1-48253-021-0
02
1
0005-
●
●
●
●
77
NUT; SPR CHAMBER BRK
(B)
9-88510-432-0
04
1
0005-
●
●
●
●
78
TURNBACKLE; SPR CHAMBER BRK
1-48253-023-0
02
1
0005-
●
●
●
●
79
STUD; SPR CHAMBER BRK
1-48253-027-0
02
1
0005-
●
●
79
STUD; SPR CHAMBER BRK
1-48253-028-0
02
1
0005-
●
●
80
CLEVIS; SPR CHAMBER BRK
1-48253-026-0
02
1
0005-
●
●
80
CLEVIS; SPR CHAMBER BRK
1-48253-020-0
02
1
0005-
●
●
