0-13 — OIL PAN AND LEVEL GAUGE (#81508) — 58 parça

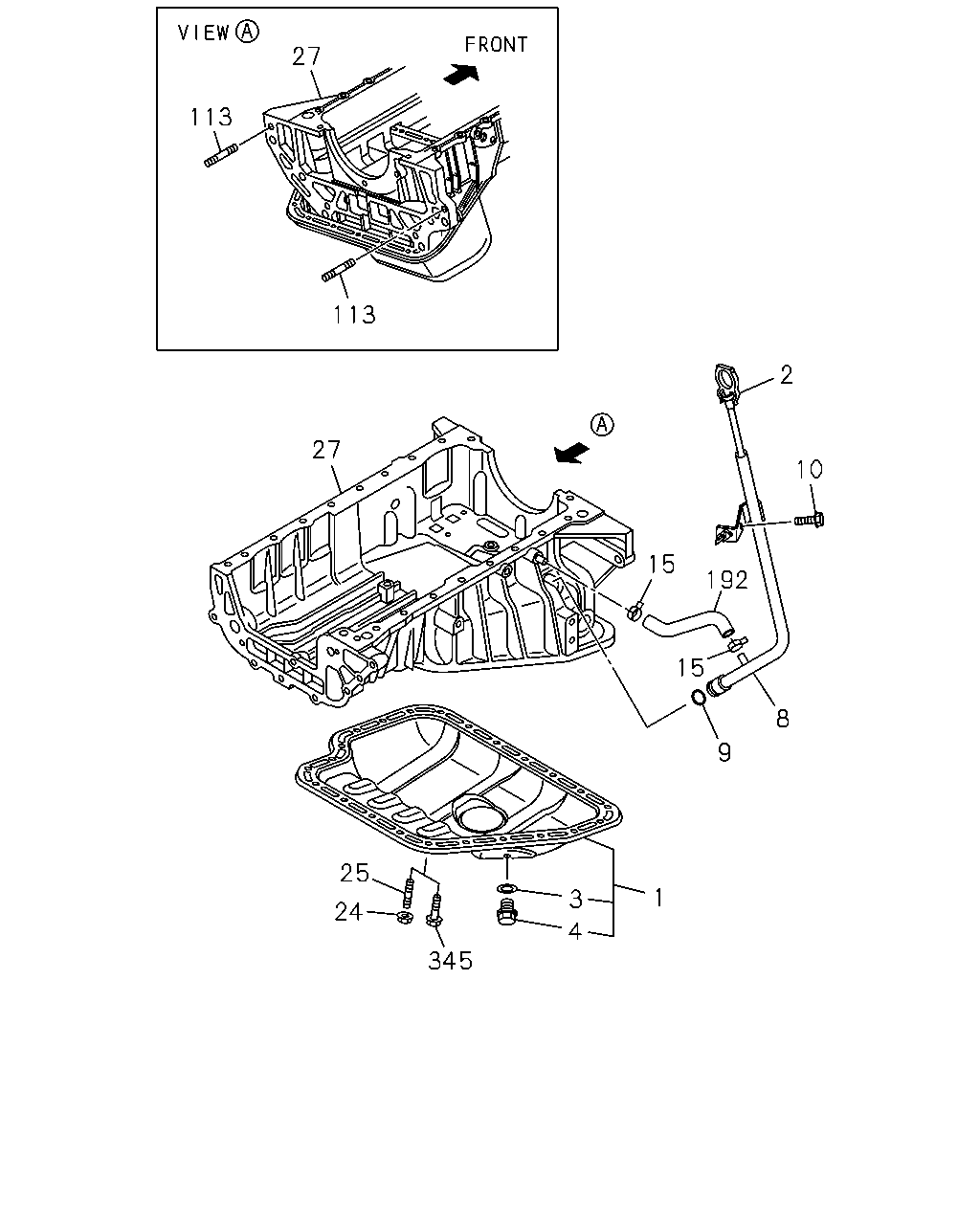

çizim 147340
27 113 113 2 10 192 8 9 15 15 3 1 4 345 24 25 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAN ASM; OIL
4X2<TFB***> THA 		8-98156-371-0 01 1 1109- ● ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98132-001-2 01 1 1109- ● ● ●
2 GAUGE; OIL LEVEL
4X2<TFB***> THA 		8-98132-527-2 01 1 1109- ● ● ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-98132-528-2 01 1 1109- ● ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 1109- ● ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 1109- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98132-019-2 01 1 1109- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 1109- ● ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1109- ● ● ●
15 CLIP; GUIDE TUBE
ID=8 IMA 		8-94107-762-0 02 1 1109- ● ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 1109- ● ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 1109- ● ● ●
27 CRANKCASE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98194-579-0 01 1 1109-1302 ● ●
27 CRANKCASE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98203-086-0 01 1 1303- ● ●
27 CRANKCASE
A/T 5 SPEED-AISIN<MA1> THA 		8-98194-577-0 01 1 1109-1109 ●
27 CRANKCASE
4X2<TFB***> A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98194-577-0 01 1 1109-1109 ●
27 CRANKCASE
4X4<TFS***> A/T 5 SPEED-AISIN<MA1> THA 		8-98194-577-0 01 1 1109-1109 ●
27 CRANKCASE
4X2<TFB***> A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98194-577-0 01 1 1110-1302 ● ●
27 CRANKCASE
4X2<TFB***> A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98195-137-0 01 1 1303- ● ●
27 CRANKCASE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98194-576-0 01 1 1109-1302 ● ●
27 CRANKCASE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98203-085-0 01 1 1303- ● ●
27 CRANKCASE
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98194-578-0 01 1 1109-1109 ●
27 CRANKCASE
4X4<TFS***> A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98194-578-0 01 1 1110-1302 ● ●
27 CRANKCASE
4X4<TFS***> A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98195-138-0 01 1 1303- ● ●
113 PIN; STRAIGHT
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> OD=10 L=32 THA 		9-08161-032-0 02 1 1109- ● ●
192 HOSE; GUIDE TUBE
L=80 SERVICED BY L=3000 THA 		0-04840-300-0 01 1 1109-1112 ● ● ●
192 HOSE; GUIDE TUBE
THA 		8-98211-985-0 01 1 1201- ● ● ●
345 BOLT; SENSOR,OIL LEVEL
4X2<TFB***> M8X12 FLANGE THA 		0-28050-812-0 21 1 1109- ● ● ●
345 BOLT; SENSOR,OIL LEVEL
4X4<TFS***> M8X12 FLANGE THA 		0-28050-812-0 14 1 1109- ● ● ●

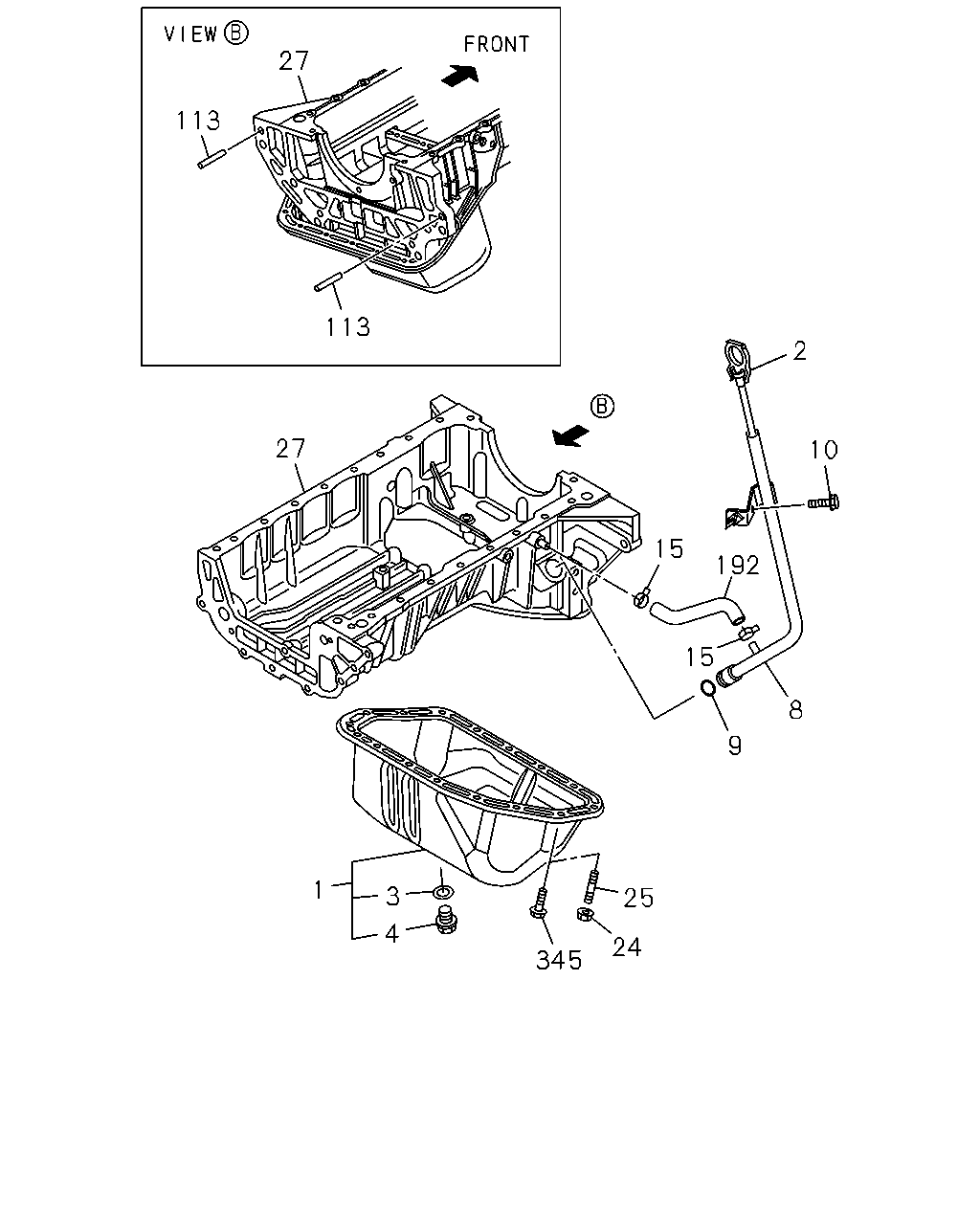

çizim 147342
113 27 113 27 2 10 192 15 15 9 8 25 24 345 3 4 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAN ASM; OIL
4X2<TFB***> THA 		8-98156-371-0 01 1 1109- ● ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98132-001-2 01 1 1109- ● ● ●
2 GAUGE; OIL LEVEL
4X2<TFB***> THA 		8-98132-527-2 01 1 1109- ● ● ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-98132-528-2 01 1 1109- ● ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 1109- ● ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 1109- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98132-019-2 01 1 1109- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 1109- ● ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1109- ● ● ●
15 CLIP; GUIDE TUBE
ID=8 IMA 		8-94107-762-0 02 1 1109- ● ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 1109- ● ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 1109- ● ● ●
27 CRANKCASE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98194-579-0 01 1 1109-1302 ● ●
27 CRANKCASE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98203-086-0 01 1 1303- ● ●
27 CRANKCASE
A/T 5 SPEED-AISIN<MA1> THA 		8-98194-577-0 01 1 1109-1109 ●
27 CRANKCASE
4X2<TFB***> A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98194-577-0 01 1 1109-1109 ●
27 CRANKCASE
4X4<TFS***> A/T 5 SPEED-AISIN<MA1> THA 		8-98194-577-0 01 1 1109-1109 ●
27 CRANKCASE
4X2<TFB***> A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98194-577-0 01 1 1110-1302 ● ●
27 CRANKCASE
4X2<TFB***> A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98195-137-0 01 1 1303- ● ●
27 CRANKCASE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98194-576-0 01 1 1109-1302 ● ●
27 CRANKCASE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98203-085-0 01 1 1303- ● ●
27 CRANKCASE
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98194-578-0 01 1 1109-1109 ●
27 CRANKCASE
4X4<TFS***> A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98194-578-0 01 1 1110-1302 ● ●
27 CRANKCASE
4X4<TFS***> A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98195-138-0 01 1 1303- ● ●
113 PIN; STRAIGHT
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> OD=10 L=32 THA 		9-08161-032-0 02 1 1109- ● ●
192 HOSE; GUIDE TUBE
L=80 SERVICED BY L=3000 THA 		0-04840-300-0 01 1 1109-1112 ● ● ●
192 HOSE; GUIDE TUBE
THA 		8-98211-985-0 01 1 1201- ● ● ●
345 BOLT; SENSOR,OIL LEVEL
4X2<TFB***> M8X12 FLANGE THA 		0-28050-812-0 21 1 1109- ● ● ●
345 BOLT; SENSOR,OIL LEVEL
4X4<TFS***> M8X12 FLANGE THA 		0-28050-812-0 14 1 1109- ● ● ●
