◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#81507) — 45 parça

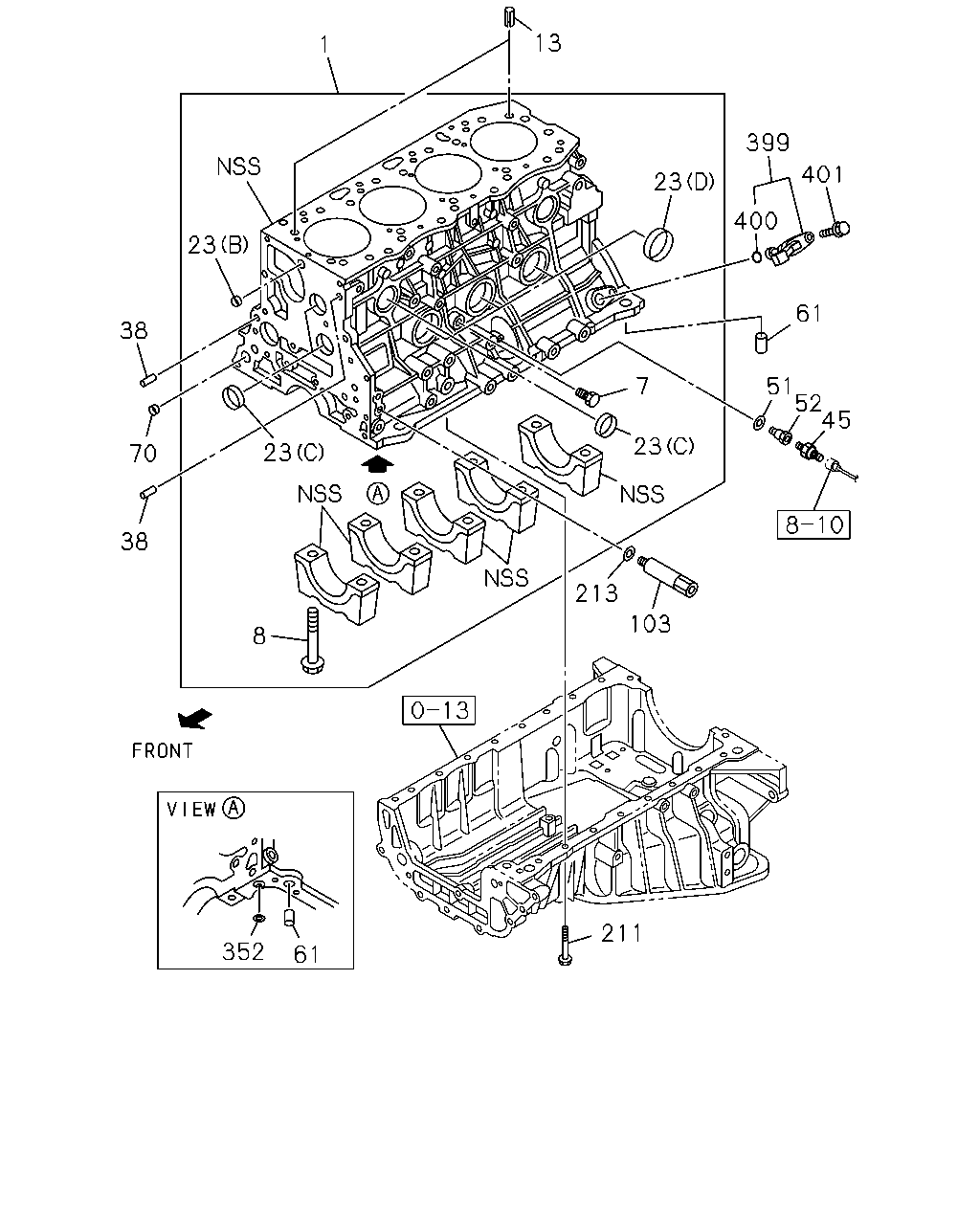

çizim 147350
1 13 23 399 400 61 51 7 23 52 213 103 45 211 61 352 8 23 38 70 38 23 401
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOCK ASM; CYL
THA 		8-97386-618-5 01 1 1109-1405 ● ●
1 BLOCK ASM; CYL
THA 		8-98239-517-2 01 1 1406- ● ●
1 BLOCK ASM; CYL
THA 		8-97386-617-5 01 1 1109-1405 ●
1 BLOCK ASM; CYL
THA 		8-98239-516-2 01 1 1406- ●
7 PLUG; WATER DRAIN
PT1/4 IMA 		9-09664-001-0 01 1 1109- ● ● ●
8 BOLT; BRG CAP
M14X89 FLANGE IMA 		8-94432-642-0 10 1 1109- ● ● ●
13 DOWEL; C/BL TO HD
OD=14 IMA 		8-94453-344-0 02 1 1109- ● ● ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 IMA 		5-11219-008-0 02 1 1109- ● ● ●
23 CUP; SEALING,C/BL FRT & RR
(C) OD=32 IMA 		5-11219-015-0 04 1 1109- ● ● ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=36 IMA 		5-11219-018-0 02 1 1109- ● ● ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 IMA 		8-97036-550-1 03 1 1109- ● ● ●
38 PIN; TIMING GEAR CASE
OD=10 L=20 THA 		9-08151-020-0 02 1 1109- ● ● ●
45 SWITCH; OIL PRESSURE
IMA 		8-97176-230-0 01 1 1109- ● ● ●
51 GASKET; OIL PRESS WARNING SW,C/BL
THA 		8-97912-498-0 01 1 1109- ● ● ●
52 NIPPLE; OIL PRESS WARNING SW,C/BL
IMA 		8-98089-872-0 01 1 1109-1502 ● ● ●
52 NIPPLE; OIL PRESS WARNING SW,C/BL
IMA 		8-94167-750-2 01 1 1503- ● ● ●
61 PIN; STRAIGHT
L=31 THA 		8-97920-964-1 02 1 1109- ● ● ●
70 CUP; SEALING,FRT & RR
OD=16 IMA 		5-11129-006-0 06 1 1109- ● ● ●
103 NIPPLE; OIL FEED
THA 		8-97316-983-4 01 1 1109- ● ● ●
211 BOLT; CRANKCASE
M8X30 FLANGE THA 		0-28050-830-0 05 1 1109- ● ● ●
211 BOLT; CRANKCASE
M8X25 FLANGE THA 		0-28650-825-0 14 1 1109- ● ● ●
211 BOLT; CRANKCASE
M8X40 FLANGE THA 		0-28650-840-0 01 1 1109- ● ● ●
213 GASKET; NIPPLE,OIL FEED
ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 1109- ● ● ●
352 GASKET; C/BL TO CRANKCASE
THA 		9-09566-116-0 01 1 1109- ● ● ●
399 SENSOR; CRANKSHAFT POSITION
IMA 		8-97312-108-1 01 1 1109- ● ● ●
400 GASKET; CRANKSHAFT POSITION SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 1109- ● ● ●
401 BOLT; SENSOR
M6X16 FLANGE THA 		0-28050-616-0 01 1 1109- ● ● ●

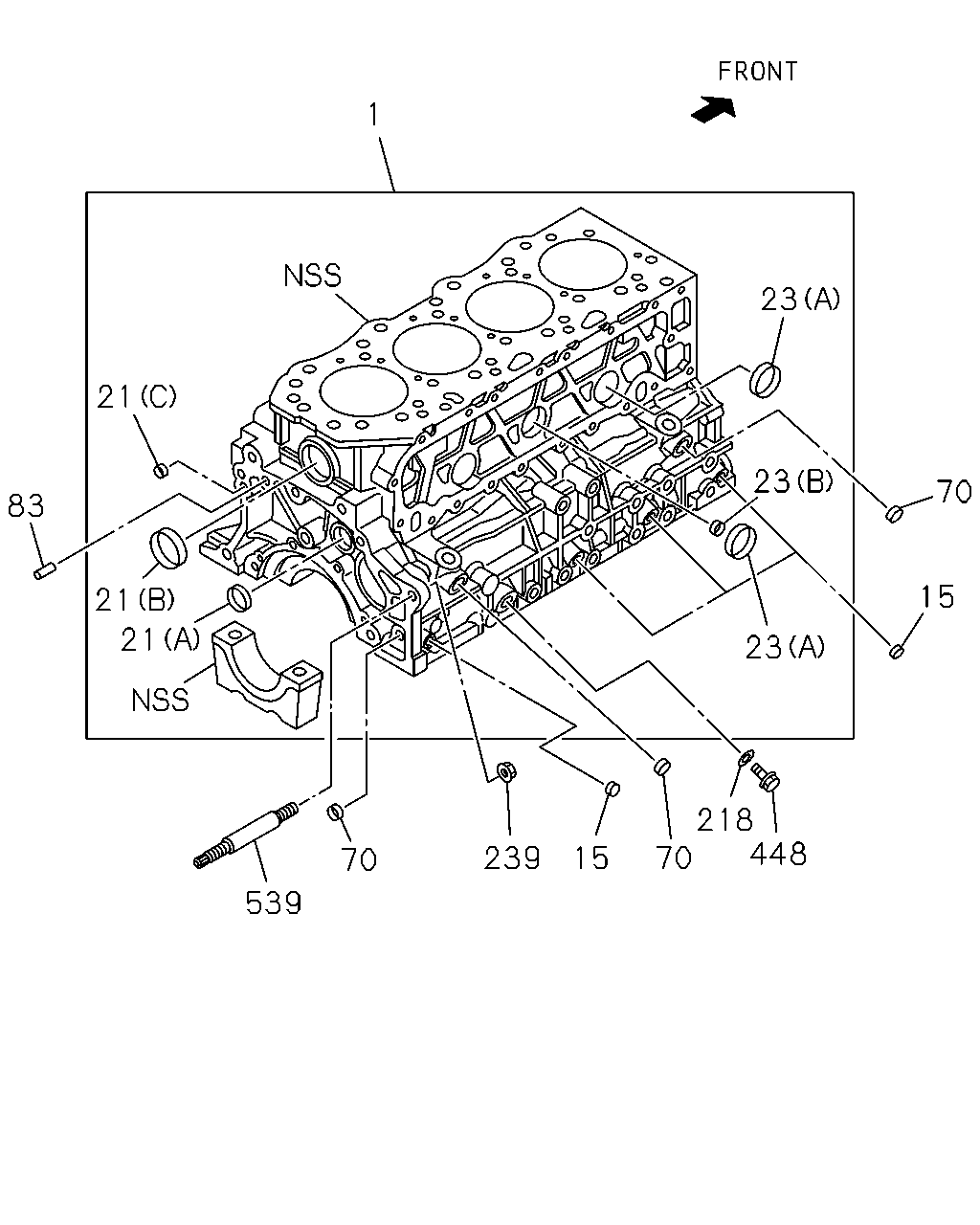

çizim 147362
1 83 21 539 239 70 15 70 448 218 15 23 70 23 23 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOCK ASM; CYL
THA 		8-97386-618-5 01 1 1109-1405 ● ●
1 BLOCK ASM; CYL
THA 		8-98239-517-2 01 1 1406- ● ●
1 BLOCK ASM; CYL
THA 		8-97386-617-5 01 1 1109-1405 ●
1 BLOCK ASM; CYL
THA 		8-98239-516-2 01 1 1406- ●
15 PLUG; OIL GALLERY
PT1/8 IMA 		1-09605-050-0 04 1 1109- ● ● ●
21 CUP; SEALING,RR
(C) OD=12.3 IMA 		5-09600-013-0 01 1 1109- ● ● ●
21 CUP; SEALING,RR
(A) OD=38 IMA 		5-11219-017-0 01 1 1109- ● ● ●
21 CUP; SEALING,RR
(B) OD=36 IMA 		5-11219-018-0 01 1 1109- ● ● ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 IMA 		5-11219-008-0 02 1 1109- ● ● ●
23 CUP; SEALING,C/BL FRT & RR
(C) OD=32 IMA 		5-11219-015-0 04 1 1109- ● ● ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=36 IMA 		5-11219-018-0 02 1 1109- ● ● ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 IMA 		8-97036-550-1 03 1 1109- ● ● ●
70 CUP; SEALING,FRT & RR
OD=16 IMA 		5-11129-006-0 06 1 1109- ● ● ●
83 PIN; FLYWHEEL HSG
M/T MUA 5 SPEED 5H<MWQ> OD=10 L=32 THA 		9-08161-032-0 01 1 1109- ● ●
218 GASKET; PLUG,C/BL SIDE
ID=14.2 OD=20.0 THA 		9-09571-414-0 01 1 1109- ● ● ●
239 NUT; STUD,C/BL
M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-110-0 01 1 1109- ● ●
448 PLUG; C/BL
THA 		8-97379-656-1 01 1 1109- ● ● ●
539 STUD; REAMER
M/T MUA 5 SPEED 5H<MWQ> M10X40 L=75.5 THA 		8-97371-842-1 01 1 1109- ● ●
