0-11 — CYLINDER HEAD (#81506) — 45 parça

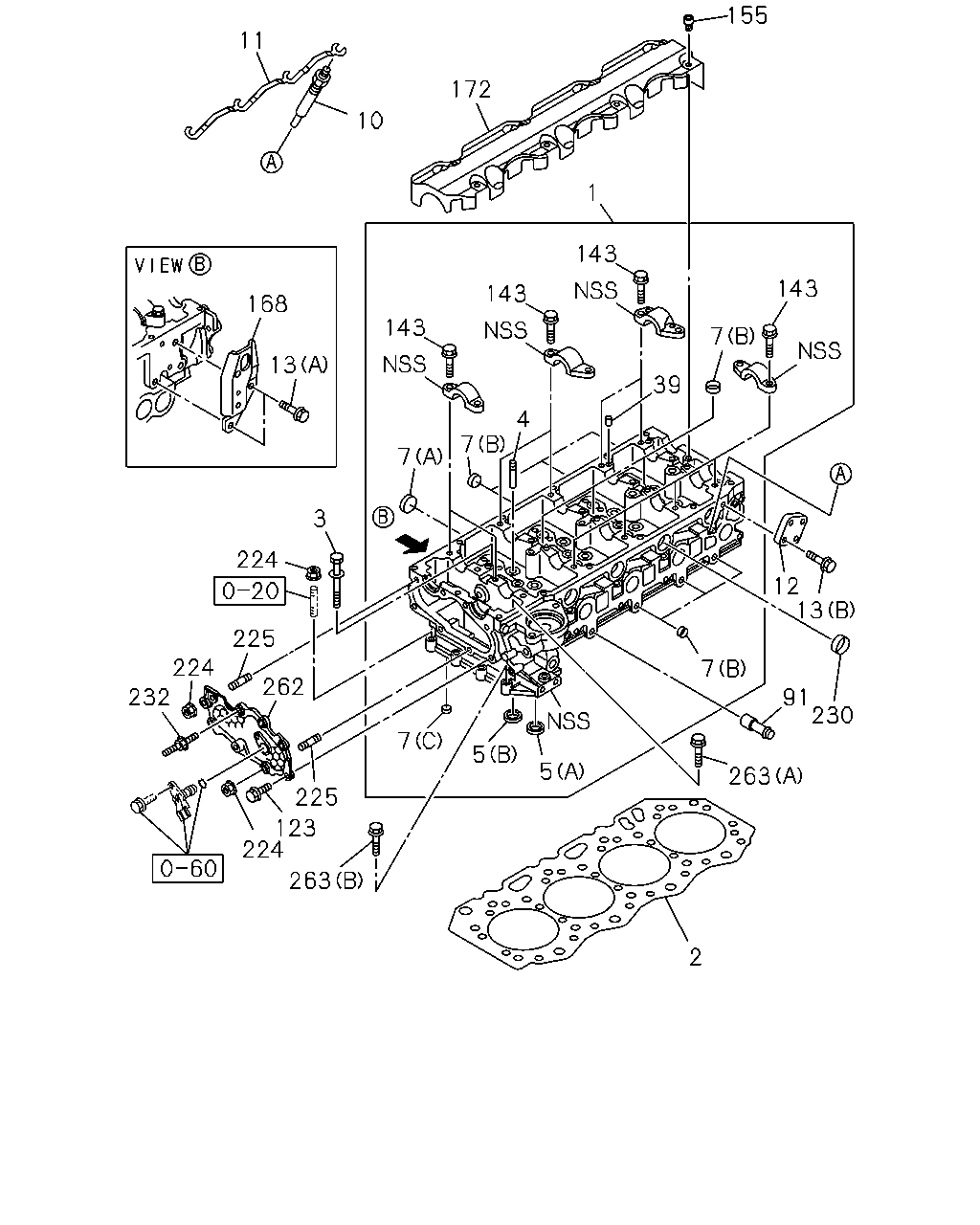

çizim 147354
2 263 230 91 13 12 7 143 7 143 39 143 143 172 155 10 11 4 7 7 5 5 7 263 224 225 262 225 224 224 232 3 168 13 1 123
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL
THA 		8-98088-371-4 01 1 1109-1210 ● ● ●
1 HEAD ASM; CYL
THA 		8-98217-455-0 01 1 1211- ● ● ●
2 GASKET; CYL HD
STD GRADE A T=1.05 1-NOTCH THA 		8-97328-866-2 01 1 1109-1307 ● ● ●
2 GASKET; CYL HD
STD GRADE A T=1.05 1-NOTCH THA 		8-98241-037-0 01 1 1308- ● ● ●
2 GASKET; CYL HD
STD GRADE B T=1.10 2-NOTCH THA 		8-97328-867-2 01 1 1109-1307 ● ● ●
2 GASKET; CYL HD
STD GRADE B T=1.10 2-NOTCH THA 		8-98241-038-0 01 1 1308- ● ● ●
2 GASKET; CYL HD
STD GRADE C T=1.15 3-NOTCH THA 		8-97328-868-2 01 1 1109-1307 ● ● ●
2 GASKET; CYL HD
STD GRADE C T=1.15 3-NOTCH THA 		8-98241-039-0 01 1 1308- ● ● ●
2 GASKET; CYL HD
OVER SIZE IMA 		8-97388-314-0 01 1 1109- ● ● ●
3 BOLT; CYL HD TO BLOCK
M11X114 THA 		8-97144-583-2 18 1 1109-1201 ● ● ●
3 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER IMA 		8-98201-019-0 18 1 1202- ● ● ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 1212-1301 ● ● ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 32 1 1302- ● ● ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 1109-1211 ● ● ●
5 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 IMA 		8-97311-378-0 08 1 1212- ● ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 IMA 		8-97311-379-0 08 1 1212- ● ● ●
5 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 IMA 		8-97311-378-0 08 1 1211-1211 ● ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 IMA 		8-97311-379-0 08 1 1211-1211 ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 IMA 		1-09600-012-2 02 1 1109- ● ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=18 IMA 		5-11219-008-0 13 1 1109- ● ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=14 IMA 		5-11219-011-0 07 1 1109- ● ● ●
10 PLUG; GLOW
NGK THA 		8-98117-567-1 04 1 1109- ● ● ●
11 CONNECTOR; GLOW PLUG
THA 		8-97326-045-3 01 1 1109-1303 ● ● ●
11 CONNECTOR; GLOW PLUG
THA 		8-98209-370-0 01 1 1304- ● ● ●
12 HANGER; ENG,RR
BUS PREPARATORY PACK<7VX> THA 		8-98131-998-0 01 1 1110-1211 ●
13 BOLT; HANGER
(A) M10X20 FLANGE THA 		0-28151-020-0 02 1 1109- ● ● ●
13 BOLT; HANGER
BUS PREPARATORY PACK<7VX> (B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1110-1211 ●
39 DOWEL; CAP,CM/SHF
IMA 		8-97329-129-1 20 1 1212-1301 ● ● ●
39 DOWEL; CAP,CM/SHF
IMA 		8-97329-129-1 40 1 1302- ● ● ●
39 DOWEL; CAP,CM/SHF
IMA 		8-97329-129-1 20 1 1109-1211 ● ● ●
91 PIPE; HTR
THA 		8-94343-211-1 01 1 1109- ● ● ●
123 BOLT; COVER
M8X20 FLANGE THA 		0-28050-820-0 05 1 1109- ● ● ●
143 BOLT; FIX
M8X40 FLANGE THA 		0-28650-840-0 20 1 1212-1301 ● ● ●
143 BOLT; FIX
M8X40 FLANGE THA 		0-28650-840-0 40 1 1302- ● ● ●
143 BOLT; FIX
M8X40 FLANGE THA 		0-28650-840-0 20 1 1109-1211 ● ● ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET THA 		0-58330-610-0 08 1 1109- ● ● ●
168 HANGER; ENG,FRT
THA 		8-98131-997-1 01 1 1109- ● ● ●
172 PLATE; BAFFLE,CYL HD
THA 		8-98105-920-0 01 1 1109- ● ● ●
224 NUT; COVER
M8 FLANGE THA 		0-91180-208-0 04 1 1109- ● ● ●
225 STUD; COVER
M8X20 L=31 THA 		8-97945-022-0 02 1 1109- ● ● ●
230 GASKET; SLEEVE,INJECTOR
THA 		8-97943-955-0 04 1 1109- ● ● ●
232 STUD; CAM,CARRIER
M6X12 M8X17 L=37 THA 		8-97375-460-0 01 1 1109- ● ● ●
262 COVER; CYL HEAD
THA 		8-98131-992-1 01 1 1109- ● ● ●
263 BOLT; CYL HD
(A) M8X60 FLANGE THA 		0-28050-860-0 01 1 1109- ● ● ●
263 BOLT; CYL HD
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 1109- ● ● ●
