◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#81505) — 18 parça

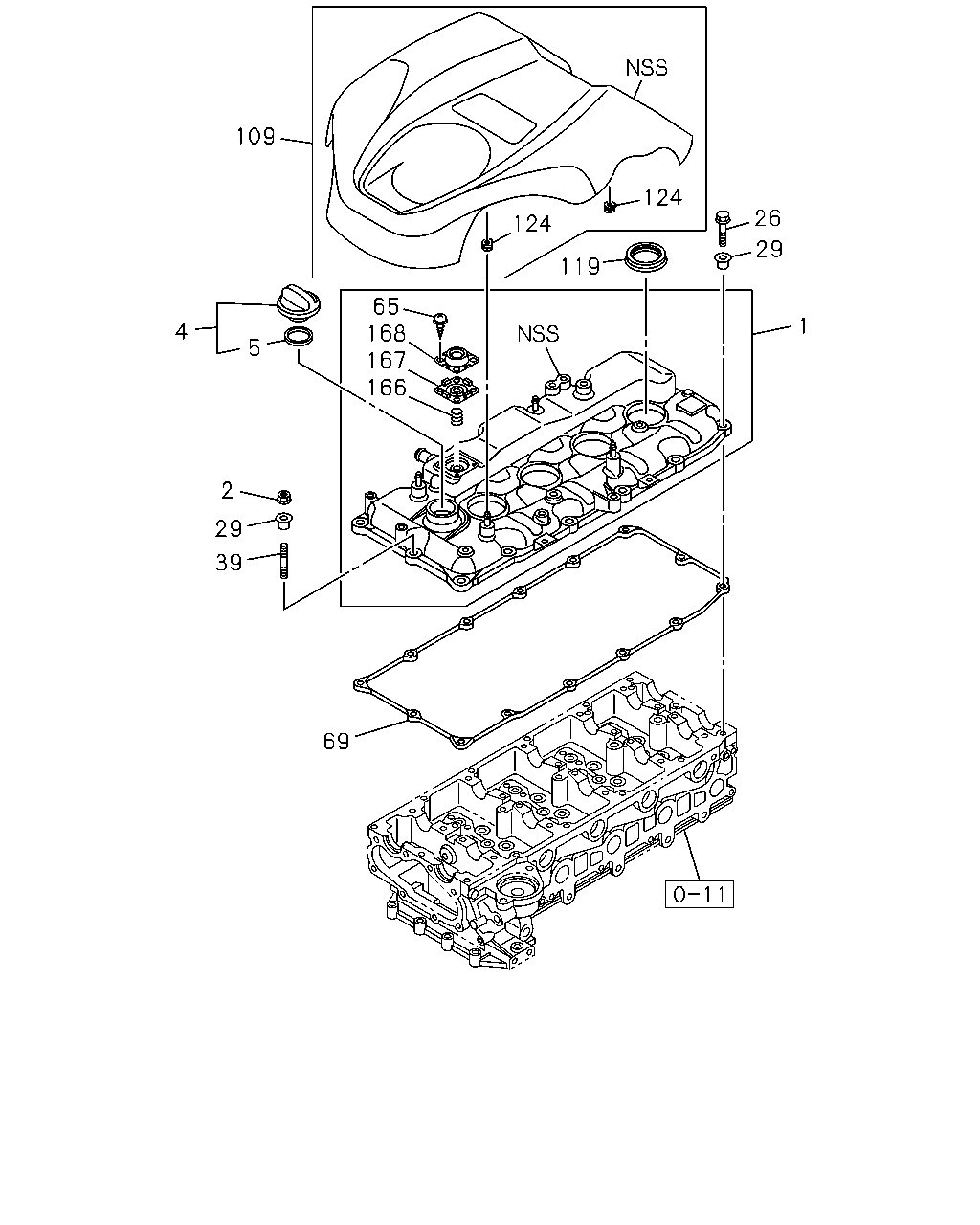

çizim 147348
1 29 26 119 124 124 65 166 167 168 5 4 109 2 39 69 29
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COVER; CYL HD
THA 		8-98136-060-5 01 1 1212- ● ● ●
1 COVER; CYL HD
THA 		8-98136-060-4 01 1 1109-1211 ● ● ●
2 NUT; COVER,HD
M6 FLANGE THA 		0-91180-206-0 01 1 1109- ● ● ●
4 CAP; OIL FILLER
THA 		8-98026-084-0 01 1 1109- ● ● ●
5 GASKET; OIL FILLER
ID=32 OD=40 THA 		8-97918-298-0 01 1 1109- ● ● ●
26 BOLT; CYL HD COVER
M6X30 FLANGE THA 		0-28650-630-0 13 1 1109- ● ● ●
29 RUBBER; MTG,HD COVER
THA 		8-97361-811-1 14 1 1109- ● ● ●
39 STUD; COVER,HD
M6X30 L=38 THA 		0-41010-630-0 01 1 1109- ● ● ●
65 SCREW; ADAPTER
M5X10 W/LK WASHER THA 		8-97366-592-0 04 1 1109- ● ● ●
69 GASKET; HD TO COVER
THA 		8-97945-338-0 01 1 1109- ● ● ●
109 COVER; ENG
THA 		8-98147-400-0 01 1 1109- ●
109 COVER; ENG
THA 		8-98147-401-0 01 1 1109- ● ●
119 COVER; SEAL,NOZZLE
THA 		8-98037-543-0 04 1 1109- ● ● ●
124 RUBBER; MTG,COVER
THA 		8-98269-869-0 04 1 1212- ● ● ●
166 SPRING; VENTILATOR
THA 		8-97365-998-0 01 1 1109- ● ● ●
167 DIAPHRAGM; VENTILATOR
THA 		8-98226-101-0 01 1 1304- ● ● ●
167 DIAPHRAGM; VENTILATOR
THA 		8-98003-164-0 01 1 1109-1303 ● ● ●
168 COVER; VENTILATOR
THA 		8-97365-992-0 01 1 1109- ● ● ●
