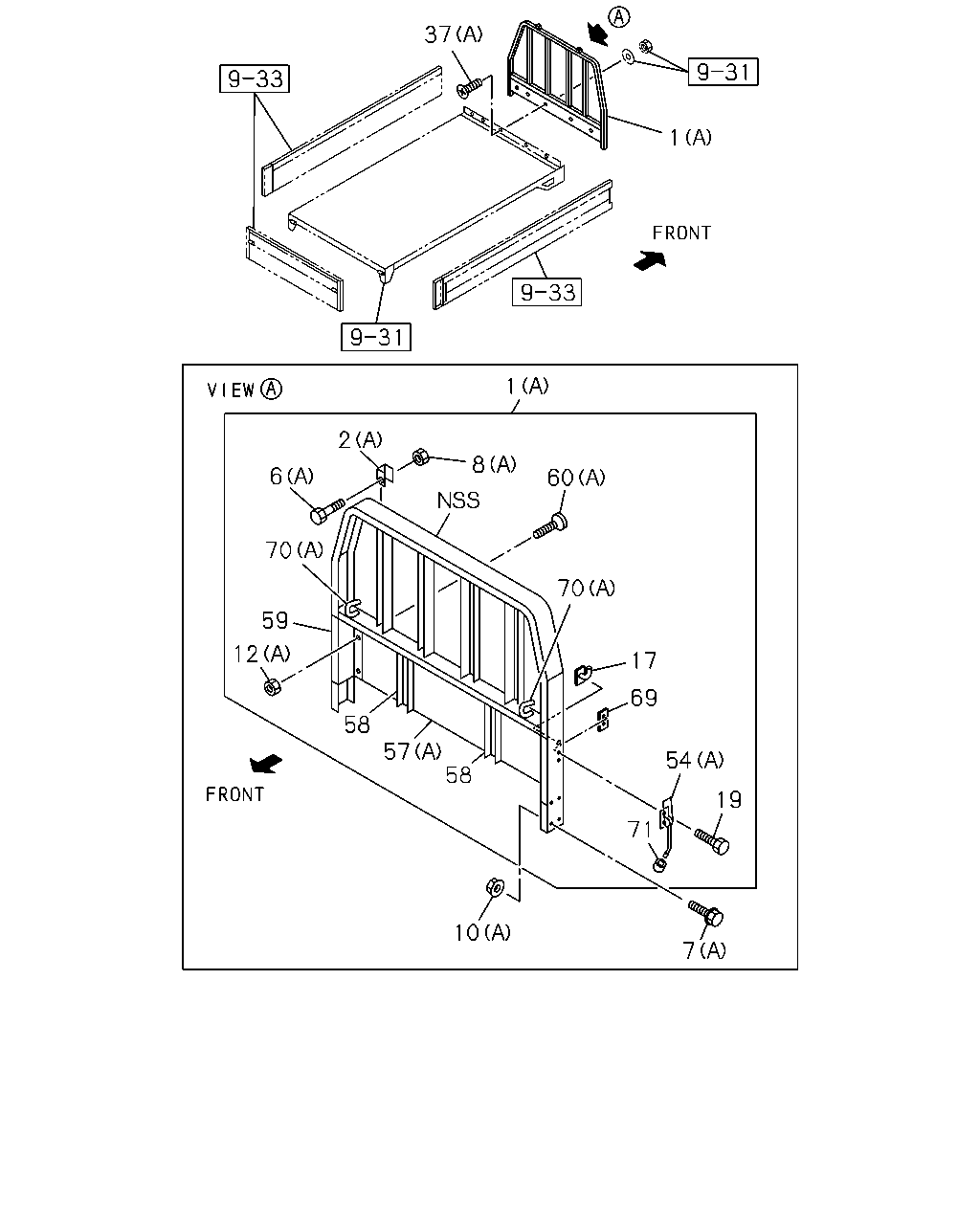

1 |
17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-98088-833-1 |
01 |
1 |
0803-0803 |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-98088-833-1 |
01 |
1 |
0804-1110 |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-98088-833-1 |
01 |
1 |
0804-1110 |
|
● |
| |
1 |
17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-98088-833-2 |
01 |
1 |
1111- |
● |
● |
| |
1 |

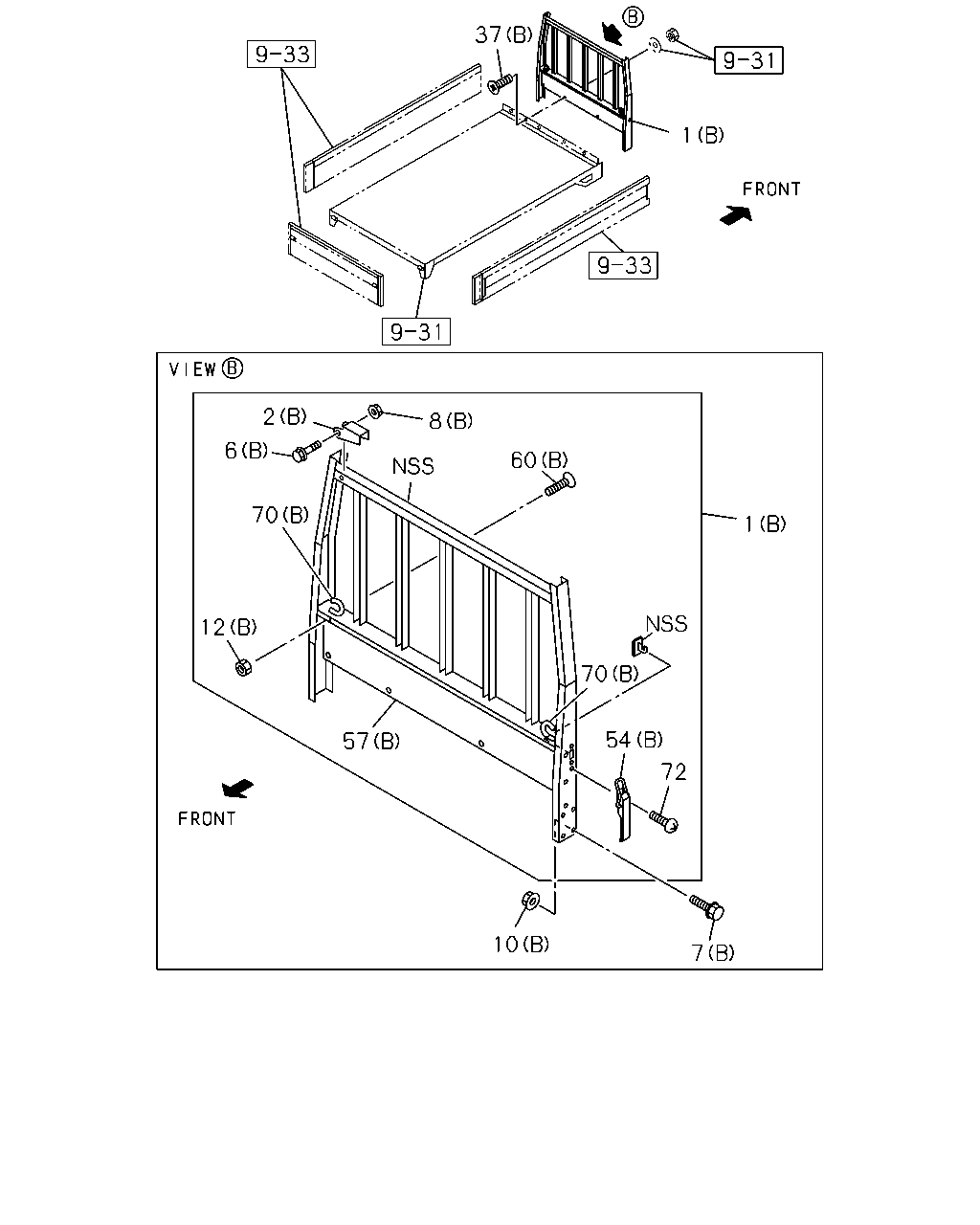

17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
(B)
PABCO
|
8-98024-567-2 |
01 |
1 |
0803-1110 |
● |
|
| |
2 |
17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97590-396-0 |
02 |
1 |
0803-0803 |
● |
|
| |
2 |
17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97590-396-0 |
02 |
1 |
0804-1110 |
● |
|
| |
2 |
17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED(RS6)
(A)
|
8-97590-396-0 |
02 |
1 |
0804-1110 |
|
● |
| |
2 |
17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED(RS6)
(A)
|
8-97590-396-0 |
02 |
1 |
1111- |
● |
● |
| |
2 |
17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98045-225-0 |
02 |
1 |
0803-1110 |
● |
|
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97590-488-0 |
02 |
1 |
0803-0803 |
● |
|
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97590-488-0 |
02 |
1 |
0804-1110 |
● |
|
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED(RS6)
(A)
|
8-97590-488-0 |
02 |
1 |
0804-1110 |
|
● |
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED(RS6)
(A)
|
8-97590-488-0 |
02 |
1 |
1111- |
● |
● |
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98045-226-0 |
02 |
1 |
0803-1110 |
● |
|
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
(B)
M12X25 FLANGE
|
0-28661-225-0 |
08 |
1 |
0803-1110 |
● |
|
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
17.455
(A)
M10X22
|
8-97233-077-0 |
08 |
1 |
0803-0803 |
● |
|
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
17.455
(A)
M10X22
|
8-97233-077-0 |
08 |
1 |
0804-0912 |
● |
|
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6)
17.455
(A)
M10X22
|
8-97233-077-0 |
08 |
1 |
0804-0912 |
|
● |
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
07.833
(A)
M10X25 FLANGE
|
0-28661-025-0 |
08 |
1 |
1001-1110 |
● |
|
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6)
07.833
(A)
M10X25 FLANGE
|
0-28661-025-0 |
08 |
1 |
1001-1110 |
|
● |
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6)
07.833
(A)
M10X25 FLANGE
|
0-28661-025-0 |
08 |
1 |
1111- |
● |
● |
| |
8 |
17.447 NUT; STOPPER BOLT
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
M10
|
8-97590-493-0 |
02 |
1 |
0803-0803 |
● |
|
| |
8 |
17.447 NUT; STOPPER BOLT
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
M10
|
8-97590-493-0 |
02 |
1 |
0804-1110 |
● |
|
| |
8 |
17.447 NUT; STOPPER BOLT
RR BODY FLAT BED(RS6)
(A)
M10
|
8-97590-493-0 |
02 |
1 |
0804-1110 |
|
● |
| |
8 |
17.447 NUT; STOPPER BOLT
RR BODY FLAT BED(RS6)
(A)
M10
|
8-97590-493-0 |
02 |
1 |
1111- |
● |
● |
| |
8 |
17.447 NUT; STOPPER BOLT
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
(B)
M10
|
8-98045-227-0 |
02 |
1 |
0803-1110 |
● |
|
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
05.816
(B)
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0803-1110 |
● |
|
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
17.455
(A)
M10 FLANGE
|
8-97065-439-0 |
08 |
1 |
0803-0803 |
● |
|
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
17.455
(A)
M10 FLANGE
|
8-97065-439-0 |
08 |
1 |
0804-0912 |
● |
|
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6)
17.455
(A)
M10 FLANGE
|
8-97065-439-0 |
08 |
1 |
0804-0912 |
|
● |
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.085
(A)
M10 FLANGE
|
0-91180-210-0 |
08 |
1 |
1001-1110 |
● |
|
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6)
04.085
(A)
M10 FLANGE
|
0-91180-210-0 |
08 |
1 |
1001-1110 |
|
● |
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6)
04.085
(A)
M10 FLANGE
|
0-91180-210-0 |
08 |
1 |
1111- |
● |
● |
| |
12 |
17.455 NUT; GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
17.447
(A)
M8 FLANGE
|
8-94193-939-2 |
04 |
1 |
0803-0803 |
● |
|
| |
12 |
17.455 NUT; GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
17.447
(A)
M8 FLANGE
|
8-94193-939-2 |
04 |
1 |
0804-1110 |
● |
|
| |
12 |
17.455 NUT; GUARD FRAME
RR BODY FLAT BED(RS6)
17.447
(A)
M8 FLANGE
|
8-94193-939-2 |
04 |
1 |
0804-1110 |
|
● |
| |
12 |
17.455 NUT; GUARD FRAME
RR BODY FLAT BED(RS6)
17.447
(A)
M8 FLANGE
|
8-94193-939-2 |
04 |
1 |
1111- |
● |
● |
| |
12 |
17.455 NUT; GUARD FRAME
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
16.682
(B)
M8 LOCK NUT FLANGE
|
0-91380-008-0 |
05 |
1 |
0803-1110 |
● |
|
| |
17 |
17.455 HOOK; GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97593-683-0 |
02 |
1 |
0803-0803 |
● |
|
| |
17 |
17.455 HOOK; GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97593-683-0 |
02 |
1 |
0804-1110 |
● |
|
| |
17 |
17.455 HOOK; GUARD FRAME
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-683-0 |
02 |
1 |
0804-1110 |
|
● |
| |
17 |
17.455 HOOK; GUARD FRAME
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-683-0 |
02 |
1 |
1111- |
● |
● |
| |
19 |
17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
M8X20
|
8-94193-942-2 |
04 |
1 |
0803-0803 |
● |
|
| |
19 |
17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
M8X20
|
8-94193-942-2 |
04 |
1 |
0804-1110 |
● |
|
| |
19 |
17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY FLAT BED(RS6)
M8X20
|
8-94193-942-2 |
04 |
1 |
0804-1110 |
|
● |
| |
19 |
17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY FLAT BED(RS6)
M8X20
|
8-94193-942-2 |
04 |
1 |
1111- |
● |
● |
| |
37 |
17.455 BOLT; GUARD FRAME
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
(B) SCREW
M8X25 PABCO
|
8-98030-412-0 |
05 |
1 |
0803-1110 |
● |
|
| |
37 |
17.455 BOLT; GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A) SCREW
M8X26
|
8-97065-436-0 |
05 |
1 |
0803-0803 |
● |
|
| |
37 |
17.455 BOLT; GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A) SCREW
M8X26
|
8-97065-436-0 |
05 |
1 |
0804-1110 |
● |
|
| |
37 |
17.455 BOLT; GUARD FRAME
RR BODY FLAT BED(RS6)
(A) SCREW
M8X26
|
8-97065-436-0 |
05 |
1 |
0804-1110 |
|
● |
| |
37 |
17.455 BOLT; GUARD FRAME
RR BODY FLAT BED(RS6)
(A) SCREW
M8X26
|
8-97065-436-0 |
05 |
1 |
1111- |
● |
● |
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97593-639-1 |
02 |
1 |
0803-0803 |
● |
|
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97593-639-1 |
02 |
1 |
0804-1110 |
● |
|
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97593-639-1 |
02 |
1 |
0804-1110 |
|
● |
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97593-639-1 |
02 |
1 |
1111- |
● |
● |
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
(B)
PABCO
|
8-98045-206-0 |
02 |
1 |
0803-1110 |
● |
|
| |
57 |
17.400 BOARD; HEADER
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-741-0 |
01 |
1 |
0803-0803 |
● |
|
| |
57 |
17.400 BOARD; HEADER
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97594-741-0 |
01 |
1 |
0804-1110 |
● |
|
| |
57 |
17.400 BOARD; HEADER
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97594-741-0 |
01 |
1 |
0804-1110 |
|
● |
| |
57 |
17.400 BOARD; HEADER
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97594-741-1 |
01 |
1 |
1111- |
● |
● |
| |
57 |
17.400 BOARD; HEADER
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
(B)
PABCO
|
8-98045-229-2 |
01 |
1 |
0803-1110 |
● |
|
| |
58 |
17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-94194-452-0 |
02 |
1 |
0803-0803 |
● |
|
| |
58 |
17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-94194-452-0 |
02 |
1 |
0804-1110 |
● |
|
| |
58 |
17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-452-0 |
02 |
1 |
0804-1110 |
|
● |
| |
58 |
17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-452-0 |
02 |
1 |
1111- |
● |
● |
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-94194-453-0 |
01 |
1 |
0803-0803 |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-94194-453-0 |
01 |
1 |
0804-1110 |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-453-0 |
01 |
1 |
0804-1110 |
|
● |
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-453-0 |
01 |
1 |
1111- |
● |
● |
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-94194-454-0 |
01 |
1 |
0803-0803 |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-94194-454-0 |
01 |
1 |
0804-1110 |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-454-0 |
01 |
1 |
0804-1110 |
|
● |
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-454-0 |
01 |
1 |
1111- |
● |
● |
| |
60 |
17.455 SCREW; BOARD
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
M8X30 TAKADA
|
8-94193-938-3 |
04 |
1 |
0803-0803 |
● |
|
| |
60 |
17.455 SCREW; BOARD
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
M8X30 TAKADA
|
8-94193-938-3 |
04 |
1 |
0804-1110 |
● |
|
| |
60 |
17.455 SCREW; BOARD
RR BODY FLAT BED(RS6)
(A)
M8X30 TAKADA
|
8-94193-938-3 |
04 |
1 |
0804-1110 |
|
● |
| |
60 |
17.455 SCREW; BOARD
RR BODY FLAT BED(RS6)
(A)
M8X30 TAKADA
|
8-94193-938-3 |
04 |
1 |
1111- |
● |
● |
| |
60 |
17.455 SCREW; BOARD
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
(B)
M8X25 PABCO
|
8-98030-412-0 |
05 |
1 |
0803-1110 |
● |
|
| |
69 |
17.455 SETTING PLATE; LOCK HANDLE
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97591-976-0 |
02 |
1 |
0803-0803 |
● |
|
| |
69 |
17.455 SETTING PLATE; LOCK HANDLE
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
TAKADA
|
8-97591-976-0 |
02 |
1 |
0804-1110 |
● |
|
| |
69 |
17.455 SETTING PLATE; LOCK HANDLE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97591-976-0 |
02 |
1 |
0804-1110 |
|
● |
| |
69 |
17.455 SETTING PLATE; LOCK HANDLE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97591-976-0 |
02 |
1 |
1111- |
● |
● |
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97592-598-0 |
02 |
1 |
0803-0803 |
● |
|
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
TAKADA
|
8-97592-598-0 |
02 |
1 |
0804-1110 |
● |
|
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97592-598-0 |
02 |
1 |
0804-1110 |
|
● |
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97592-598-0 |
02 |
1 |
1111- |
● |
● |
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
RR BODY FLAT BED(RS6)
FRAME STRAIGHT TYPE<7KJ>
(B)
PABCO
|
5-87580-001-0 |
02 |
1 |
0803-1110 |
● |
|
| |
71 |
17.204 PIECE; END,FRT HANDLE
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
17.615
ID=12
|
9-61203-650-0 |
02 |
1 |
0803-0803 |
● |
|
| |
71 |
17.204 PIECE; END,FRT HANDLE
RR BODY FLAT BED(RS6)
EXC. FRAME STRAIGHT TYPE<7KJ>
17.615
ID=12
|
9-61203-650-0 |
02 |
1 |
0804-1110 |
● |
|
| |
71 |
17.204 PIECE; END,FRT HANDLE
RR BODY FLAT BED(RS6)
17.615
ID=12
|
9-61203-650-0 |
02 |
1 |
0804-1110 |
|
● |
| |
71 |
17.204 PIECE; END,FRT HANDLE
RR BODY FLAT BED(RS6)
17.615
ID=12
|
9-61203-650-0 |
02 |
1 |
1111- |
● |
● |
