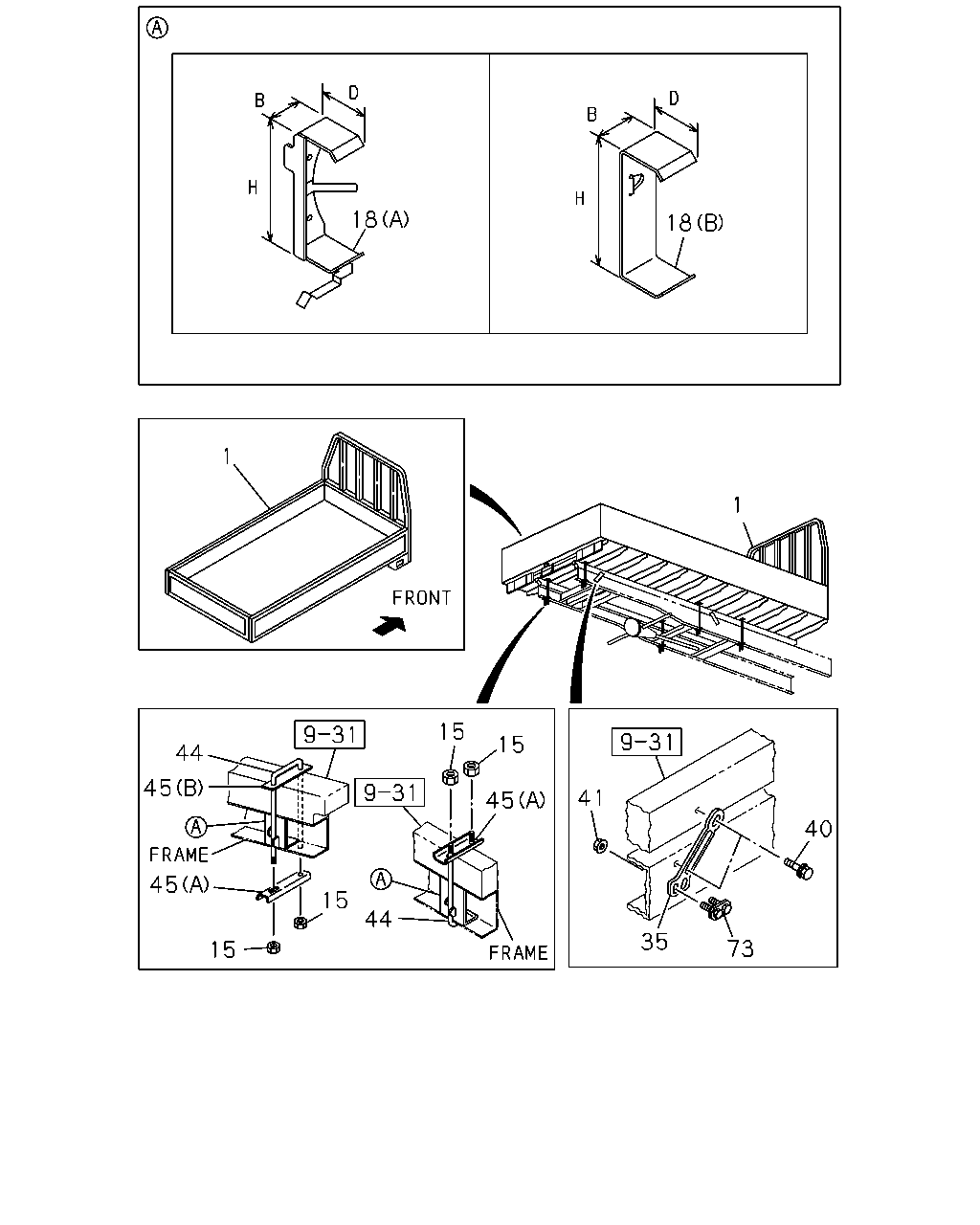

9-30 — REAR BODY ASM AND MOUNTING (#81501) — 46 parça

18 18 1 1 15 15 44 45 41 45 40 45 15 44 35 73 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.090 BODY ASM; REAR WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97414-508-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3300MM(33W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED(RS6) LIGHT GRAY	8-97414-652-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3300MM(33W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) BLUE	8-97414-509-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> WHITE	8-97414-514-0	01	1	0803-1110	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> WHITE	8-97416-018-0	01	1	1111-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> WHITE	8-97414-510-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> LIGHT GRAY	8-97414-655-0	01	1	0803-1110	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> LIGHT GRAY	8-97416-019-0	01	1	1111-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> LIGHT GRAY	8-97414-653-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> BLUE	8-97414-515-0	01	1	0803-1110	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> BLUE	8-97416-020-0	01	1	1111-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> BLUE	8-97414-511-2	01	1	0803-	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97414-512-2	01	1	0804-		●
1	17.090 BODY ASM; REAR BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) BLUE	8-97414-513-2	01	1	0804-		●
1	17.090 BODY ASM; REAR WHEEL BASE 3300MM(33W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97417-336-2	01	1	0904-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> BLUE	8-97417-339-0	01	1	0904-1110	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> BLUE	8-97417-359-0	01	1	1111-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3800MM(38W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> BLUE	8-97417-337-2	01	1	0904-	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97417-338-2	01	1	0904-		●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED(RS6) 06.008 M14	9-09130-414-0	12	1	0803-0803	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED(RS6) 06.008 M14	9-09130-414-0	12	1	0804-	●	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> (B) H=204 B=50 D=72	8-97362-217-0	04	1	0803-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) H=196 B=40 D=72	8-98047-120-1	01	1	0803-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) (B) H=164 B=50 D=72	8-97362-218-0	02	1	0803-0803	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) (B) H=164 B=50 D=72	8-97362-218-0	02	1	0804-	●	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) H=204 B=50 D=72	8-97362-217-0	03	1	0803-0803	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) H=204 B=50 D=72	8-97362-217-0	03	1	0804-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) (B) H=204 B=50 D=72	8-97362-217-0	03	1	0804-		●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) (A) H=205.5 B=40 D=72	8-97368-028-0	01	1	0804-		●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED(RS6)	8-98030-398-2	04	1	0803-0803	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED(RS6)	8-98030-398-2	04	1	0804-	●	●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED(RS6)	8-97189-615-0	04	1	0803-0803	●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED(RS6)	8-97189-615-0	04	1	0804-	●	●
41	17.447 NUT; STOPPER TO RR BODY RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	0803-0803	●
41	17.447 NUT; STOPPER TO RR BODY RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	0804-	●	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=400	1-66900-255-0	04	1	0803-0803	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=400	1-66900-255-0	04	1	0804-	●	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=365	1-66900-460-0	02	1	0803-0803	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=365	1-66900-460-0	02	1	0804-	●	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> (B) L=123 B=35	8-98047-139-0	06	1	0803-	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=123 B=35	8-98047-139-0	05	1	0803-	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) (A) L=135 B=50	9-61208-235-0	06	1	0803-0803	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) (A) L=135 B=50	9-61208-235-0	06	1	0804-	●	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) (B) L=123 B=35	8-98047-139-0	02	1	0804-		●
73	03.690 PLATE; STUD BOLT RR BODY FLAT BED(RS6)	8-98047-322-0	04	1	0803-0803	●
73	03.690 PLATE; STUD BOLT RR BODY FLAT BED(RS6)	8-98047-322-0	04	1	0804-	●	●
