◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51355 - NPR/NQR(MIDDLE EAST) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#81500) — 161 parça
çizim 14430
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0804- ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0804- ●

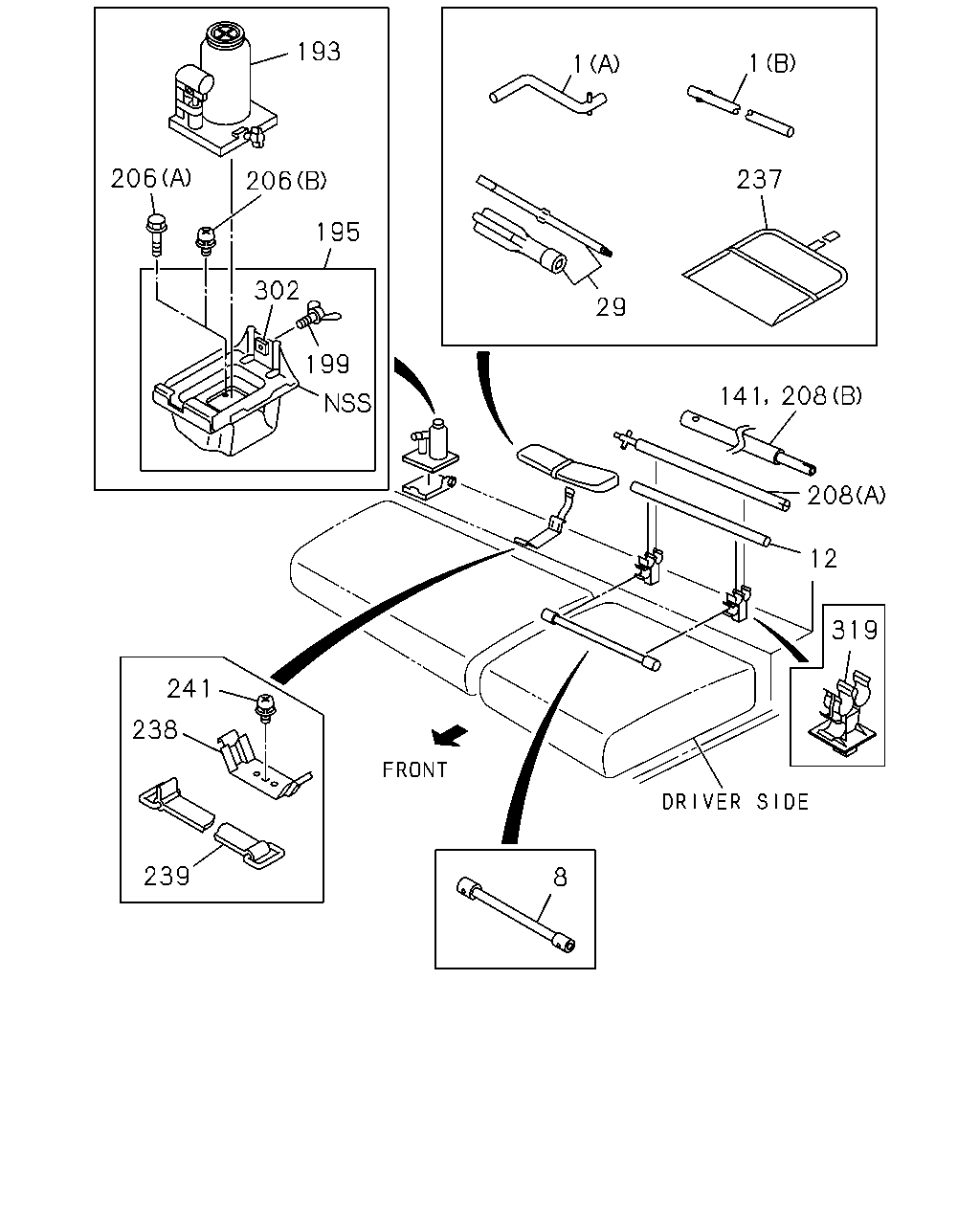

çizim 14600
193 1 1 206 237 206 195 302 29 199 208 141 208 12 319 241 238 239 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 0803- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) (A) 		8-97218-985-0 01 1 0803- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0803-0803 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0803-0803 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280 		1-85515-007-0 01 1 0803-0803 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3800MM(38W) 08.821 (B) L=280 		1-85515-007-0 01 1 0803-0803 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0804-0808 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0804-0808 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280 		1-85515-007-0 01 1 0804-0808 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3800MM(38W) 08.821 (B) L=280 		1-85515-007-0 01 1 0804-0808 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0804-0808 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0809-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0809-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0809-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0809-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3800MM(38W) 08.821 (B) L=280 		1-85515-007-0 01 1 0809-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0809-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3800MM(38W) (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1109- ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128(CNY),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5 -16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP), FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMI C(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) B=41X21 L=440 		1-85113-015-1 01 1 0803-0803 ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) B=41X21 L=440 		1-85113-015-1 01 1 0803-0803 ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 215/75R17.5 17.5 X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) B=41X21 L=440 		1-85113-015-1 01 1 0803-0803 ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) B=41X21 L=440 		1-85113-015-1 01 1 0803-0803 ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 215/75R17.5 17.5 X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) B=41X21 L=440 		1-85113-015-1 01 1 0803-0803 ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) B=41X21 L=440 		1-85113-015-1 01 1 0803-0803 ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 215/75R17.5 17.5 X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) B=41X21 L=440 		1-85113-015-1 01 1 0804-0809 ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) B=41X21 L=440 		1-85113-015-1 01 1 0804-0809 ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT G ULF(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) B=41X21 L=440 		1-85113-015-1 01 1 0804-0809 ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 215/75R17.5 17.5 X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) B=41X21 L=440 		1-85113-015-1 01 1 0810-0810 ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ) B=41X21 L=440 		1-85113-015-1 01 1 0810-0810 ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT G ULF(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) B=41X21 L=440 		1-85113-015-1 01 1 0810-0810 ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 215/75R17.5 17.5 X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) B=41X21 L=440 		1-85113-015-1 01 1 0811-1007 ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) B=41X21 L=440 		1-85113-015-1 01 1 0811-1007 ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT G ULF(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) B=41X21 L=440 		1-85113-015-1 01 1 0811-1007 ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 215/75R17.5 17.5 X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) B=41X21 L=440 		1-85113-015-1 01 1 1008- ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127 GULF(CWD) B=41X21 L=440 		1-85113-015-1 01 1 1008- ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT G ULF(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) B=41X21 L=440 		1-85113-015-1 01 1 1008- ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5R-16-12 DISC 6GSX16-127 GULF(BUN) B=41X19 L=330 		8-94386-490-1 01 1 0803-0803 ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7. 5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-126GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16 -127(14H),FRT&RR 7.5R-16-12 DISC 6GSX16-127(19H),FRT&RR 7-16-10 16X5.5F-115 T/VL V TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H) B=41X19 L=330 		8-94386-490-1 01 1 0803-0809 ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.5-16-10 6GSX16-127(CUV), FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7.5R-16-12 6GSX16-127 5-WHL/NUT(CVH),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 DISC 6GSX16-127(19H) B=41X19 L=330 		8-94386-490-1 01 1 0810- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-97332-988-0 01 1 0803-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=590 		8-97332-988-0 01 1 0803-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,FRAME STRAIGHT TYPE<7KJ> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0803-0803 ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0804- ● ● ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		1-85515-005-1 01 1 0804-1108 ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		8-98181-249-0 01 1 1109- ●
193 08.820 JACK ASM
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 7.5R-16-12 DISC 6GSX16-127 GULF(BUN),FRT&RR 225/85R16 16X6K-128(CNY),FRT&RR 7.5R-16-14 DISC 6.00 GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX 16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5- 16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUTDYNAMIC(97V) 5TON 		8-97371-124-0 01 1 0803-0803 ●
193 08.820 JACK ASM
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 7.5-16-8 6GSX16- 127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&R R 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 DISC 6GSX16-127(19H) 5TON 		8-97371-124-0 01 1 0803-0803 ●
193 08.820 JACK ASM
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H) ,FRT&RR 7.5-16-12 6GSX16-127(12H), FRT&RR7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-1 6-12 DISC 6GSX16-127(19H) 5TON 		8-97371-124-0 01 1 0803-0803 ●
193 08.820 JACK ASM
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H) ,FRT&RR 7.5-16-12 6GSX16-127(12H), FRT&RR7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-1 6-12 DISC 6GSX16-127(19H) 5TON 		8-97371-124-0 01 1 0804-0805 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT G ULF(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) 5TON 		8-97371-124-0 01 1 0804-0805 ●
193 08.820 JACK ASM
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H) ,FRT&RR 7.5-16-12 6GSX16-127(12H), FRT&RR7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-1 6-12 DISC 6GSX16-127(19H) 5TON 		8-98114-047-0 01 1 0806-0809 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT G ULF(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) 5TON 		8-98114-047-0 01 1 0806-0809 ●
193 08.820 JACK ASM
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-10 6GSX16-127(CUV),FRT&RR 7.5R-16-12 6GSX16-127 5- WHL/NUT(CVH),FRT&RR 7.5R-16-12 DISC 6GSX16-127(19H) 5TON 		8-98114-047-0 01 1 0810-1007 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT G ULF(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) 5TON 		8-98114-047-0 01 1 0810-1007 ●
193 08.820 JACK ASM
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-10 6GSX16-127(CUV),FRT&RR 7.5R-16-12 6GSX16-127 5- WHL/NUT(CVH),FRT&RR 7.5R-16-12 DISC 6GSX16-127(19H) 5TON 		8-98114-047-0 01 1 1008- ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127 GUL F(CWD) 5TON 		8-98114-047-0 01 1 1008- ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT G ULF(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) 5TON 		8-98114-047-0 01 1 1008- ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16 16X6K-128(CSC) 4TON 		8-98012-285-0 01 1 0803-0803 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 4TON 		8-98012-285-0 01 1 0803-0803 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7R-16-10 16 X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 4TON 		8-98012-285-0 01 1 0803-0803 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 4TON 		8-98012-285-0 01 1 0803-0803 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 1 6X6K-128 6-WHL/NUT(CUB),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X 5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 4TON 		8-98012-285-0 01 1 0803-0809 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 4TON 		8-98012-285-0 01 1 0803-0809 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 1 6X6K-128 6-WHL/NUT(CUB),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 4TON 		8-98012-285-0 01 1 0810- ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 4TON 		8-98012-285-0 01 1 0810- ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NU T(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) 5TON 		8-97131-077-2 01 1 0803-0805 ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NU T(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) 5TON 		8-98114-045-0 01 1 0806-0809 ●
193 08.820 JACK ASM
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/N UT(CUZ) 5TON 		8-98114-045-0 01 1 0810-0810 ●
195 08.820 BRACKET; JACK 8-98033-737-1 01 1 0803-0805 ● ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 1 6X6K-128 6-WHL/NUT(CUB),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X 5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-98033-737-1 01 1 0806-0808 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 		8-98033-737-1 01 1 0806-0808 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 1 6X6K-128 6-WHL/NUT(CUB),FRT&RR 7R-16-10 16X5.5F-115(07H) 		8-98033-737-1 01 1 0809-0809 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 		8-98033-737-1 01 1 0809-0809 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 1 6X6K-128 6-WHL/NUT(CUB),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 		8-98033-737-2 01 1 0810- ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 		8-98033-737-2 01 1 0810- ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0804-0805 ●
195 08.820 BRACKET; JACK 8-94273-287-7 01 1 0806- ●
195 08.820 BRACKET; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H) ,FRT&RR 7.5-16-12 6GSX16-127(12H), FRT&RR7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-1 6-12 DISC 6GSX16-127(19H) 		8-97589-376-1 01 1 0806-0809 ●
195 08.820 BRACKET; JACK
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NU T(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) 		8-97589-376-1 01 1 0806-0809 ●
195 08.820 BRACKET; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-10 6GSX16-127(CUV),FRT&RR 7.5R-16-12 6GSX16-127 5- WHL/NUT(CVH),FRT&RR 7.5R-16-12 DISC 6GSX16-127(19H) 		8-97589-376-2 01 1 0810-0810 ●
195 08.820 BRACKET; JACK
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/N UT(CUZ) 		8-97589-376-2 01 1 0810-0810 ●
195 08.820 BRACKET; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-10 6GSX16-127(CUV),FRT&RR 7.5R-16-12 6GSX16-127 5- WHL/NUT(CVH),FRT&RR 7.5R-16-12 DISC 6GSX16-127(19H) 		8-97589-376-2 01 1 0811-1007 ●
195 08.820 BRACKET; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-10 6GSX16-127(CUV),FRT&RR 7.5R-16-12 6GSX16-127 5- WHL/NUT(CVH),FRT&RR 7.5R-16-12 DISC 6GSX16-127(19H) 		8-97589-376-2 01 1 1008- ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127 GUL F(CWD) 		8-97589-376-2 01 1 1008- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0803-0805 ● ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 1 6X6K-128 6-WHL/NUT(CUB),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X 5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) M8X50 WING 		8-98005-537-0 01 1 0806-0808 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) M8X50 WING 		8-98005-537-0 01 1 0806-0808 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 1 6X6K-128 6-WHL/NUT(CUB),FRT&RR 7R-16-10 16X5.5F-115(07H) M8X50 WING 		8-98005-537-0 01 1 0809-0809 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) M8X50 WING 		8-98005-537-0 01 1 0809-0809 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 1 6X6K-128 6-WHL/NUT(CUB),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) M8X50 WING 		8-98005-537-0 01 1 0810- ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) M8X50 WING 		8-98005-537-0 01 1 0810- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0804-0805 ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0806- ●
199 08.820 BOLT; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H) ,FRT&RR 7.5-16-12 6GSX16-127(12H), FRT&RR7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-1 6-12 DISC 6GSX16-127(19H) M8X30 WING 		8-98005-536-0 01 1 0806-0809 ●
199 08.820 BOLT; JACK
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NU T(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M8X30 WING 		8-98005-536-0 01 1 0806-0809 ●
199 08.820 BOLT; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-10 6GSX16-127(CUV),FRT&RR 7.5R-16-12 6GSX16-127 5- WHL/NUT(CVH),FRT&RR 7.5R-16-12 DISC 6GSX16-127(19H) M8X30 WING 		8-98005-536-0 01 1 0810-0810 ●
199 08.820 BOLT; JACK
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/N UT(CUZ) M8X30 WING 		8-98005-536-0 01 1 0810-0810 ●
199 08.820 BOLT; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-10 6GSX16-127(CUV),FRT&RR 7.5R-16-12 6GSX16-127 5- WHL/NUT(CVH),FRT&RR 7.5R-16-12 DISC 6GSX16-127(19H) M8X30 WING 		8-98005-536-0 01 1 0811-1007 ●
199 08.820 BOLT; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GU LF(BQQ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT GULF(BUM),FRT&RR 225/85R16 16X6K- 128 SILVER(CTZ),FRT&RR 7.5-16-10 6GSX16-127(CUV),FRT&RR 7.5R-16-12 6GSX16-127 5- WHL/NUT(CVH),FRT&RR 7.5R-16-12 DISC 6GSX16-127(19H) M8X30 WING 		8-98005-536-0 01 1 1008- ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127 GUL F(CWD) M8X30 WING 		8-98005-536-0 01 1 1008- ●
206 08.820 SCREW; OIL JACK BRKT
06.216 (A) BOLT M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 (B) M6X16 		0-38050-616-0 01 1 0804- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 0803-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 		8-97217-800-0 01 1 0803-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0803-0808 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0803-0808 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 0803-0808 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 0803-0808 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3800MM(38W) (B) L=580 		8-98181-249-0 01 1 1109- ●
237 08.821 BAG; TOOL 8-97130-903-0 01 1 0803-0803 ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0804- ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0803- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0803-0803 ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0804- ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0803- ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 0803- ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0804- ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0803-0803 ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0804- ● ● ●

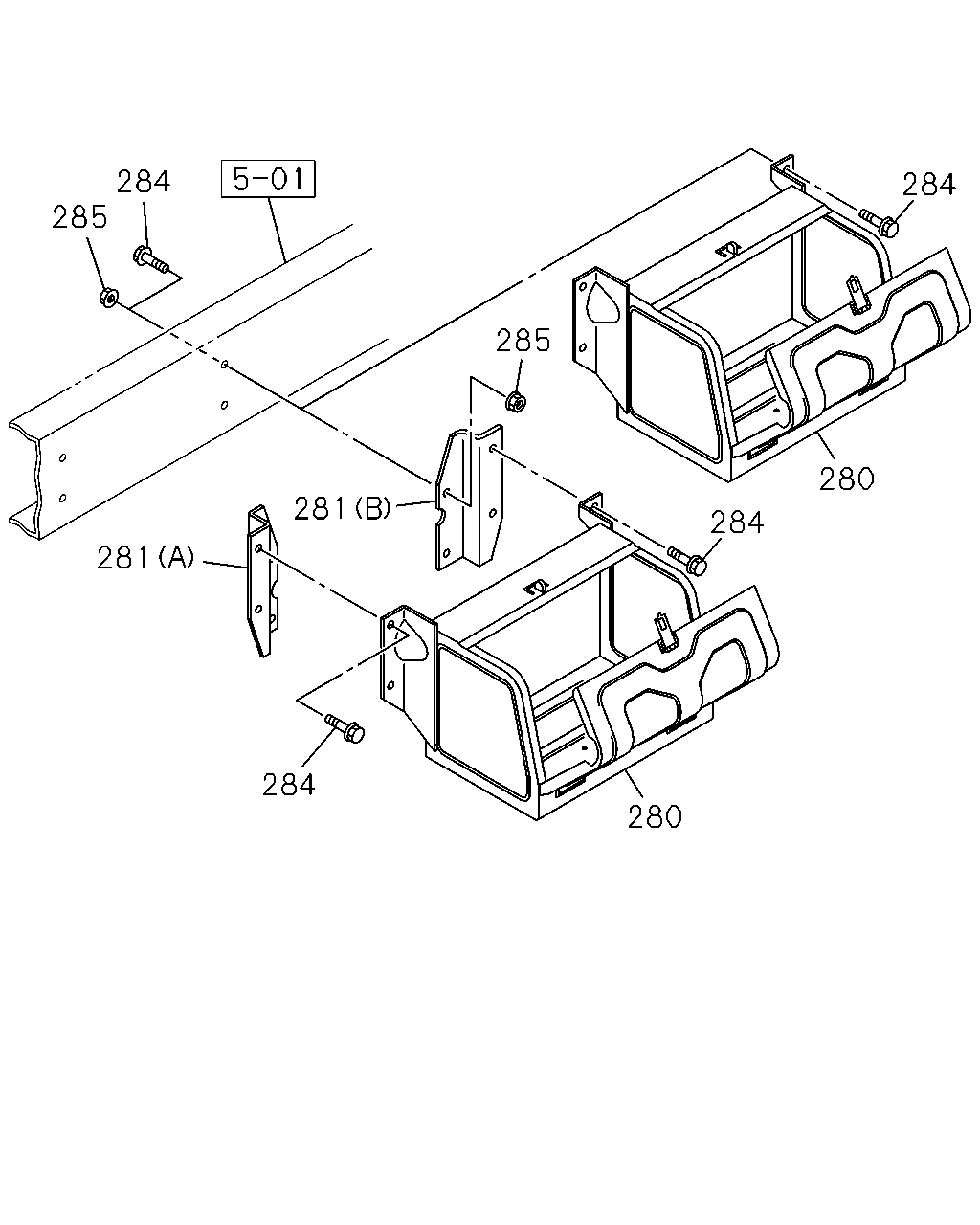

çizim 191701
284 285 284 285 280 281 284 281 284 280
BalonParca AdiParca NoAdetTipApplied Date A B C
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 0803-0803 ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 0804- ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (B) 		8-98045-642-1 01 1 0803-0803 ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (B) 		8-98045-642-1 01 1 0804- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 0804- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (A) 		8-98046-374-1 01 1 0803-0803 ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (A) 		8-98046-374-1 01 1 0804-0901 ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-98046-374-1 01 1 0804-0901 ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (A) 		8-98130-709-0 01 1 0902- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 0902- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0803-0803 ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0803-0803 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0803 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0803 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
